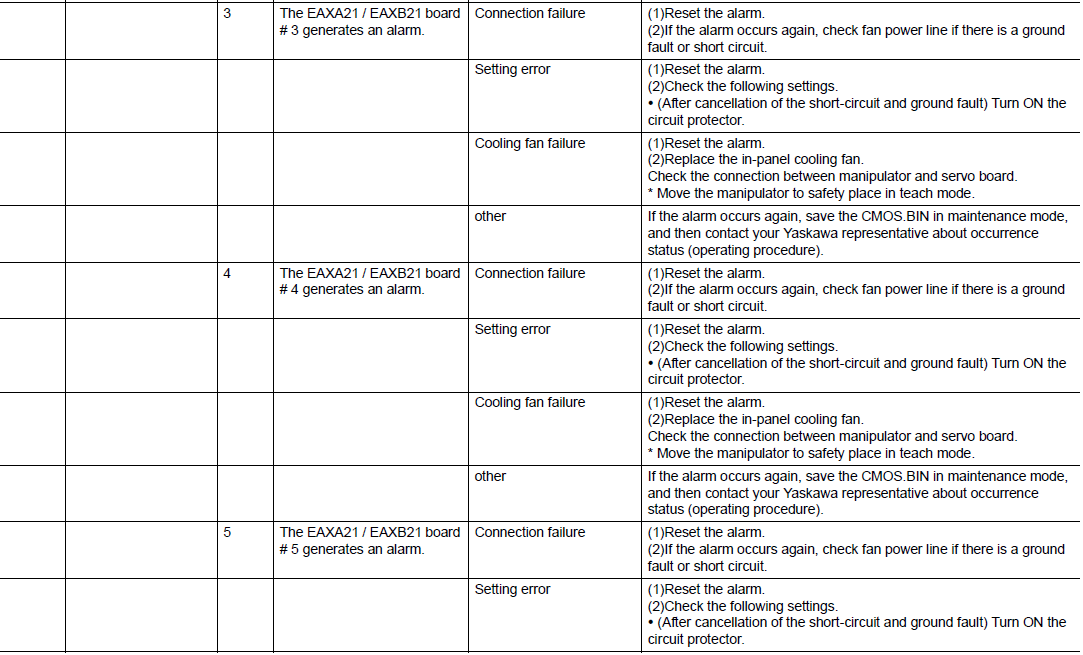

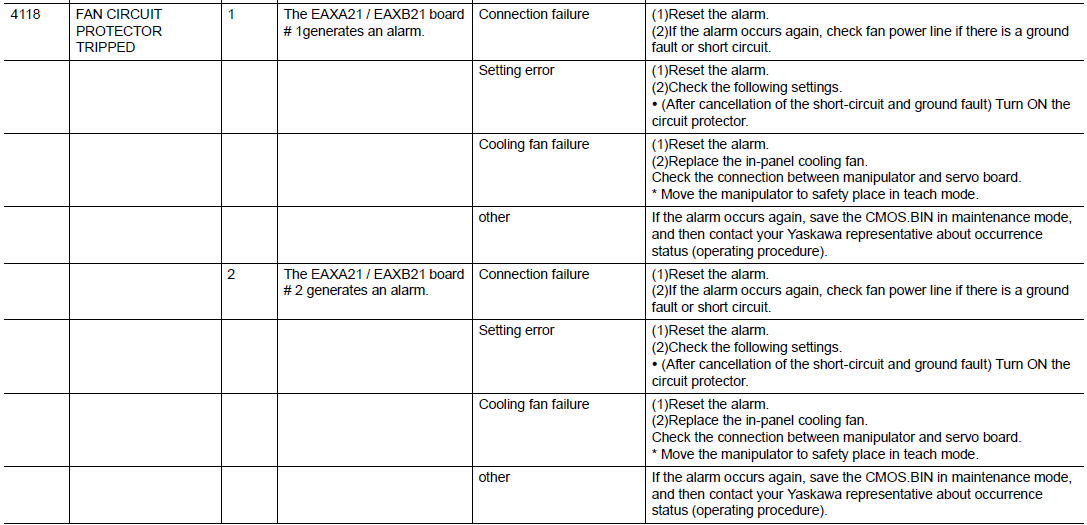

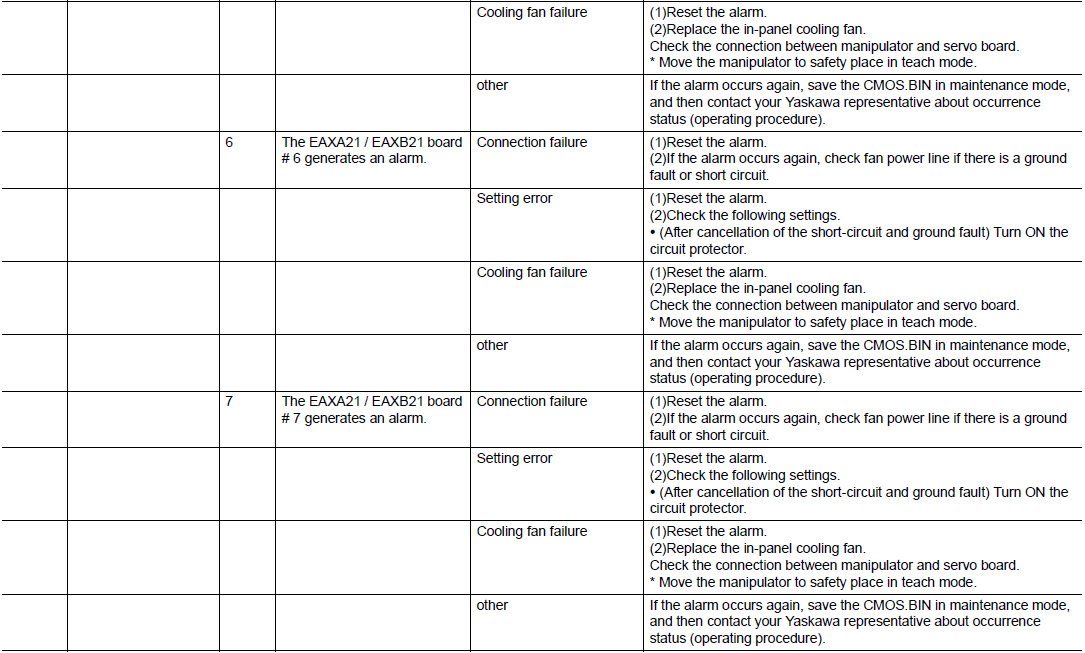

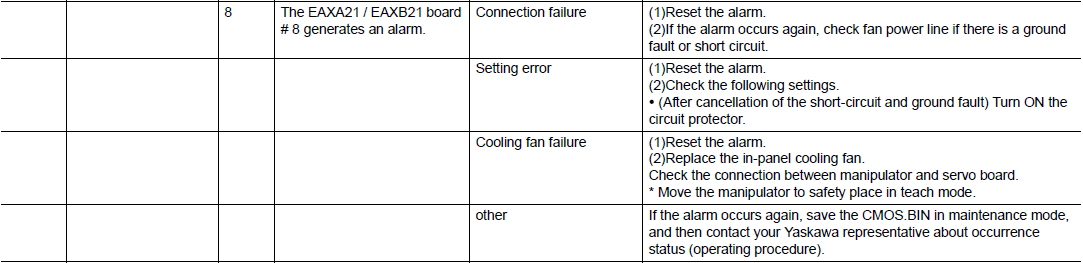

DX200 ALARM CODE 4118 FAN CIRCUIT PROTECTOR TRIPPED

January 03, 2024 15:38
Updated

Most Common Issue: BOARD,PC,SERVO CONTROL,(AXES 1 THRU 6),DX200
