PalletSolver Pattern Specific User Defined Variables

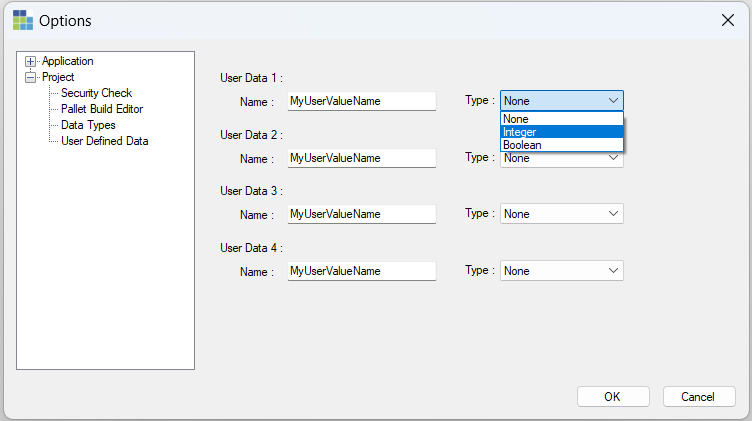

In PalletSolver-PC you can set up to four User Defined variables (Integer or Boolean) for each pattern.

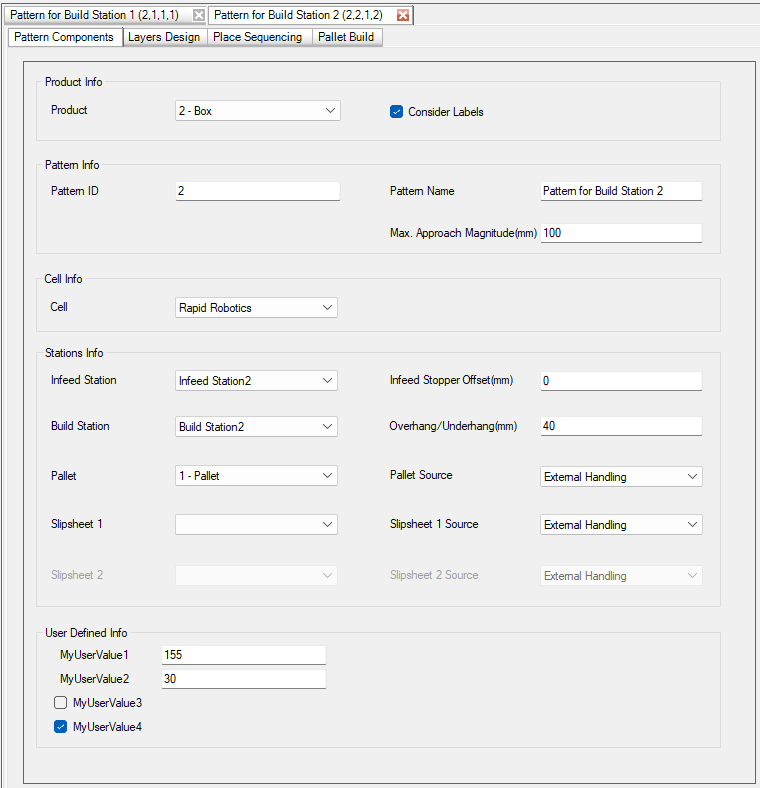

The values for these User Defined variables are set at the bottom of the 'Pattern Components' tab for each pattern.

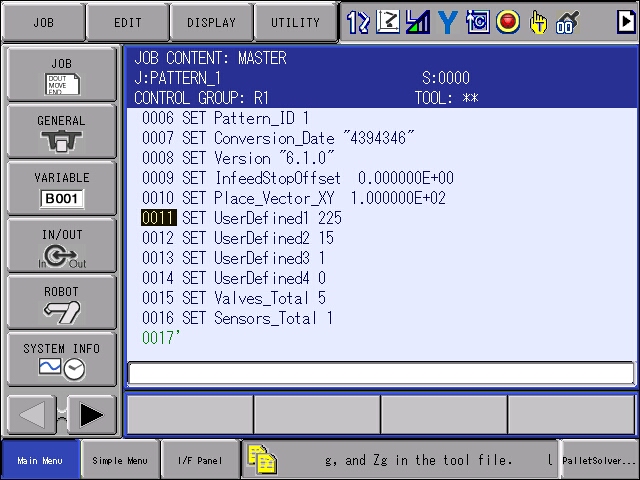

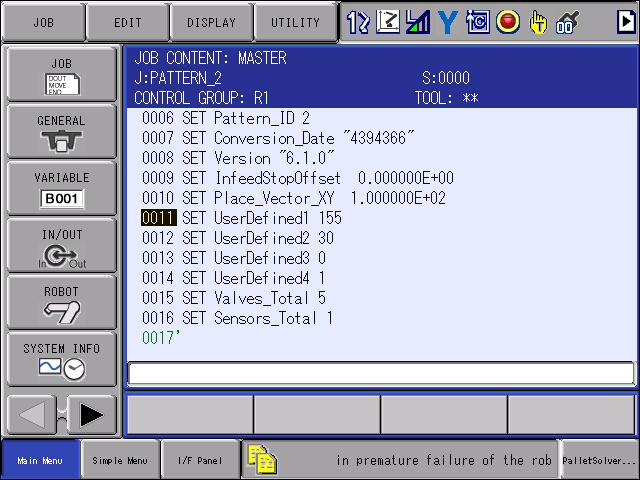

You can see the values of the User Defined Variables inside of the MotoPlus generated Pattern job files.

The values of each pattern's User Defined Variables are set in global integer variables corresponding with its Build Station in the below job.

PLAN_SET_NEW_PATTERN_FILE_DATA.JBI

' *******************************
' Load New Pattern Files
'
FOR Plan_LoopCntr START= 1 TO 8

     '
     ' Set variable addresses for
     ' current Build Station
     SET UserDefined_adr  EXPRESS 110 + ( Plan_LoopCntr - 1 ) * 25

     ' User Define Values
     SET I[UserDefined_adr] UserDefined1
     INC UserDefined_adr
     SET I[UserDefined_adr] UserDefined2
     INC UserDefined_adr
     SET I[UserDefined_adr] UserDefined3
     INC UserDefined_adr
     SET I[UserDefined_adr] UserDefined4
