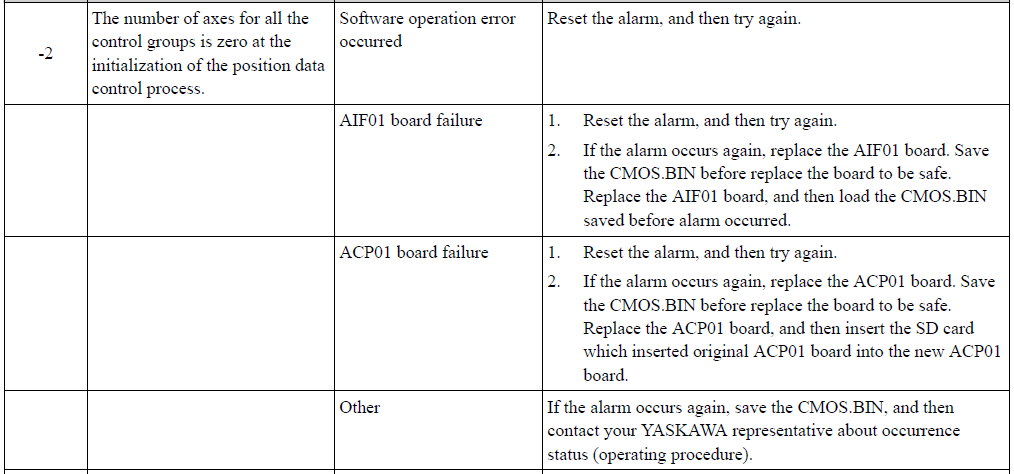

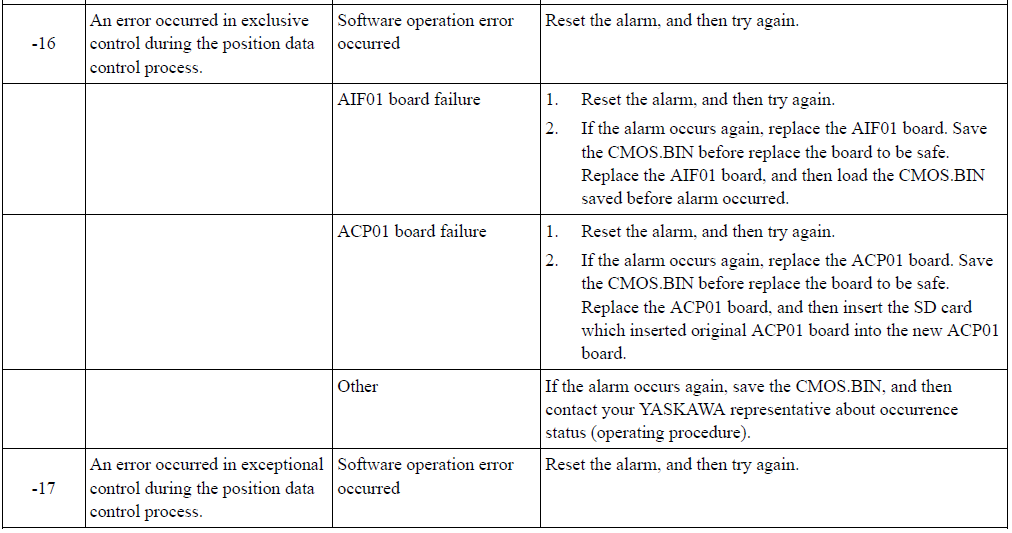

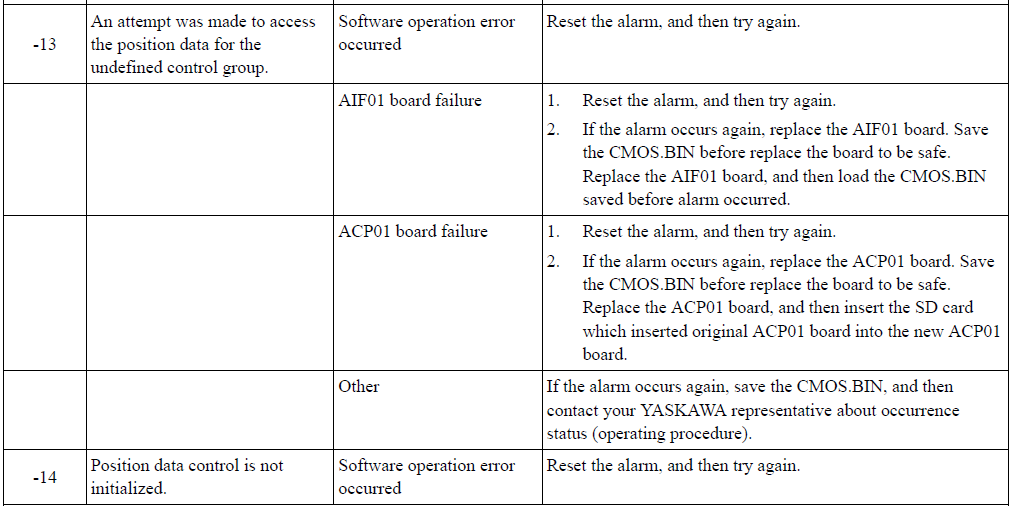

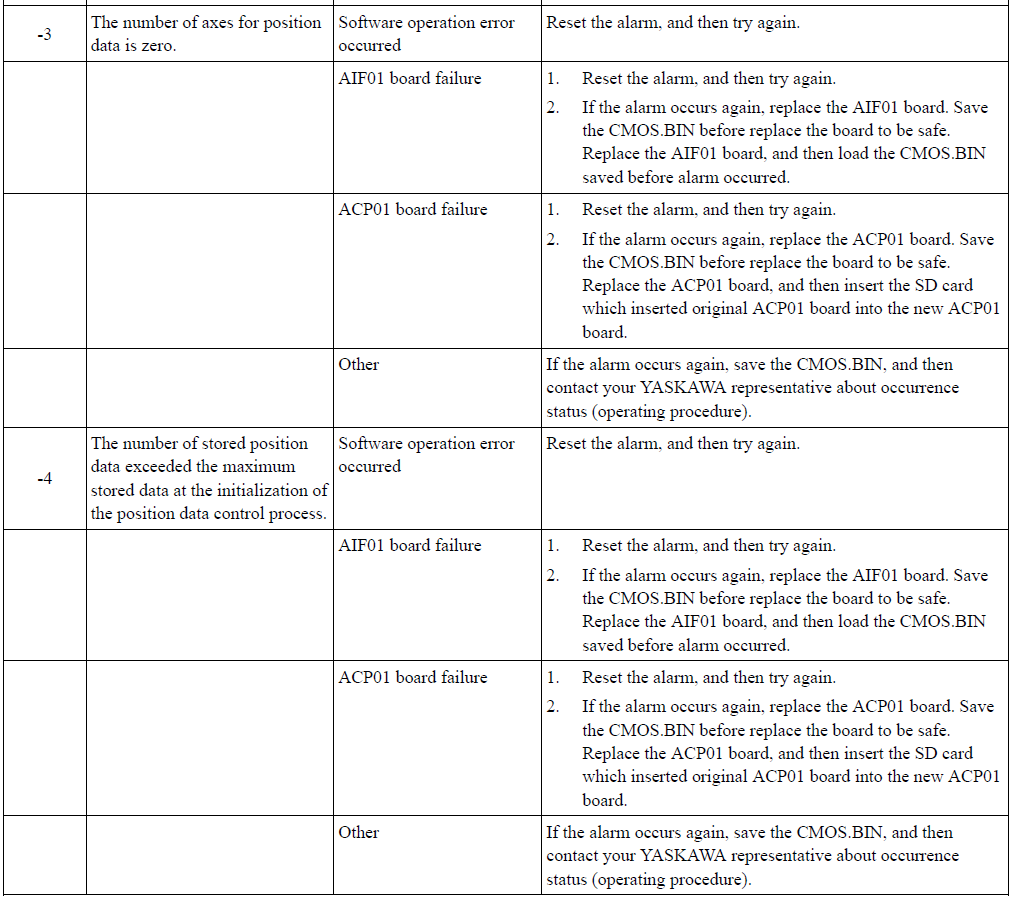

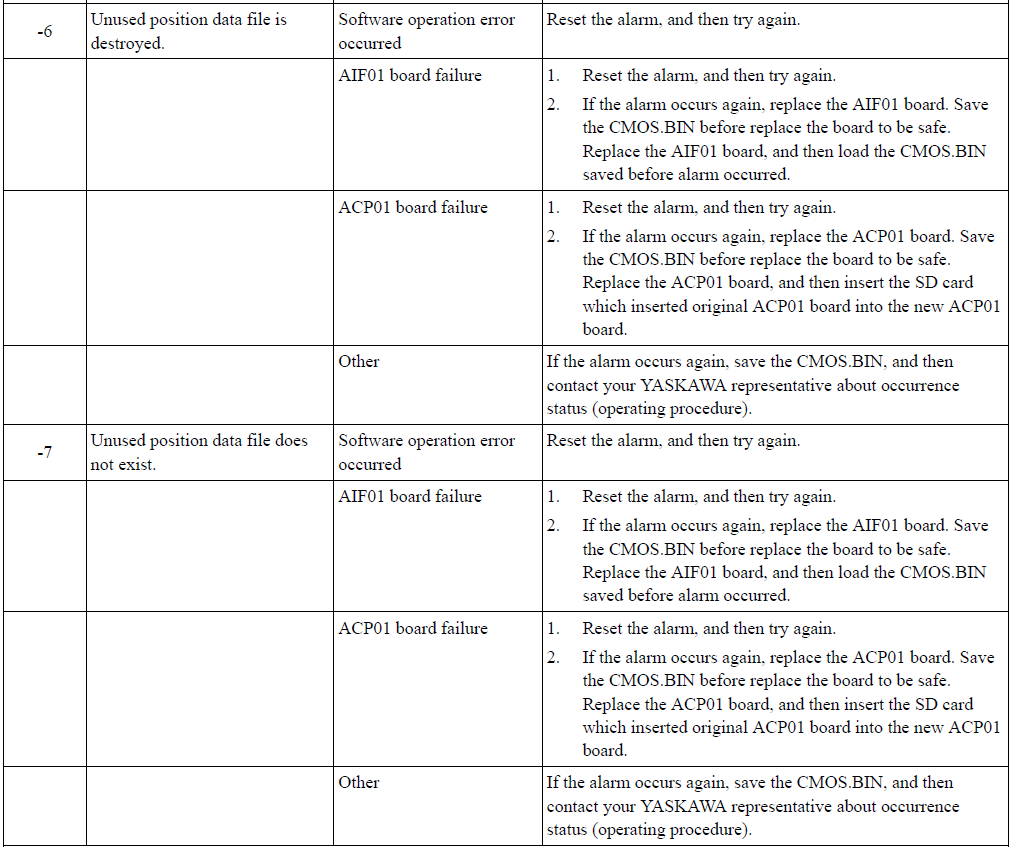

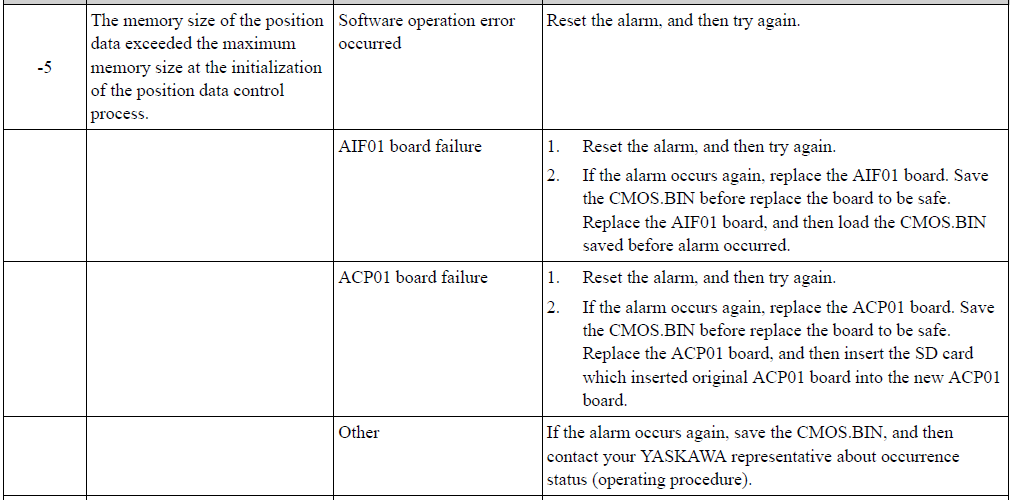

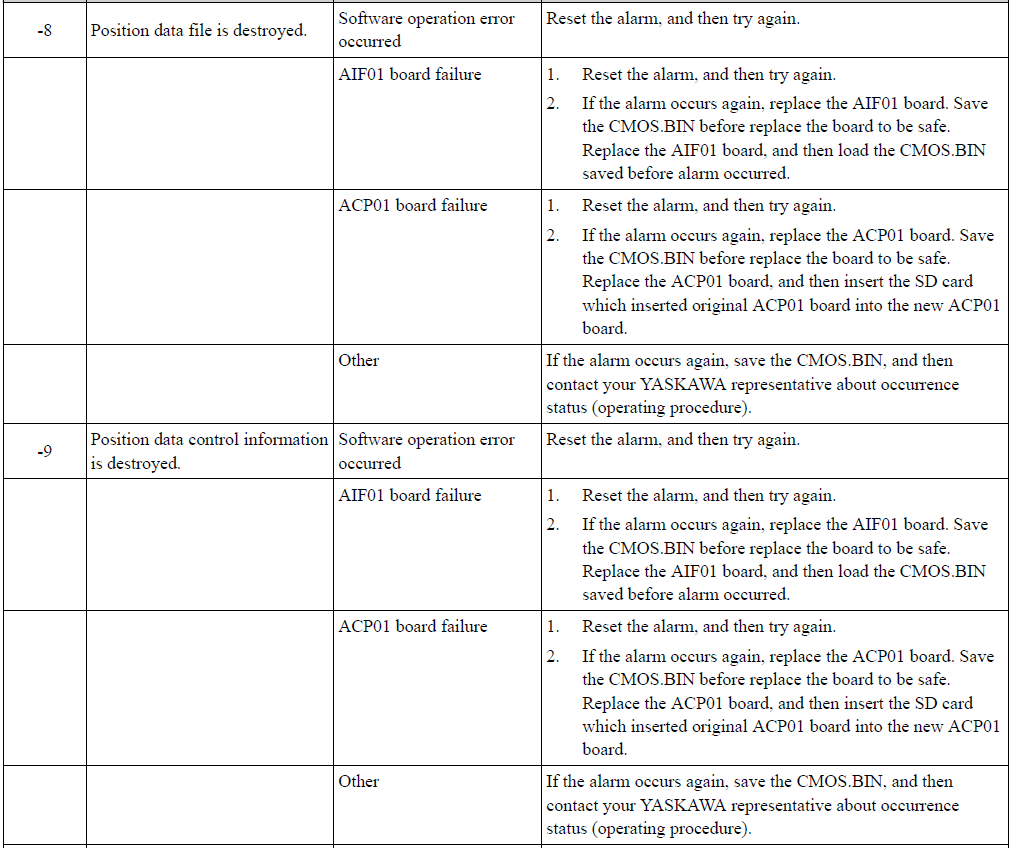

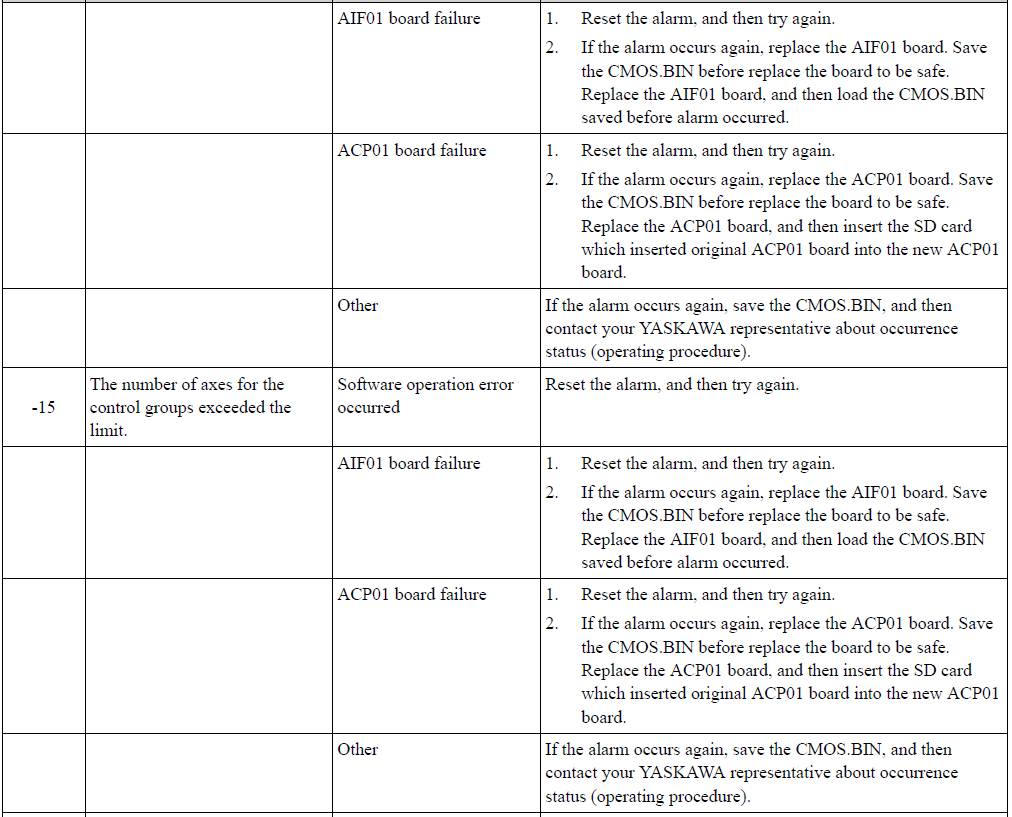

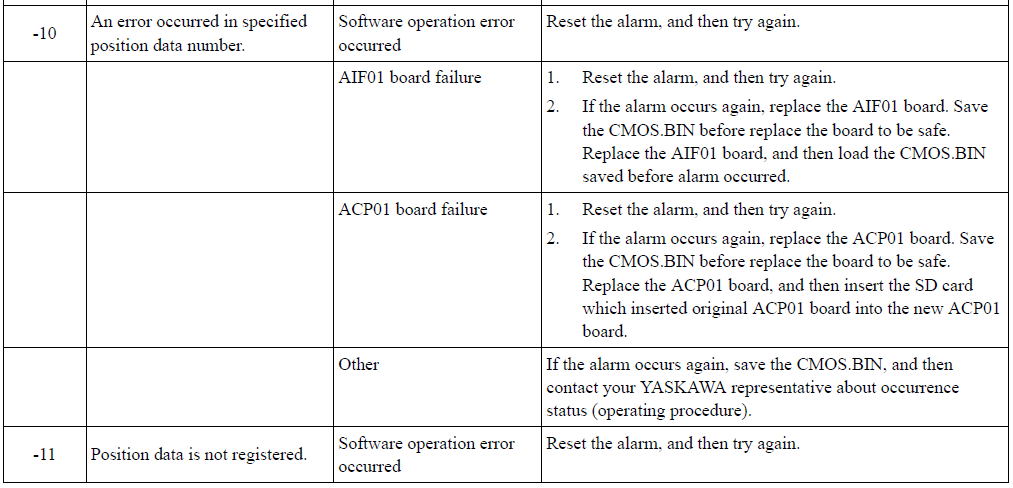

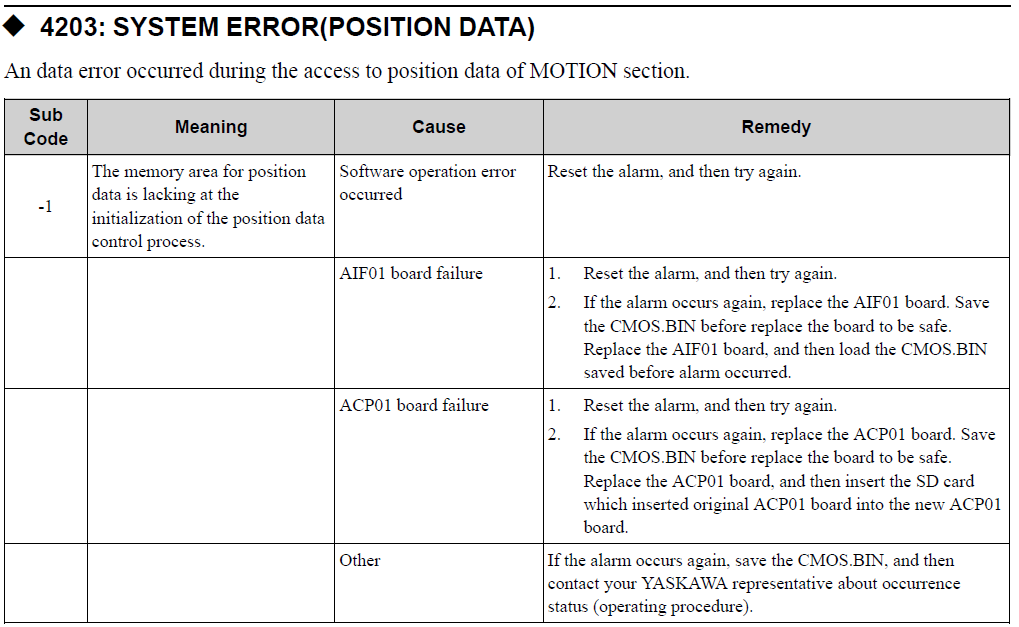

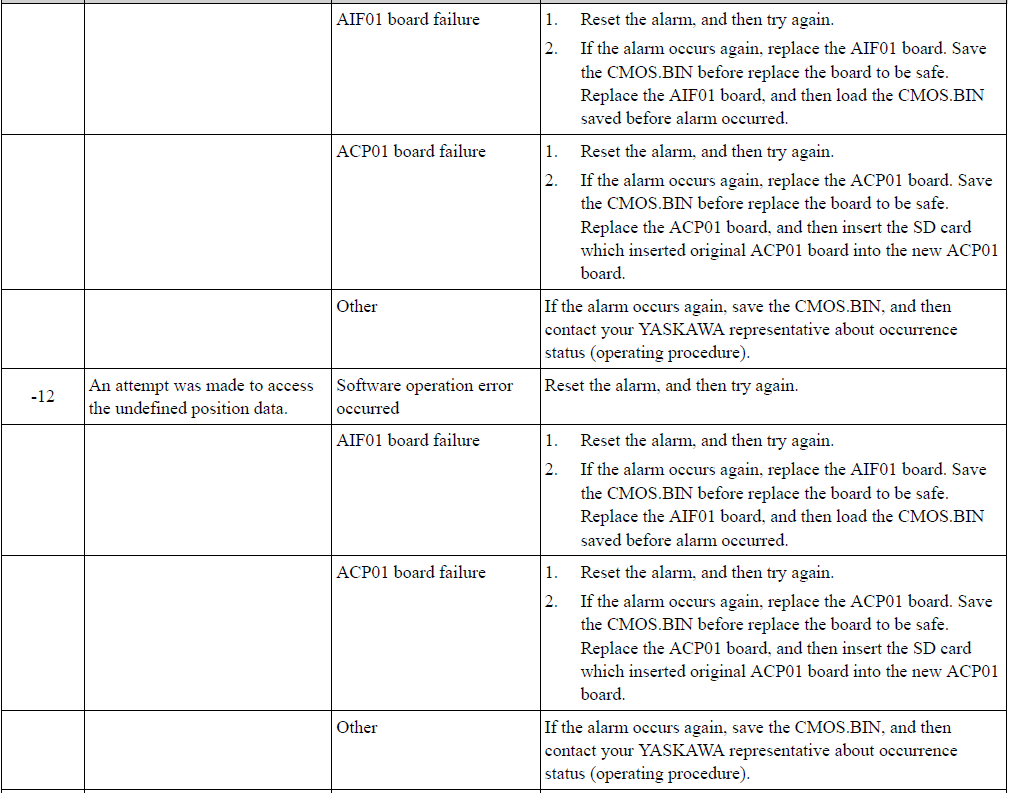

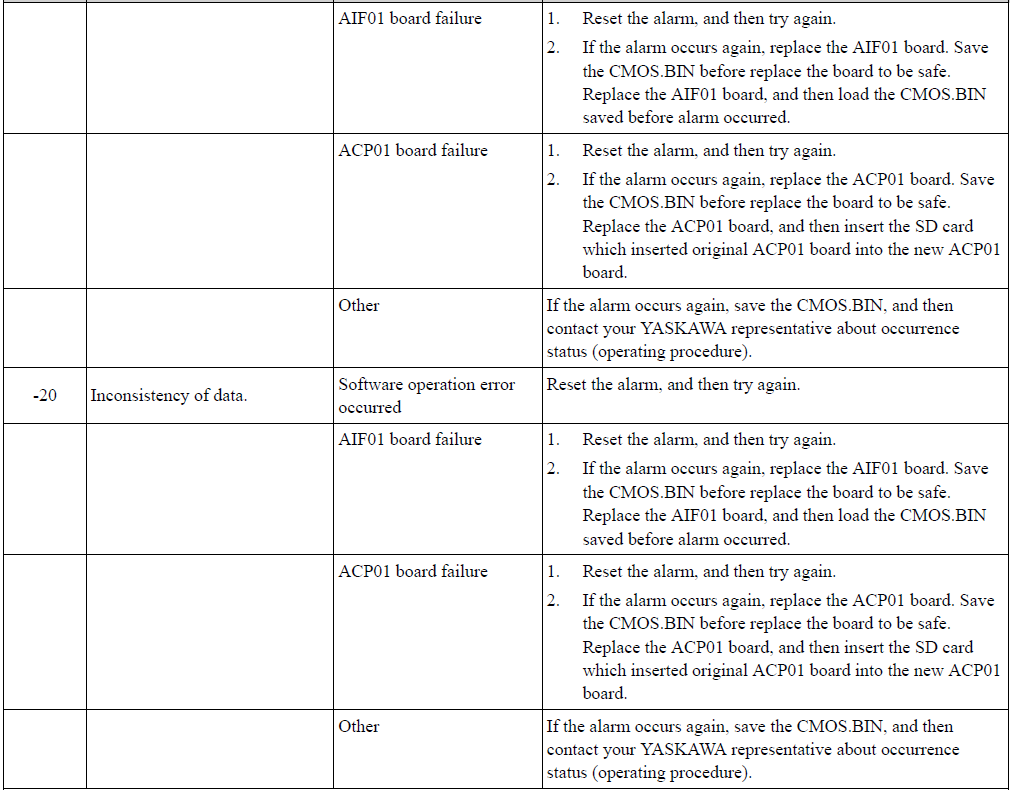

YRC1000 ALARM CODE 4203 SYSTEM ERROR (POSITION DATA)

November 16, 2023 19:22
Updated

Was this article helpful?

0 out of 0 found this helpful
