RobotPro – Web Edition: Change Torque Units for Procedures

RobotPro – Web Edition allows for the torques in procedures to be displayed in four different units: Kilogram Meters (kg-m), Inch Pounds (in-lb), Foot Pounds (ft-lb), and Newton Meters (N-m).

For example, take note of the torques highlighted in Step 3 below:

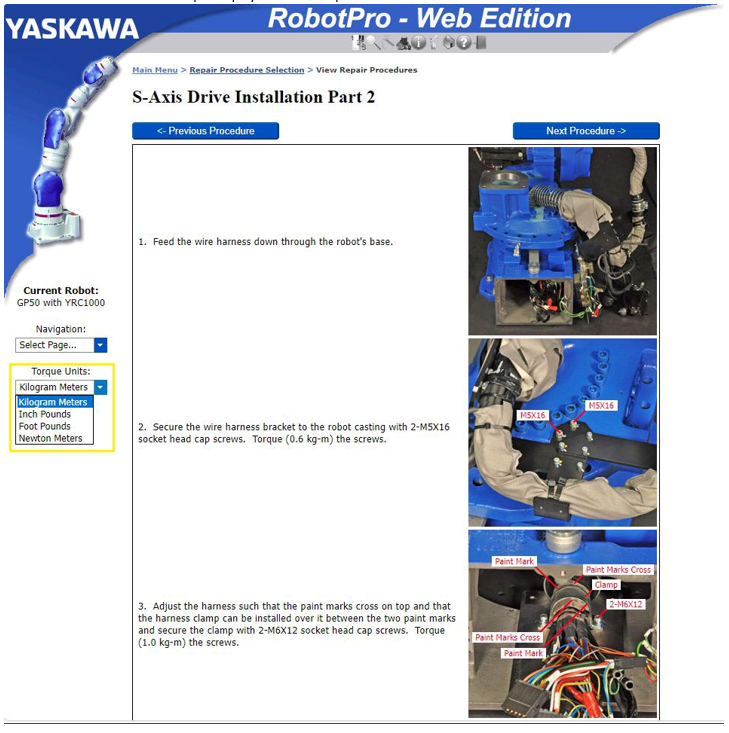

To change the torque display, on the left side of the page, click the down arrow button of the display under the “Torque Units:” header:

Select the new units for the torque display from the drop-down list:

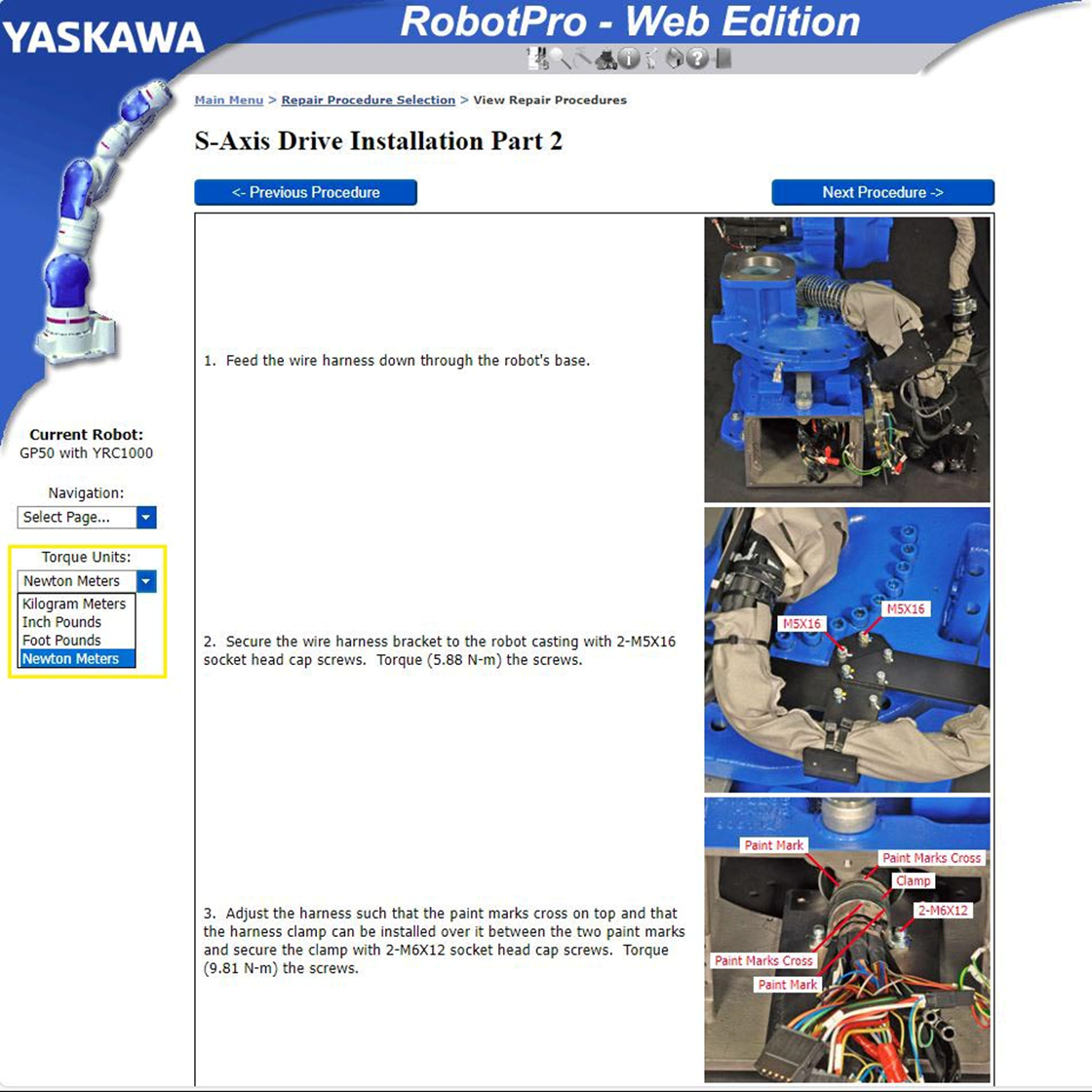

The display of the torques has now updated as highlighted in step 3 below:
