Models Covered:
Materials Needed:

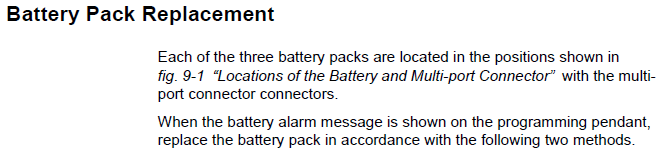

Three batteries are needed for replacement. HW1483880-A, 179528-1

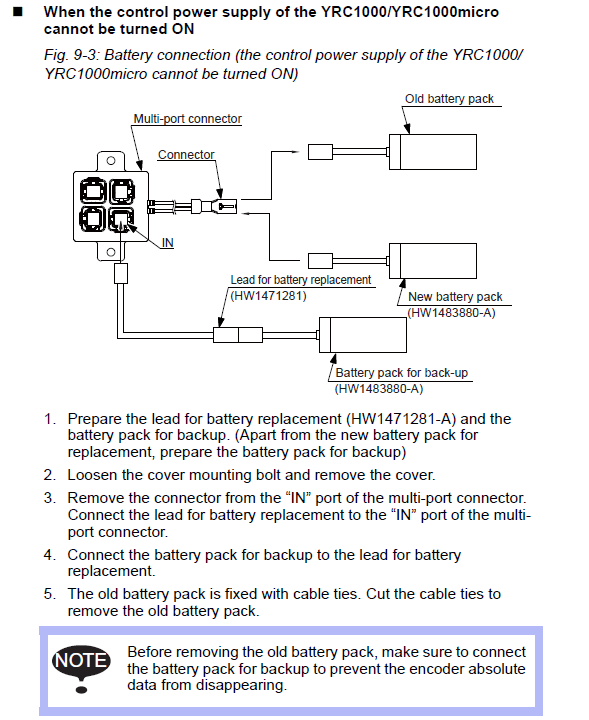

If Batteries have to be changed with power off then a backup lead is needed. HW1471281-A, 179529-1
It is recommended to change the cover gasket after removing a cover for maintenance inside the arm.

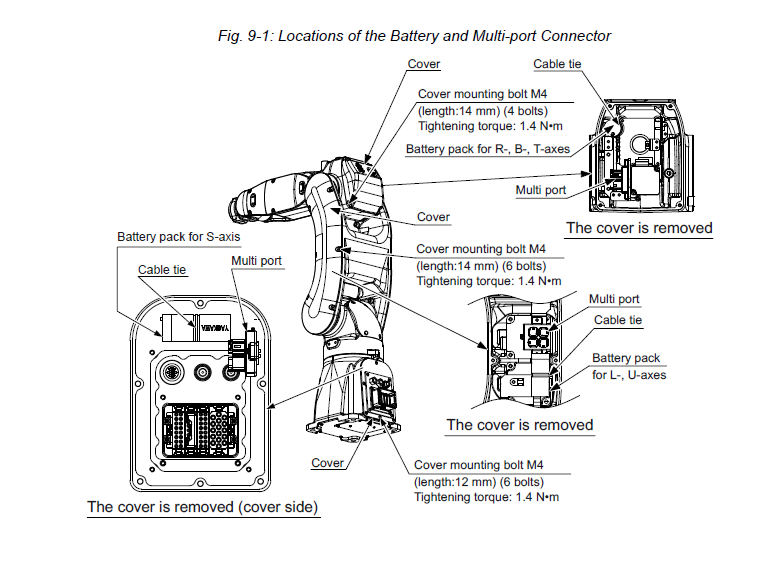

For battery replacement you will be removing three covers.
S axis HW1406930-1 Gasket 180678-1
L axis HW1305694-1 Gasket 180679-1
R axis HW2401823-1
