How to Change Consumables on a Hypertherm XPR 300 Plasma Cutter

The Hypertherm XPR 300 is an advanced plasma cutting system designed for high-precision and efficient metal cutting. Regular maintenance, including changing consumables, is essential for optimal performance and longevity. This guide will walk you through the process of replacing consumables safely and effectively.

Understanding the Consumables

The XPR 300 torch consists of several key consumables that need periodic replacement:

• Electrode – Conducts electricity to the plasma arc.
• Nozzle – Directs the plasma stream and affects cut quality.
• Swirl Ring – Controls gas flow to the nozzle.
• Retaining Cap – Holds all consumables in place.
• Shield Cap – Protects the nozzle from spatter and enhances cut quality.

Signs that Consumables Need Replacement

• Decreased cut quality (ragged edges, dross buildup).
• Excessive arc deviation (off-centered arc).
• Inconsistent piercing or cutting failures.
• Increased operating amperage or voltage.
• Visual wear on the nozzle or electrode (pitting, burning).

Step-by-Step Guide to Changing Consumables

1. Ensure Safety First.
   1. Turn off the plasma power supply and allow the system to cool.
   2. Disconnect power to prevent accidental torch activation.
   3. Wear proper protective gear (gloves, safety glasses).

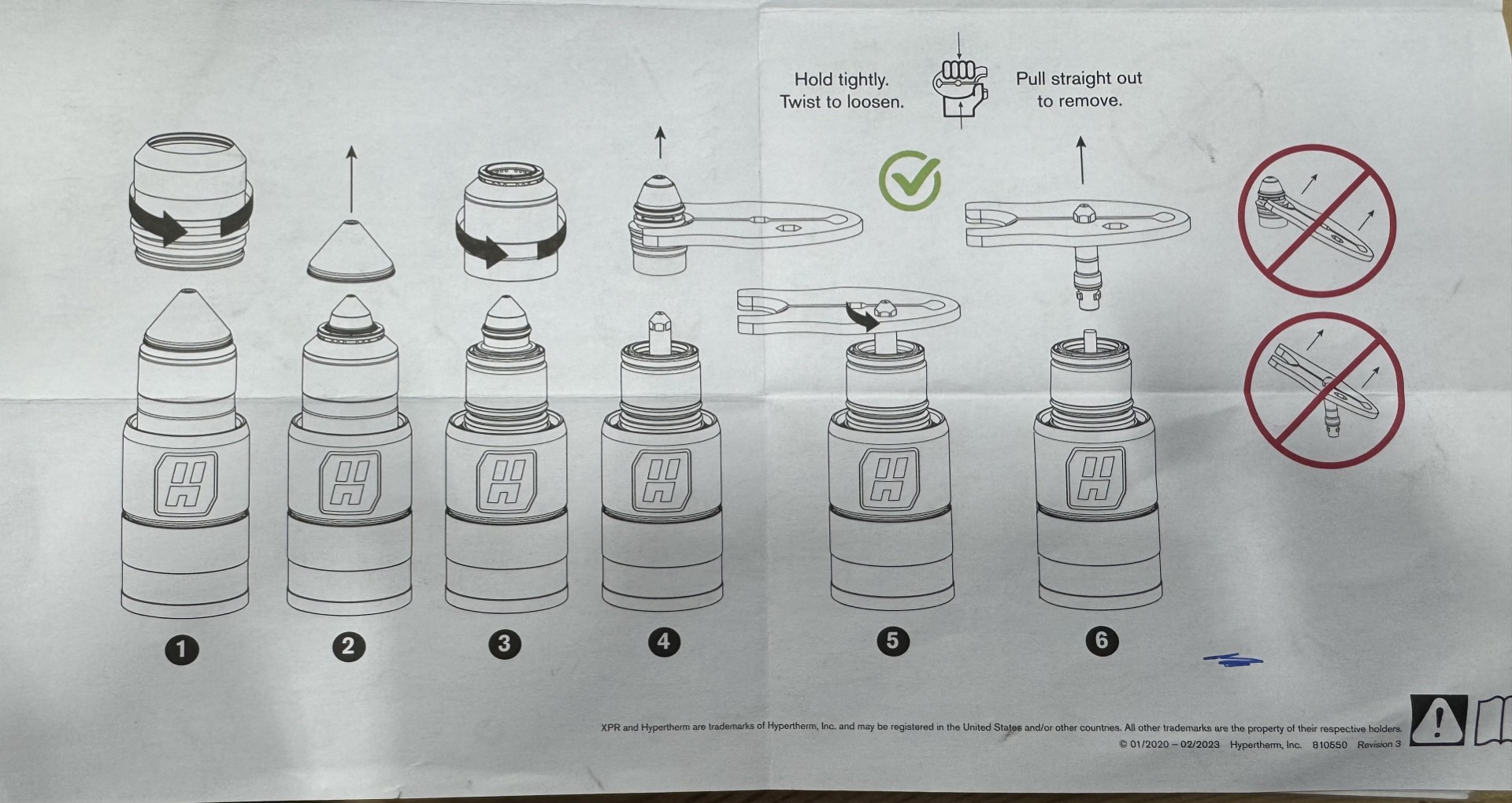

2. Remove Old Consumables
   1. Unscrew the shield cap and set it aside.
   2. Remove the retaining cap carefully.
   3. Take out the nozzle, electrode, and swirl ring.
3. Inspect and Clean Components
   1. Check the electrode tip for pitting or wear. If there is a deep pit, replace it.
   2. Inspect the nozzle for excessive wear or out-of-round shape.
   3. Ensure the swirl ring is free of cracks or damage.
   4. Clean the retaining cap and shield cap of debris or spatter.
4. Install New Consumables in the Correct Order
   1. Insert a new electrode into the torch body.
   2. Place a new swirl ring over the electrode.
   3. Install a new nozzle, ensuring it sits properly.
   4. Secure the retaining cap to hold everything in place.
   5. Attach the shield cap as the final step.
5. Power Up and Test the System
   1. Reconnect power and turn on the system.
   2. Run a test cut to verify proper installation.
   3. Check for smooth, consistent cuts without arc deviations.

Best Practices for Maximizing Consumable Life

• Use the correct gas pressure and amperage settings.
• Avoid excessive pilot arc time (dry firing).
• Maintain proper standoff distance to prevent nozzle damage.
• Perform regular inspections and replace consumables before failure.

By following these steps, you’ll ensure that your Hypertherm XPR 300 continues to operate efficiently, producing high-quality cuts while minimizing downtime.
