Battery Replacement MHP45L / YR-MHP045L-B00 Manipulator

Model Covered: YR-MHP045L-B00

Material Required:

BATTERY, ASSY, HW1471600-BA HW1471600-BA/191140-1

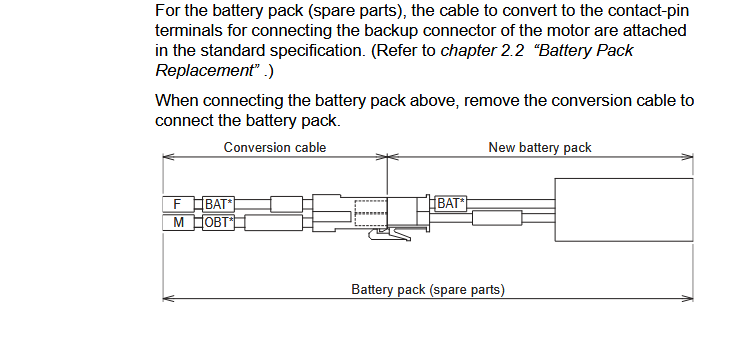

For S,L-axis (For B**) (HW1470715-BA with conversion cable)

BATTERY, ASSY, HW1471600-BB HW1471600-BB/191141-1

For U,R-axis (For B**) (HW1470715-BB with conversion cable)

BATTERY, ASSY, HW1471600-BC HW1471600-BC/191142-1

For B,T-axis (For B**) (HW1470715-BC with conversion cable)
