Grease Replenishment (PM) MPK2 / YR-MPK0002-B00 Manipulator

Model Covered: YR-MPK0002-B00

Materials Required:

Synxtreme FG-0 159361-1

Three Bond 1206C 479014-6

Grease Amounts:

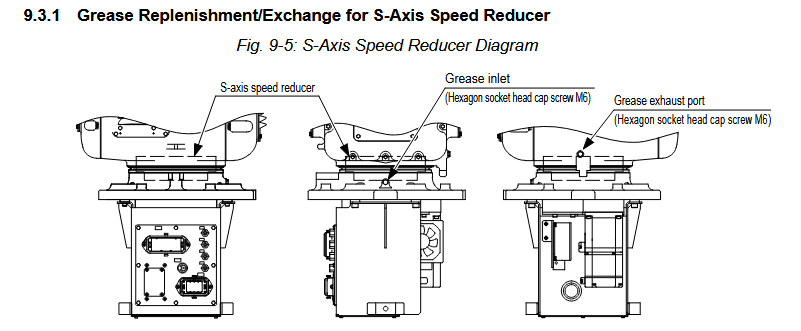

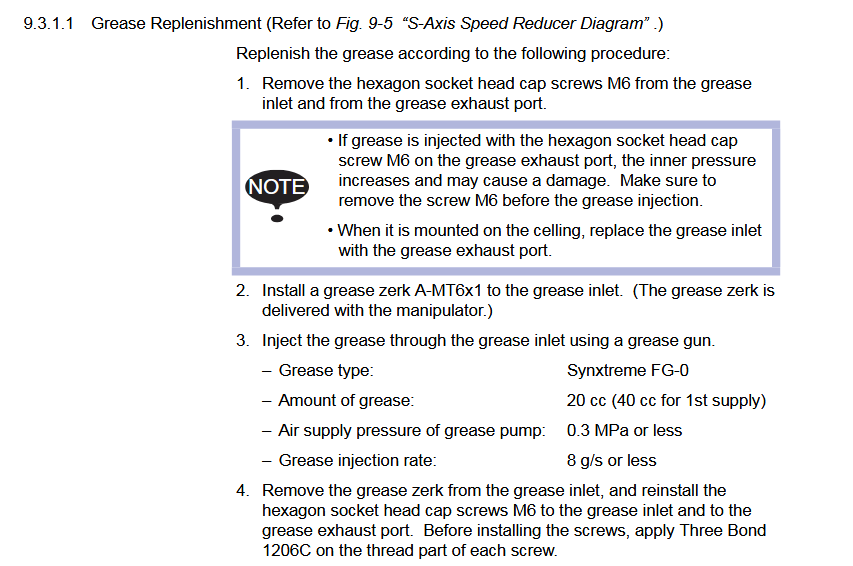

S-AXIS: 20cc

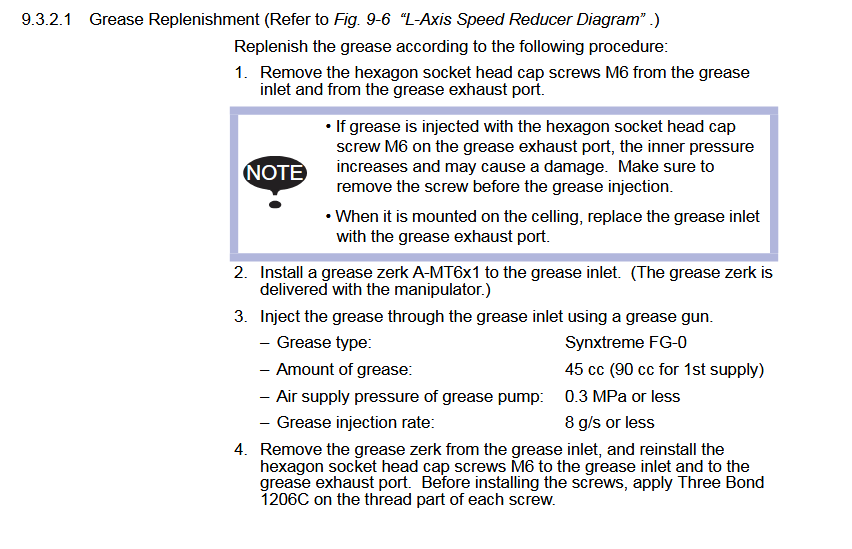

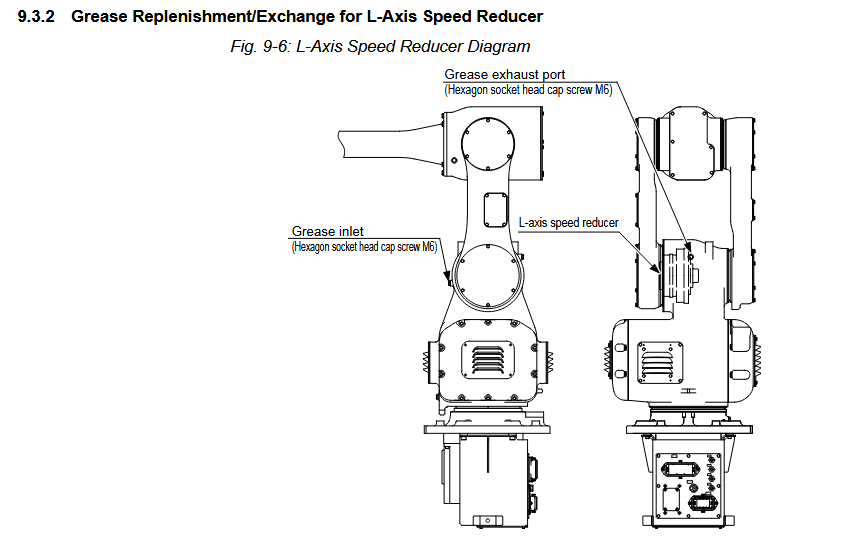

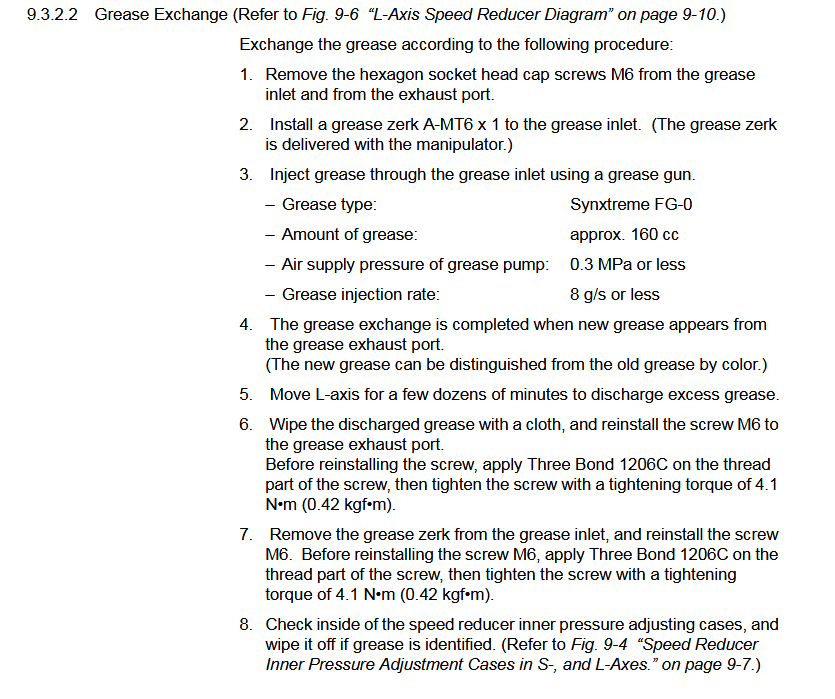

L-AXIS: 45cc

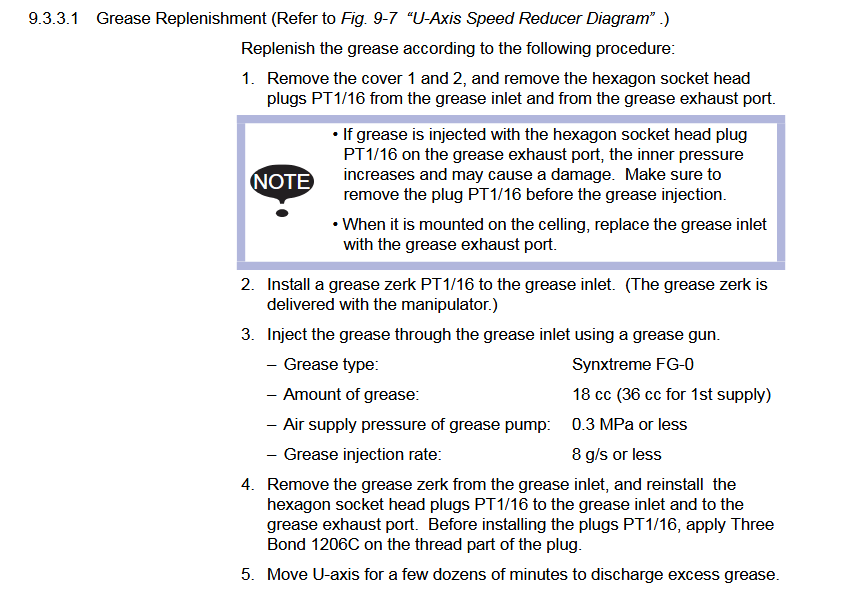

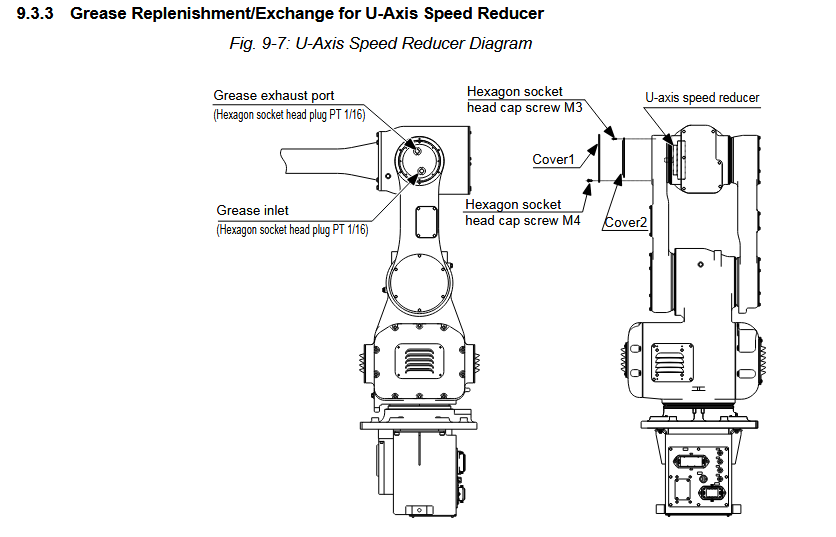

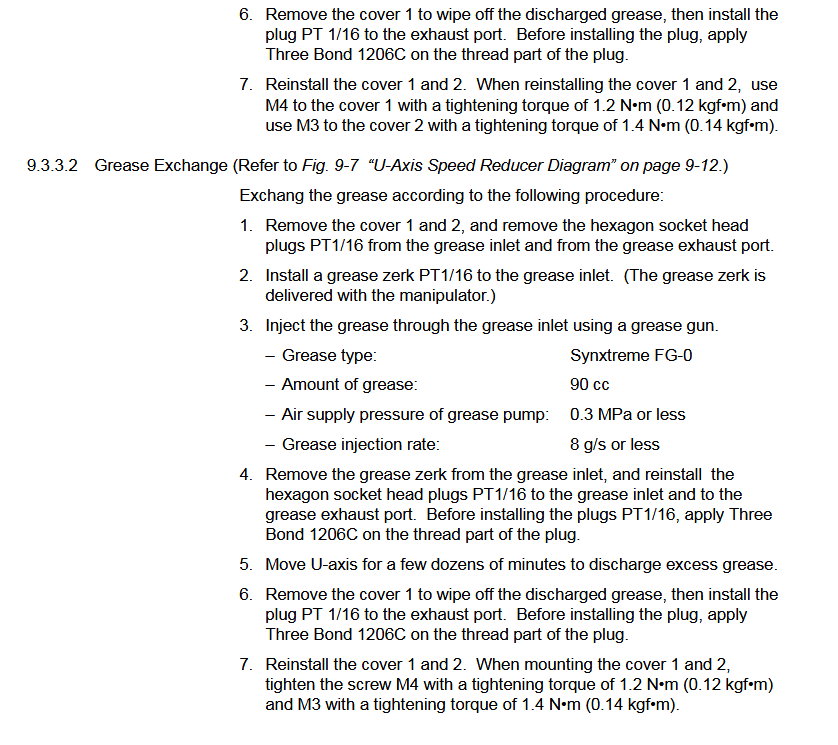

U-AXIS: 18cc

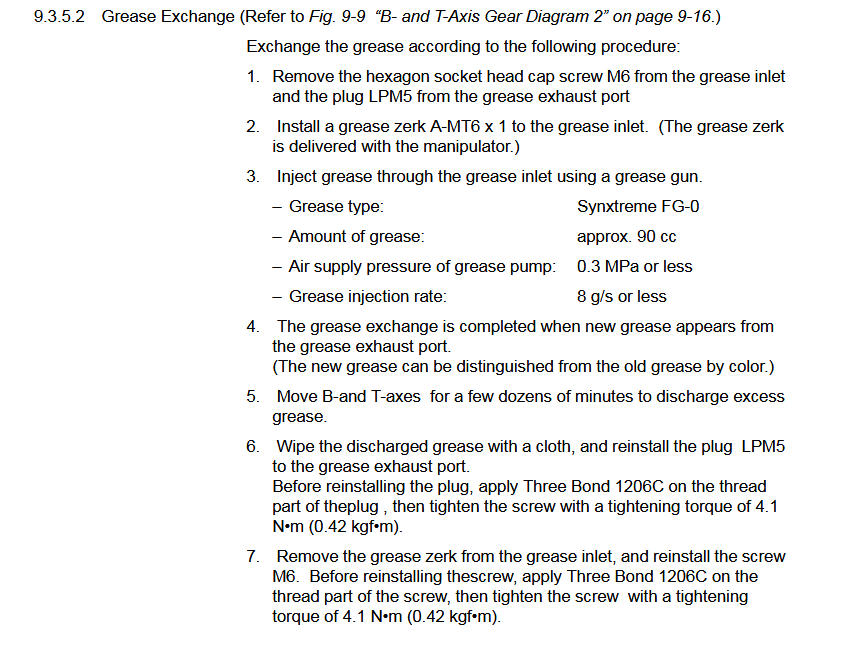

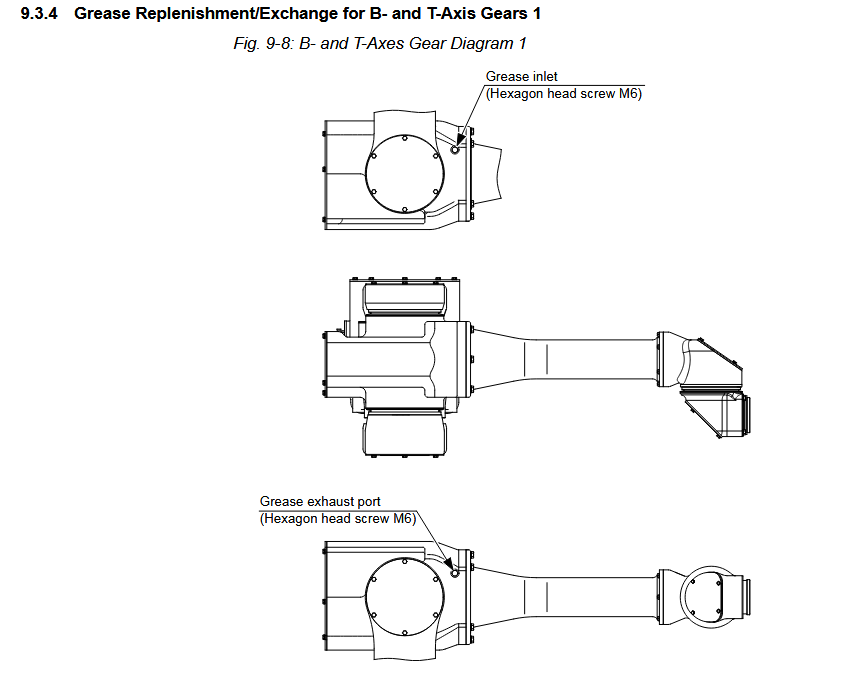

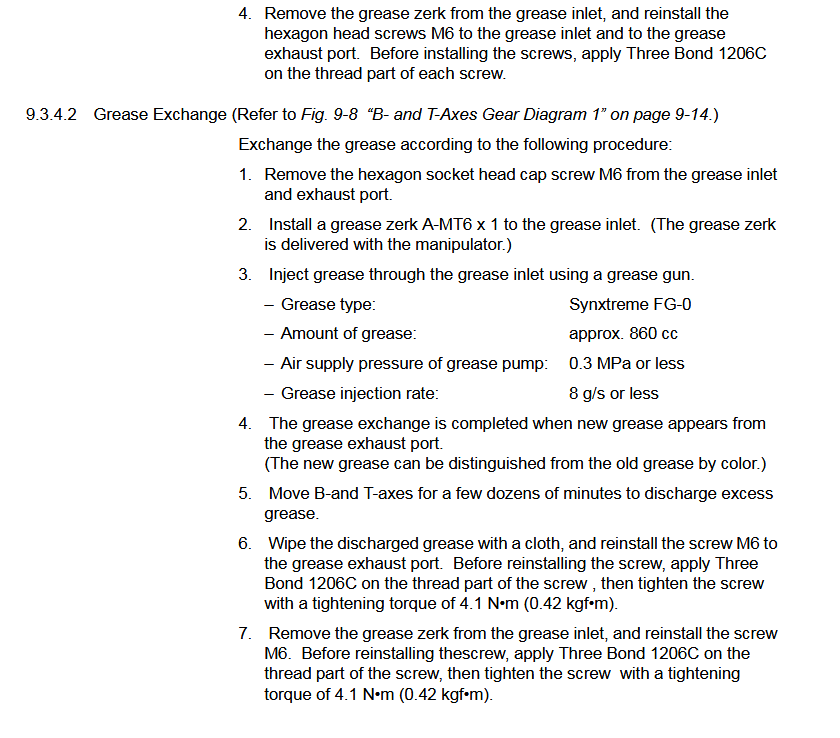

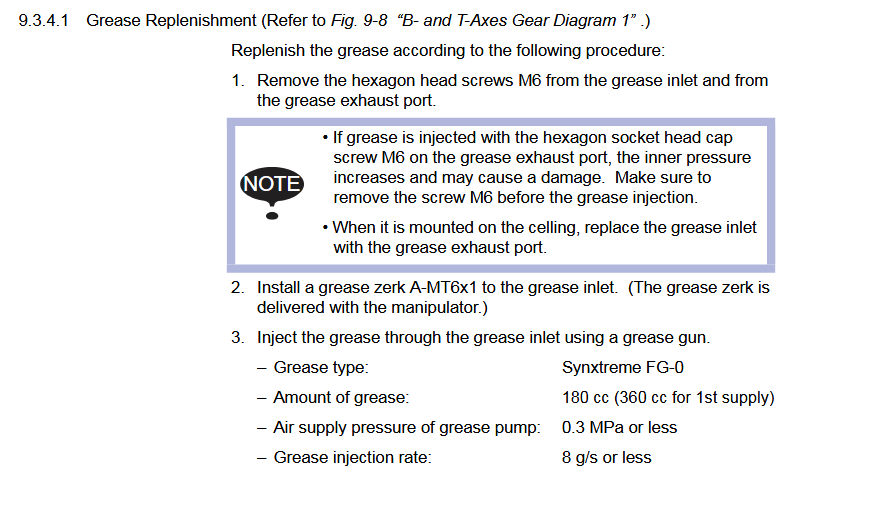

B AND T AXIS GEARS: 180cc

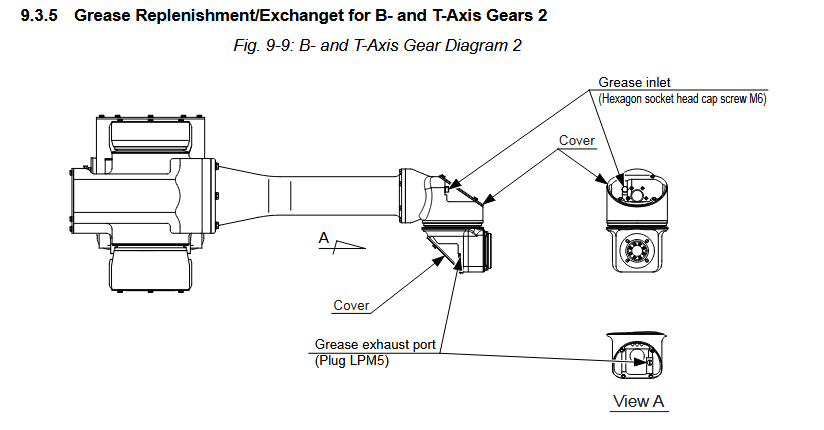

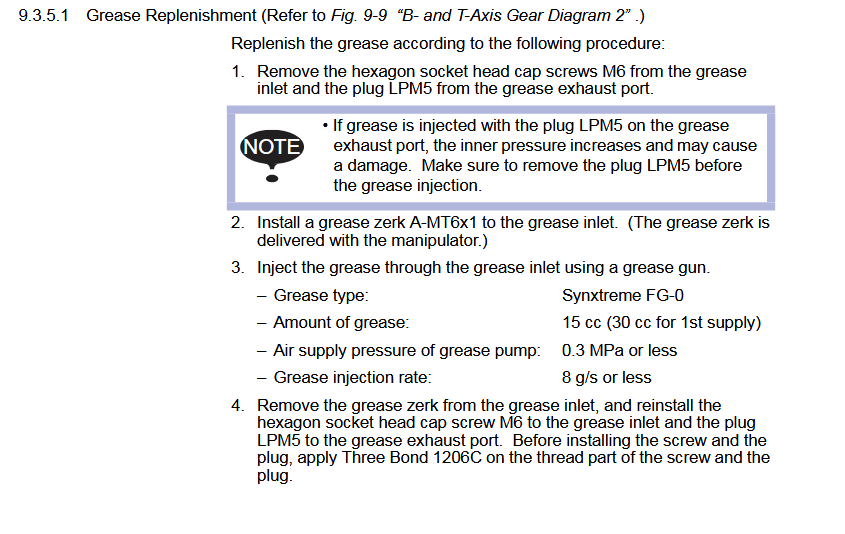

B AND T GEARS 2: 15cc
