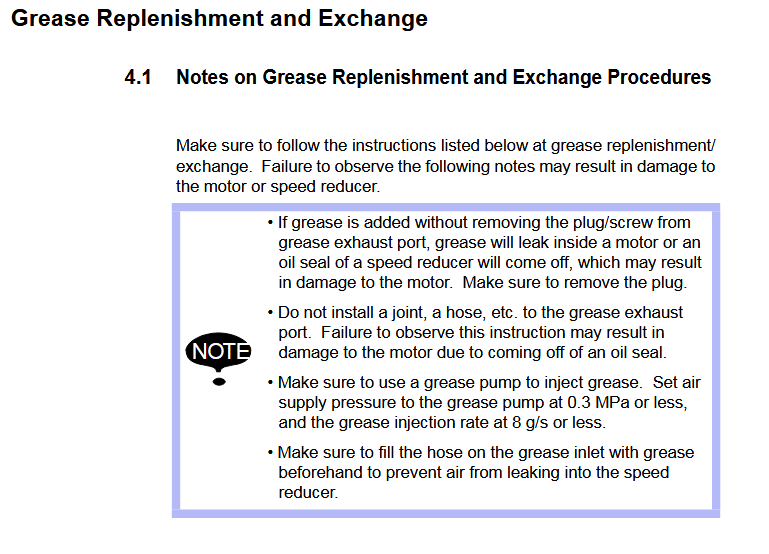

Grease Procedure (PM) MA3120 / YR-MA03120-A00 Manipulator

Model Covered: YR-MA03120-A00

Material Required:

Molywhite RE No.00 132412-1

Harmonic Grease SK-1A 479035-2

Alvania EP Grease 2 132177-1

ADHESIVE, GASKET, LIQUID, 200 GRAM TUBE, THREEBOND 1206C 479014-6

Amount Of Grease:

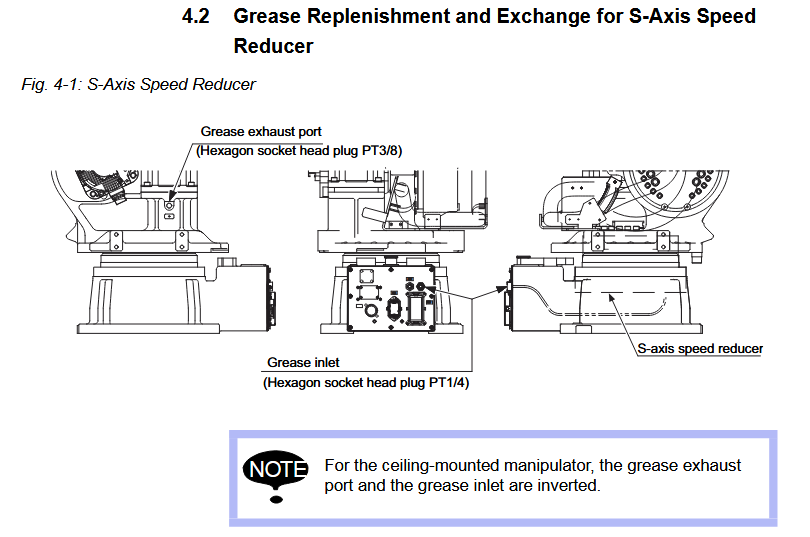

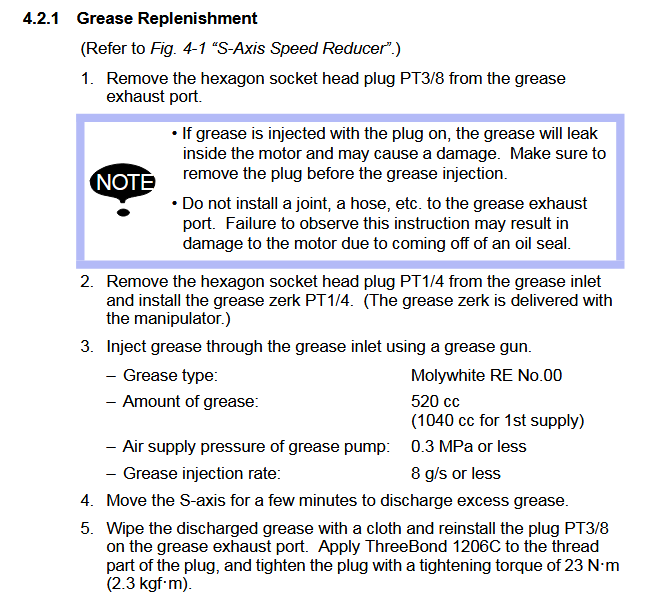

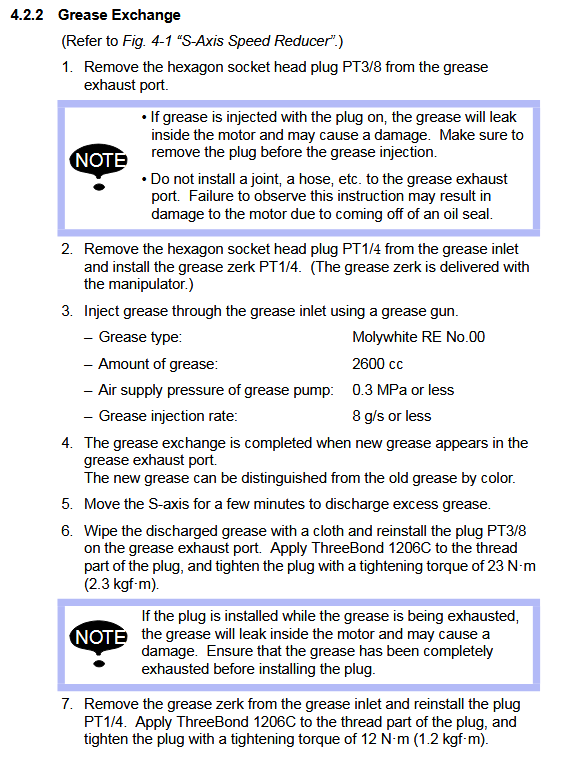

S-AXIS: 520cc

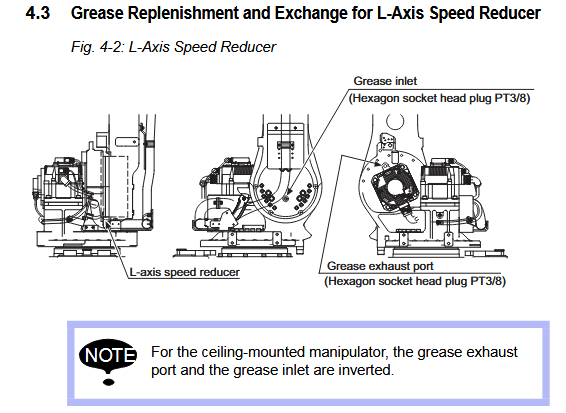

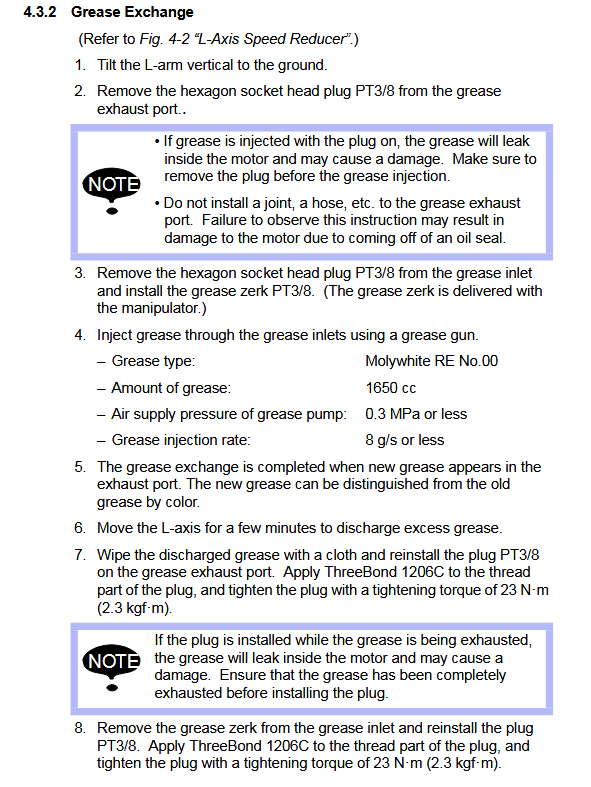

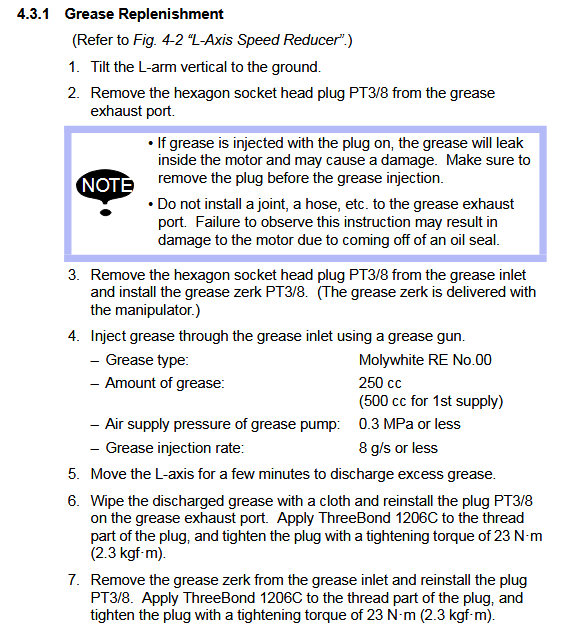

L-AXIS: 250cc

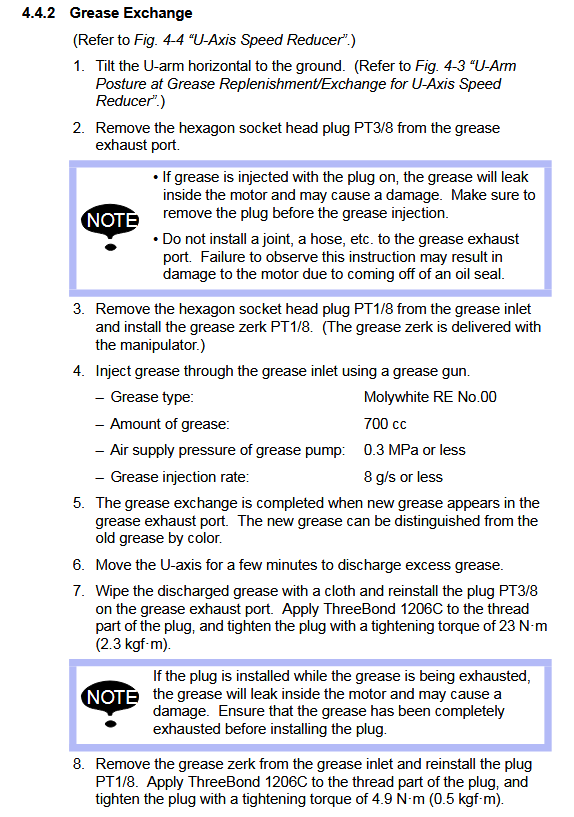

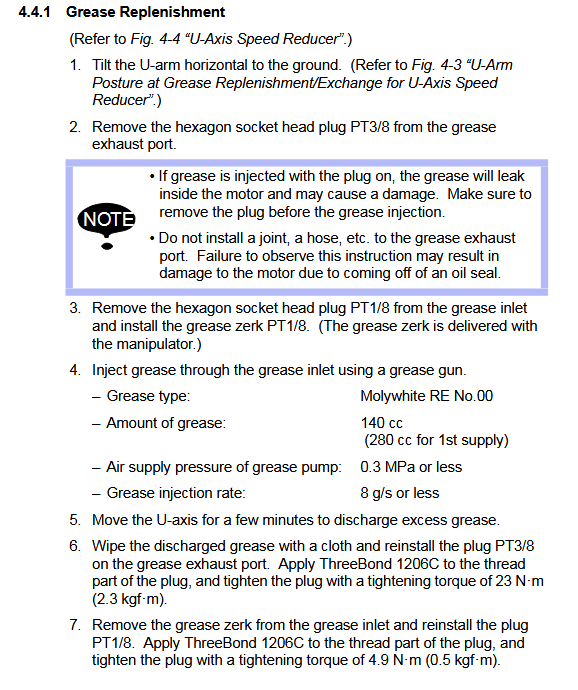

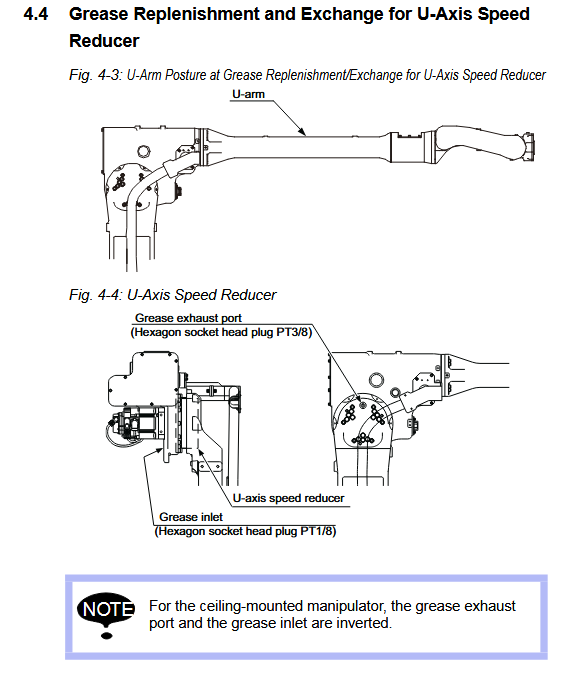

U-AXIS: 140cc

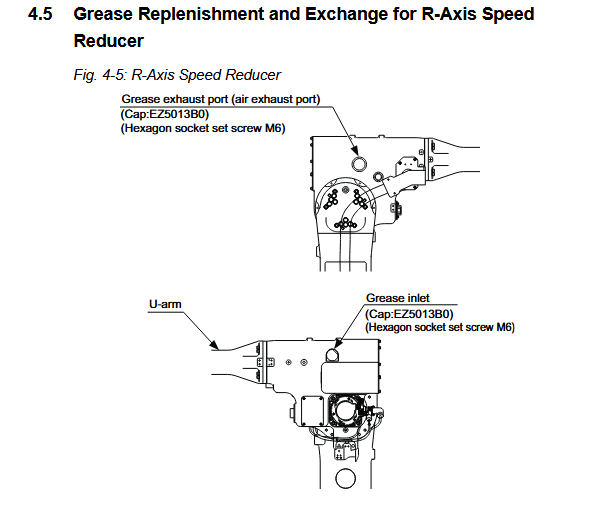

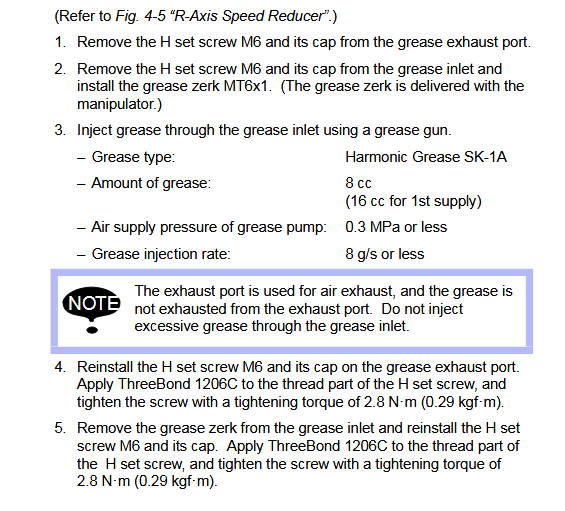

R-AXIS: 8cc

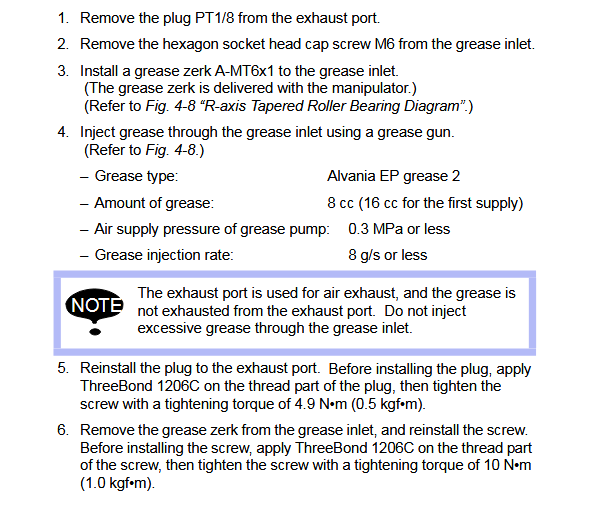

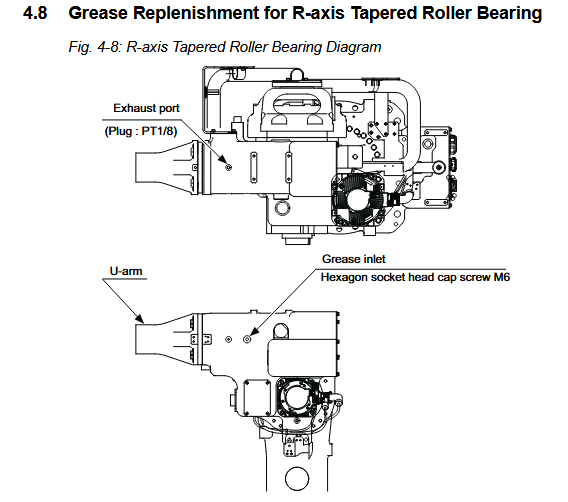

R-AXIS TAPERED ROLLER: 8cc

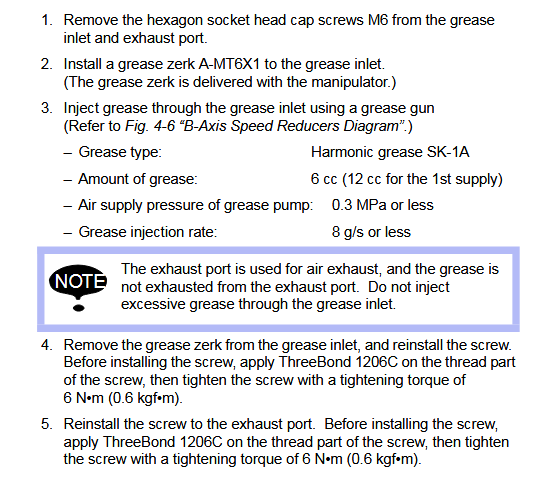

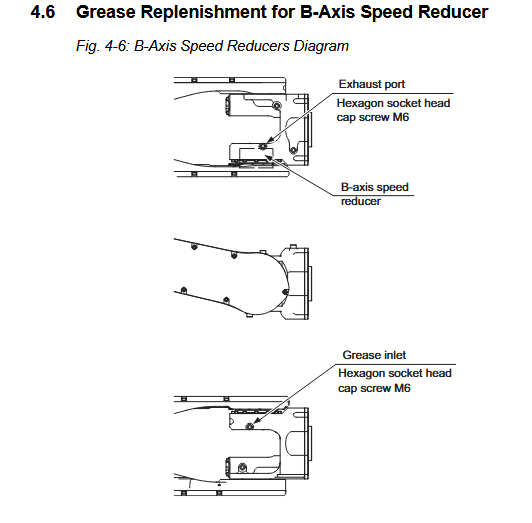

B-AXIS: 6cc

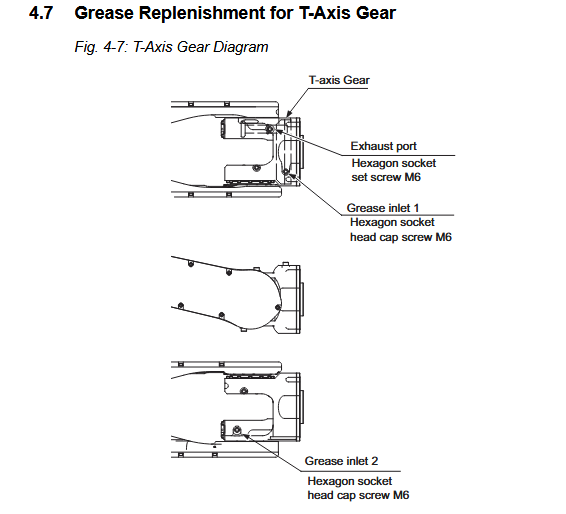

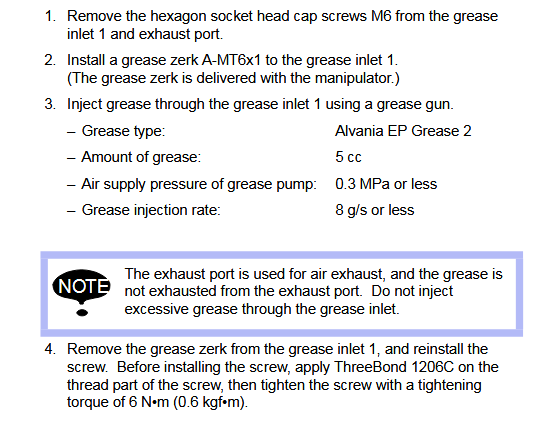

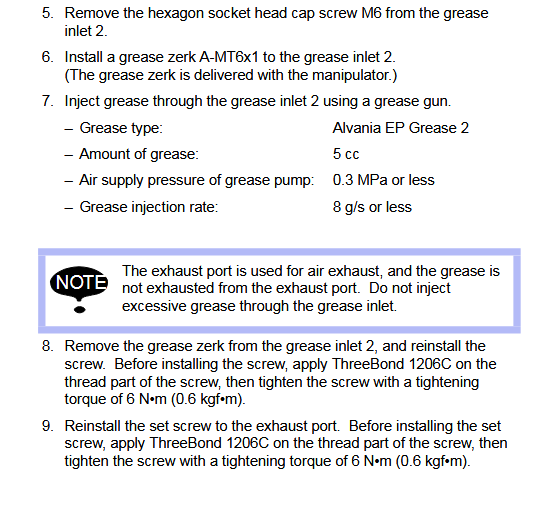

T-AXIS: 5cc
