Grease Procedure (PM) EPL300 / YR-EPL300-A00 Manipulator

Model Covered: YR-EPL300-A00

Material Required:

VIGO Grease RE No.0 151945-1

Alvania EP Grease 2 132177-1

Three Bond 1206C 479014-6

Amount Of Grease:

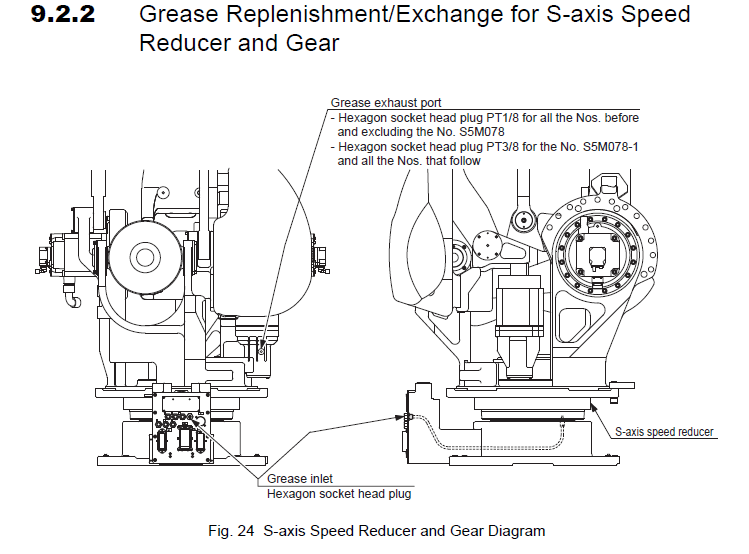

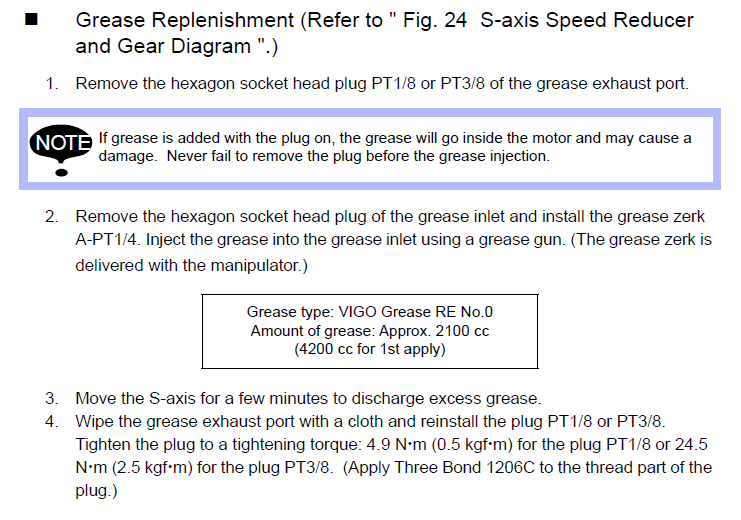

S-AXIS: Vigo 210cc

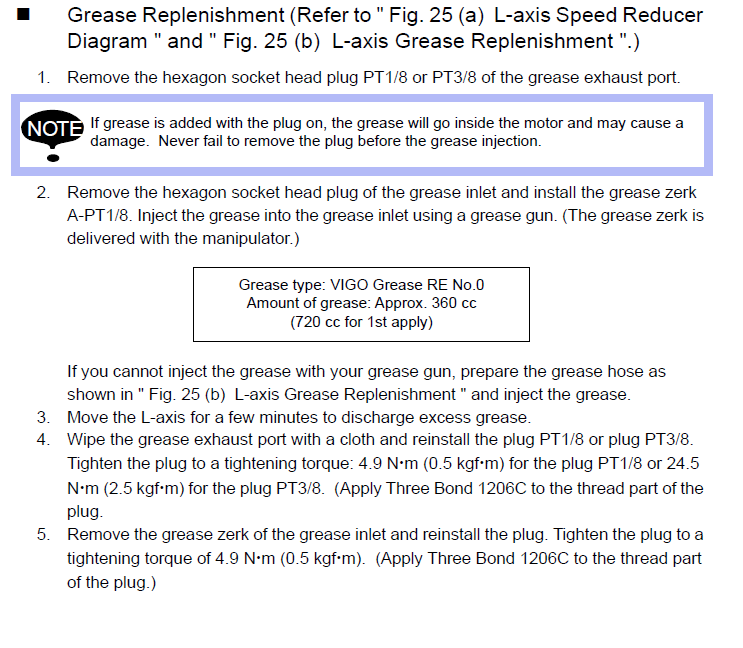

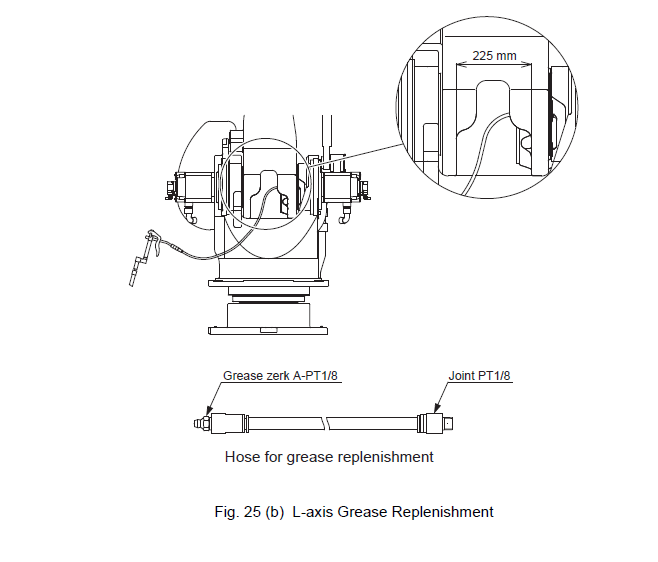

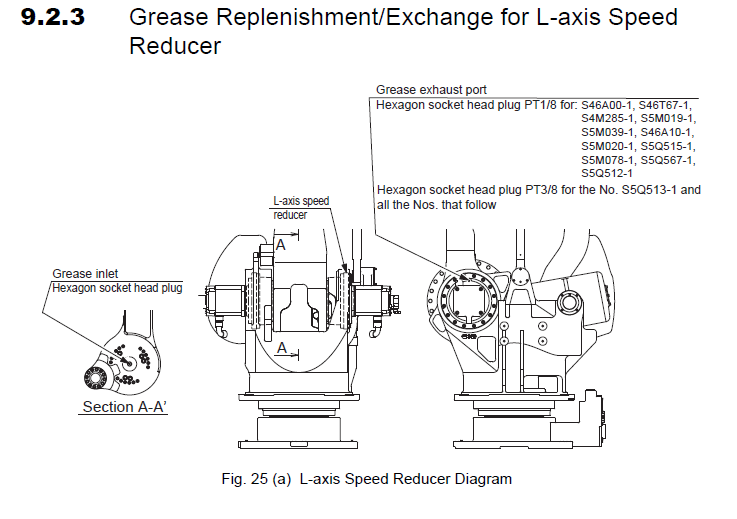

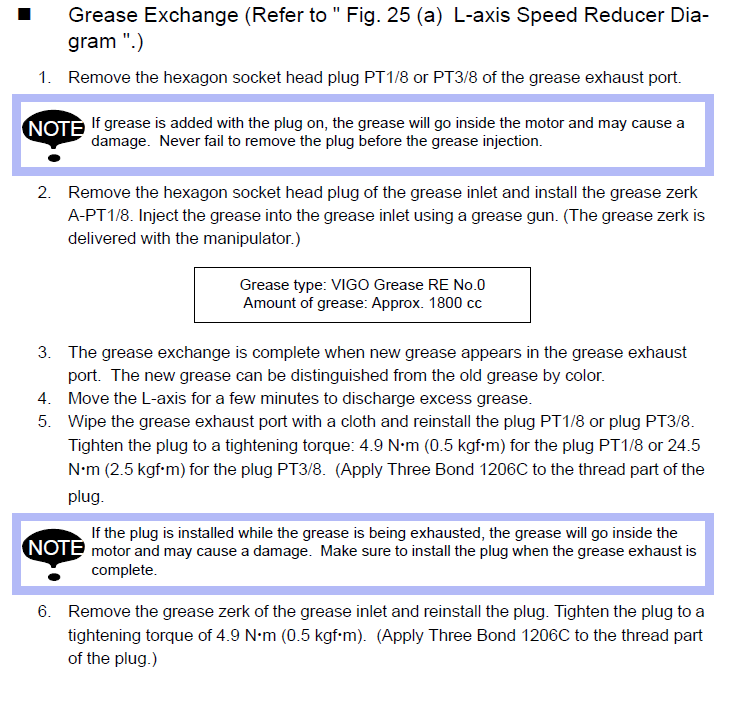

L-AXIS: Vigo 360cc

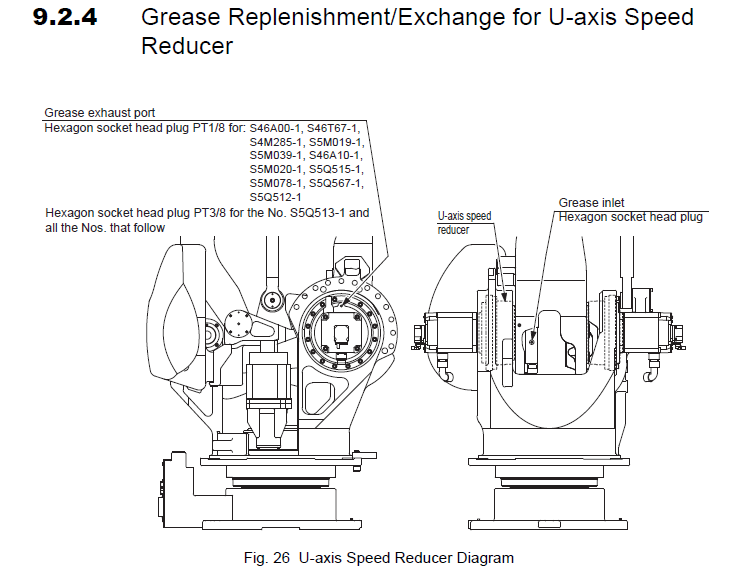

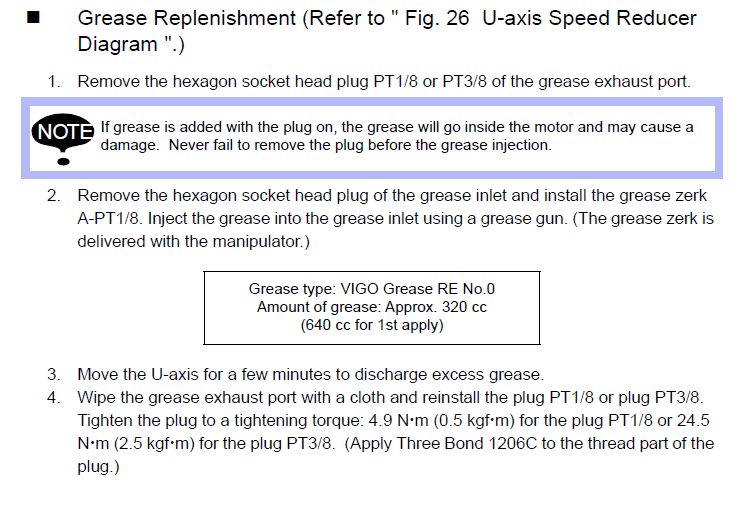

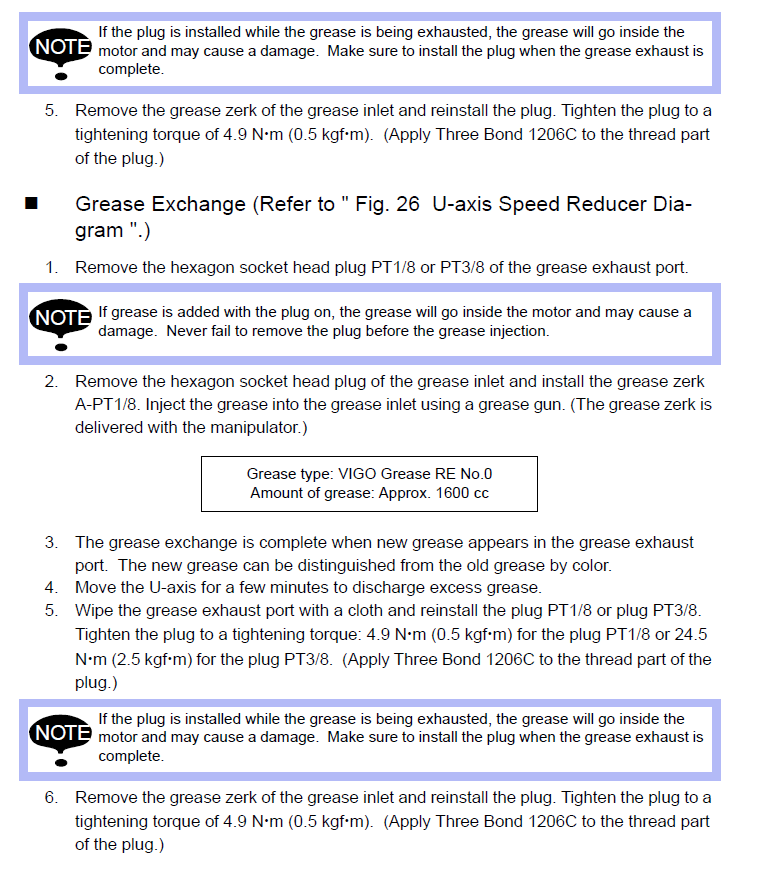

U-AXIS: Vigo 320cc

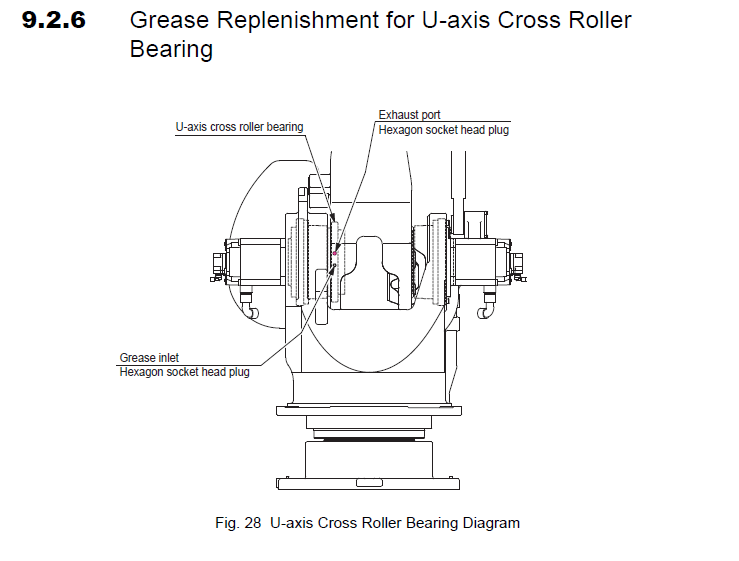

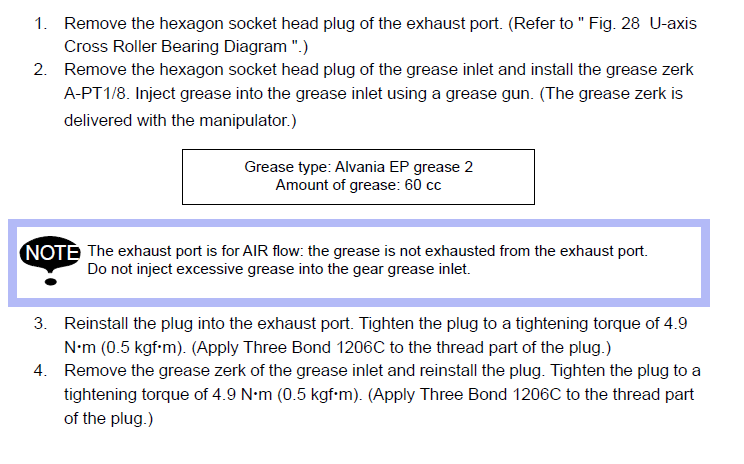

U-AXIS CROSS ROLLER BEARING: Alvania EP2 60cc

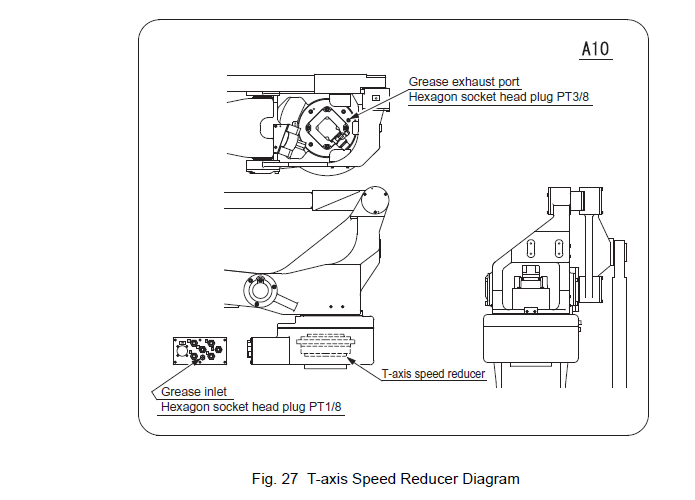

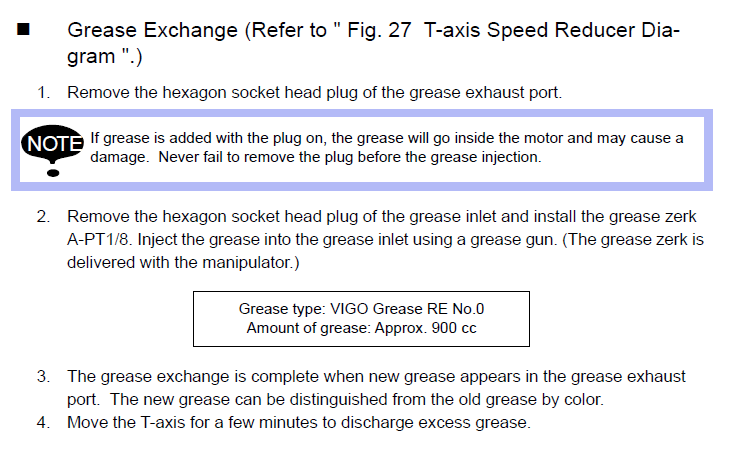

T-AXIS: Vigo 180cc
