Grease Procedure (PM) ES200TN / YR-ES200TN-A01 Manipulator

Model Covered: YR-ES200TN-A01

Material Required:

MOLYWHITE RE NO.00 132412-1

ALVANIA EP GREASE 2 132177-1

THREE BOND 1206C 479014-6

Amount Of Grease:

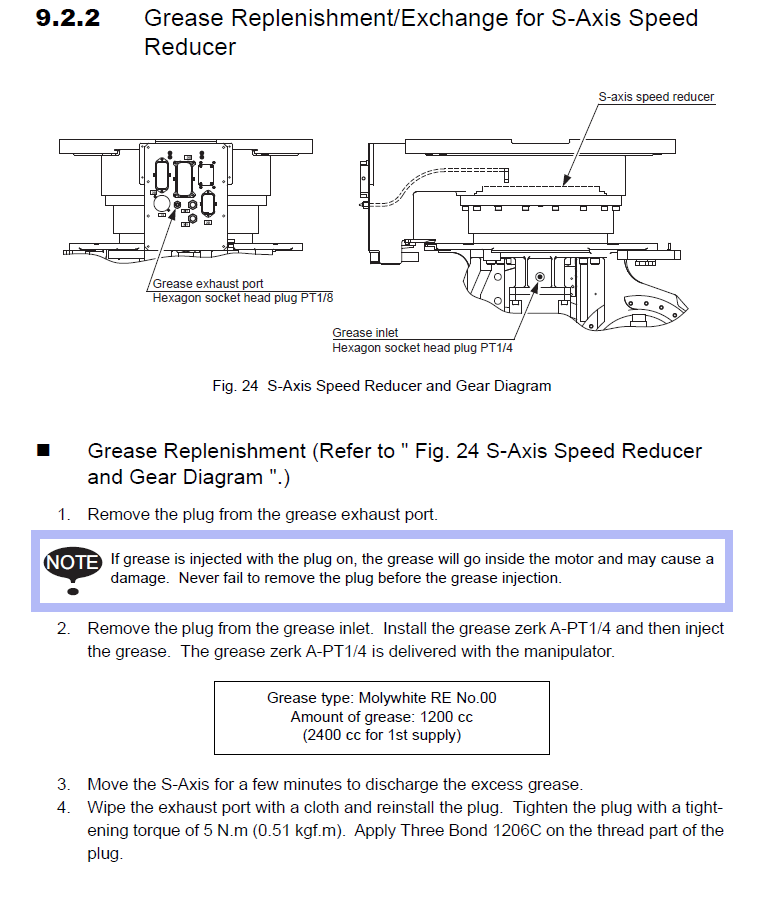

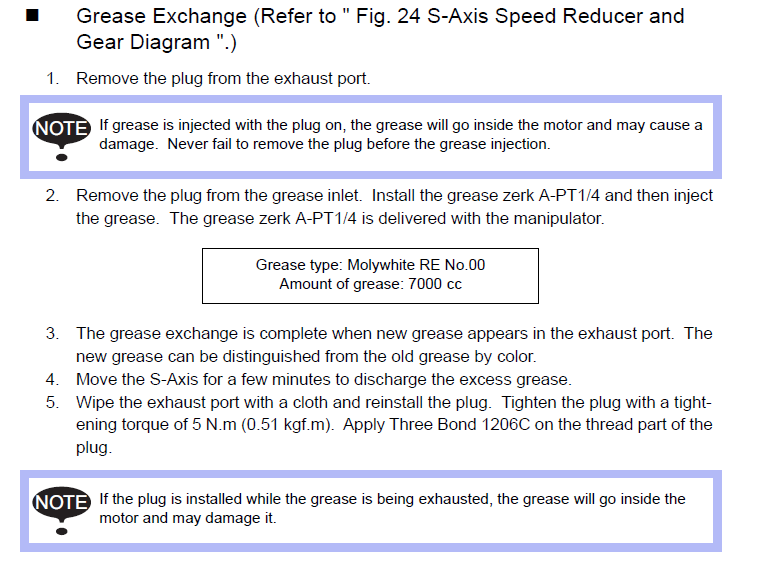

S-AXIS; 1200cc

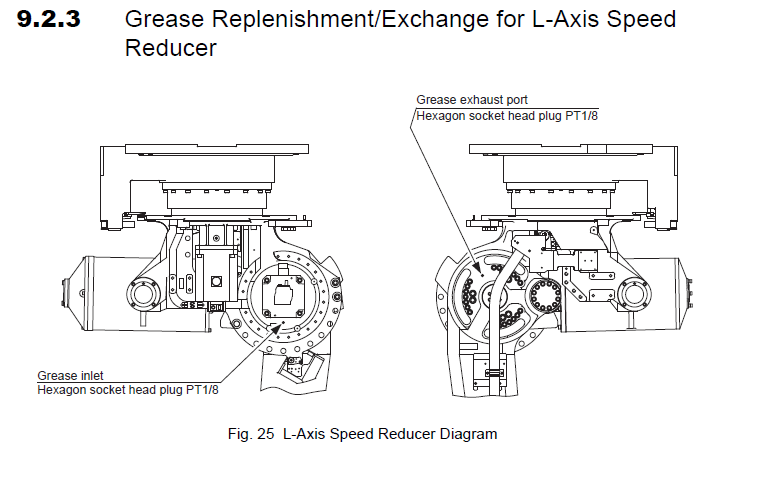

L-AXIS: 280cc

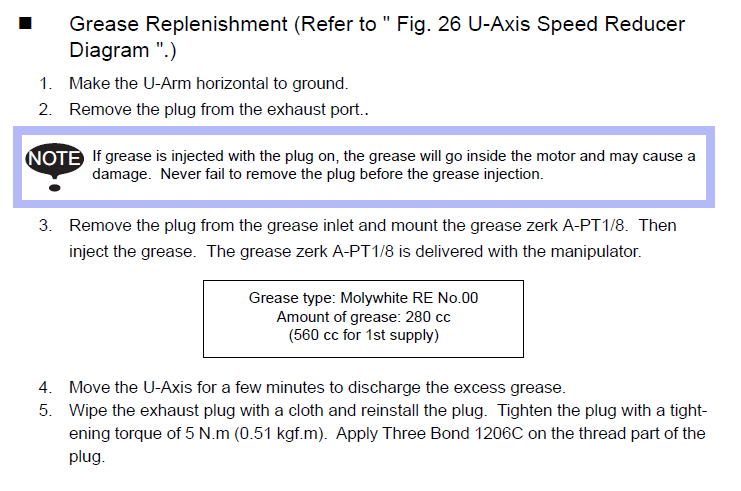

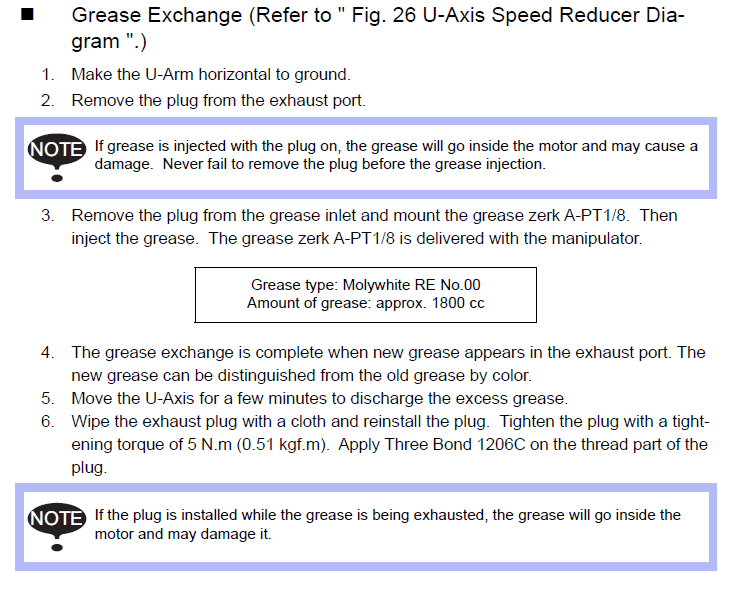

U-AXIS; 280cc

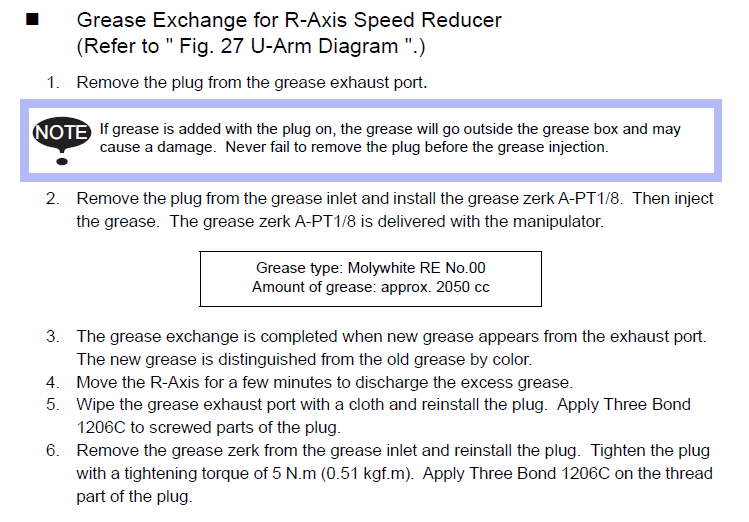

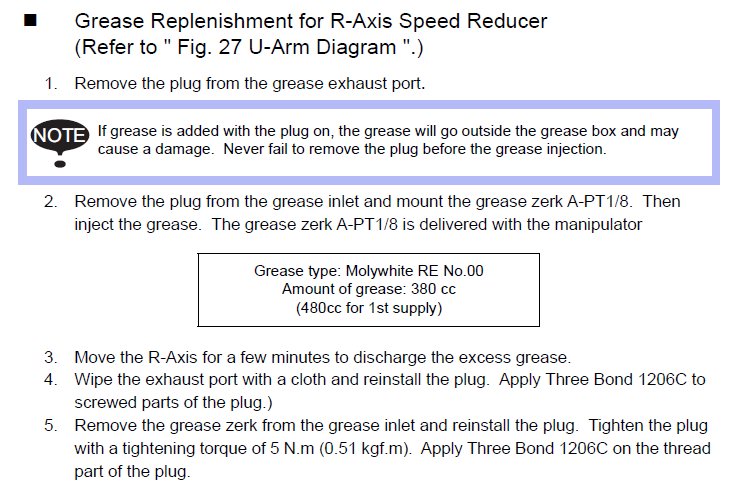

R-AXIS: 380cc

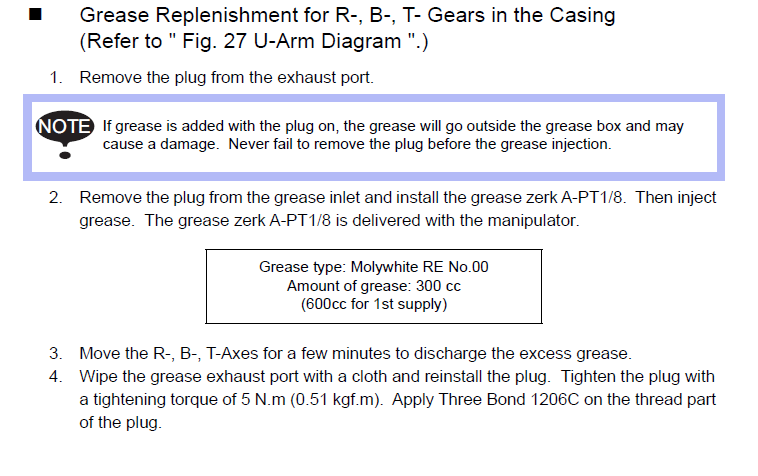

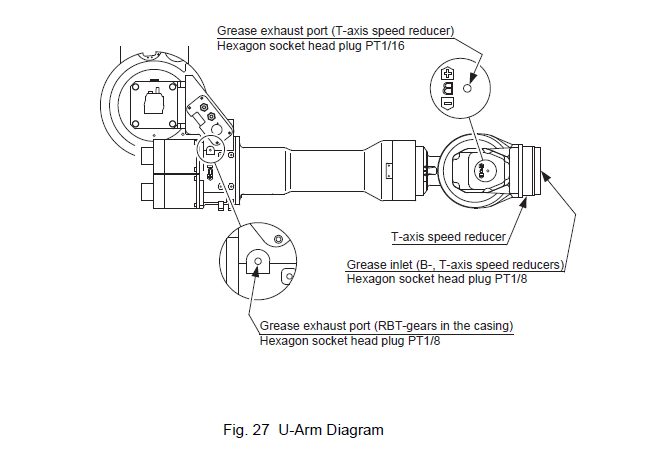

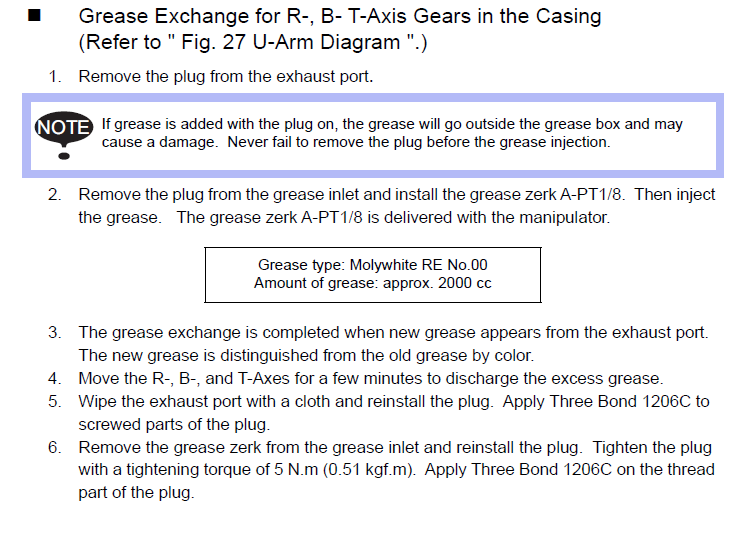

R-B-T GEARS IN CASING: 300cc

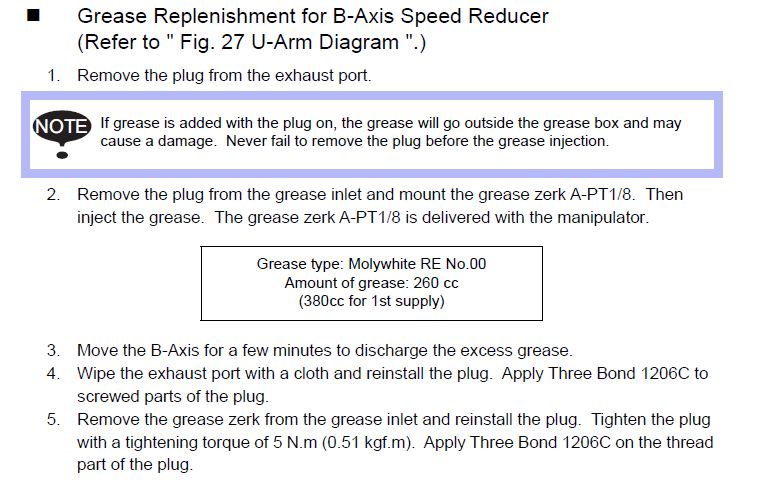

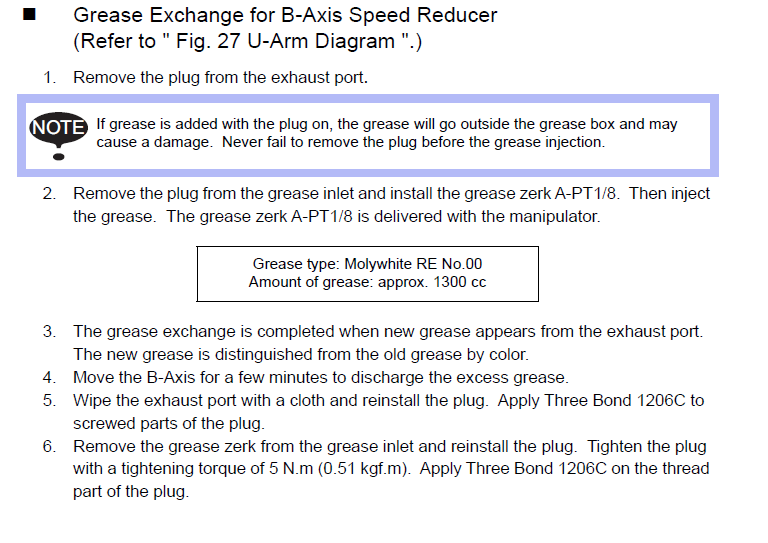

B-AXIS: 260cc

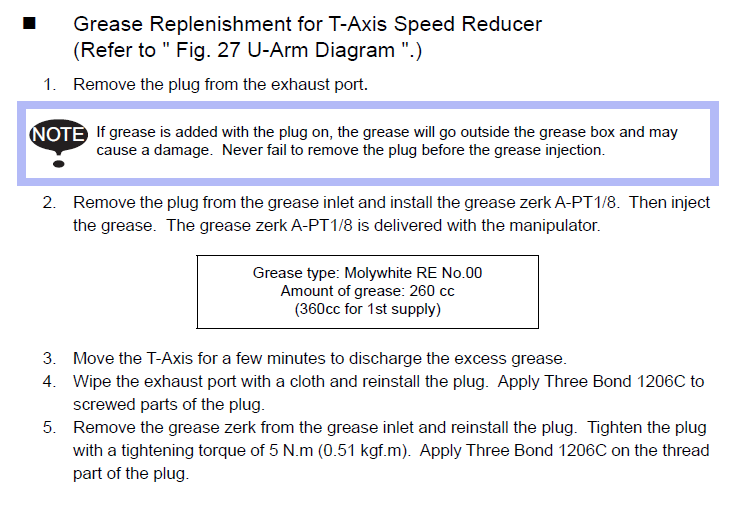

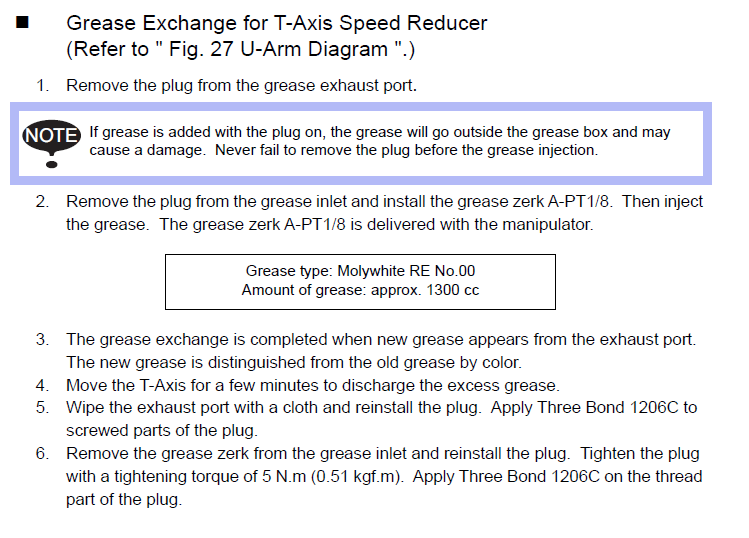

T-AXIS: 260cc
