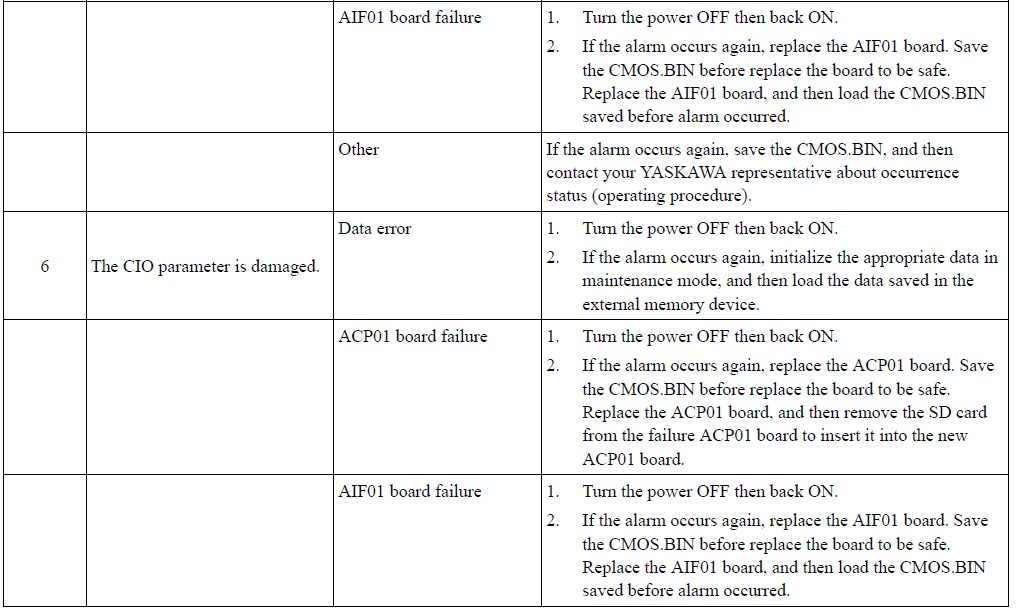

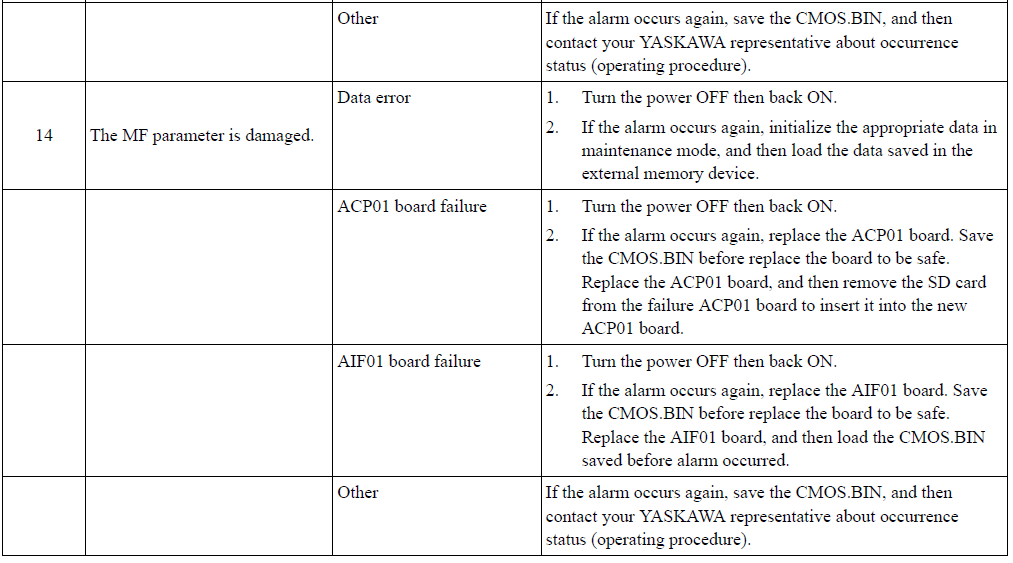

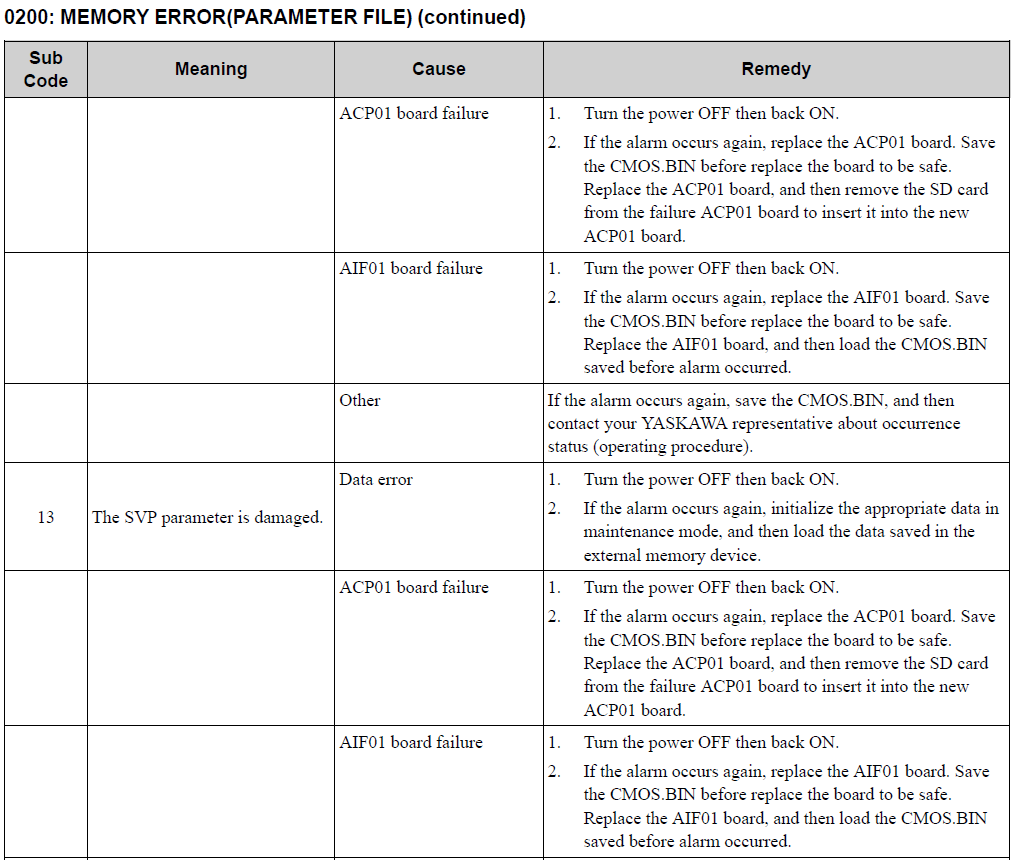

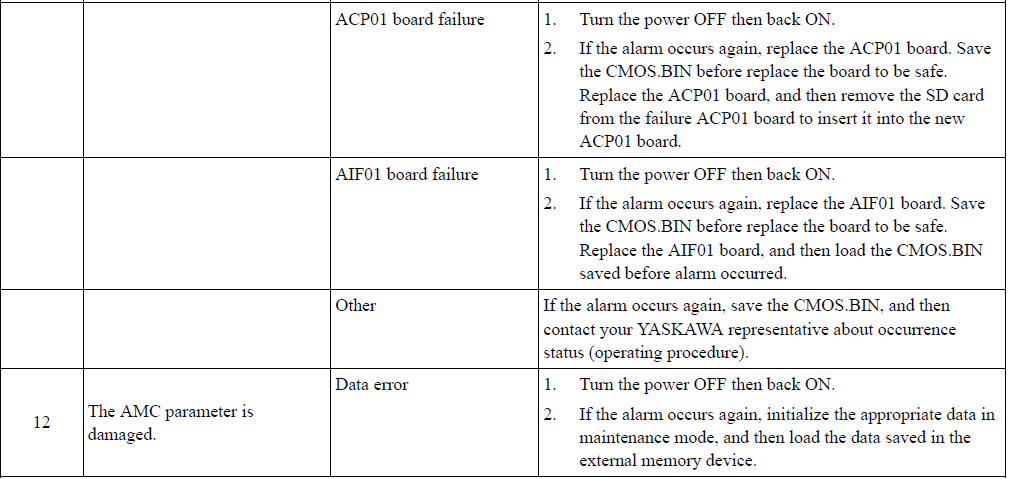

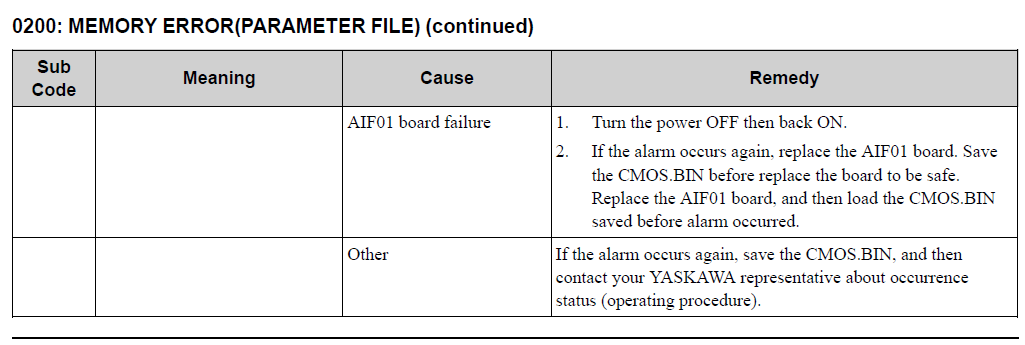

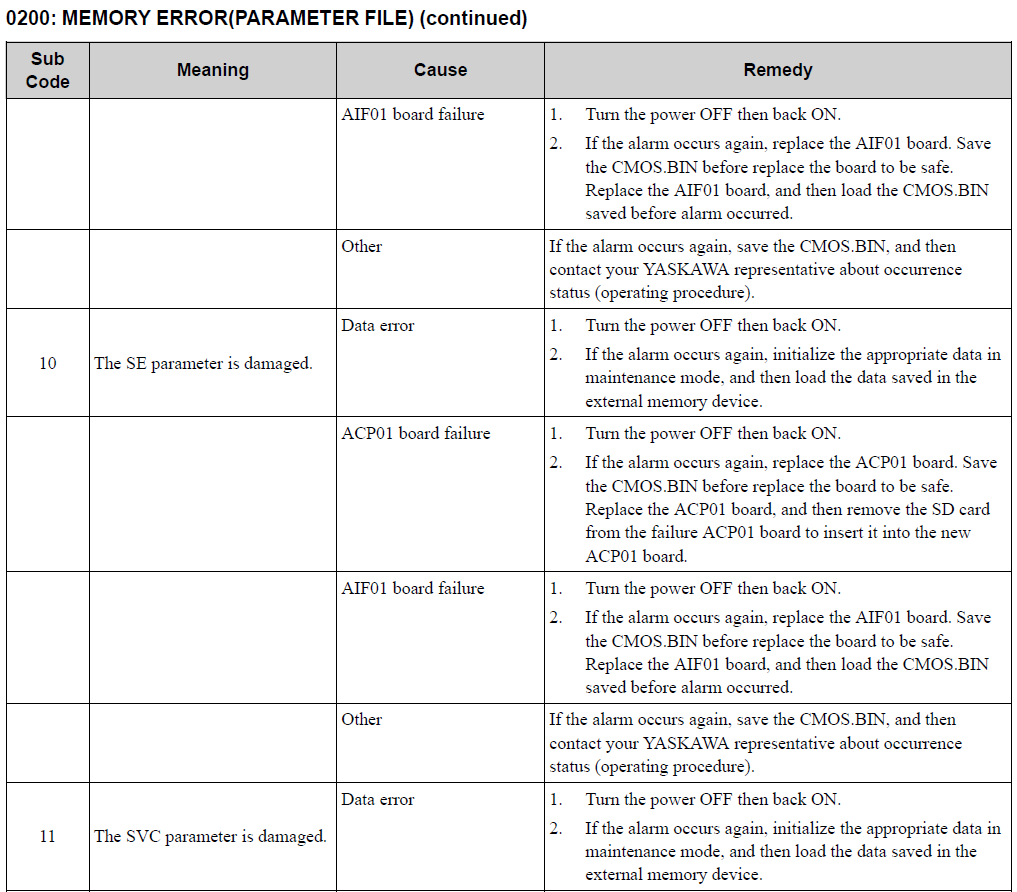

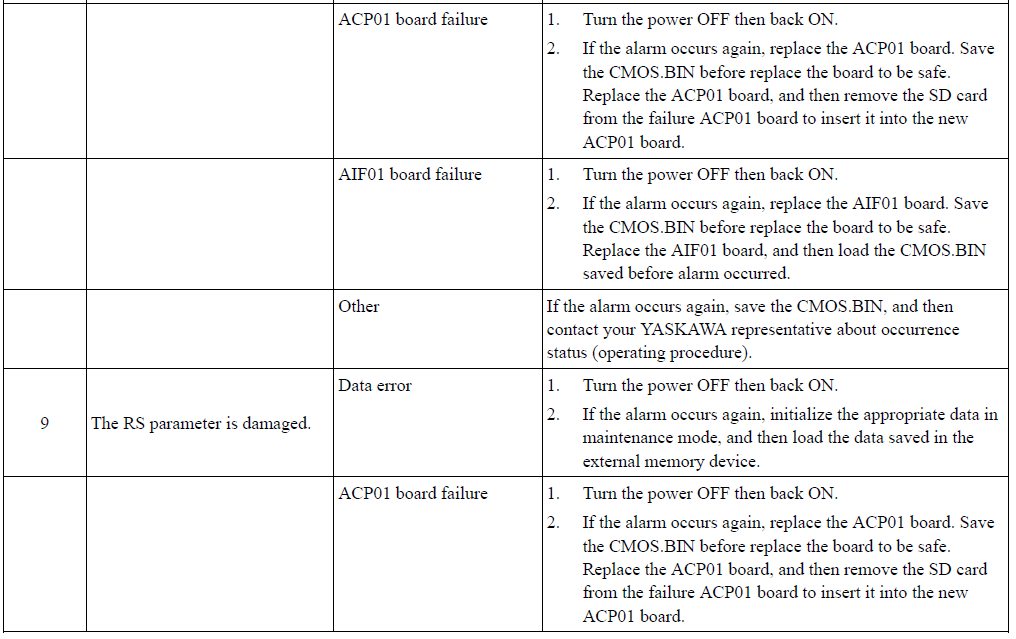

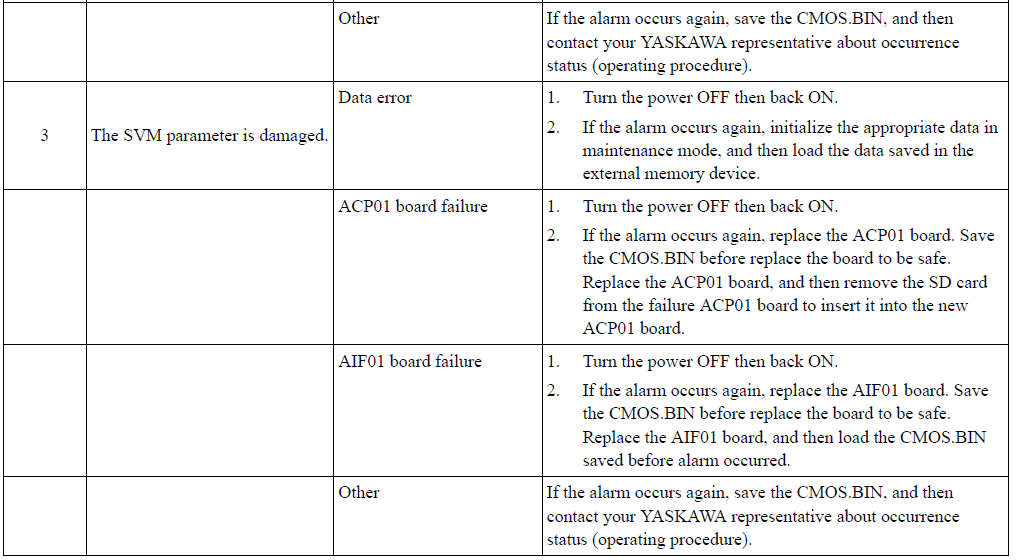

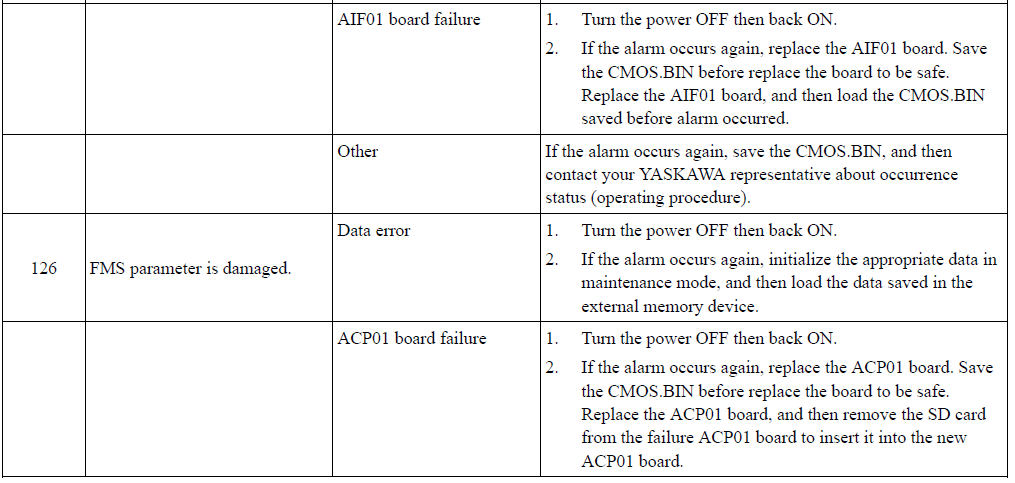

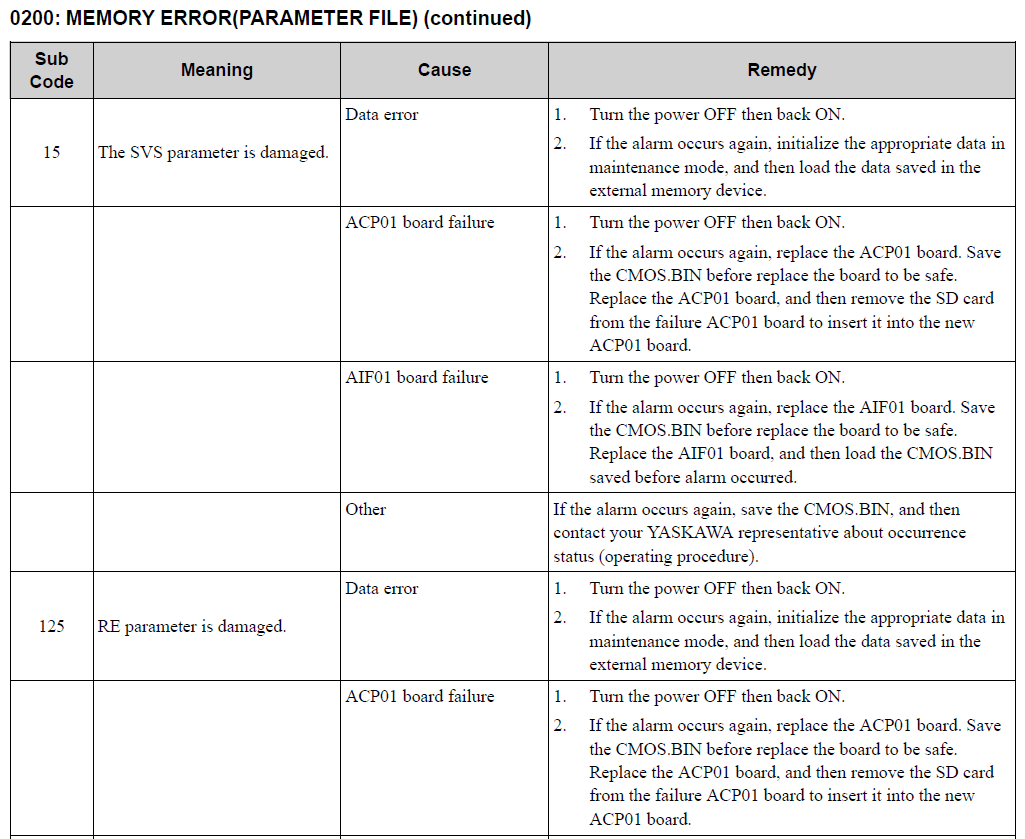

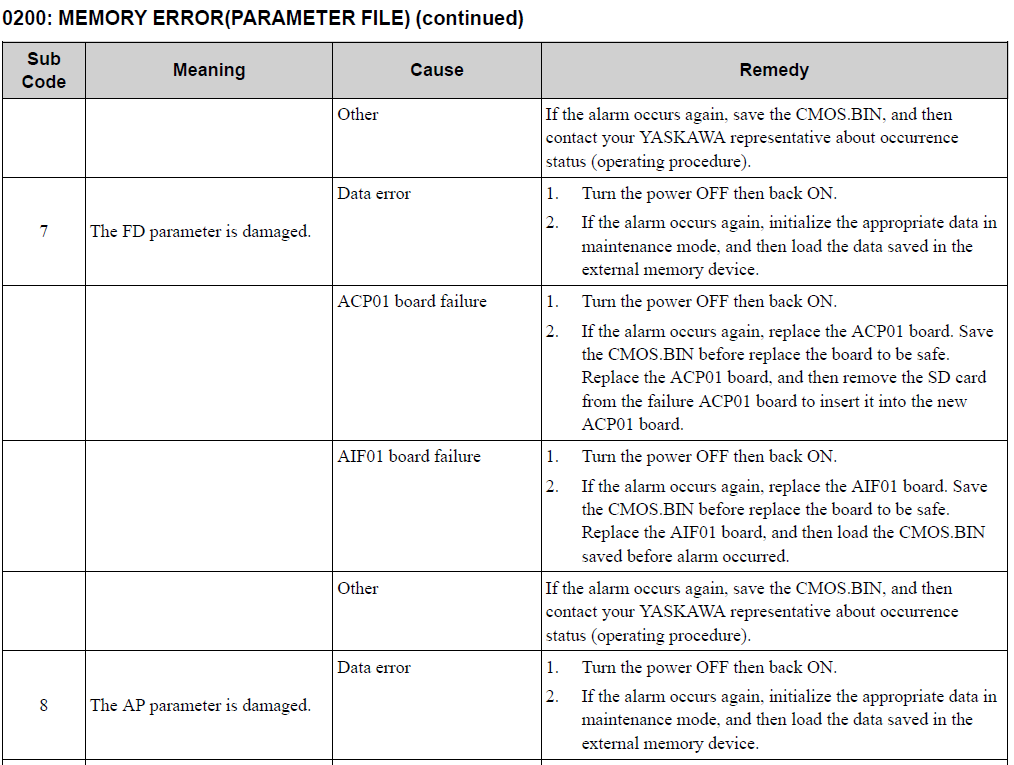

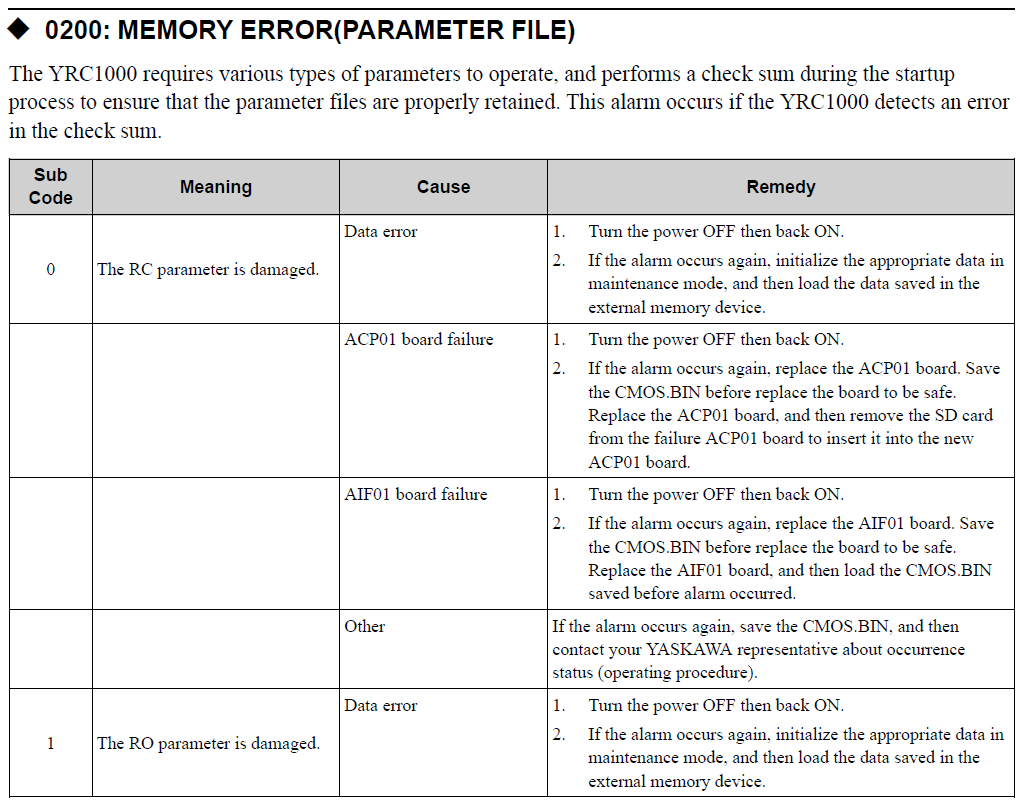

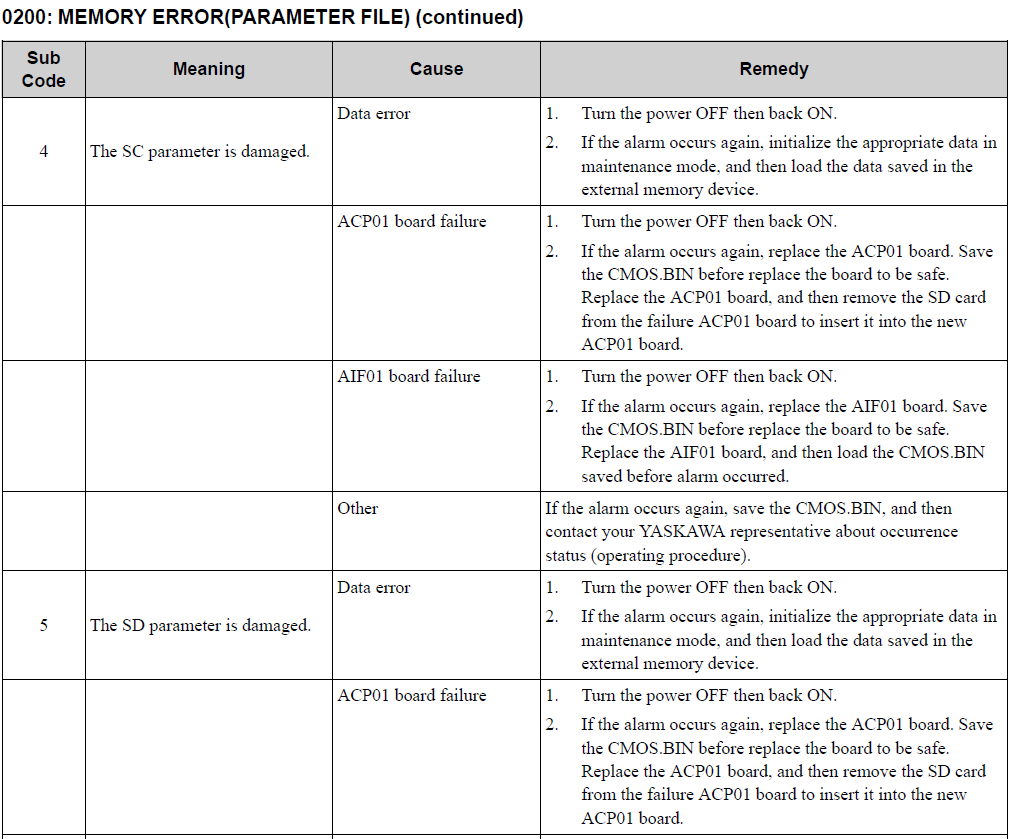

YRC1000 ALARM CODE 0200 MEMORY ERROR(PARAMETER FILE)

October 06, 2023 18:18
Updated

Most Common Failure: Replace ACPO1 and AIF01 Board.
