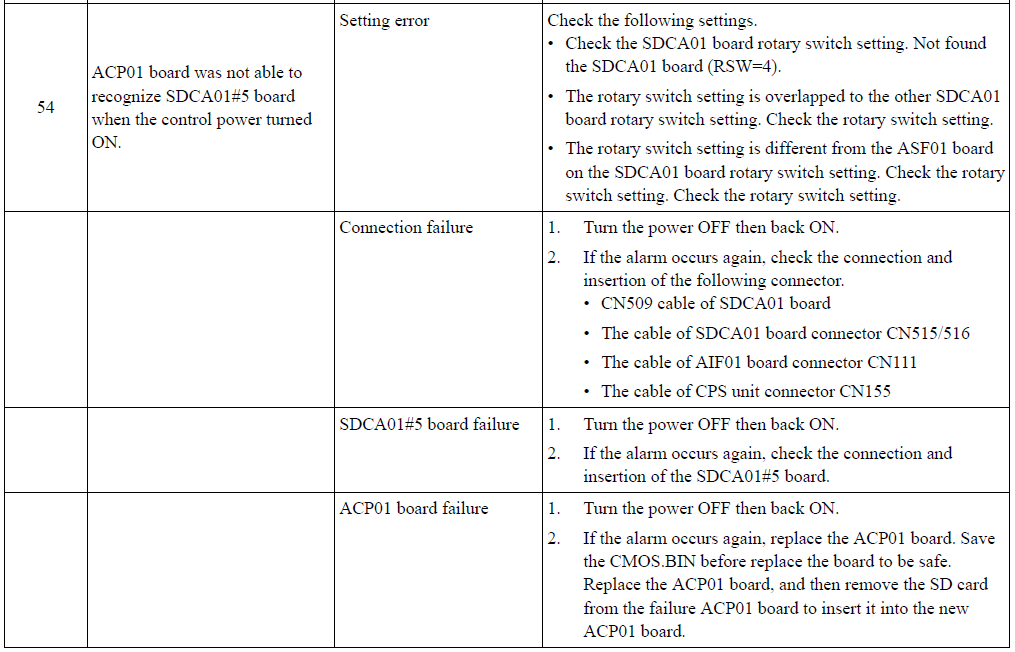

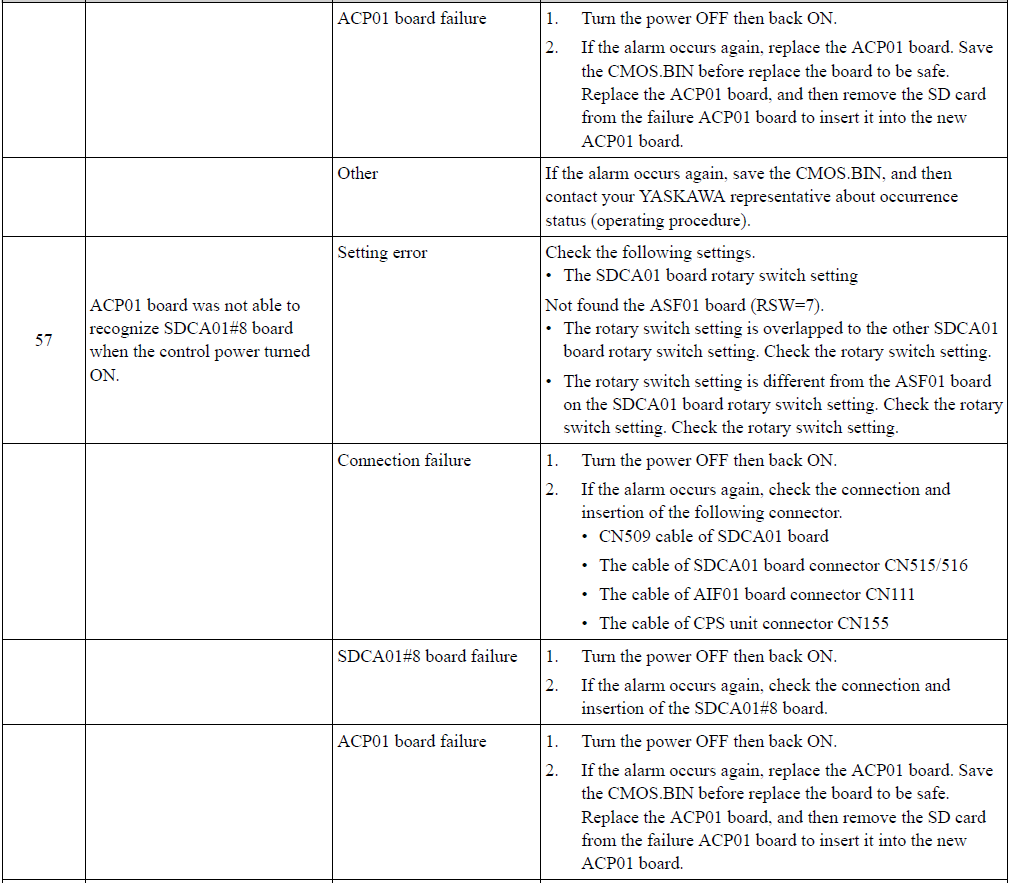

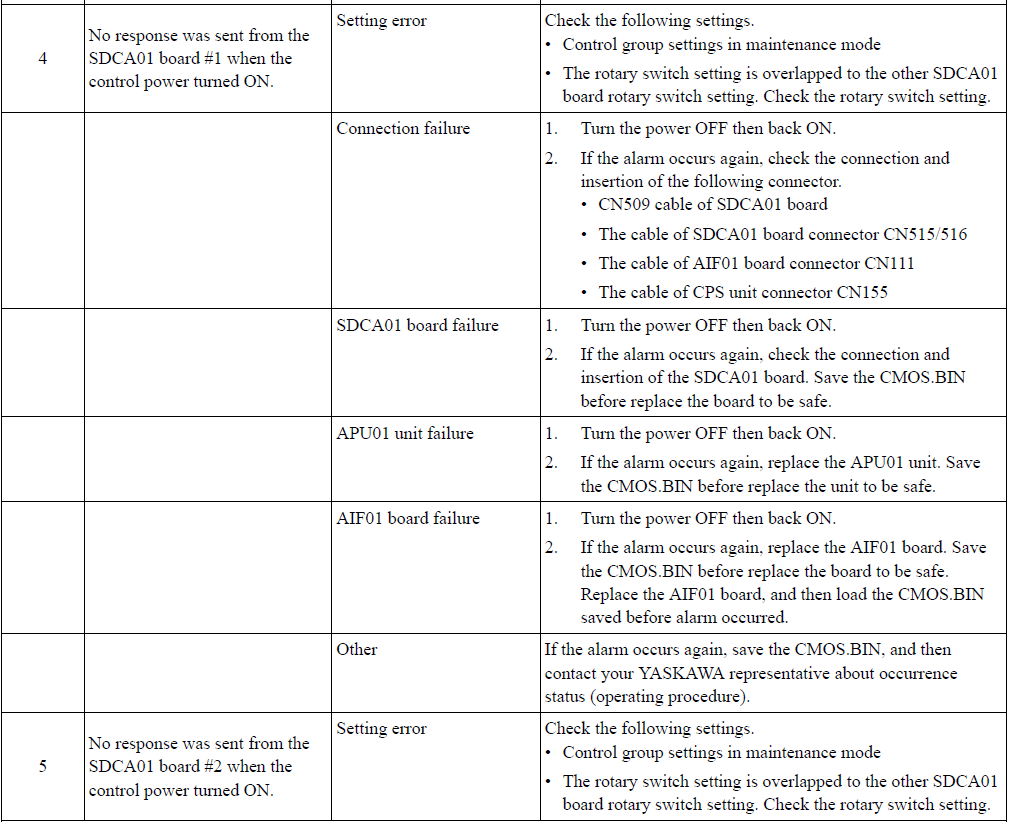

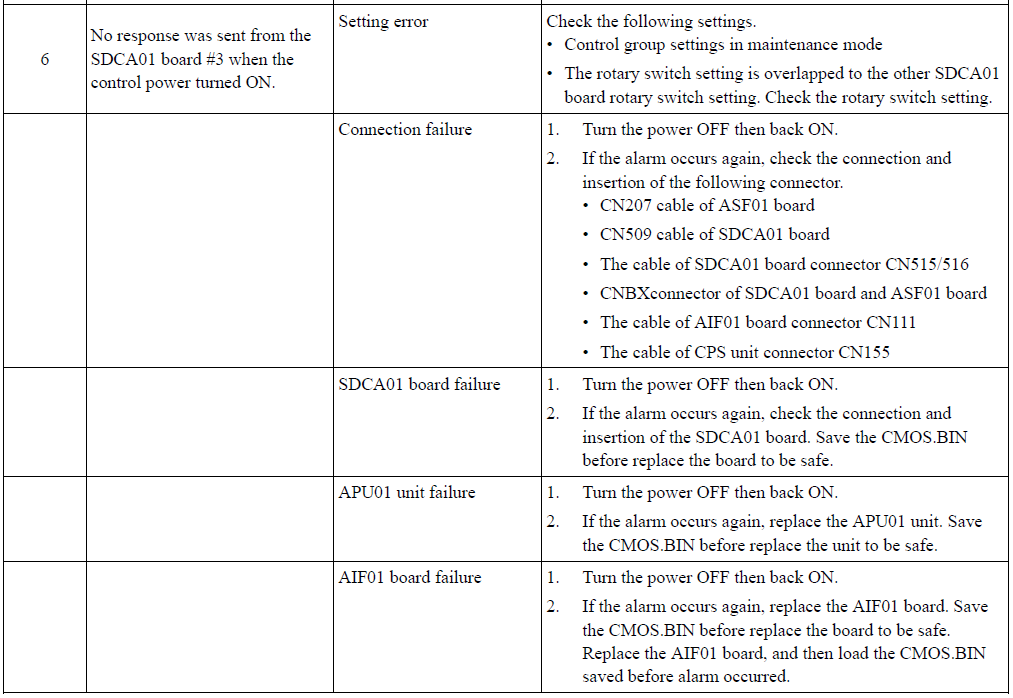

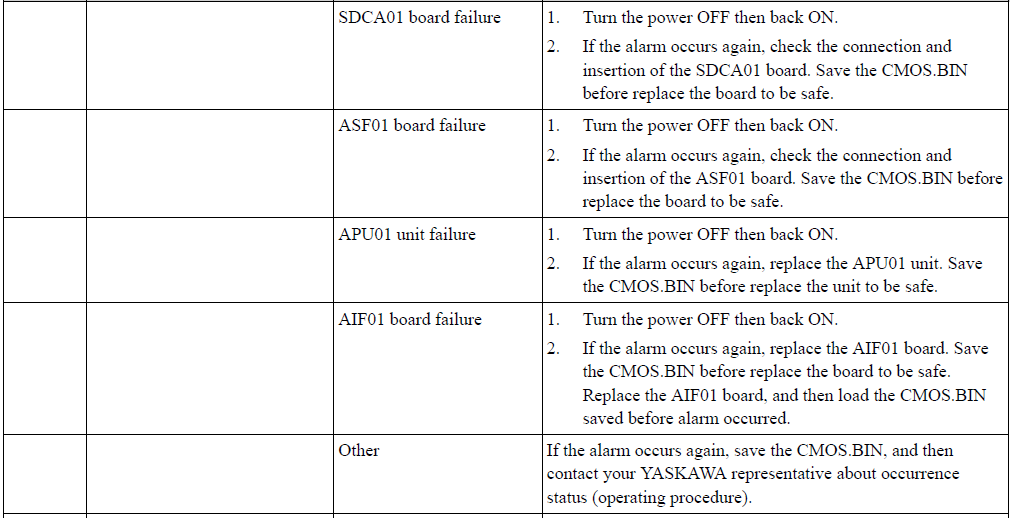

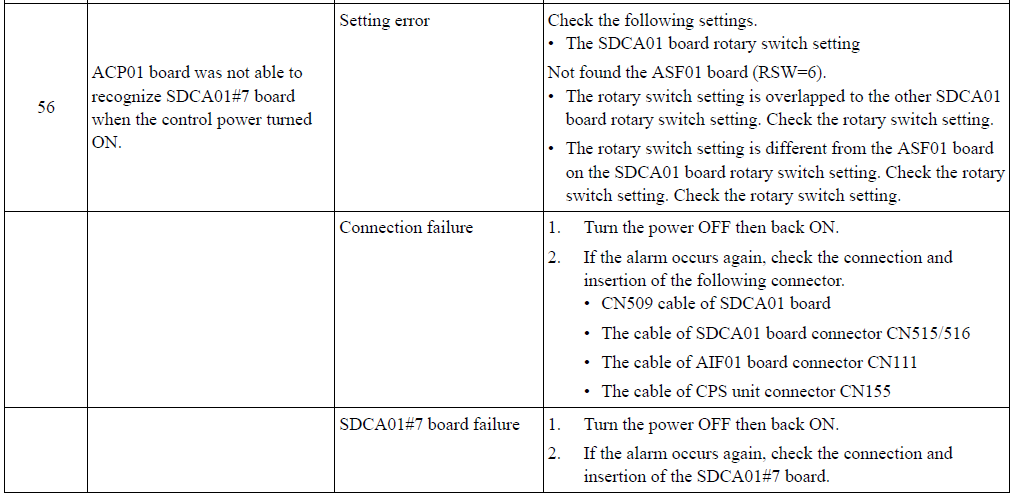

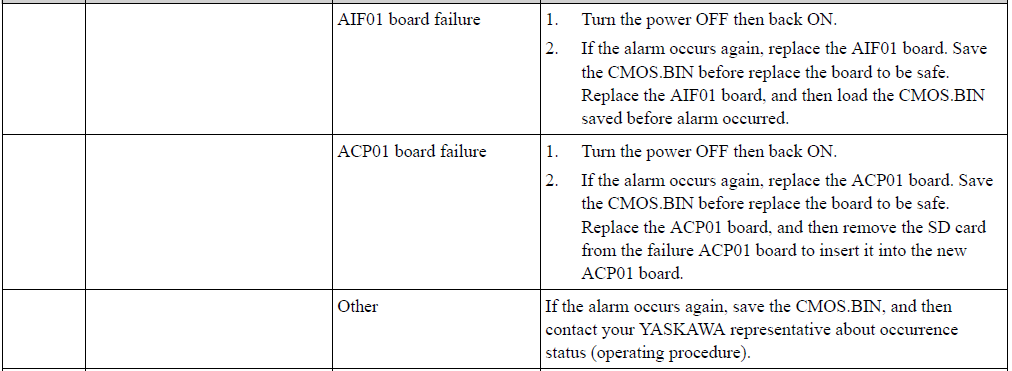

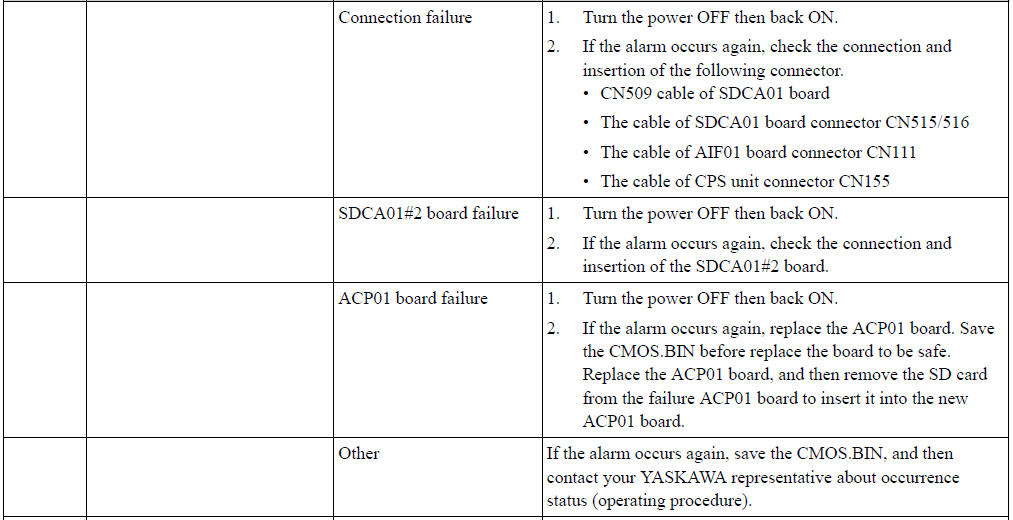

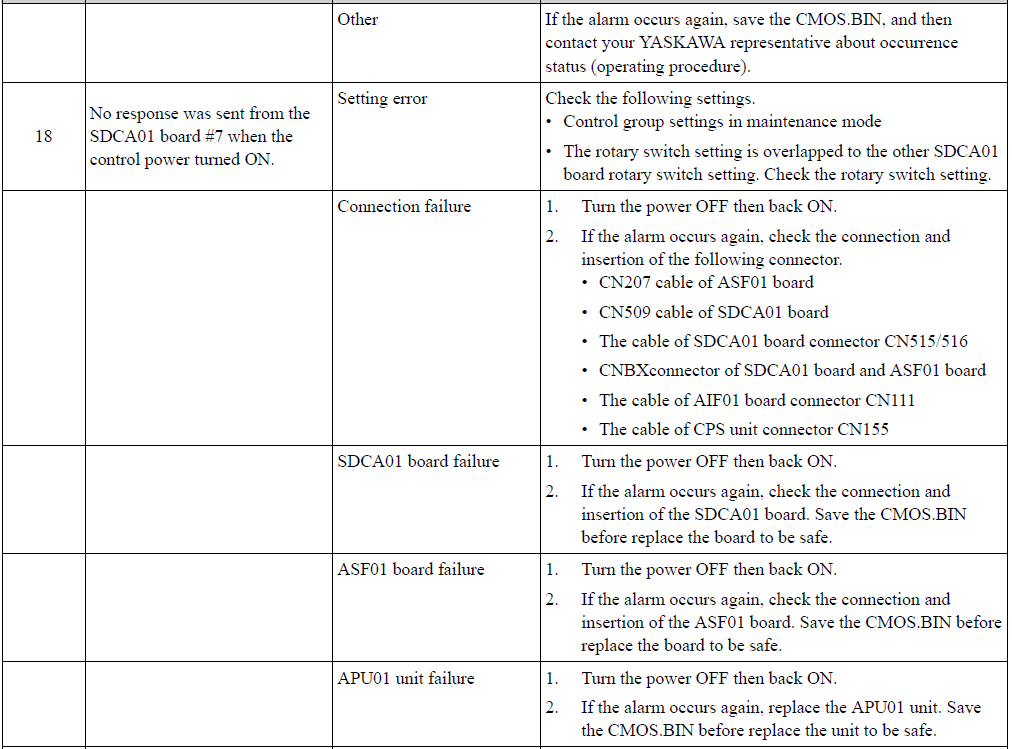

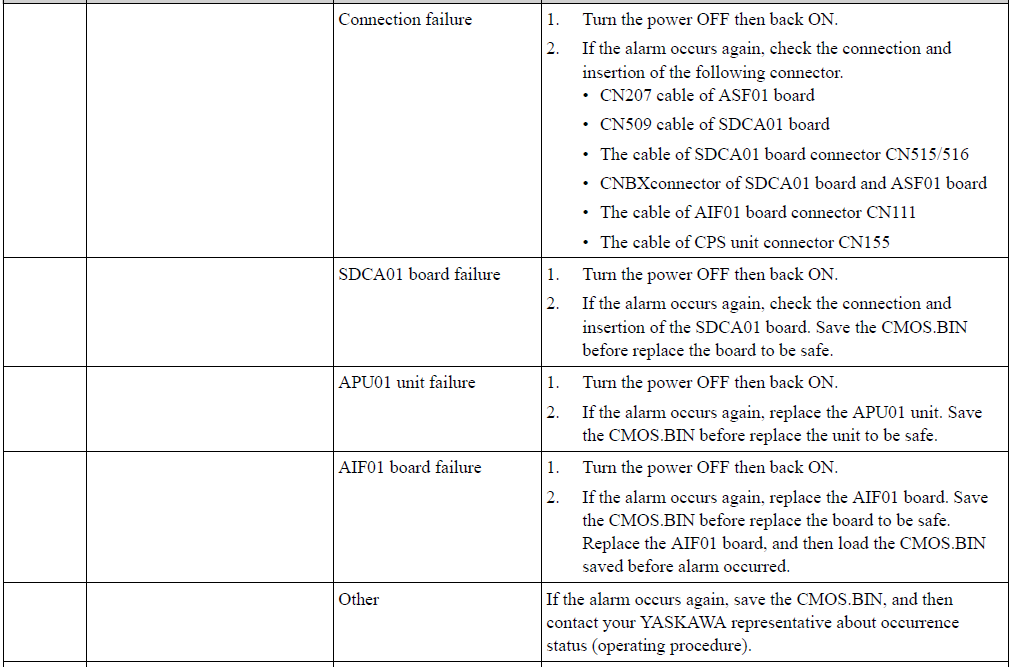

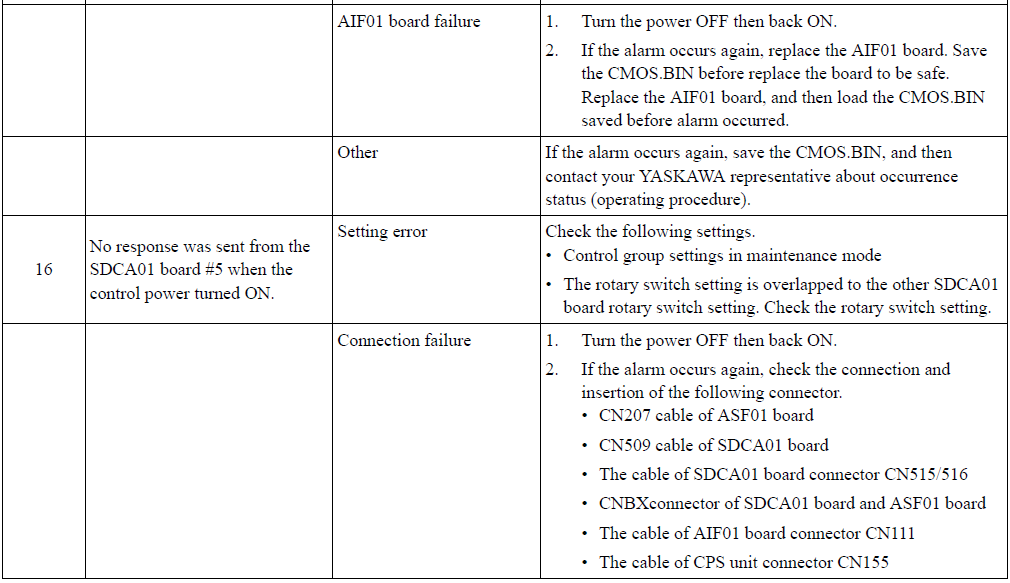

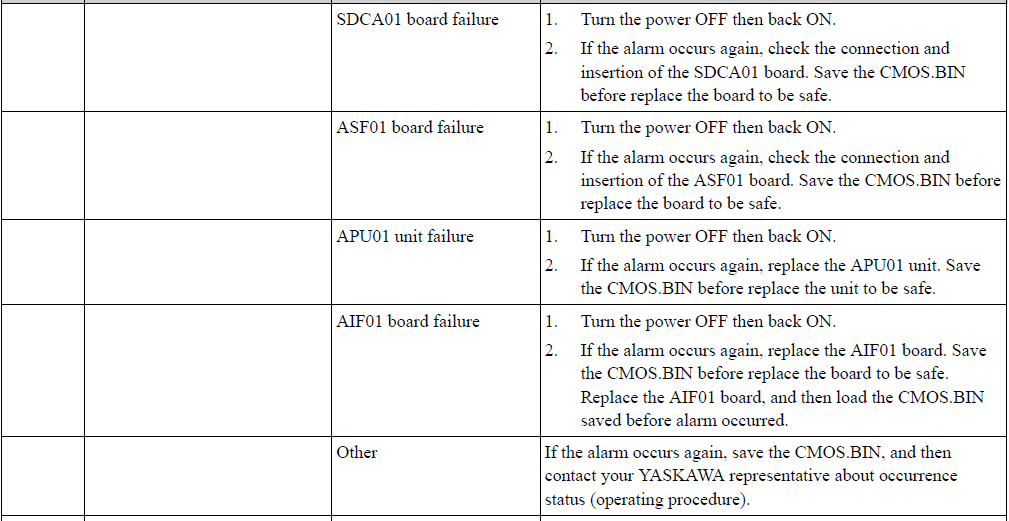

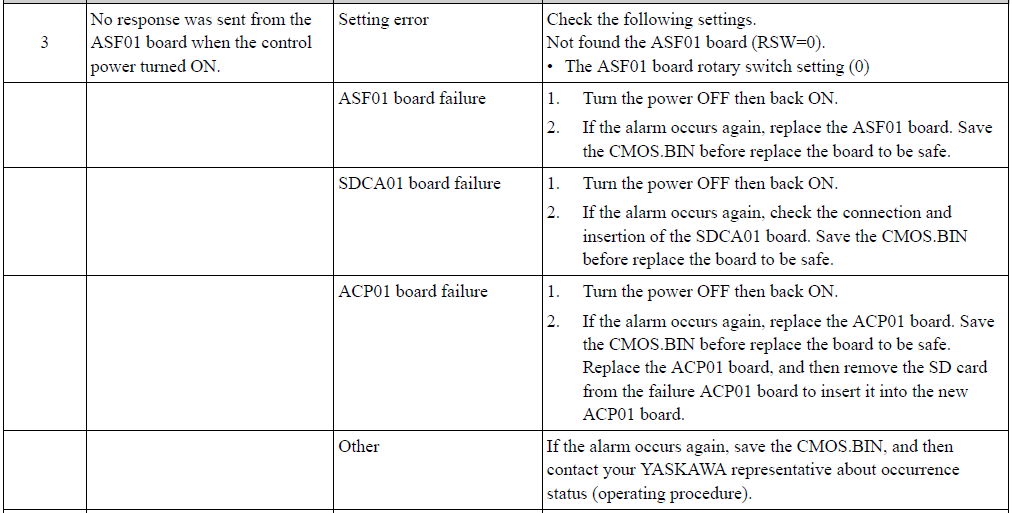

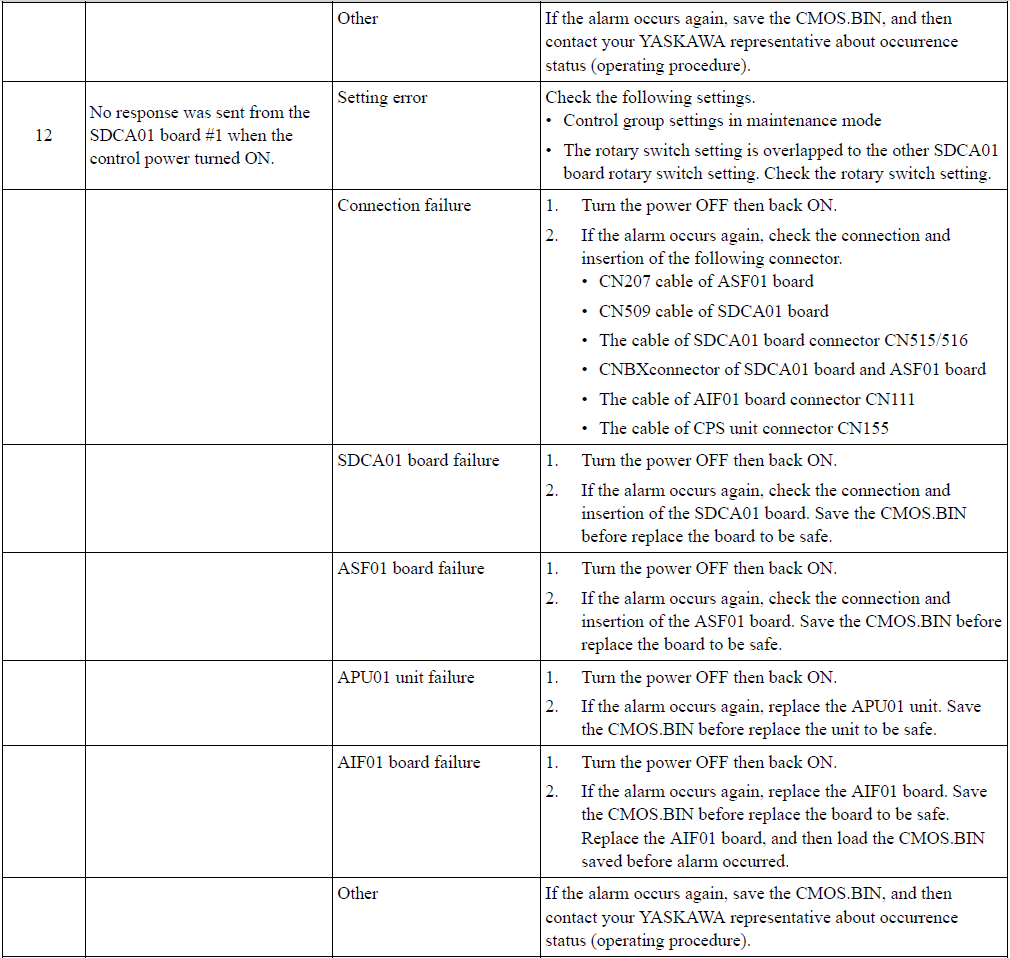

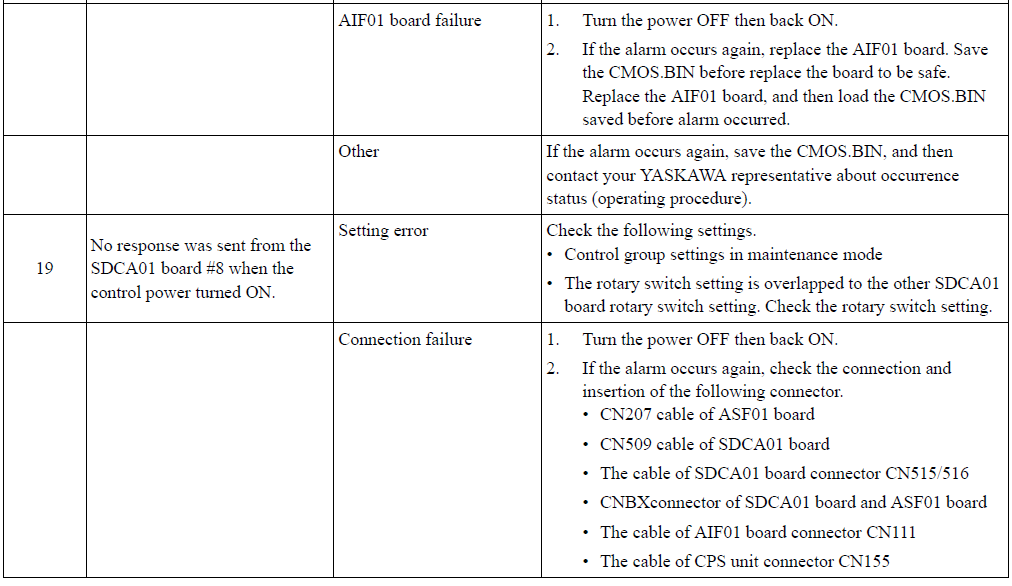

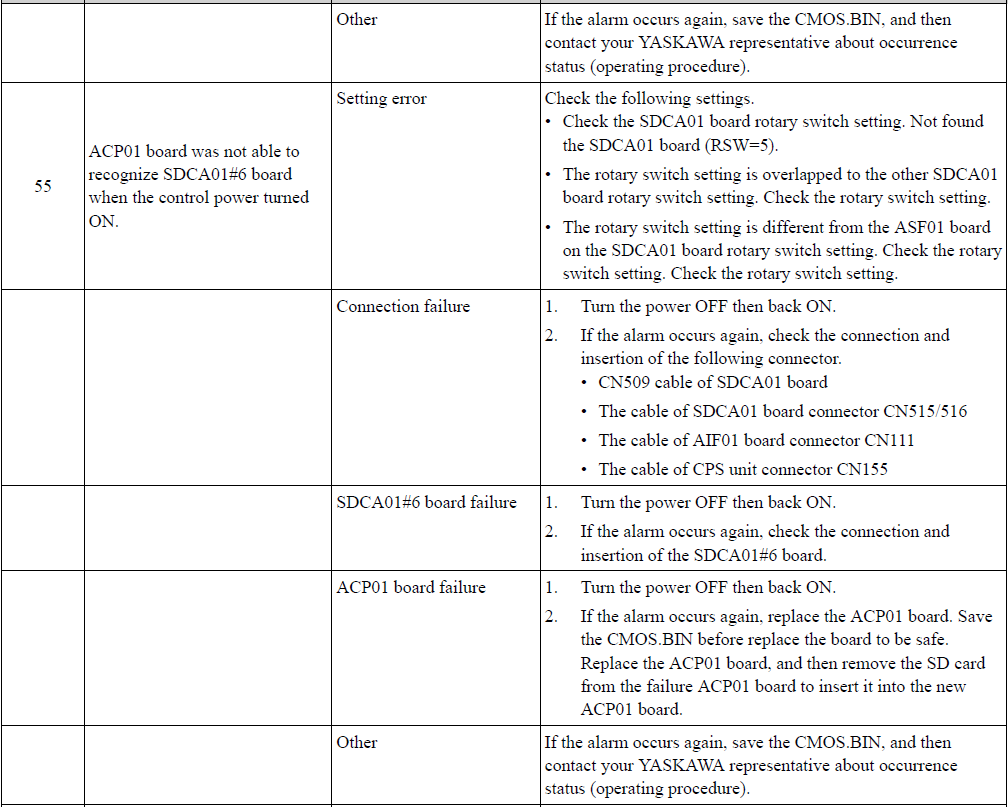

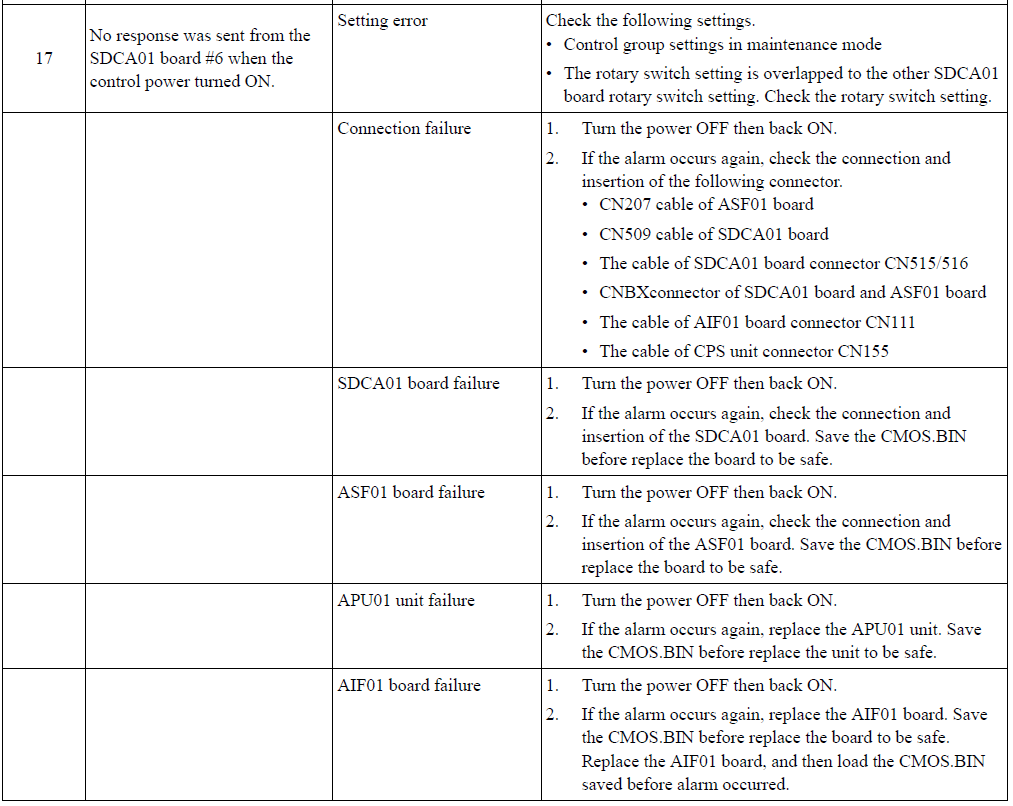

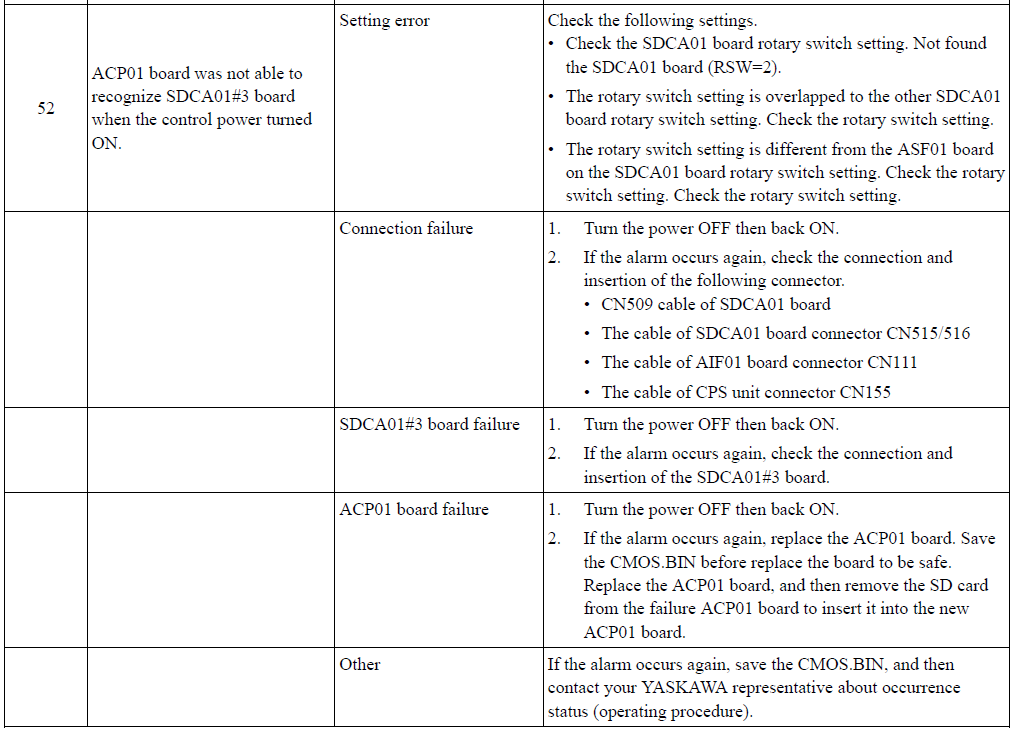

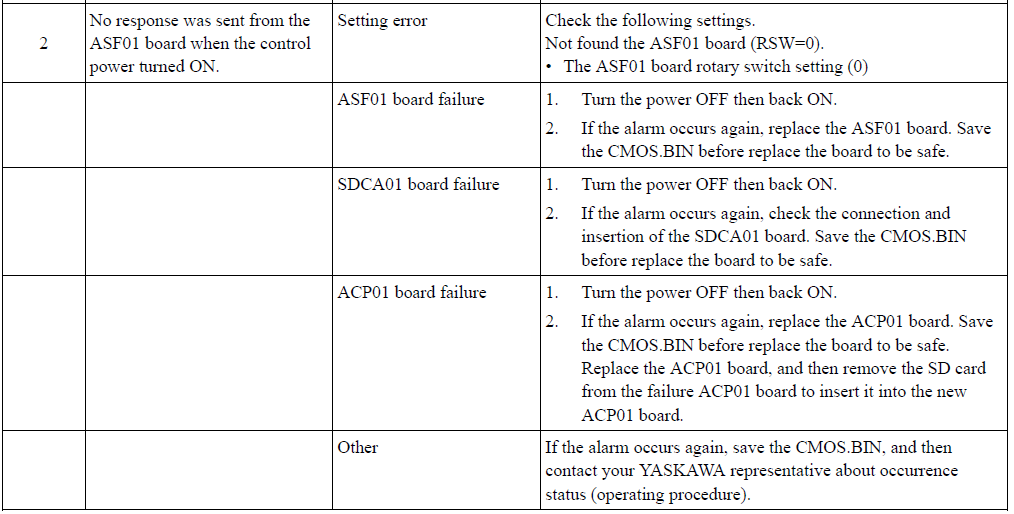

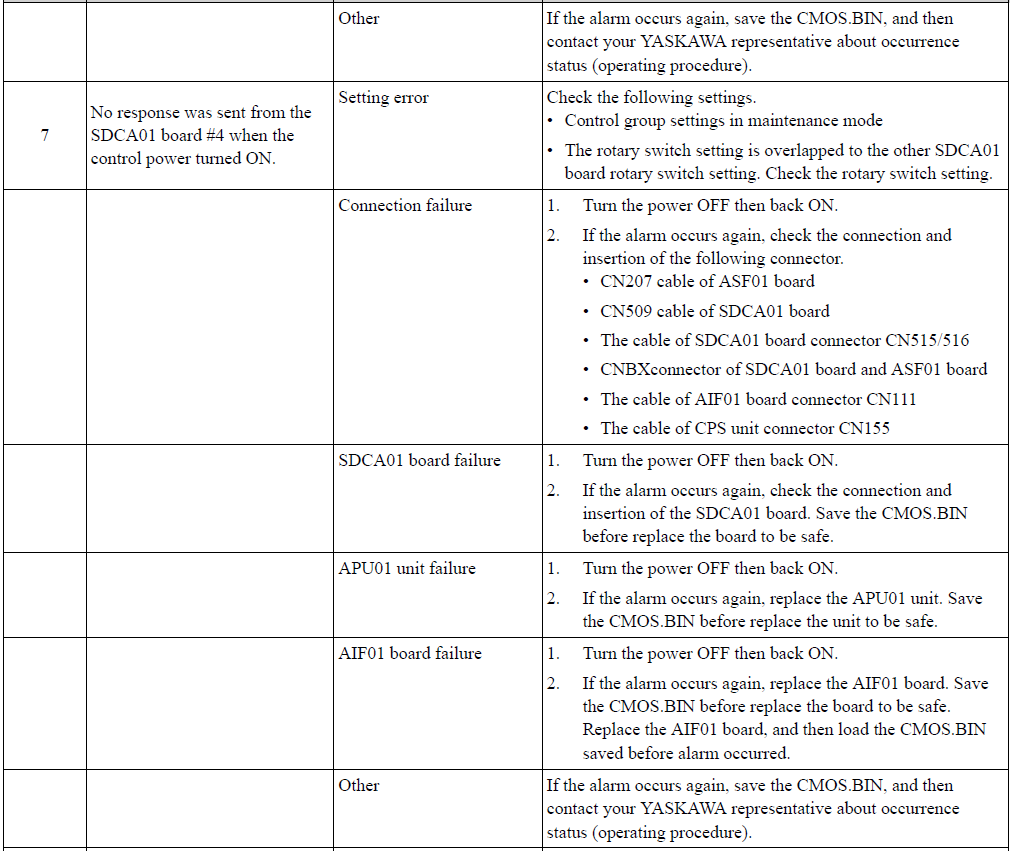

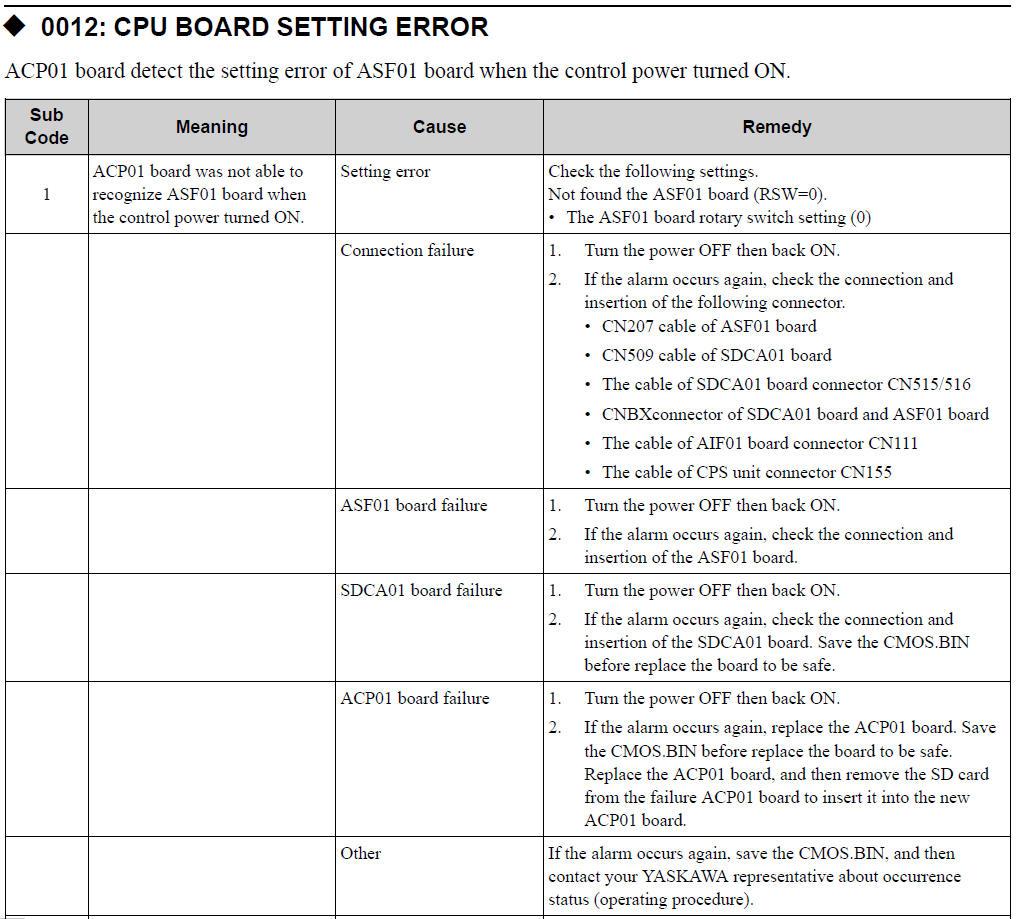

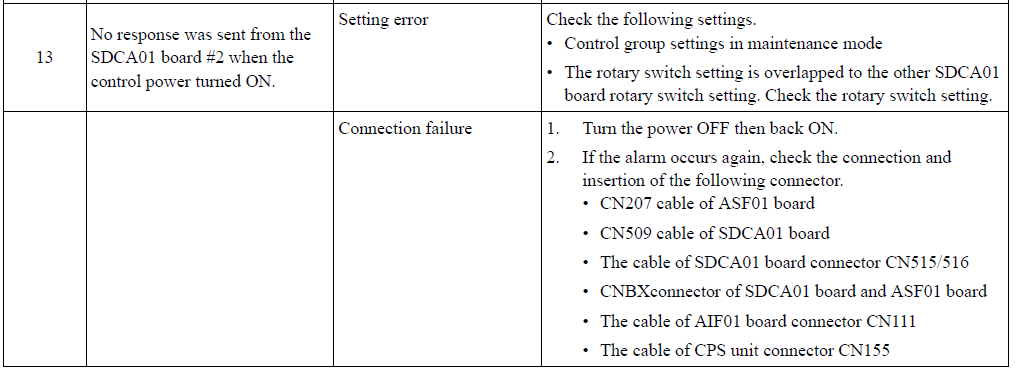

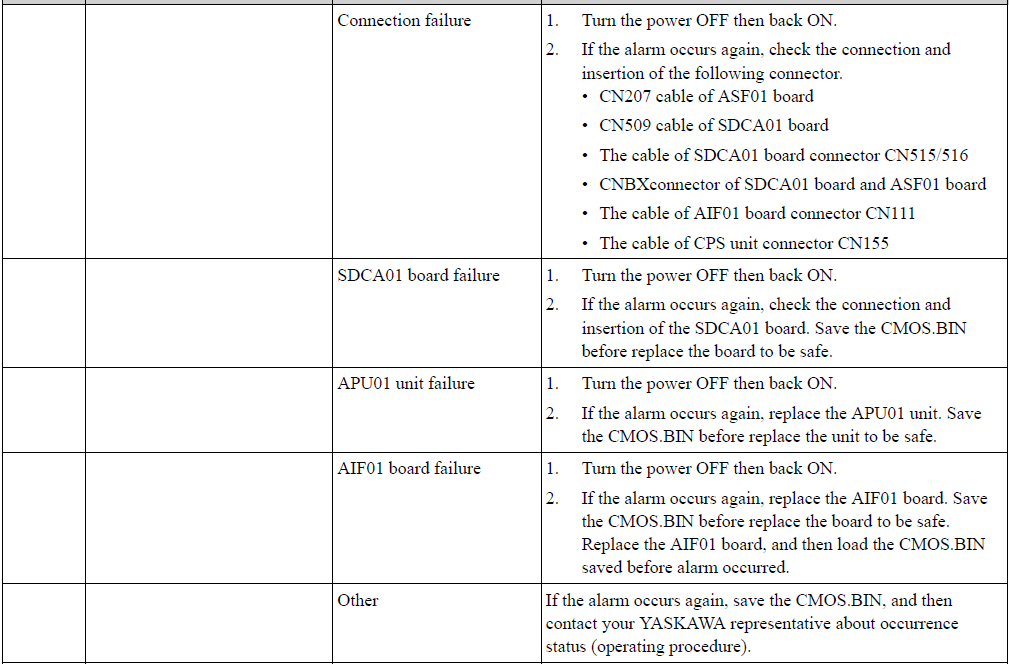

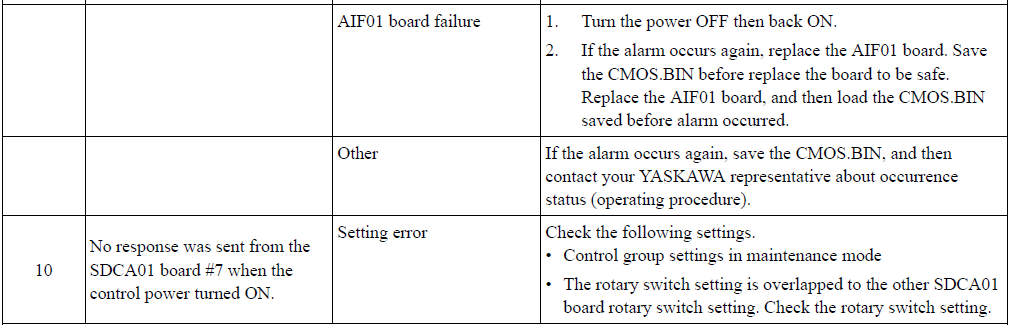

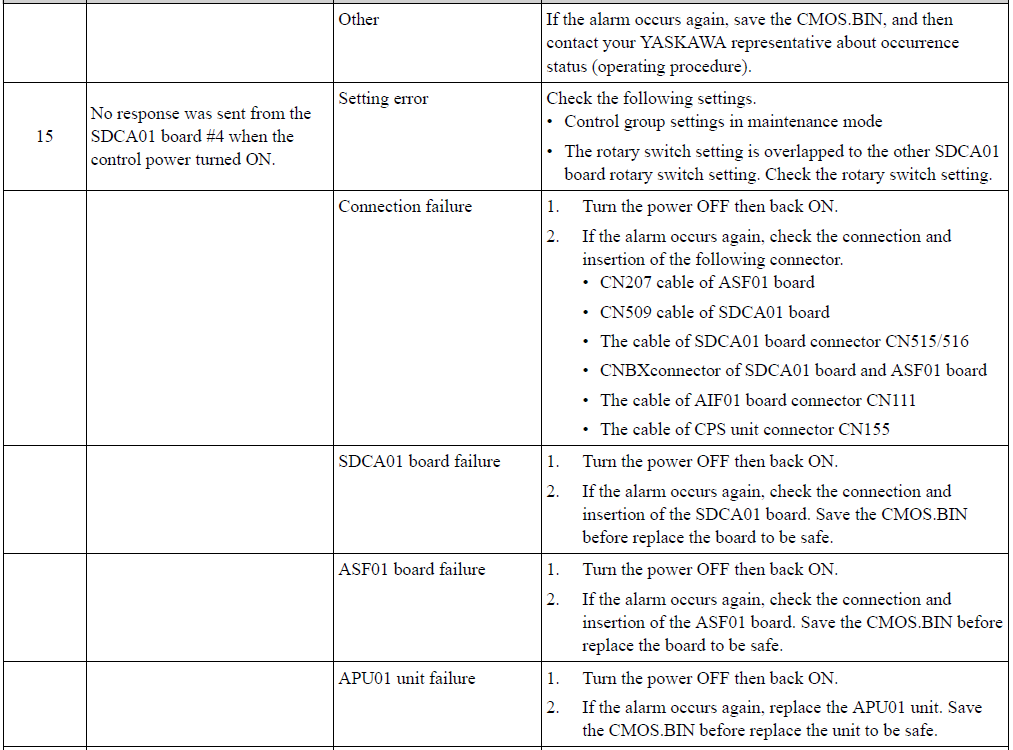

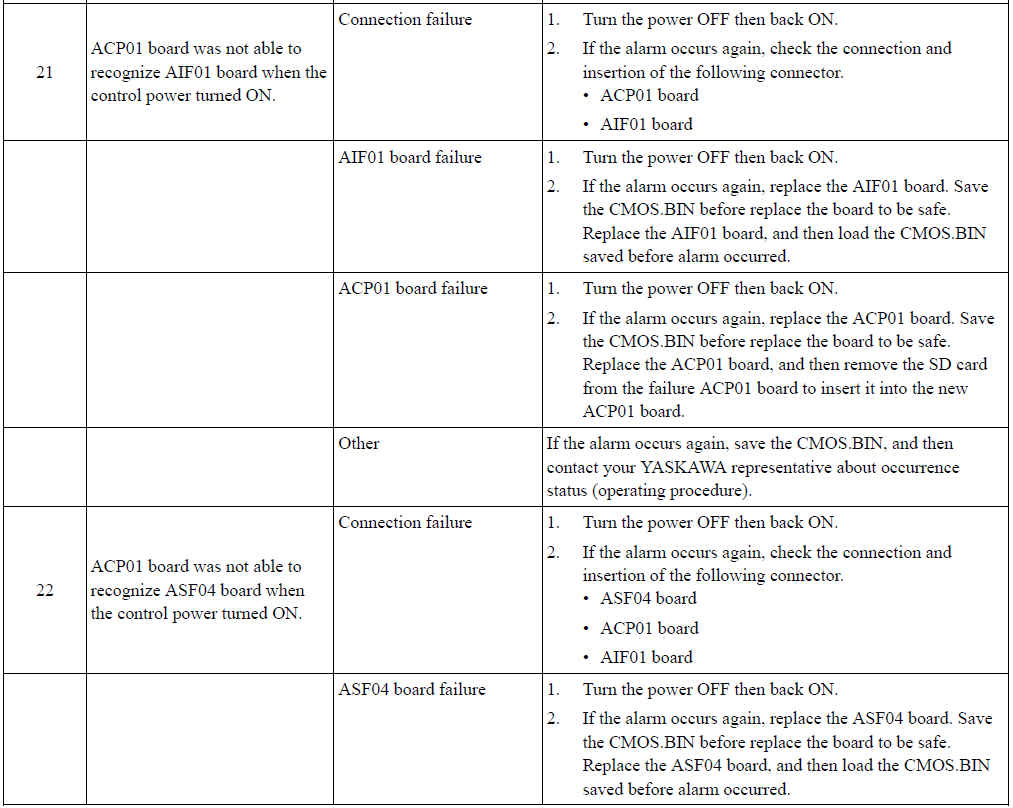

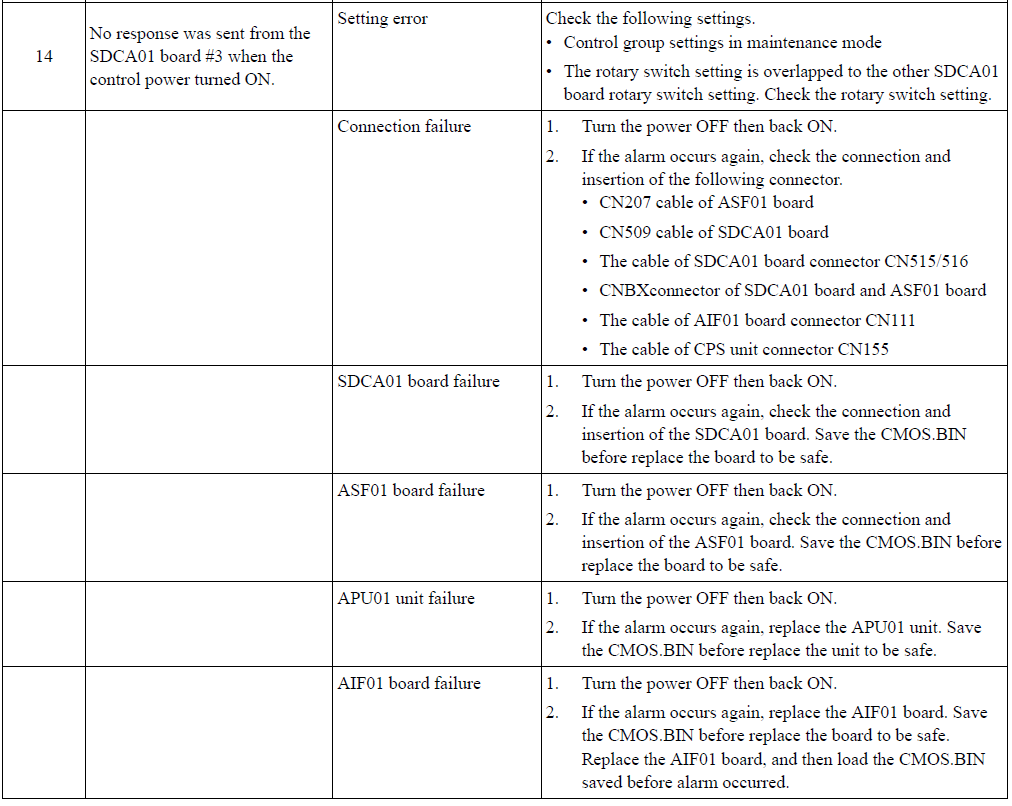

YRC1000 ALARM CODE 0012 CPU BOARD SETTING ERROR

November 21, 2023 21:20
Updated

Was this article helpful?

1 out of 1 found this helpful
