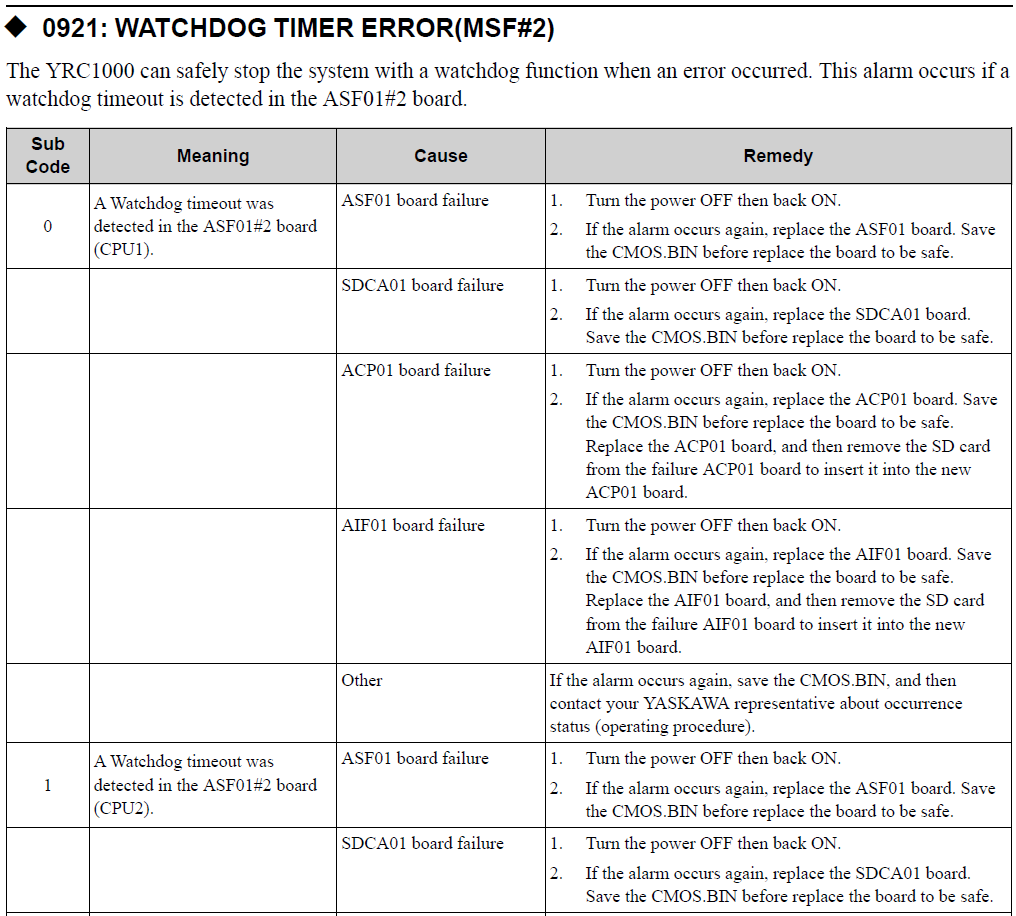

YRC1000 ALARM CODE 0921 WATCHDOG TIMER ERROR (MSF#2)

October 31, 2023 14:07
Updated

Most Common Repair: Replace the ASF01 Board.
