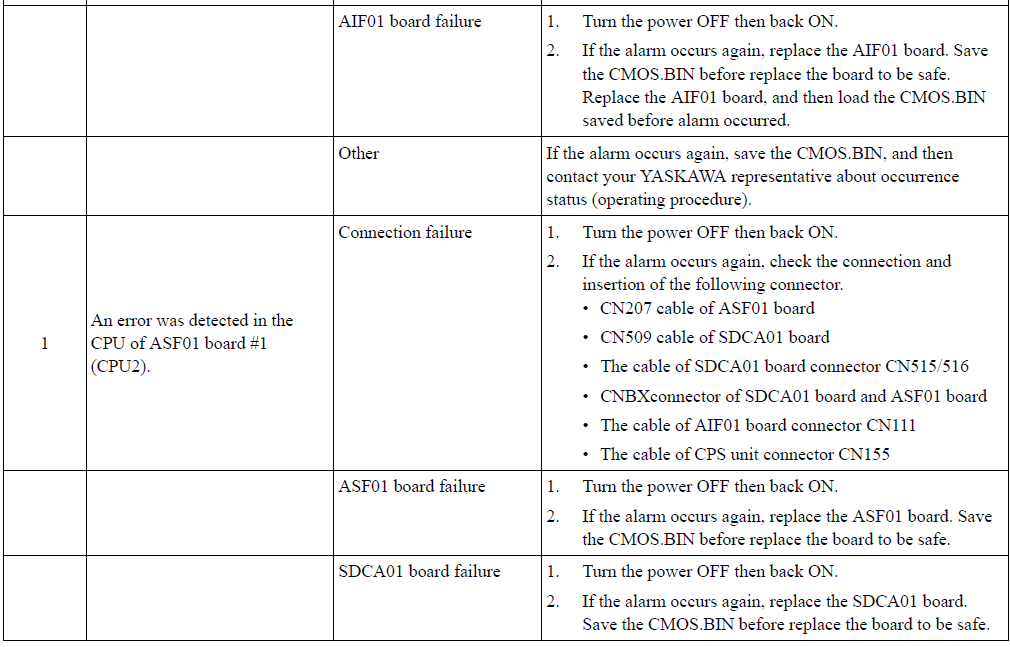

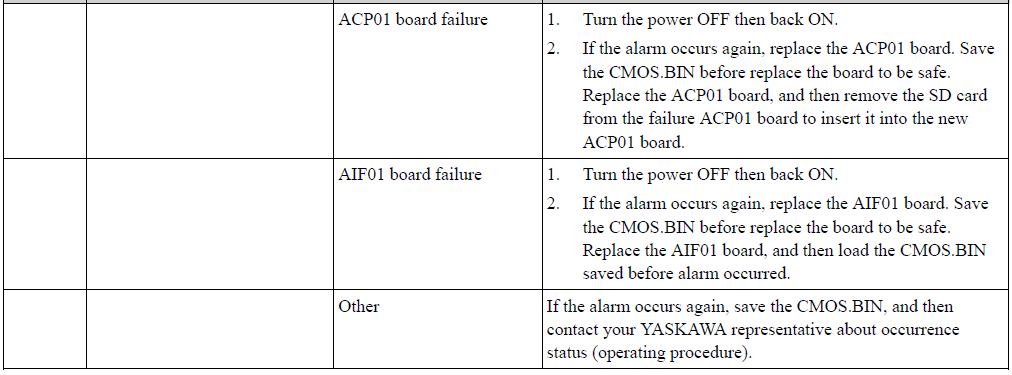

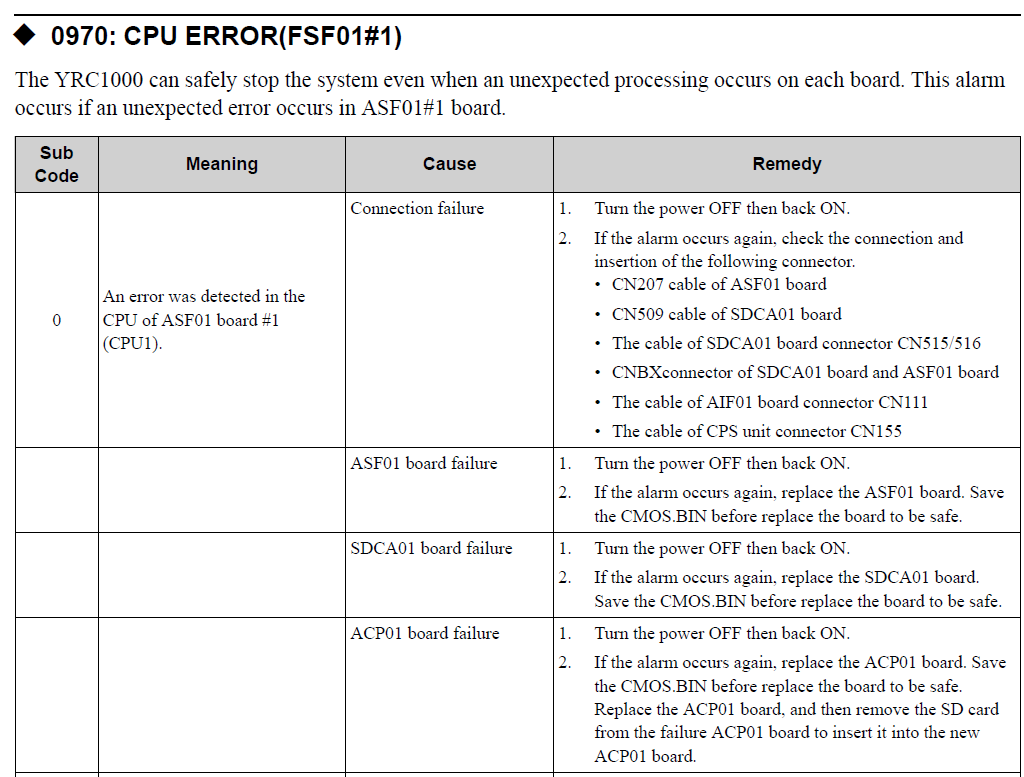

YRC1000 ALARM CODE 0970 CPU ERROR (FSF01#1)

November 06, 2023 15:52
Updated

Most Common Repair: SDCA01 Board.
