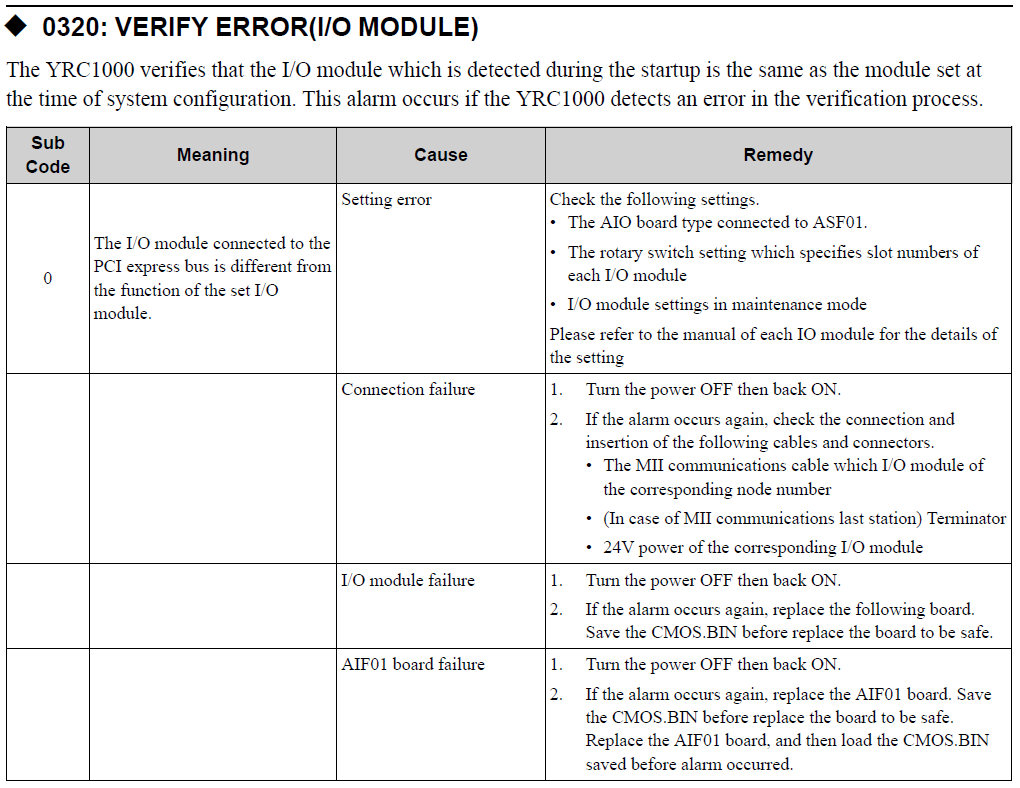

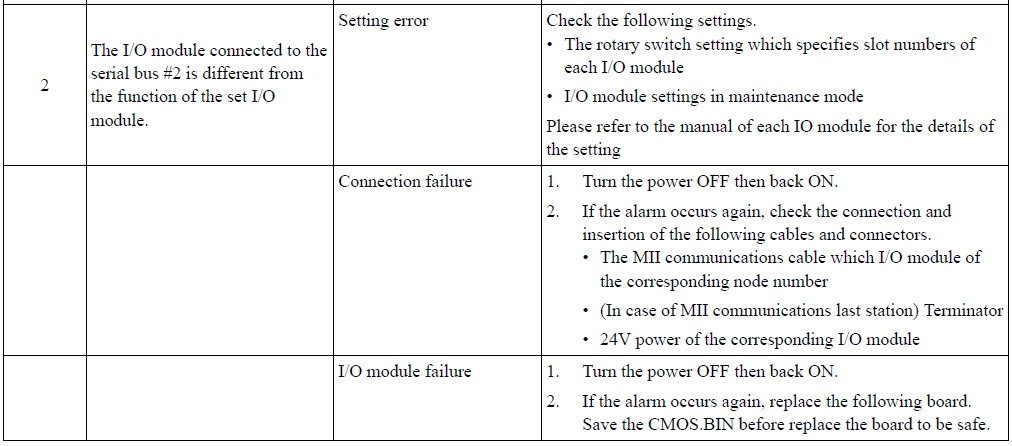

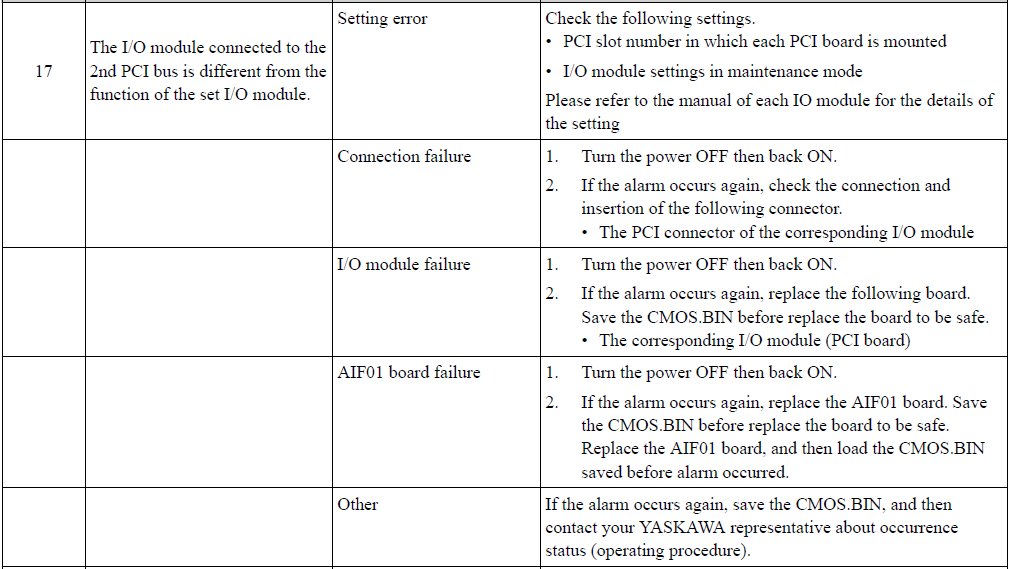

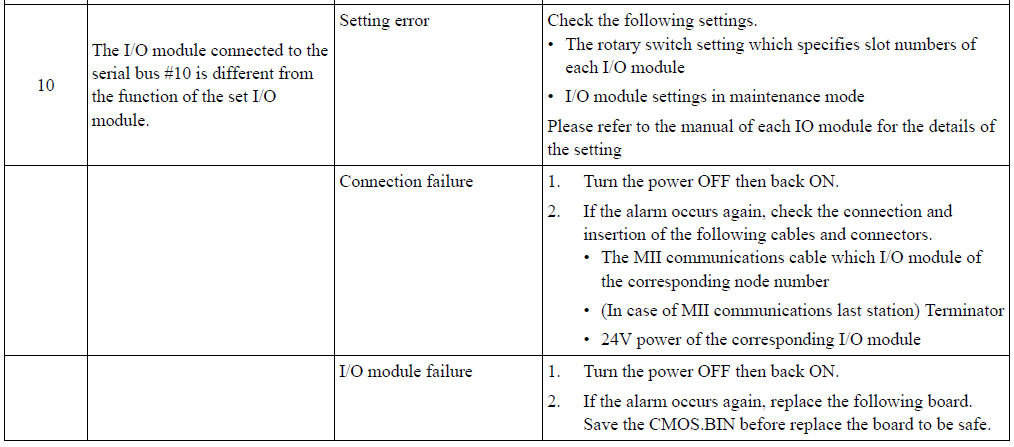

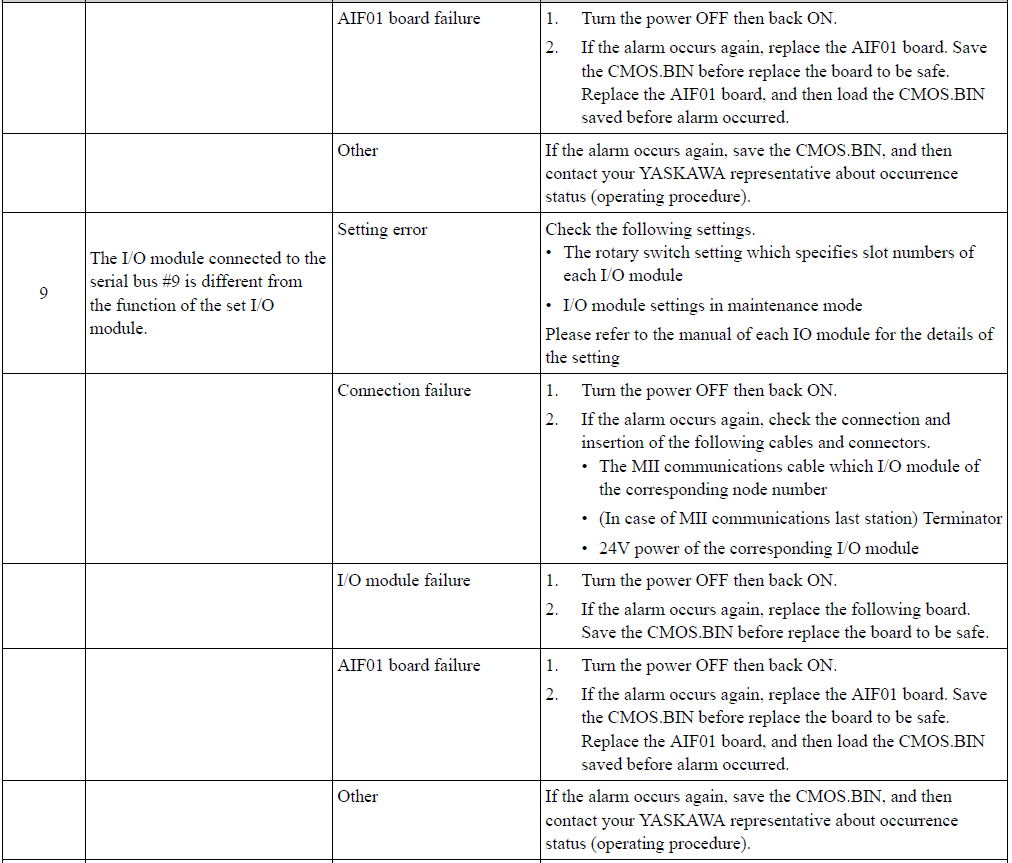

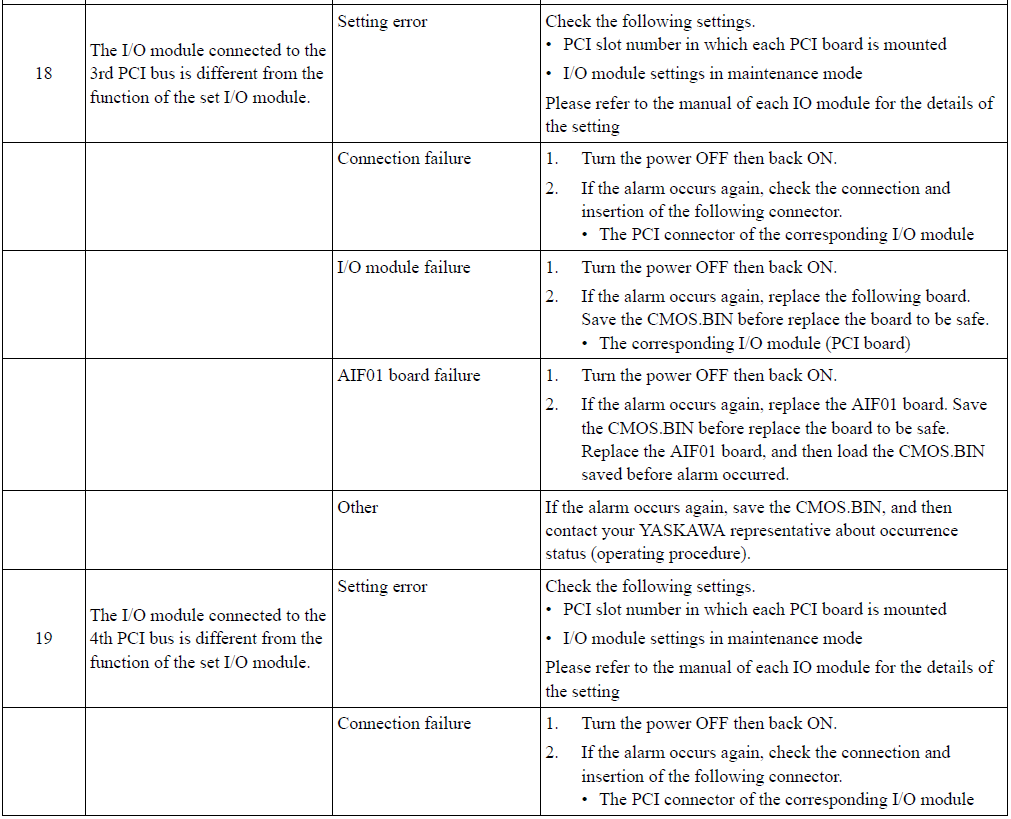

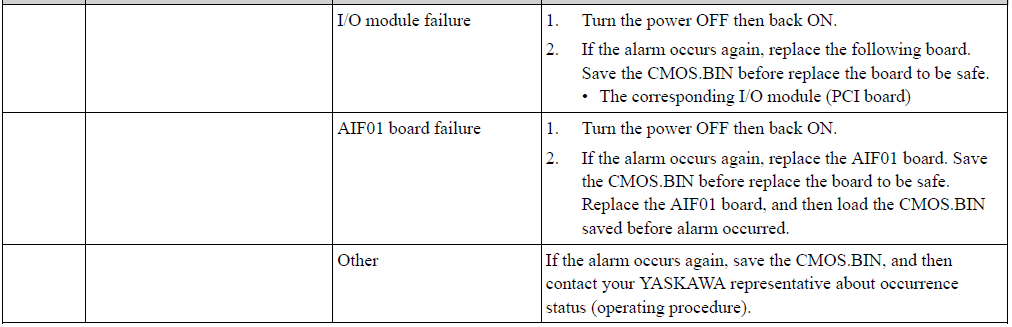

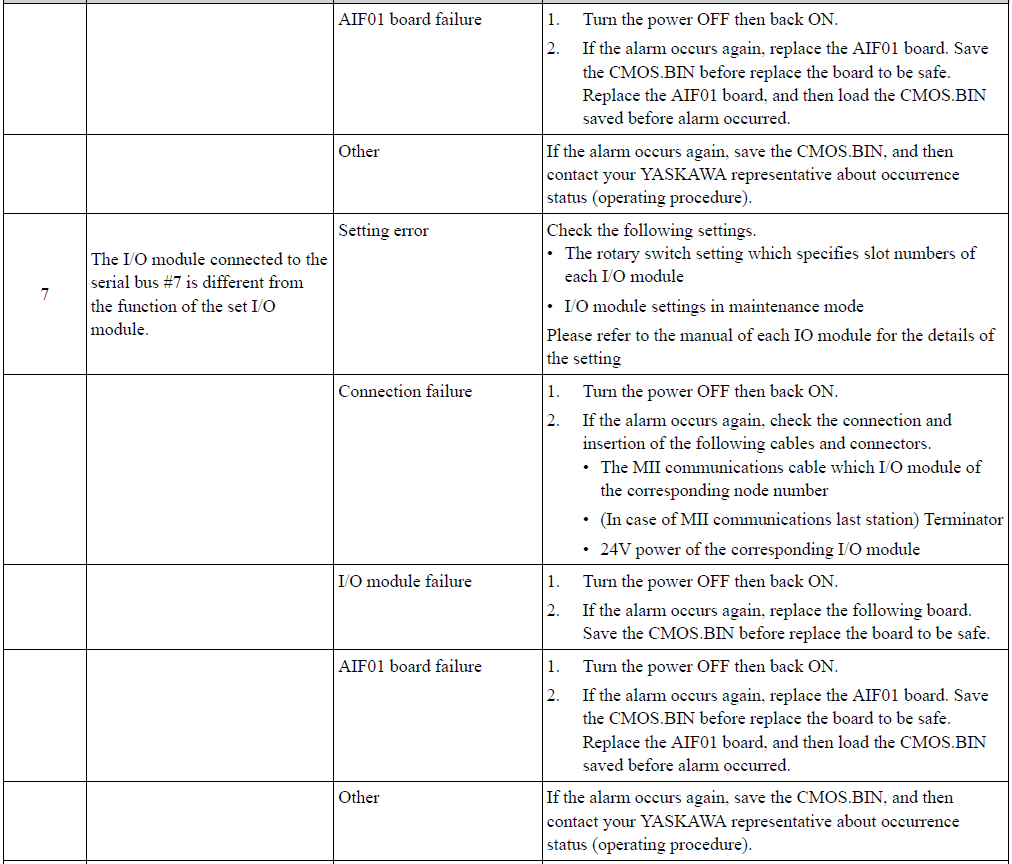

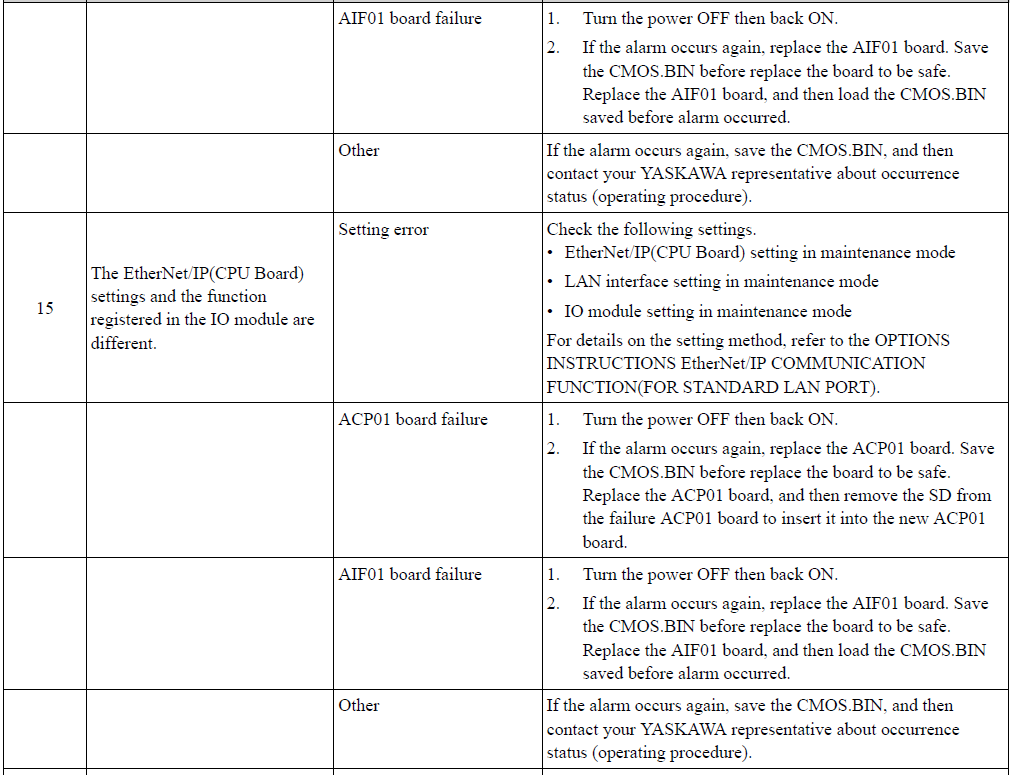

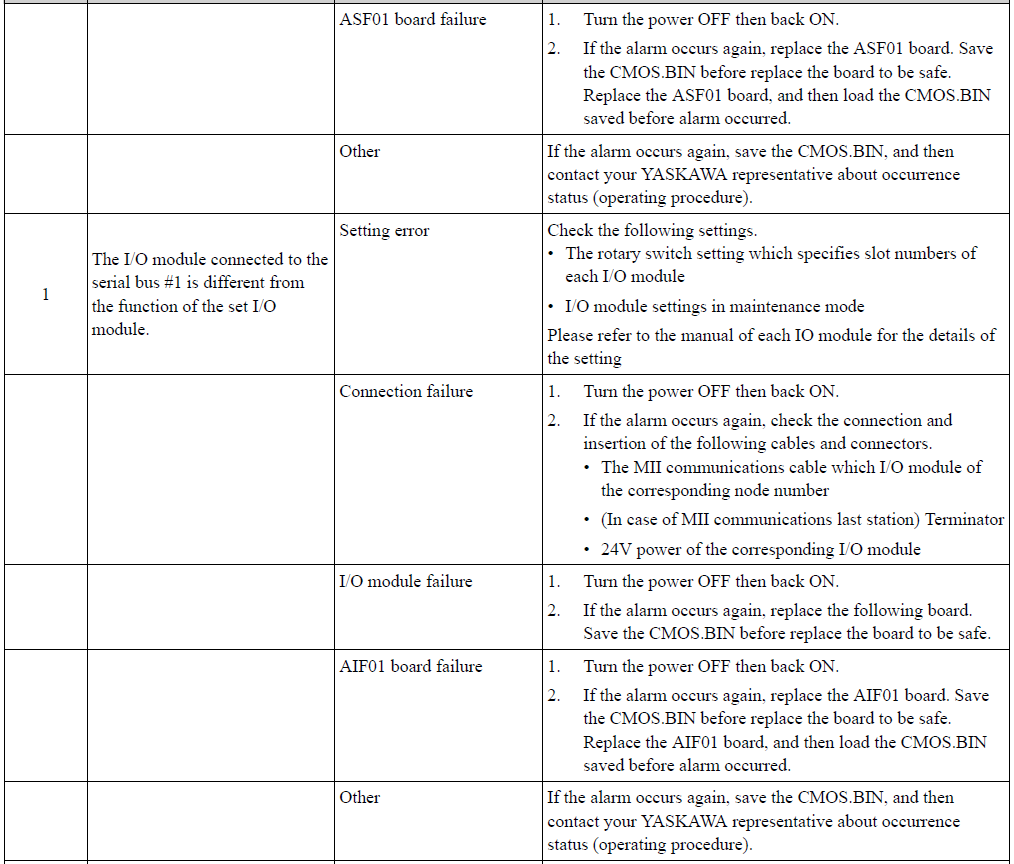

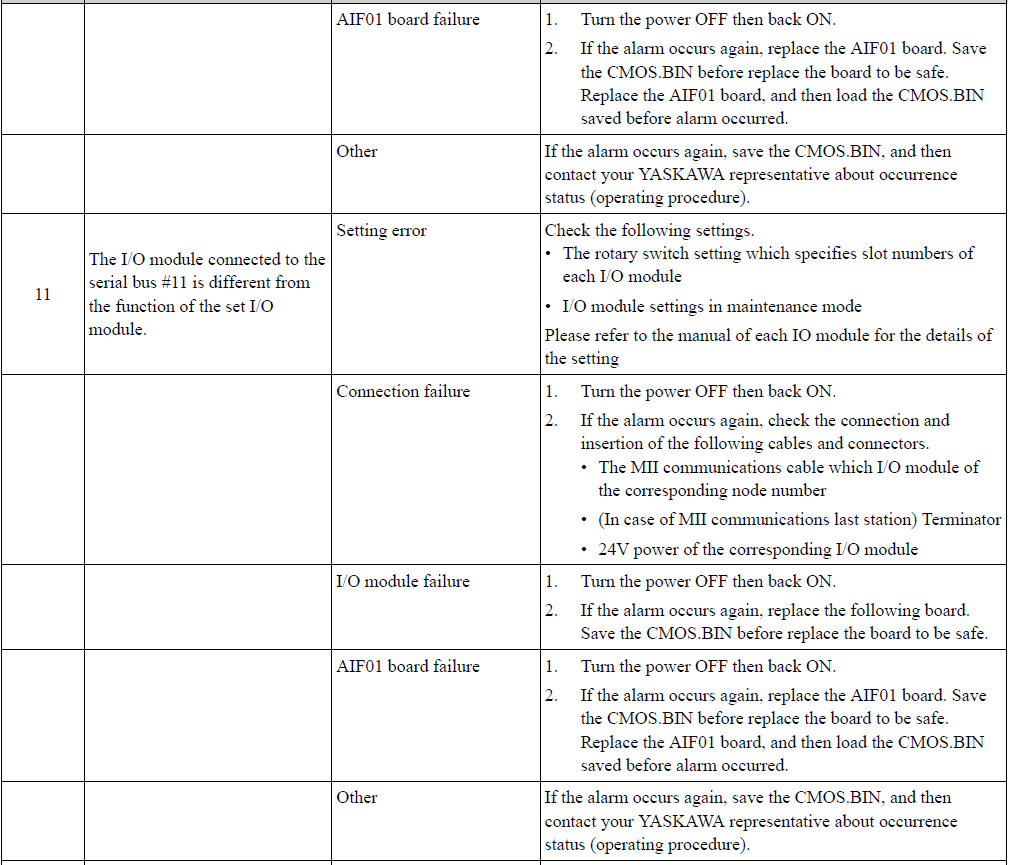

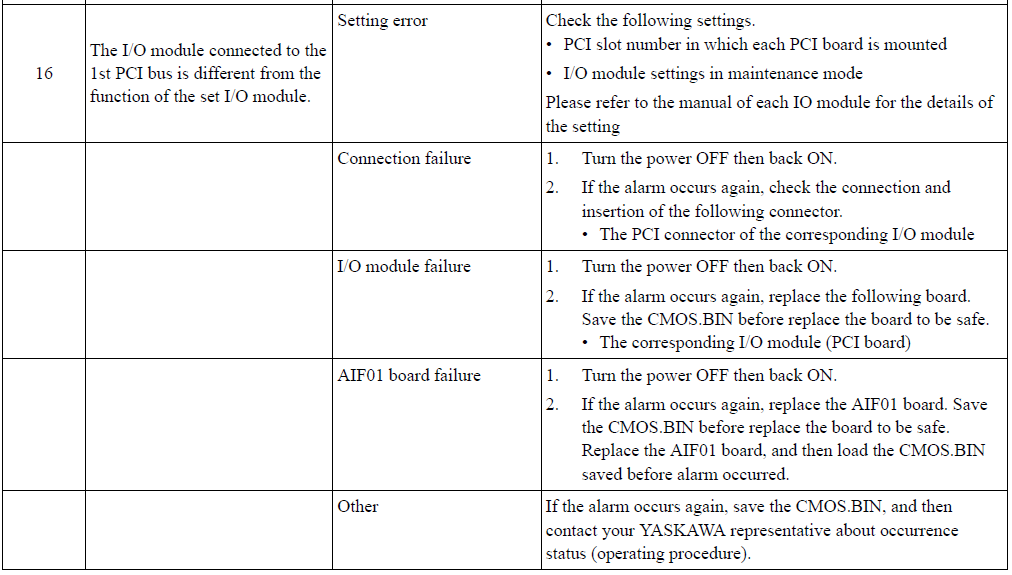

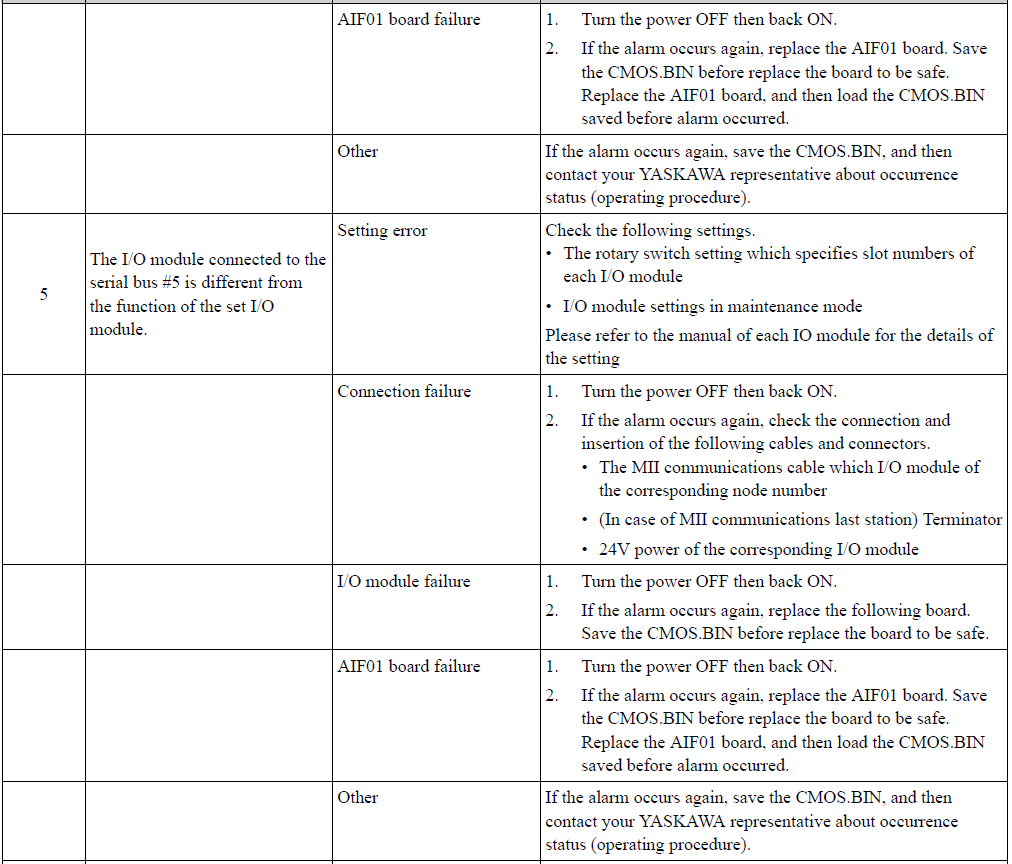

YRC1000 ALARM CODE 0320 VERIFY ERROR (I/O MODULE)

November 21, 2023 18:39
Updated

Was this article helpful?

1 out of 2 found this helpful
