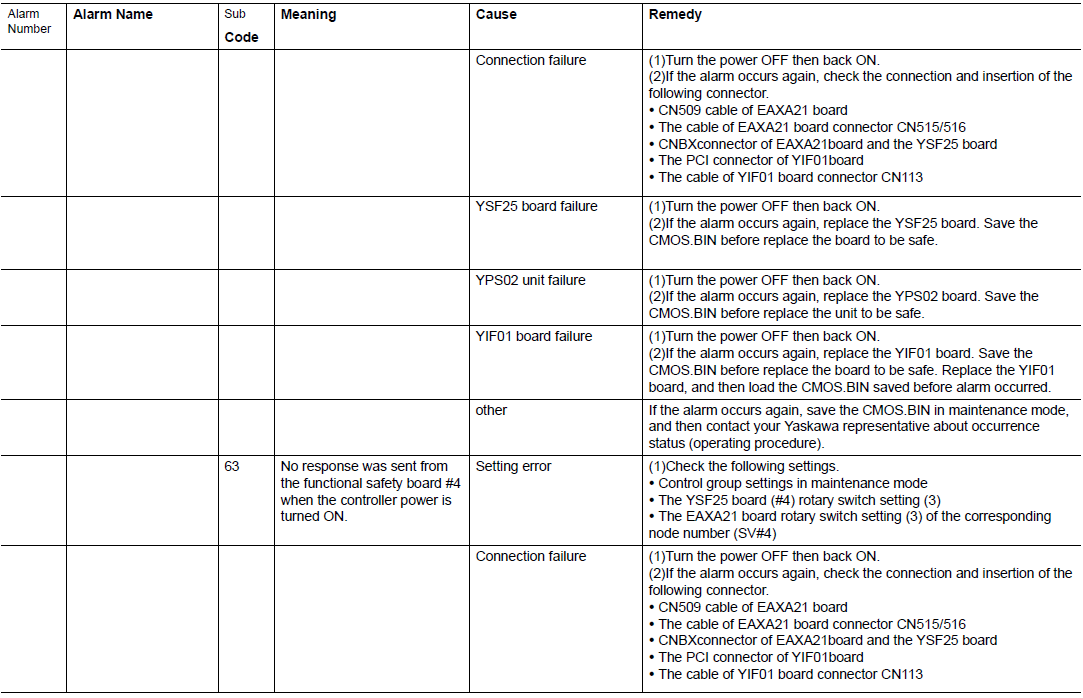

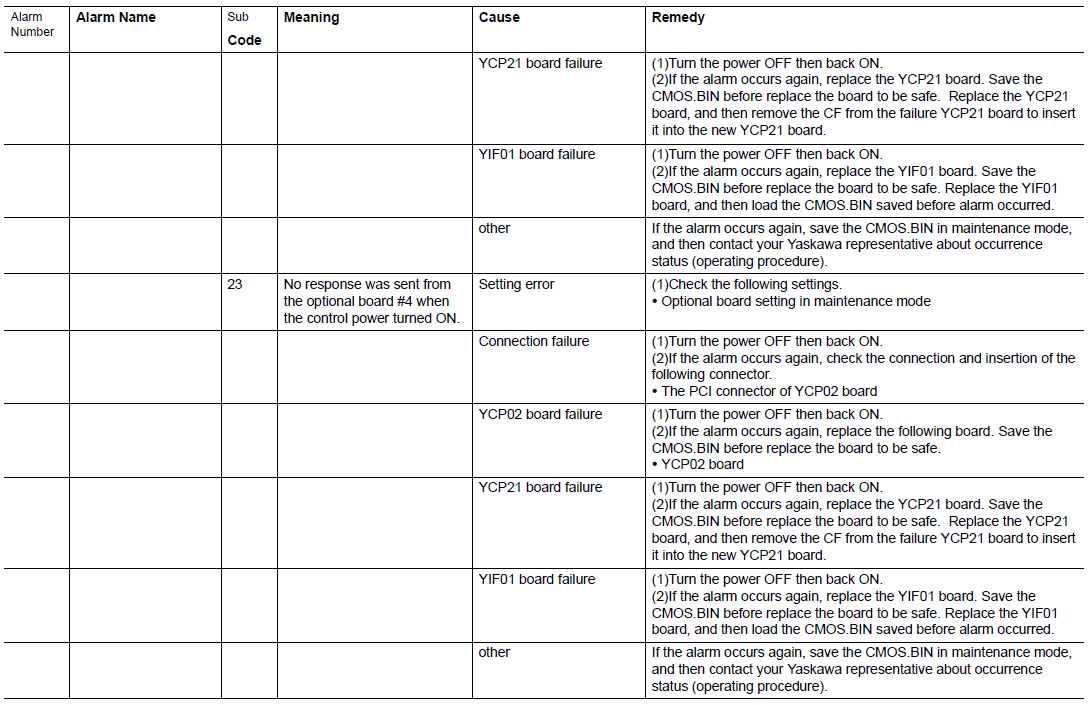

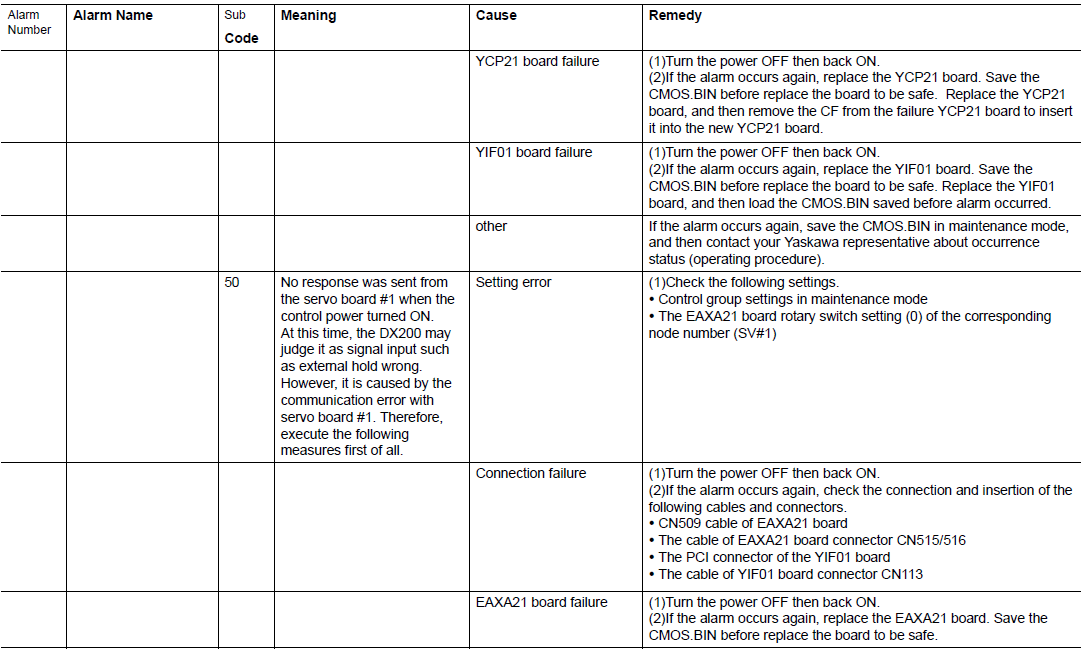

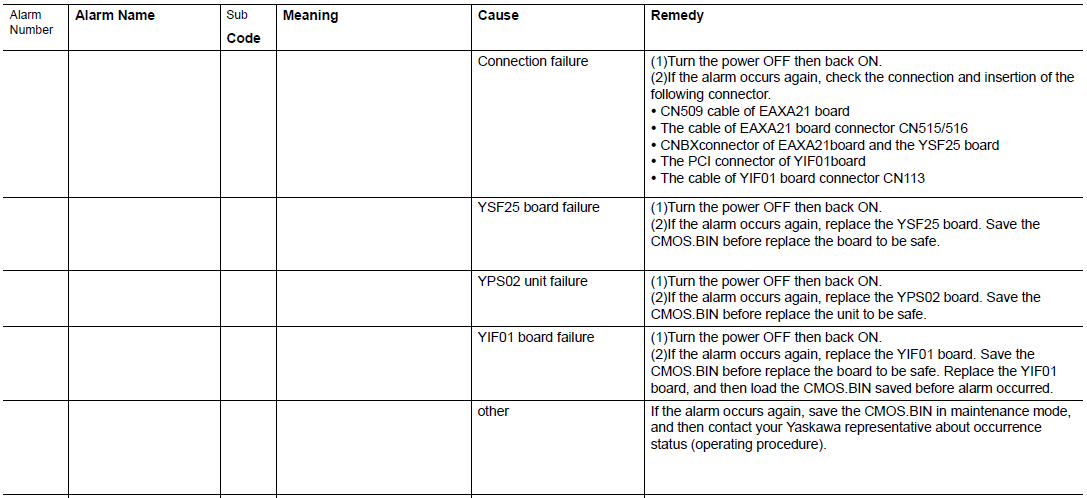

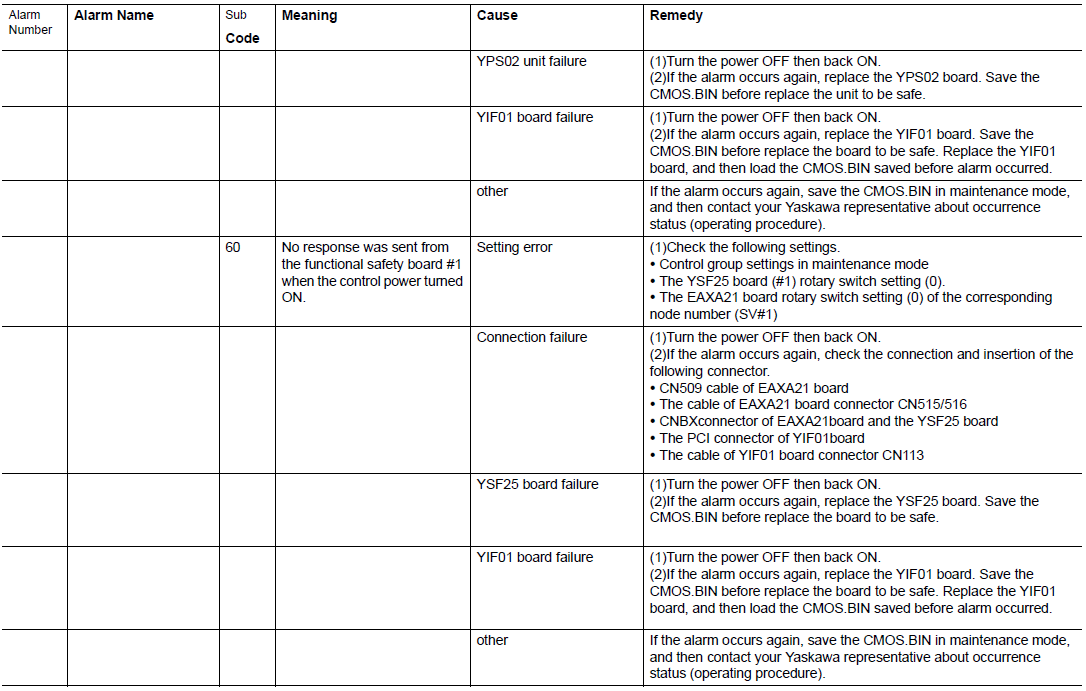

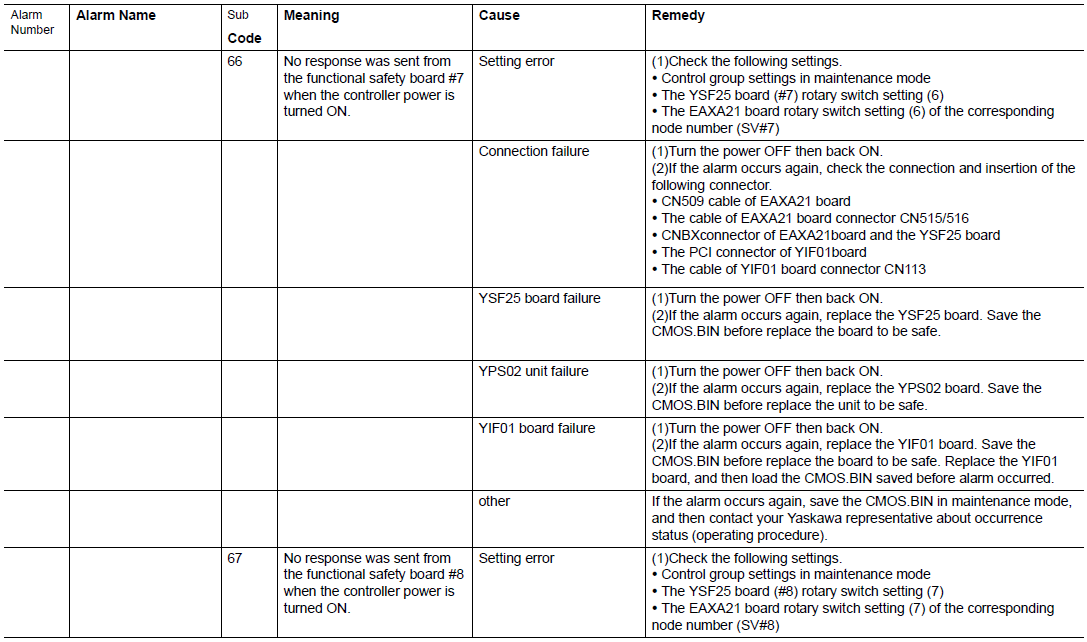

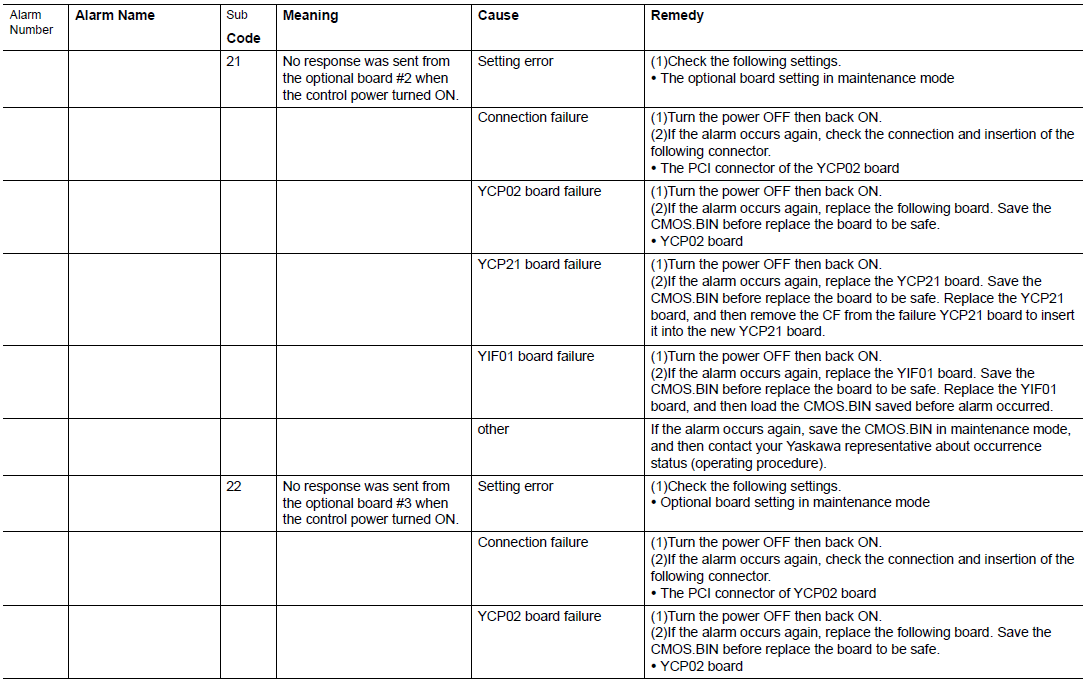

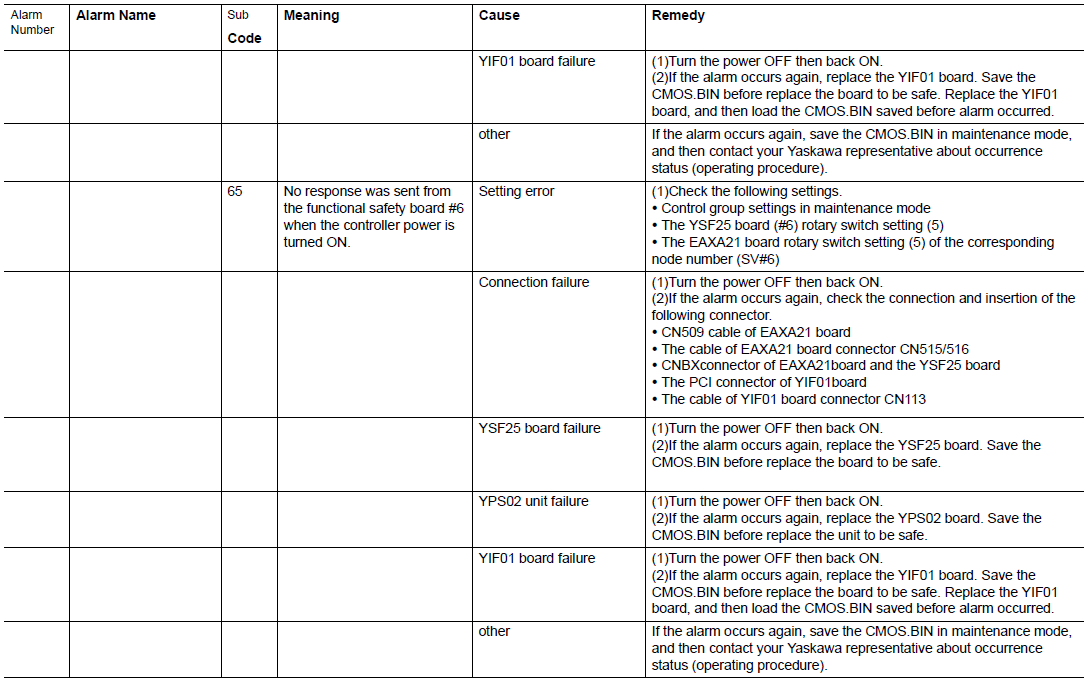

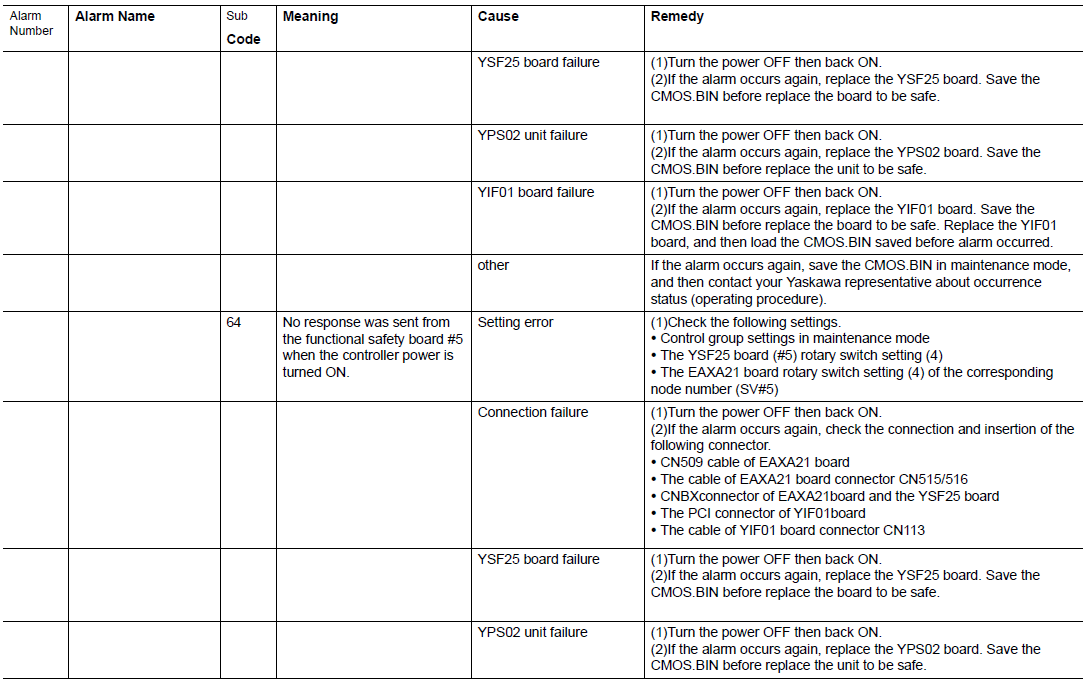

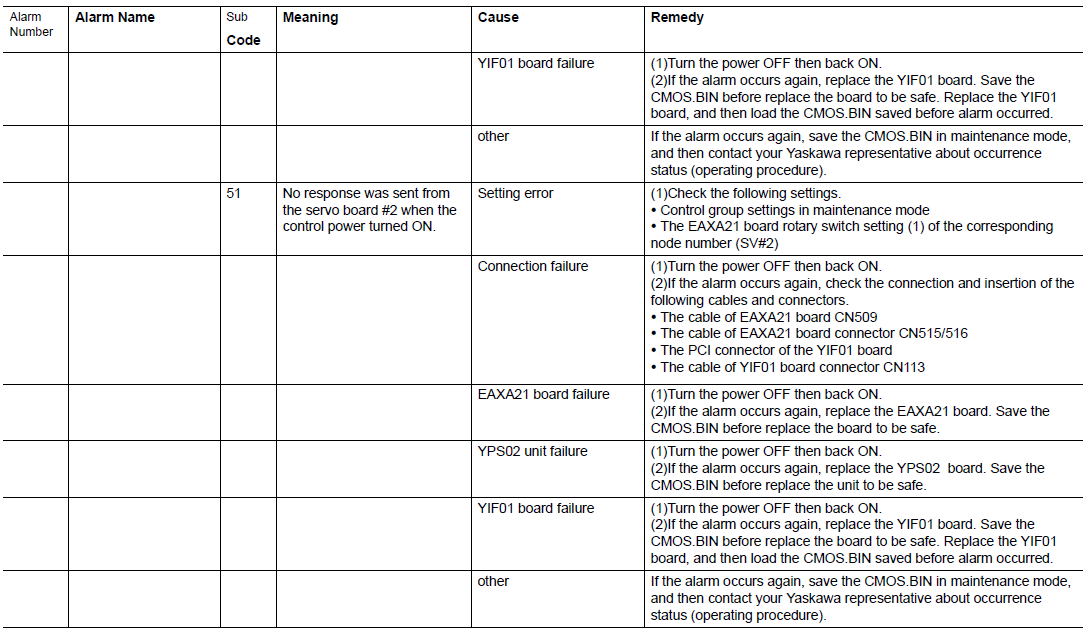

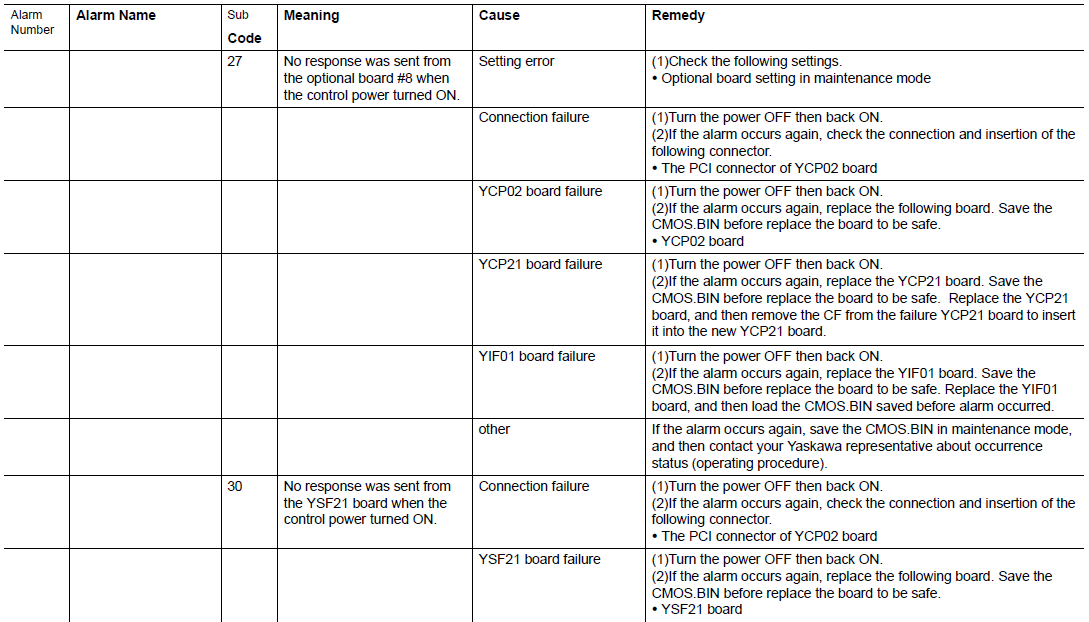

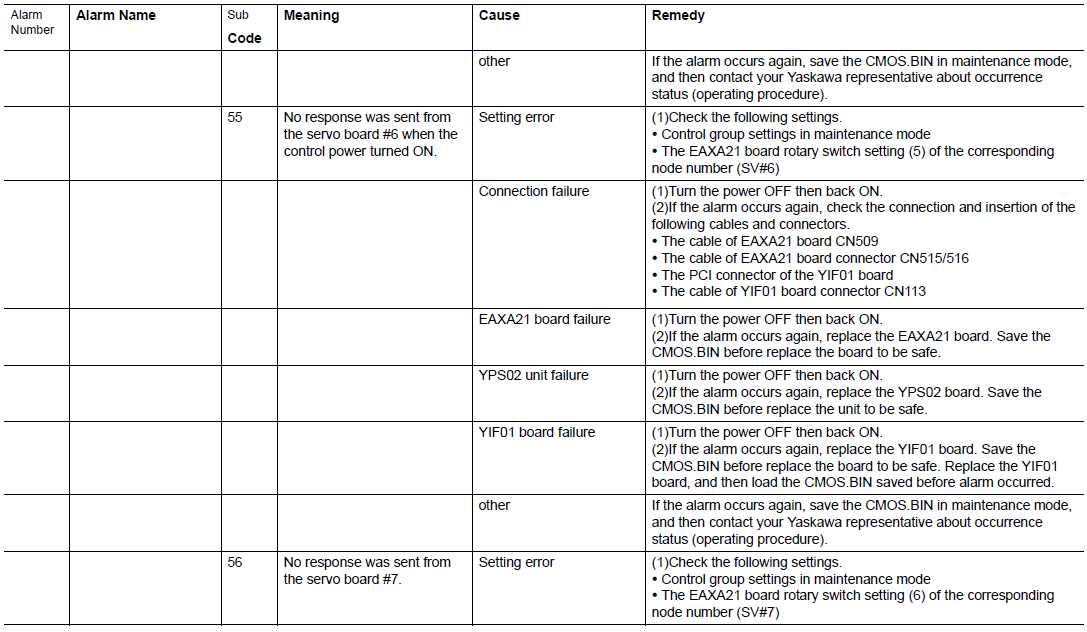

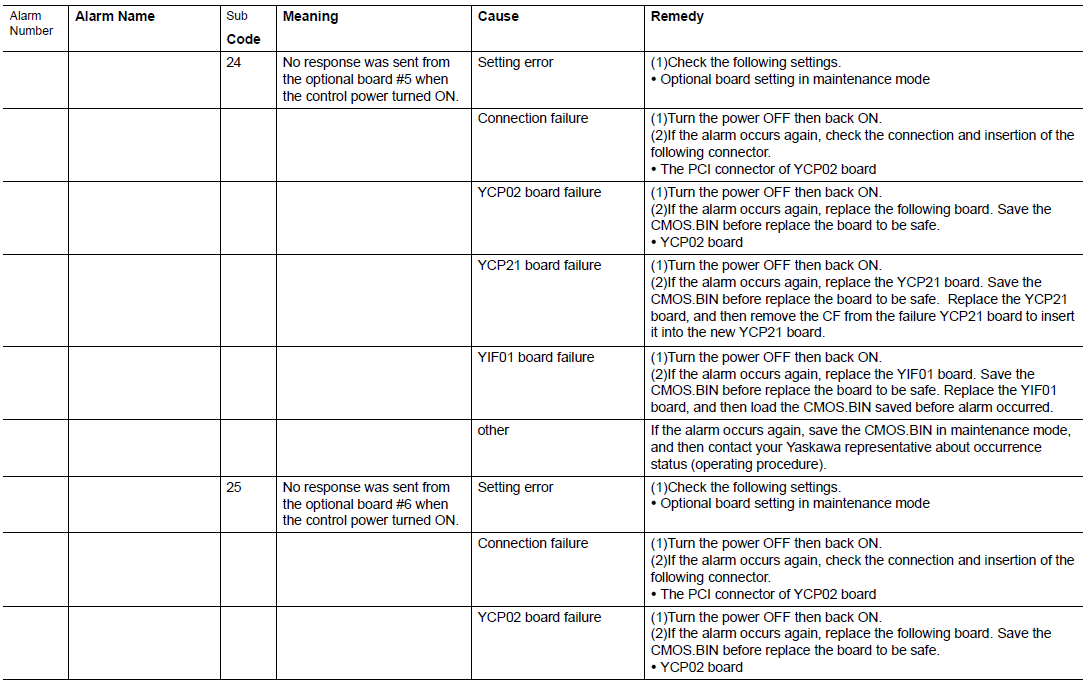

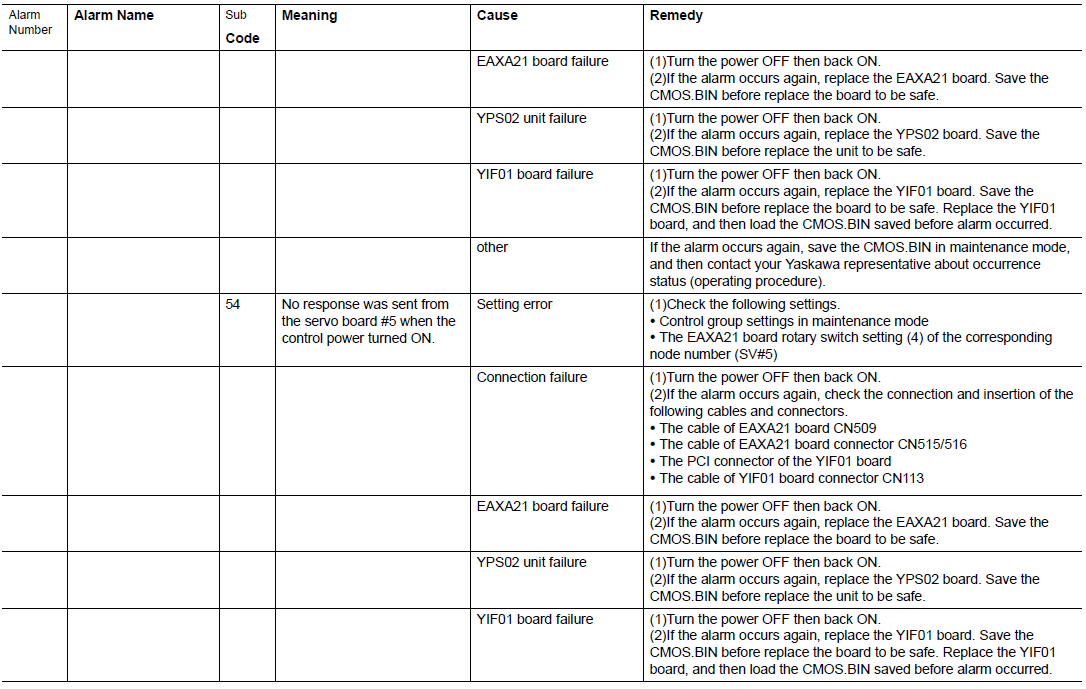

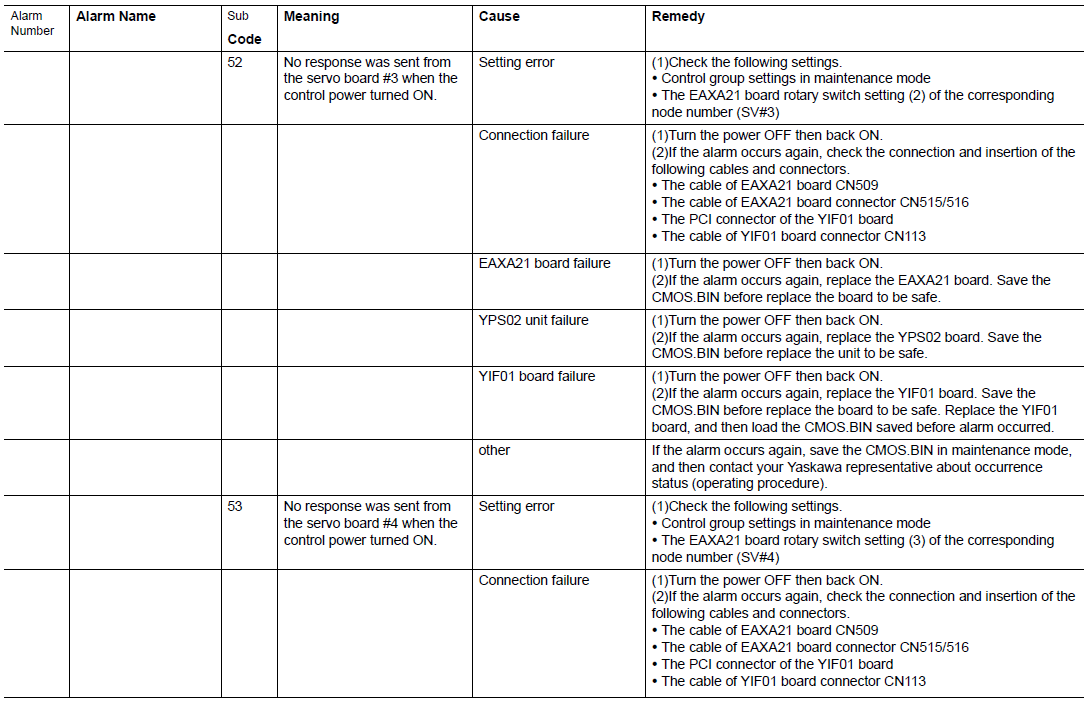

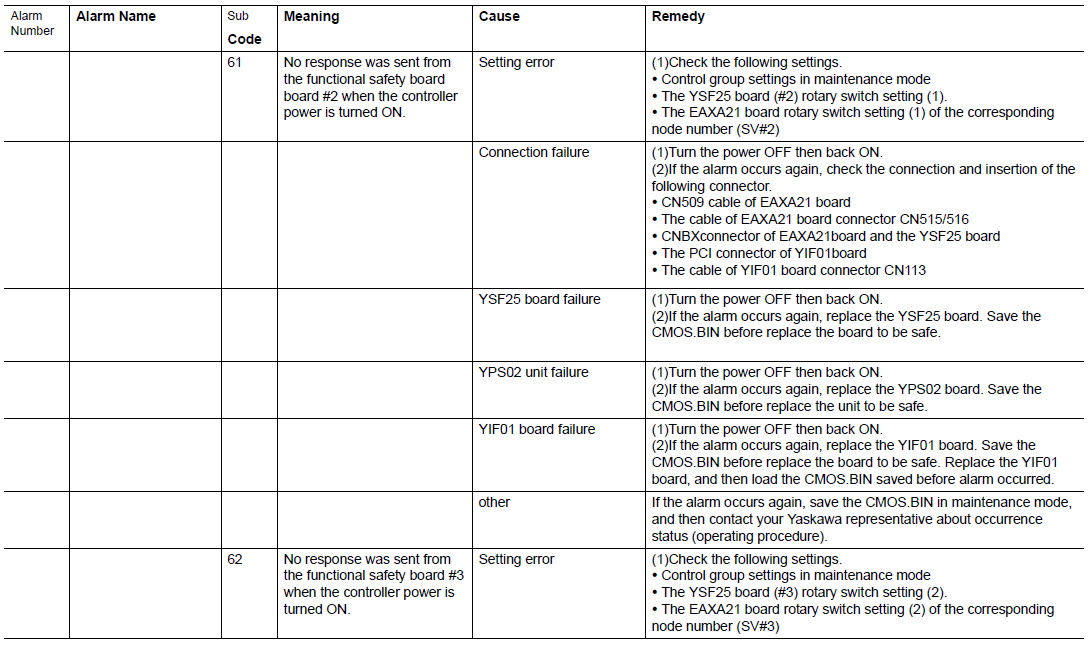

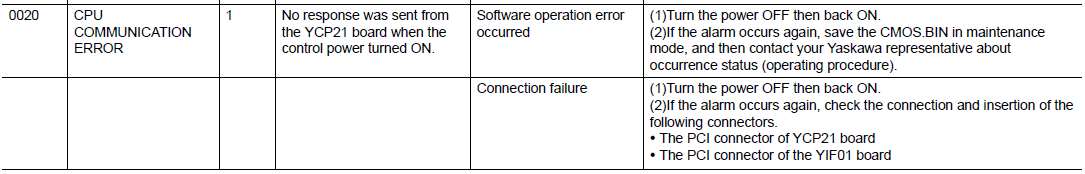

DX200 ALARM CODE 0020 CPU COMMUNICATION ERROR

November 28, 2023 15:17
Updated

Most Common Issue: BOARD,PC,MAIN CPU,DX200 or BOARD,PC,SERVO CONTROL.
