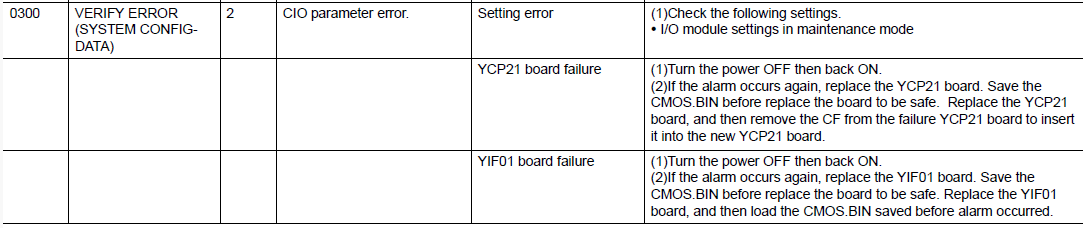

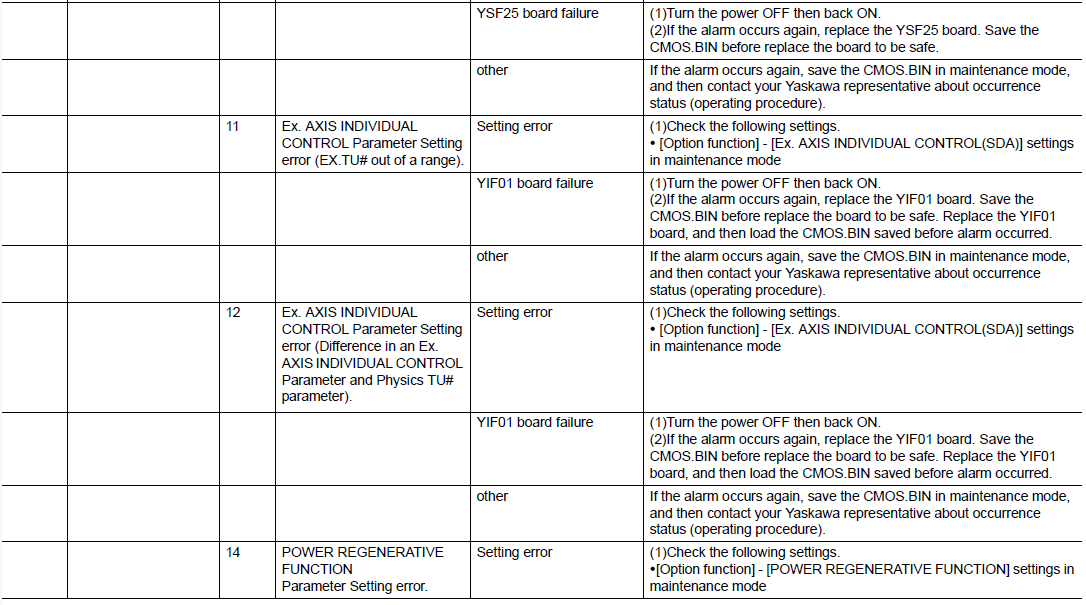

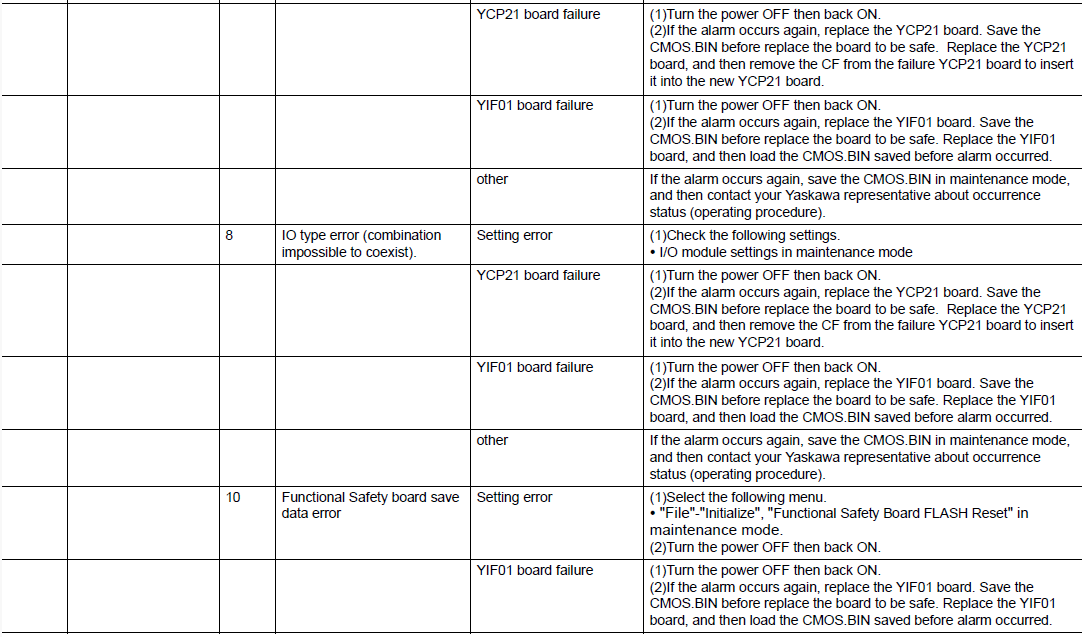

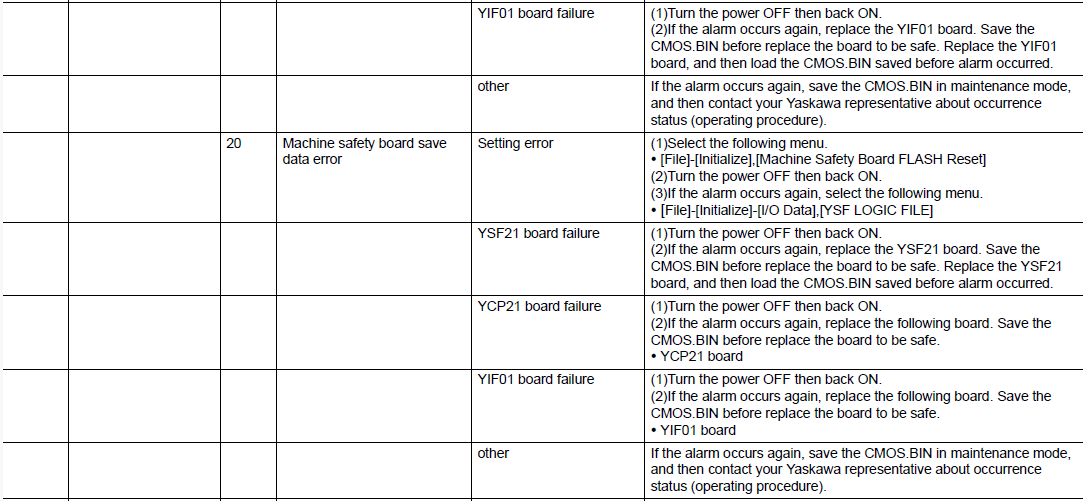

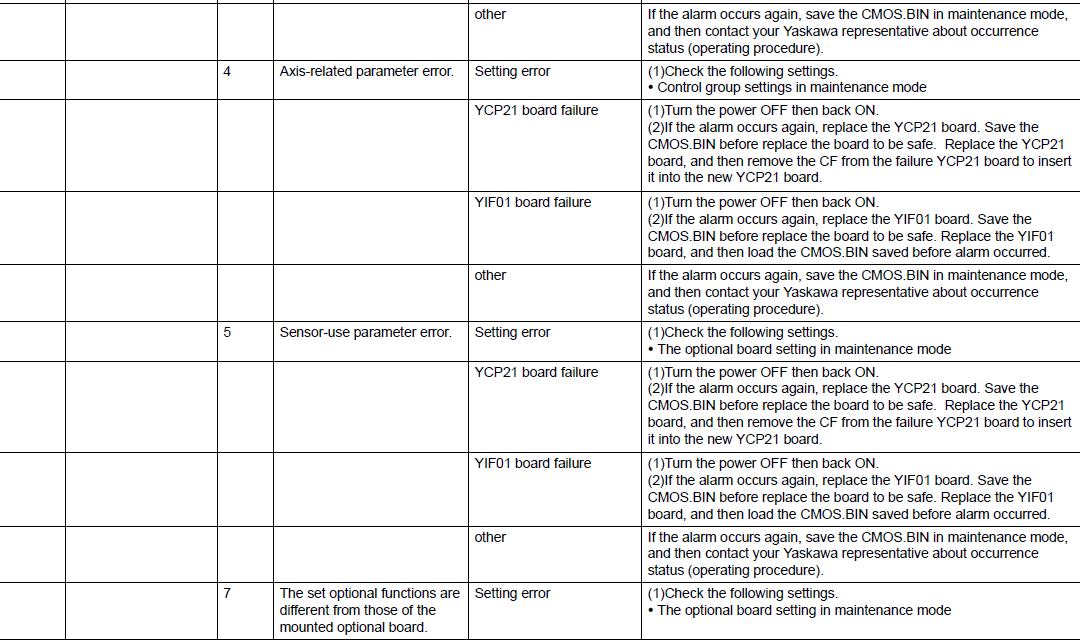

DX200 ALARM CODE 0300 VERIFY ERROR (SYSTEM CONFIG-DATA)

February 09, 2024 14:09
Updated

Was this article helpful?

1 out of 1 found this helpful
