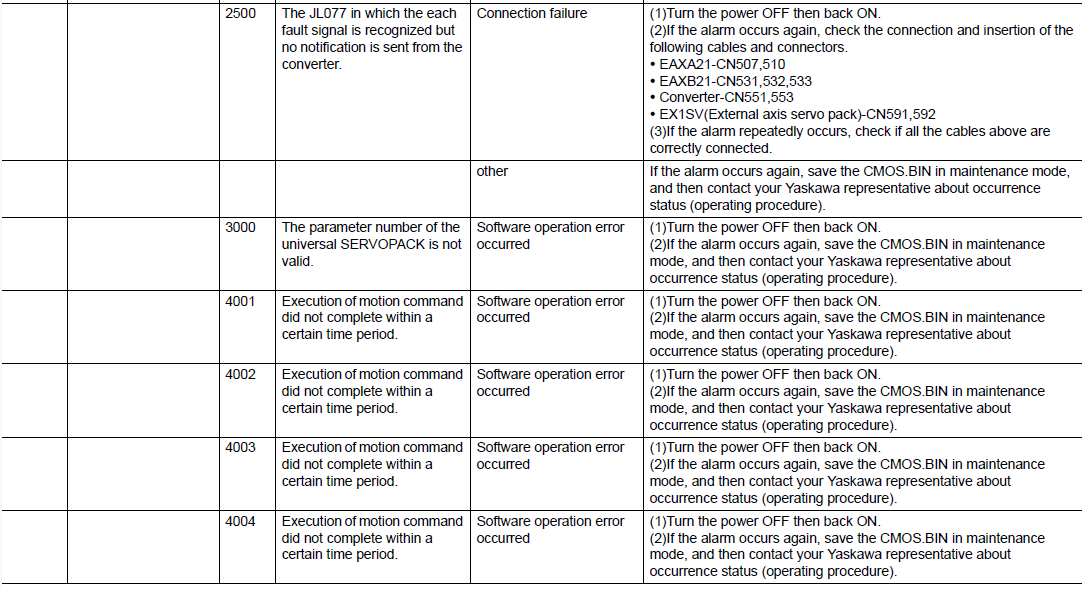

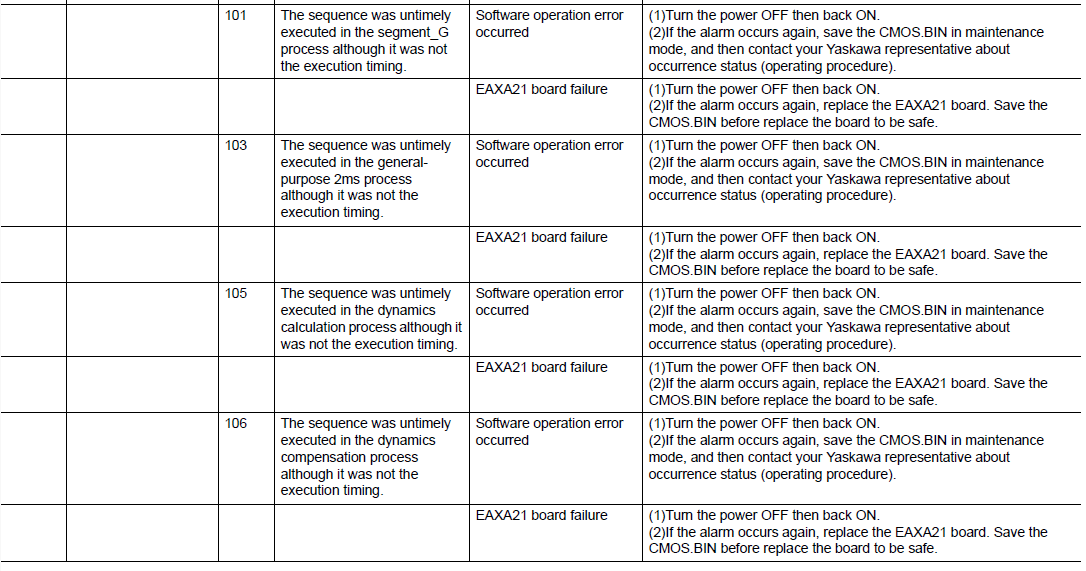

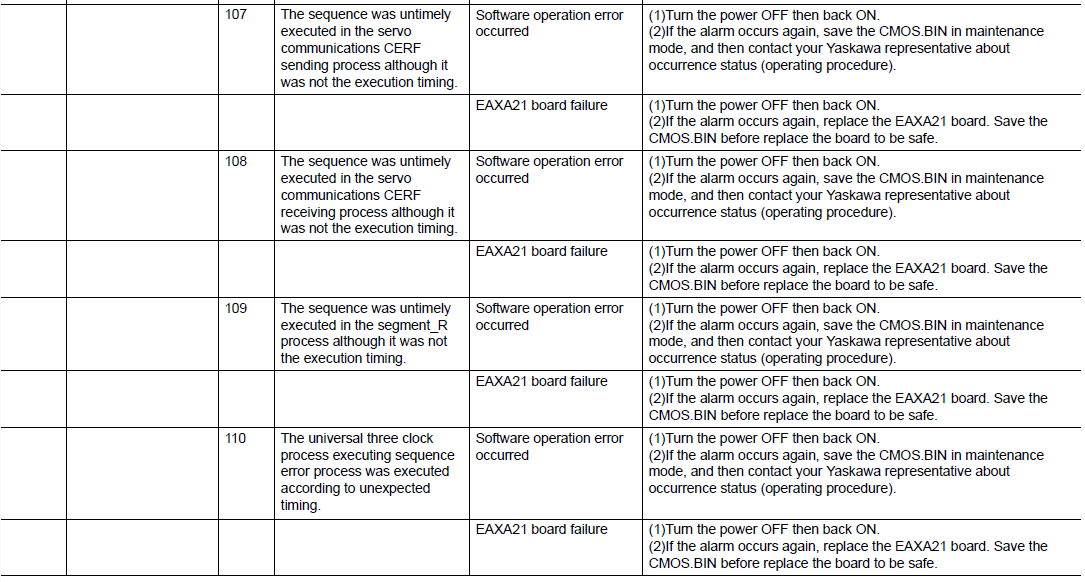

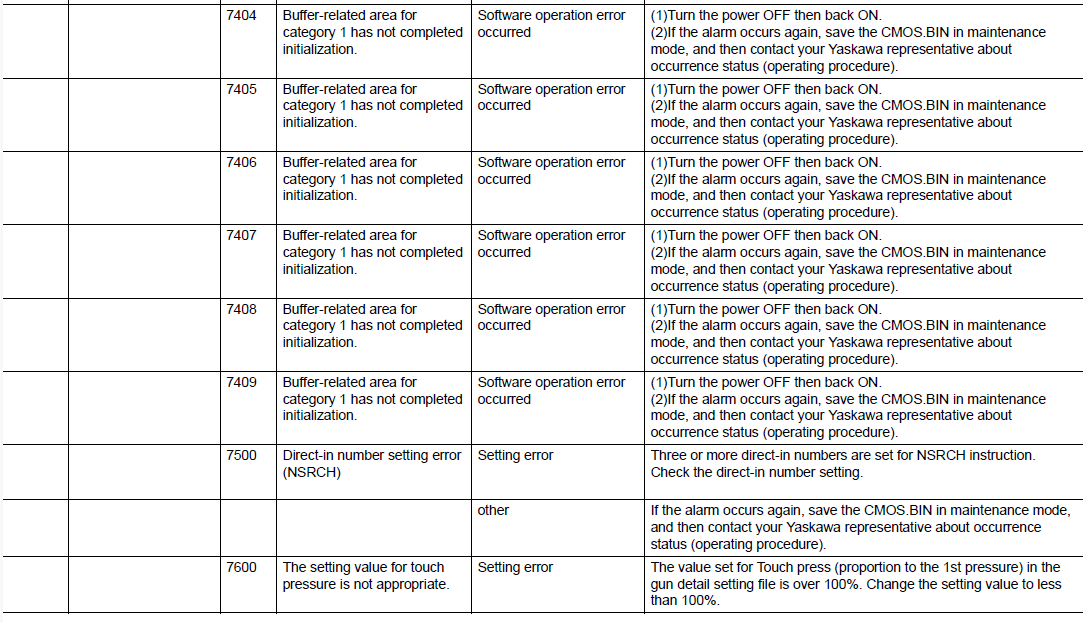

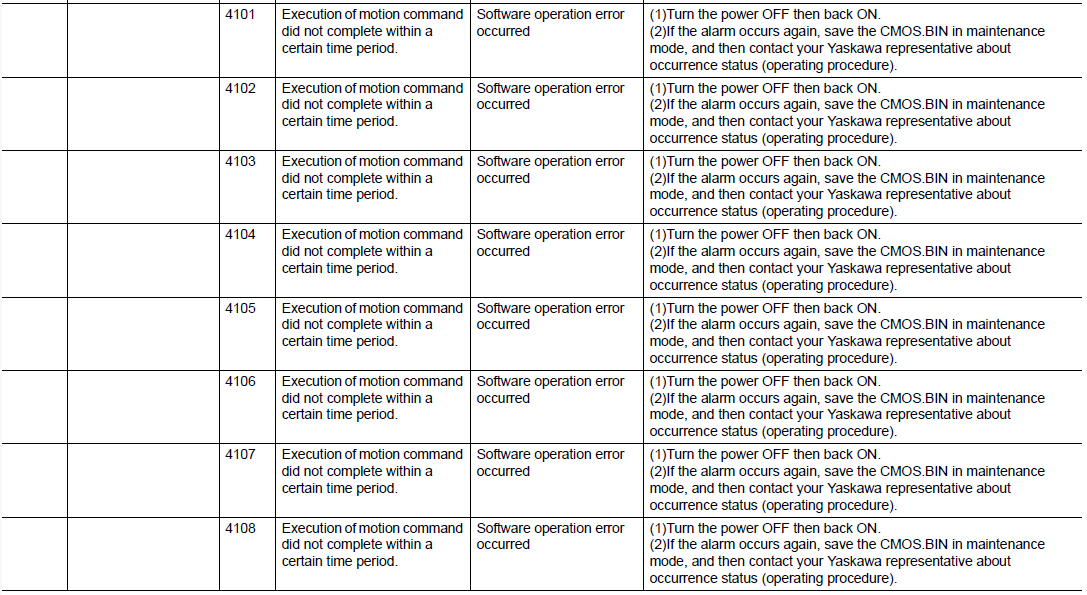

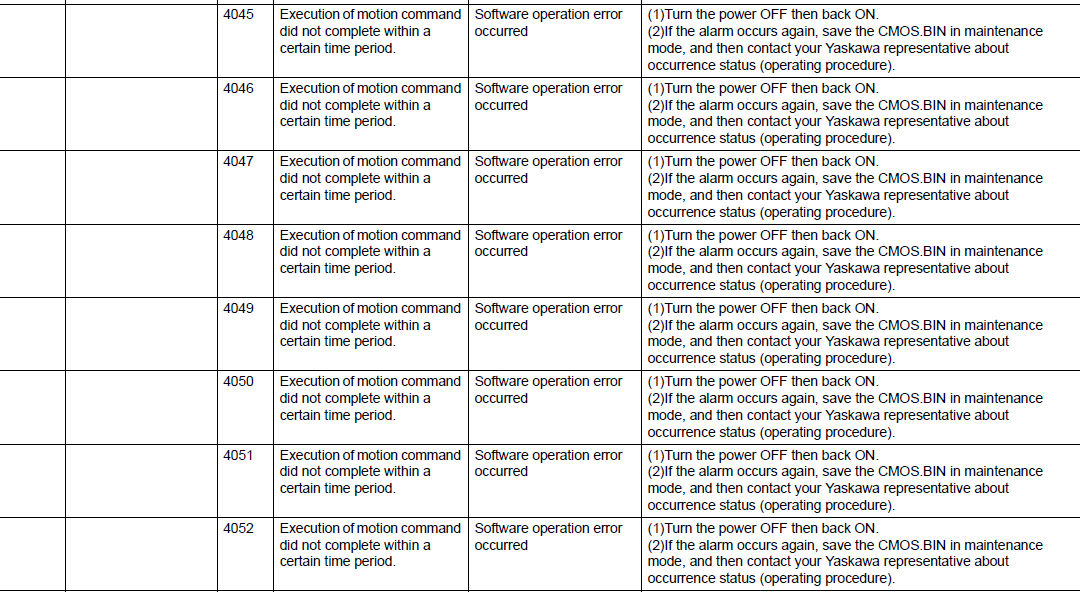

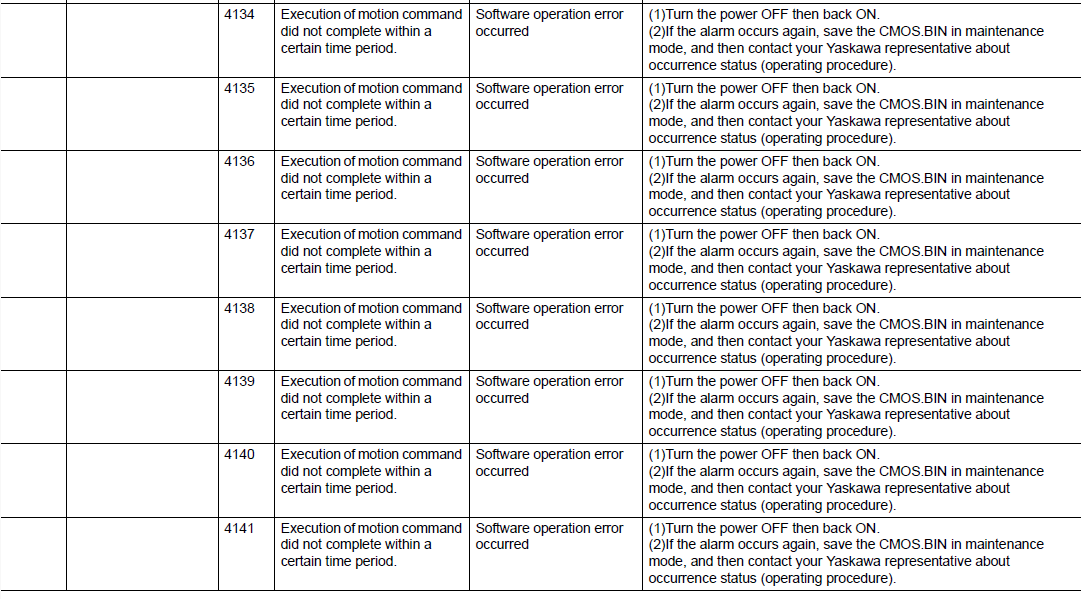

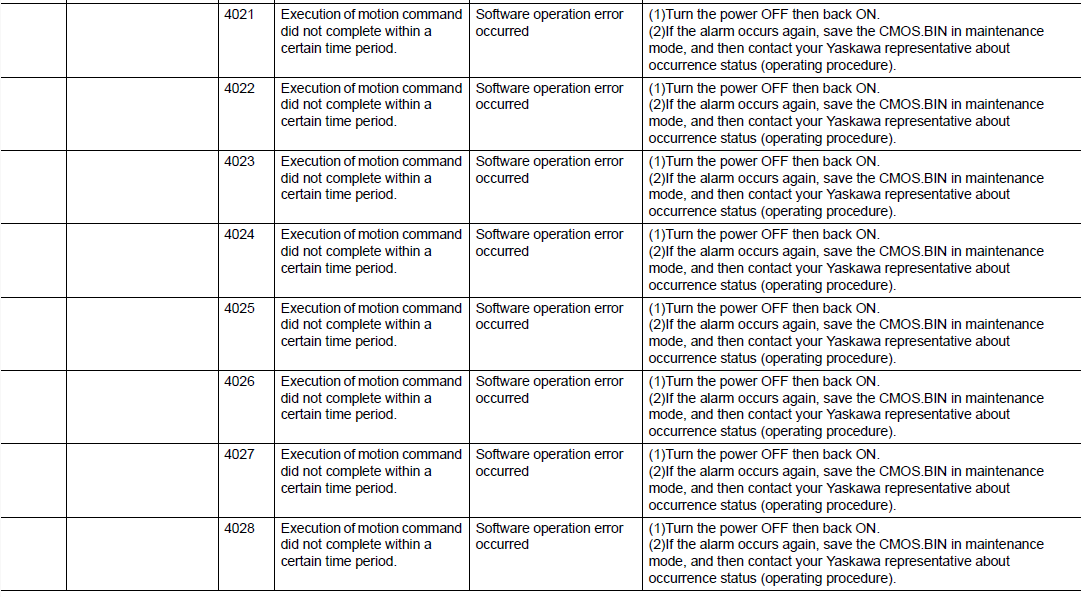

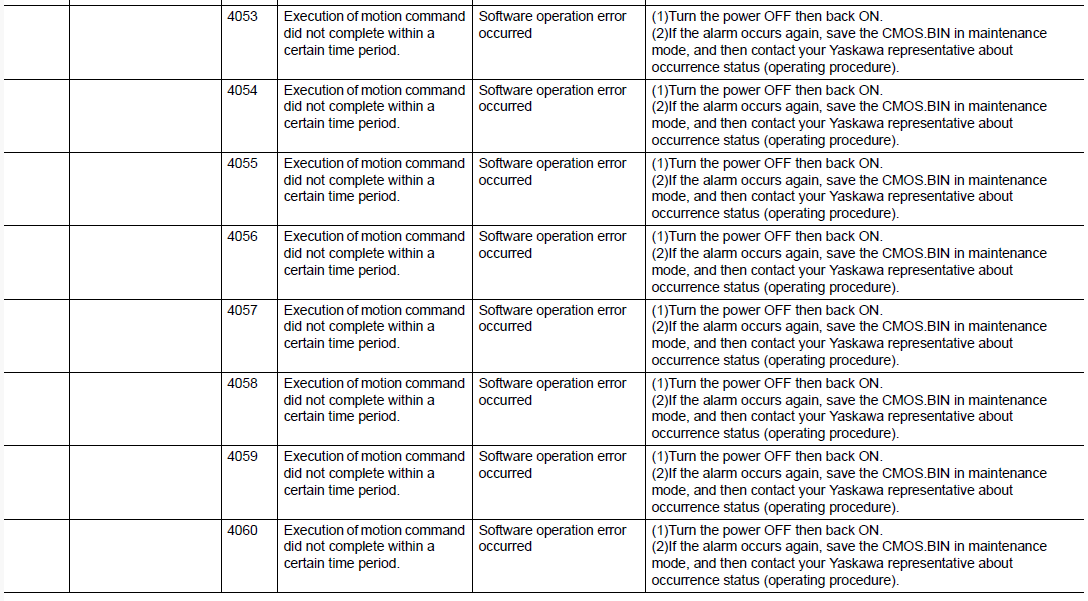

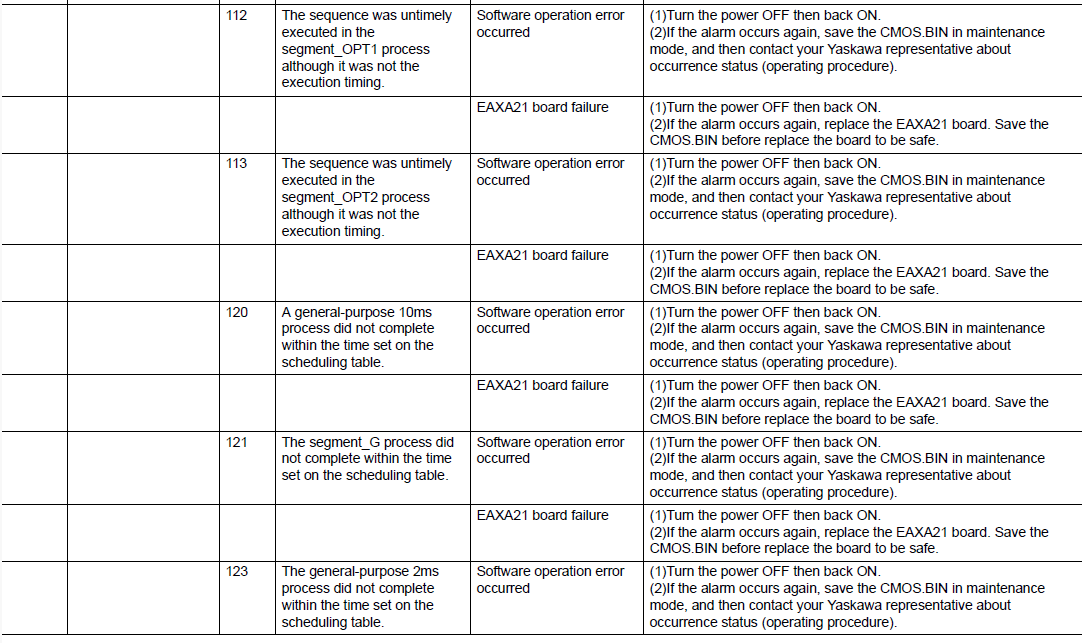

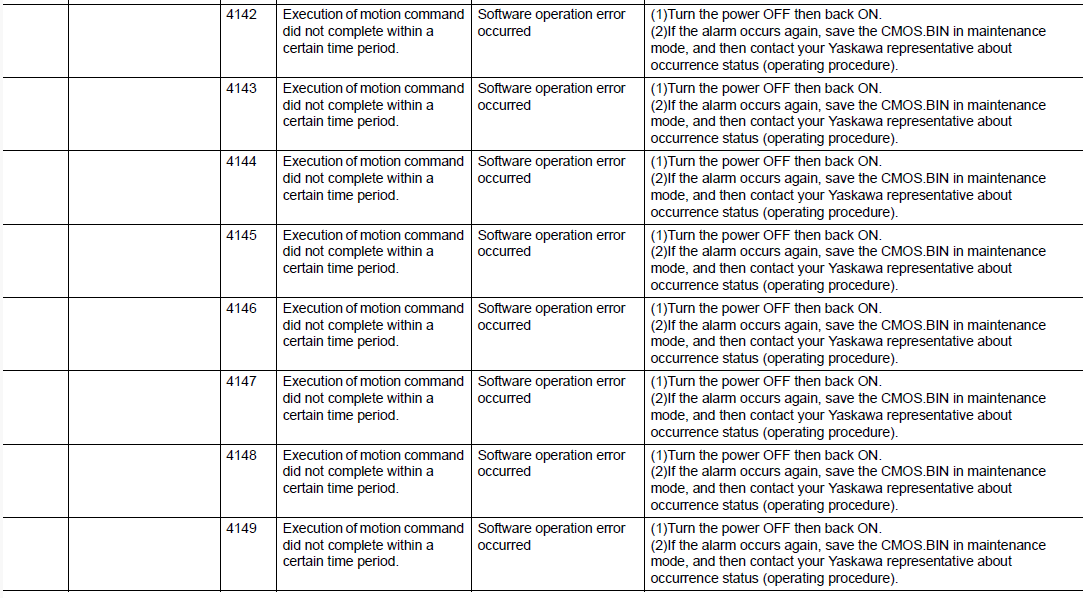

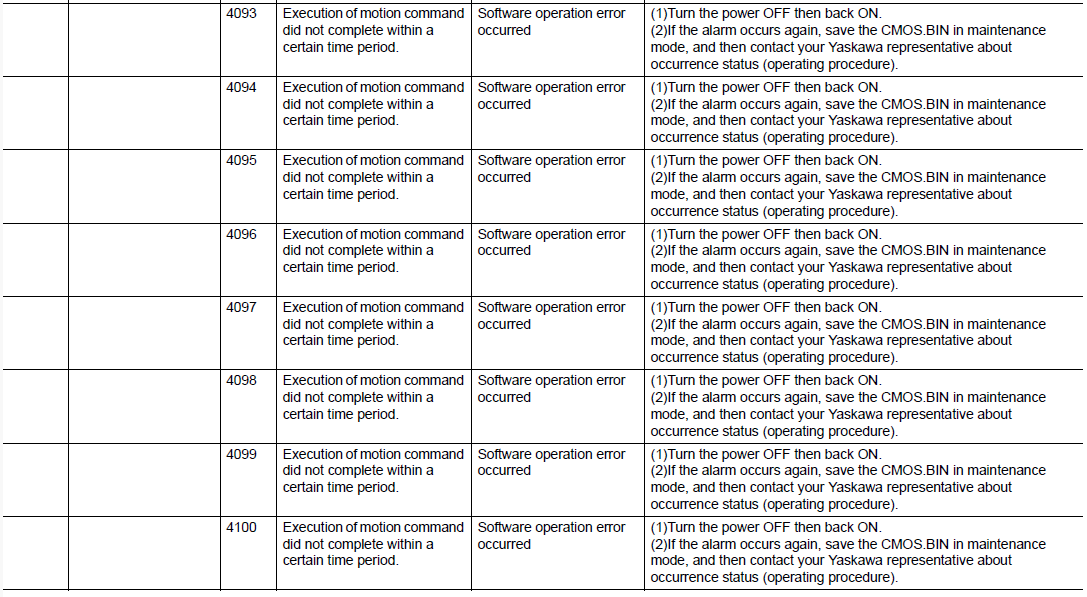

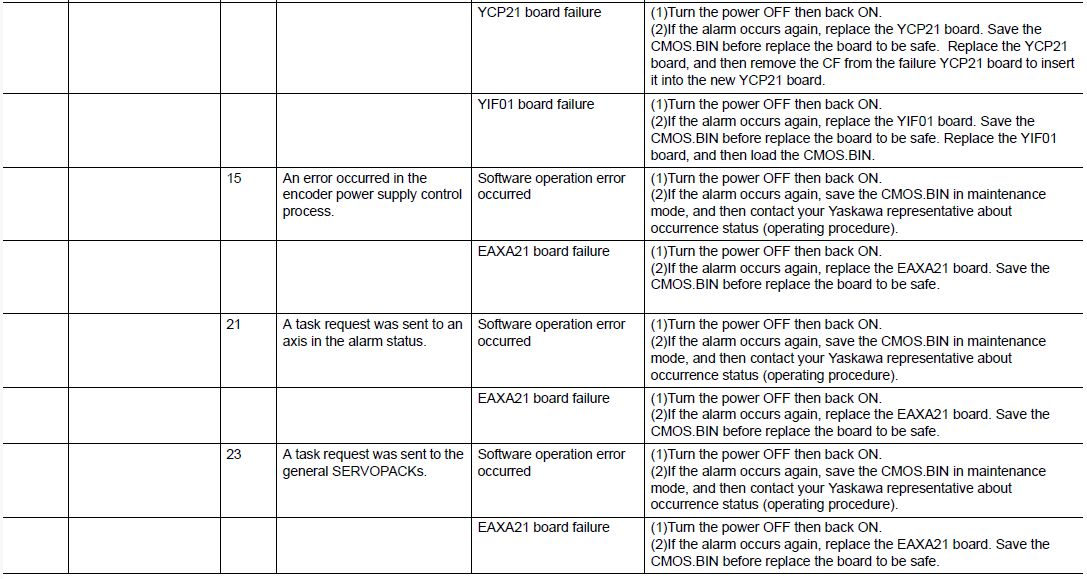

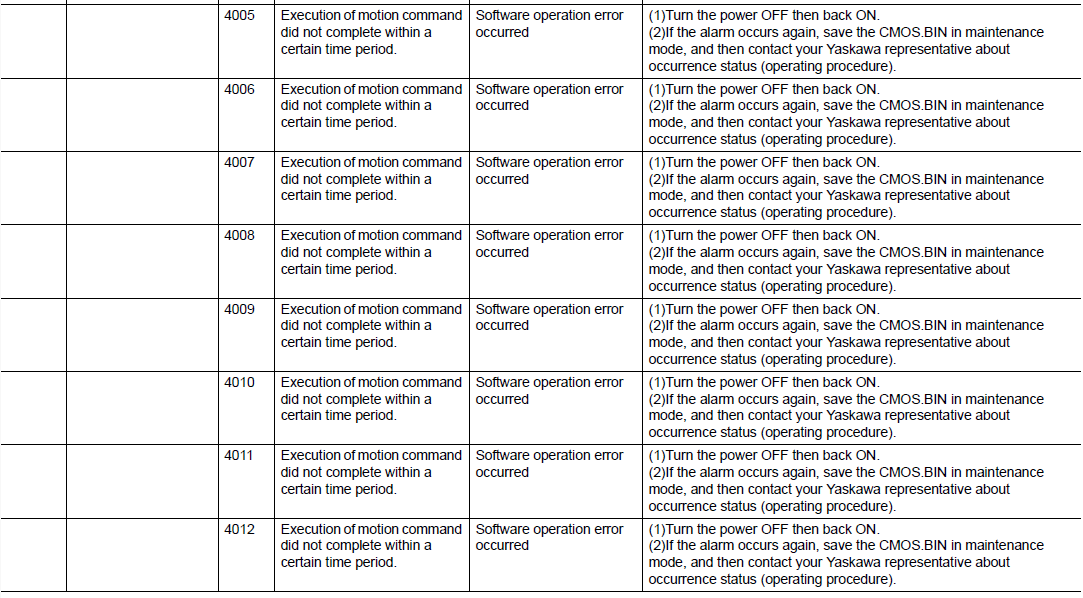

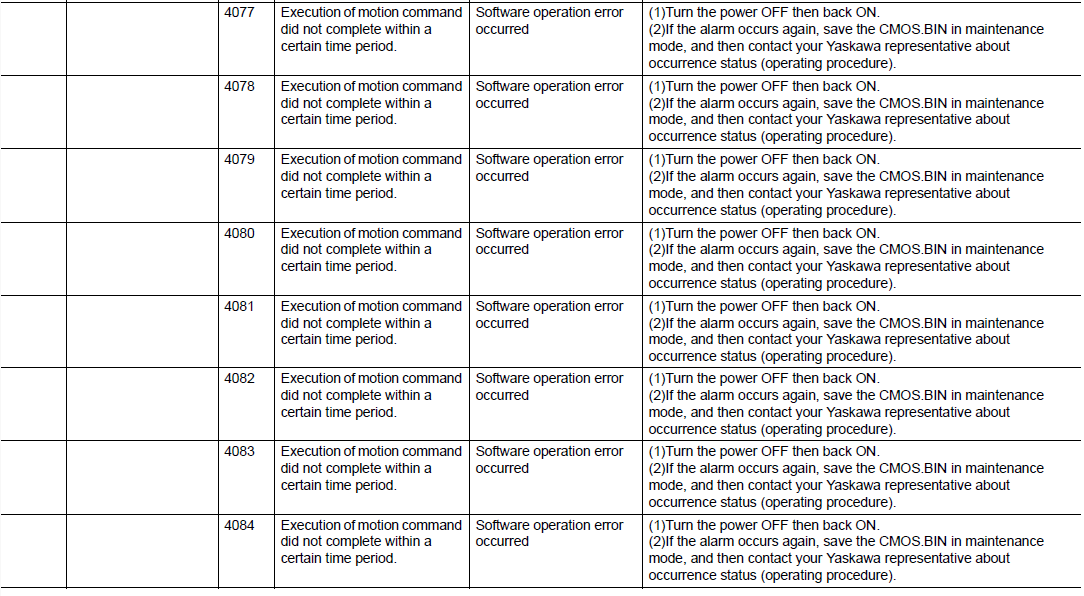

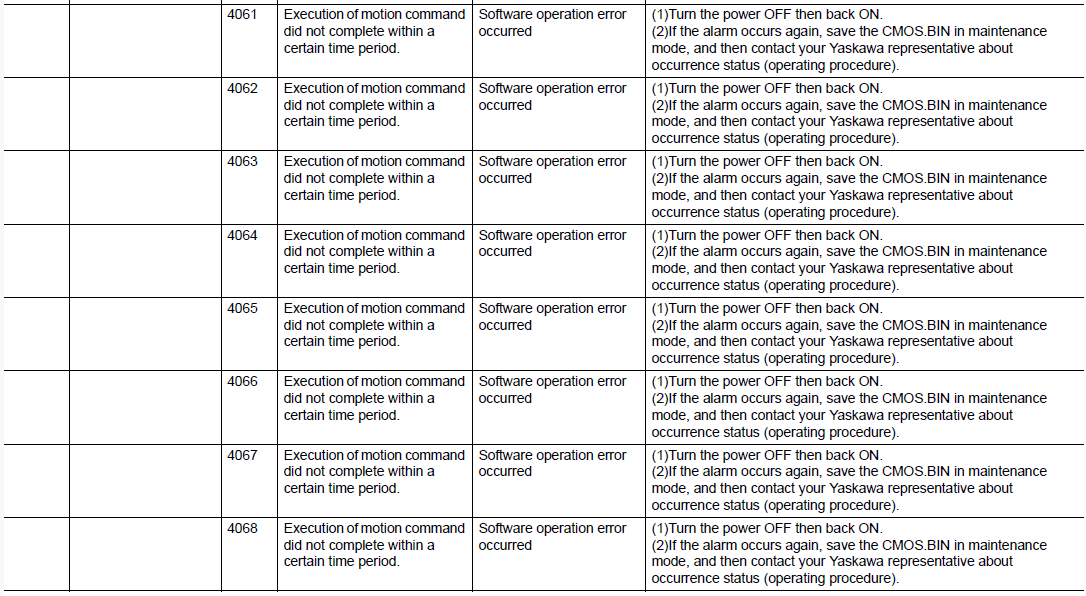

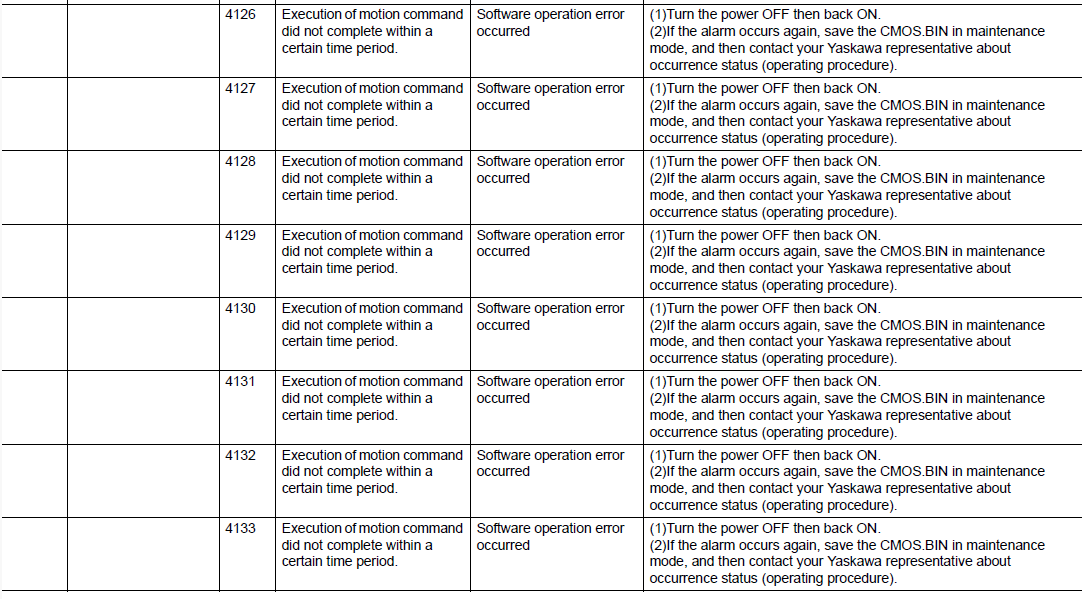

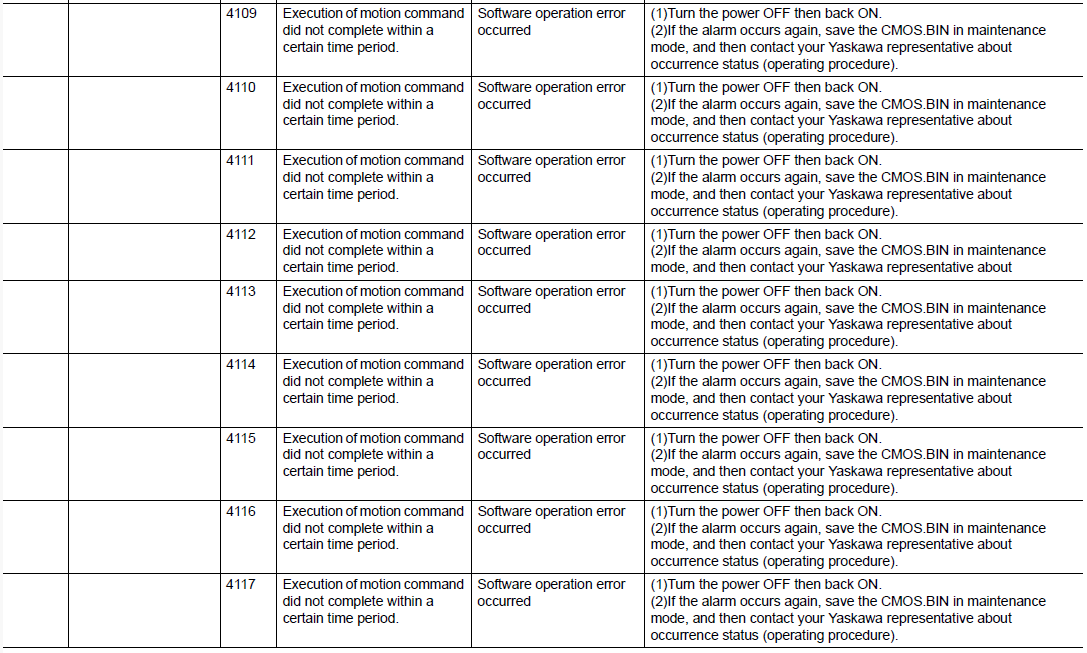

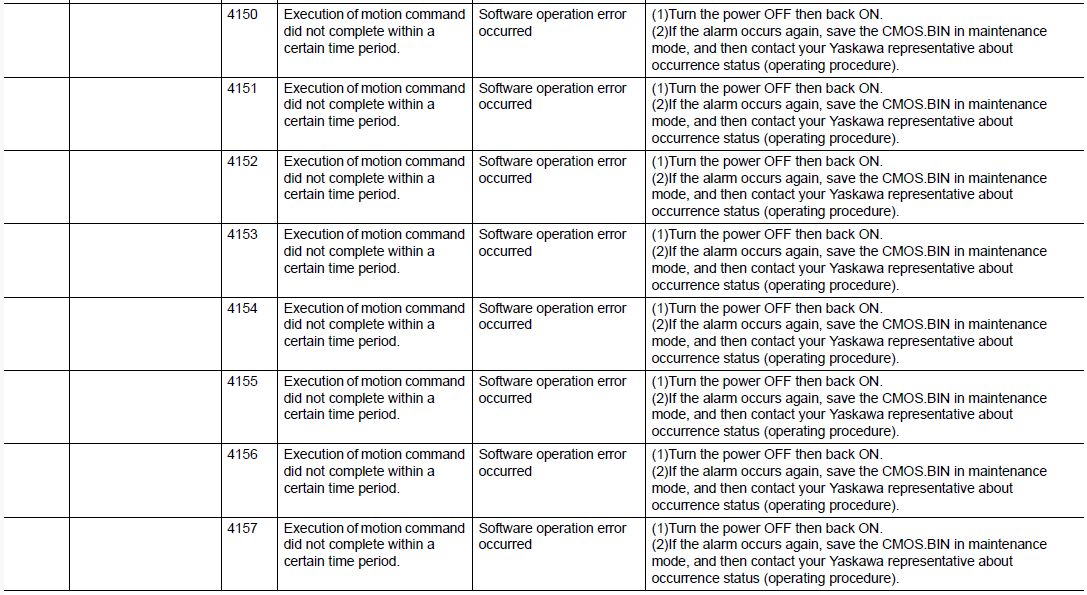

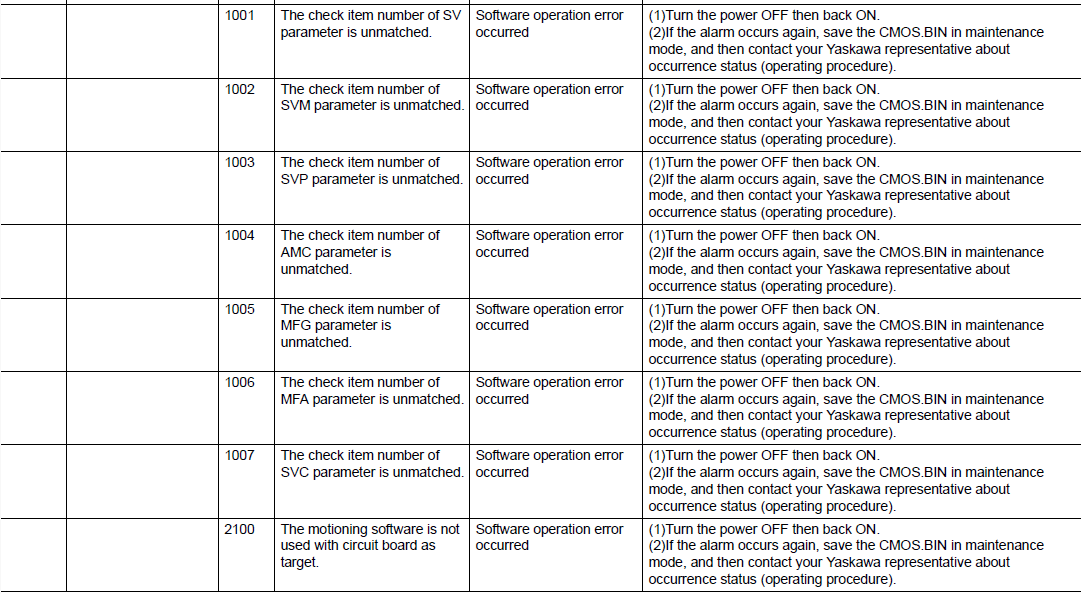

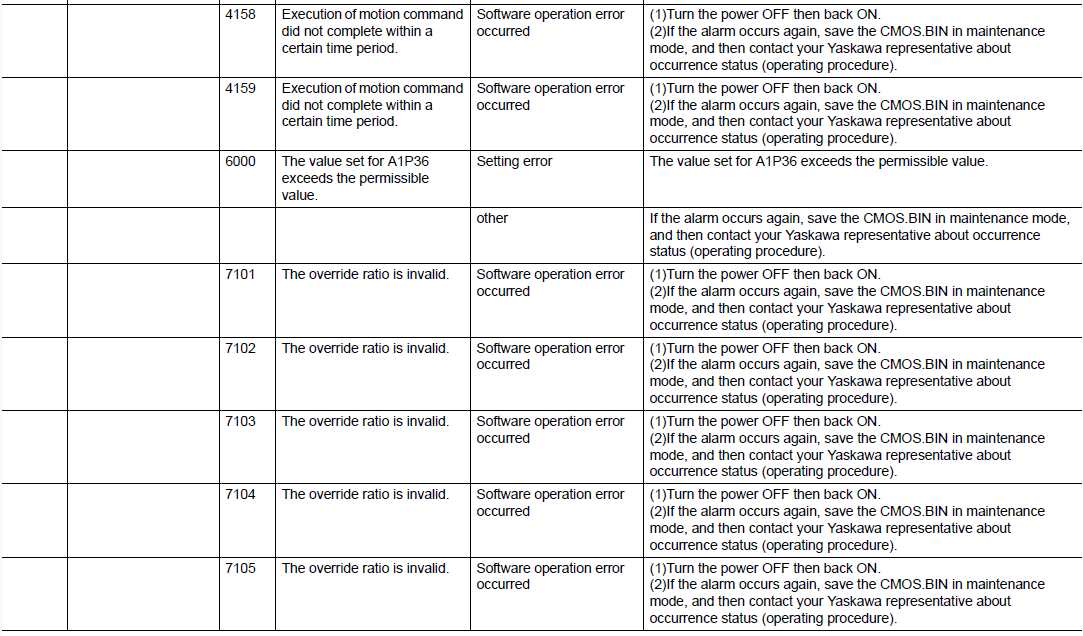

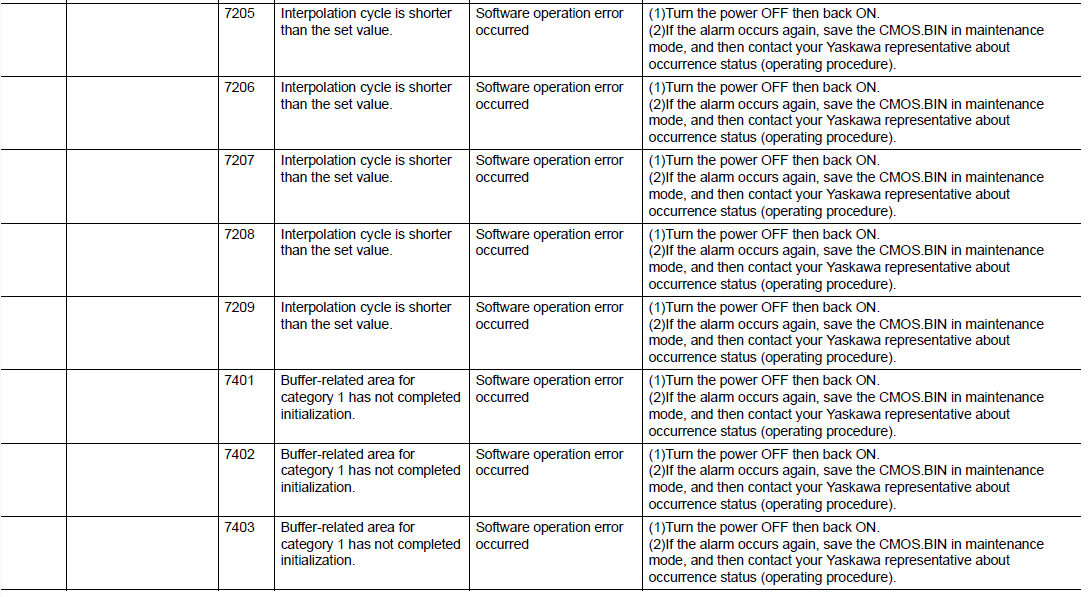

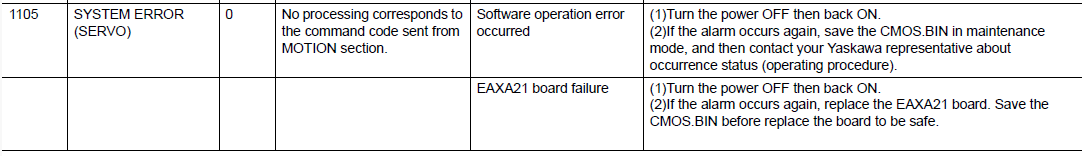

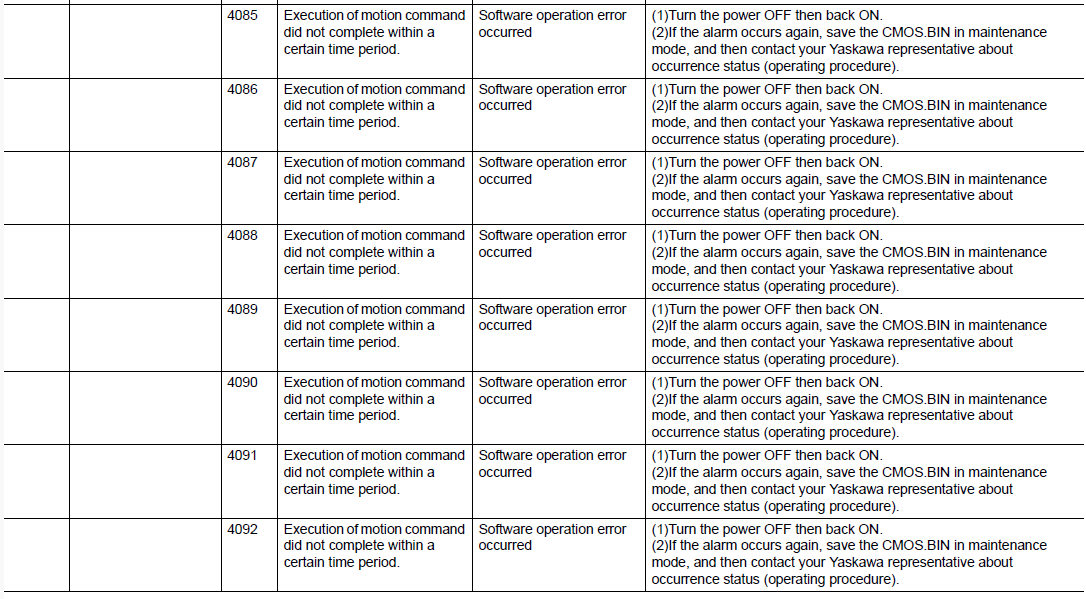

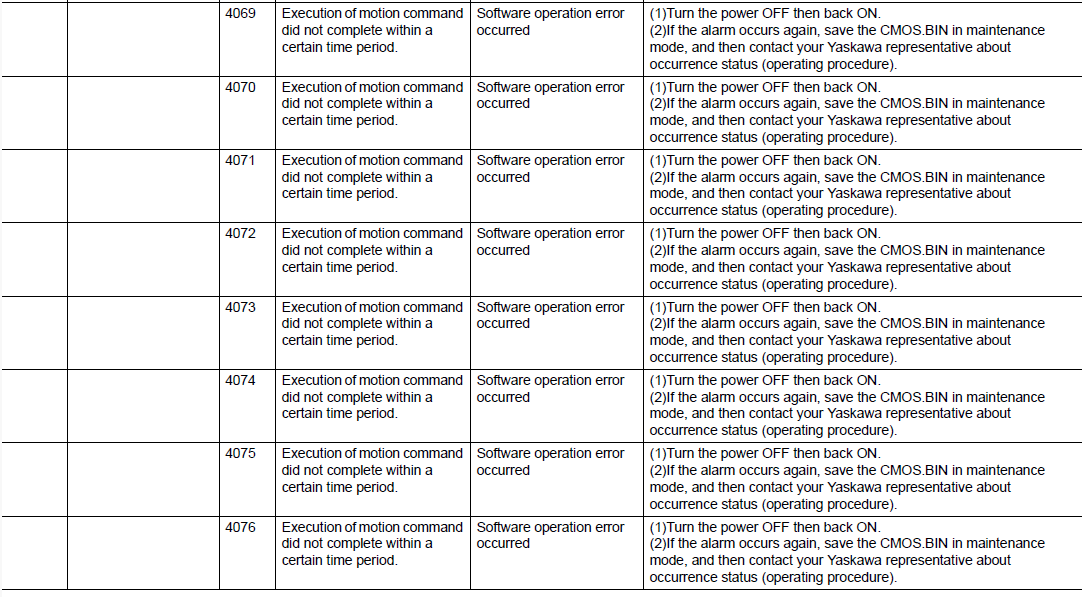

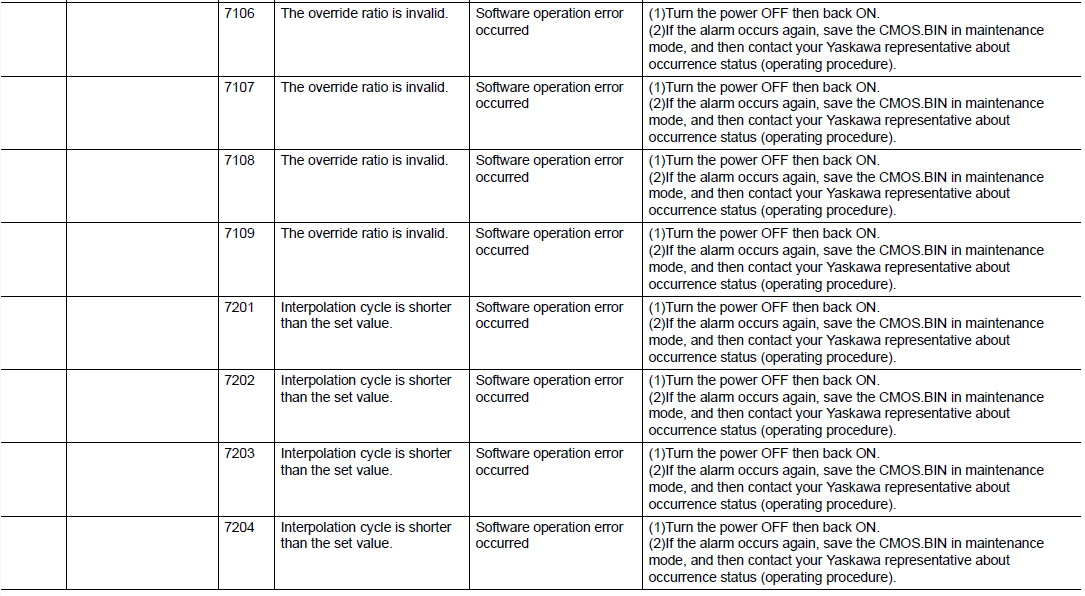

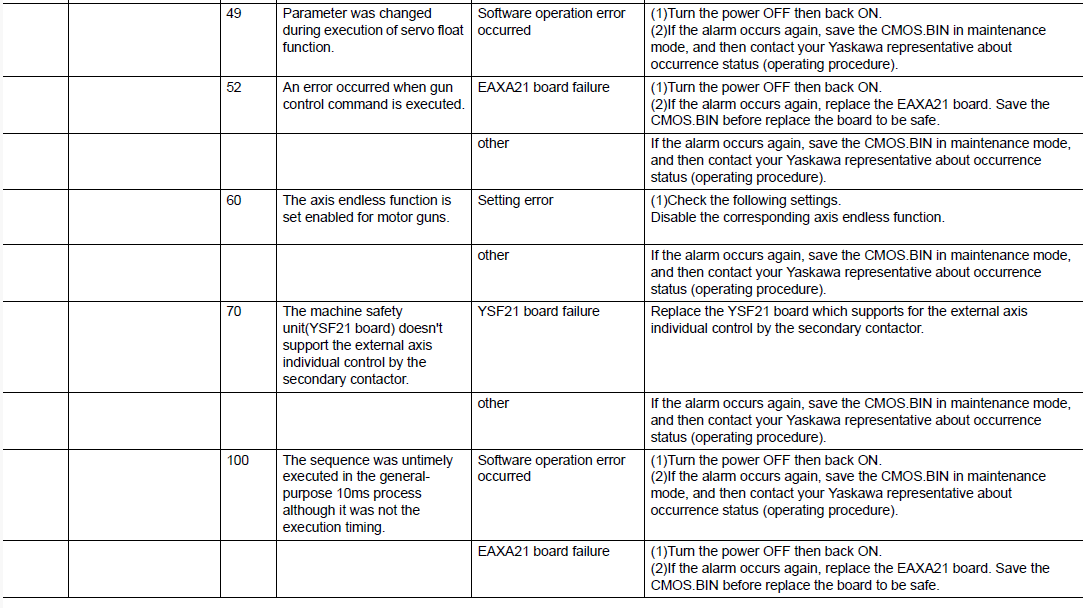

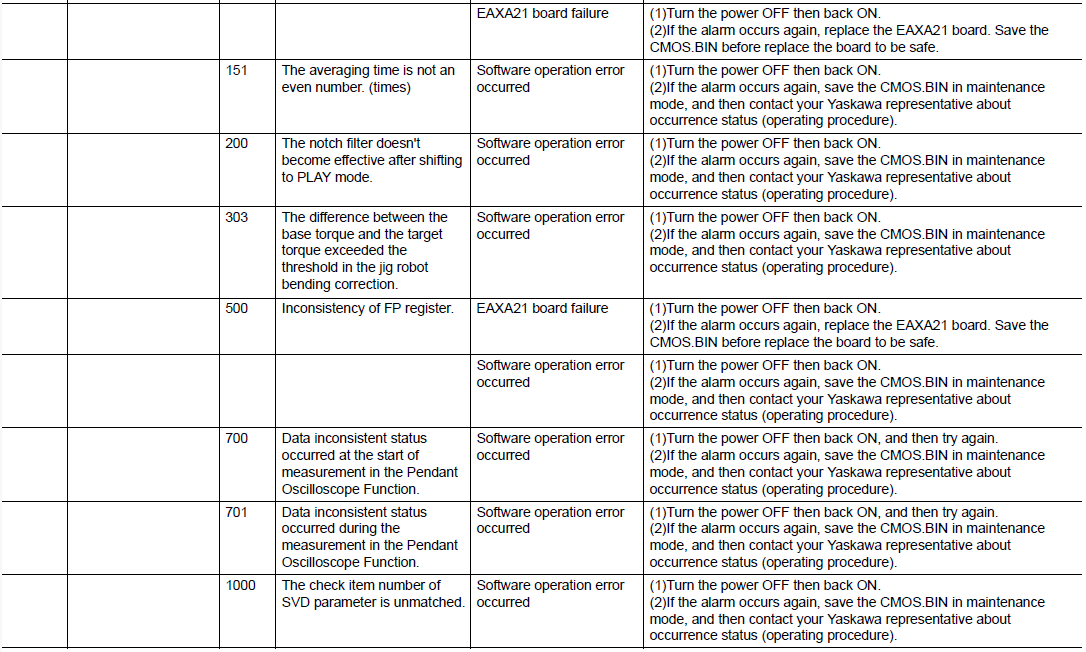

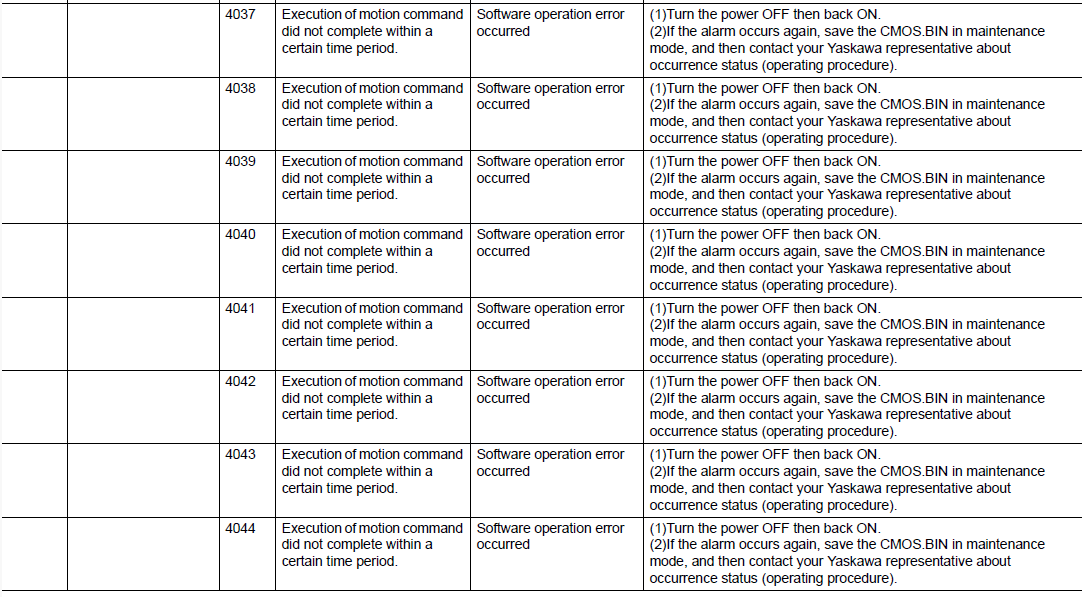

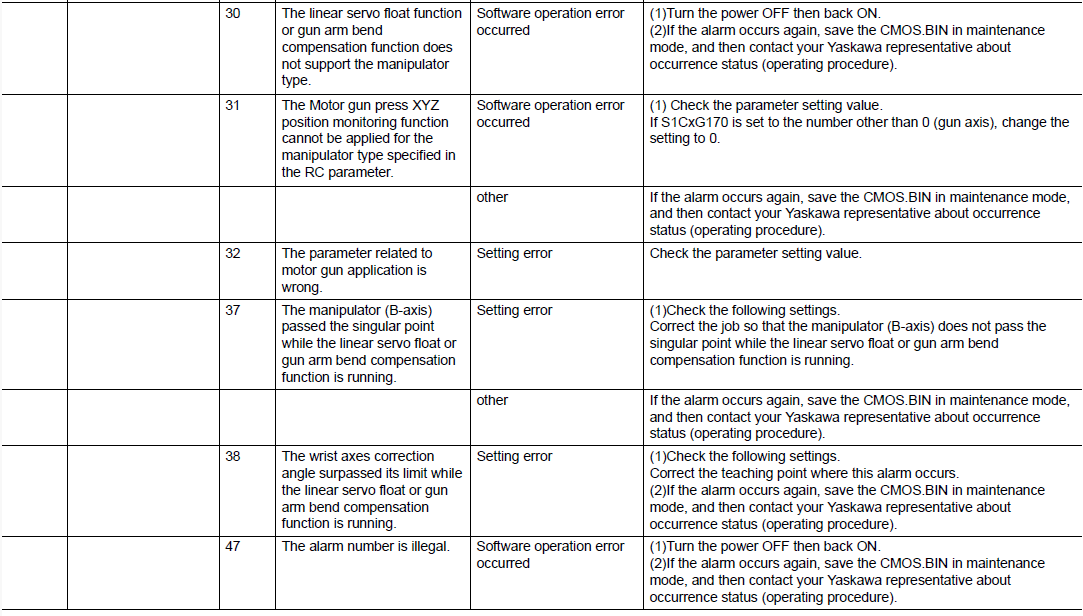

DX200 ALARM CODE 1105 SYSTEM ERROR (SERVO)

February 09, 2024 18:55
Updated

Most Common Issue: BOARD,PC,SERVO CONTROL,(AXES 1 THRU 6),DX200.
