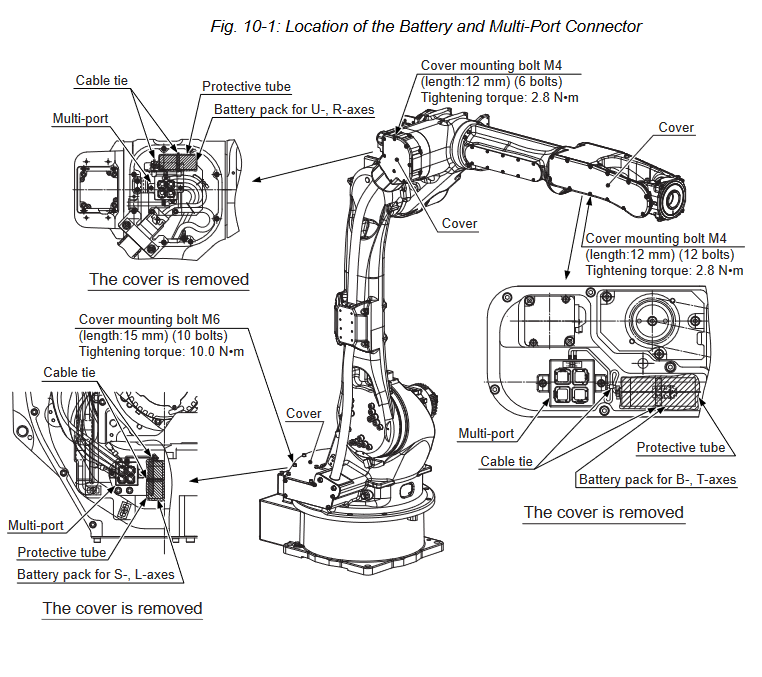

Battery Replacement GP25-12 / YR-1-06VXH25-C10 Manipulator

Model Covered: YR-1-06VXH25-C10

Materials Needed:

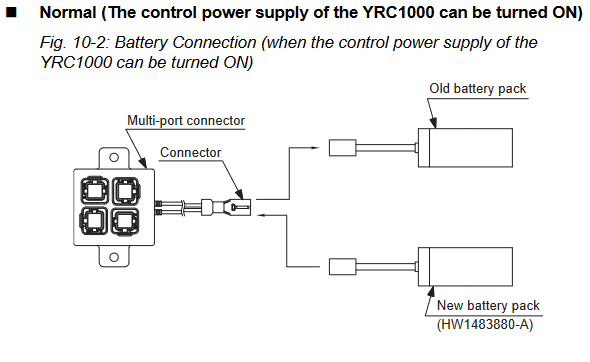

Three batteries are needed for replacement. HW1483880-A, 179528-1

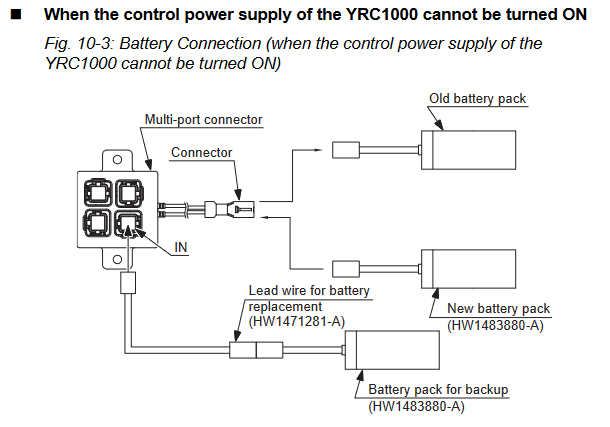

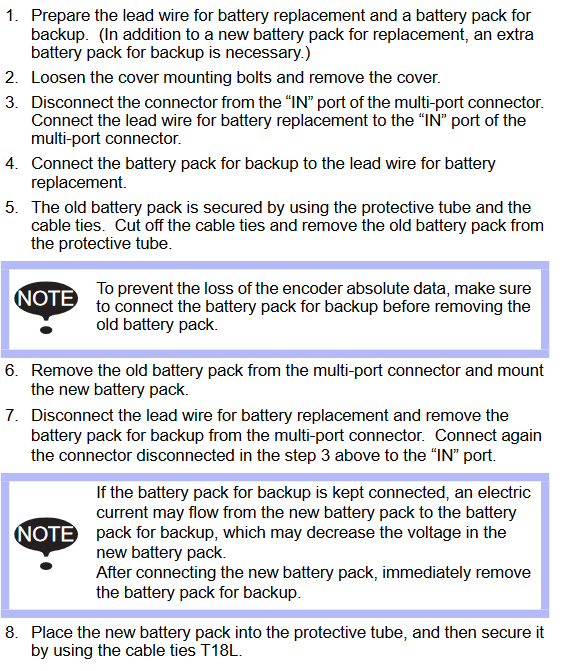

If Batteries have to be changed with power off then a backup lead is needed. HW1471281-A, 179529-1
