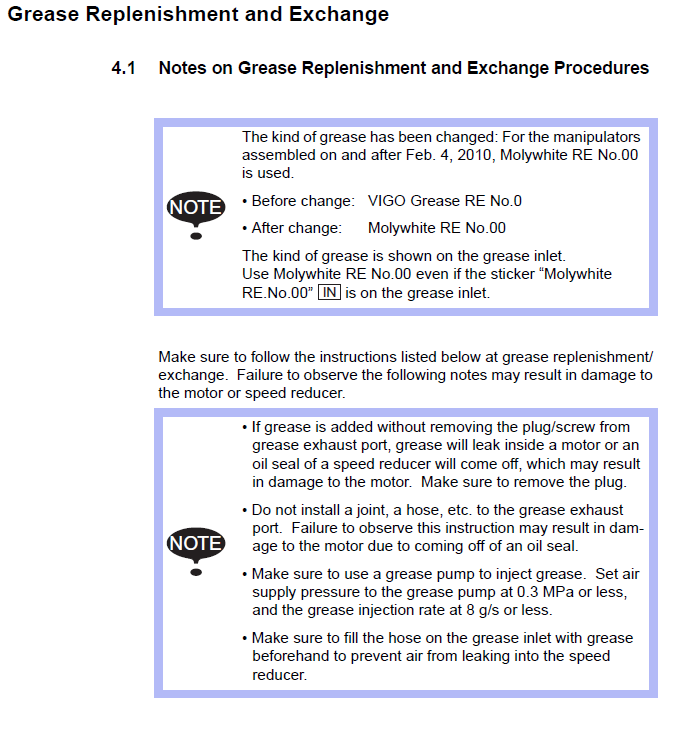

Grease Replenishment (PM) DX100 MH50 / YR-MH00050-A00 Manipulator

Model Covered: YR-MH00050-A00

Materials Required:

GREASE, MOLY WHITE, #00, 16KG PAIL 132412-1

THREE BOND 1206C Adhesive Gasket 479014-6

Grease Replenishment Amounts:

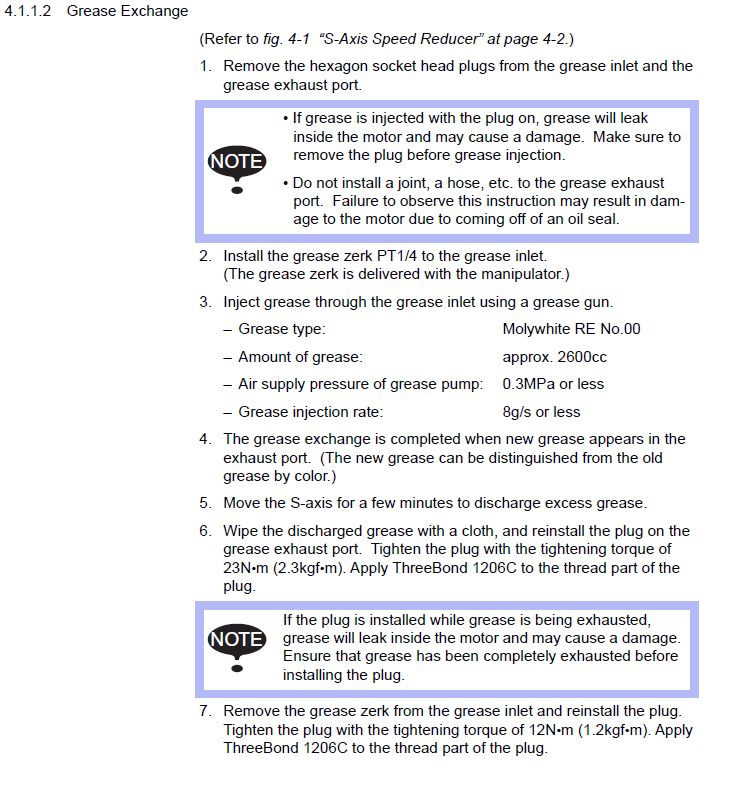

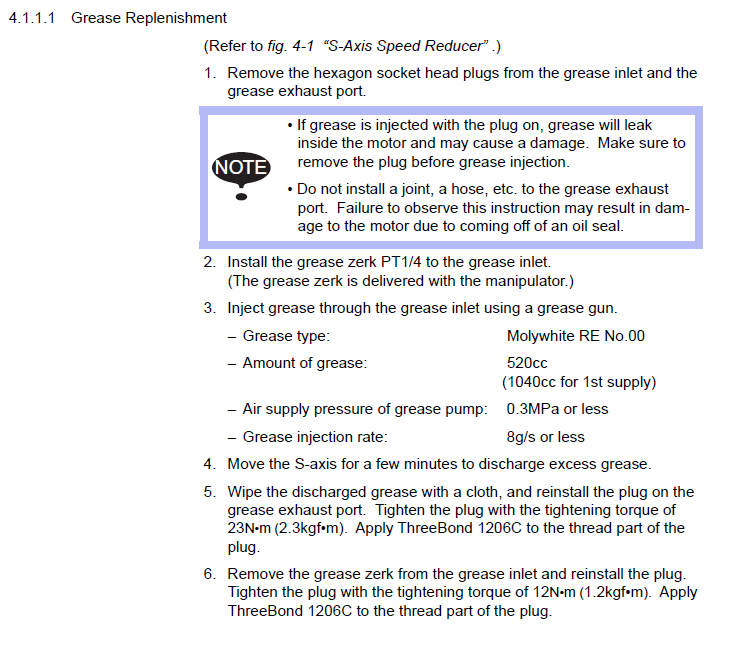

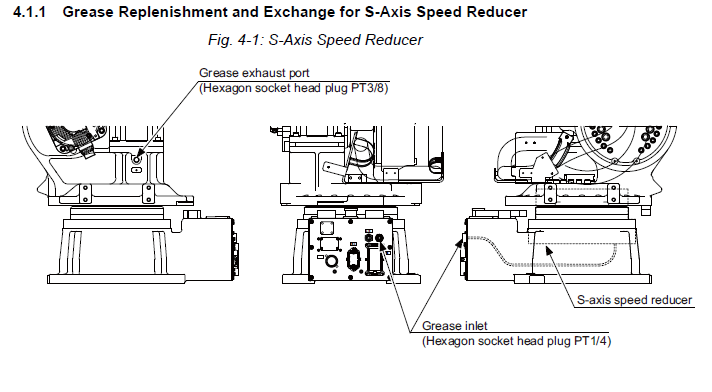

S-AXIS: 520cc

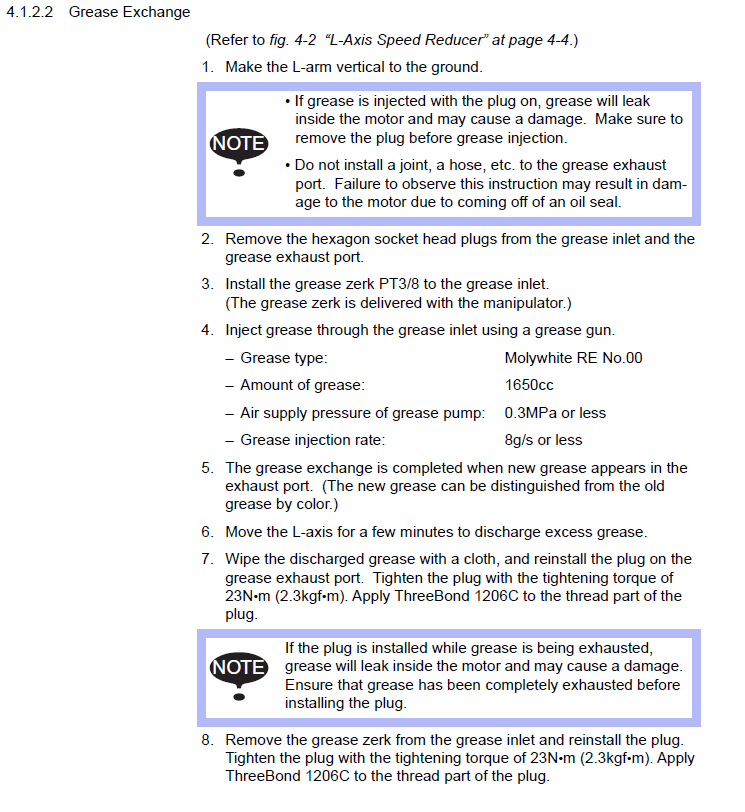

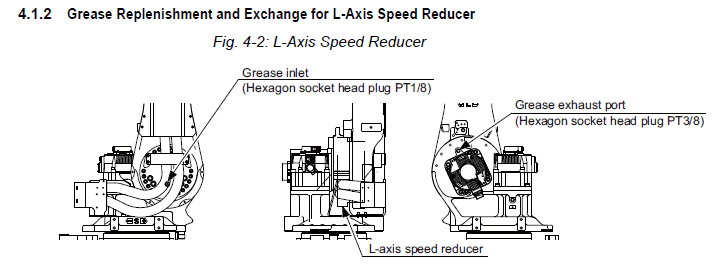

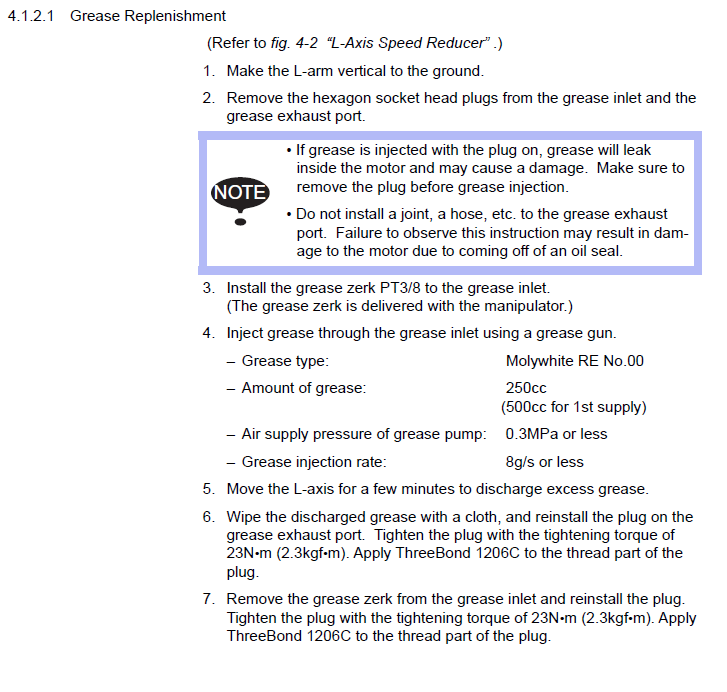

L-AXIS: 250cc

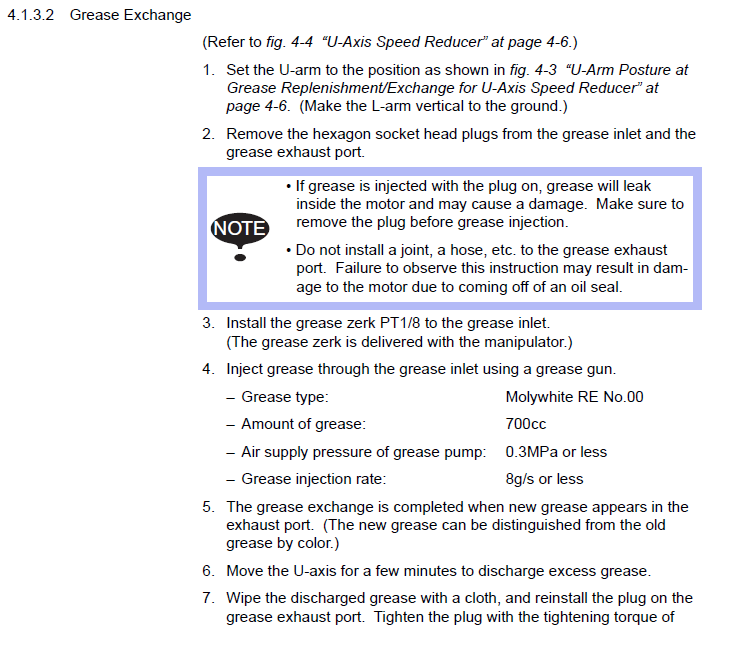

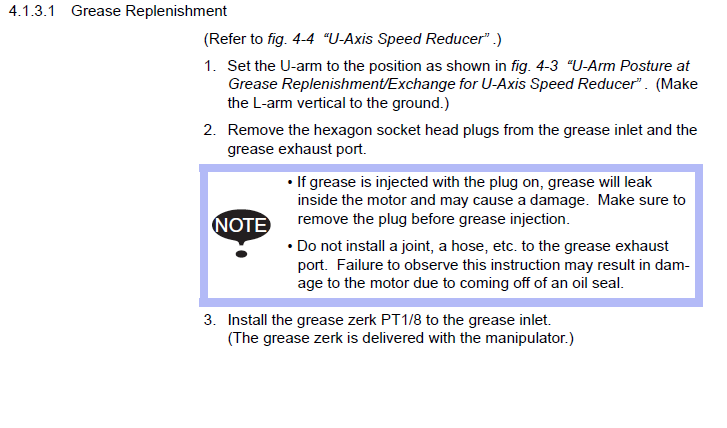

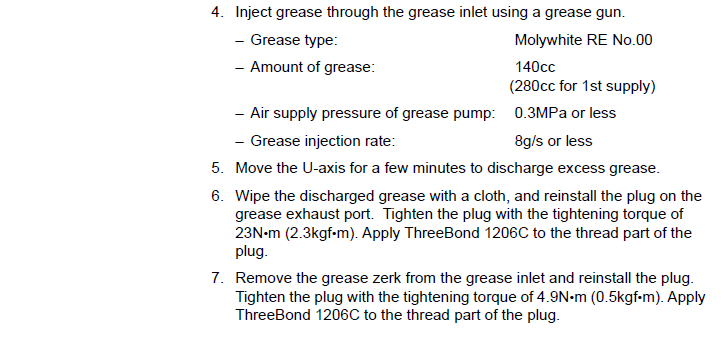

U-AXIS: 140cc

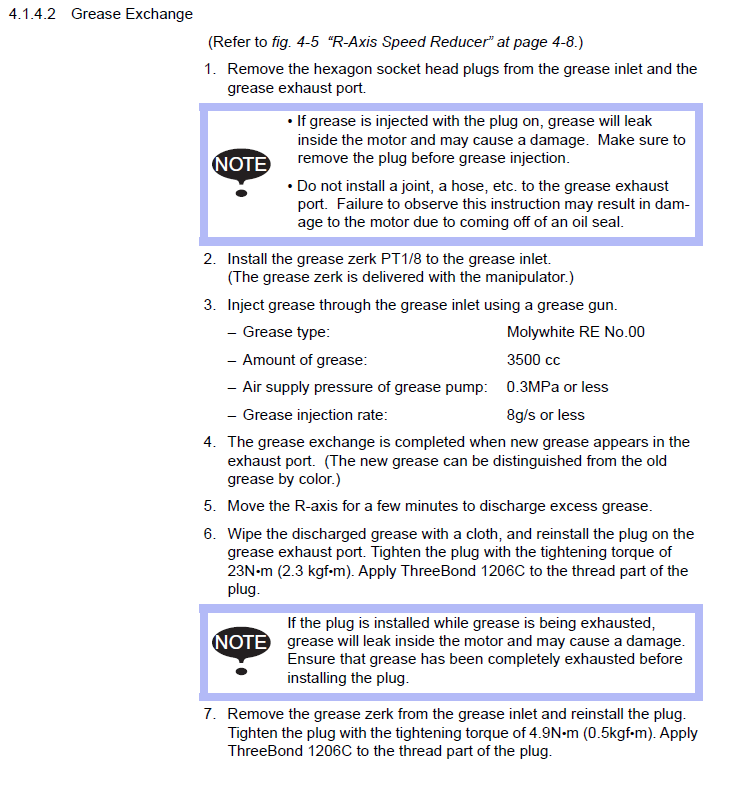

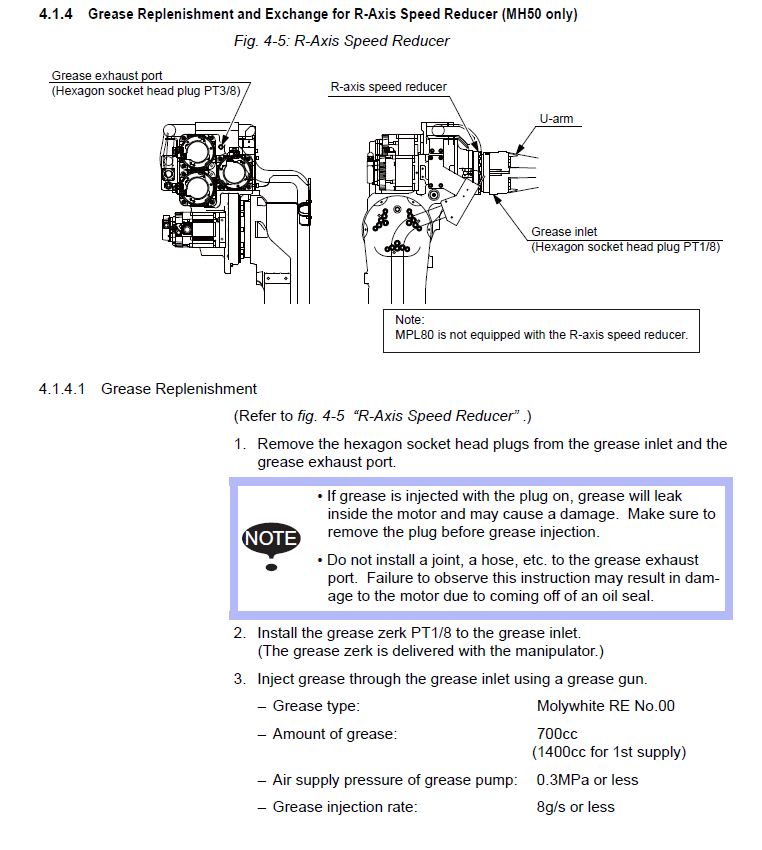

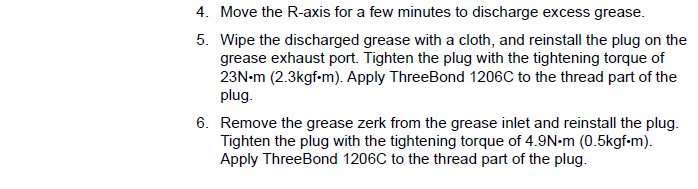

R-AXIS: 700cc

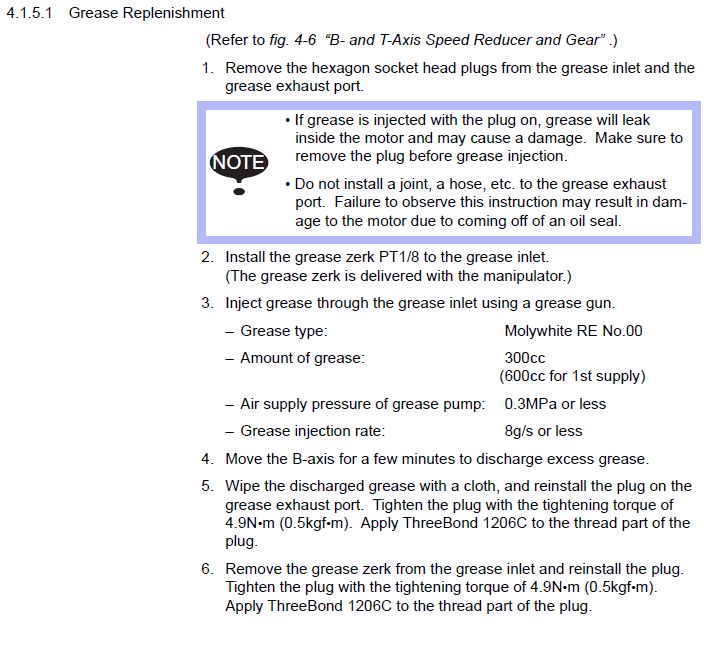

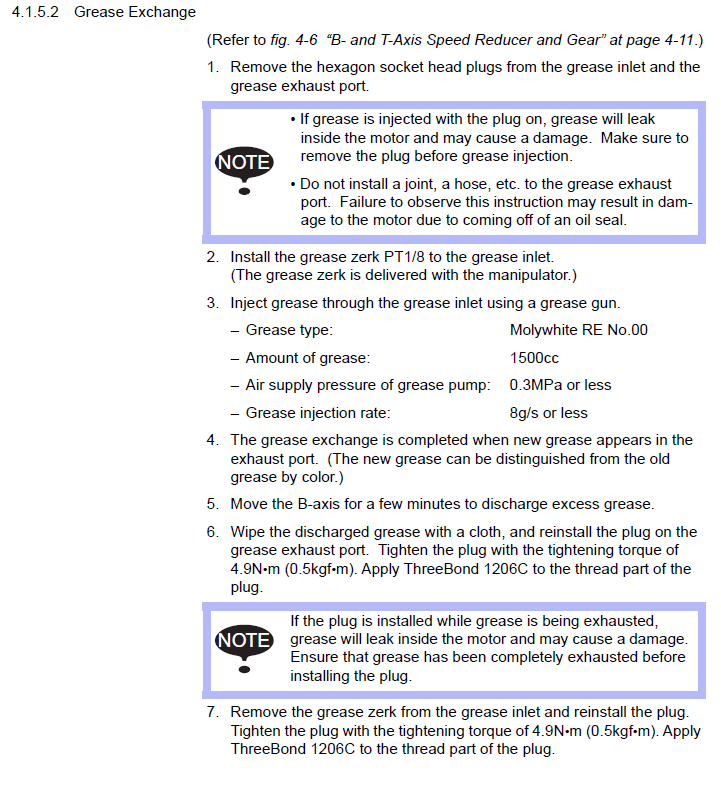

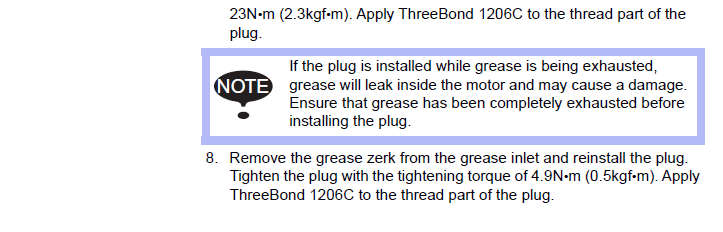

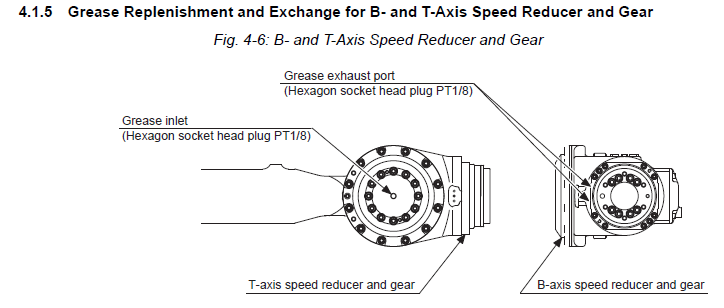

B AND T AXIS: 300cc
