Grease Replenishment (PM) DX100 MH50-20 / YR-MH00050-A11 Manipulator

Model Covered: YR-MH00050-A11

Materials Required:

GREASE, MOLY WHITE, #00, 16KG PAIL MOLYWHITE-RE-NO-00/132412-1

GREASE, HARMONIC, SK1, 1 LB, 14OZ CARTRIDGE HARMONIC-GREASE-SK-1A/479035-2

GREASE, GADUS S2 V220 2, 14OZ TUBE ALVANIA-EP-GREASE-2/132177-1

SEALANT, 3 BOND, LIQUID GASKET THREE-BOND/137096-1

Grease Replenishment amounts:

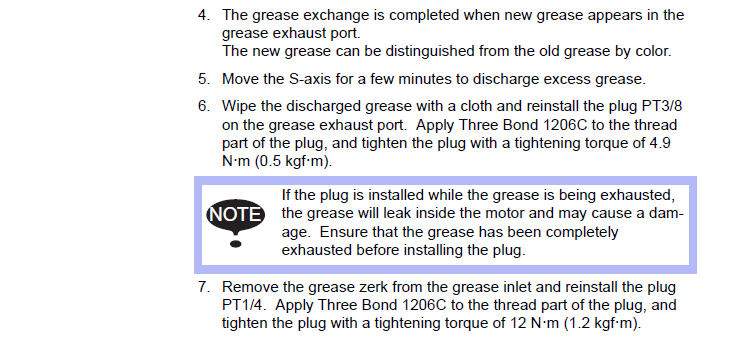

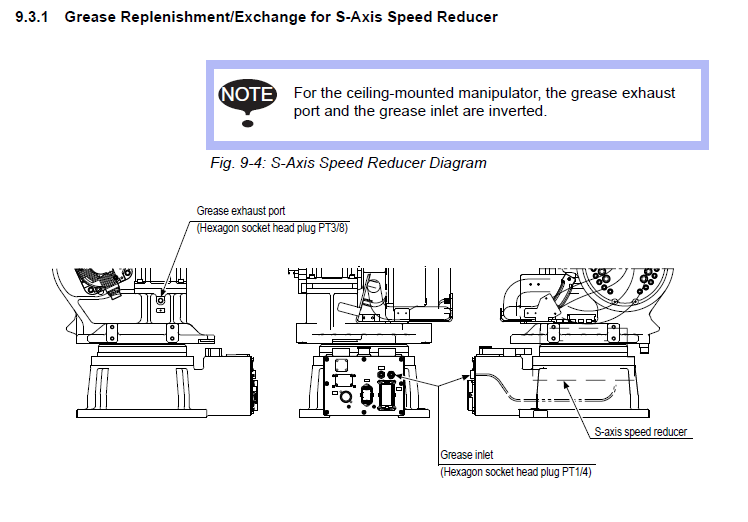

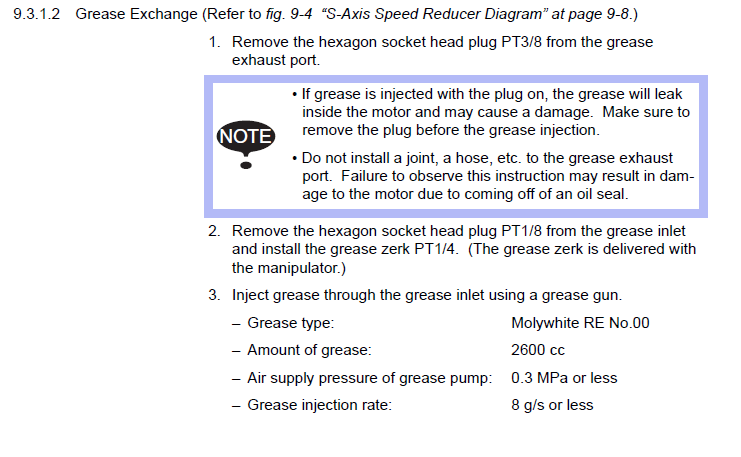

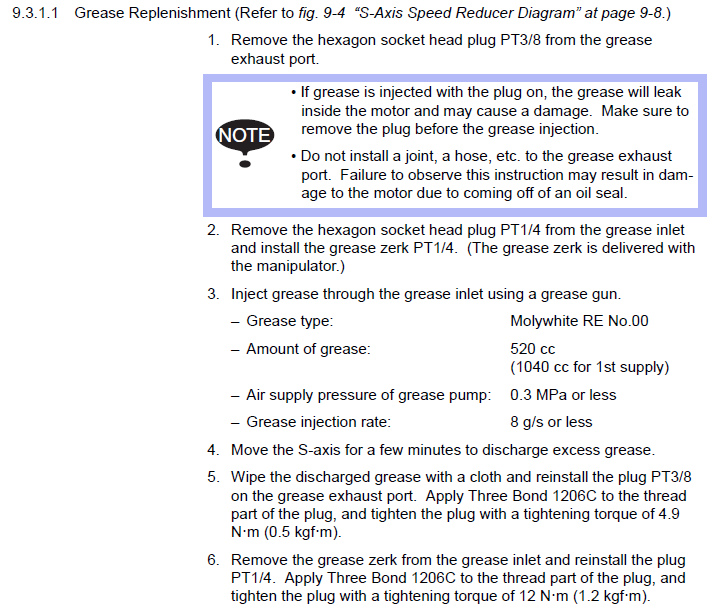

S-Axis: 520cc Moly White grease

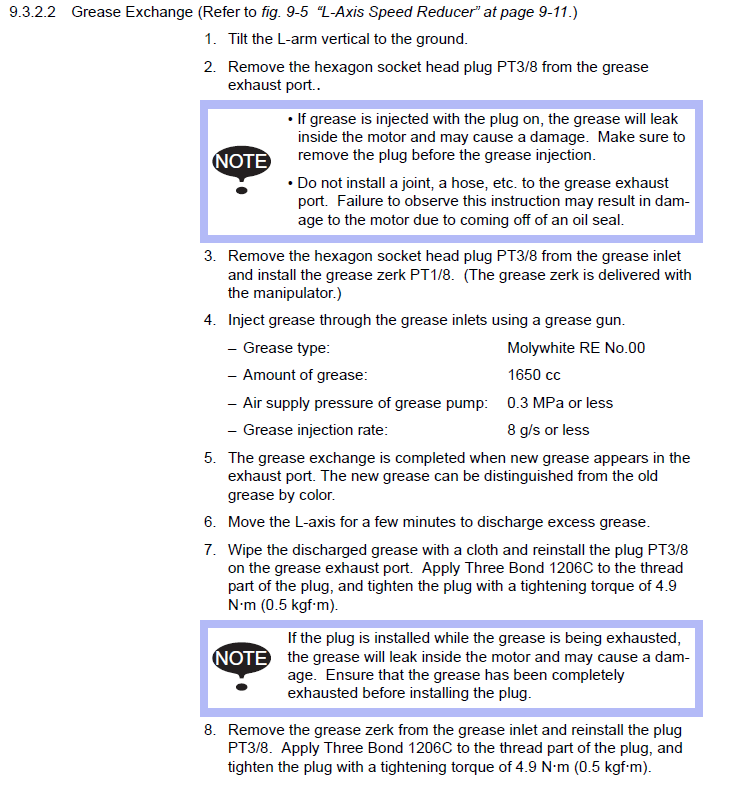

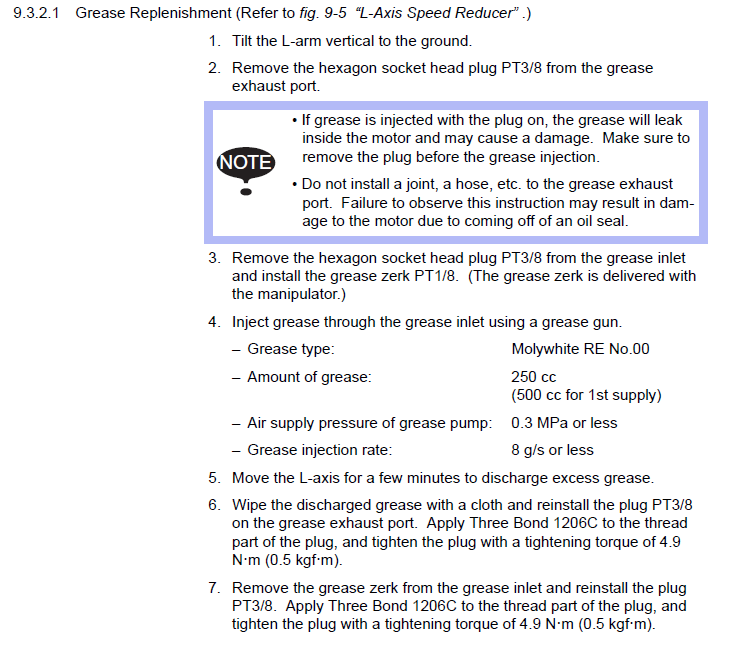

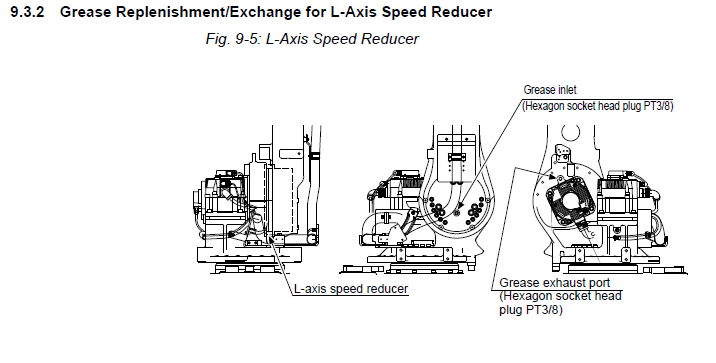

L-Axis: 250cc Moly White grease

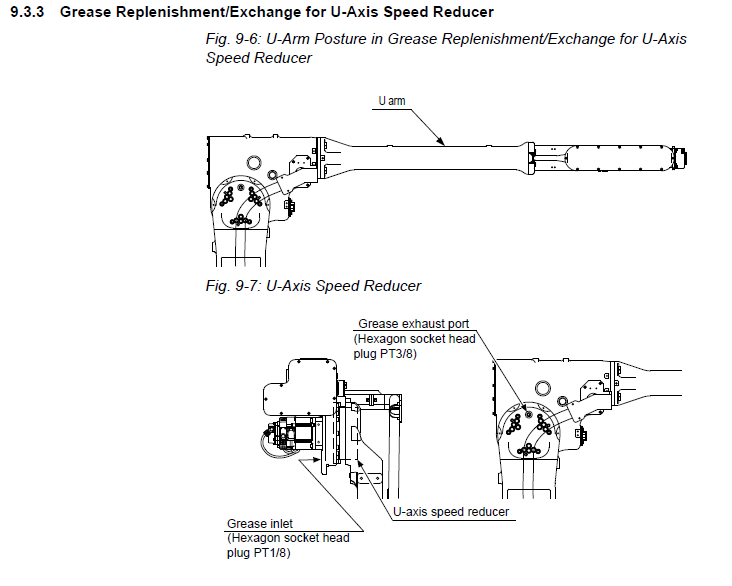

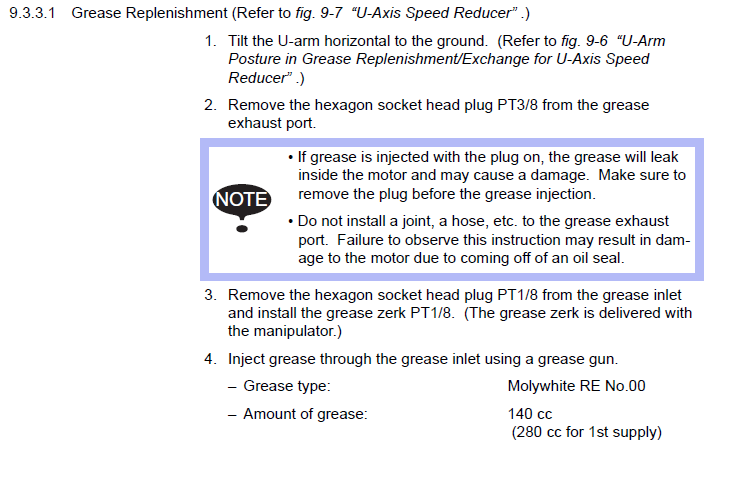

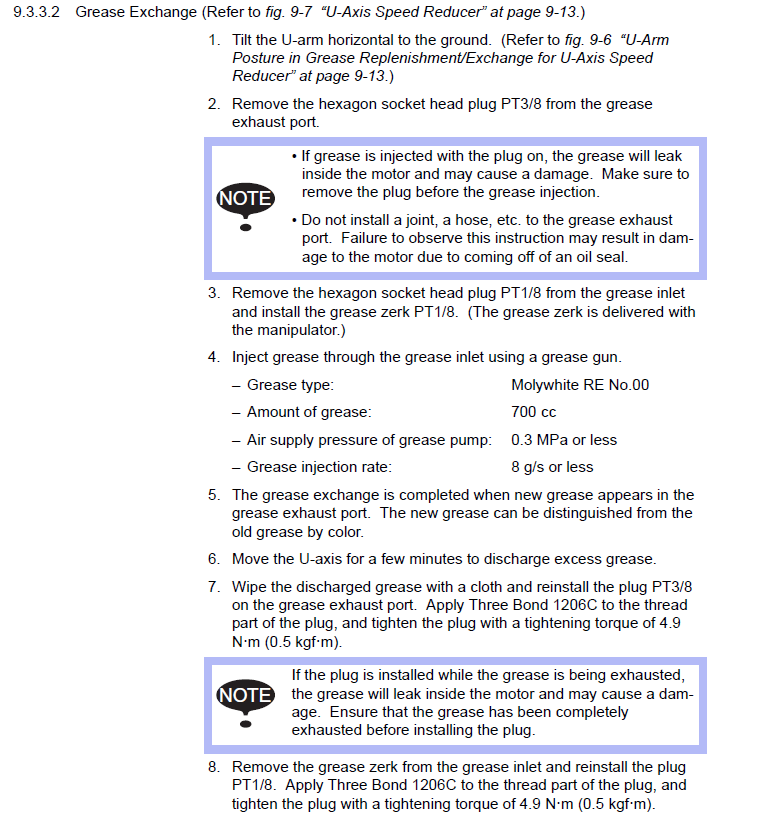

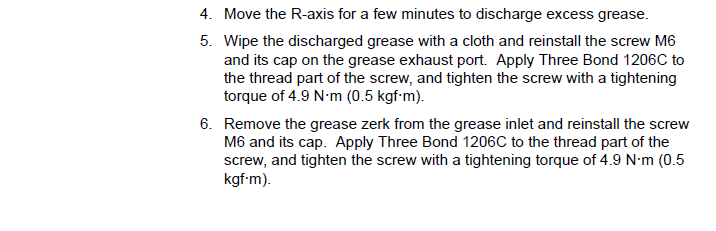

U-Axis: 140cc Moly White grease

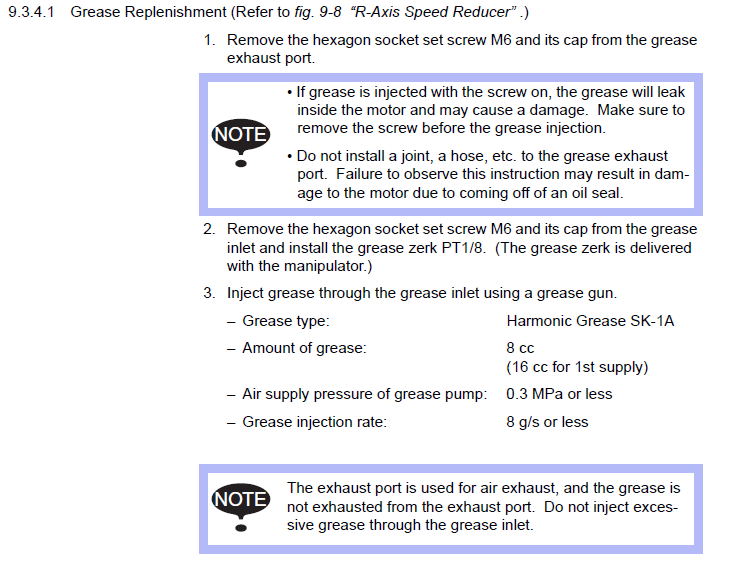

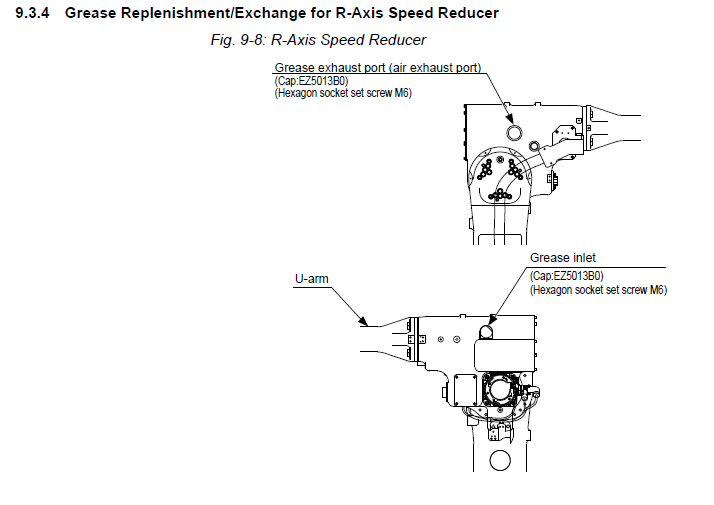

R-Axis: 8cc SK-1A Grease

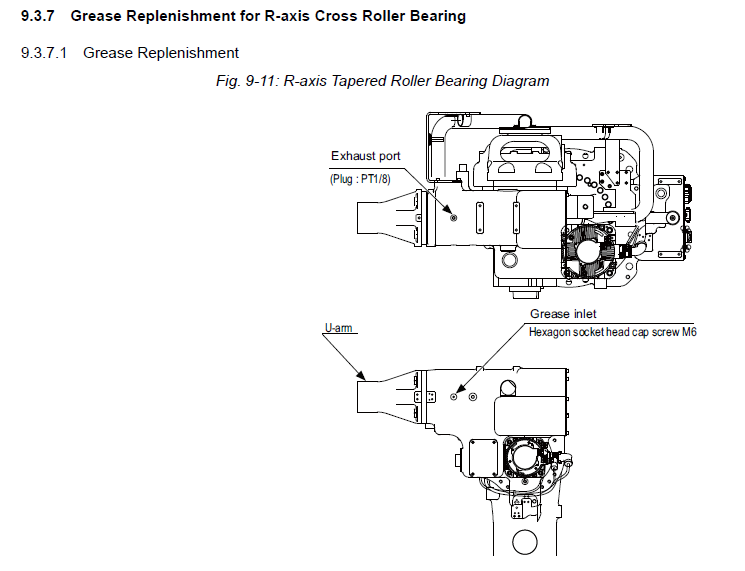

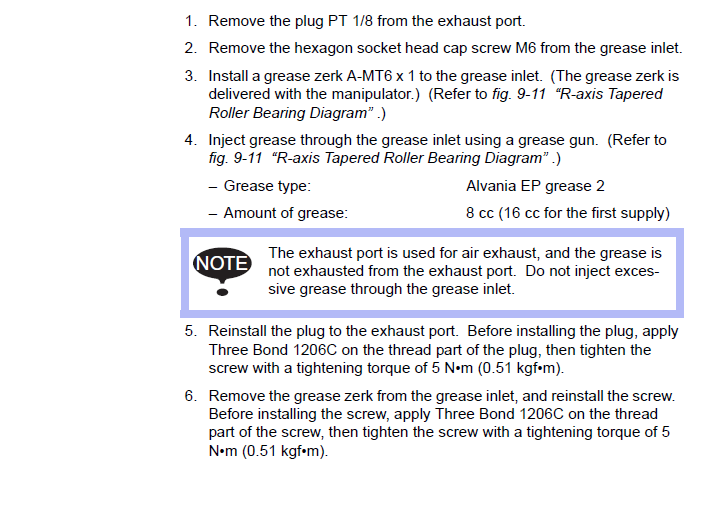

R-Axis Cross Roller Bearing: 8cc Alvania EP grease 2

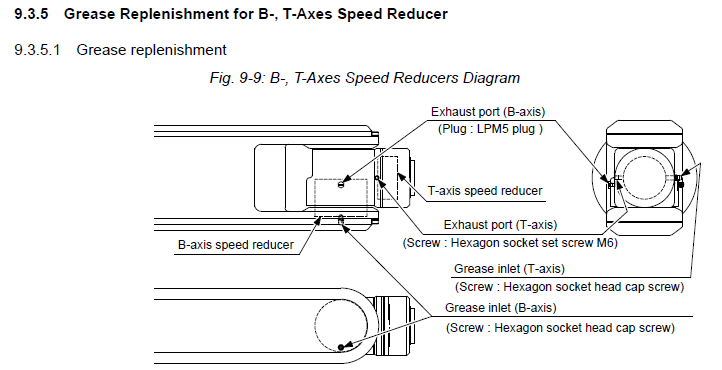

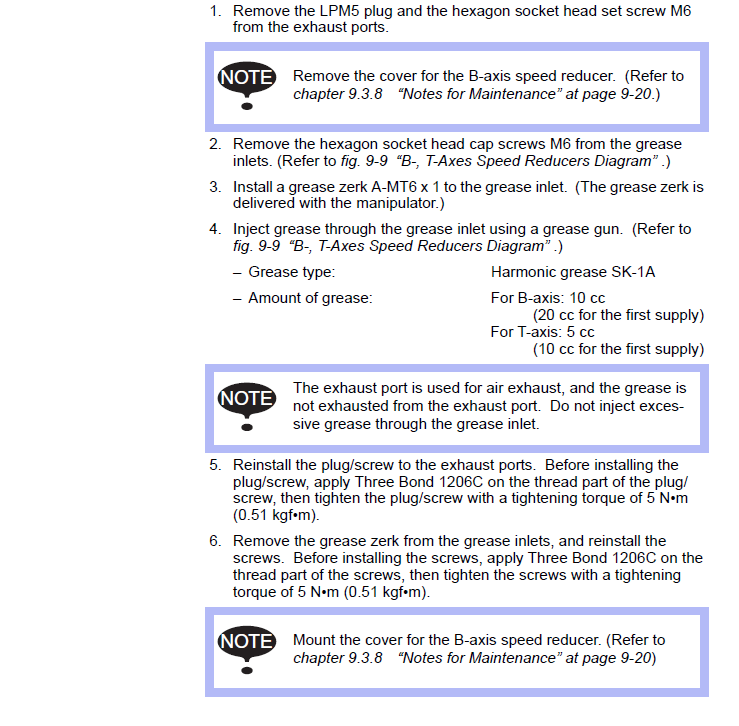

B-Axis: 10cc SK-1A Grease

T-Axis: 5cc SK-1A Grease

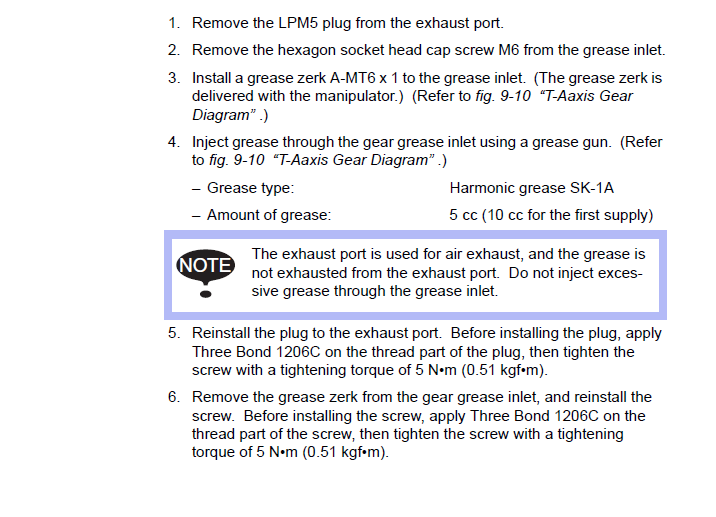

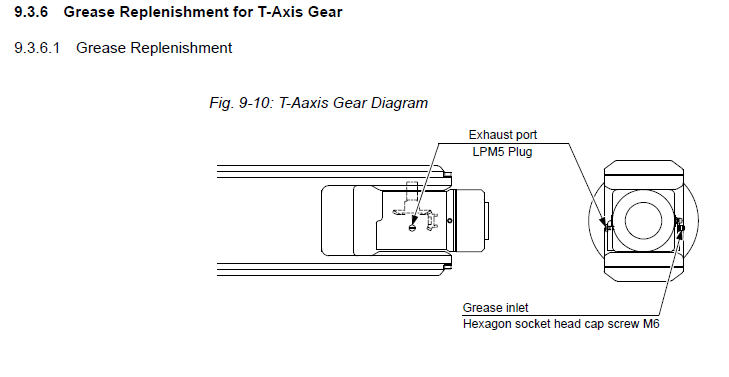

T-Axis Gear: 5cc SK-1A Grease
