Greasre Replenishment (PM) DX100 VA1400 / YR-VA01400-A11 Manipulator

Model Covered: YR-VA01400-A11

Materials Required:

VIGO Grease RE No. 0 /151945-1

Harmonic Grease 4B No.2 /140087-1

Harmonic Grease SK-1A /479035-2

Alvania EP Grease 2 /132177-1

Three Bond 1206C /479014-6

Amount of Grease Required for Grease Replenishment:

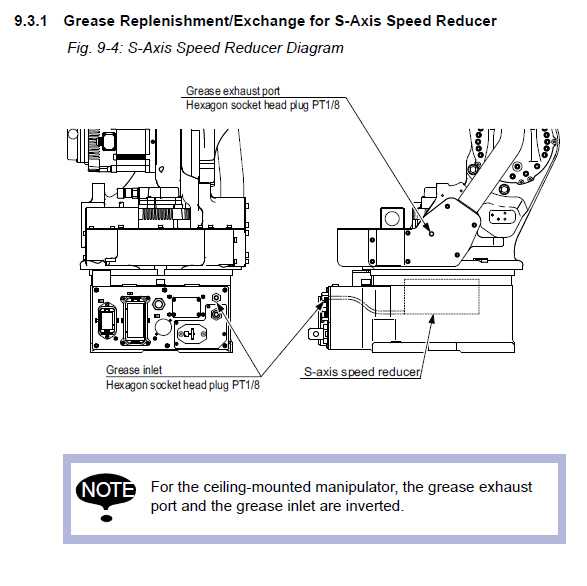

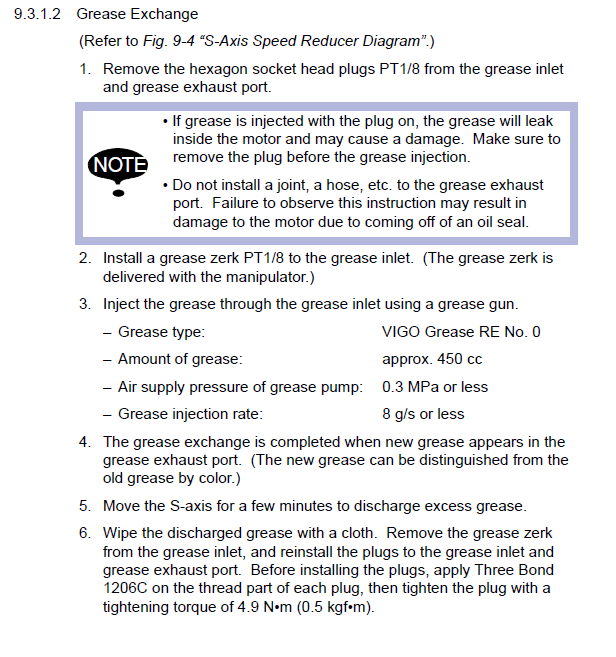

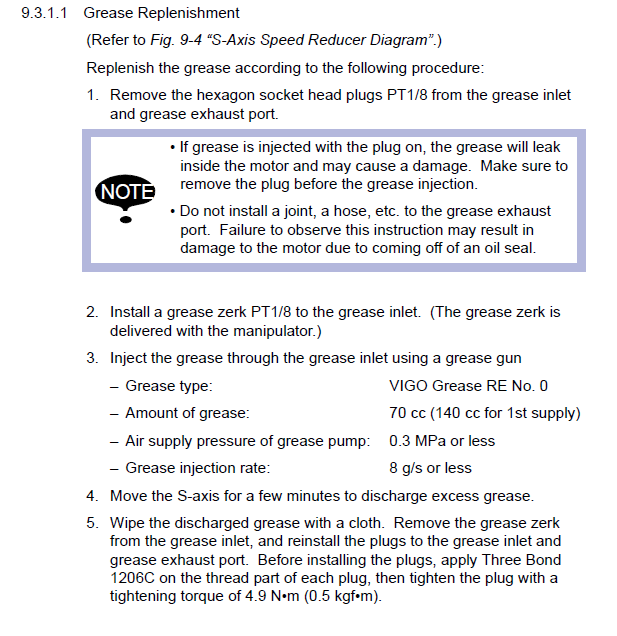

S-AXIS: 70 CC VIGO

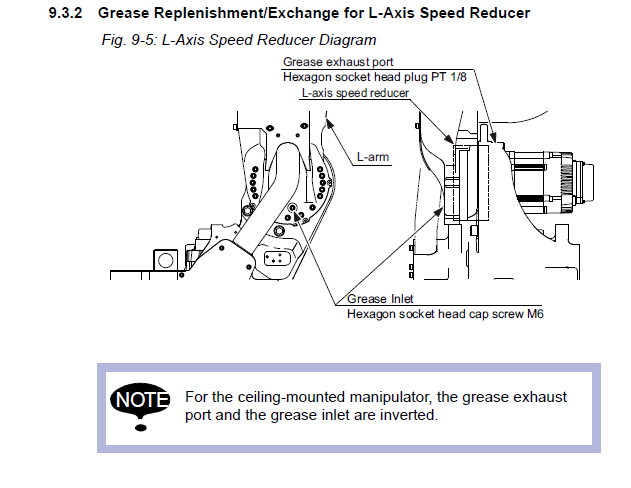

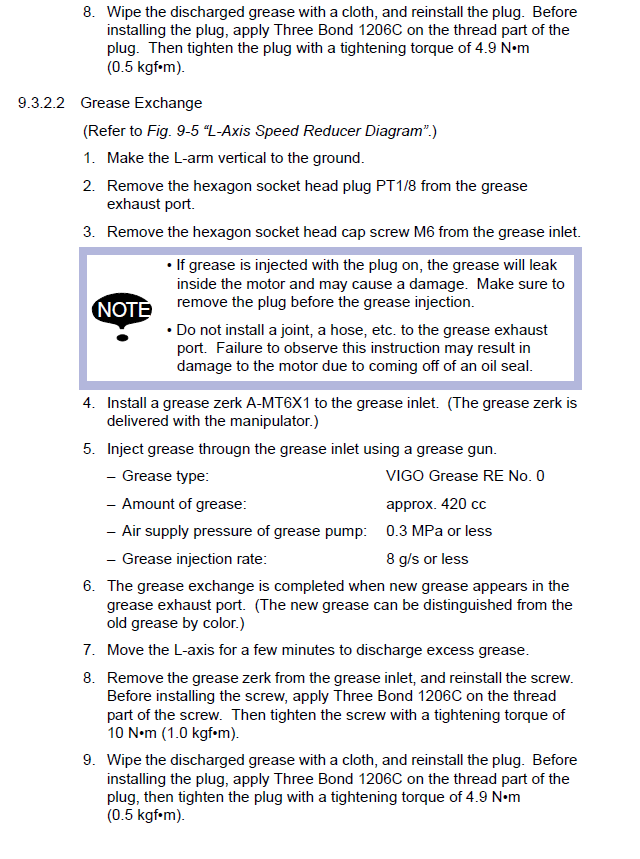

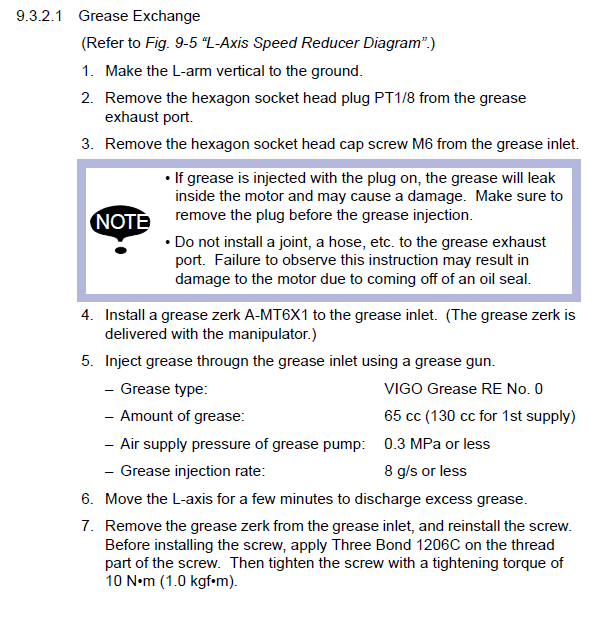

L-AXIS: 65 CC VIGO

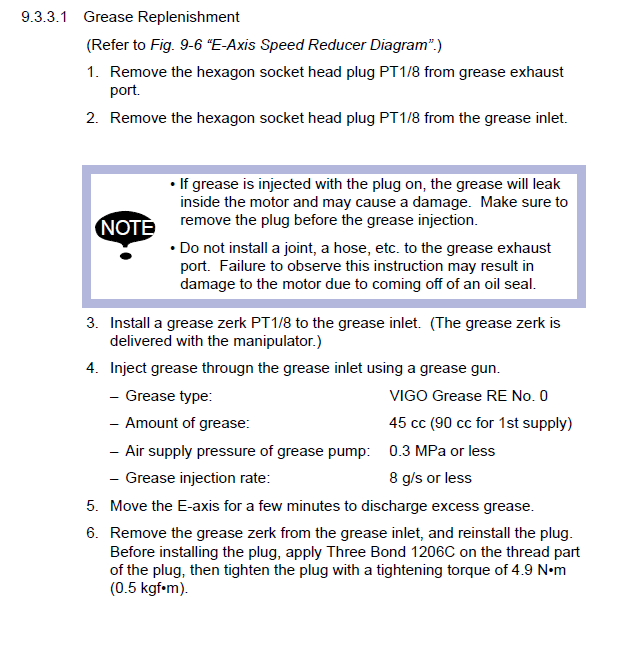

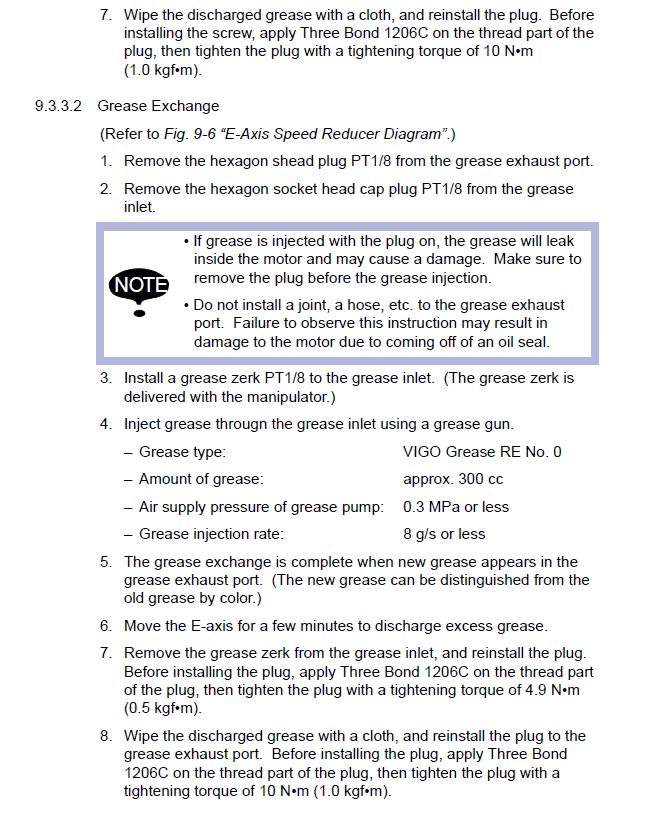

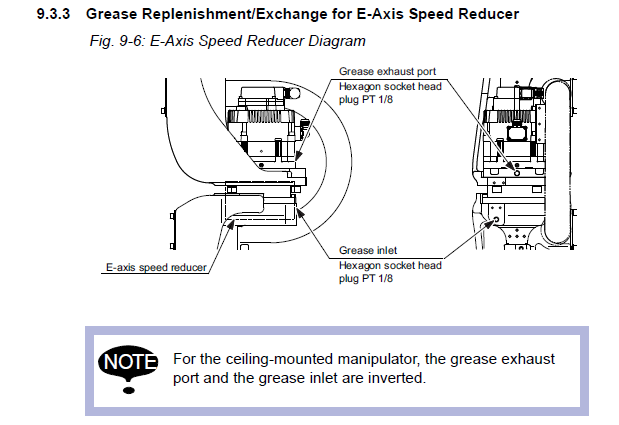

E-AXIS: 45 CC VIGO

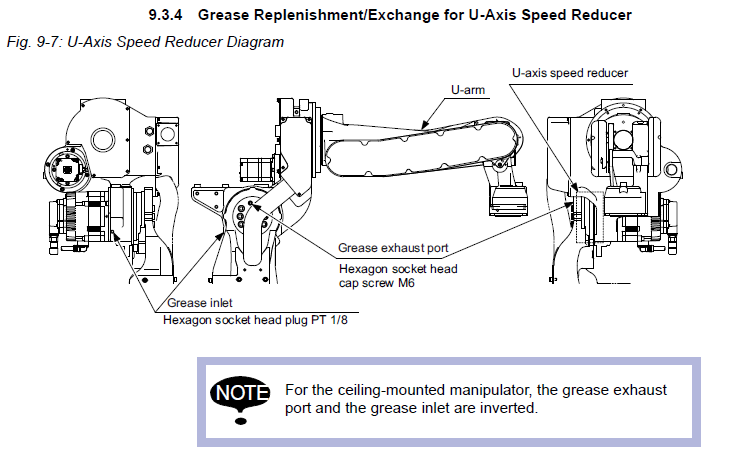

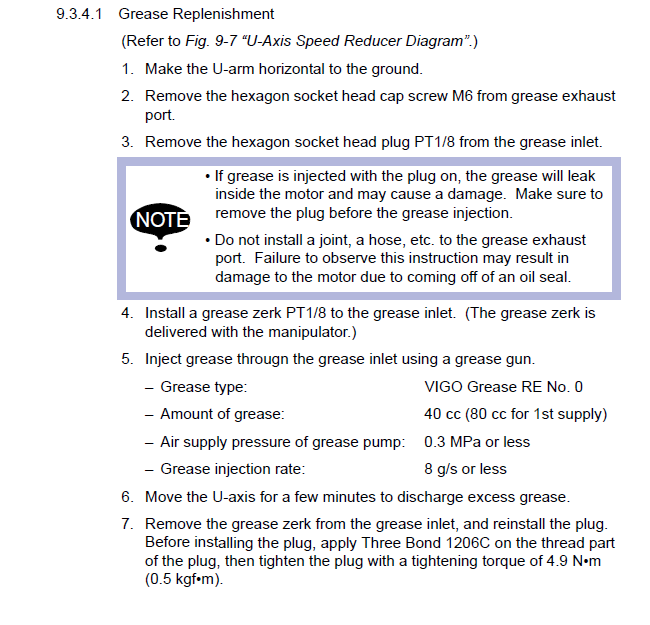

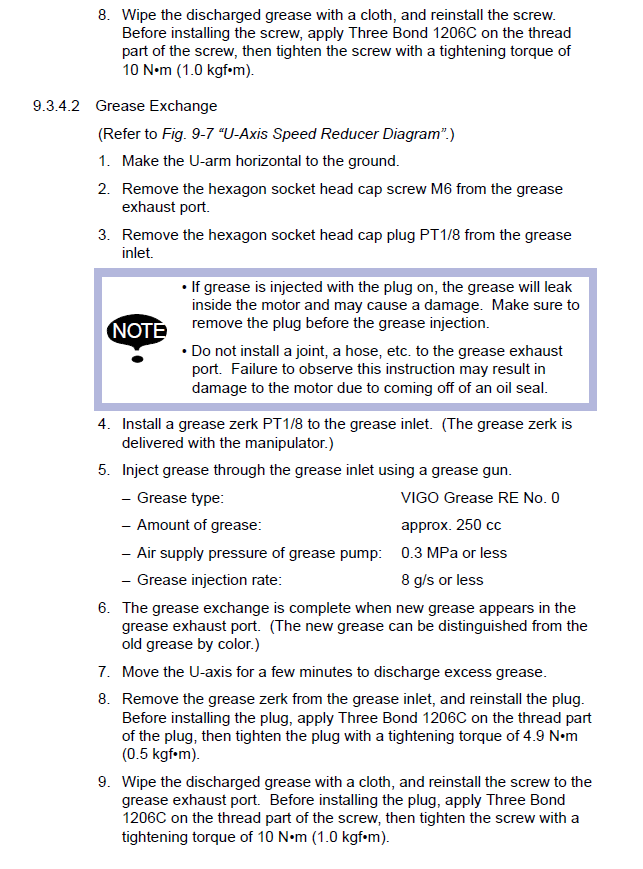

U-AXIS: 40 CC VIGO

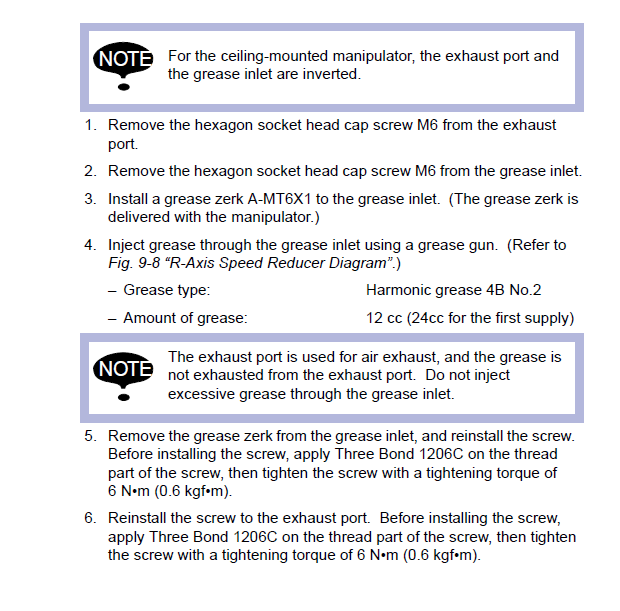

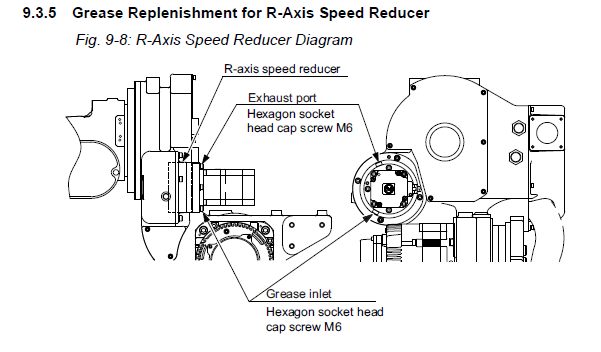

R-AXIS: 12 CC HARMONIC 4B

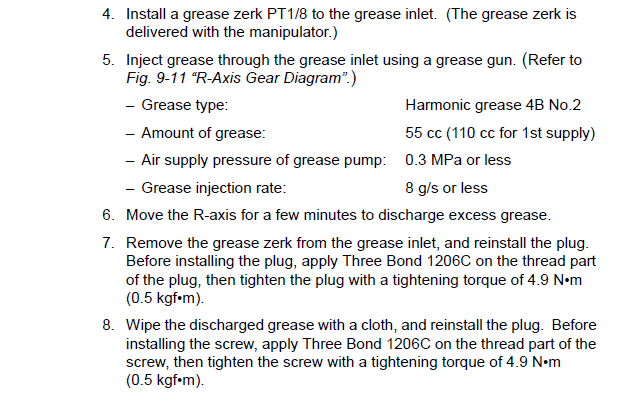

R-AXIS GEAR: 55 CC HARMONIC 4B

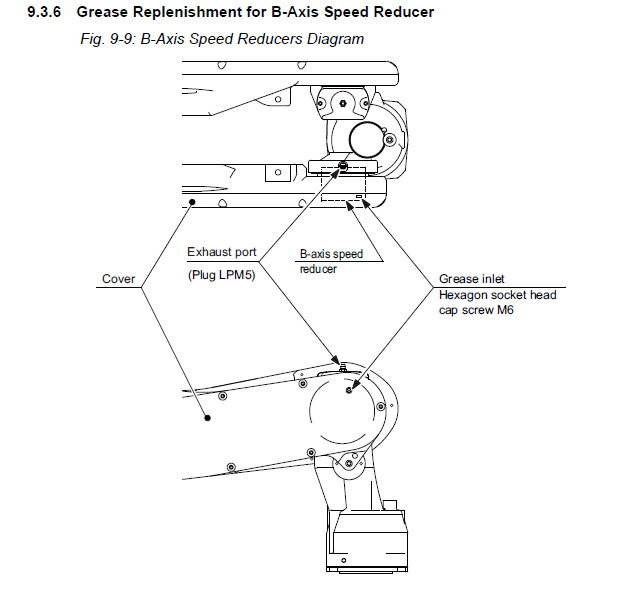

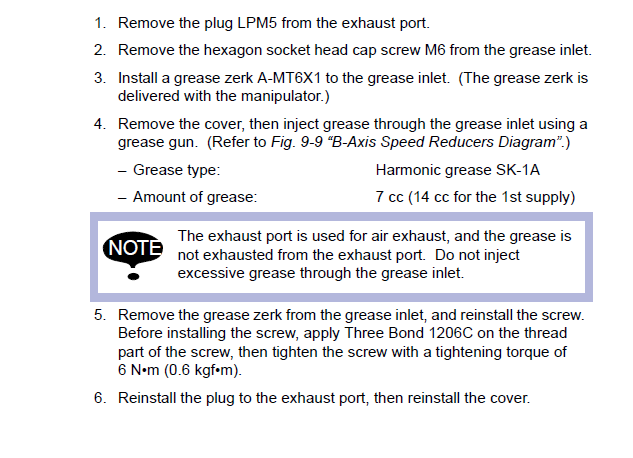

B-AXIS: 7 CC SK-1A

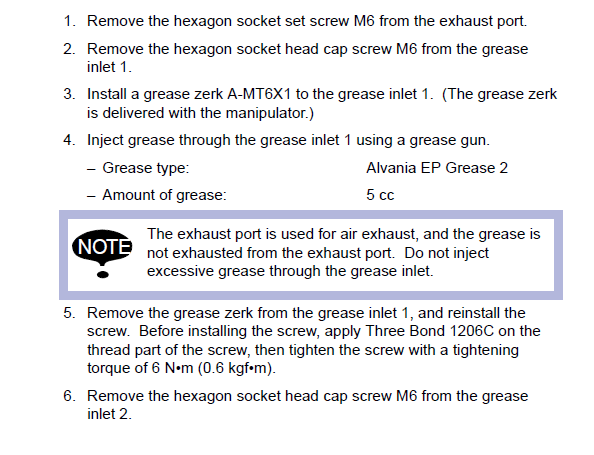

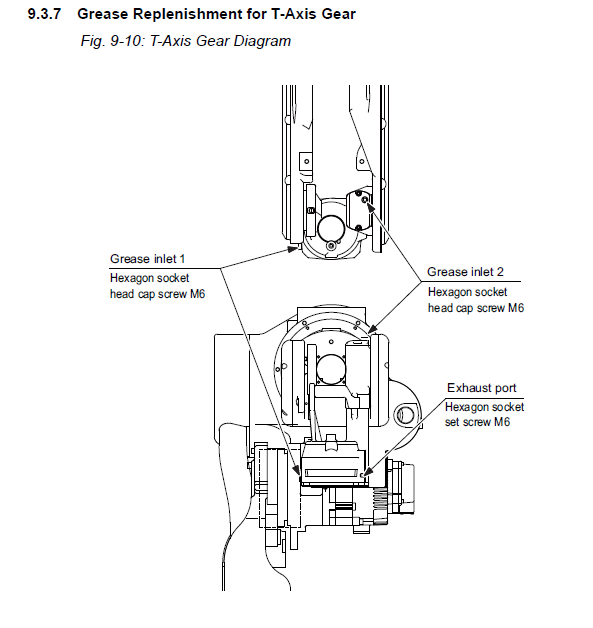

T-AXIS GEAR: 5 CC ALVANIA EP2
