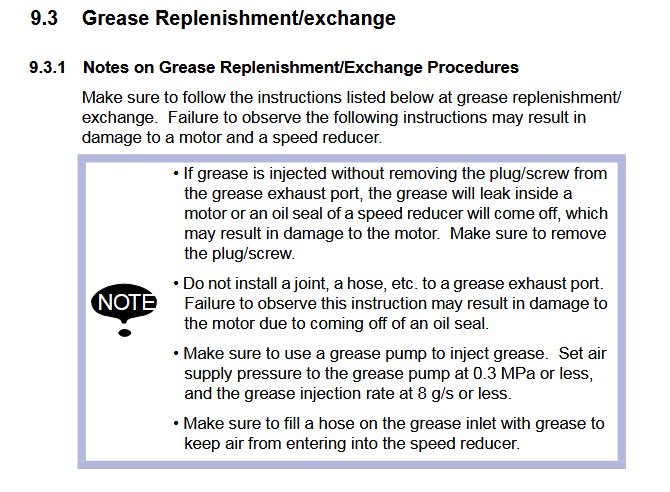

Grease Procedure (PM) VA1400 II / YR-VA01400-J00 Manipulator

Model Covered: YR-VA01400-J00

Material Required:

VIGO Grease RE No. 0 151945-1

Harmonic Grease 4B No.2 140087-1

Harmonic Grease SK-1A 479035-2

Alvania EP Grease 2 132177-1

Three Bond 1206C 479014-6

Amount Of Grease:

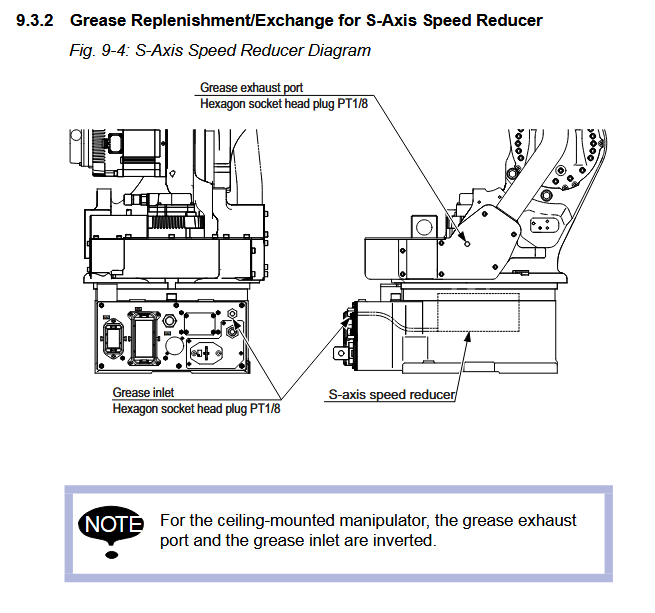

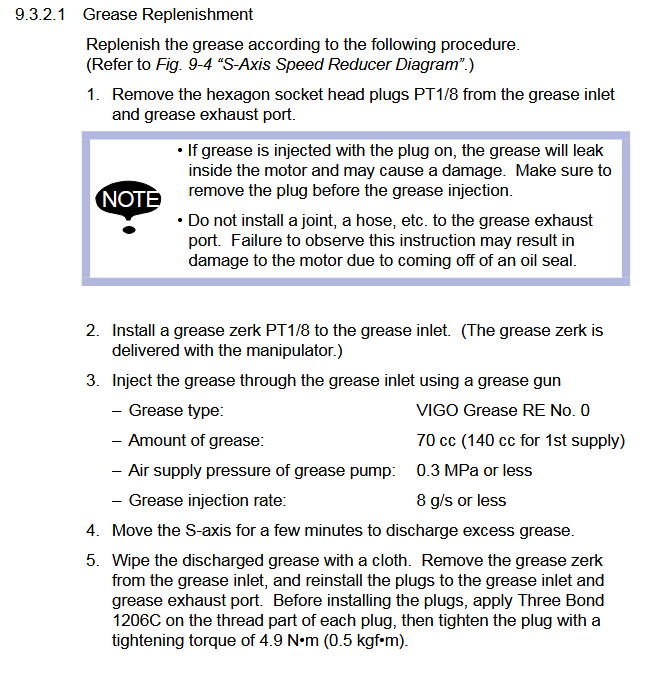

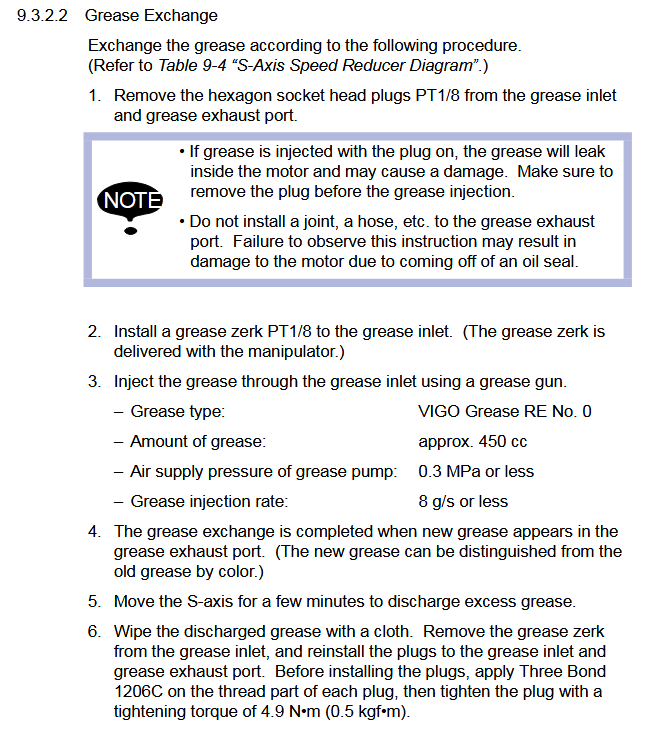

S-AXIS; VIGO 70cc

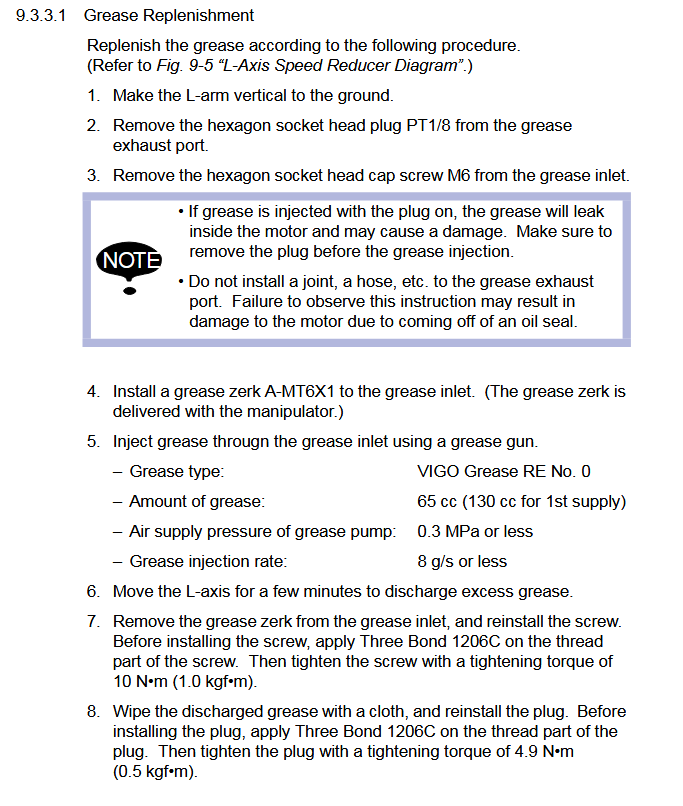

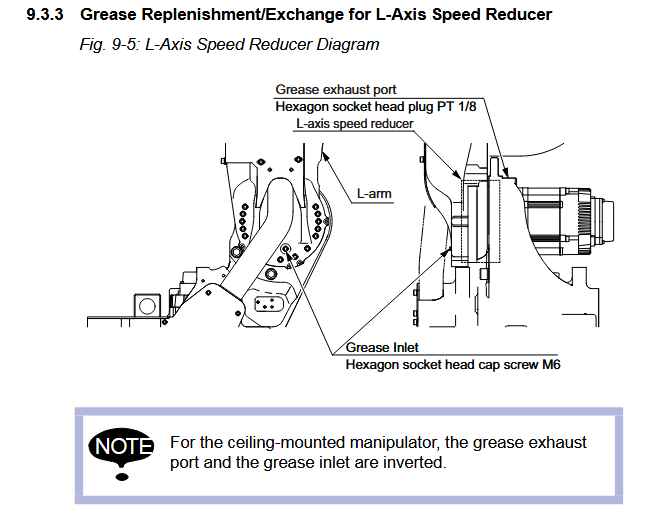

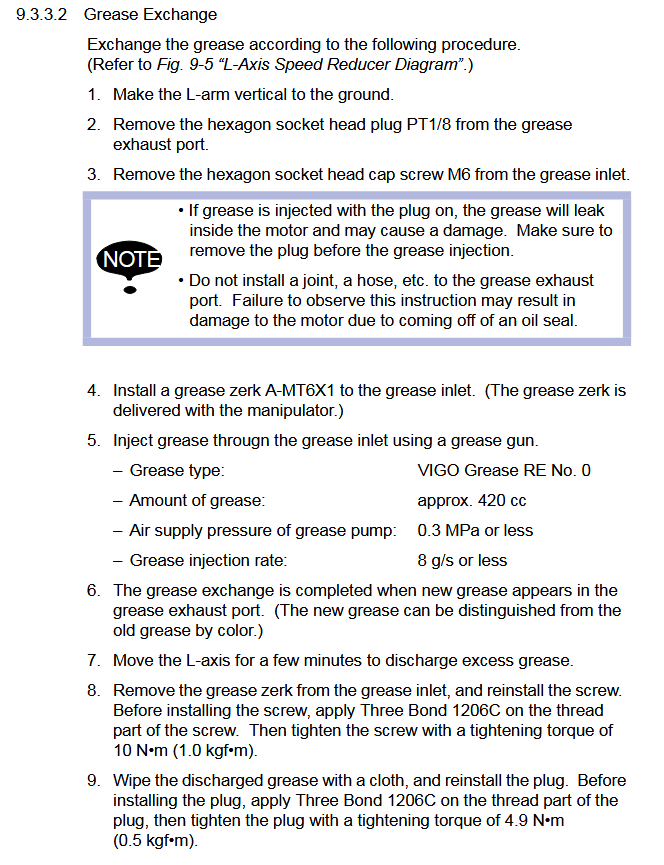

L-AXIS: VIGO 65cc

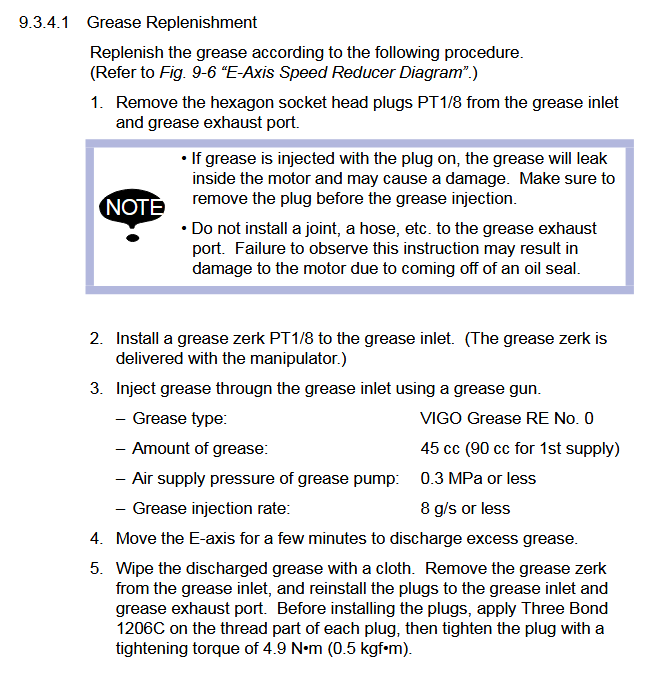

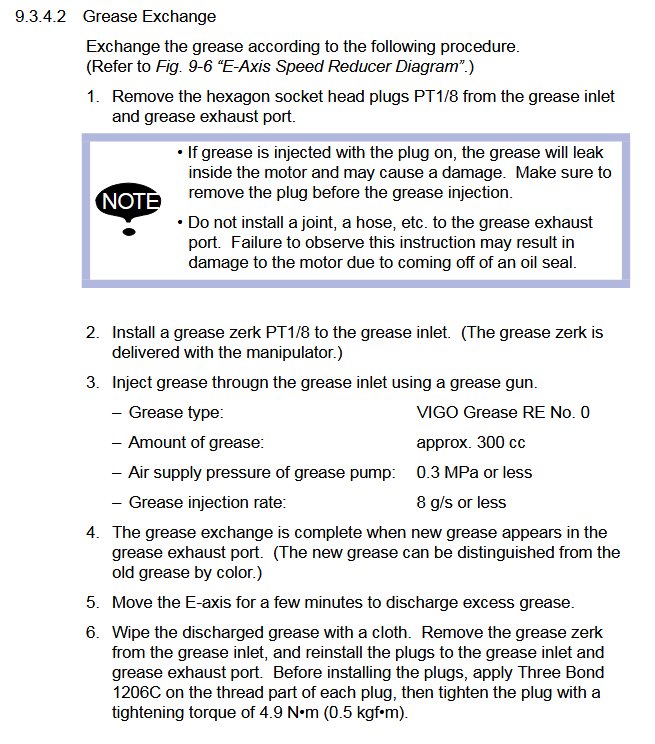

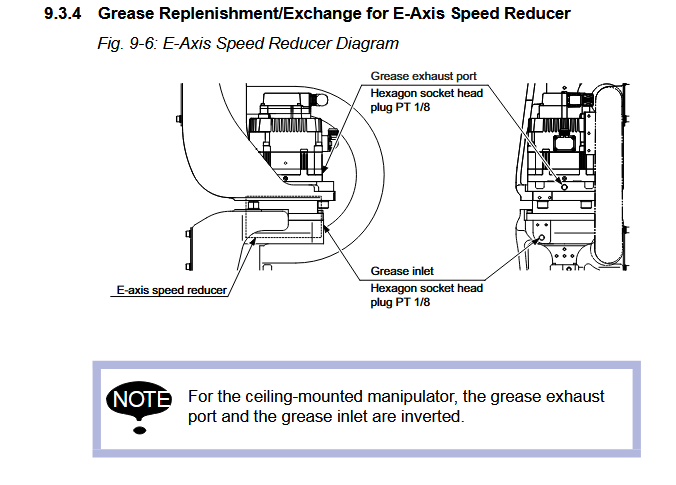

E-AXIS: VIGO 45cc

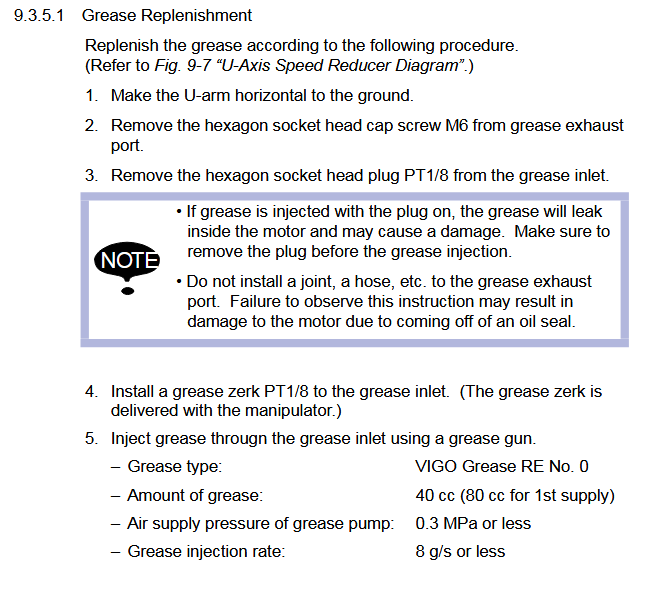

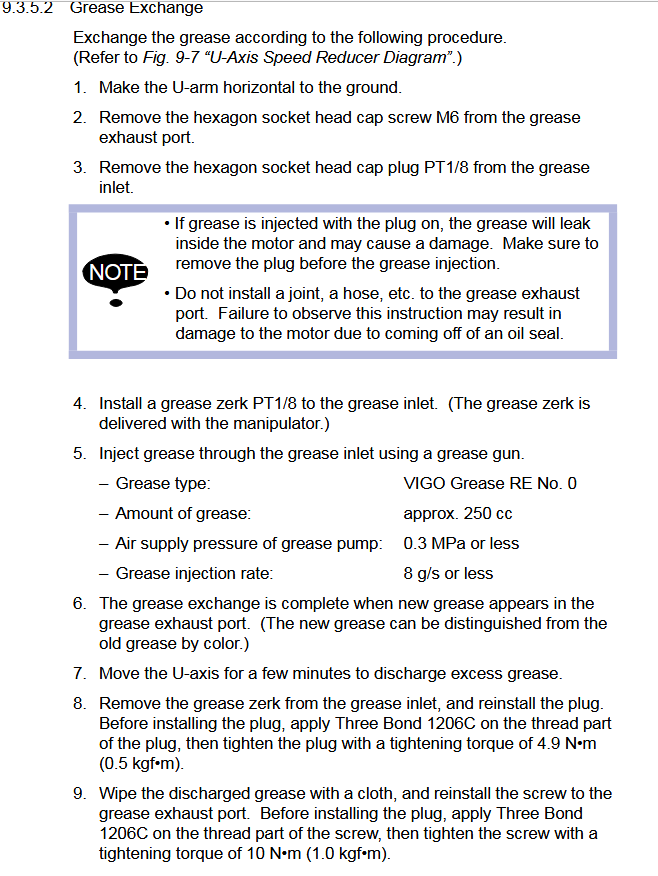

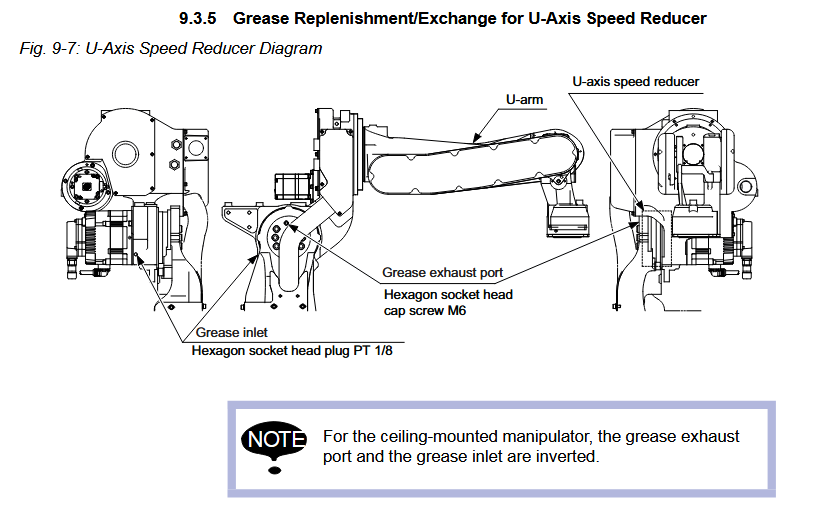

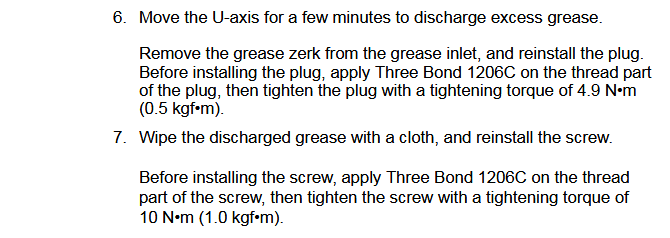

U-AXIS: VIGO 40cc

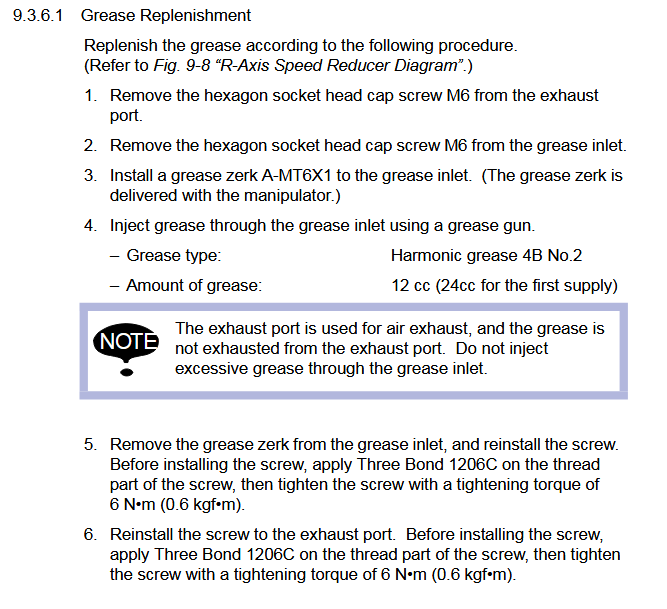

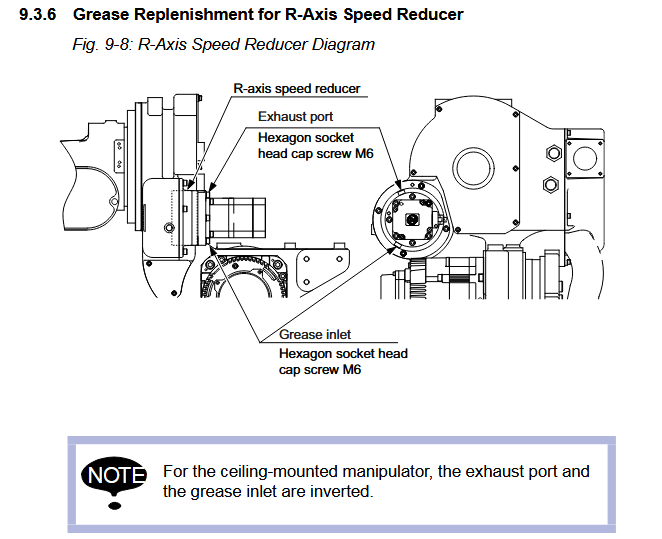

R-AXIS: 4B Grease 12cc

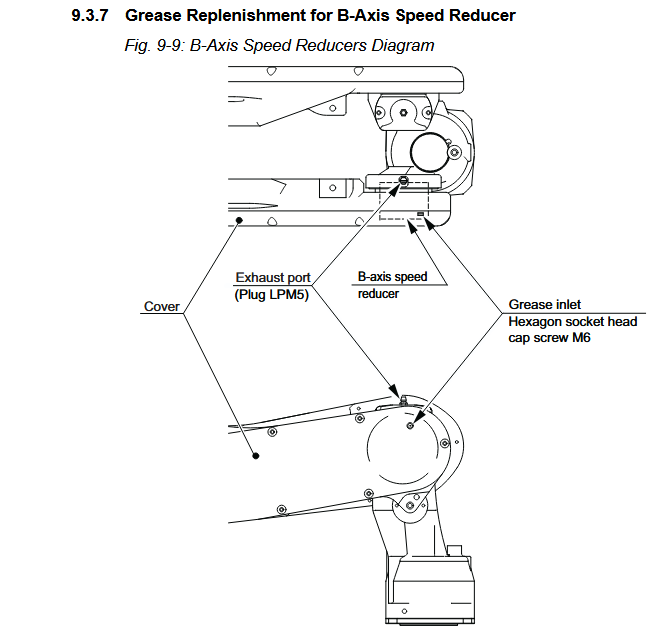

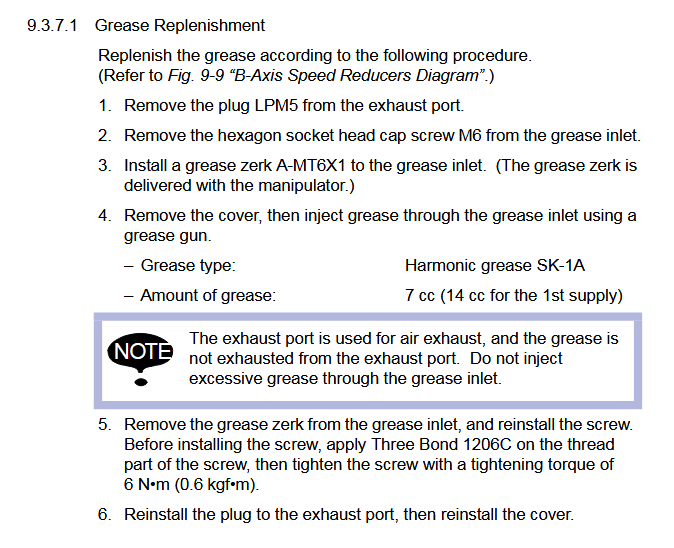

B-AXIS: SK1 Grease 7cc

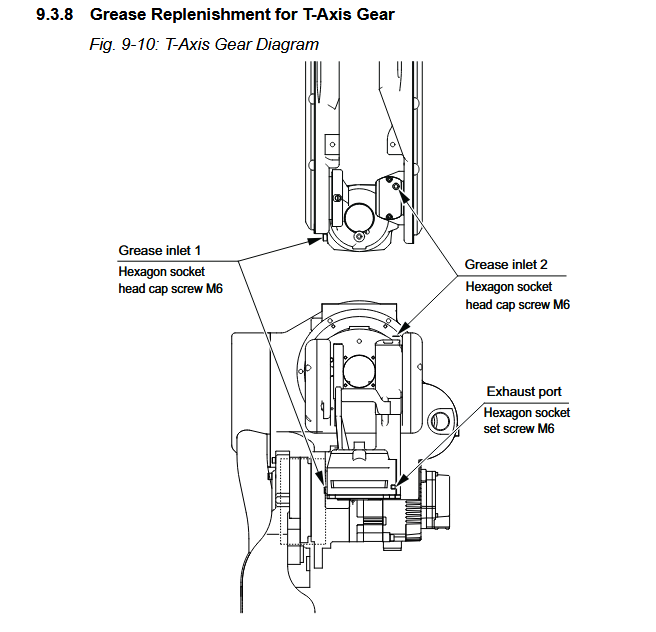

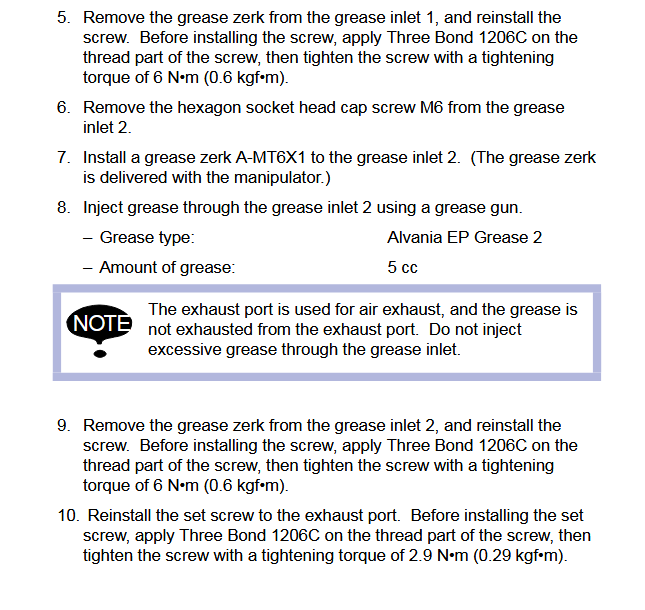

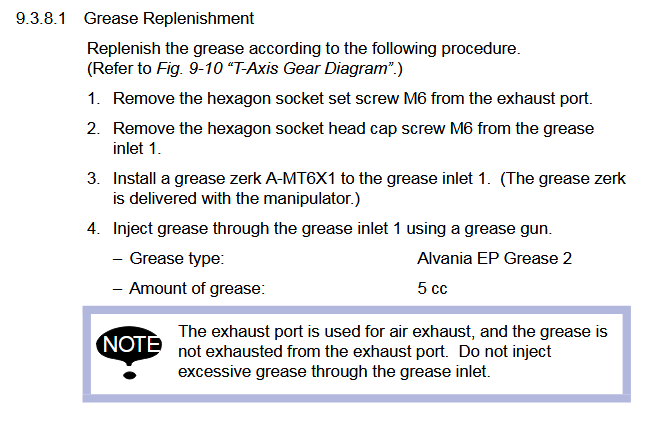

T-AXIS: EP2 Grease 5cc

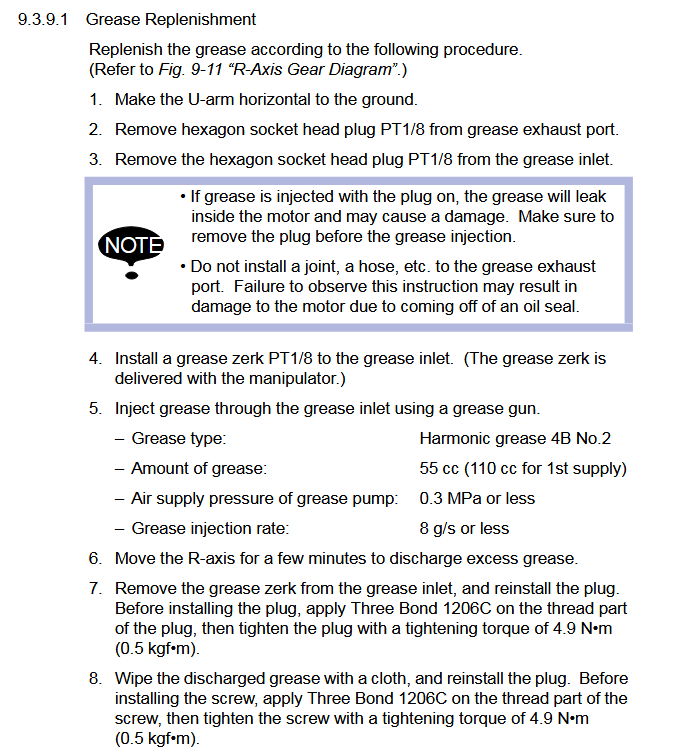

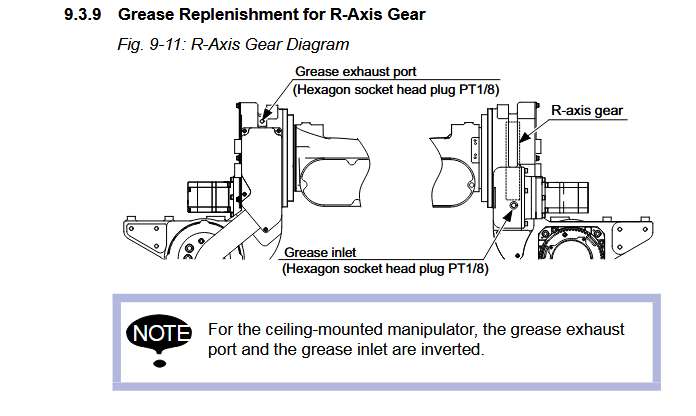

R-AXIS GEAR: 4B Grease 55cc
