Grease Replenishment (PM) MH5LF / YR-MH005LF-A00 Manipulator

Model Covered: YR-MH005LF-A00

Material Required:

Harmonic Grease SK-1A 479035-2

Three Bond 1206C 479014-6

Amount of Grease Needed:

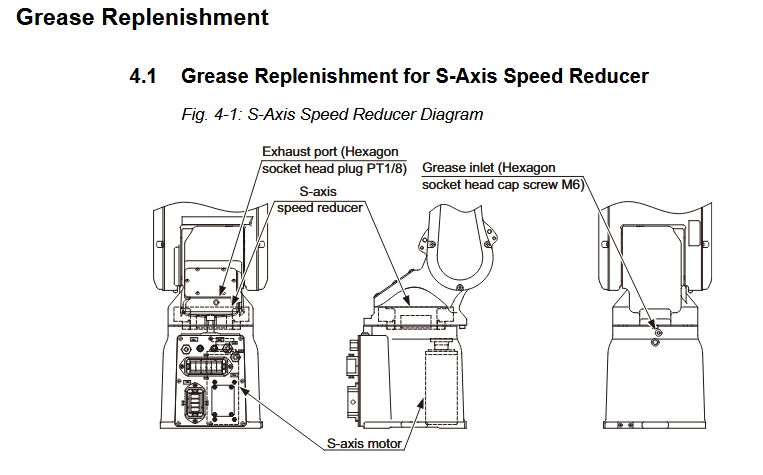

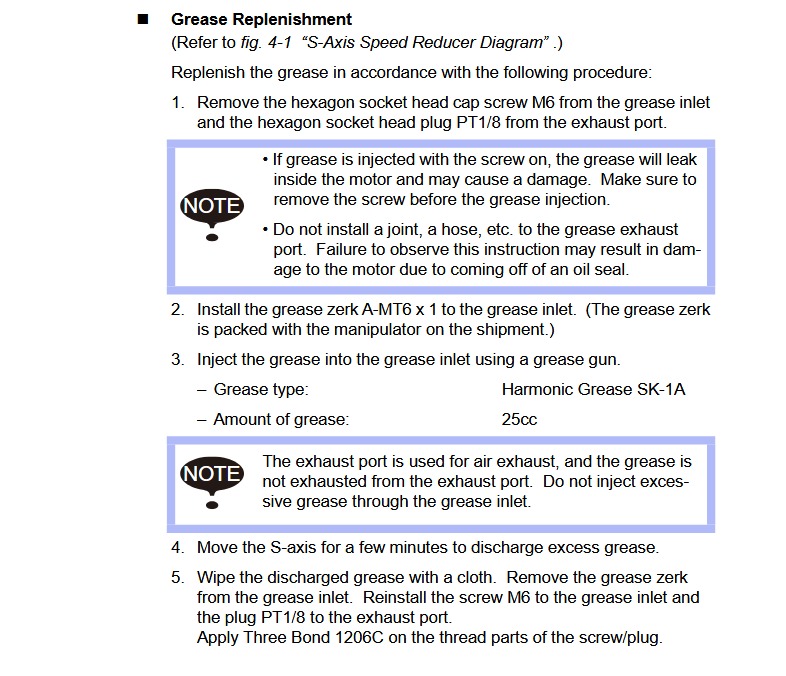

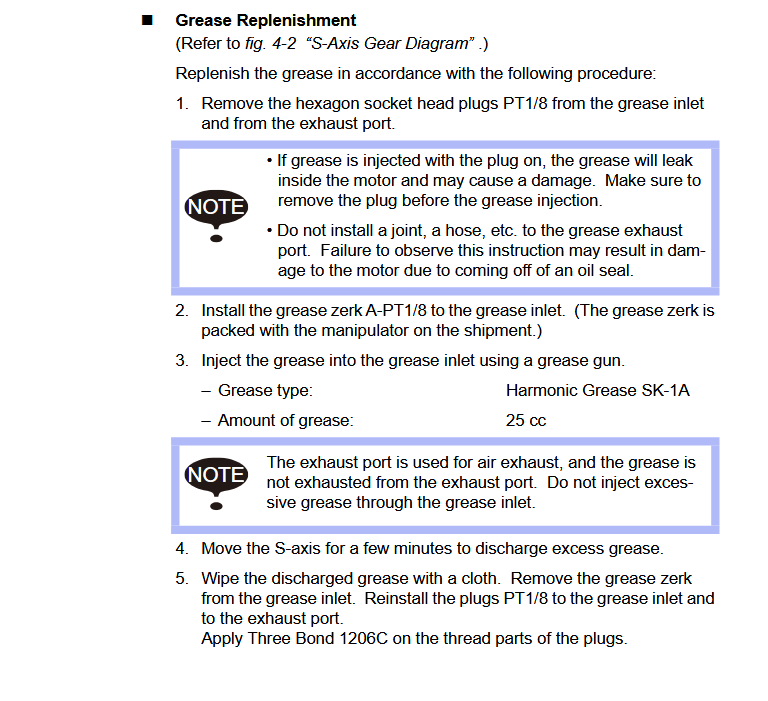

S-AXIS: 25cc

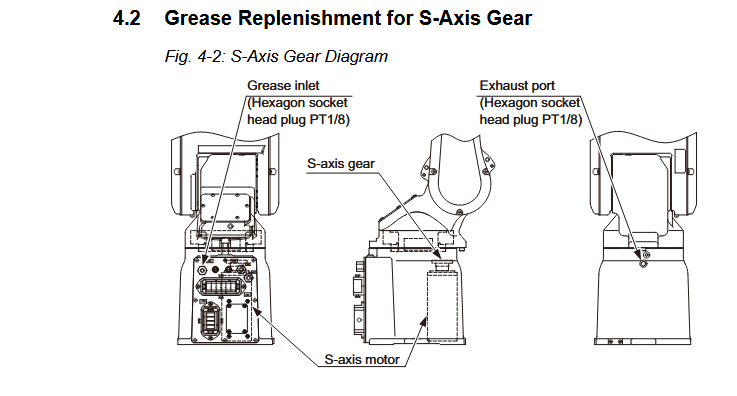

S-AXIS GEAR: 25cc

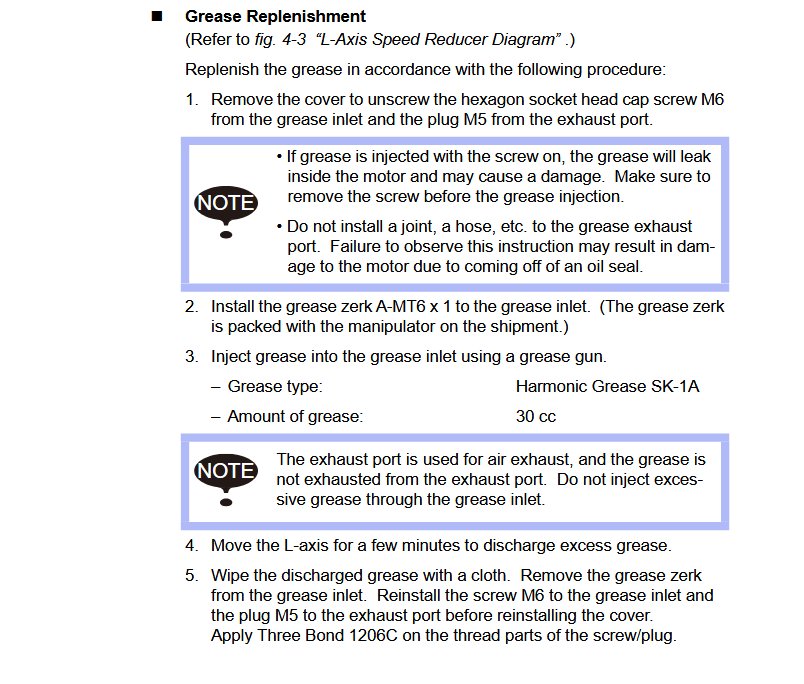

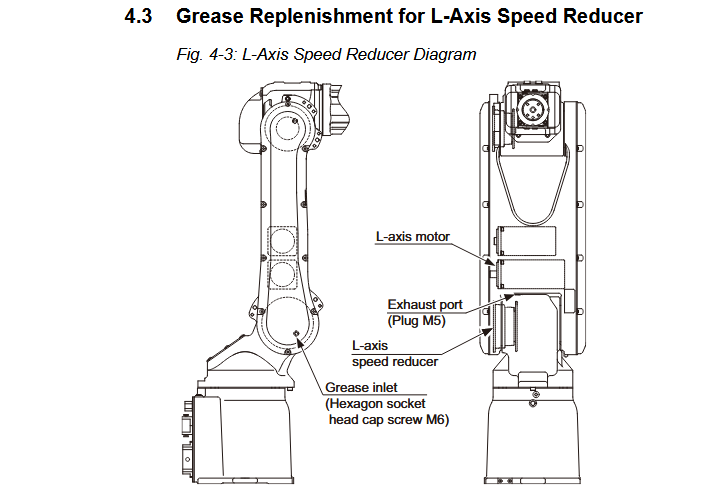

L-AXIS: 30cc

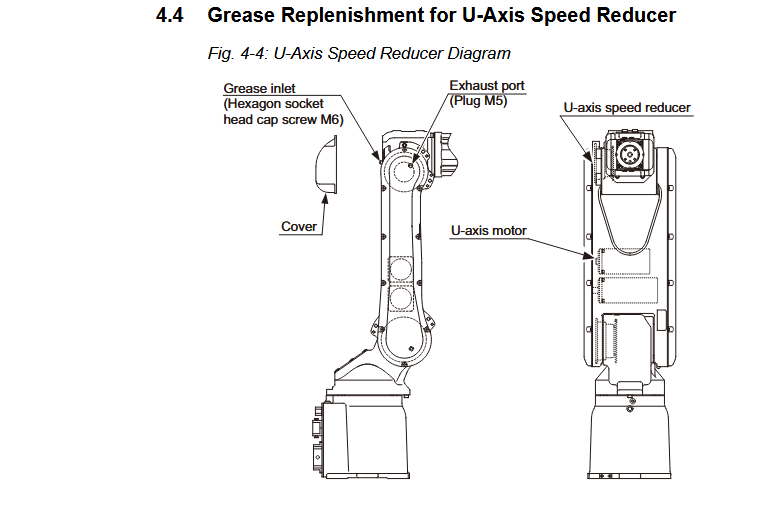

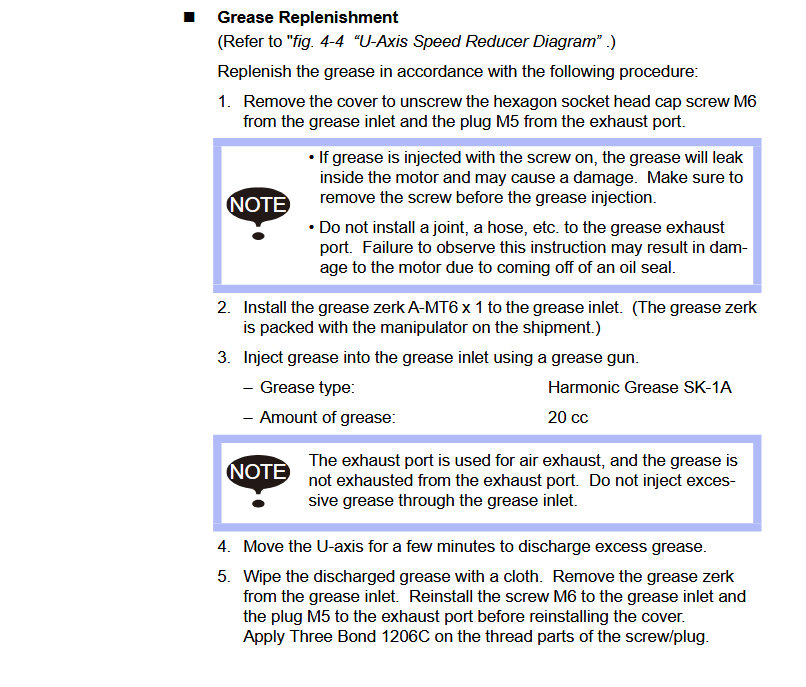

U-AXIS: 20cc

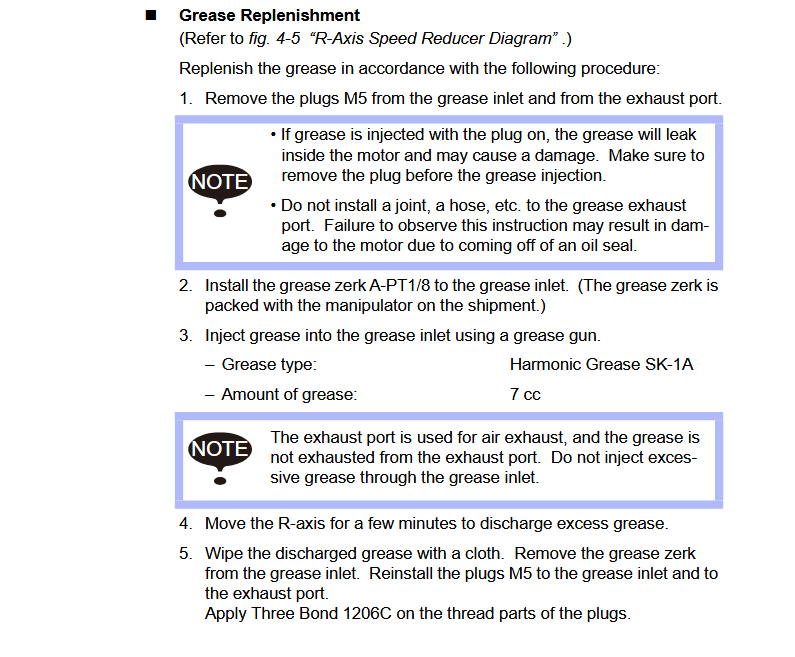

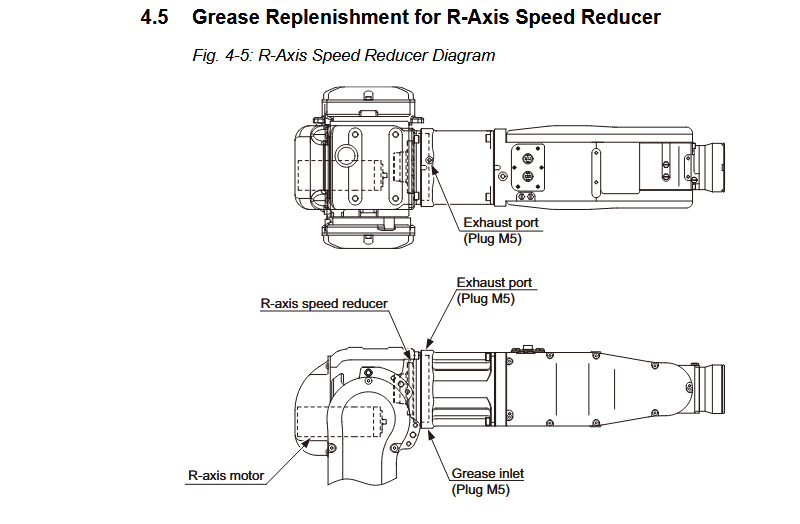

R-AXIS: 7cc

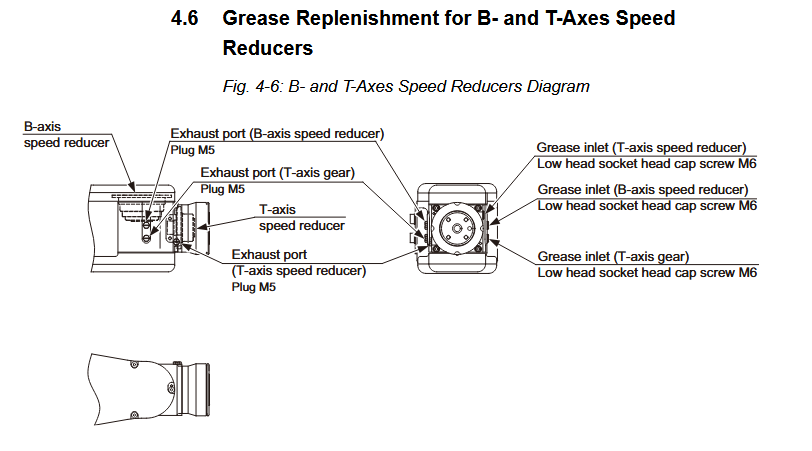

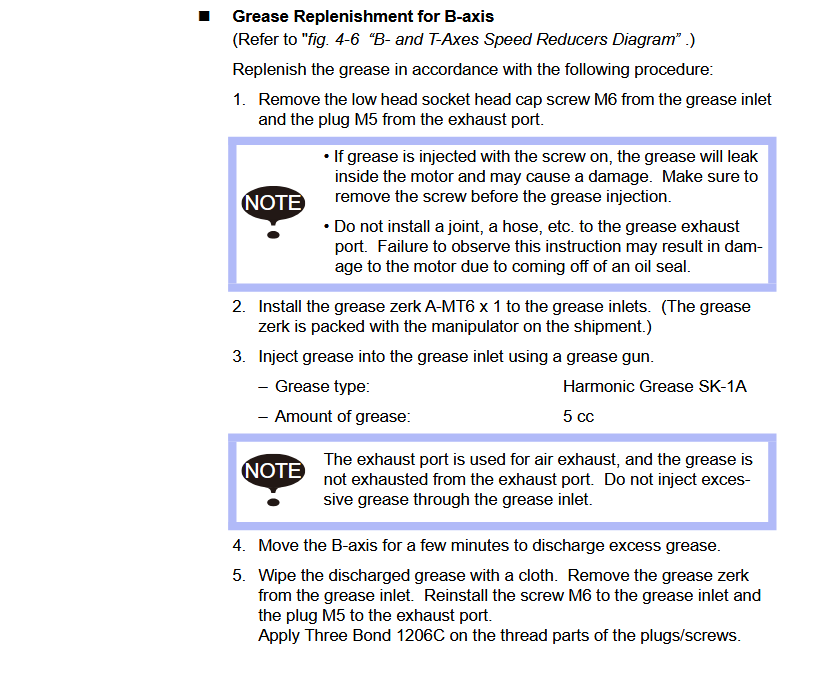

B-AXIS: 5cc

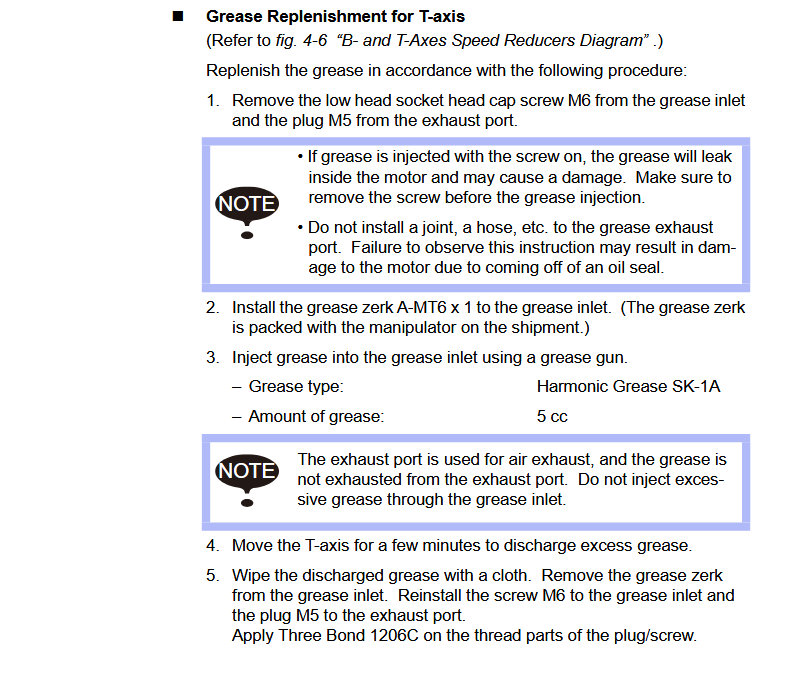

T-AXIS: 5cc
