Grease Replenishment (PM) MPK50/ YR-MPK0050-A00 Manipulator

Model Covered: YR-MPK0050-A00

Material Required:

VIGO Grease RE No.0 151945-1

Alvania EP Grease 2 132177-1

Three Bond 1206C 479014-6

Grease Amount:

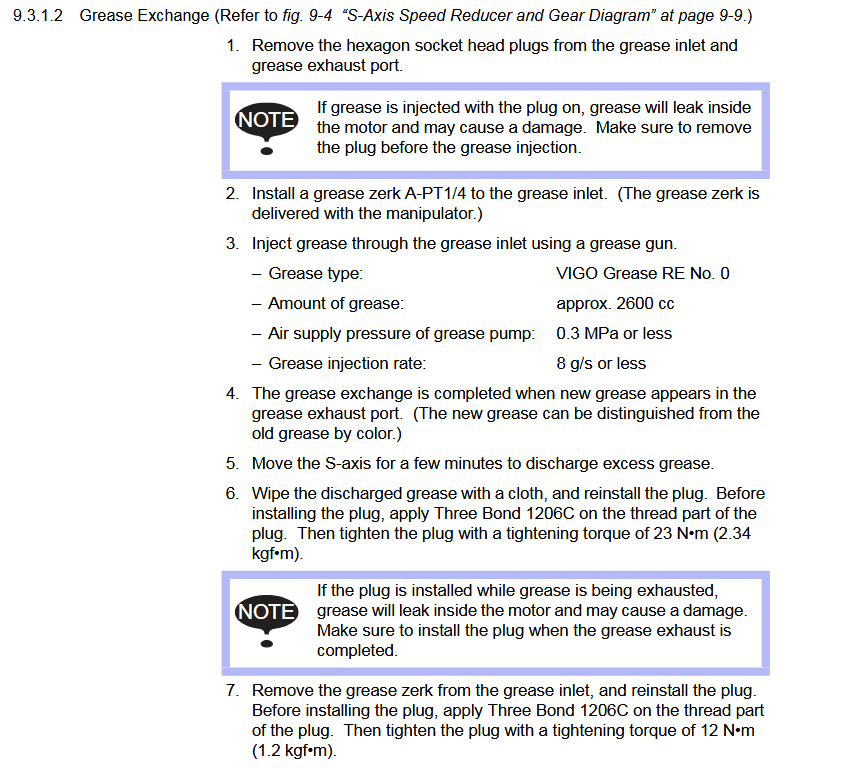

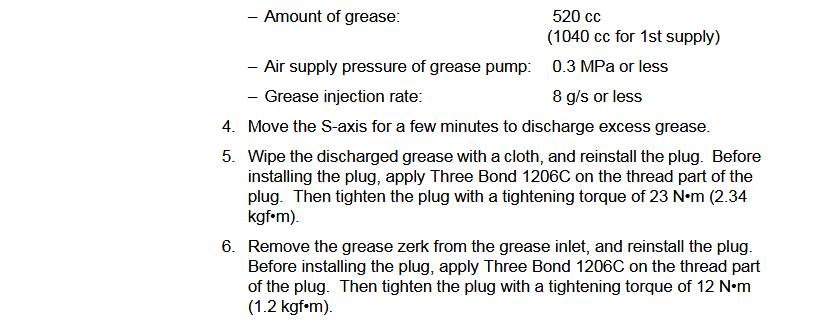

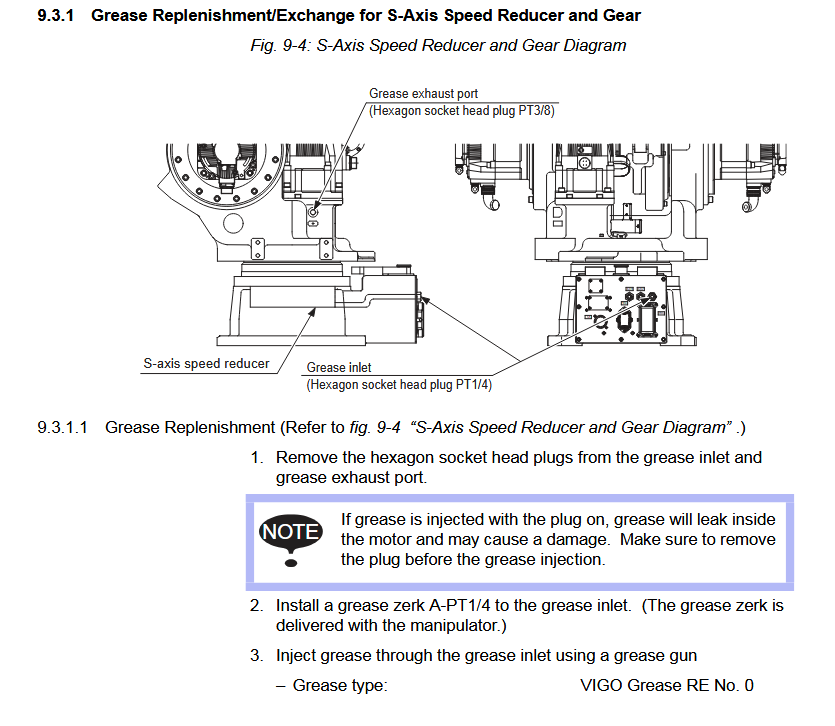

S-AXIS: 520cc

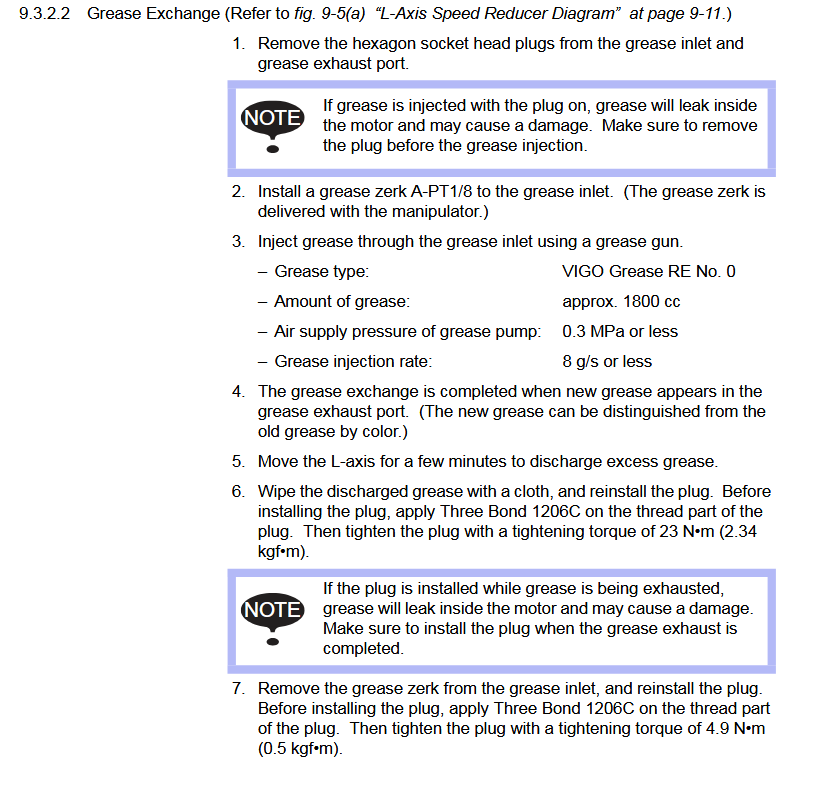

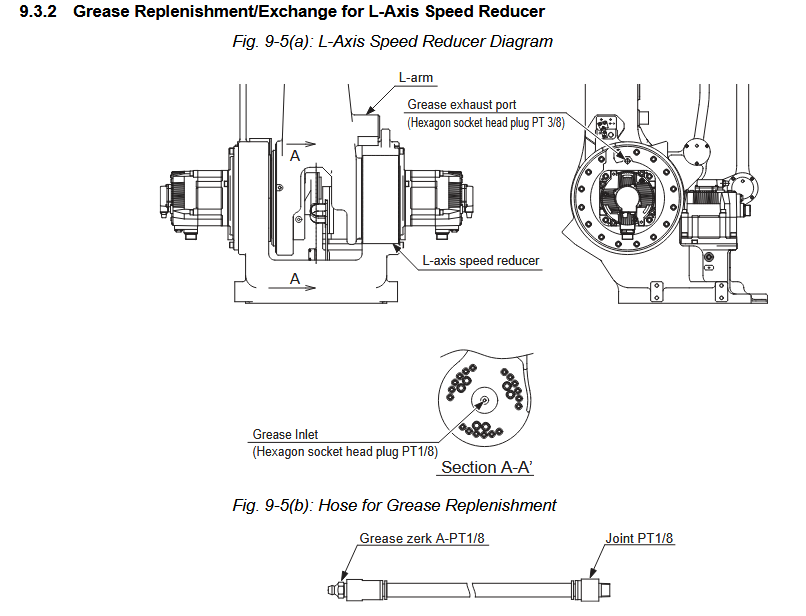

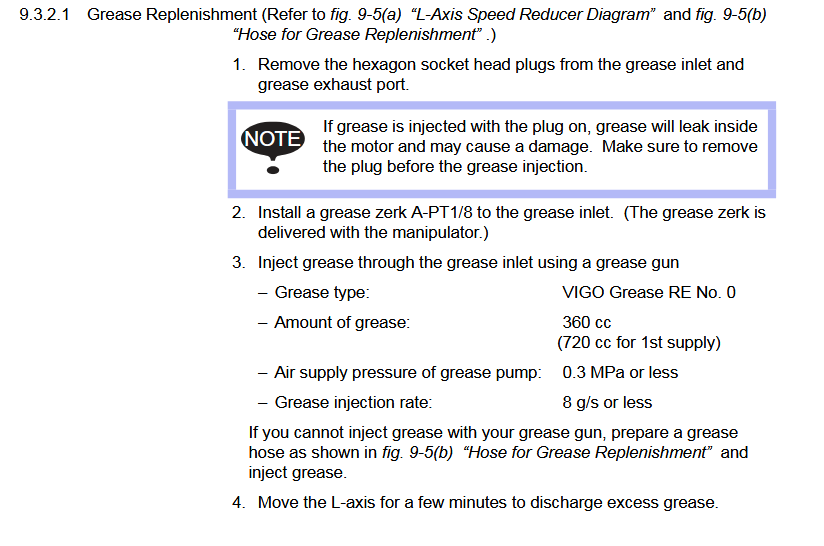

L-AXIS: 360cc

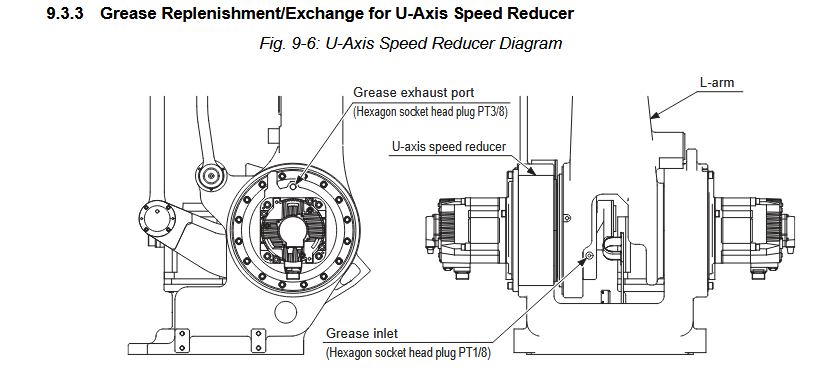

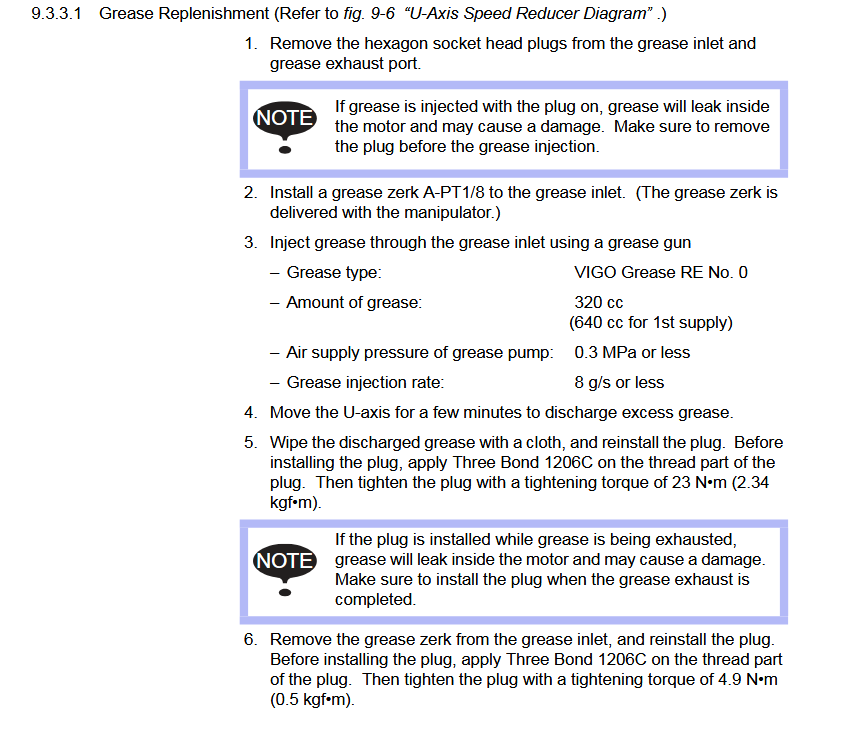

U-AXIS: 320cc

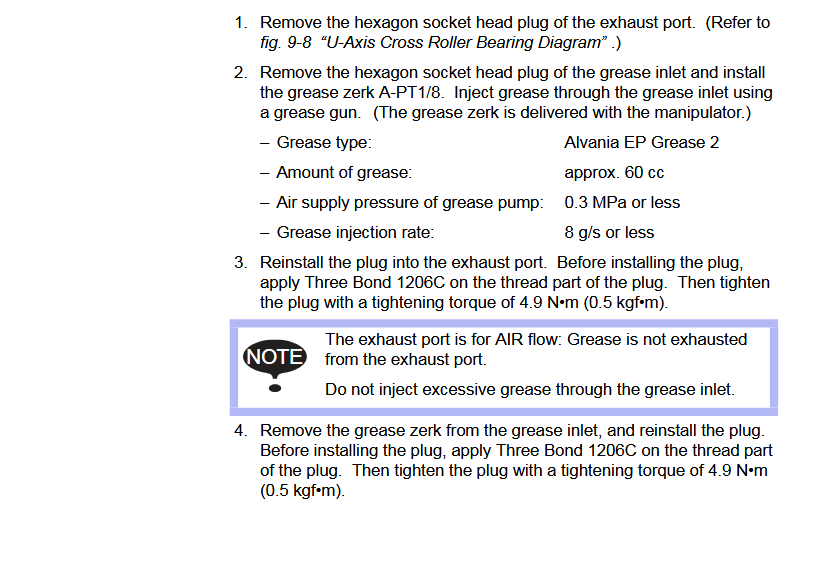

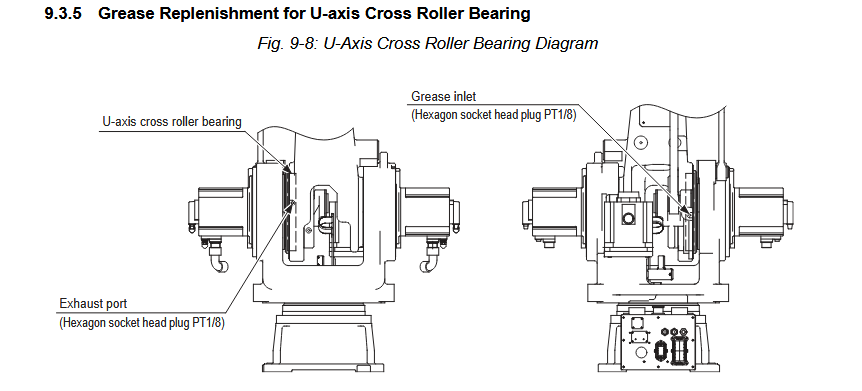

U-AXIS CROSS ROLLER BEARING: 60cc

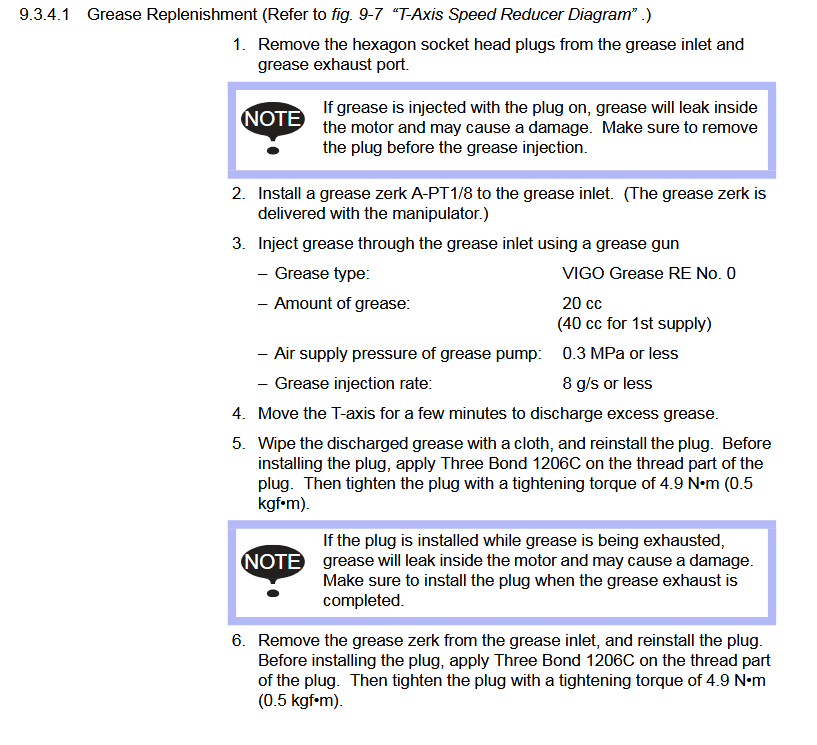

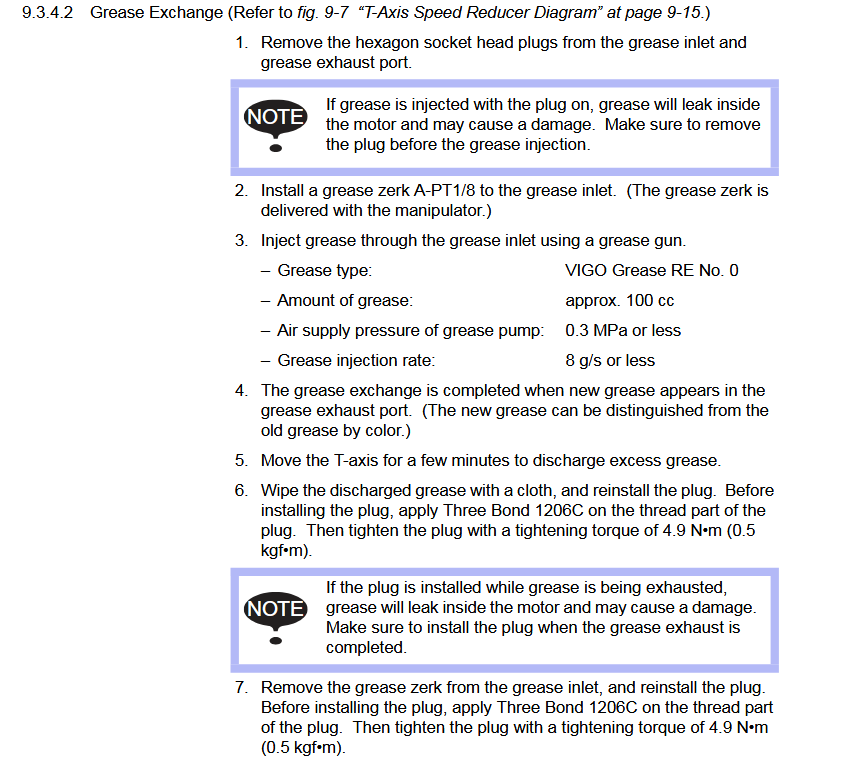

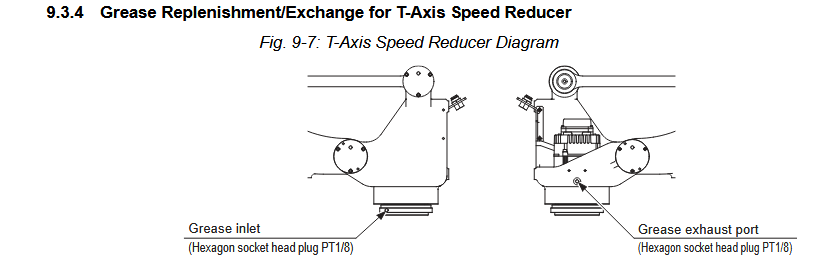

T-AXIS: 20cc

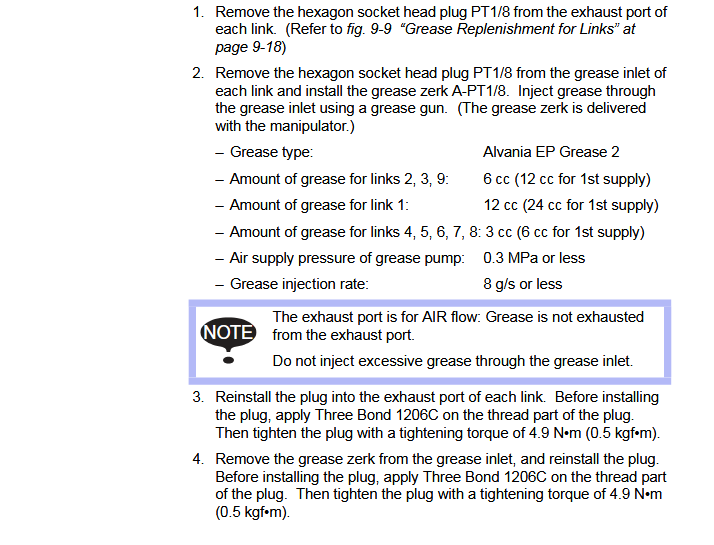

LINKS 2,3 AND 9: 6cc

LINK 1 : 12cc

LINKS 4,5,6,7 AND 8: 3cc
