Grease Procedure (PM) HP20F / YR-HP0020F-A00 Manipulator

Model Covered: YR-HP0020F-A00

Material Required:

VIGO Grease RE No. 0 151945-1

Harmonic Grease SK-1A 479035-2

Alvania EP Grease 2 132177-1

ThreeBond 1206C 479014-6

Grease Replenishment Amounts:

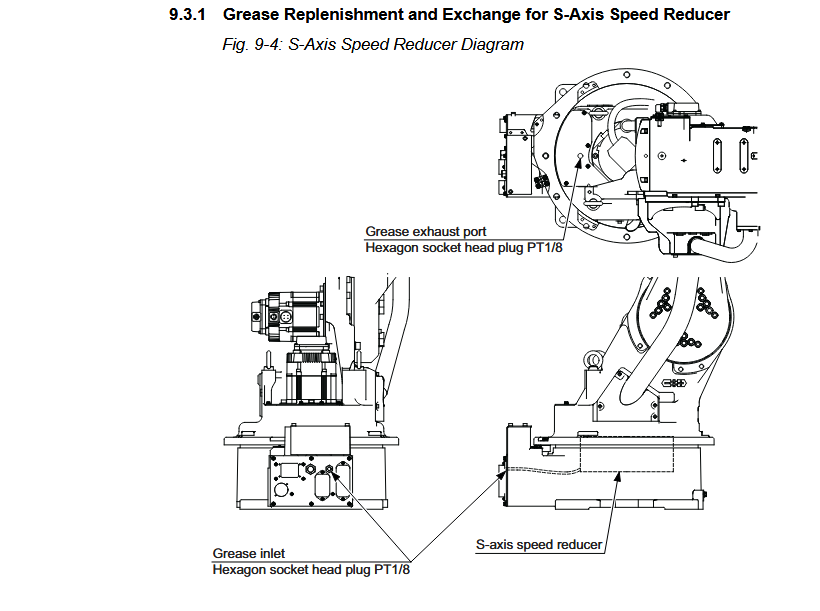

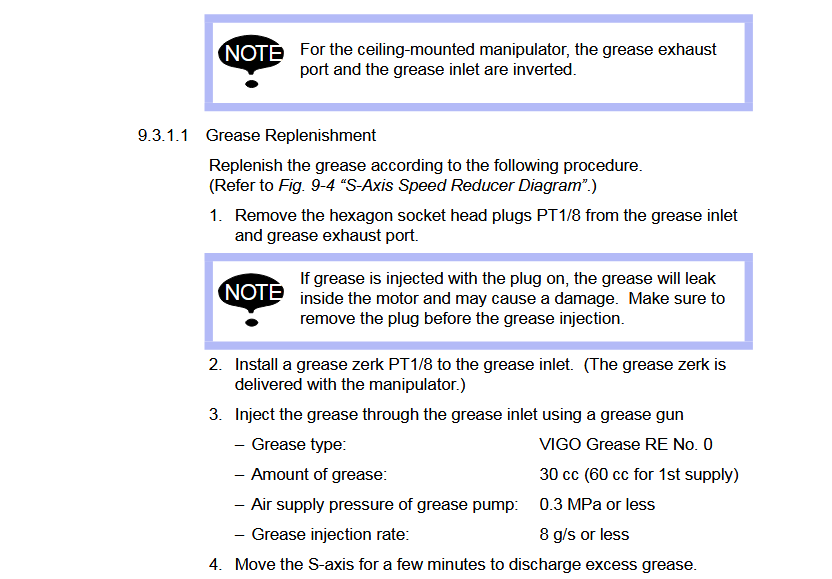

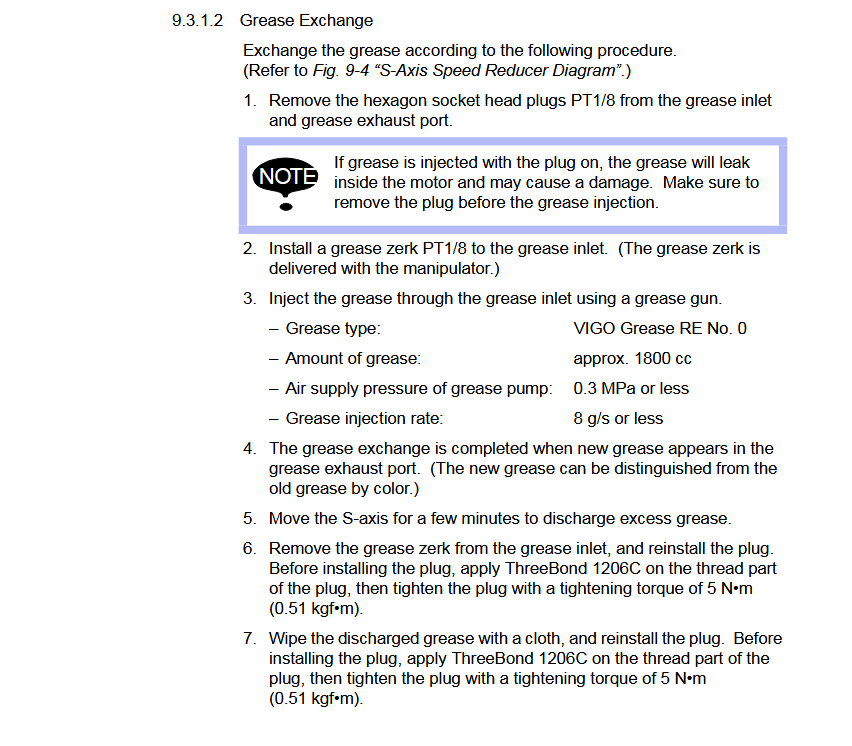

S-AXIS: 30cc

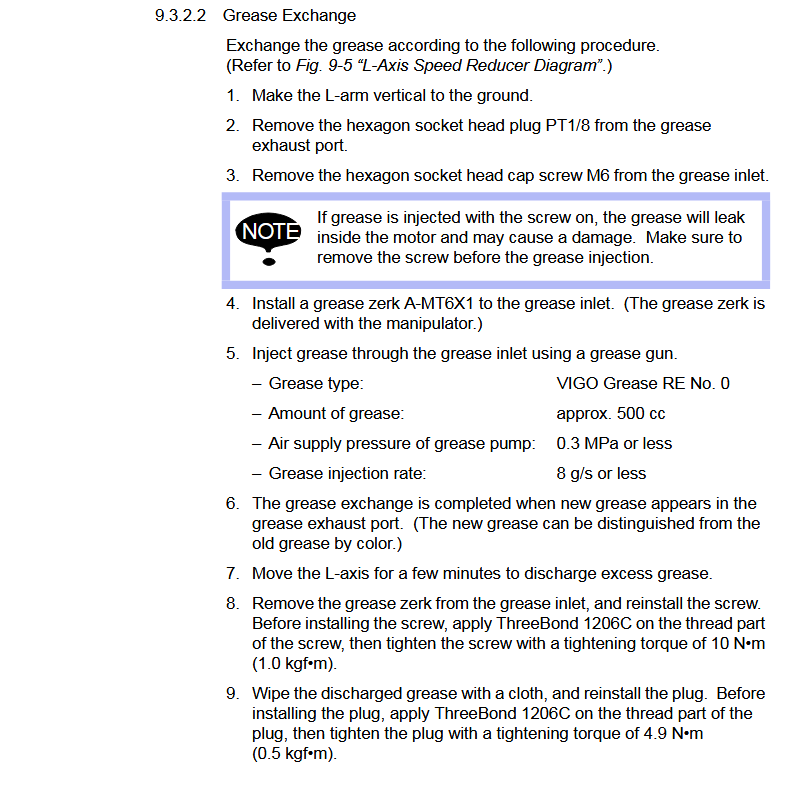

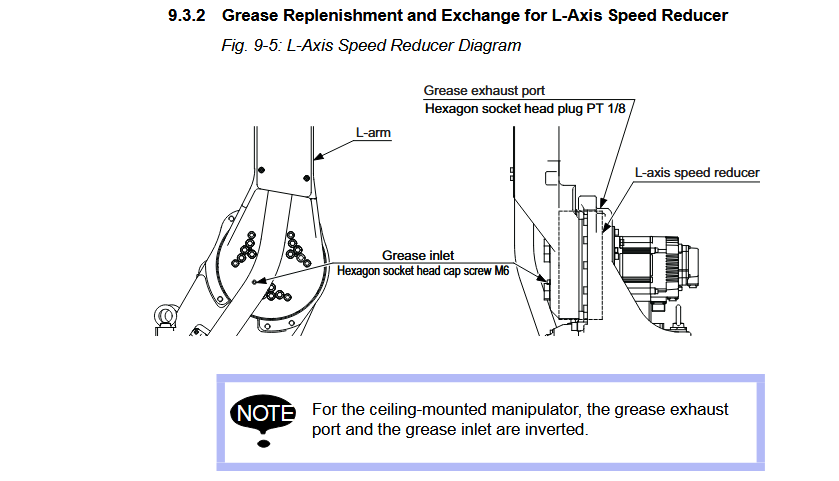

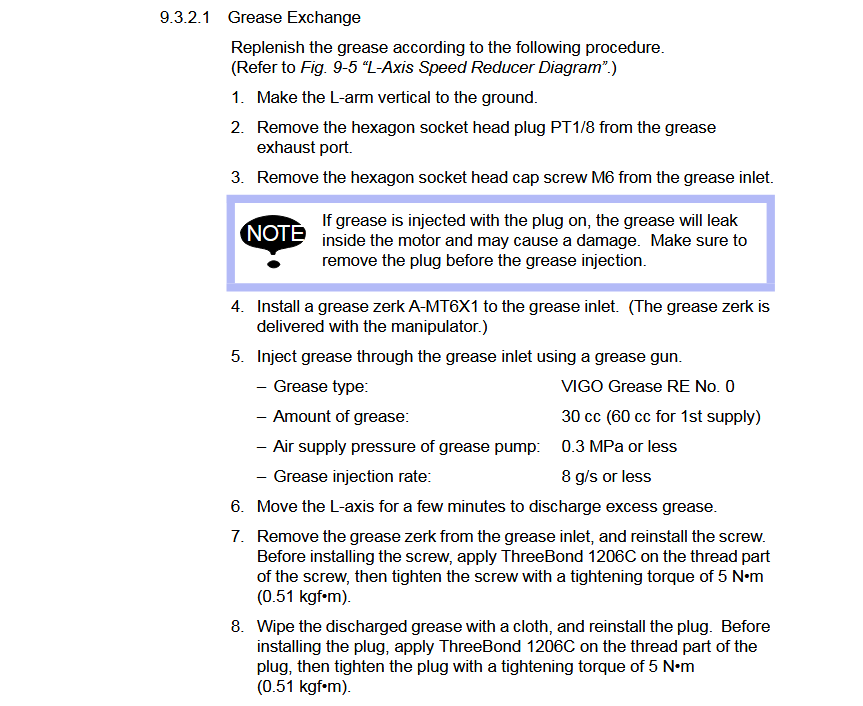

L-AXIS: 30cc

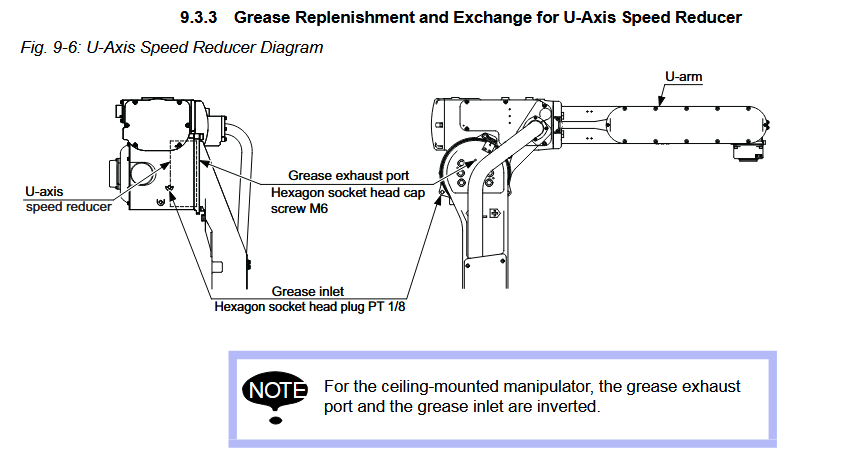

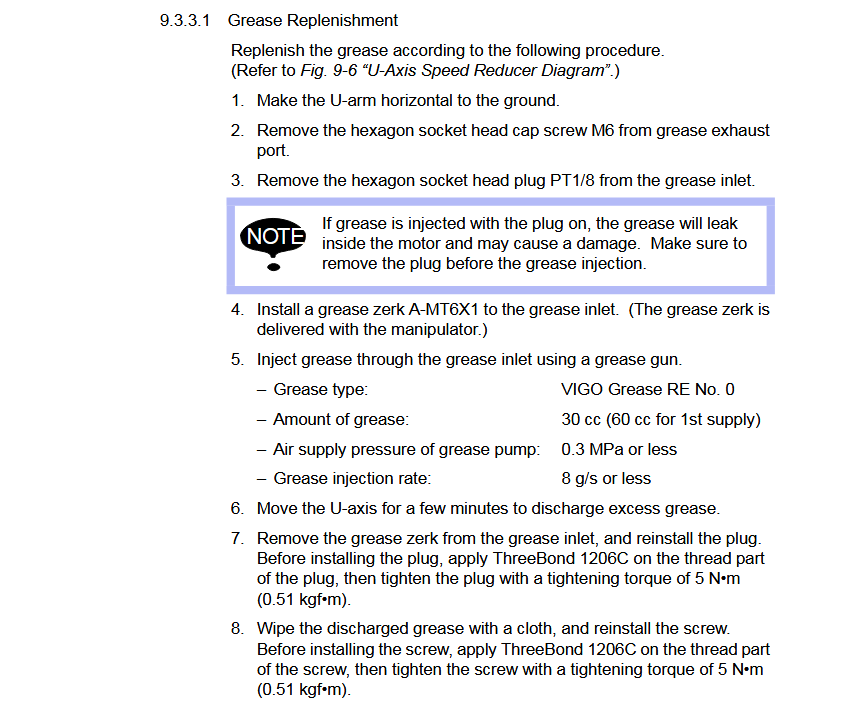

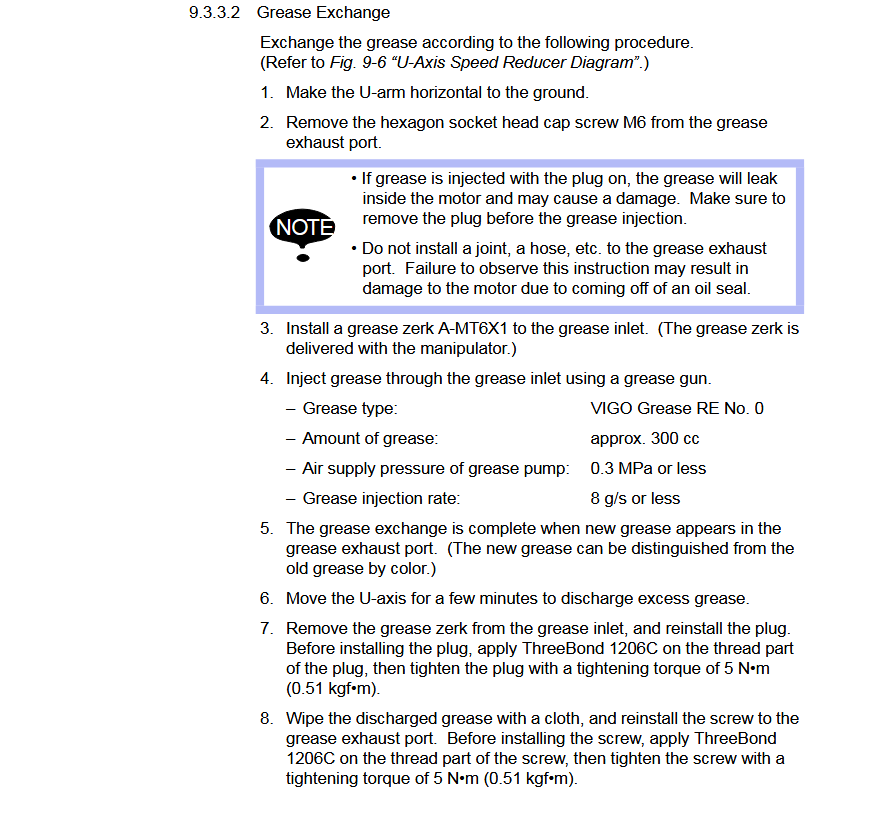

U-AXIS: 30cc

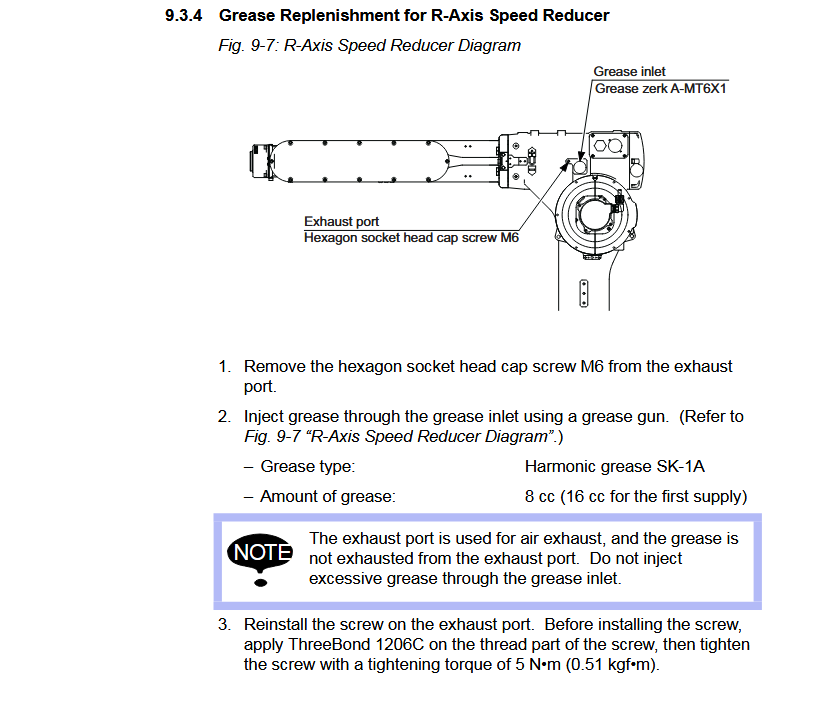

R-AXIS: 8cc

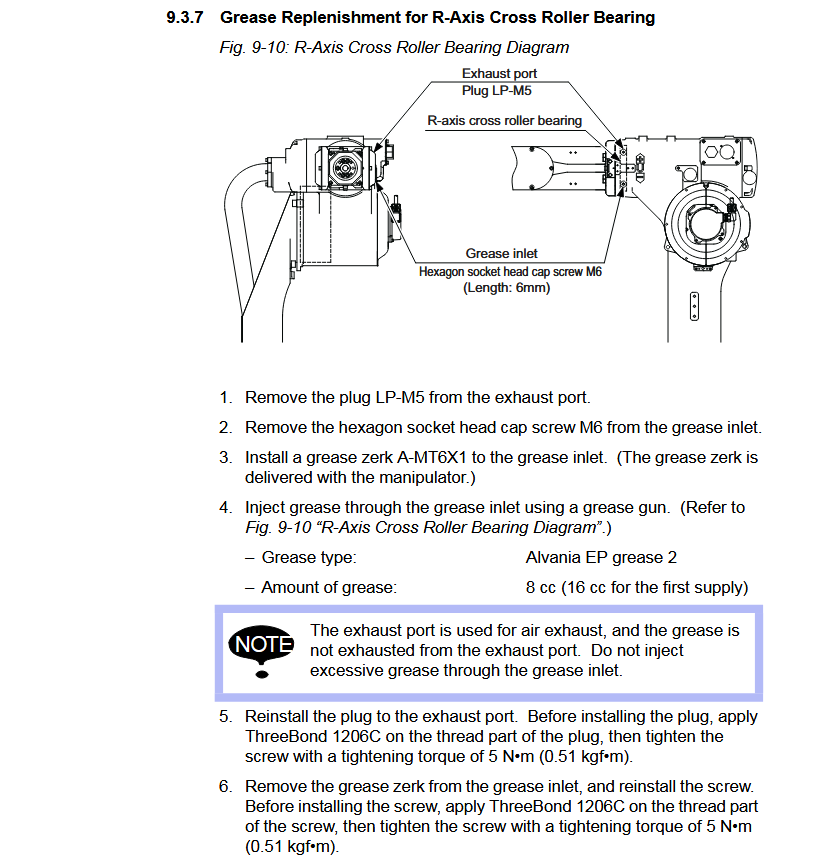

R-AXIS BEARING: 8cc

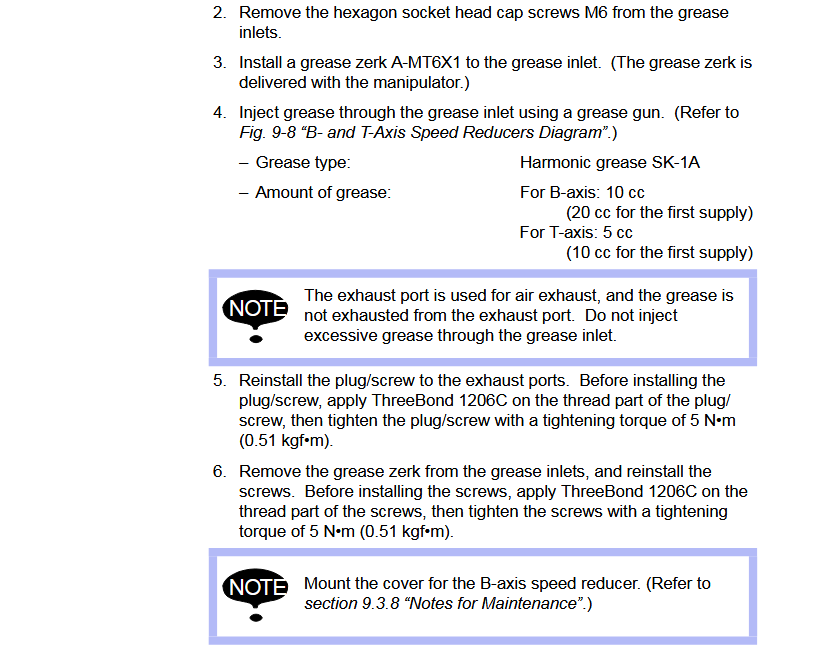

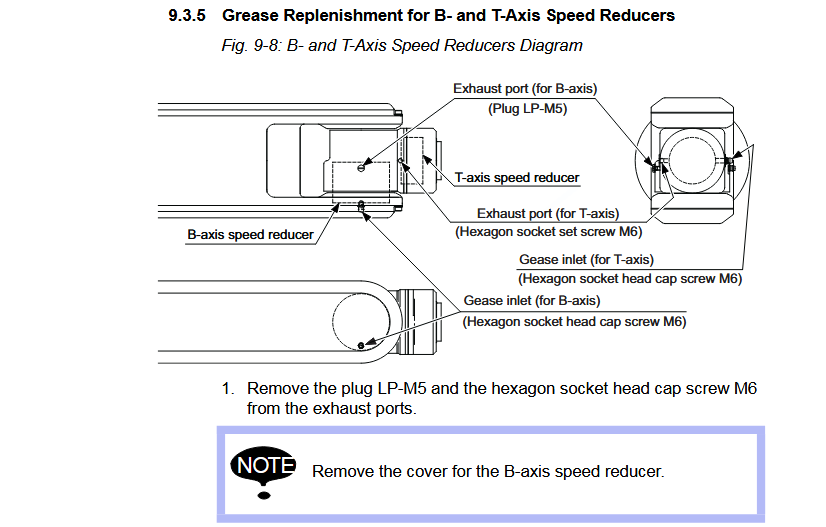

B-AXIS: 10cc

T-AXIS: 5cc

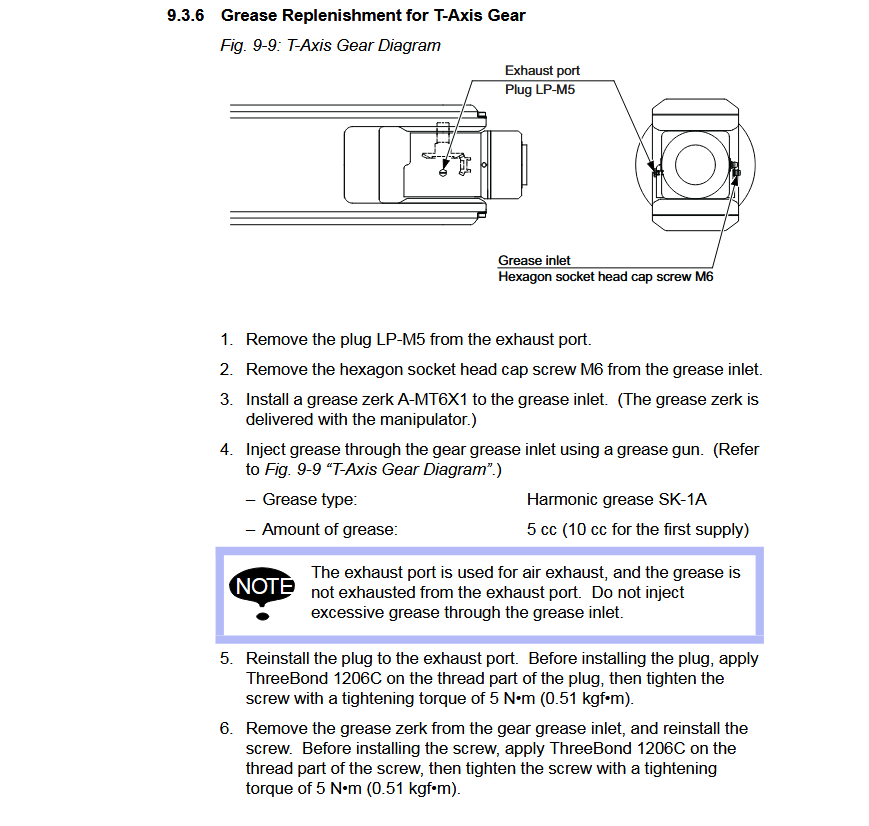

T-AXIS GEAR: 5cc
