Grease Procedure (PM) MA2010 / YR-MA02010-A00 Manipulator

Model Covered : YR-MA02010-A00

Material Required:

Molywhite RE No. 00 132412-1

Harmonic Grease SK-1A 479035-2

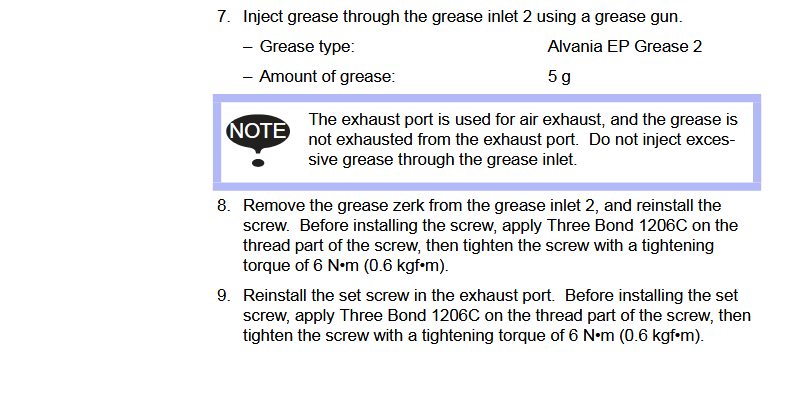

Alvania EP Grease 2 132177-1

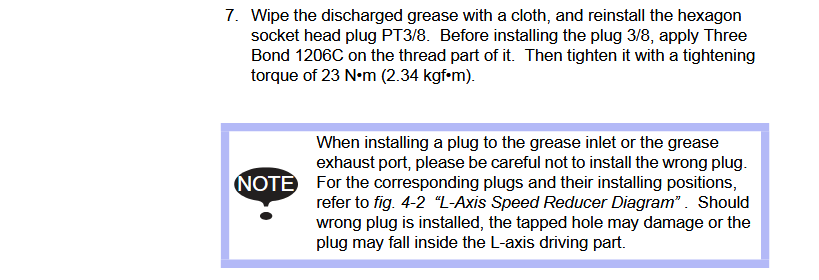

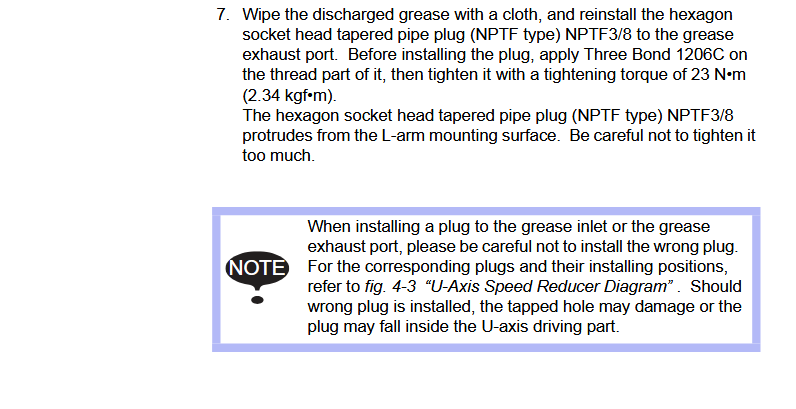

Three Bond 1206C 479014-6

Grease Amounts:

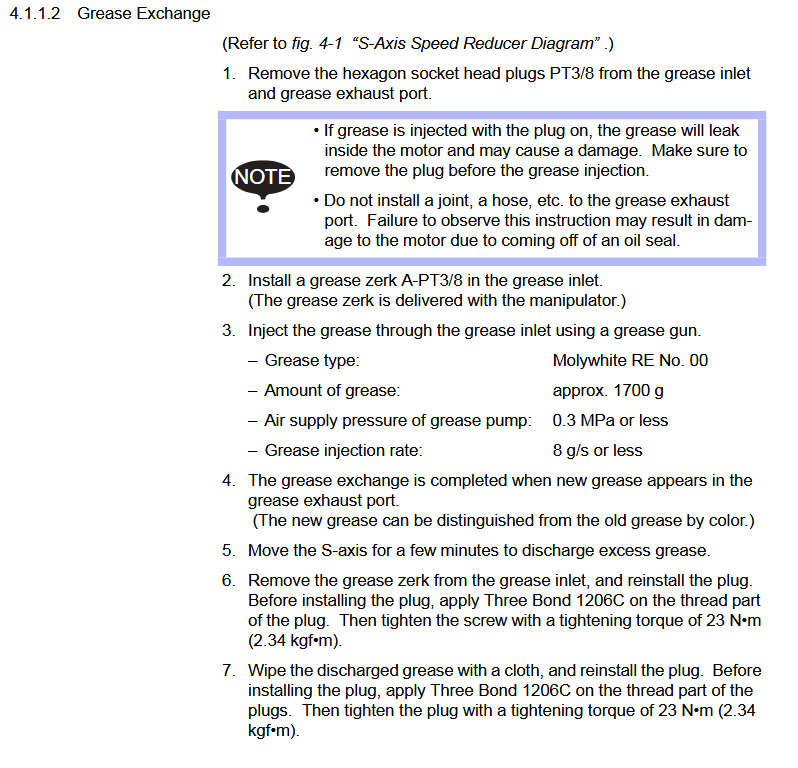

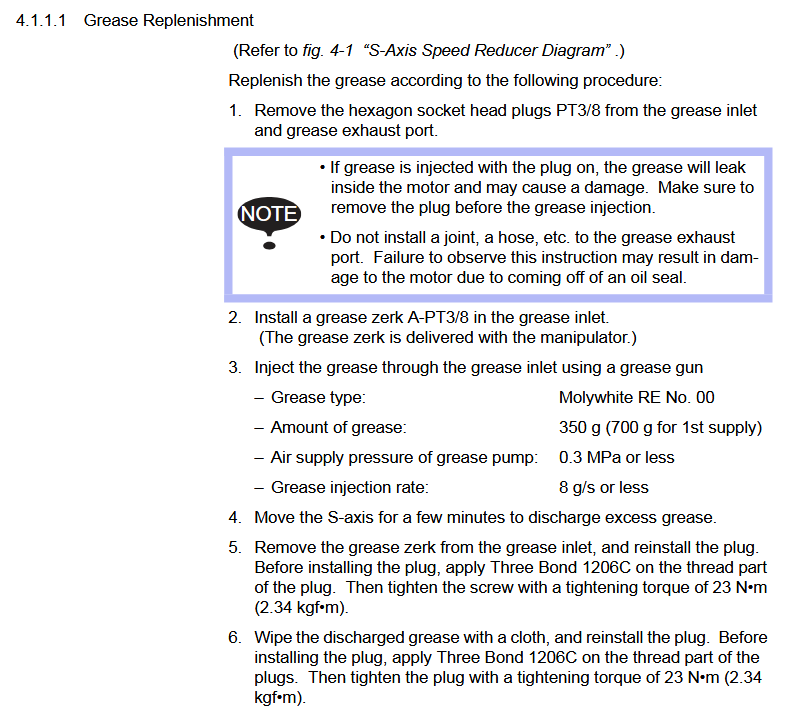

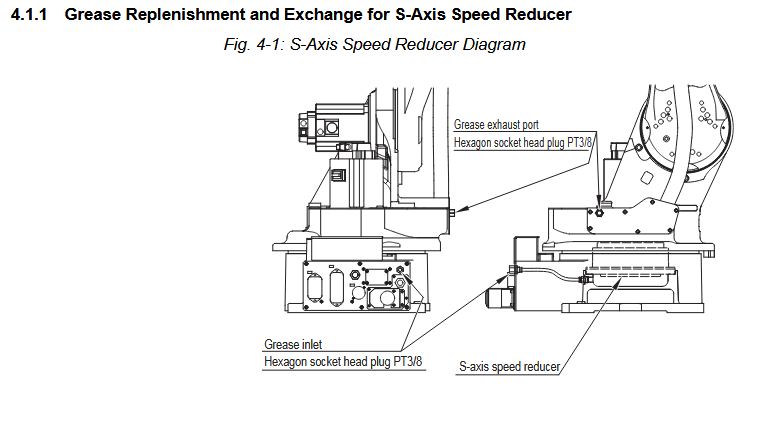

S-AXIS: 350cc

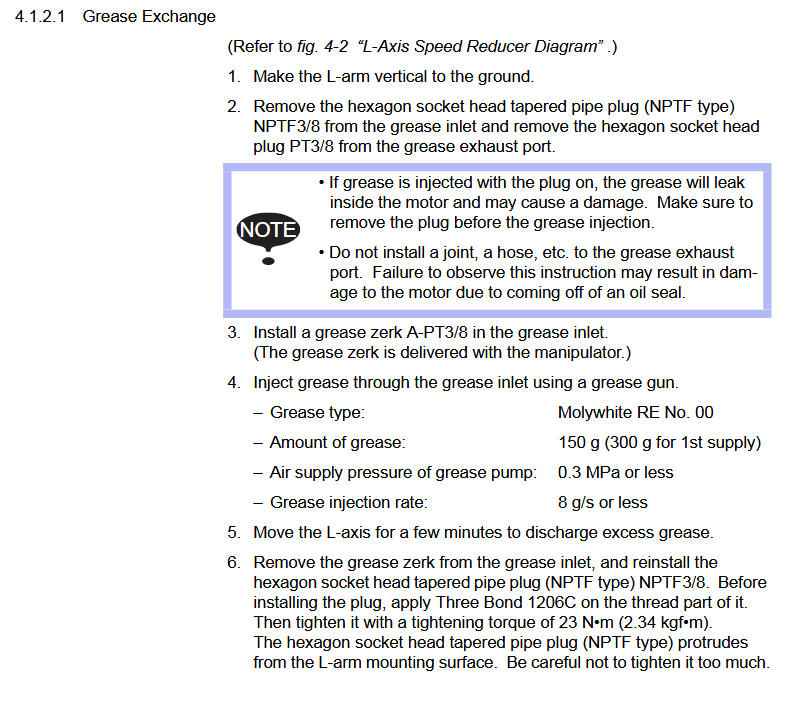

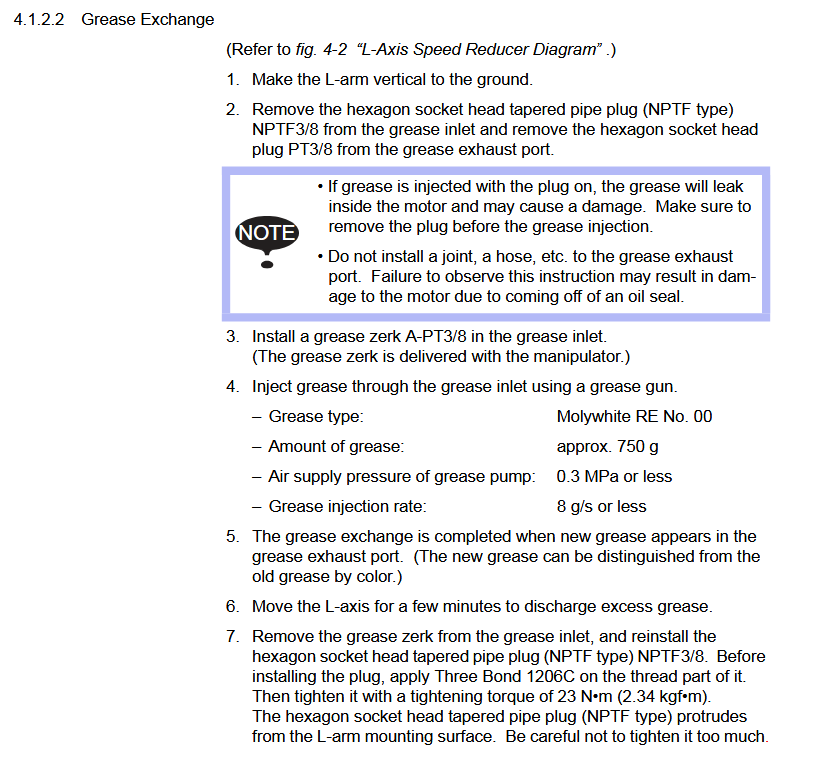

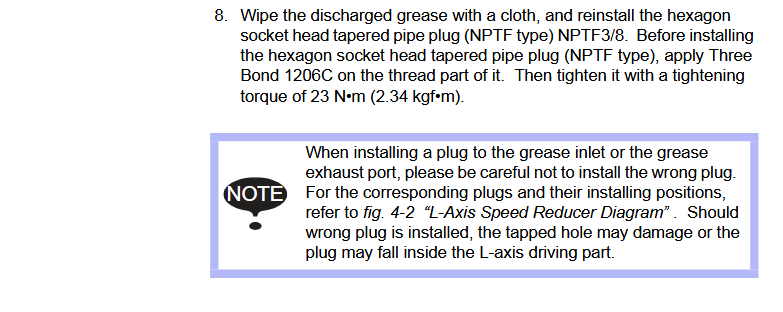

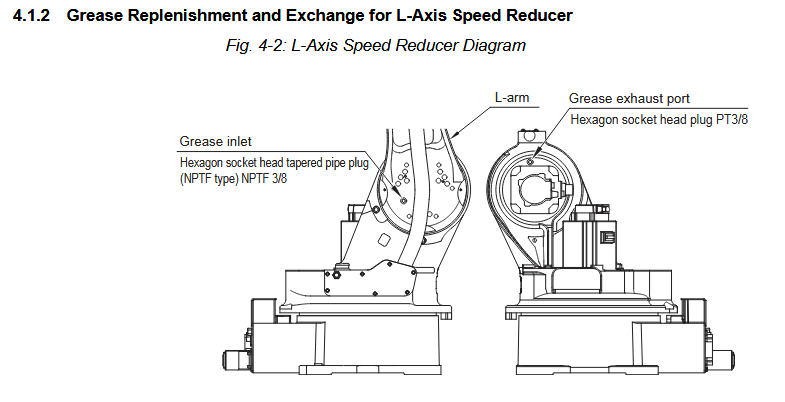

L-AXIS: 150cc

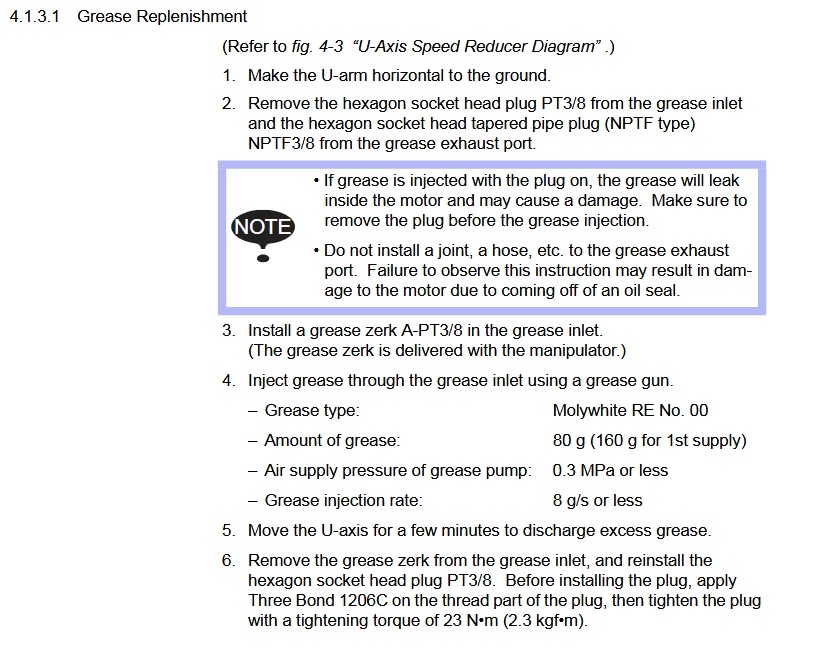

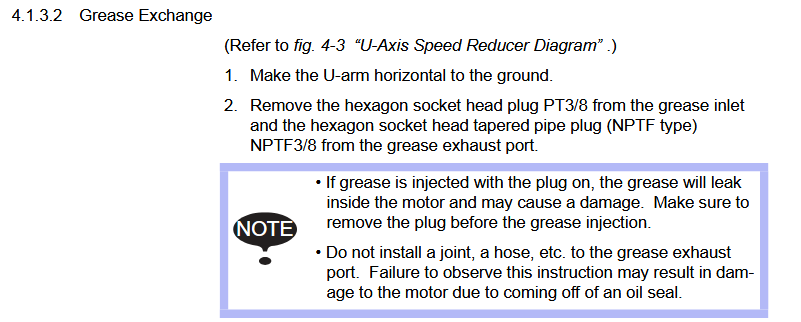

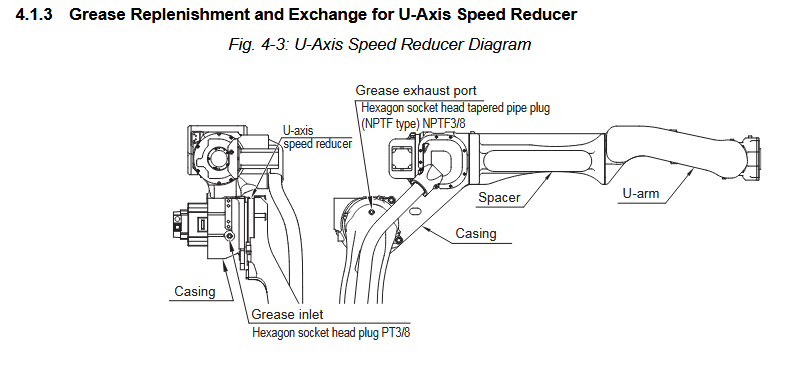

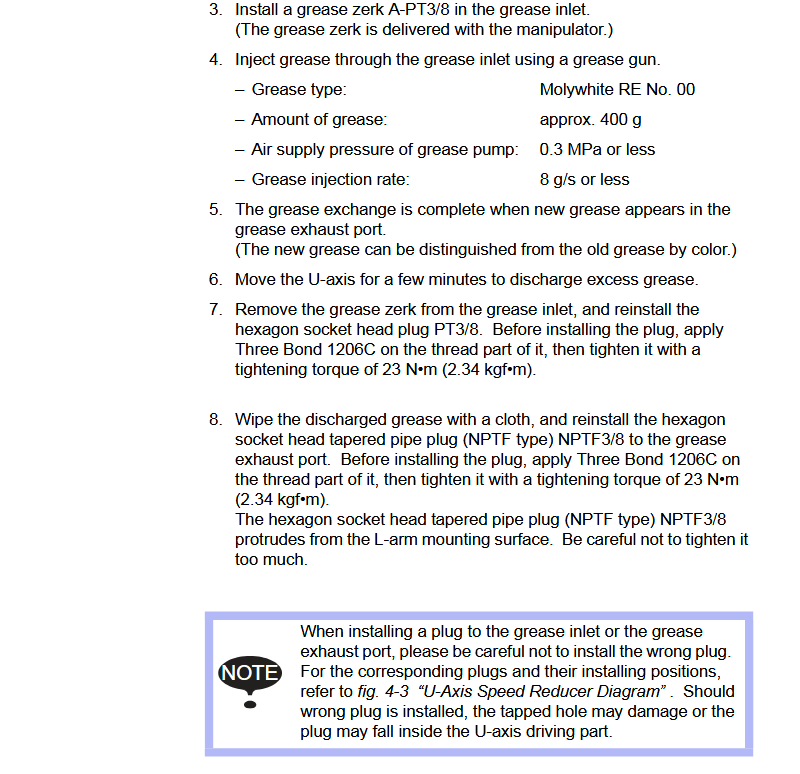

U-AXIS: 80cc

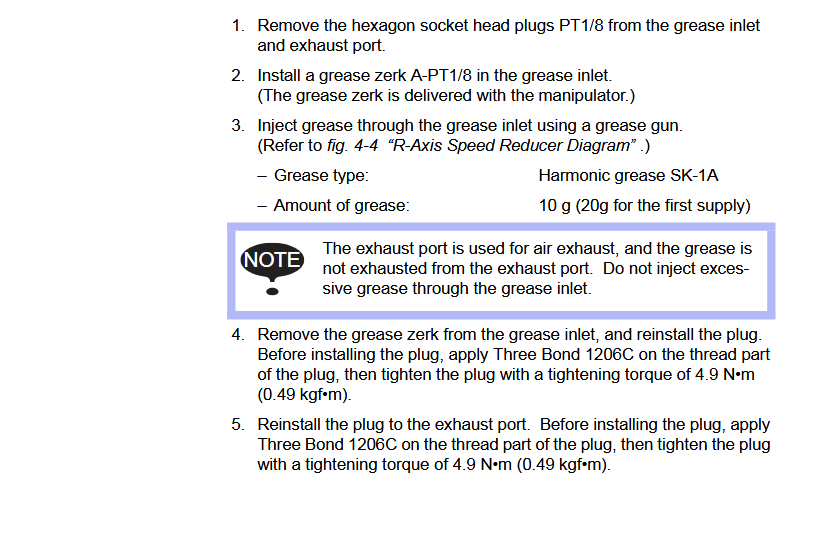

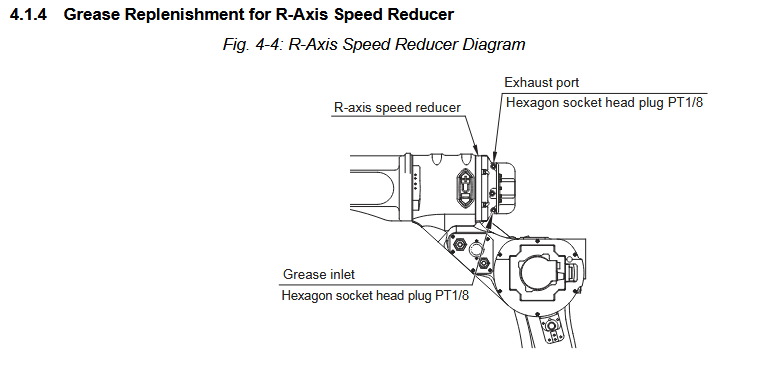

R-AXIS: 10cc

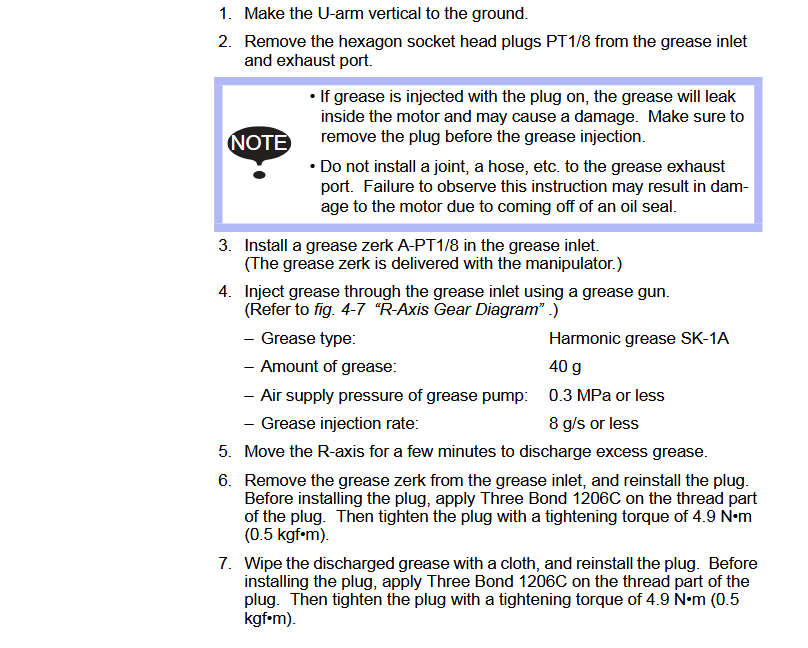

R-AXIS GEAR: 40cc

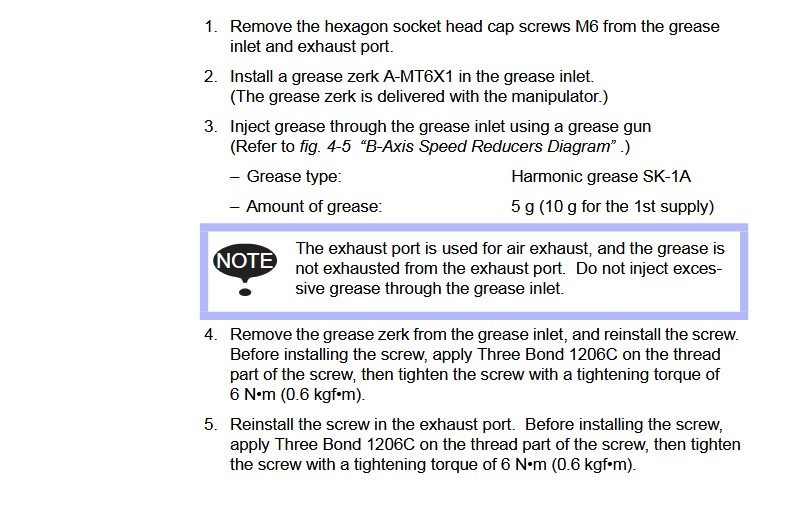

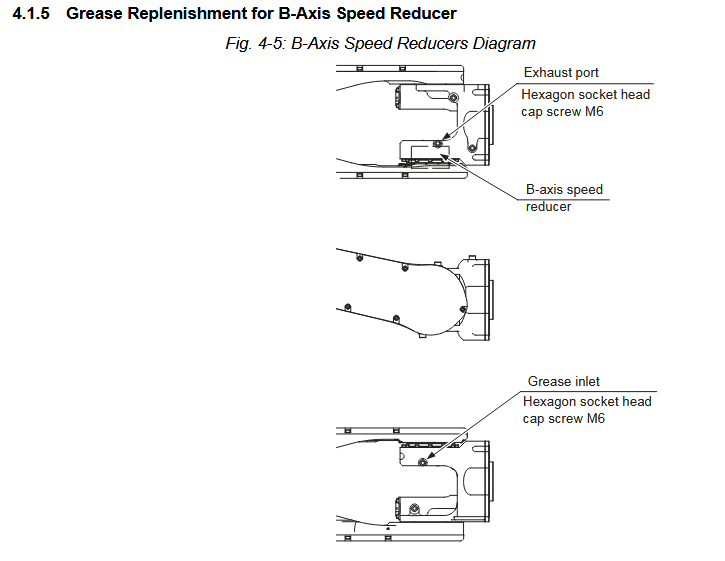

B-AXIS: 5cc

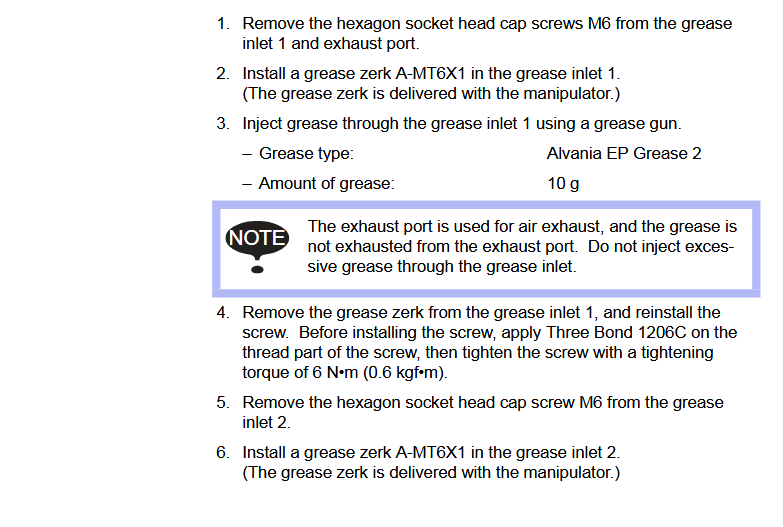

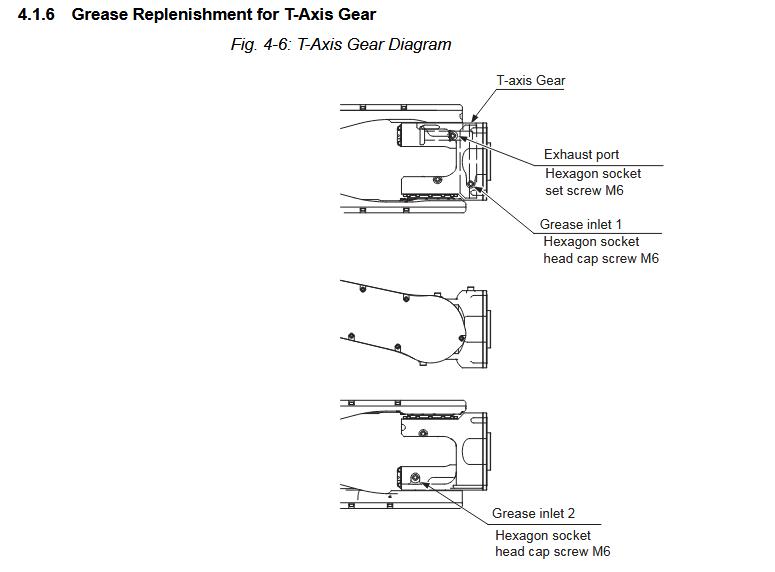

T-AXIS: 10cc
