Grease Procedure (PM) MA1400 / YR-MA01400-A00 Manipulator

Model Covered: YR-MA01400-A00

Material Required:

VIGO Grease RE No. 0 151945-1

Harmonic Grease 4B No.2 140087-1

Harmonic Grease SK-1A 479035-2

Alvania EP Grease 2 132177-1

Three Bond 1206C 479014-6

Grease Amounts:

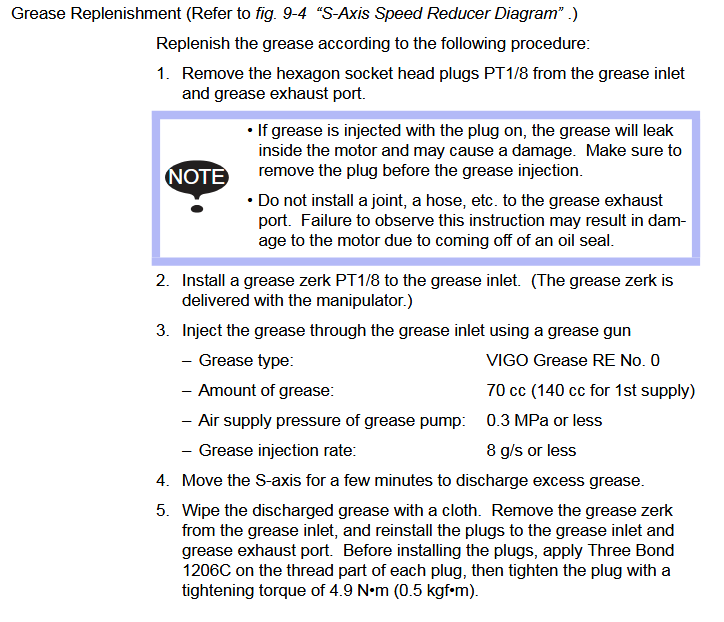

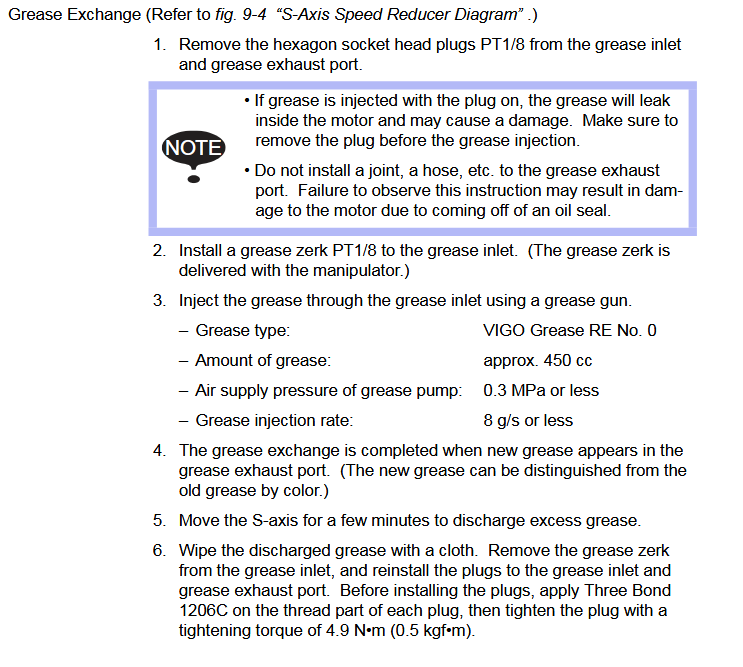

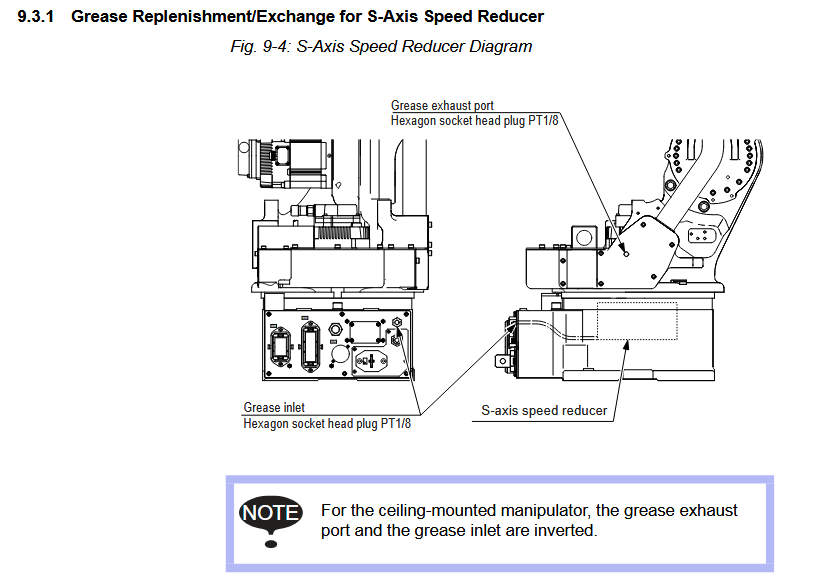

S-AXIS: 70cc

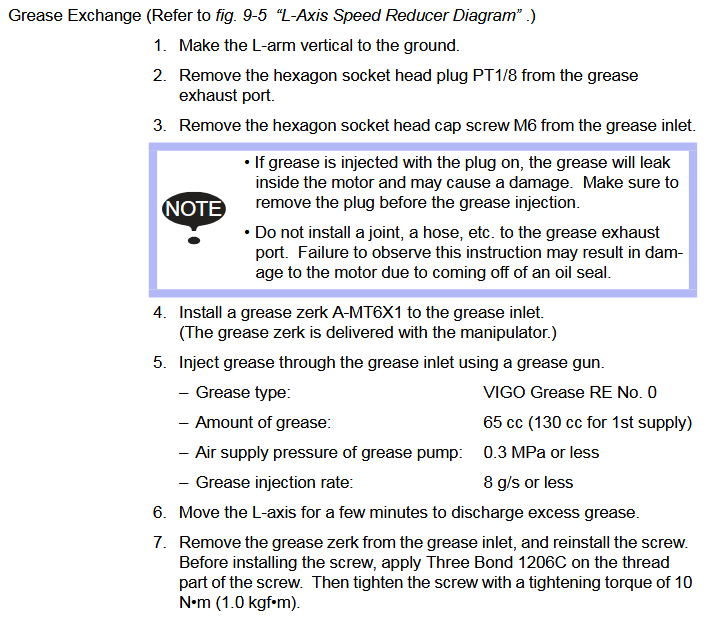

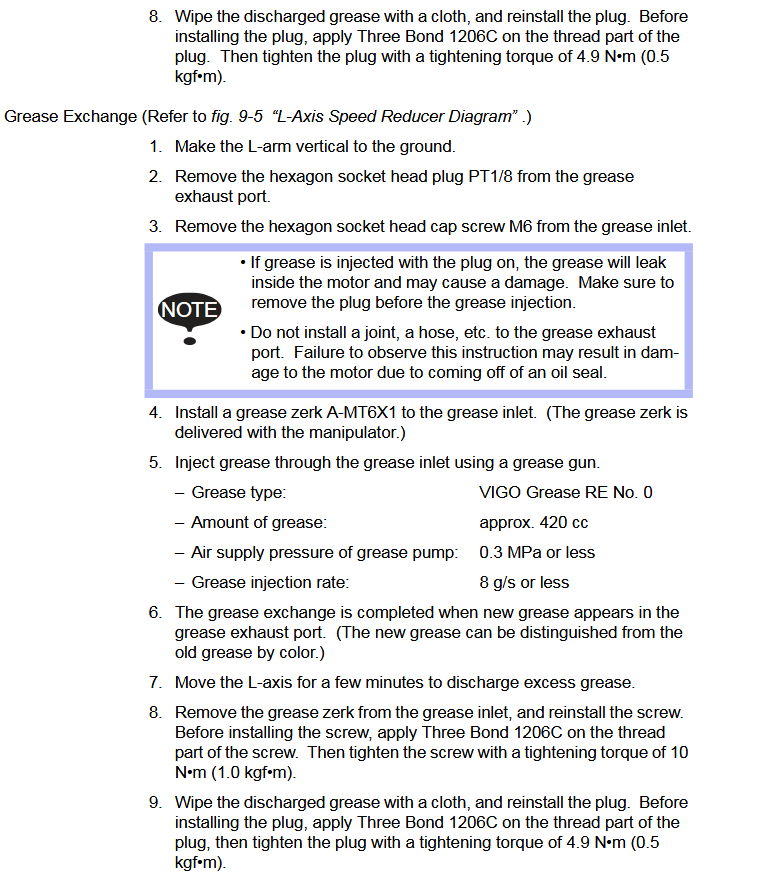

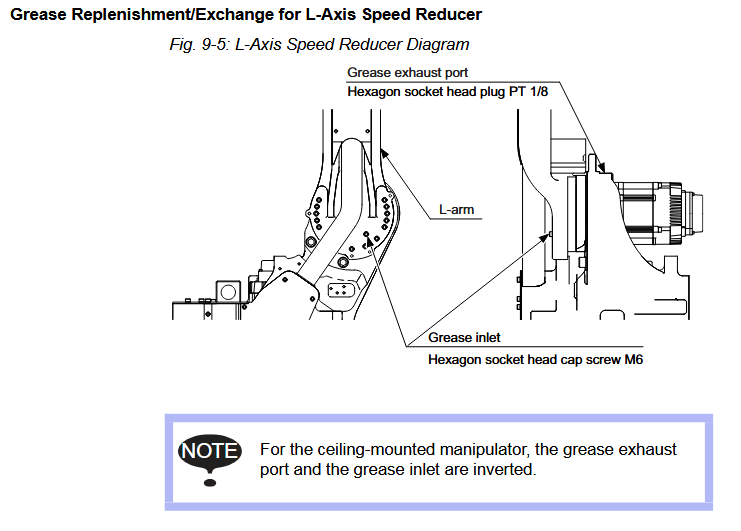

L-AXIS: 65cc

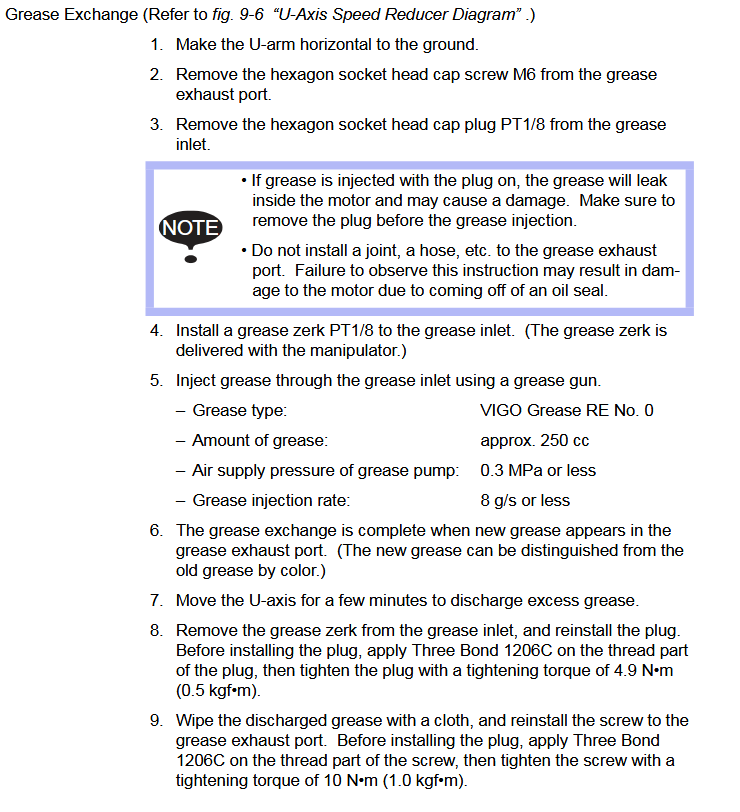

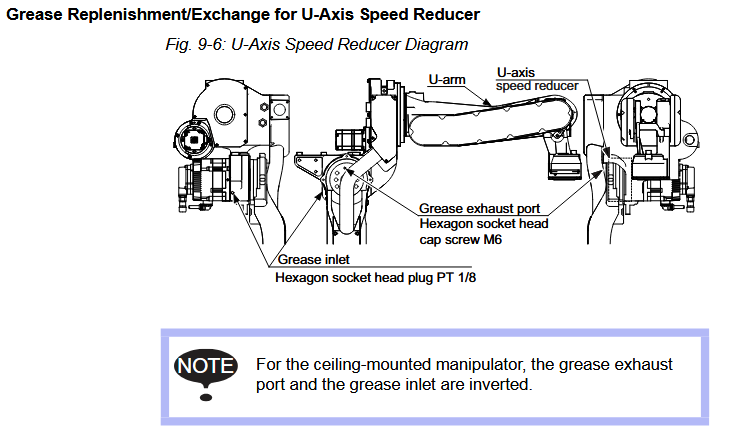

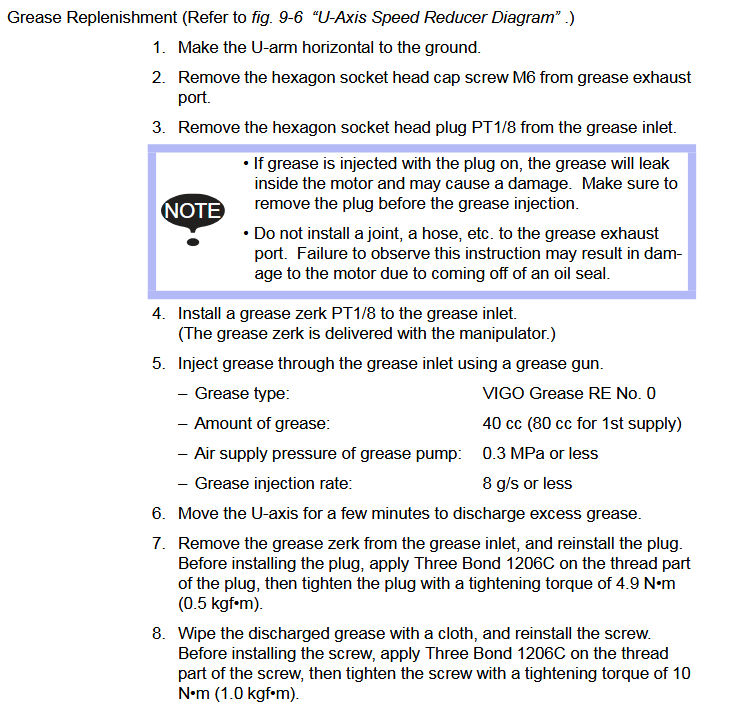

U-AXIS: 40cc

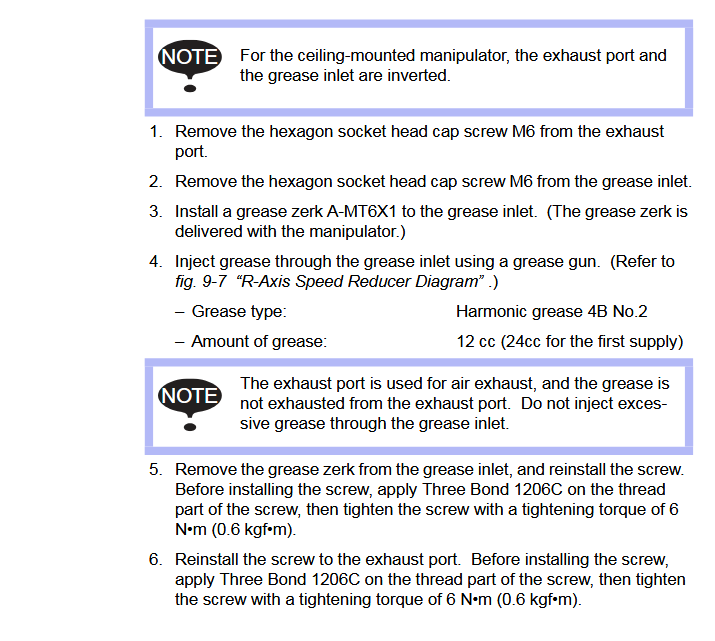

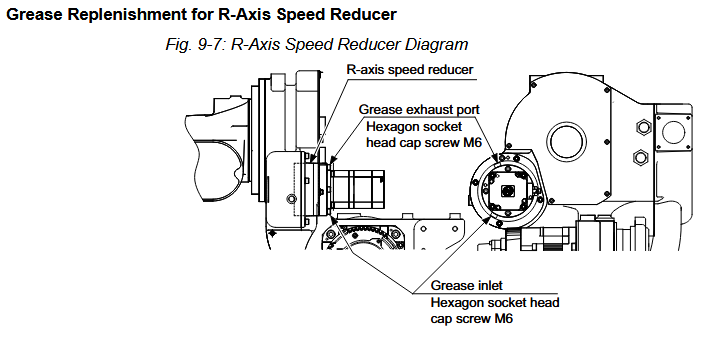

R-AXIS: 12cc

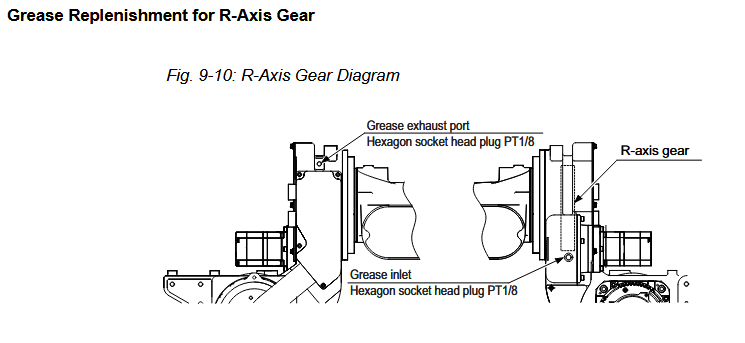

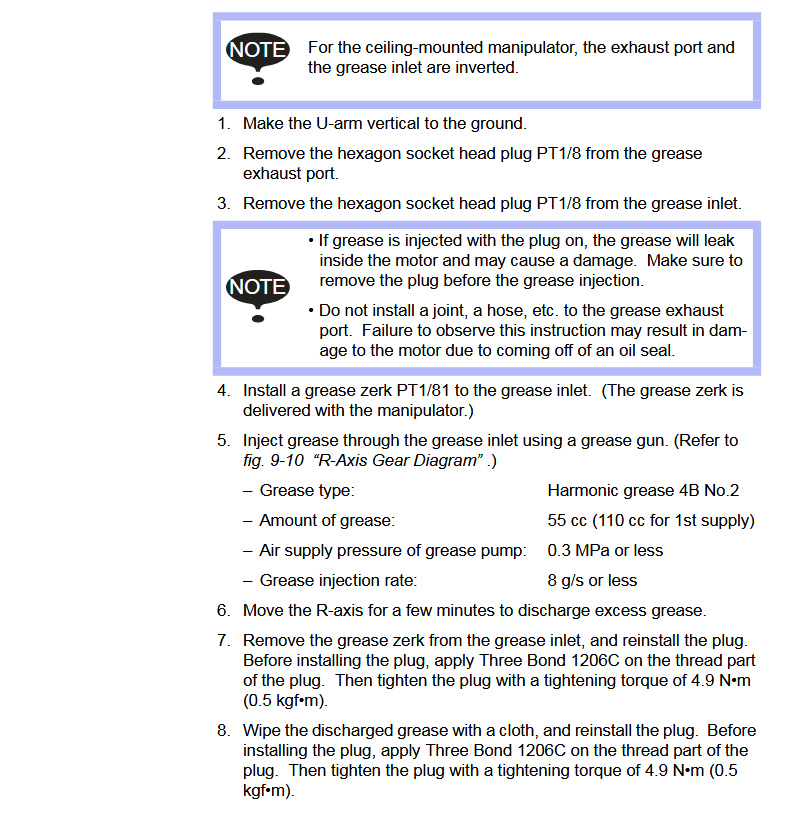

R-AXIS GEAR: 55cc

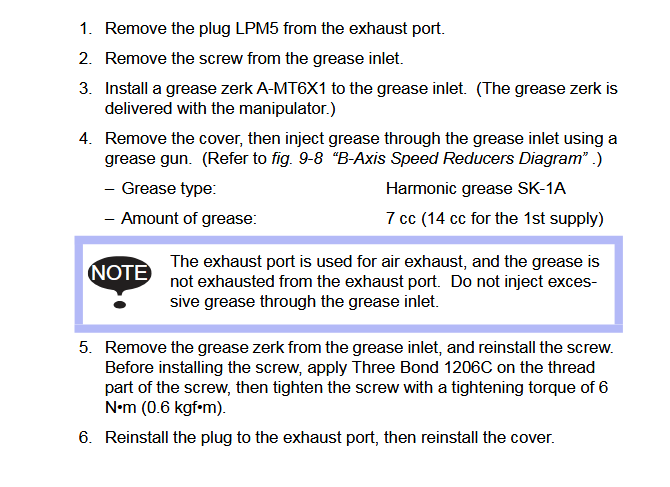

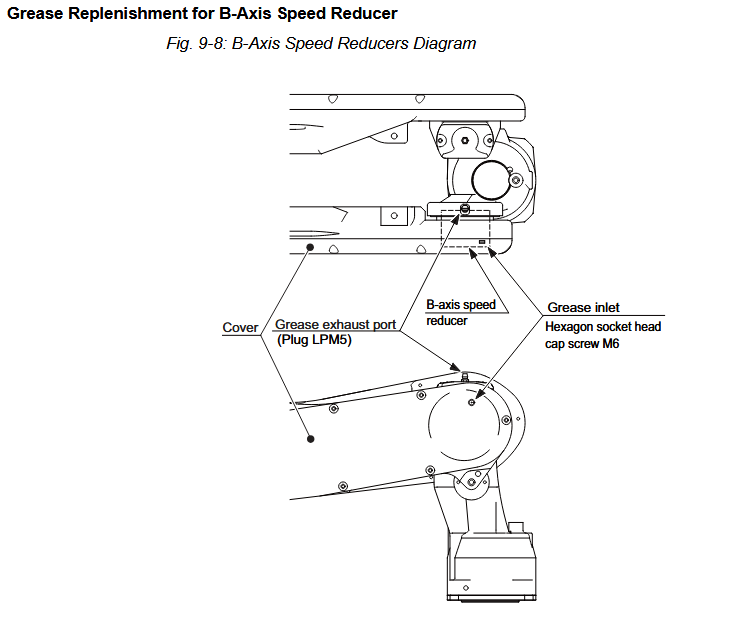

B-AXIS: 7cc

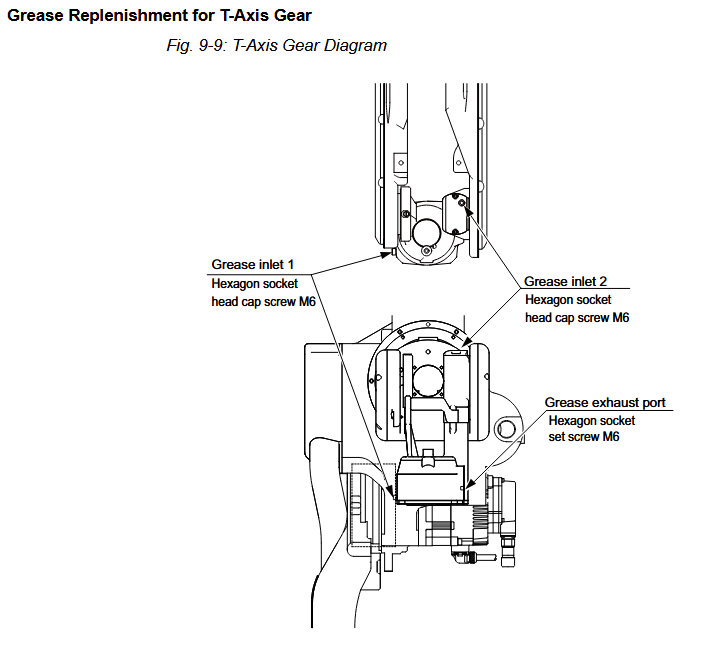

T-AXIS: 5cc
