Grease Procedure (PM) MH110 / YR-MS100/MH110-A00 Manipulator

Model Covered: YR-MS100/MH110-A00

Material Required:

Molywhite RE. No.00 132412-1

Three Bond 1206C 479014-6

Amount Of Grease:

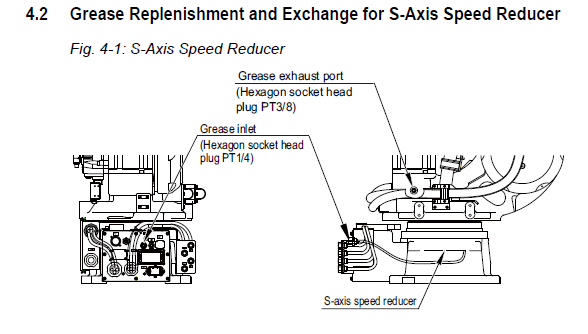

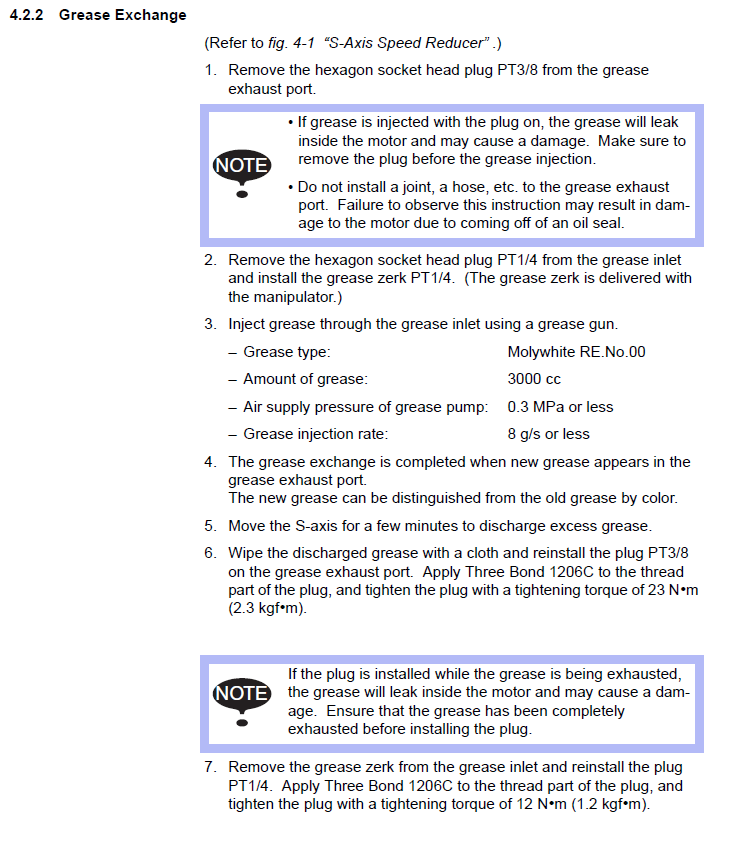

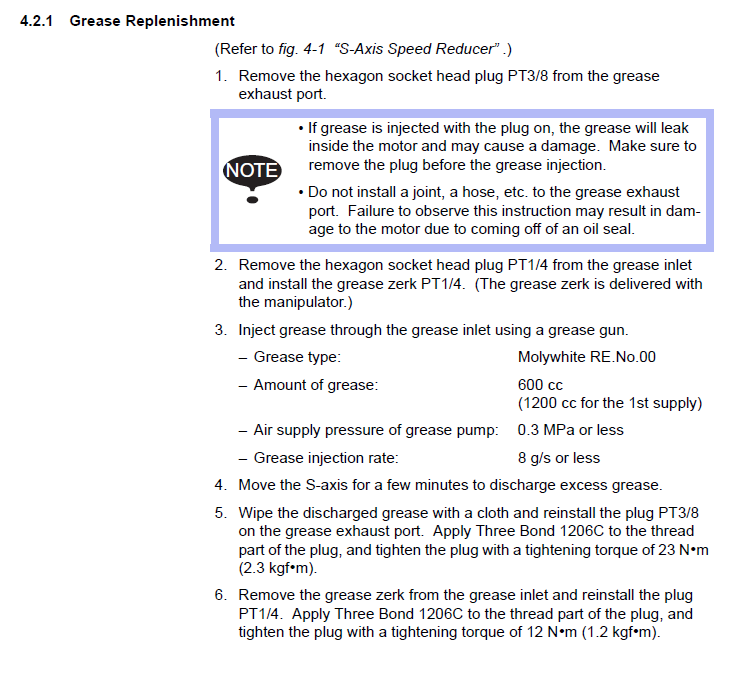

S-AXIS: 600cc

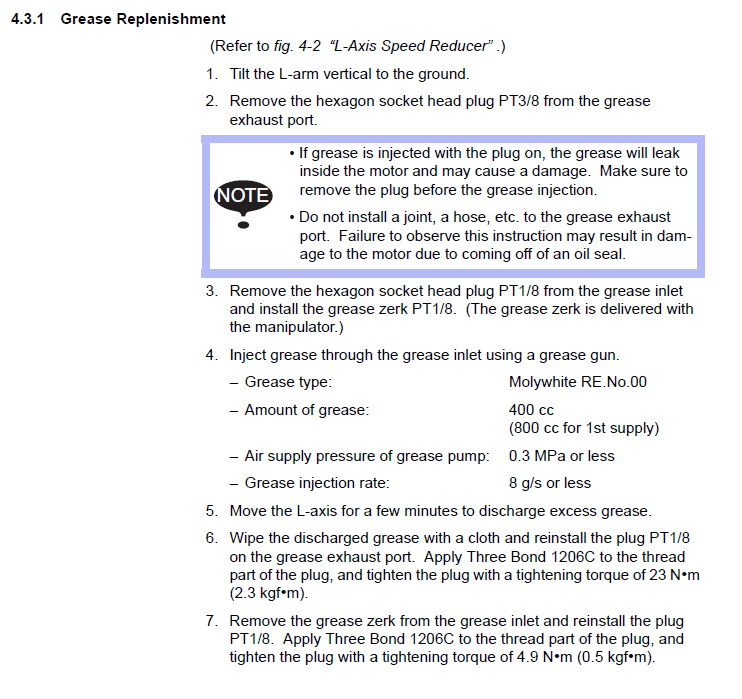

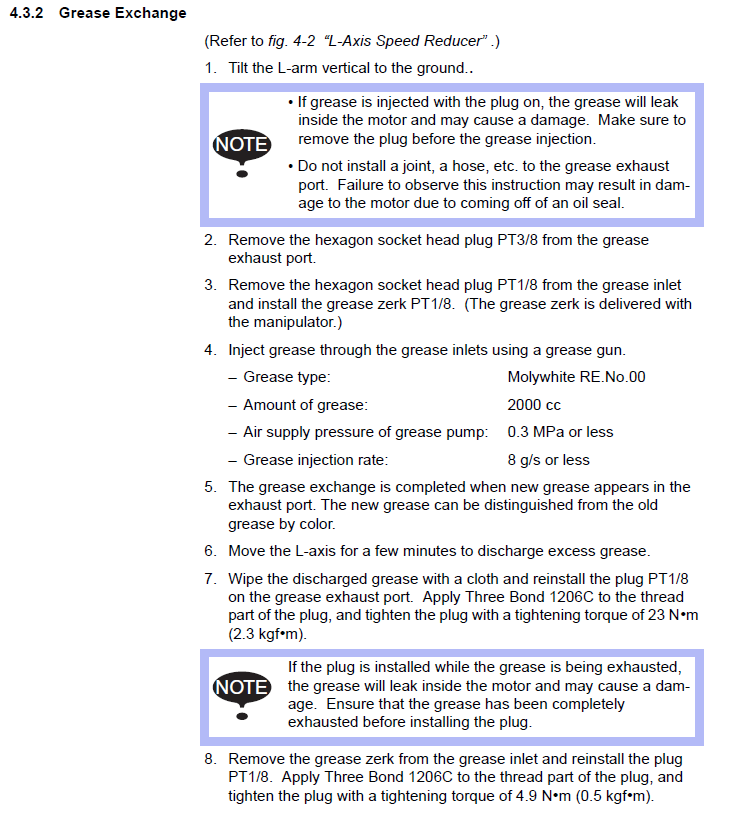

L-AXIS: 400cc

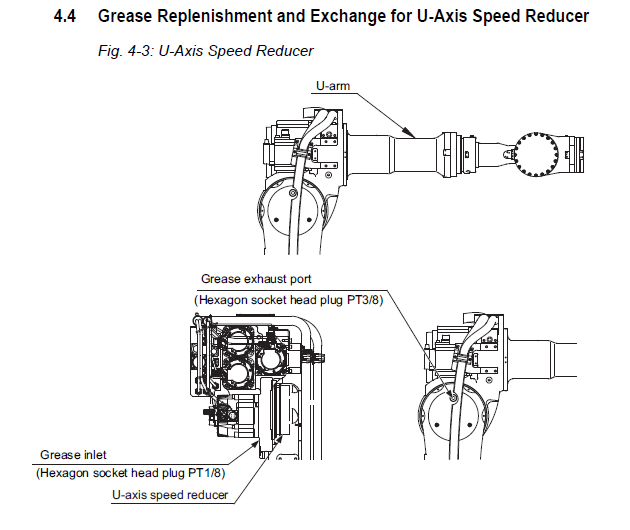

U-AXIS: 200cc

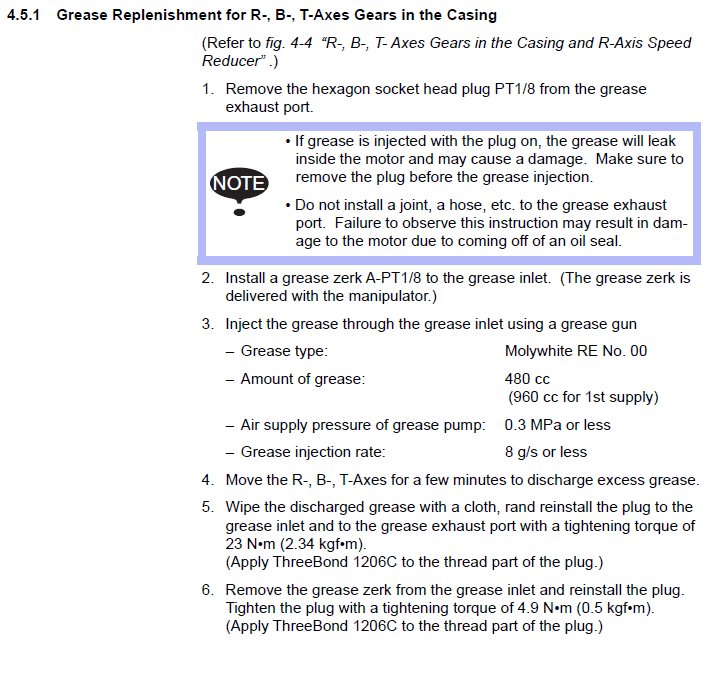

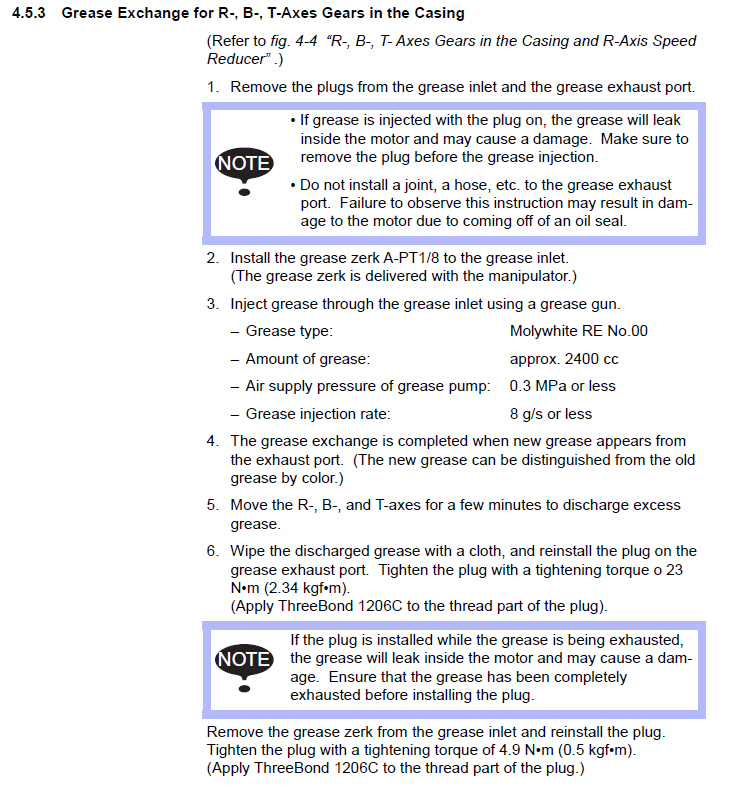

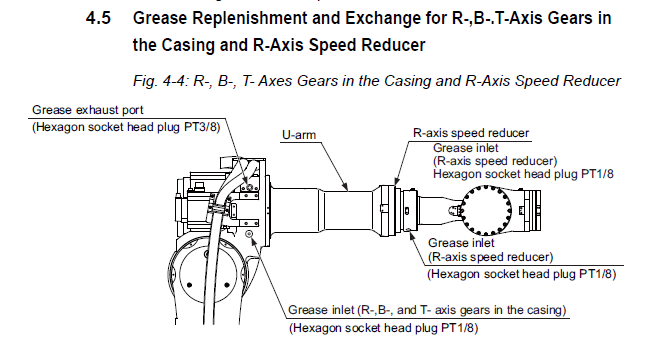

R,B,T GEAR: 480cc

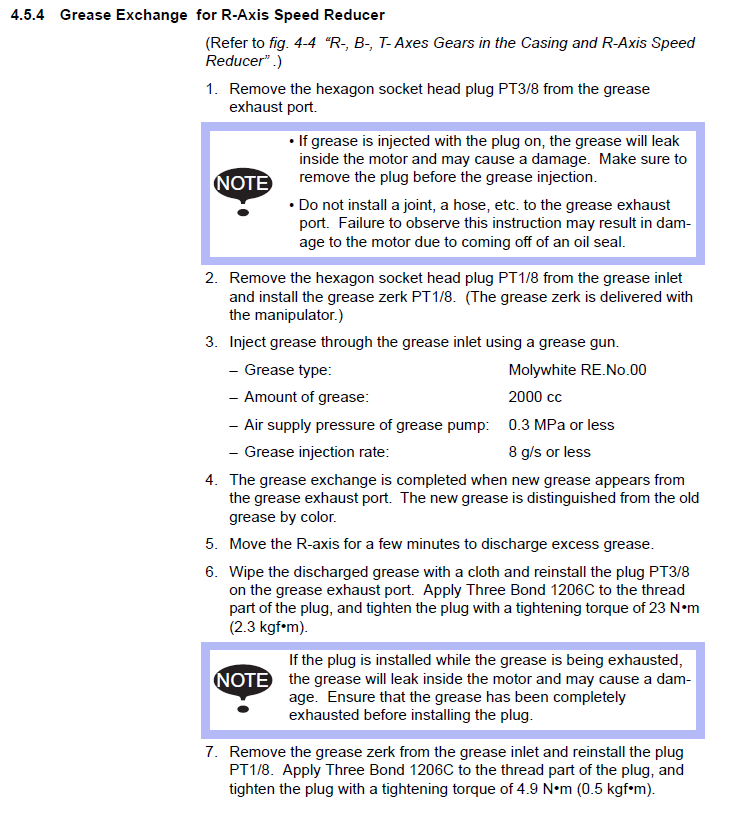

R-AXIS: 400cc

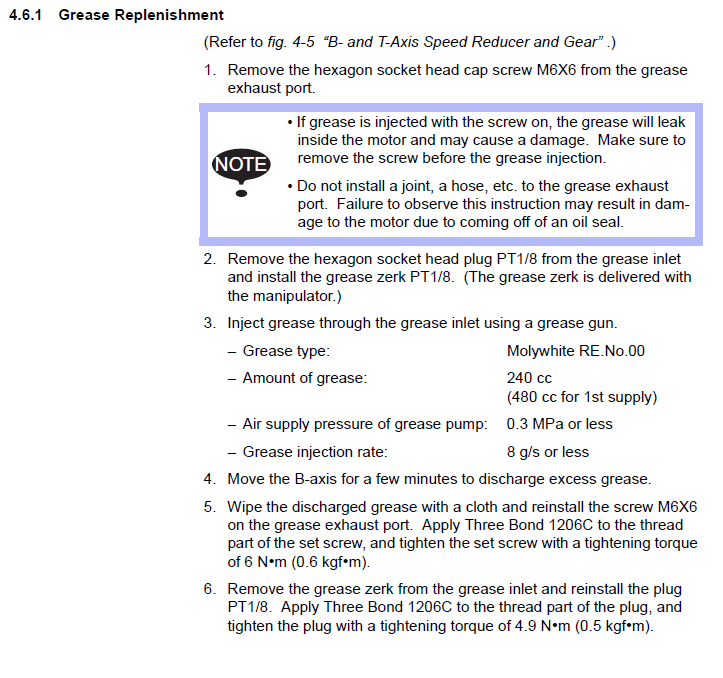

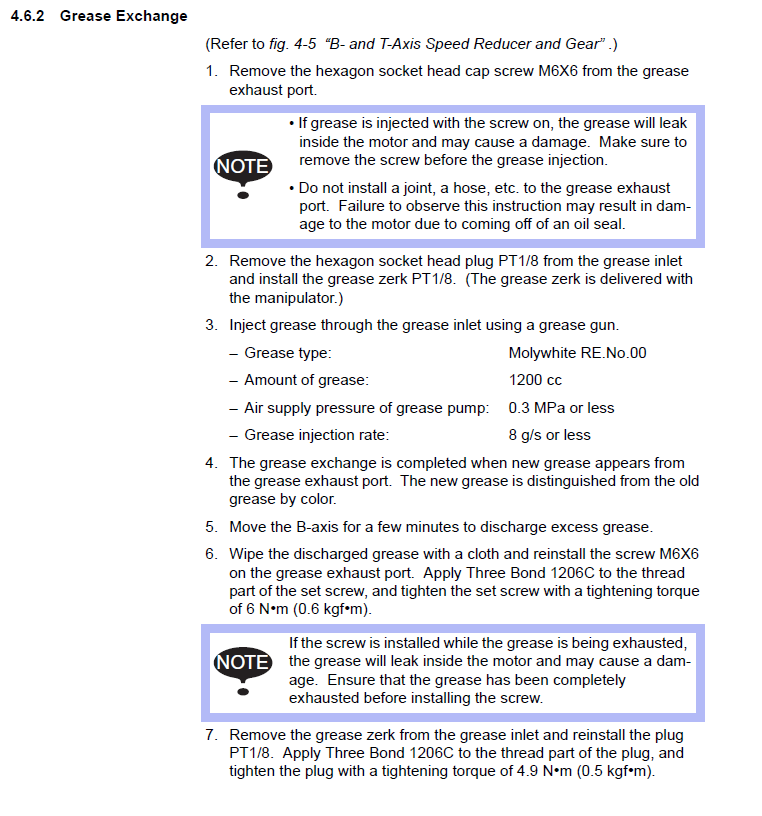

B AND T AXIS: 240cc
