Grease Procedure (PM) MA1440 / YR-MA1440/MH12-A10 Manipulator

Model Covered: YR-MA1440/MH12-A10

Material Required:

VIGO Grease RE No. 0 151945-1

Harmonic Grease SK-1A 479035-2

Alvania EP Grease 2 132177-1

Three Bond 1206C 479014-6

Amount Of Grease:

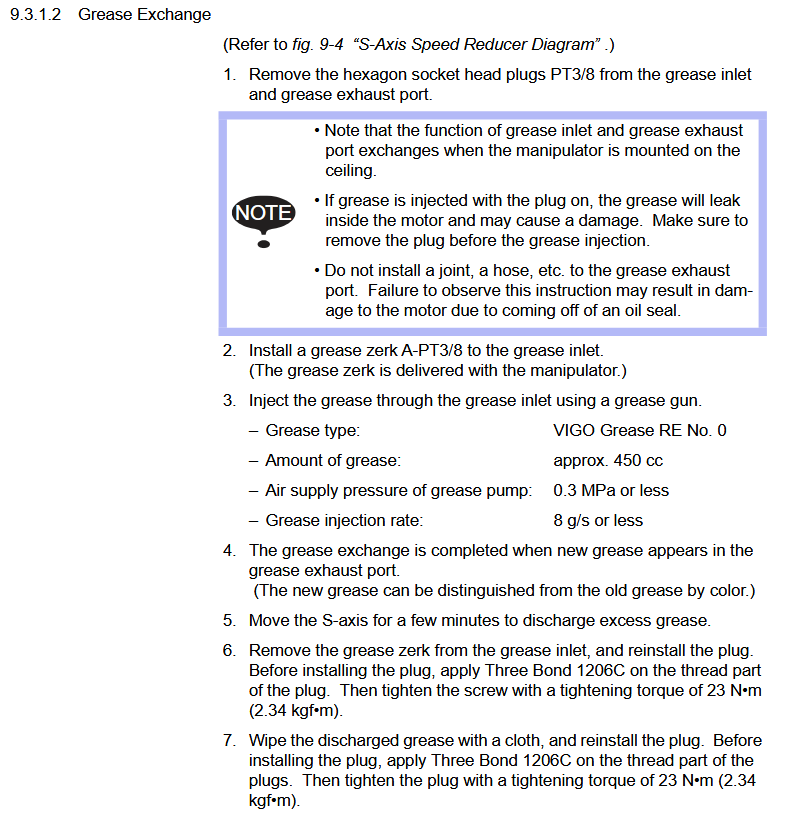

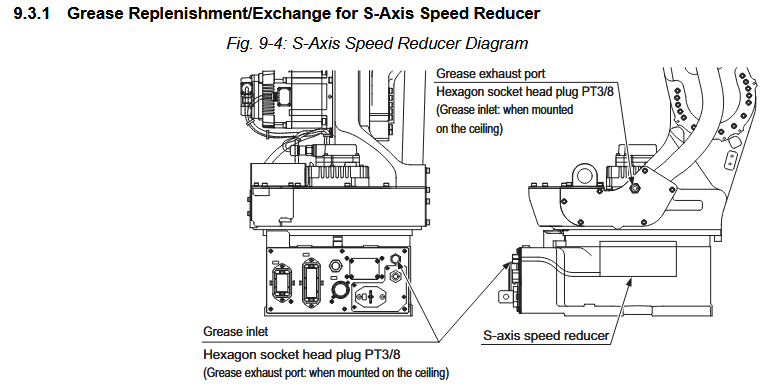

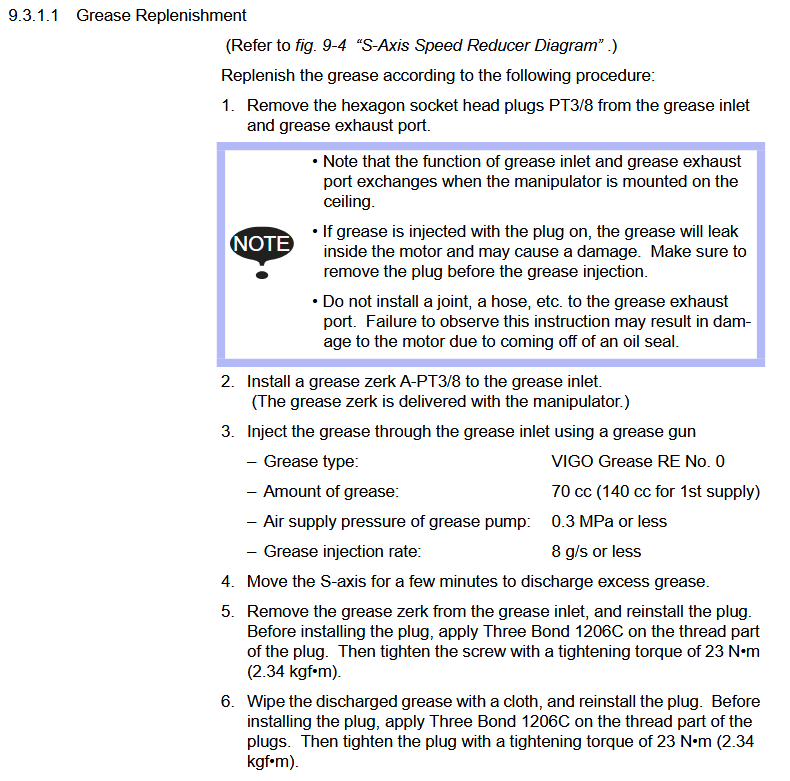

S-AXIS: Vigo Grease 70cc

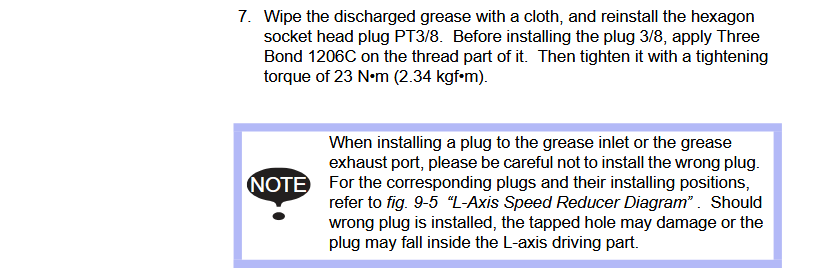

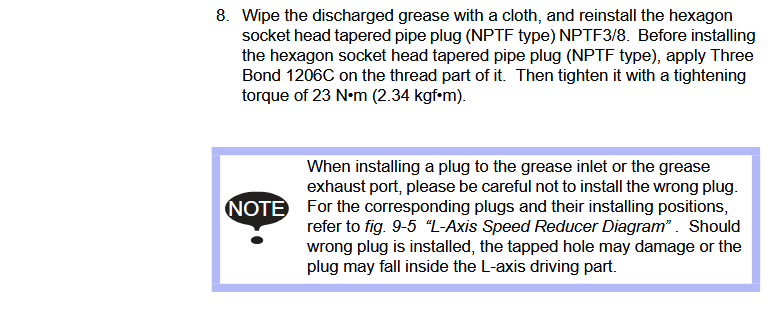

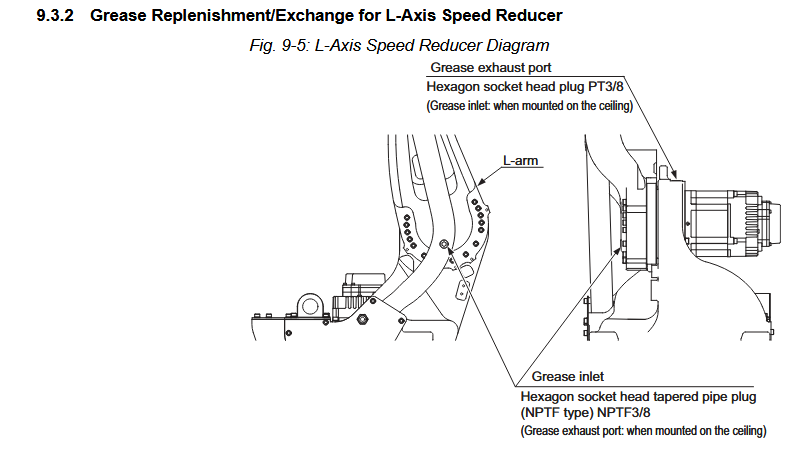

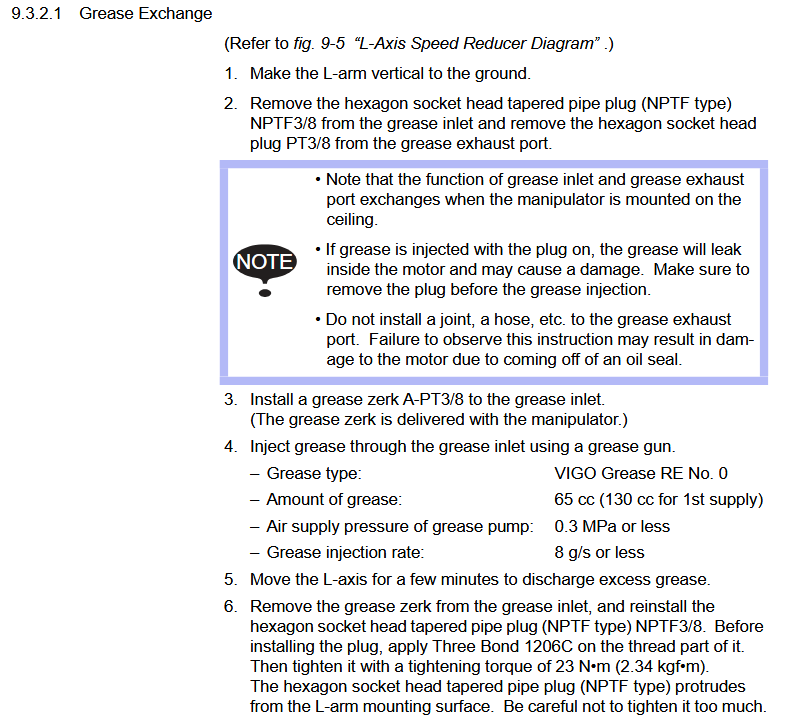

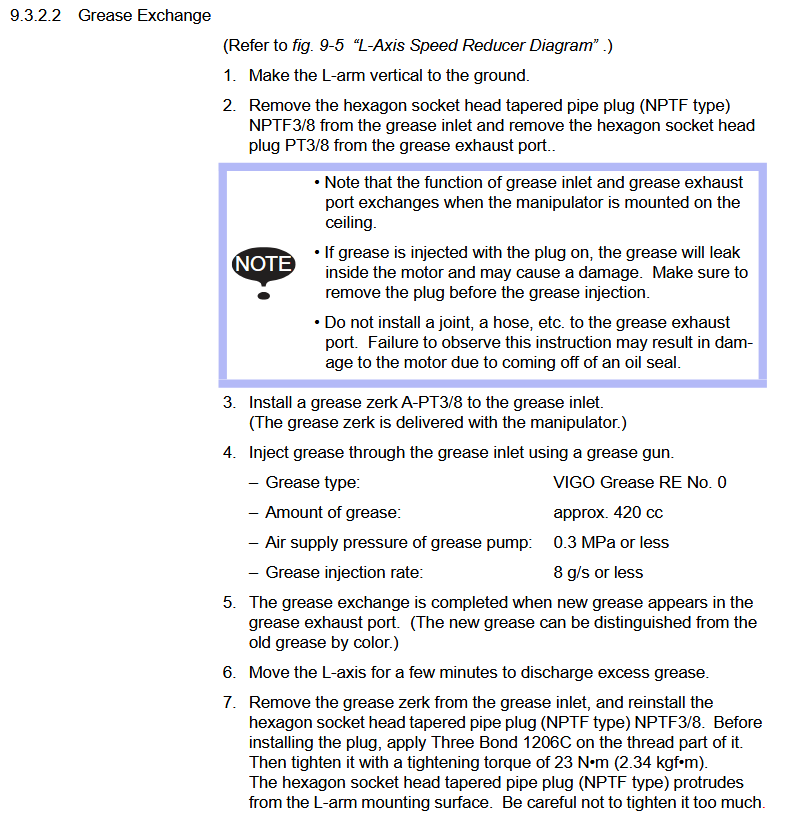

L-AXIS: Vigo Grease 65cc

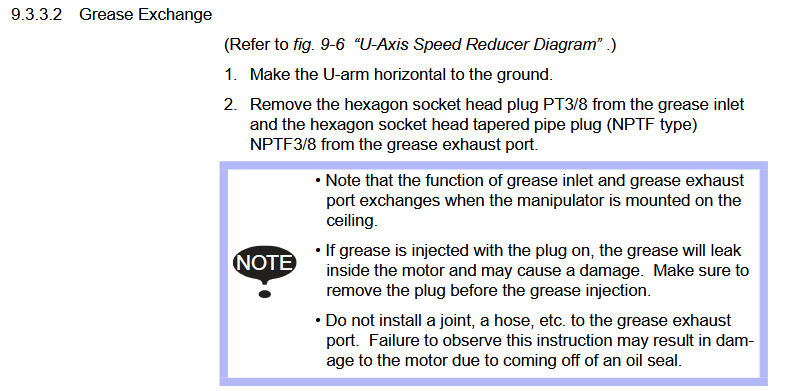

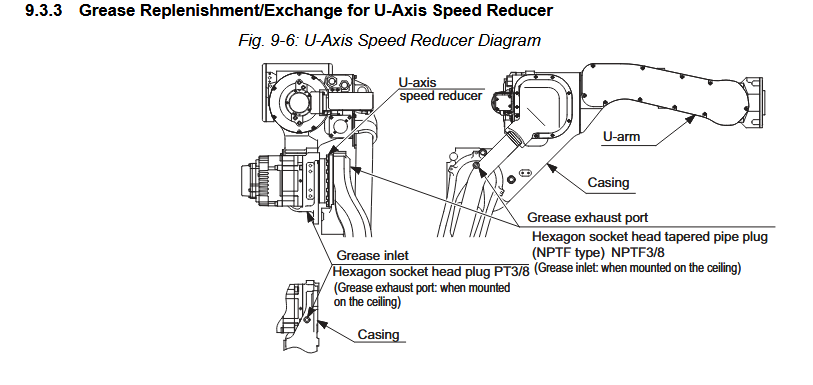

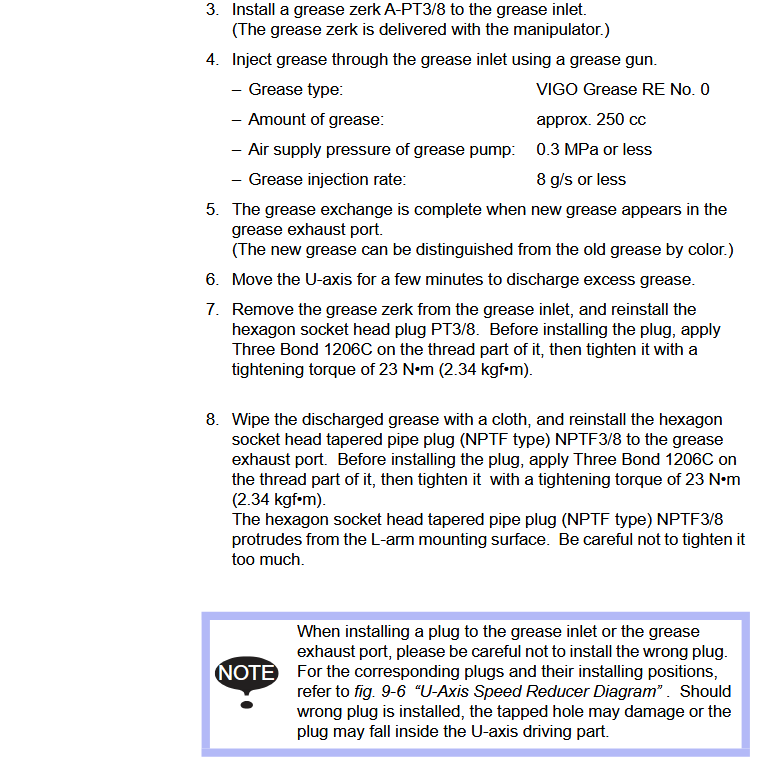

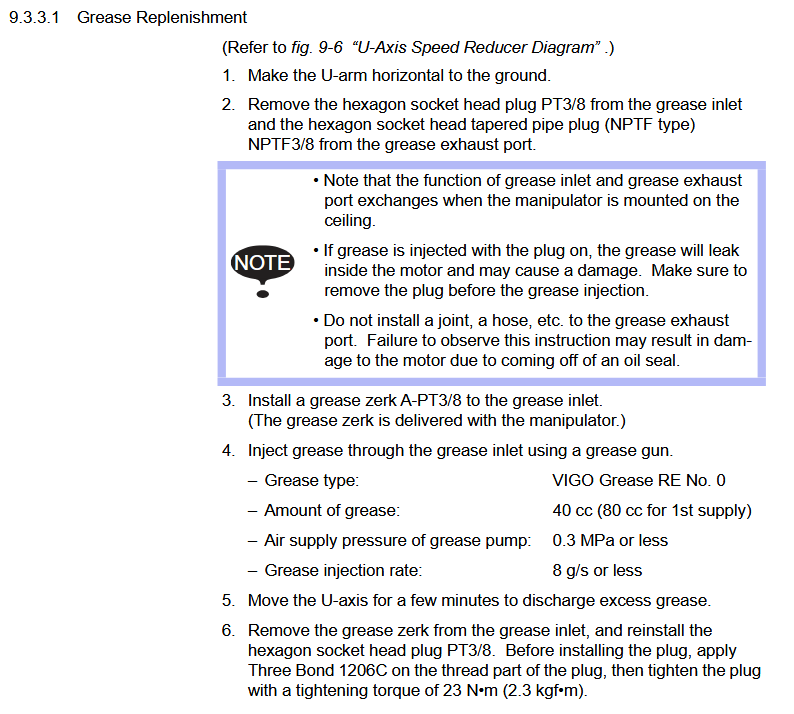

U-AXIS: Vigo Grease 40cc

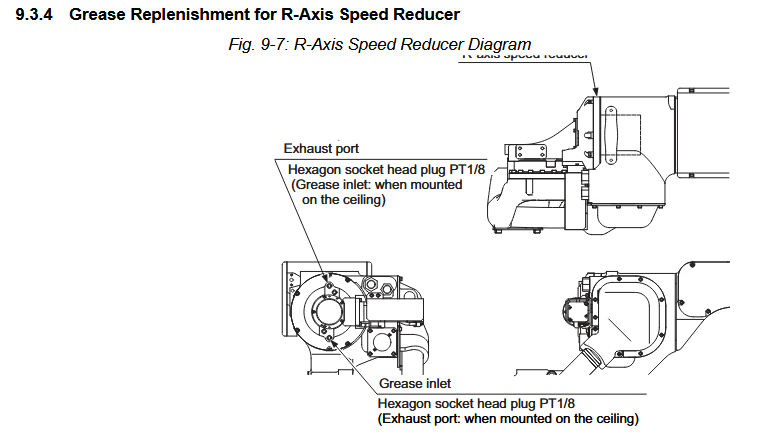

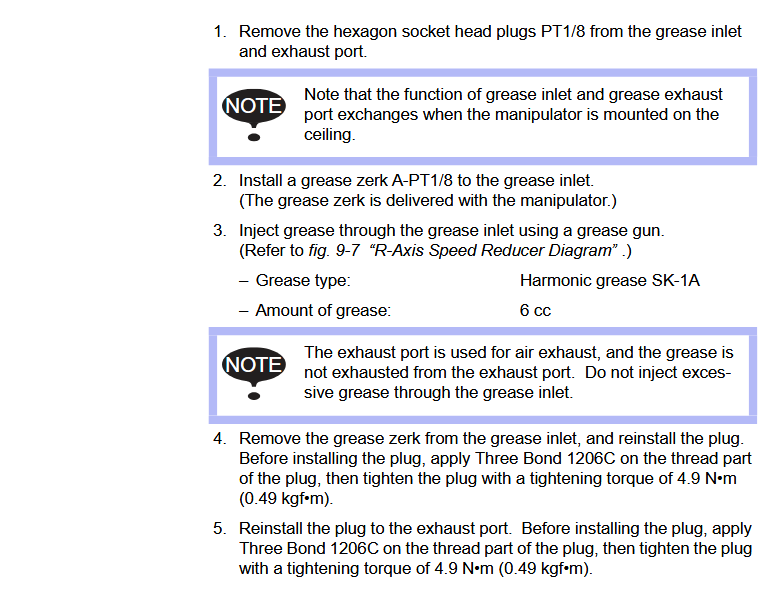

R-AXIS: SK1 Grease 6cc

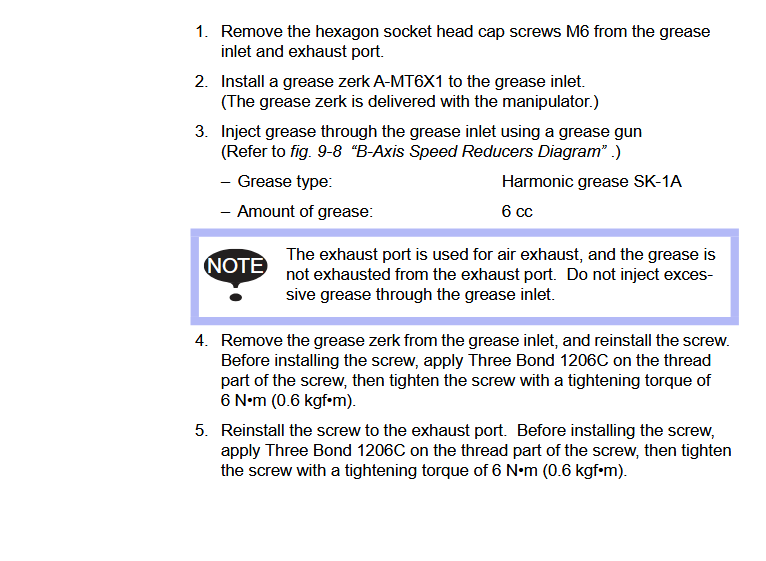

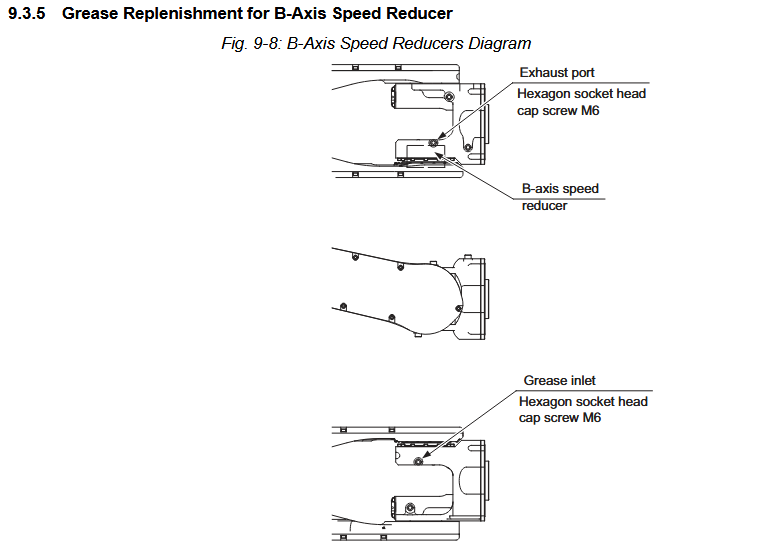

B-AXIS: SK1 Grease 6cc

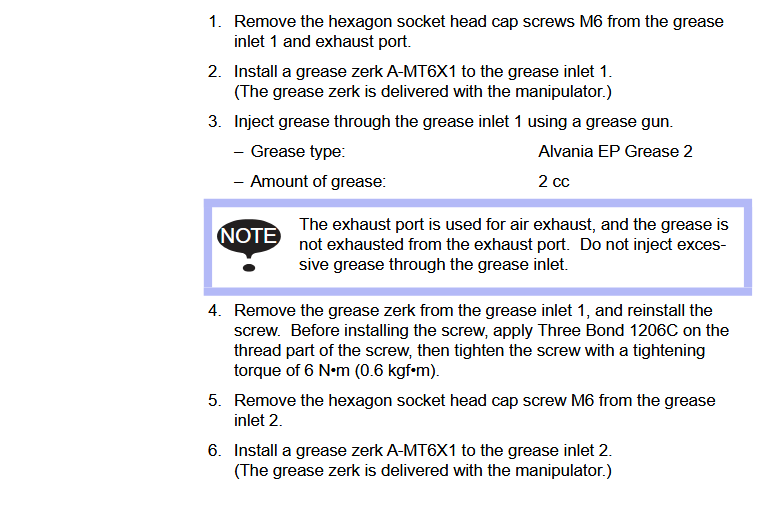

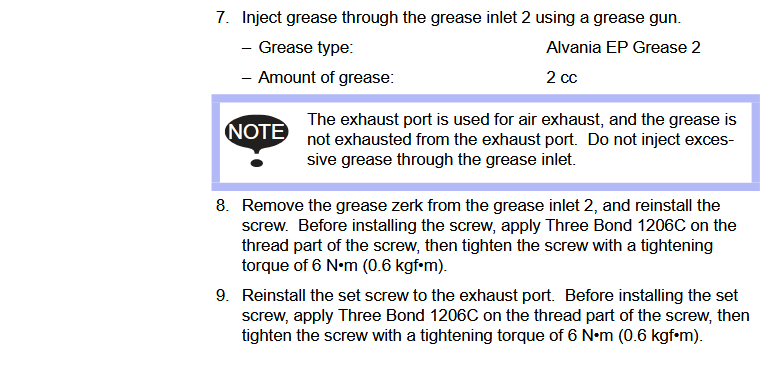

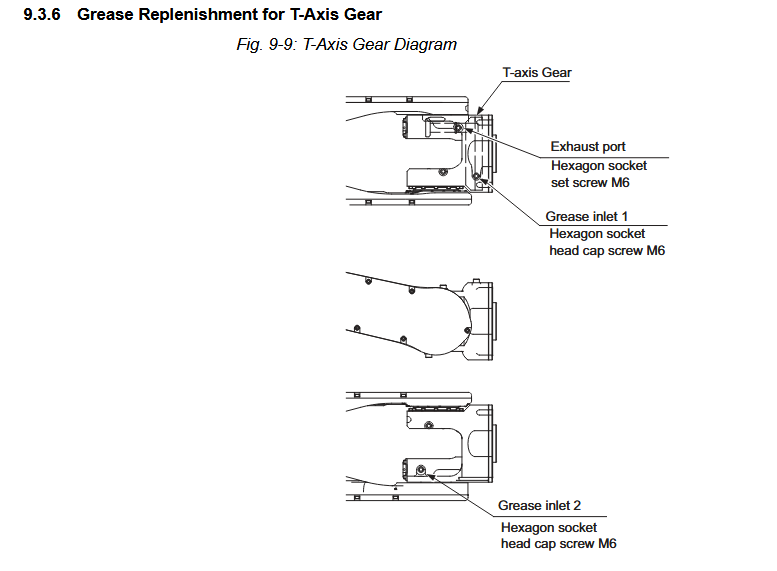

T-AXIS INLET 1: EP2 Grease 2cc

T-AXIS INLET 2: EP2 Grease 2cc

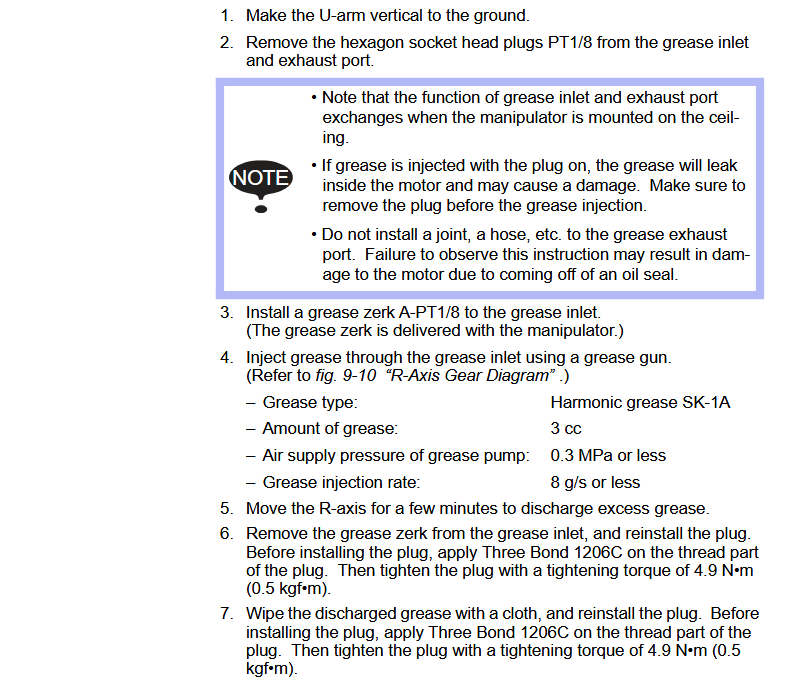

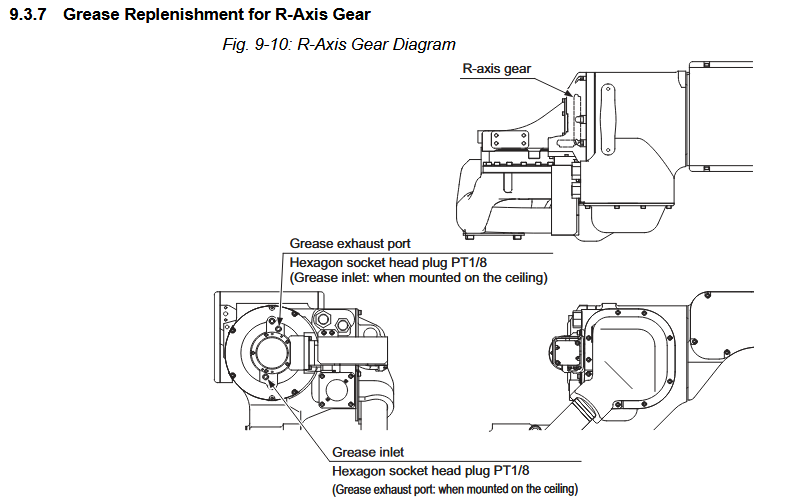

R-AXIS GEAR: SK1 Grease 3cc
