Grease Procedure (PM) HP20RD / YR-HP020RD-A01 Manipulator

Model Covered: YR-HP020RD-A01

Material Required:

Molywhite RE No. 00 132412-1

Harmonic Grease SK-1A 479035-2

Alvania EP Grease 2 132177-1

Three Bond 1206C 479014-6

Amount Of Grease:

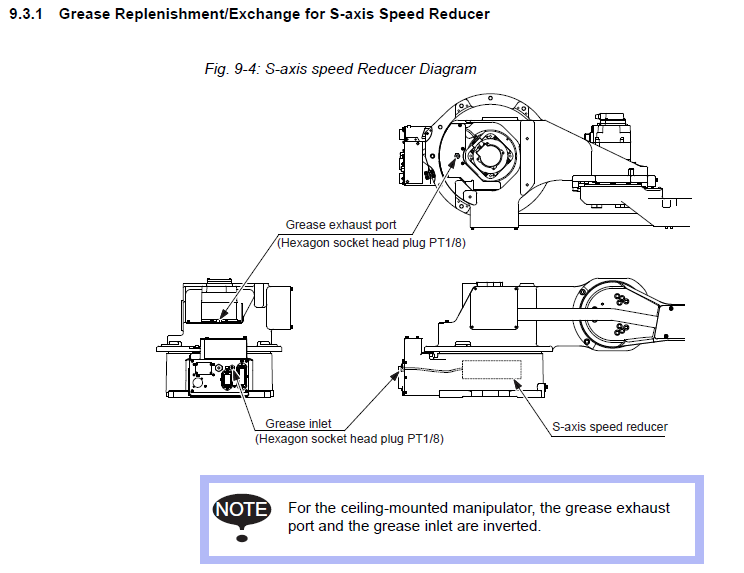

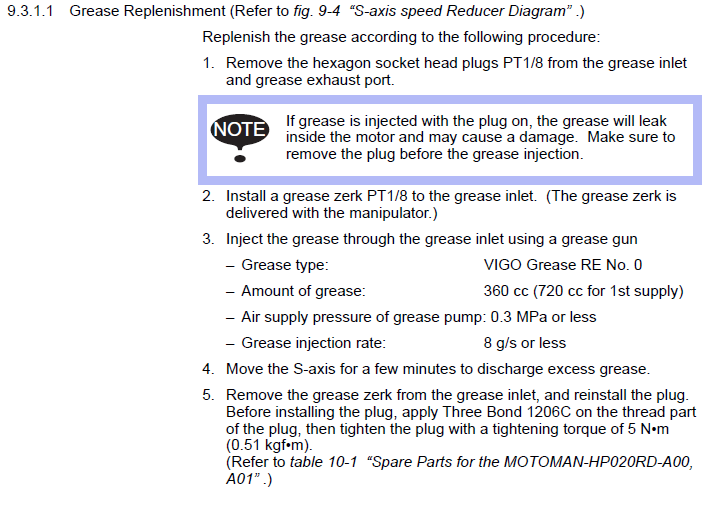

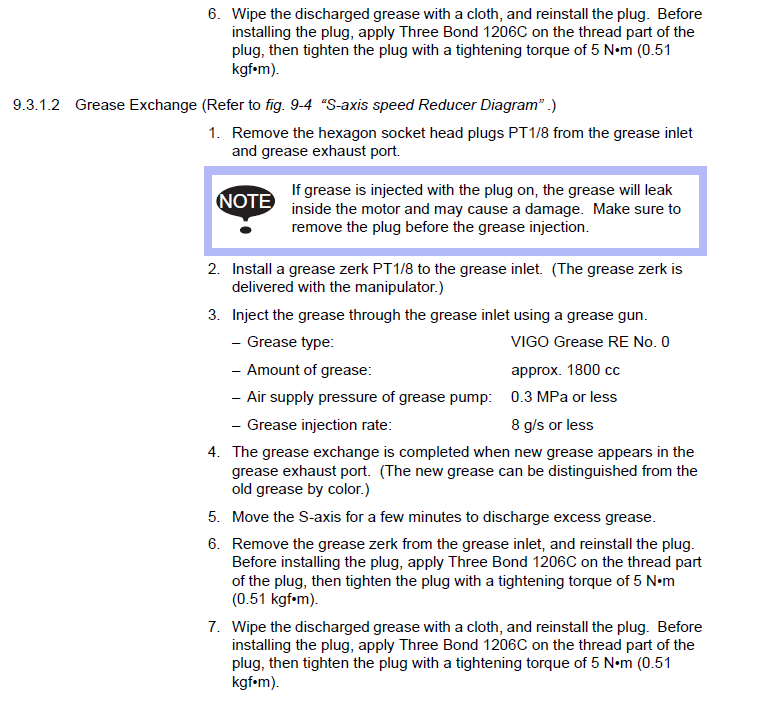

S-AXIS: 360 cc Molywhite or Vigo

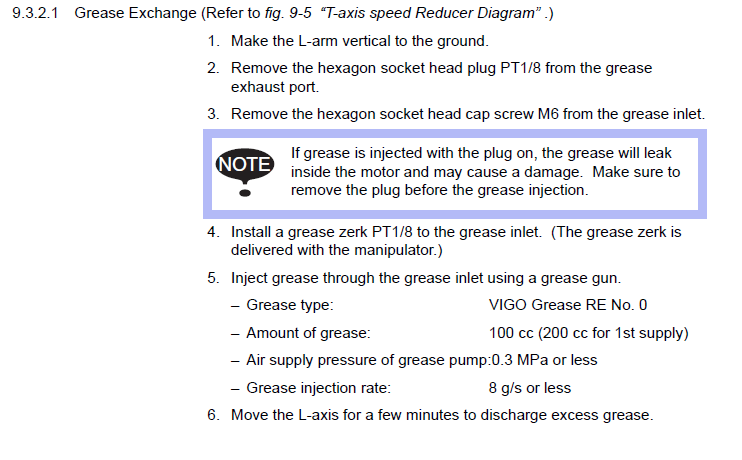

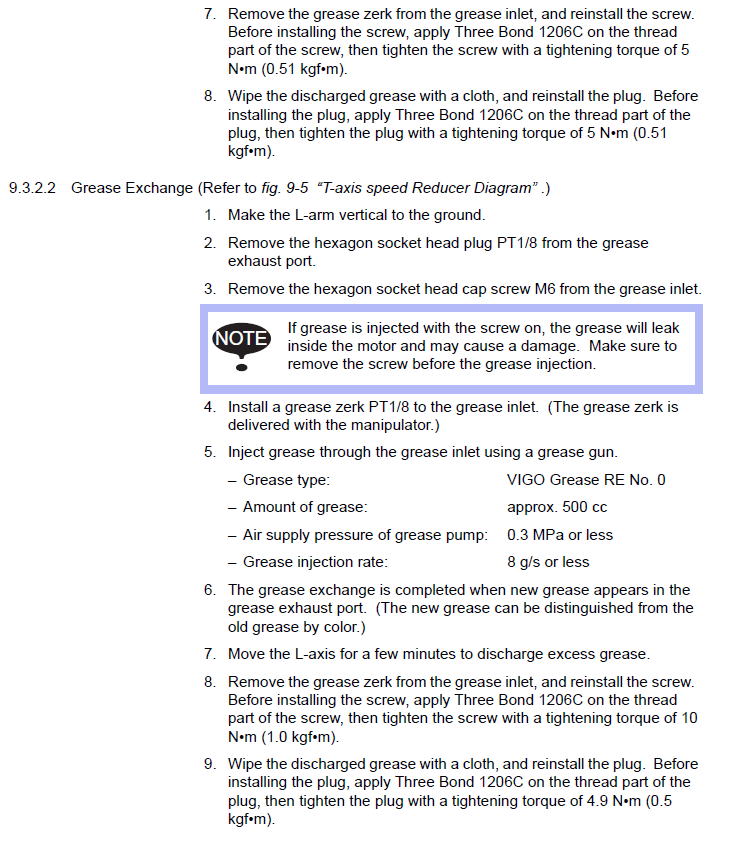

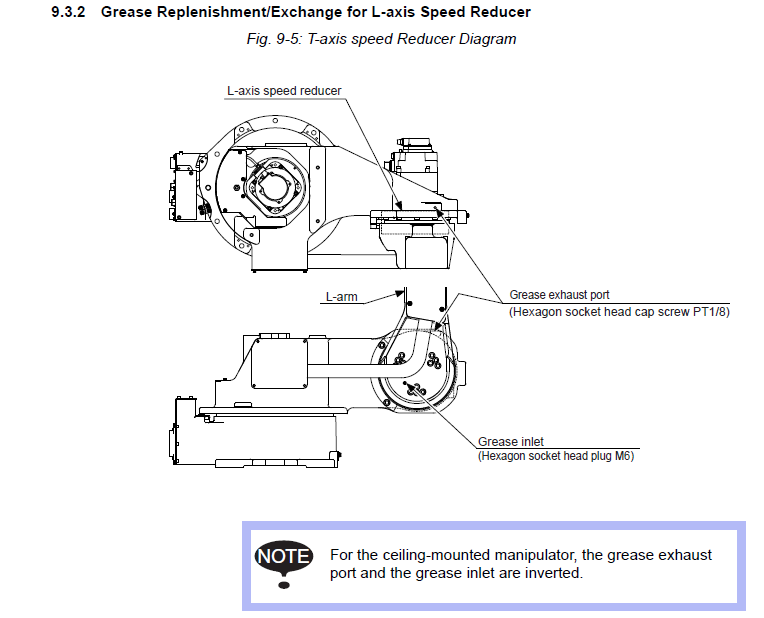

L-AXIS: 100 cc Molywhite or Vigo

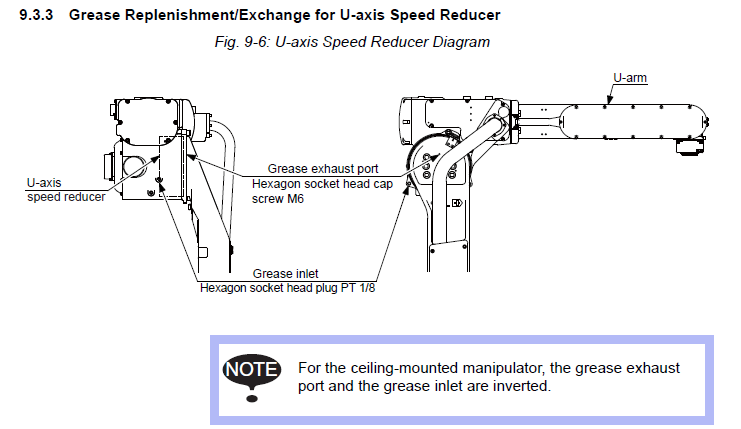

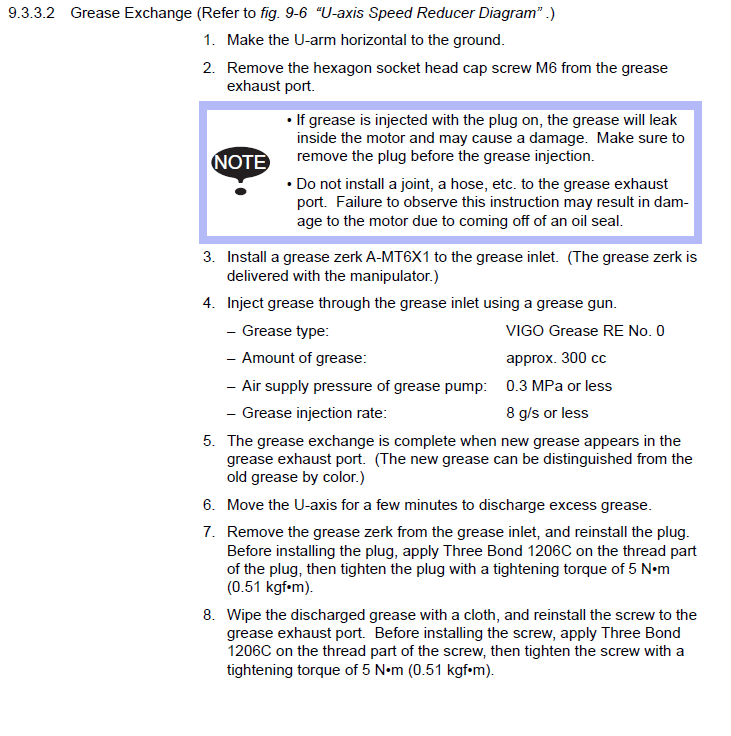

U-AXIS: 60 cc Molywhite or Vigo

R-AXIS: 8 cc SK-1A

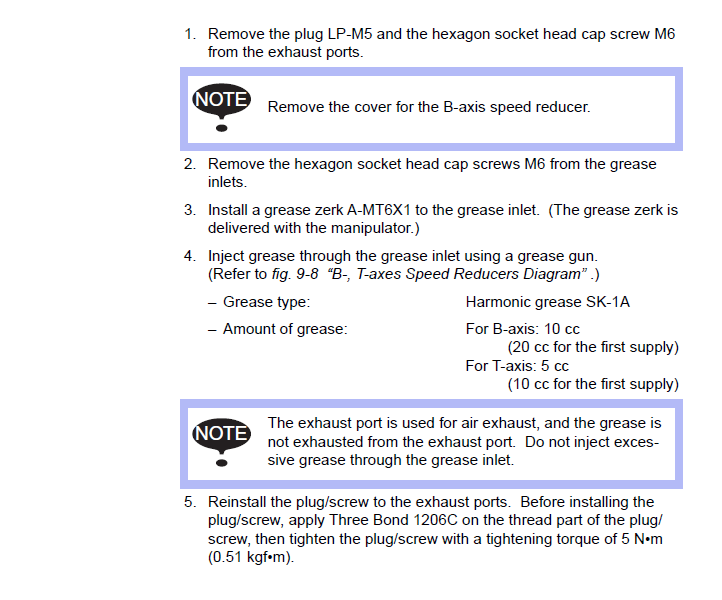

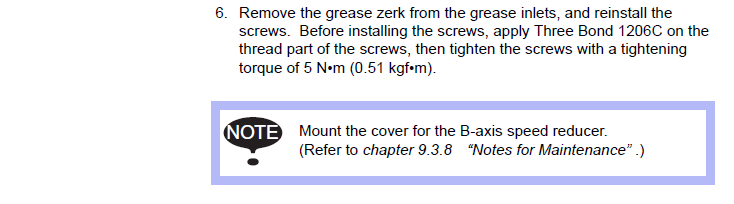

B-AXIS: 10 cc SK-1A

T-AXIS: 5 cc SK-1A

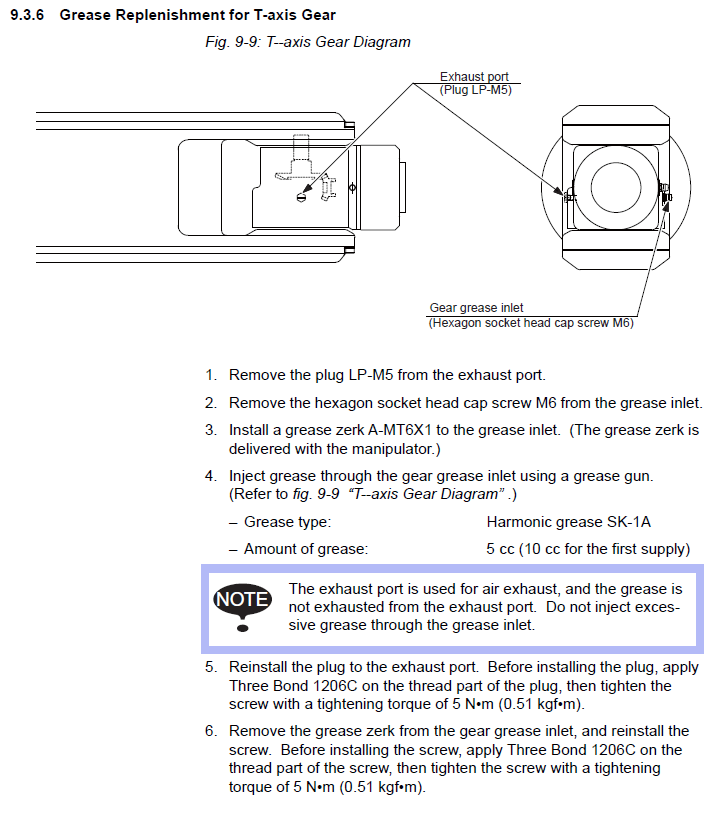

T-AXIS GEAR: 5 cc SK-1A

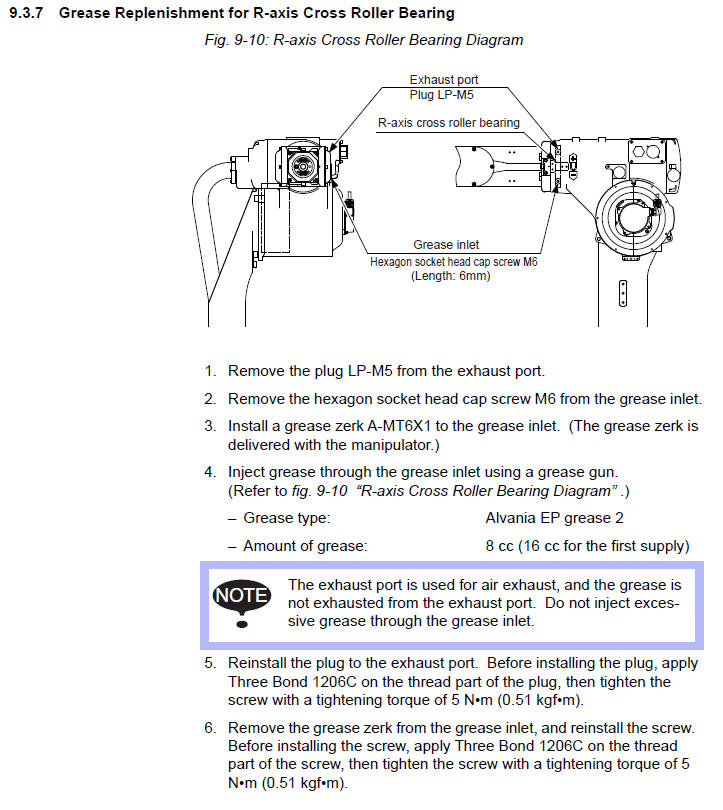

R-AXIS CROSS ROLLER BEARING: 8 cc Alvania EP2
