Grease Procedure (PM) UP350N-400 / YR-UP350N-A41 Manipulator

Model Covered: YR-UP350N-A41

Material Required:

Molywhite RE No. 00 132412-1

Alvania EP Grease 2 132177-1

Three Bond 1206C 479014-6

Amount Of Grease:

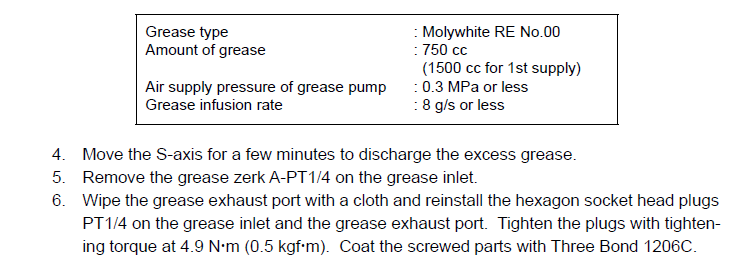

S-AXIS: MolyWhite 750cc

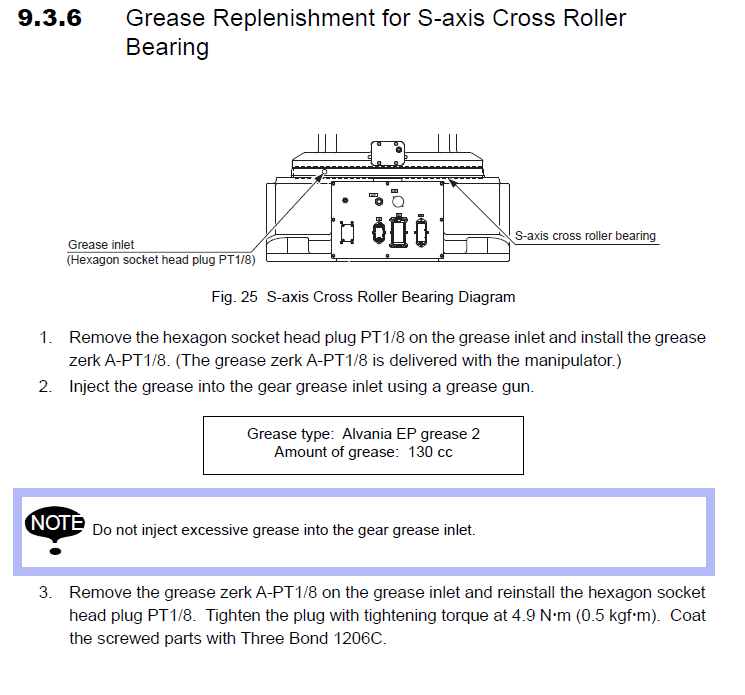

S-AXIS CROSS ROLLER BEARING: Alvania EP2 130cc

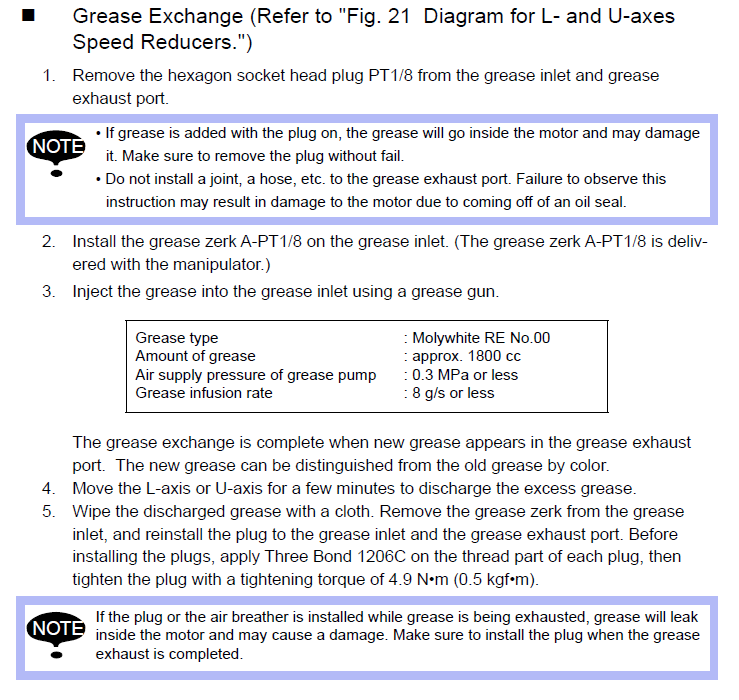

L-AXIS: MolyWhite 600cc

L-AXIS CROSS ROLLER BEARING: Alvania EP2 19cc

U-AXIS: MolyWhite 600cc

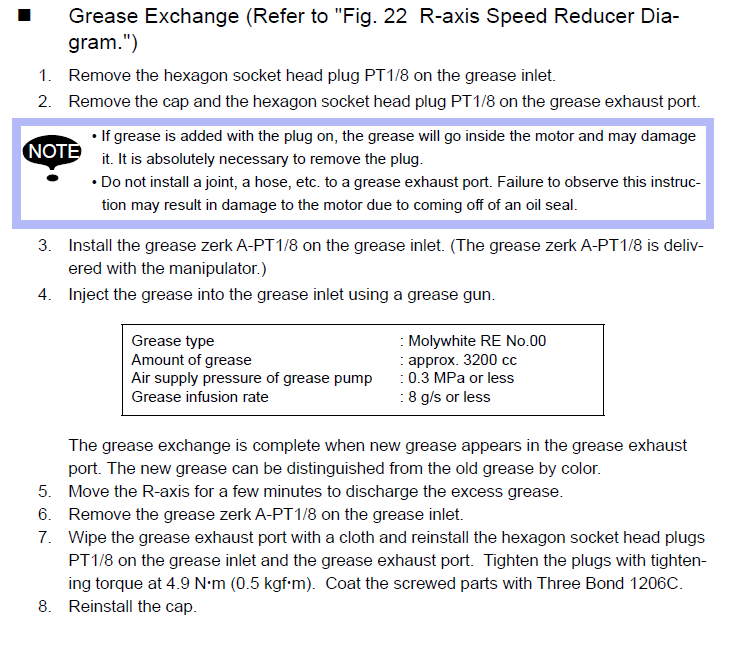

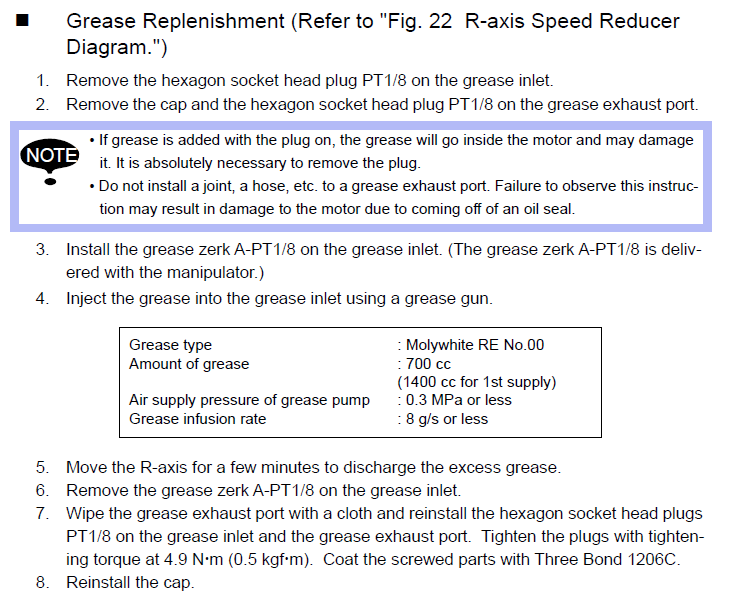

R-AXIS: MolyWhite 700cc

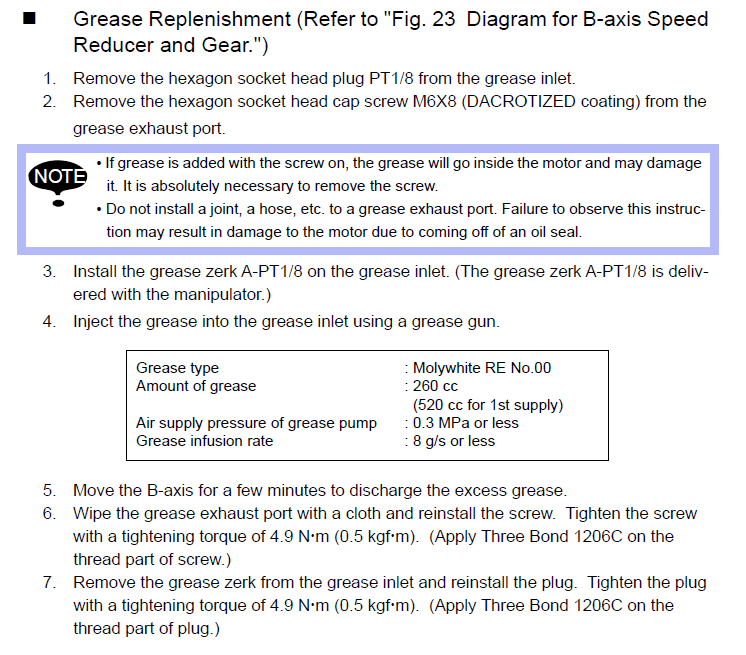

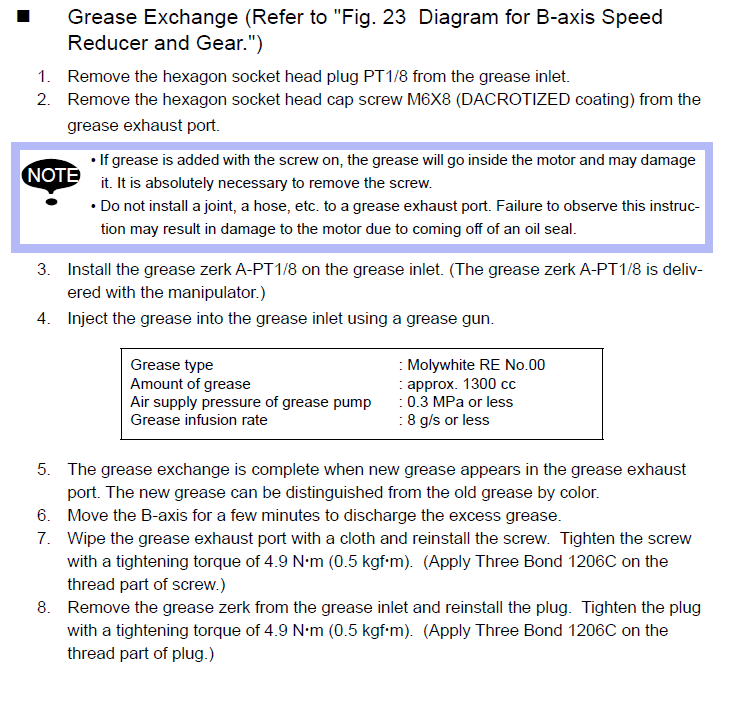

B-AXIS: MolyWhite 260cc

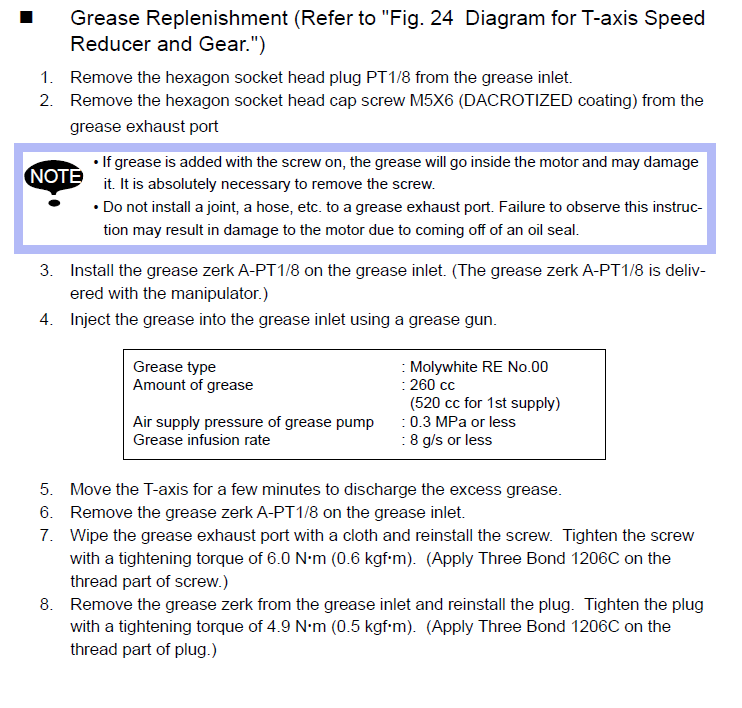

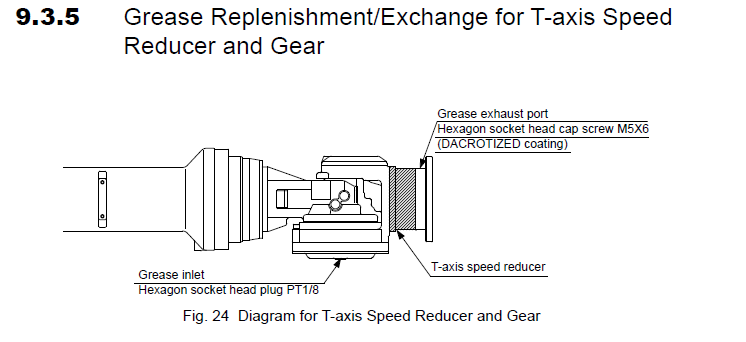

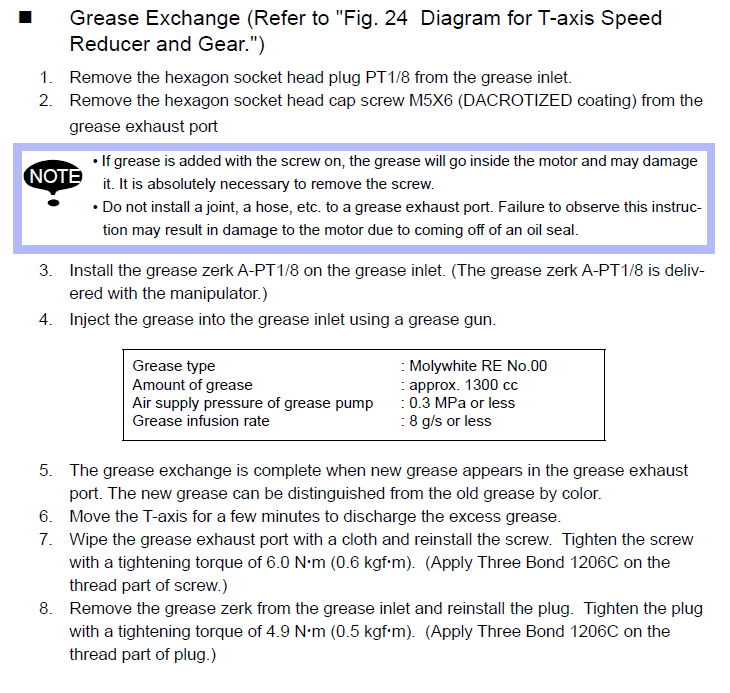

T-AXIS: MolyWhite 260cc

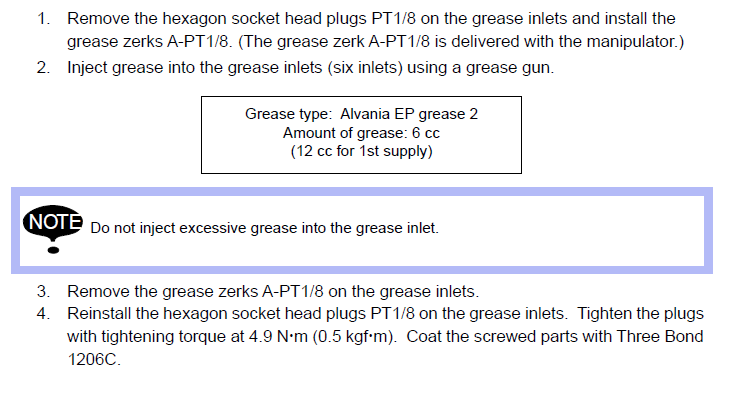

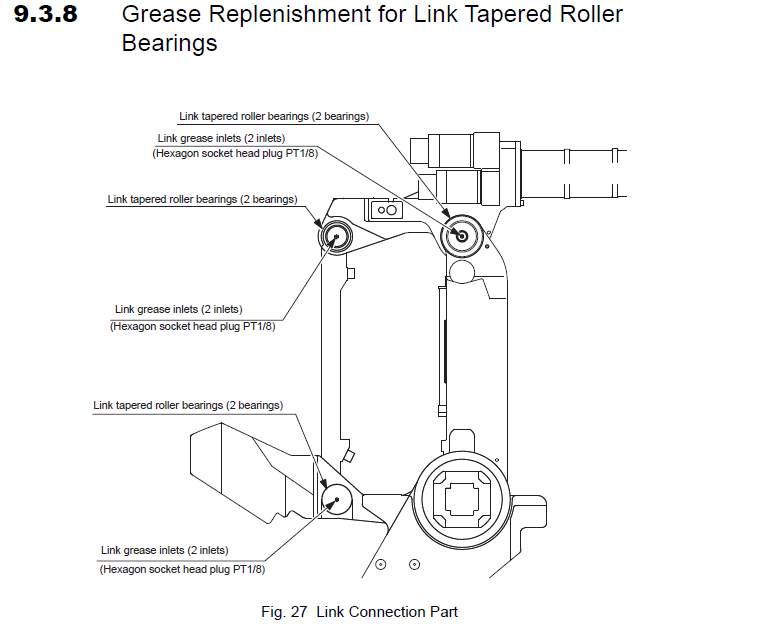

Links Tapered Bearings: Alvania Ep2 6cc Each

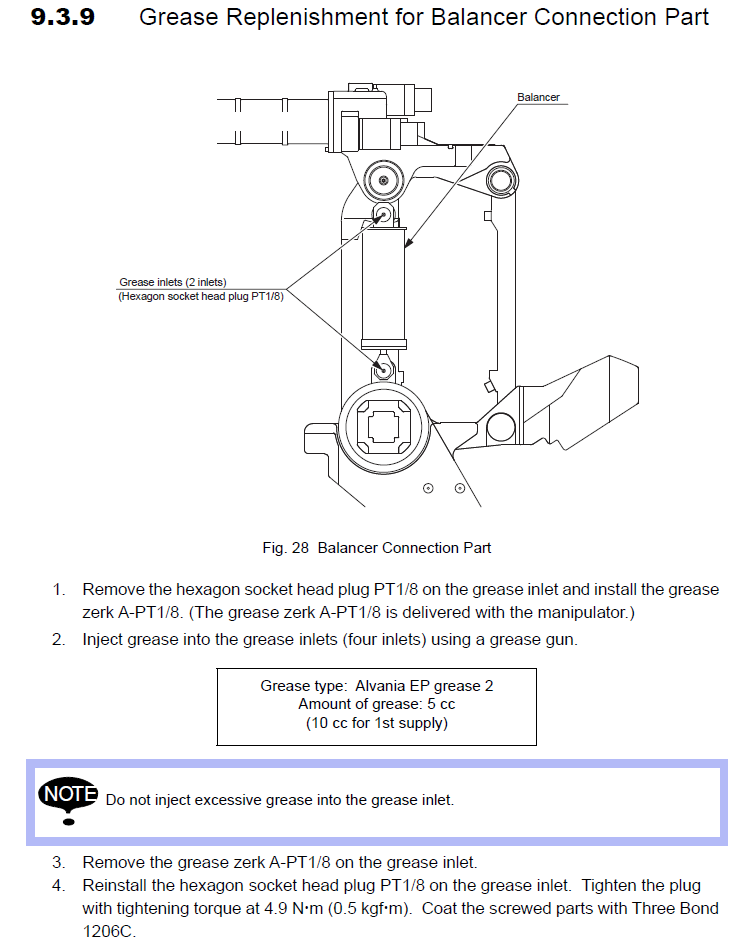

Balancer Connections: Alvania EP2 5cc Each
