Grease Procedure (PM) EPL80 / YR-EPL80-A01 Manipulator

Model Covered: YR-EPL80-A01

Material Required:

Molywhite RE No. 00 132412-1

Three Bond 1206C 479014-6

Amount Of Grease:

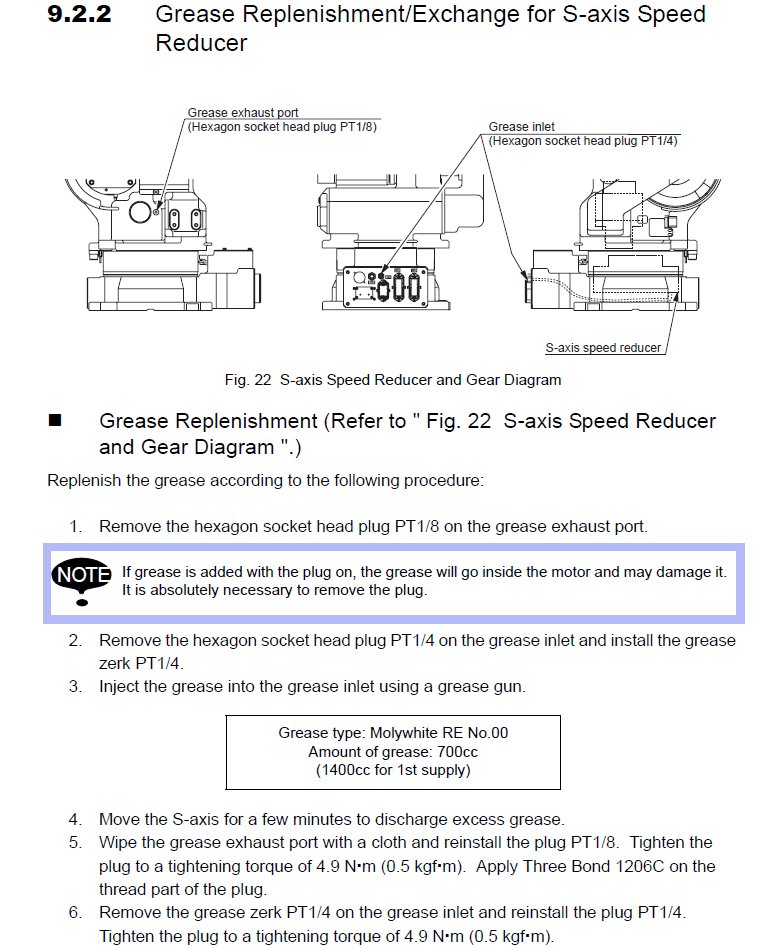

S-AXIS: 700cc

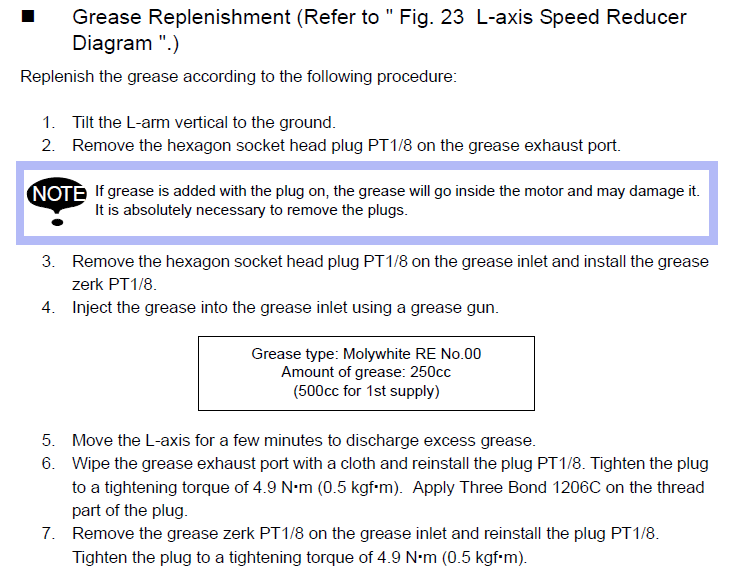

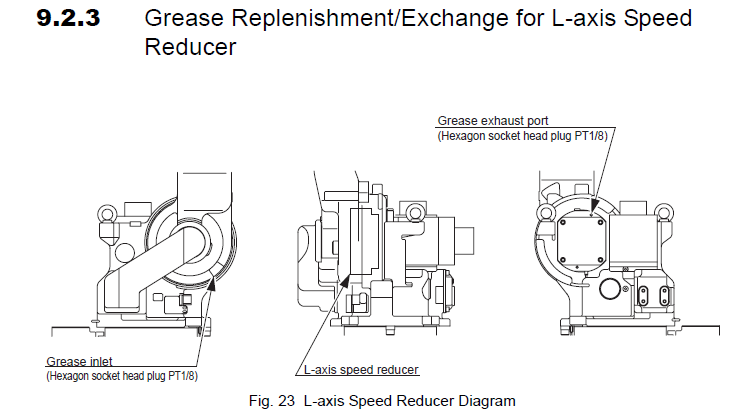

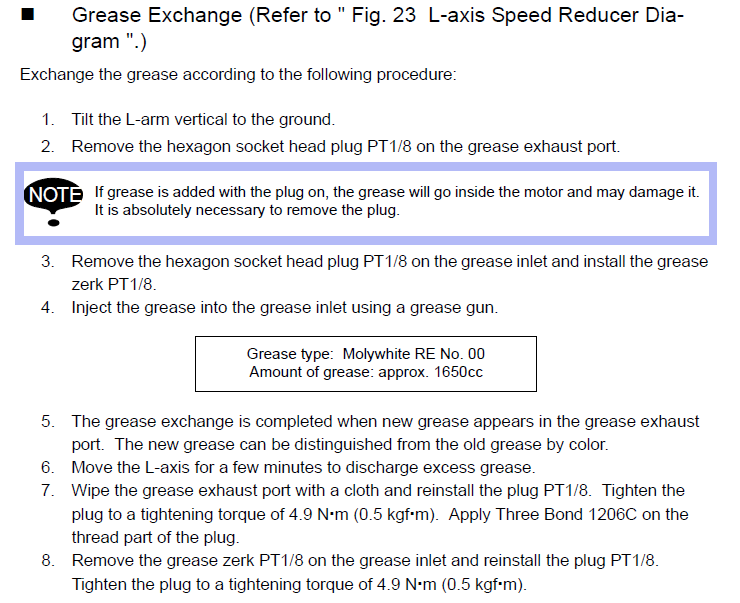

L-AXIS: 250cc

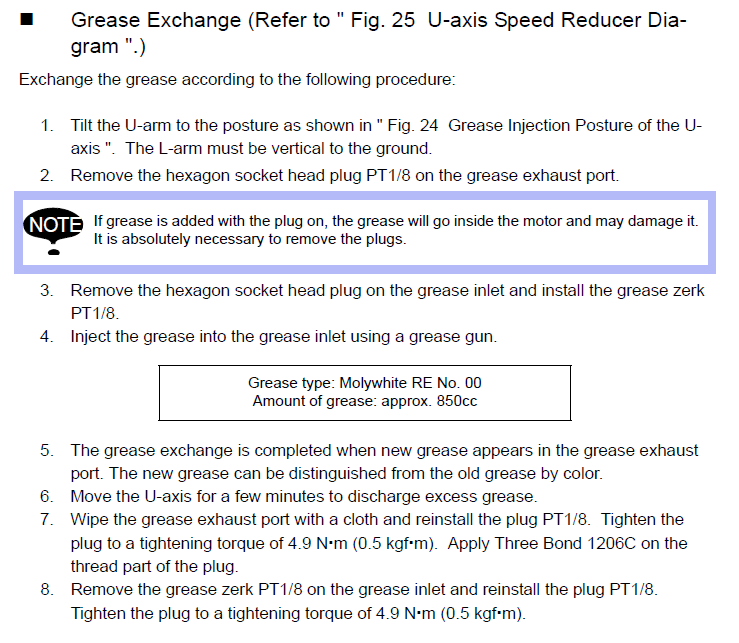

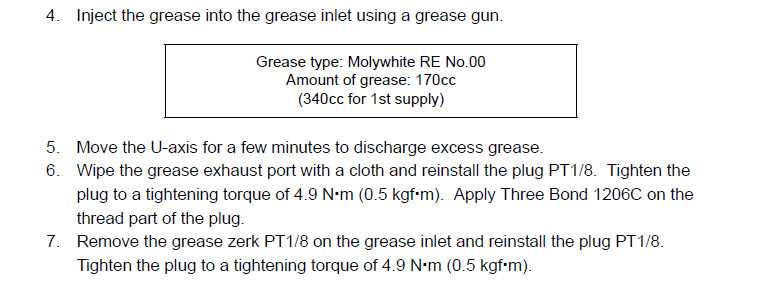

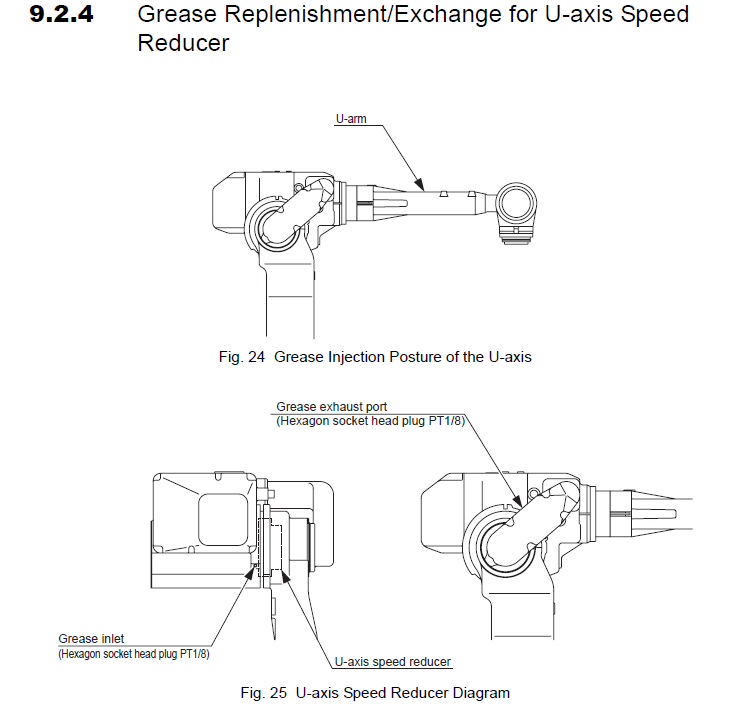

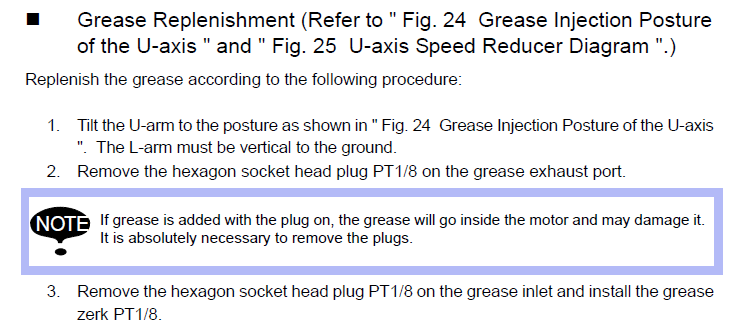

U-AXIS: 170cc

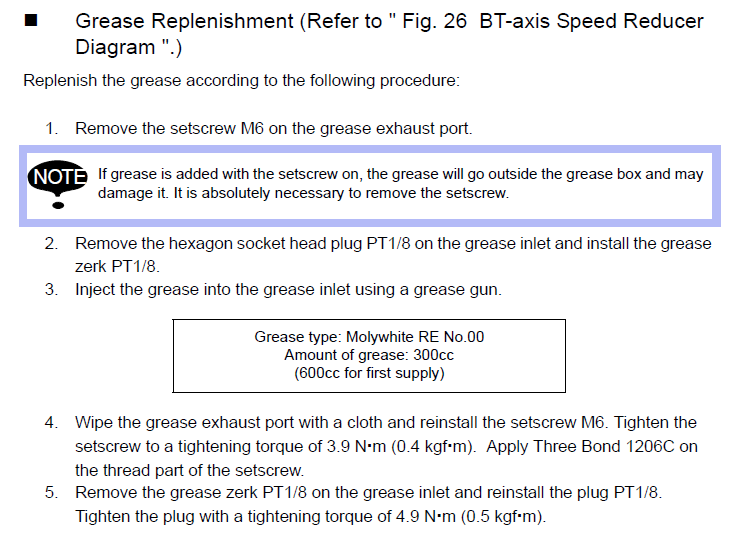

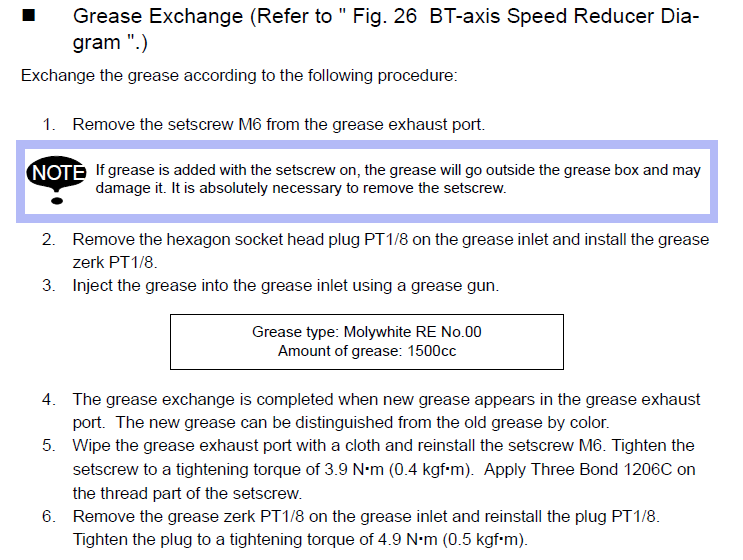

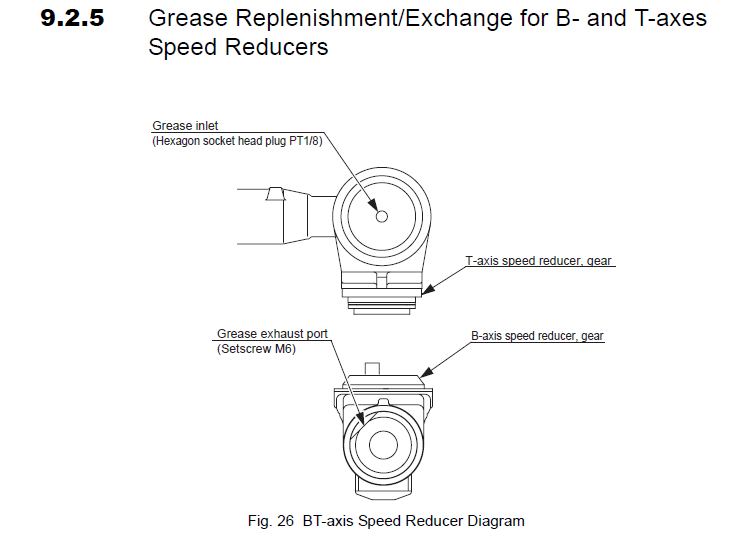

B AND T AXIS: 300cc
