Grease Procedure (PM) EPL500 / YR-EPL500-C10 Manipulator

Model Covered: YR-EPL500-C10

Material Required:

Molywhite RE No.00 132412-1

Alvania EP Grease 2 132177-1

Three Bond 1206C 479014-6

Amount Of Grease:

MolyWhite

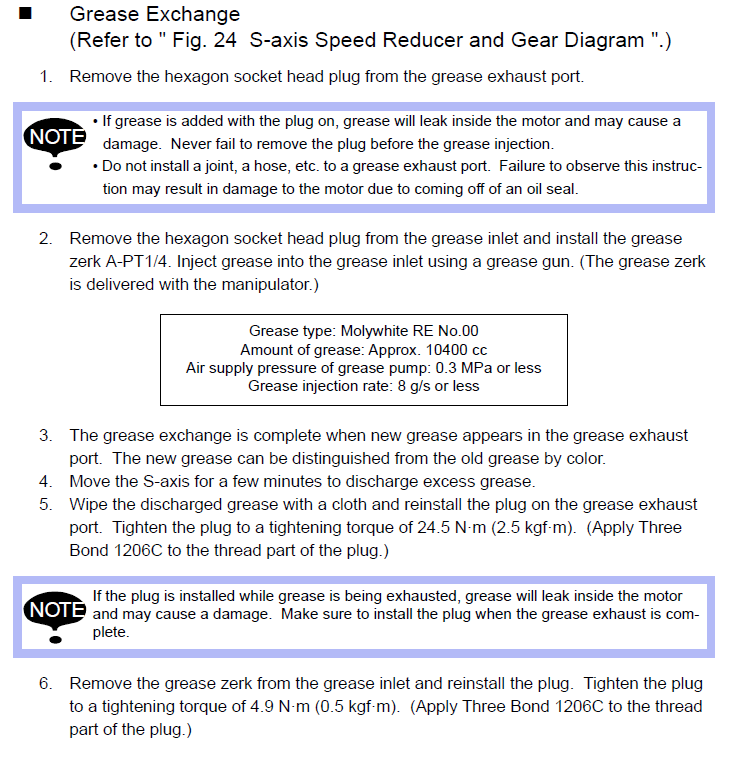

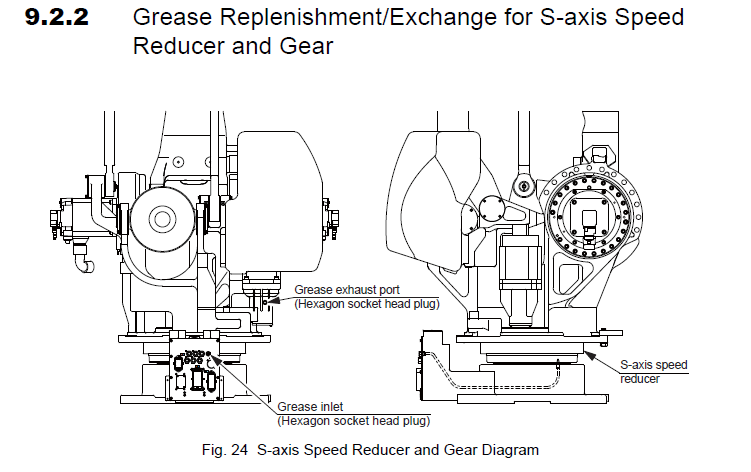

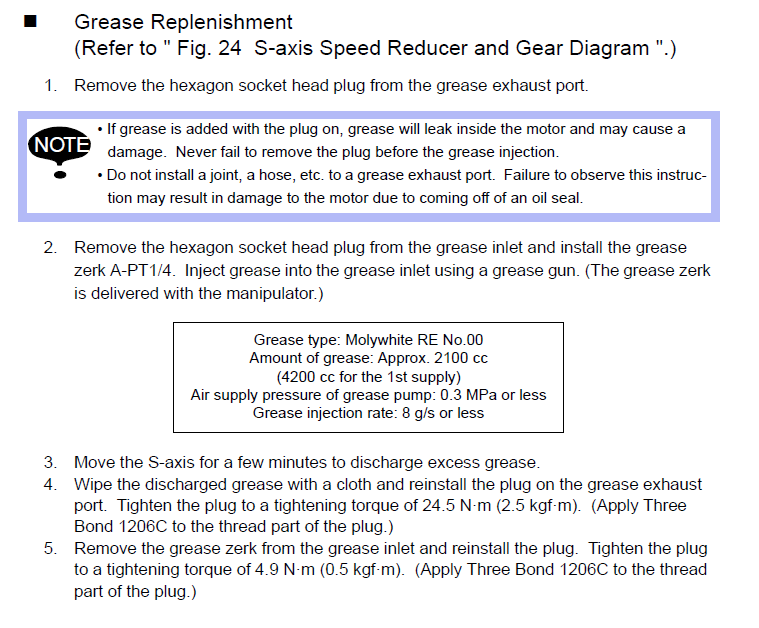

S-AXIS: 2100cc

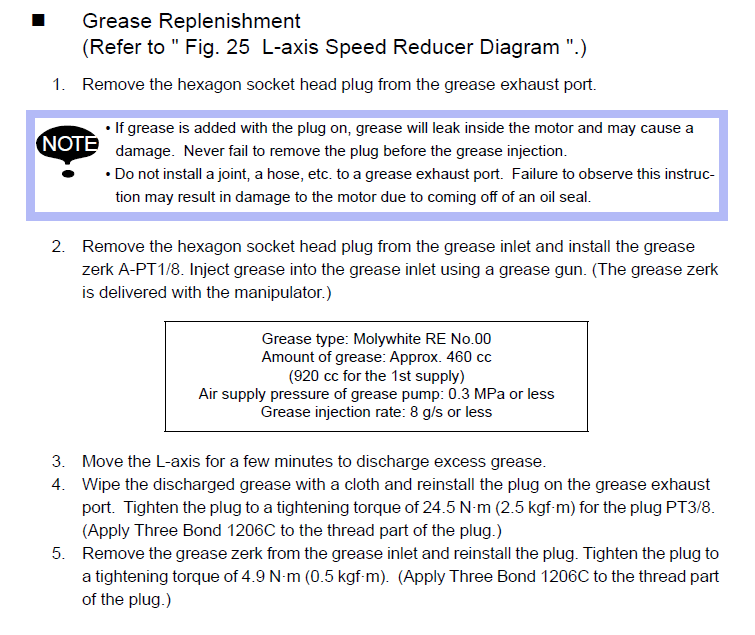

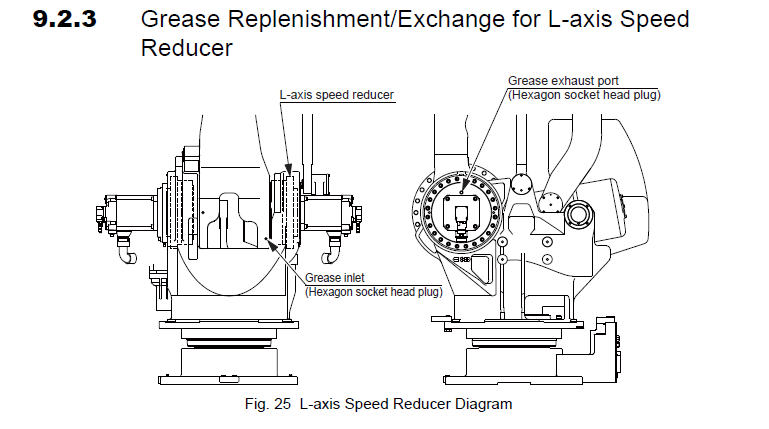

L-AXIS: 460cc

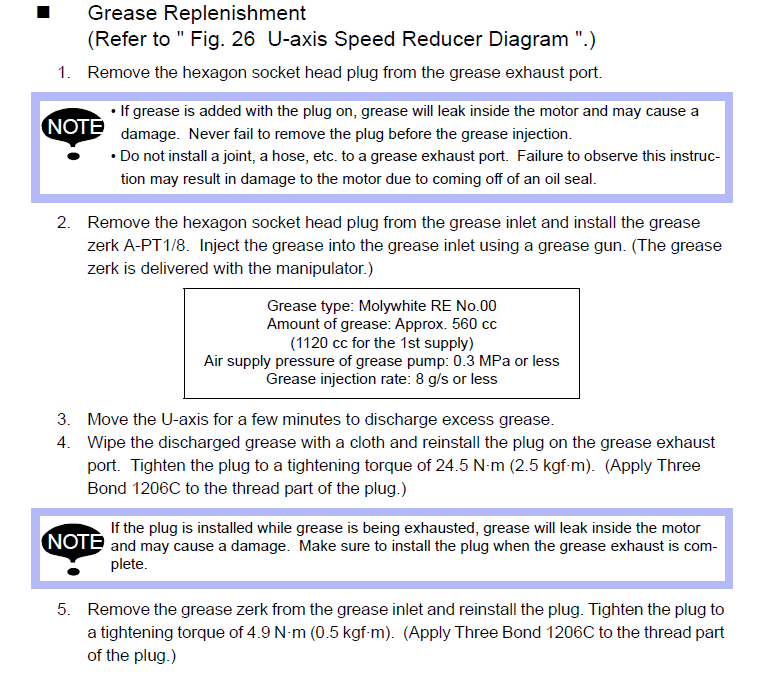

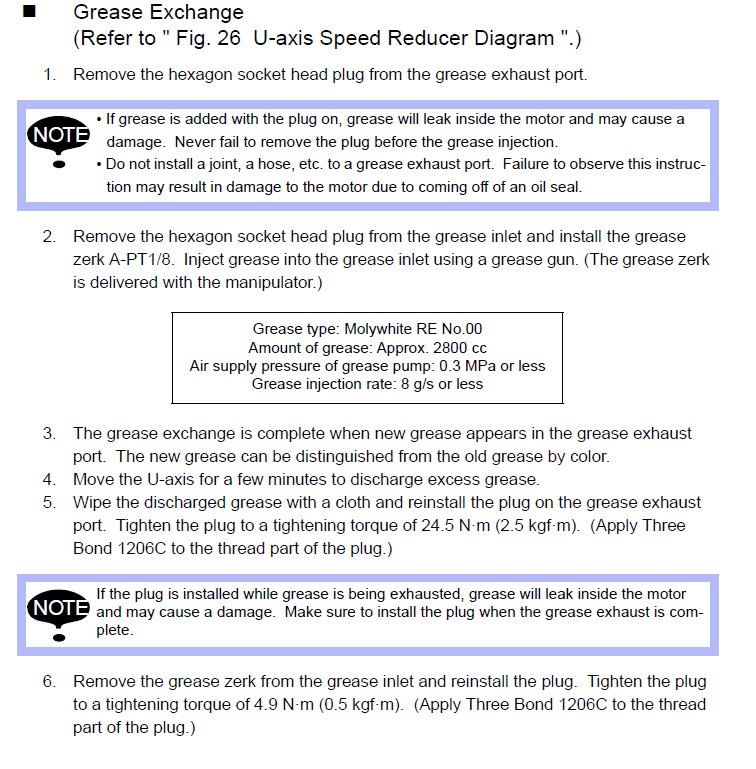

U-AXIS: 560cc

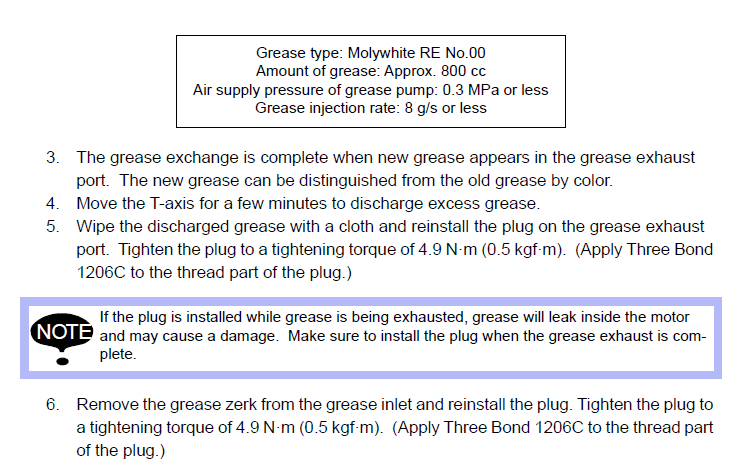

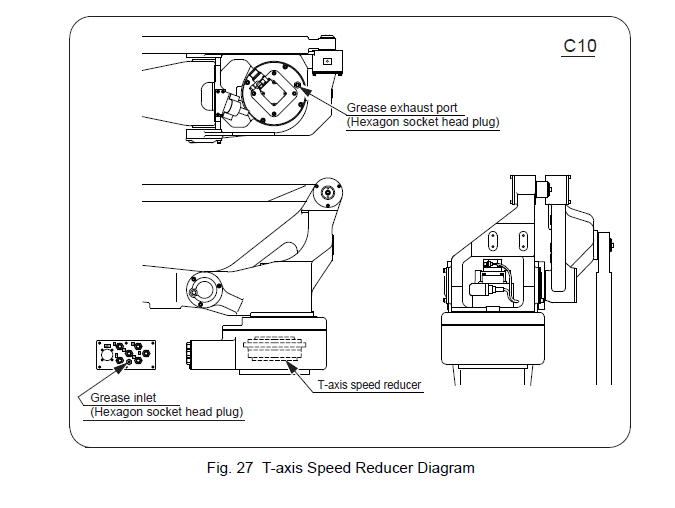

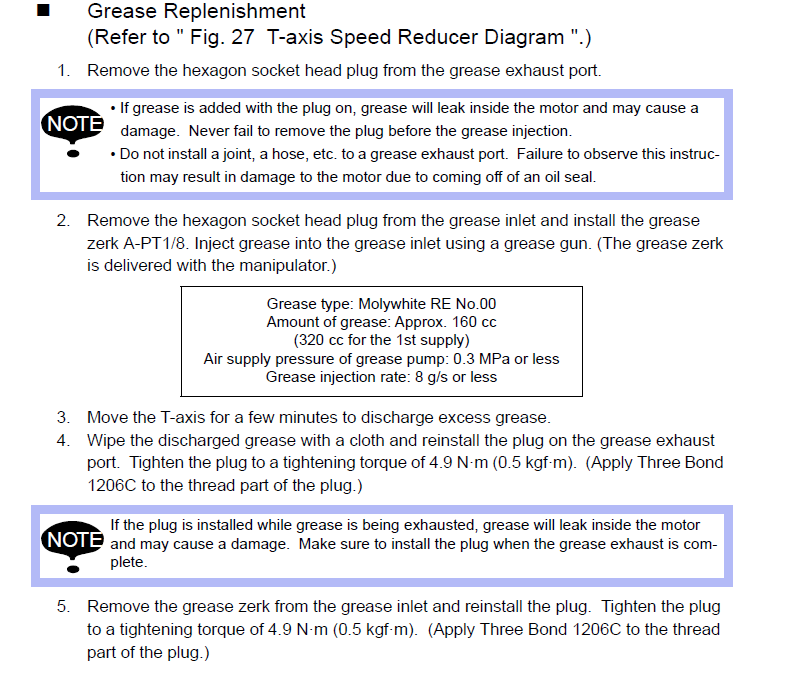

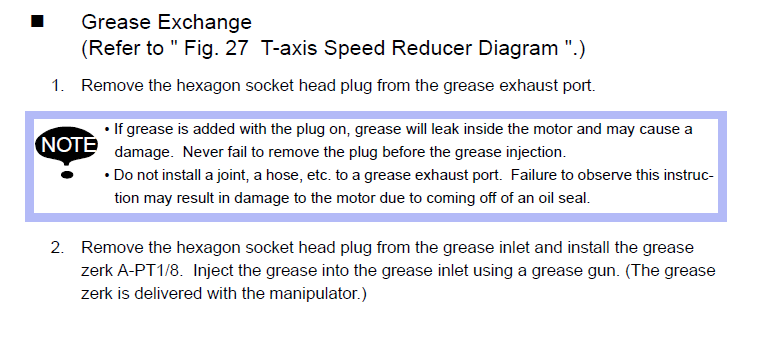

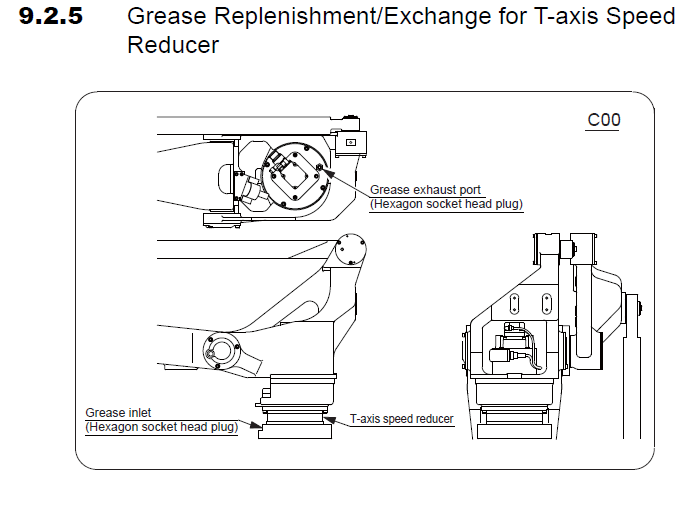

T-AXIS: 160cc

Alvania EP2

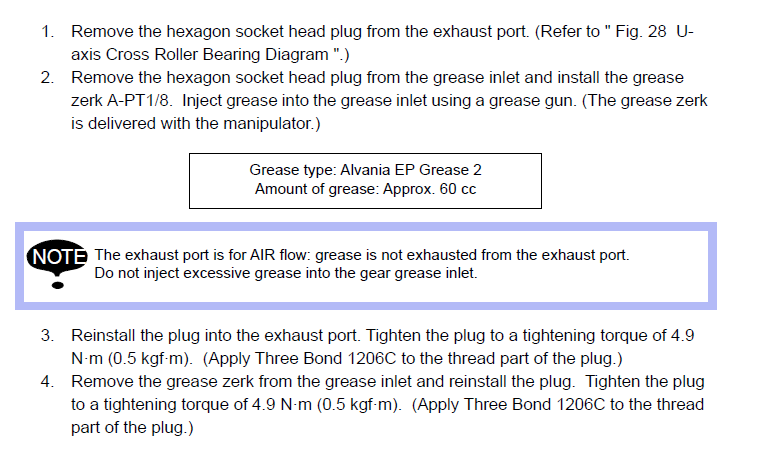

U-AXIS CROSS ROLLER BEARING: 60cc
