Grease Procedure (PM) EPL500 / YR-EPL500-A10 Manipulator

Model Covered: YR-EPL500-A10

Material Required:

VIGO Grease RE No.0 151945-1

Alvania EP Grease 2 132177-1

Three Bond 1206C 479014-6

Amount Of Grease:

VIGO

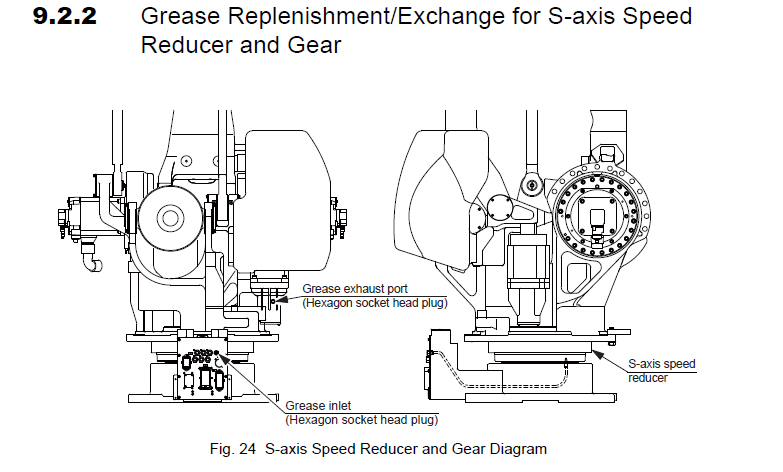

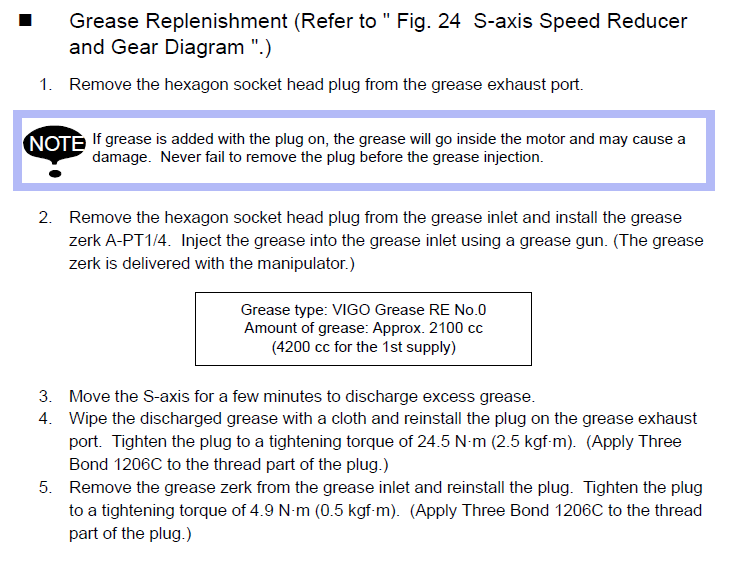

S-AXIS: 2100cc

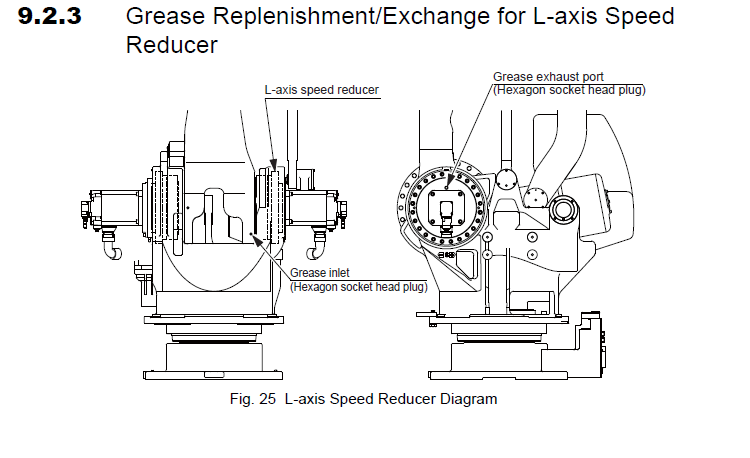

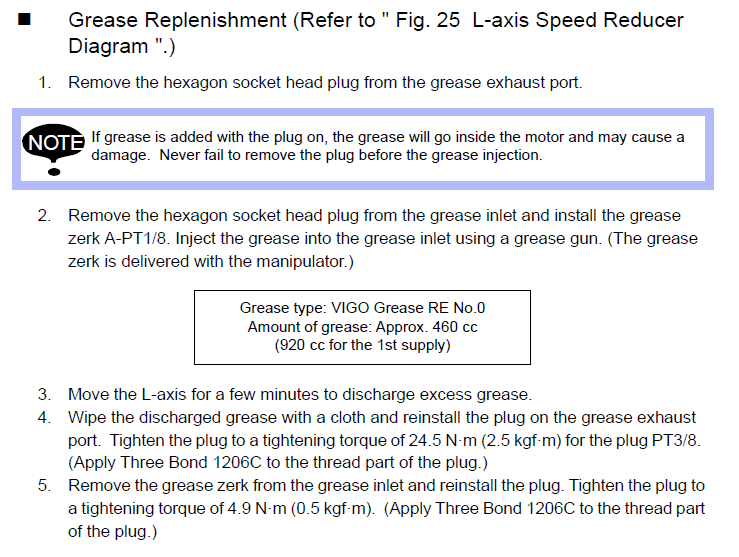

L-AXIS: 460cc

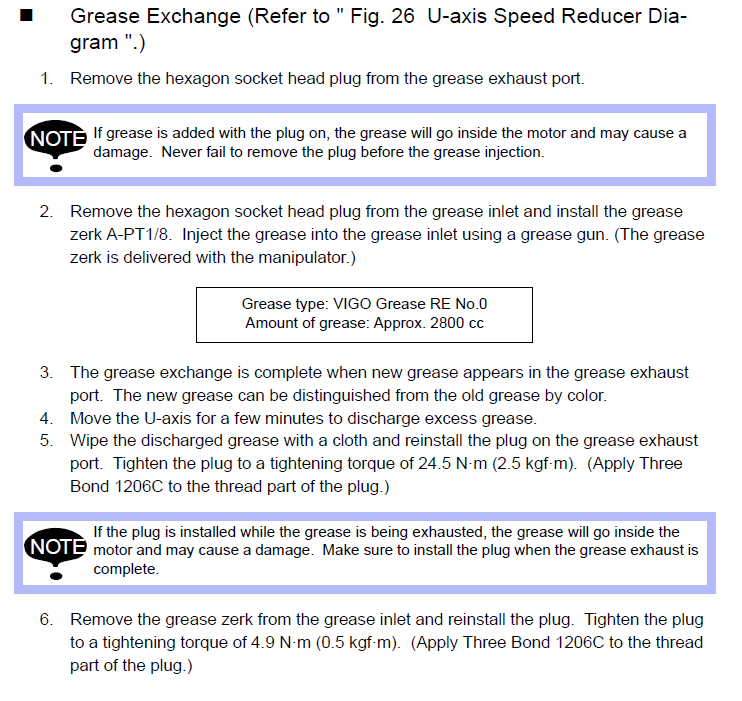

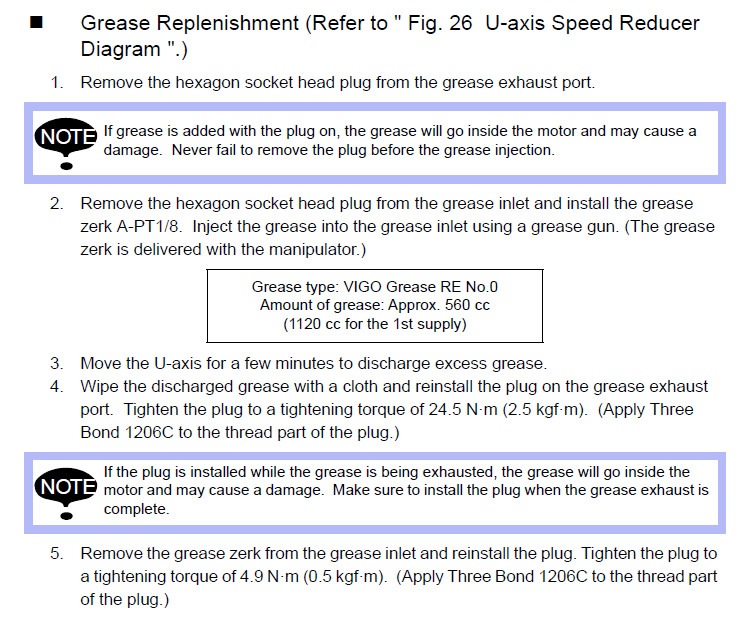

U-AXIS: 560cc

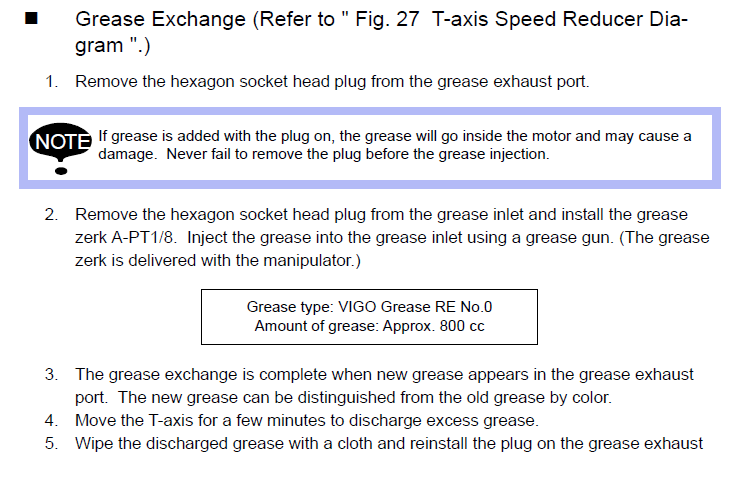

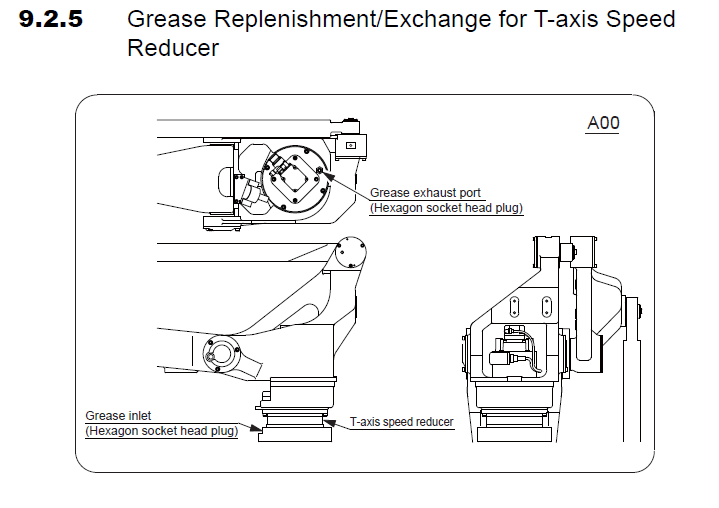

T-AXIS: 160cc

ALVANIA EP2

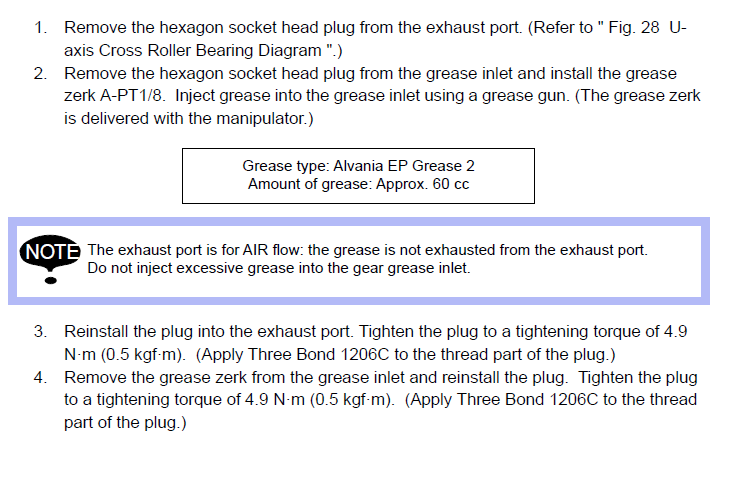

U-AXIS CROSS ROLLER BEARING: 60cc
