Grease Procedure (PM) HP3XF / YR-HP3XF-A00 Manipulator

Model Covered: YR-HP3XF-A00

Material Required:

Harmonic Grease 4B No.2 140087-1

Three Bond 1206C 479014-6

Amount Of Grease:

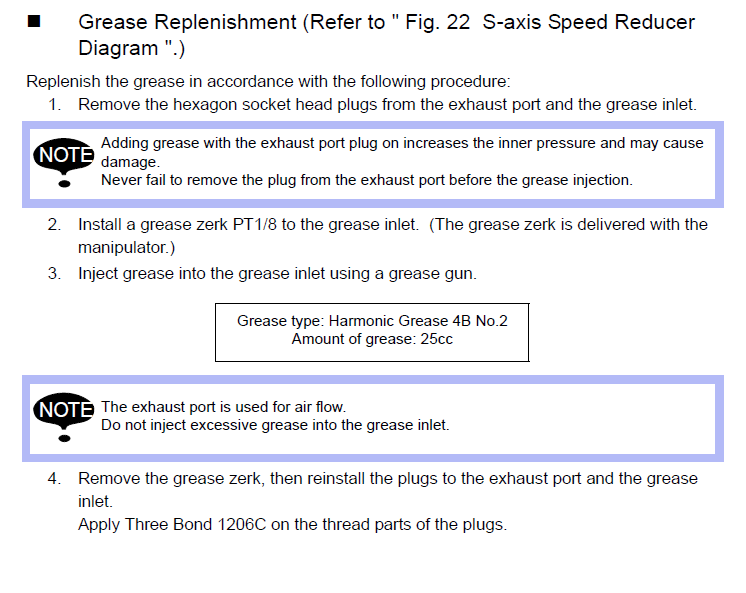

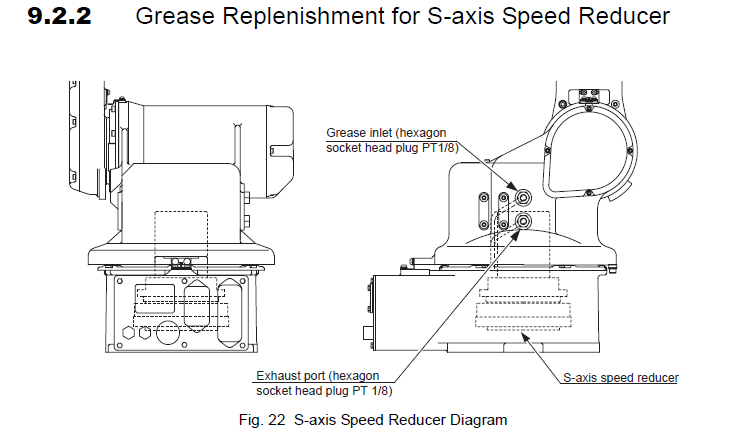

S-AXIS: 25cc

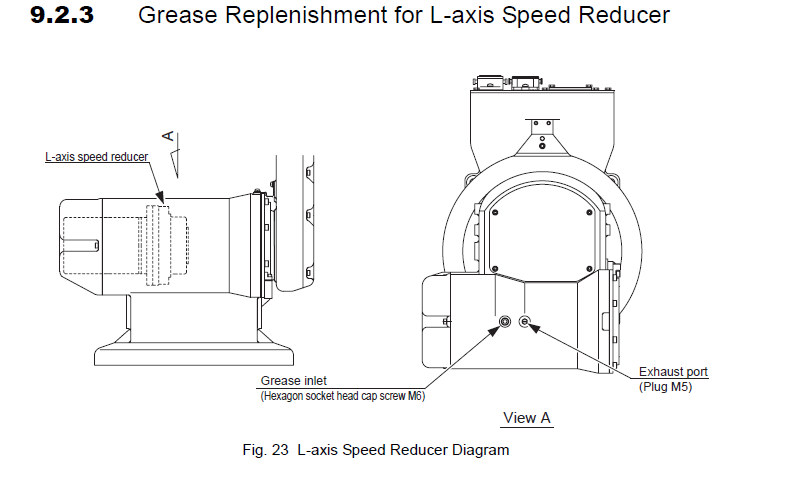

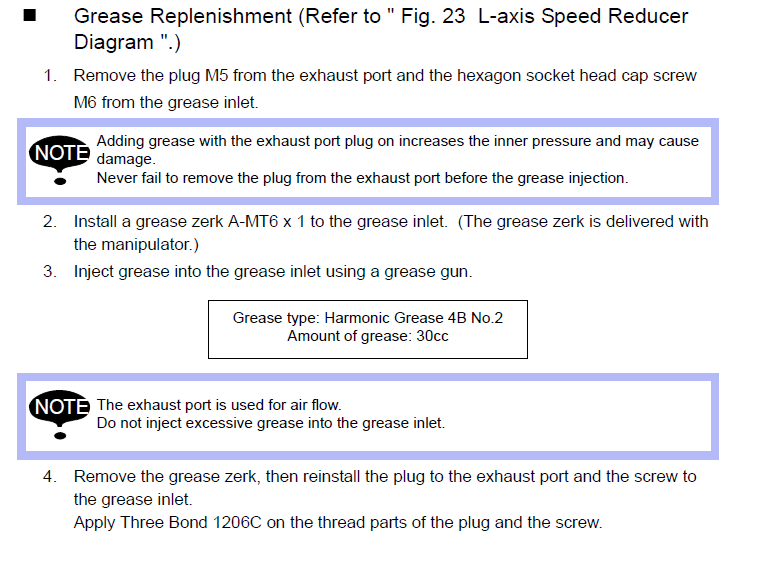

L-AXIS: 30cc

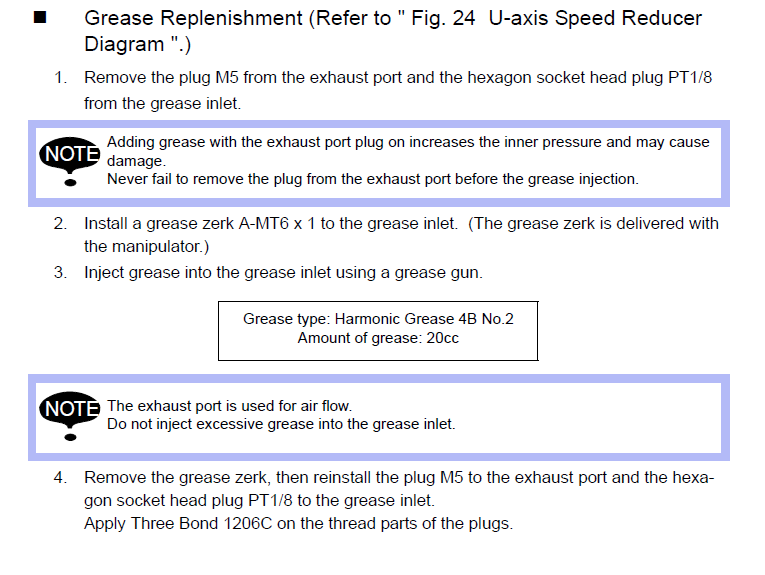

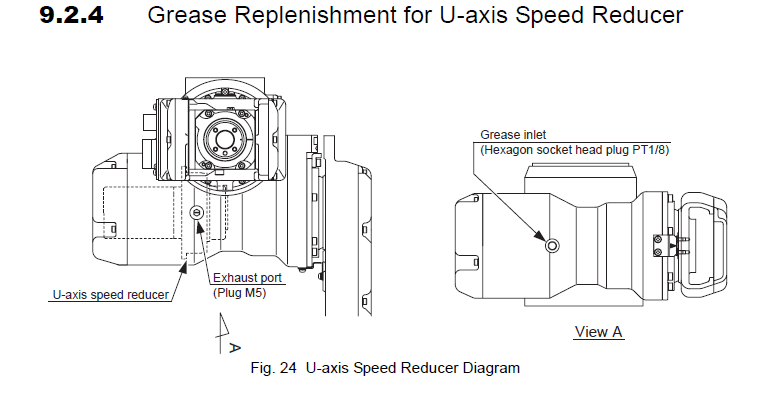

U-AXIS: 20cc

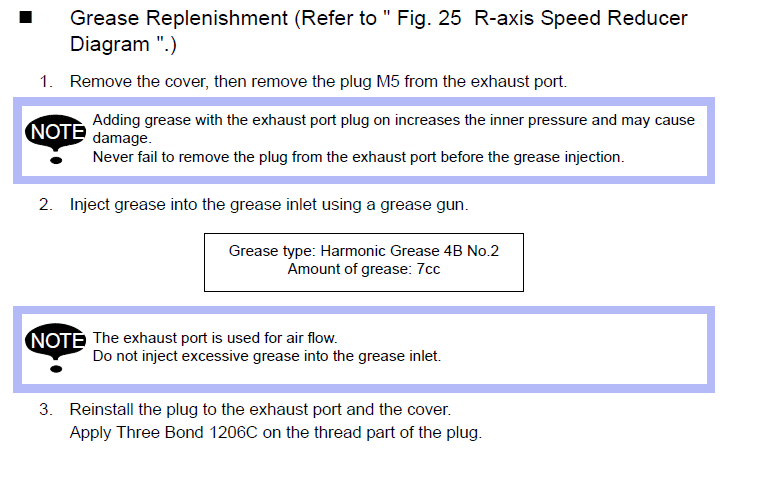

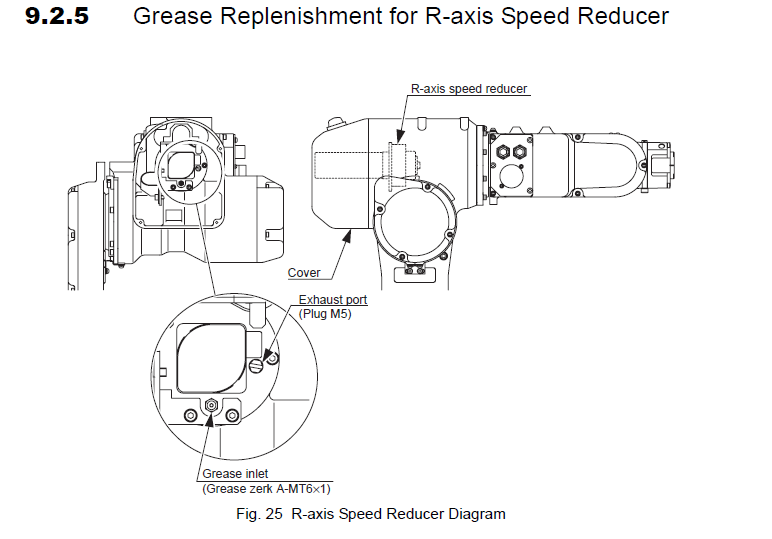

R-AXIS: 7cc

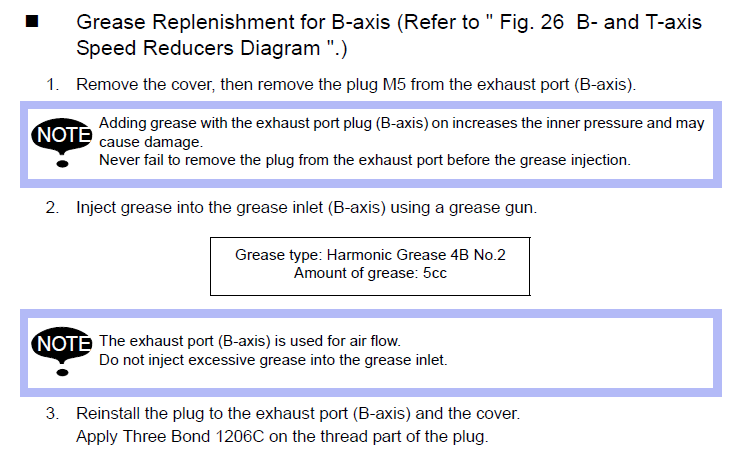

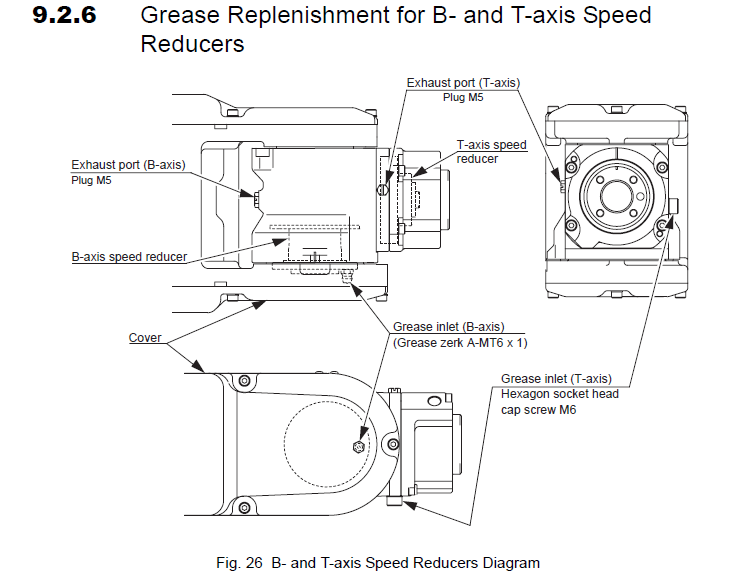

B-AXIS: 5cc

T-AXIS: 5cc
