Grease Procedure (PM) SSF2000S / YR-SSF6-A10 Manipulator

Model Covered: YR-SSF6-A10

Material Required:

VIGO Grease RE No.0 151945-1

Harmonic Grease SK-1A 479035-2

Alvania EP Grease 2 132177-1

Three Bond 1206C 479014-6

Amount Of Grease:

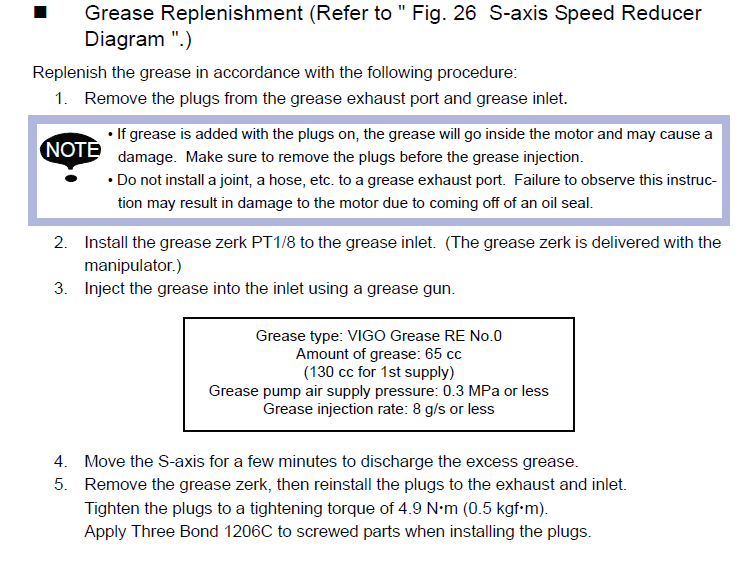

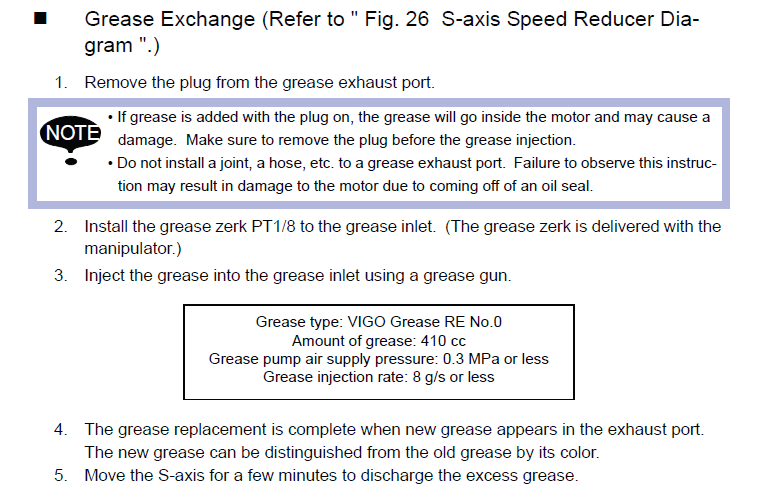

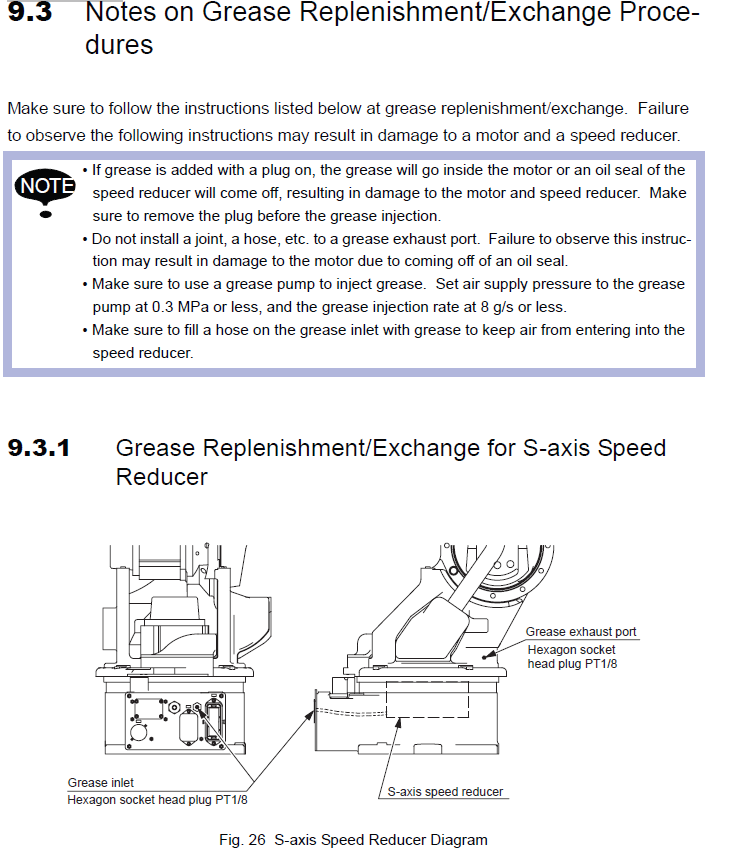

S-AXIS: VIGO 65cc

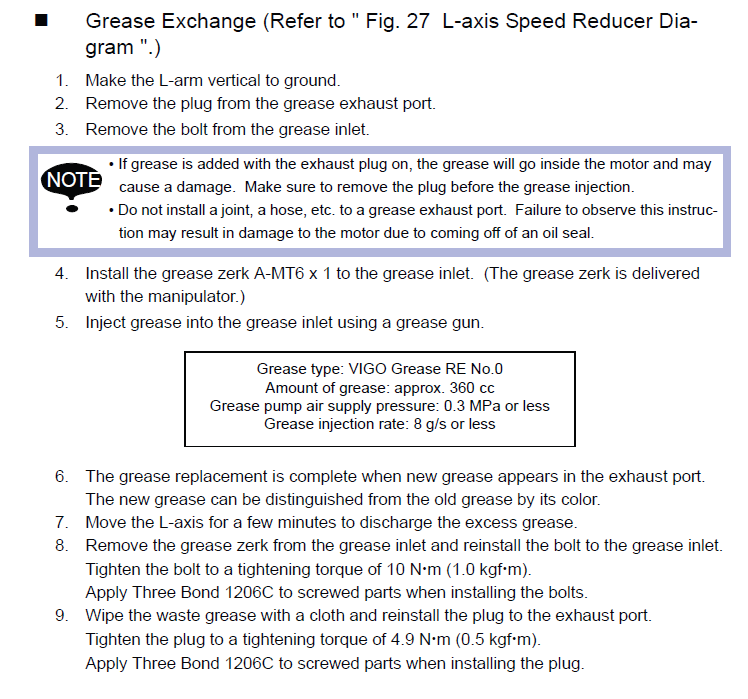

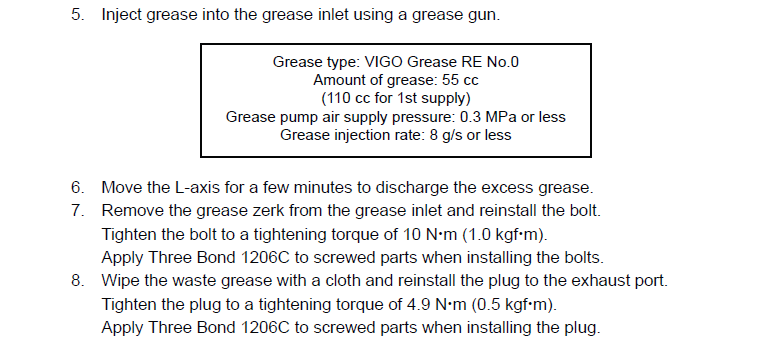

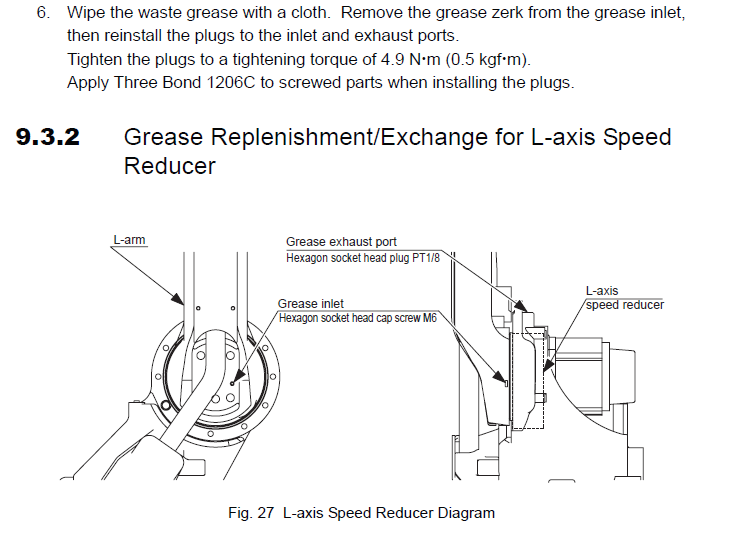

L-AXIS: VIGO 55cc

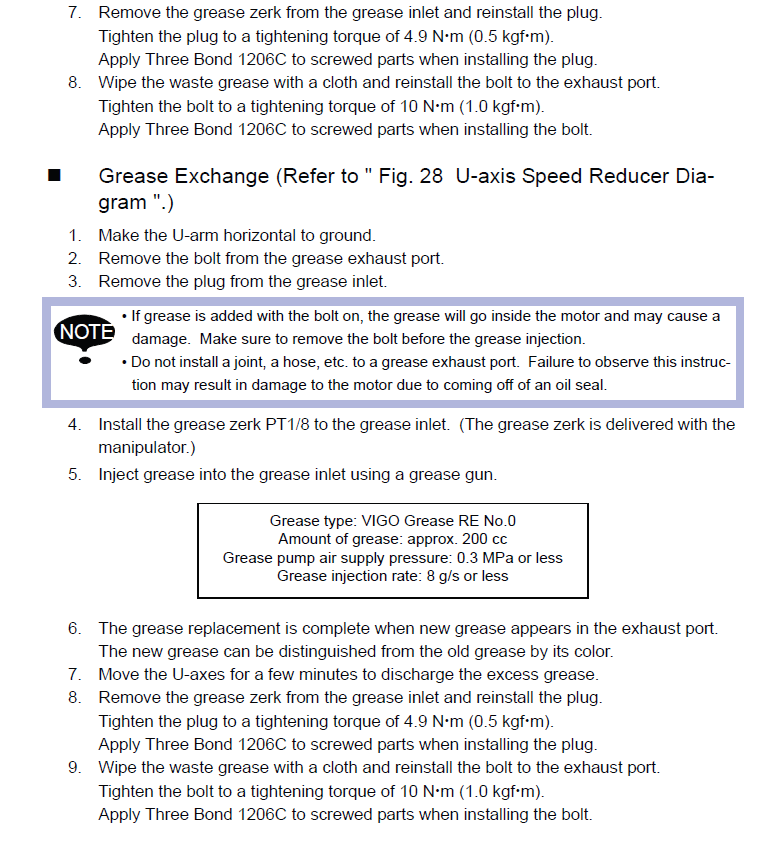

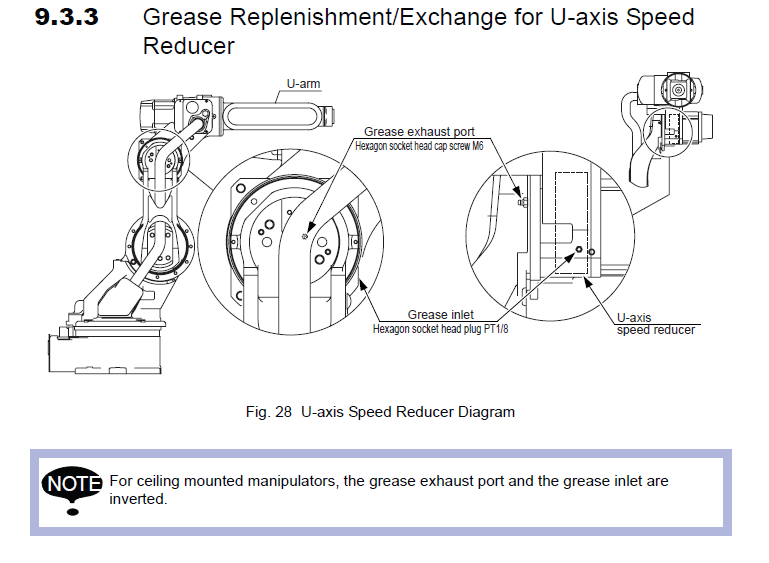

U-AXIS: VIGO 30cc

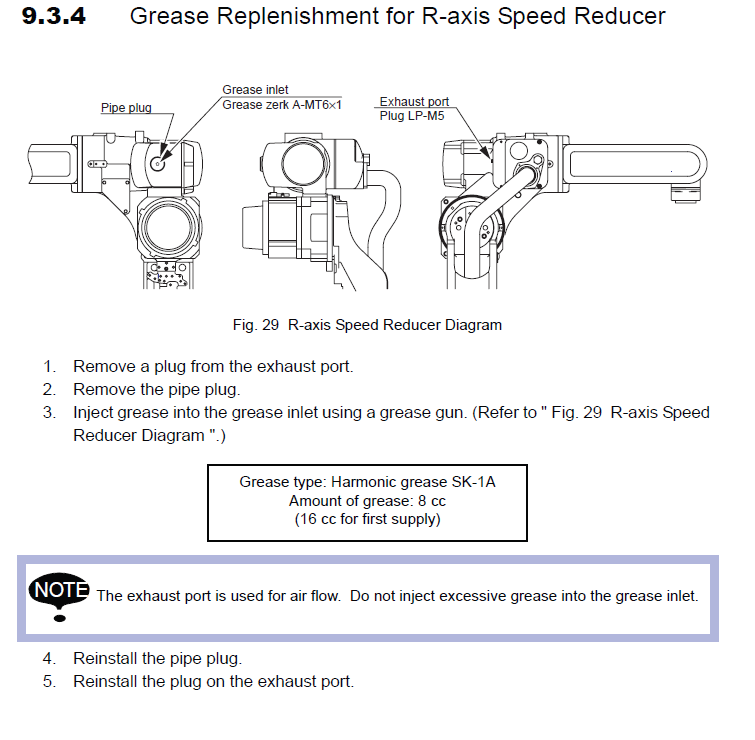

R-AXIS: SK-1A 8cc

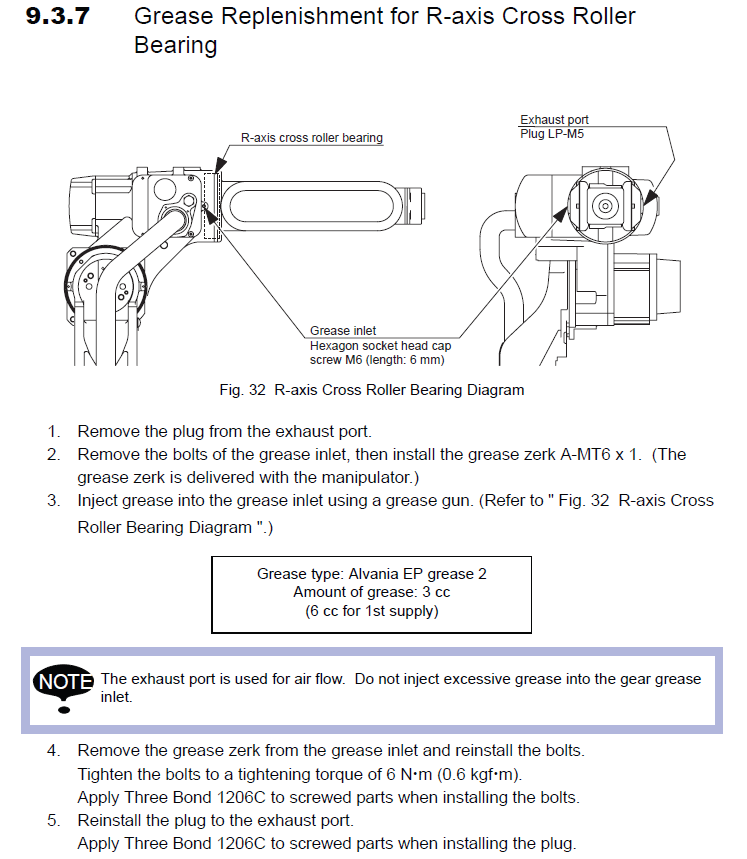

R-AXIS CROSS ROLLER BEARING: Alvania EP 2: 3cc

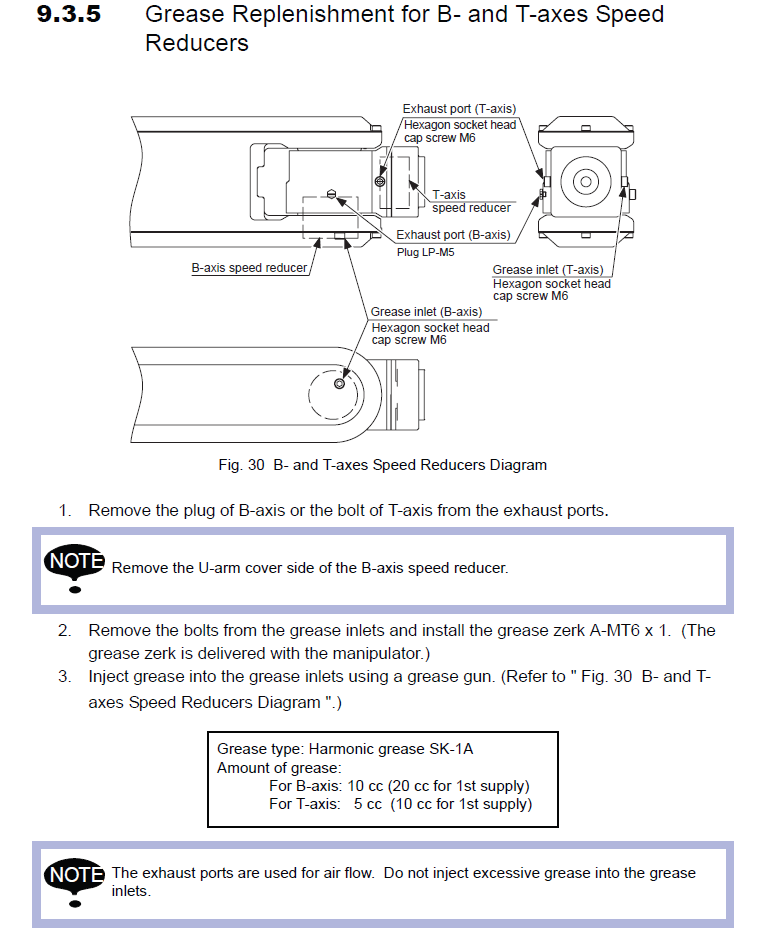

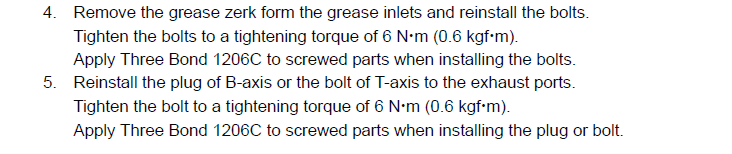

B-AXIS: SK-1A 10cc

T-AXIS: SK-1A 5cc

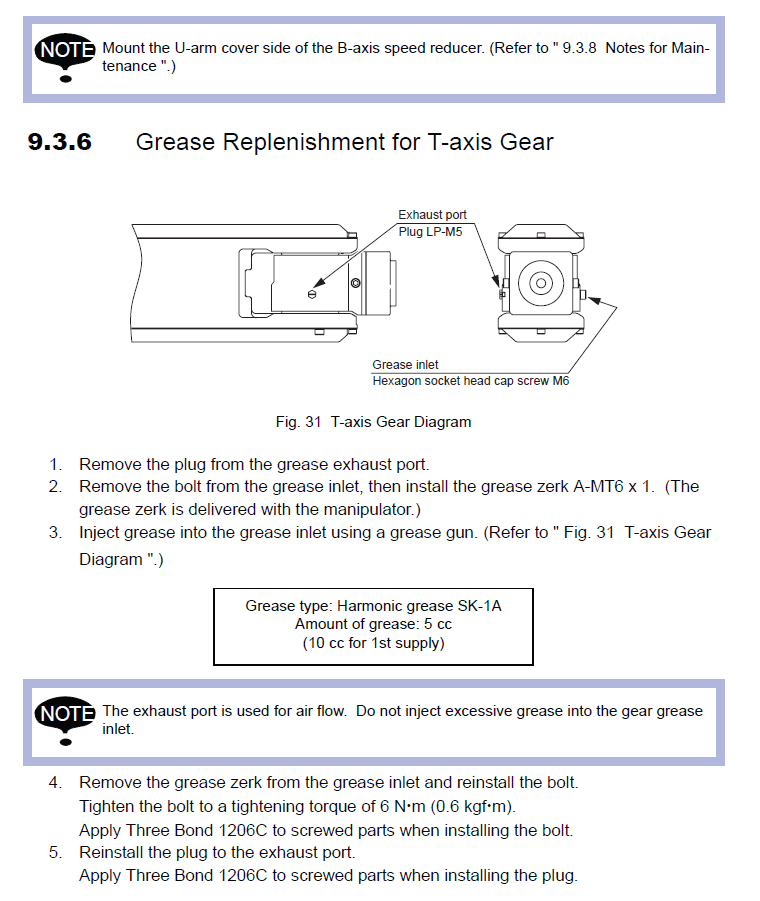

T-AXIS GEAR: SK-1A 5cc
