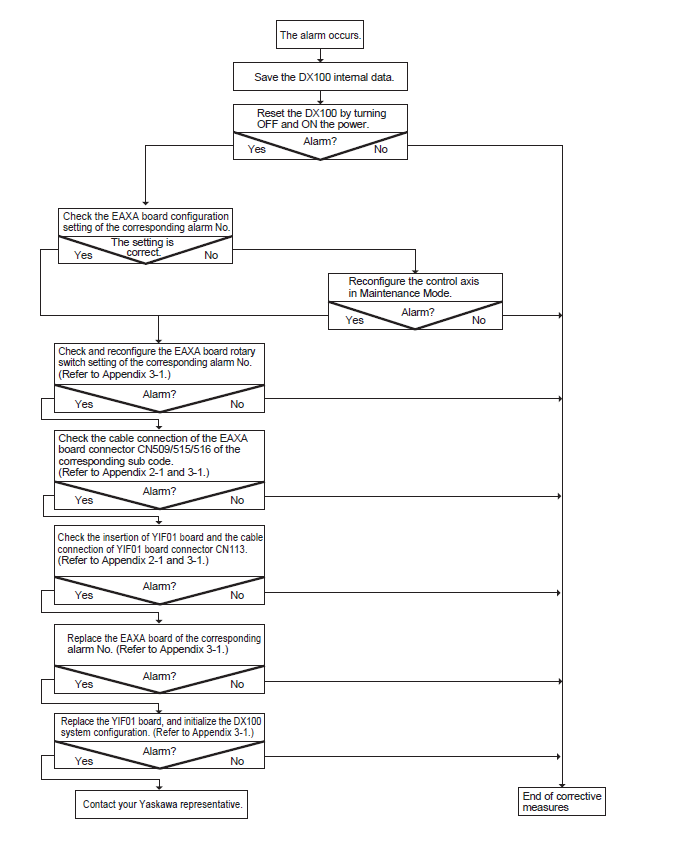

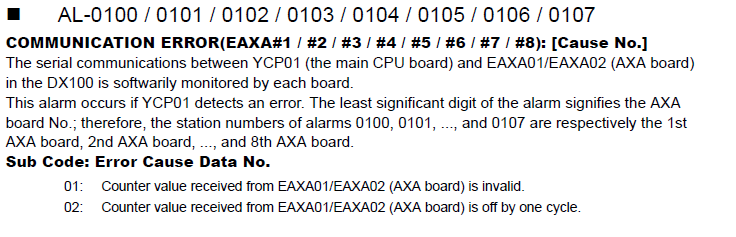

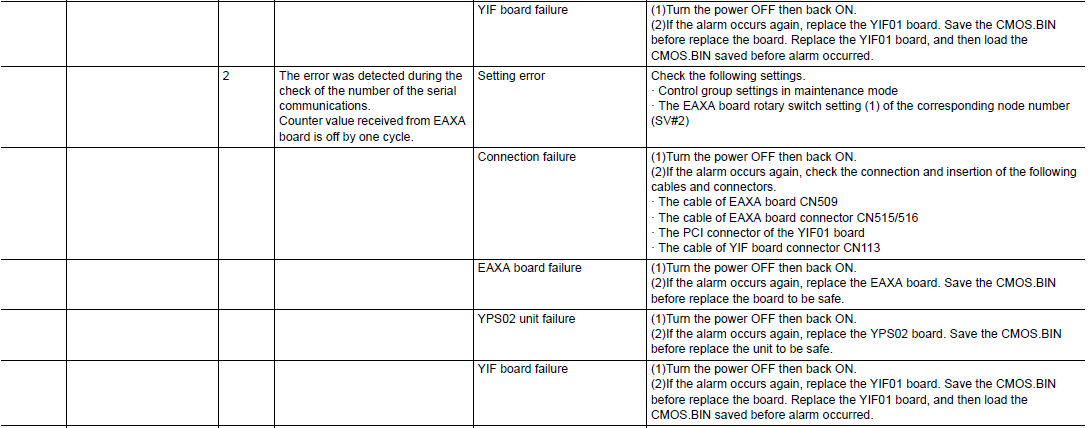

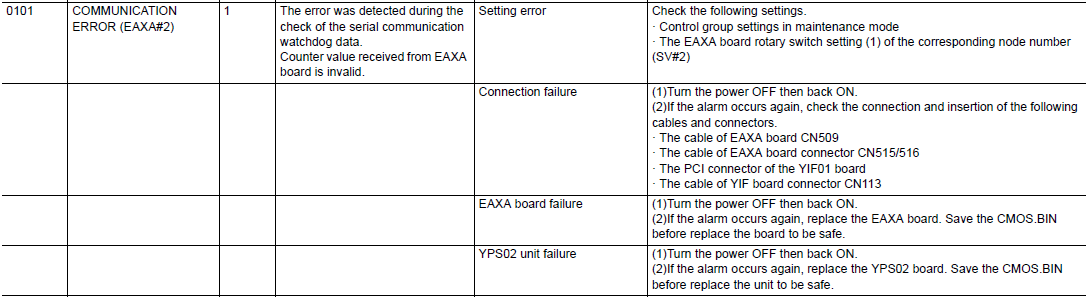

DX100 ALARM CODE 0101 COMMUNICATION ERROR (EAXA#2)

February 19, 2024 18:57
Updated

Was this article helpful?

1 out of 1 found this helpful
