Grease Replenishment (PM) MH24 / YR-MH00024-A00 Manipulator

Model Covered: YR-MH00024-A00

Materials Required:

If using a bucket pump :Molywhite RE No. 00 132412-1

If using a grease gun: 132412-2 GREASE, MOLY-WHITE #00, 14 OZ CARTRIDGE

HARMONIC GREASE SK-1A 479035-2

ALVANIA EP GREASE 2 132177-1

THREE BOND 1206C 479014-6

Amount Of Grease:

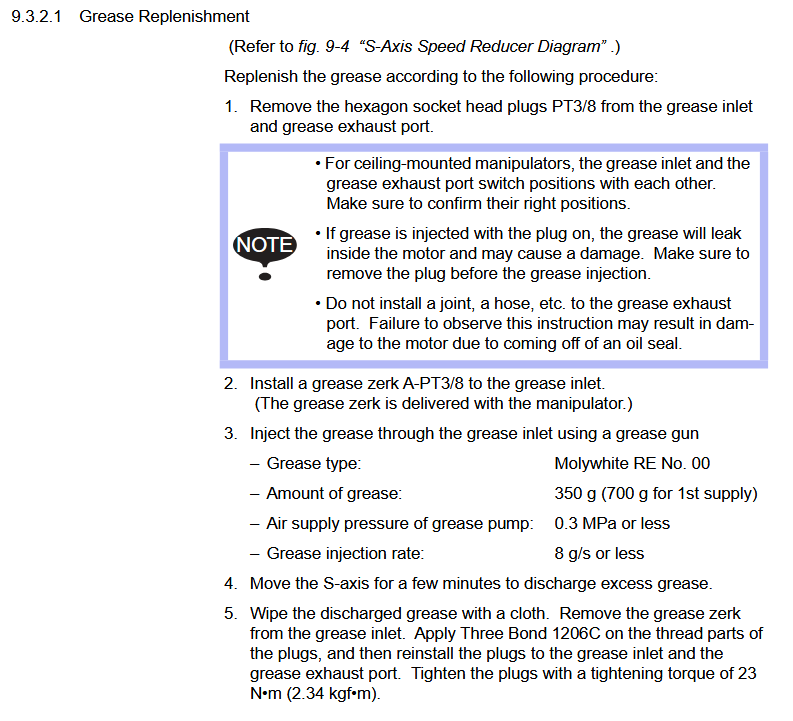

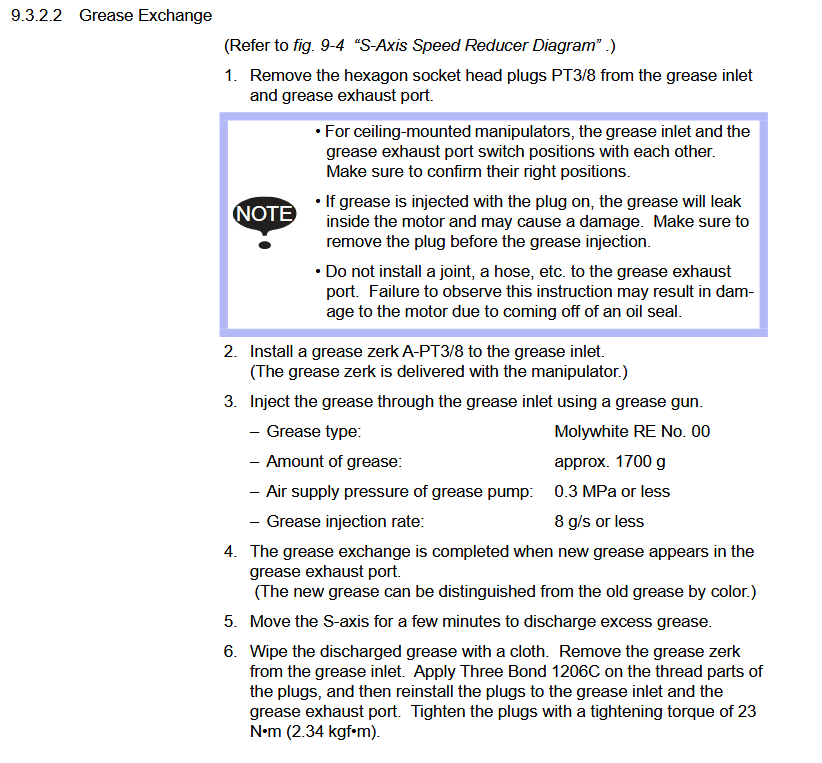

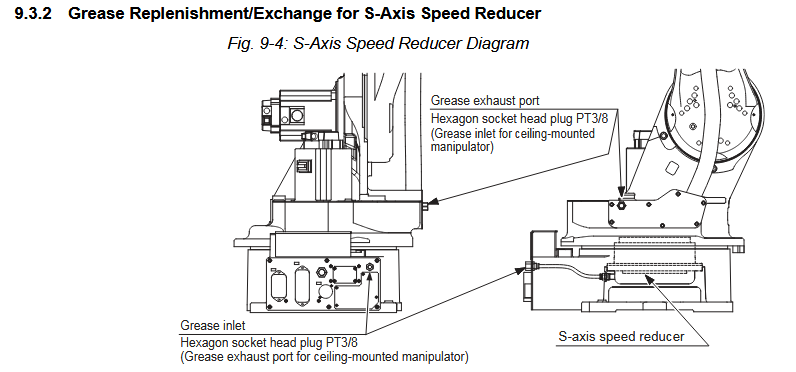

S-AXIS: 350 grams Molywhite

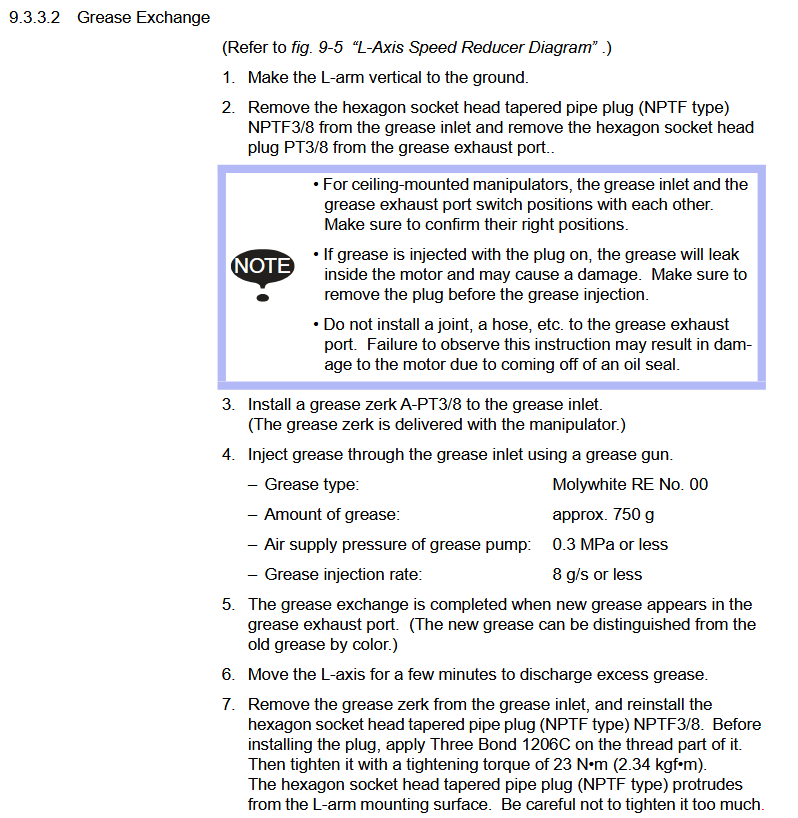

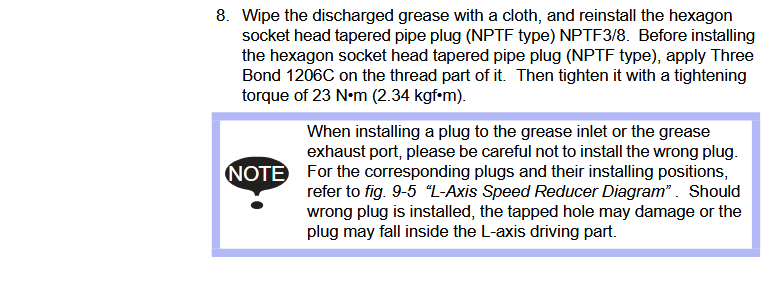

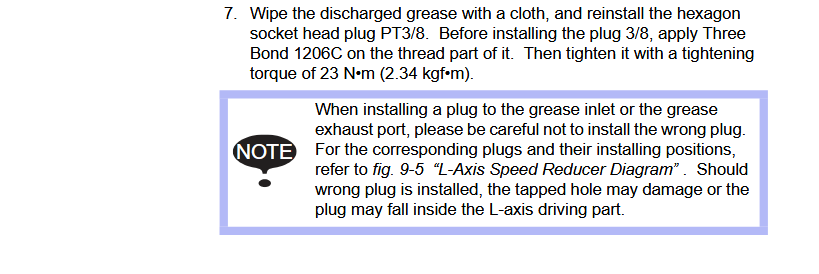

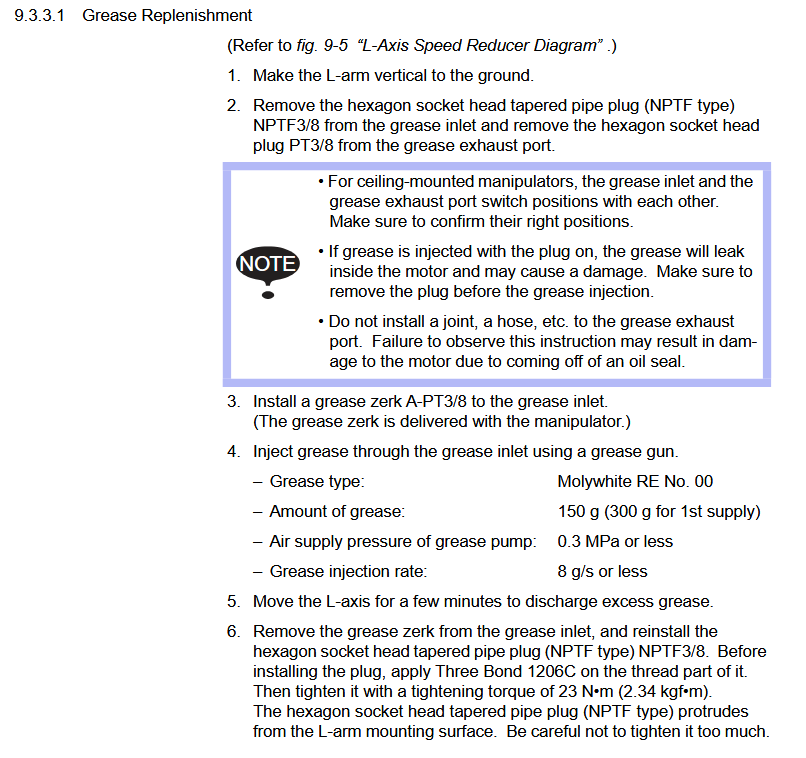

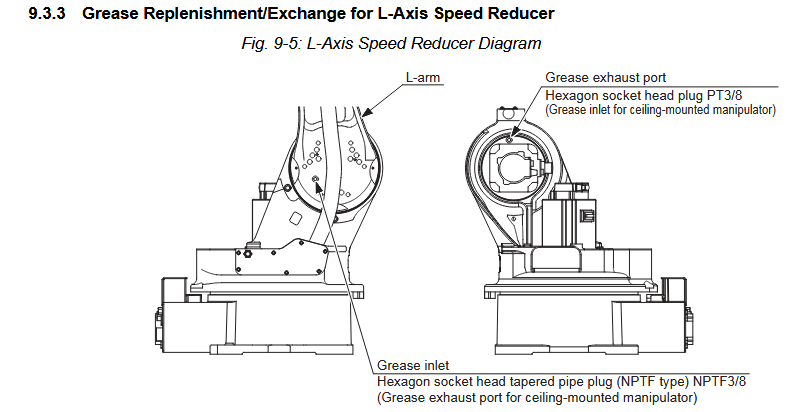

L-AXIS: 150 grams Molywhite

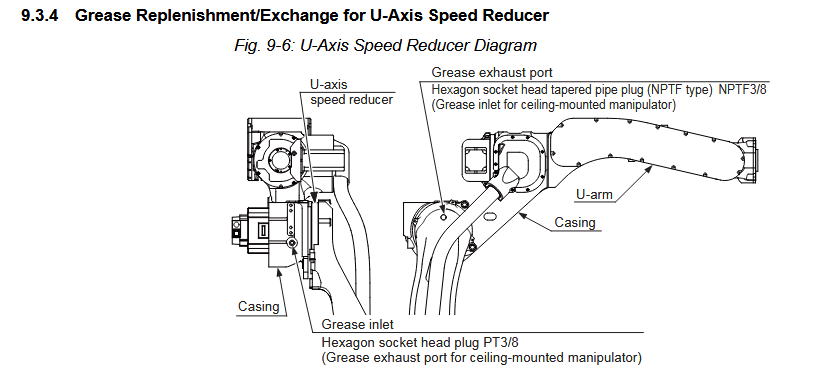

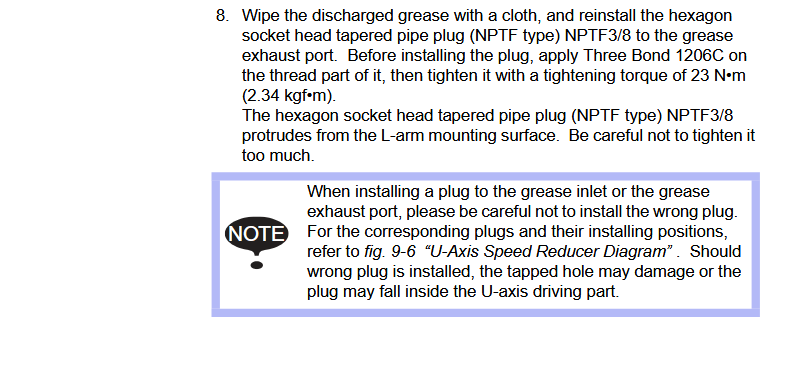

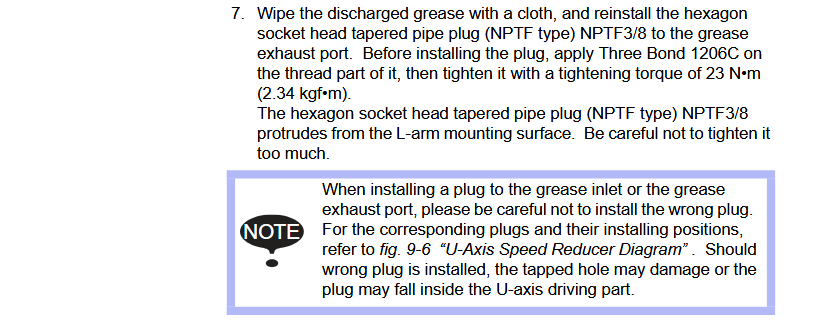

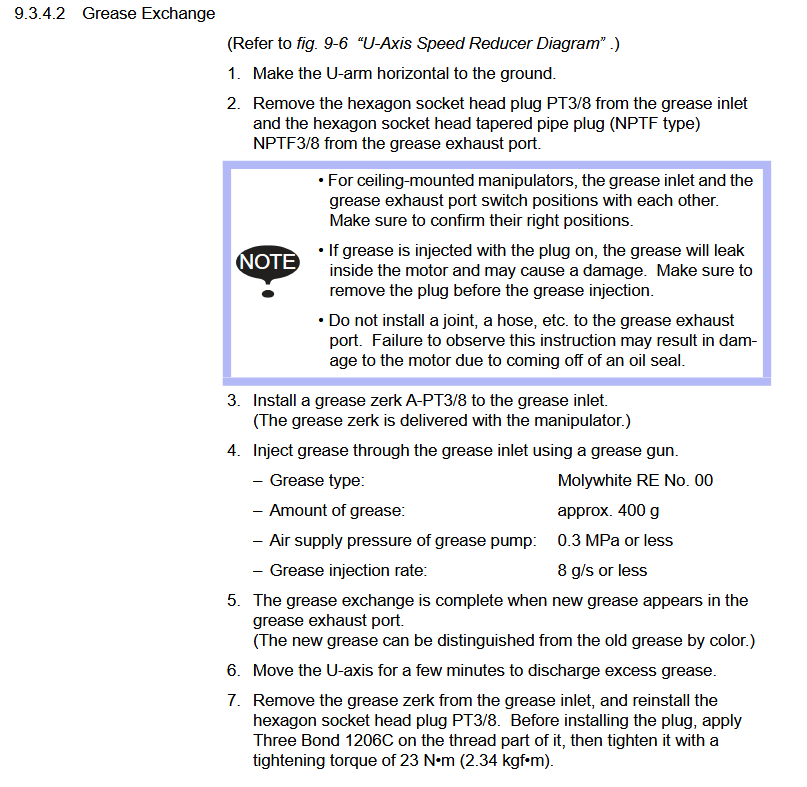

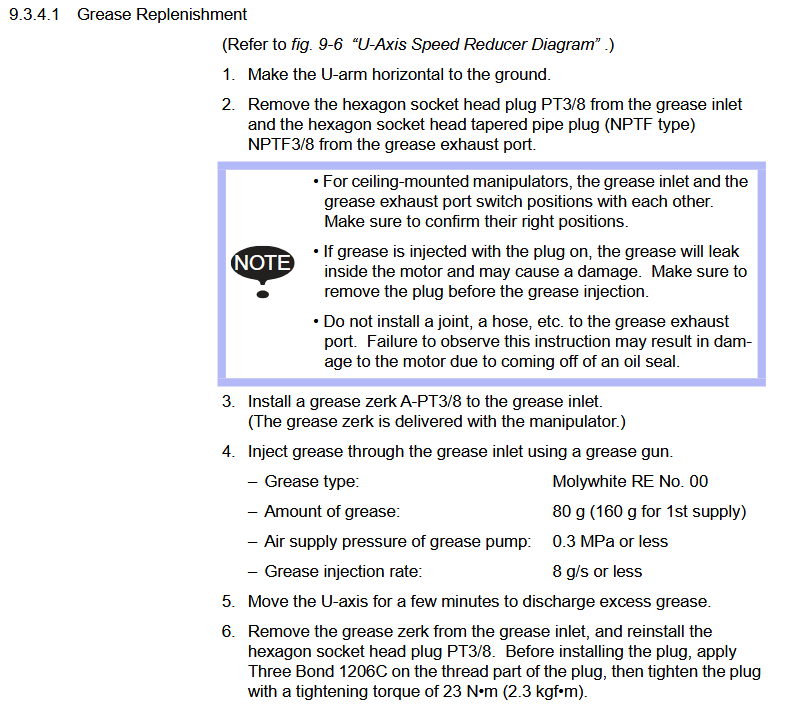

U-AXIS: 80 grams Molywhite

R-AXIS: 10 grams SK-1A

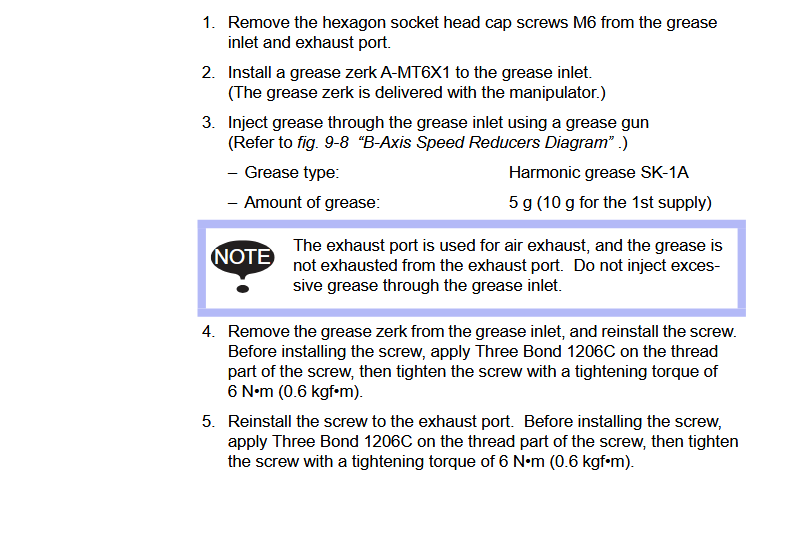

B-AXIS: 5 grams SK-1A

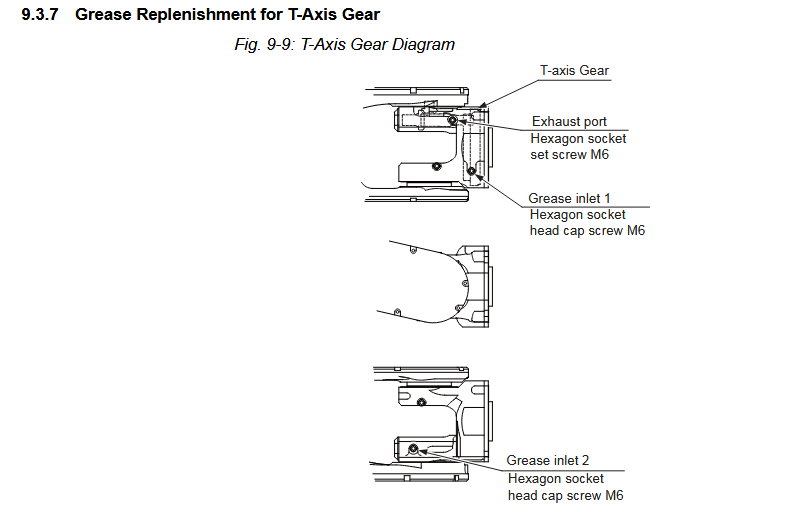

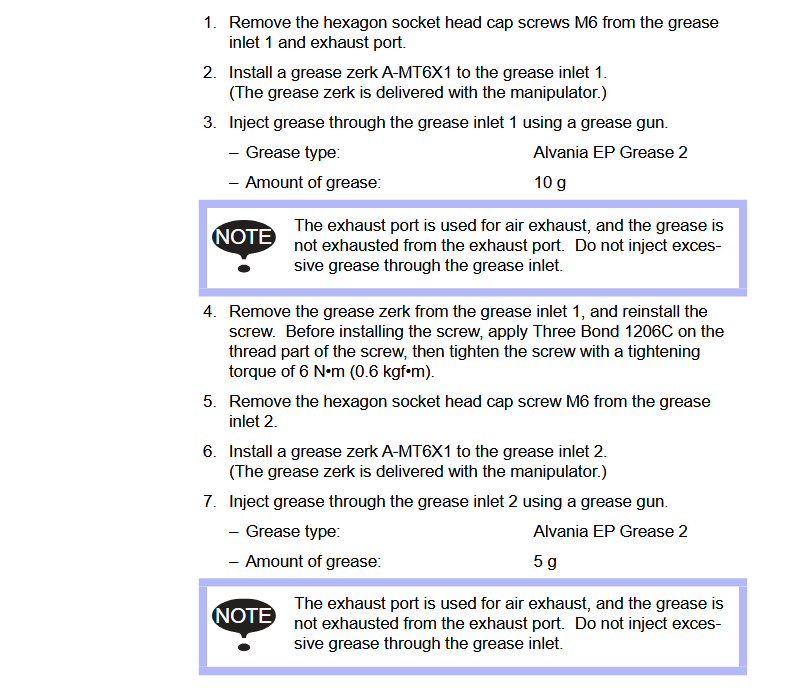

T-AXIS: 10 grams Alvania EP2 And 5 grams Alvania EP2

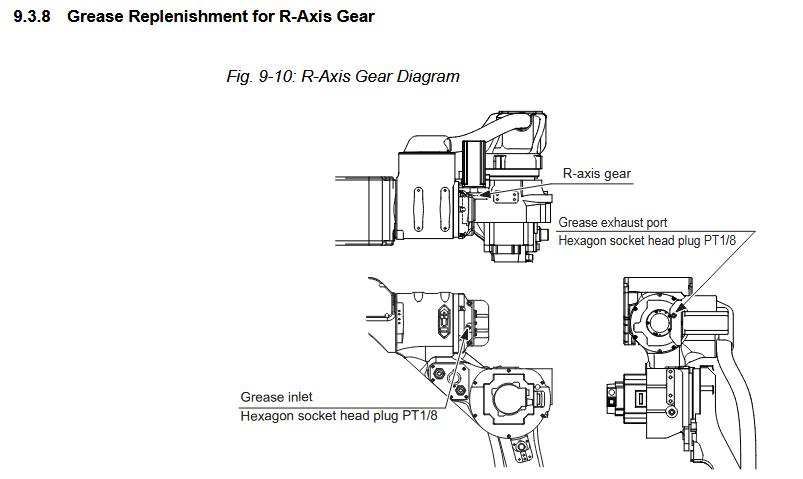

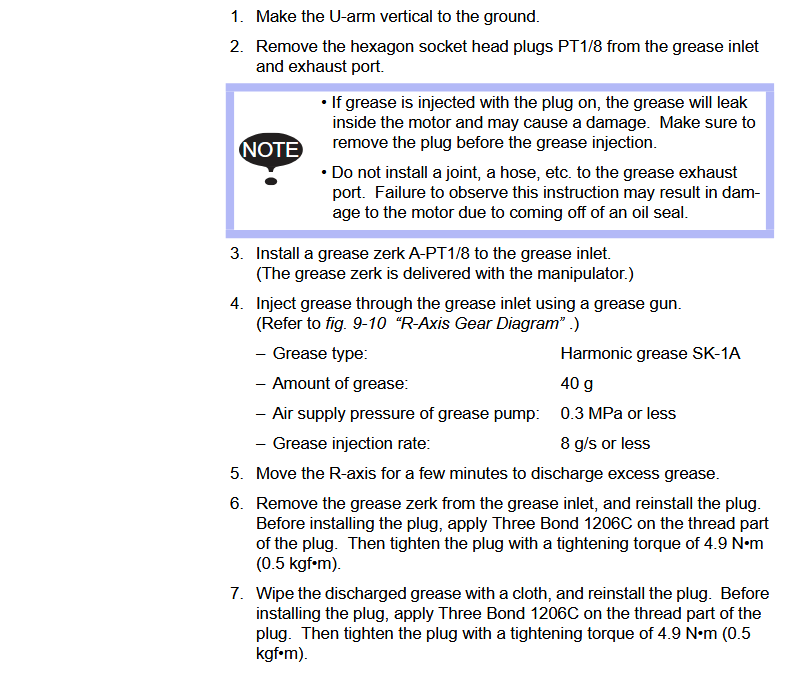

R-AXIS Gear: 40 grams SK-1A
