Things that are different from just changing out a gear set on a 750 to the new gear set.
Parts Needed.
| 140786-5 | BEARING, SLEWING, EXT GEAR | Qty 1 |
| 132609-9 | WASHER, CONICAL SPRING, M16, SST | Qty 12 |
| 130532-24 | SCREW, SHC, M16x2 X 55, CLASS12.9 | Qty 9 |
| 130532-6 | SCREW, SHC, M16 X 80 | Qty 3 |
| 164523-1 | SPACER, ACTUATOR, SWITCH | Qty 3 |
| 164344-1 | ACTUATOR, A-B POSITION | Qty 1 |
| 156907-2 | GEAR, DRIVE | Qty 1 |

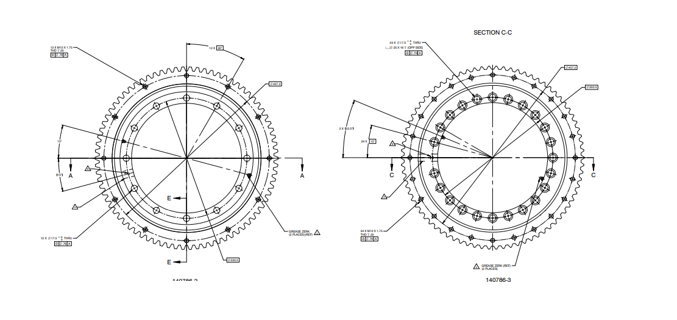

Gear Difference
Old Gear 140786-2 New Gear 140786-5
Note 12 holes Note 23 hole
Will need offset holes so all 12 holes line up.

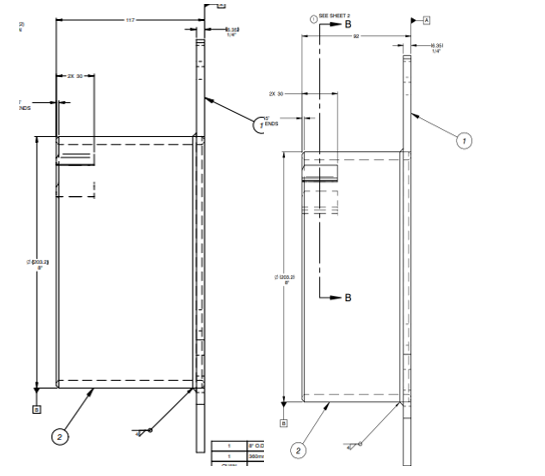

Top Hat Difference
Part 156934-1 Part 164344-1
Note 117mm Note 92mm
Need to change this out to make up for new gear size. This is also the reason for changing the bolts.
Note top hat stays in the same location. Make sure to mark location of bolts and detents for switches. It also needs part 164523-1 under each bolt hole.
