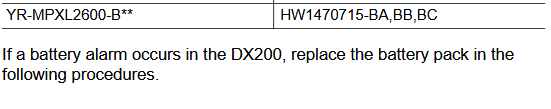

Model Covered: YR-MPXL2600-B00
Material Required:
BATTERY, ASSY, HW1471600-BA HW1471600-BA/191140-1

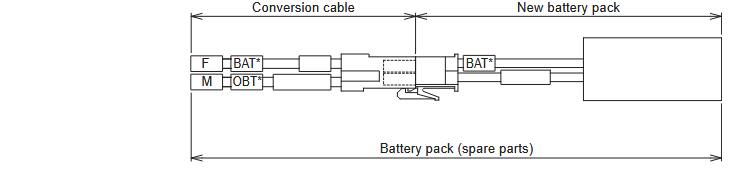

| For S-, L-axis encoder (B**), HW1470715-BA with conversion cable |
BATTERY, ASSY, HW1471600-BB HW1471600-BB/191141-1
For U-, R-axis encoder (B**), HW1470715-BB with conversion cable
BATTERY, ASSY, HW1471600-BC HW1471600-BC/191142-1
For B-, T-axis encoder (B**), HW1470715-BC with conversion cable
