Battery Replacement MPX2600 / YR-MPX2600-A00 Manipulator

Model Covered: YR-MPX2600-A00

Material Required:

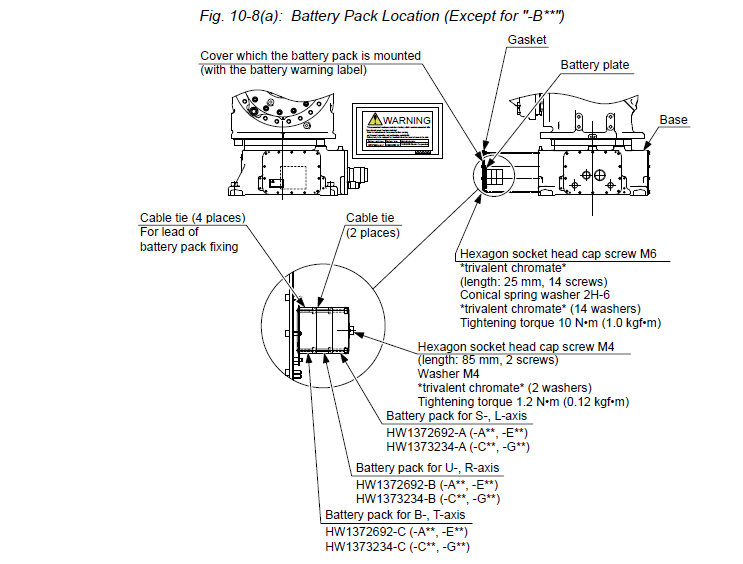

BATTERY, PACK, S/L AXIS, HW1471600-CA HW1471600-CA/192773-1

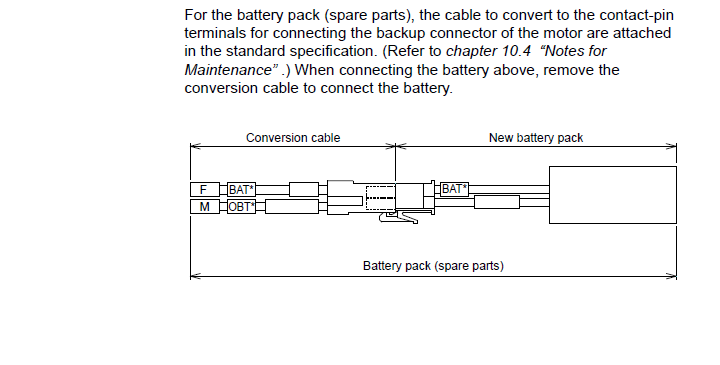

For S-, L-axis encoder (Except for B**, C**, G**) (HW1372692-A with conversion cable)

BATTERY, PACK, U/R AXIS, HW1471600-CB HW1471600-CB/192774-1

For U-,R-axis encoder (Except for B**, C**, G**) (HW1372692-B with conversion cable)

BATTERY, PACK, B/TAXIS, HW1471600-CC HW1471600-CC/192775-1

For B-,T-axis encoder (Except for B**, C**, G**) (HW1372692-C with conversion cable)

TAPE, PIPE, TEFLON, 1/2 IN X 1296 IN,TB-4501/151720-1
