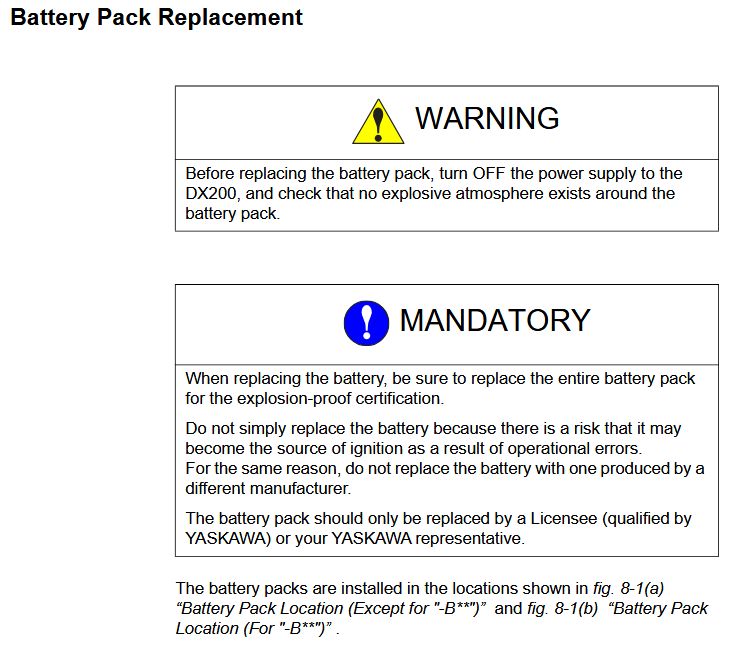

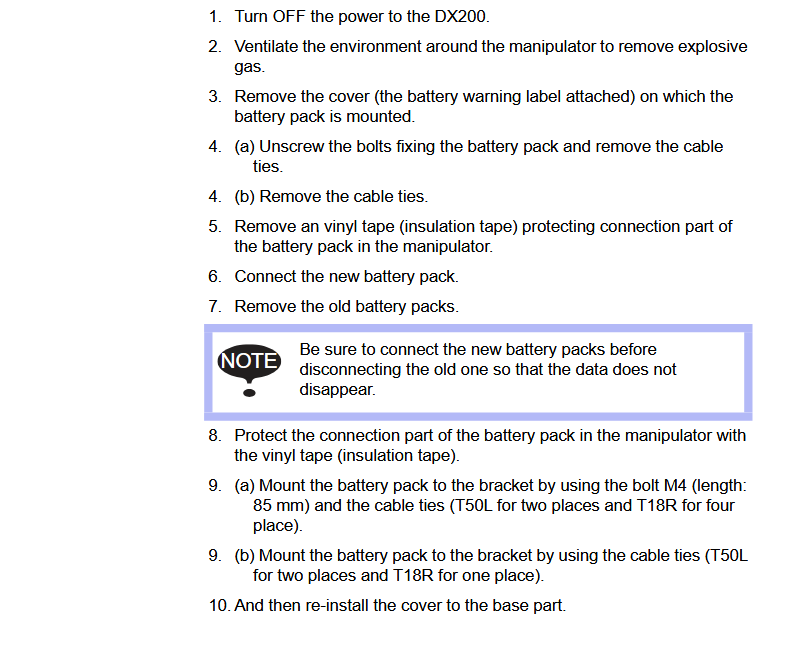

Battery Replacement MPX2600 / YR-MPX2600-B00 Manipulator

Model Covered: YR-MPX2600-B00

Material Required:

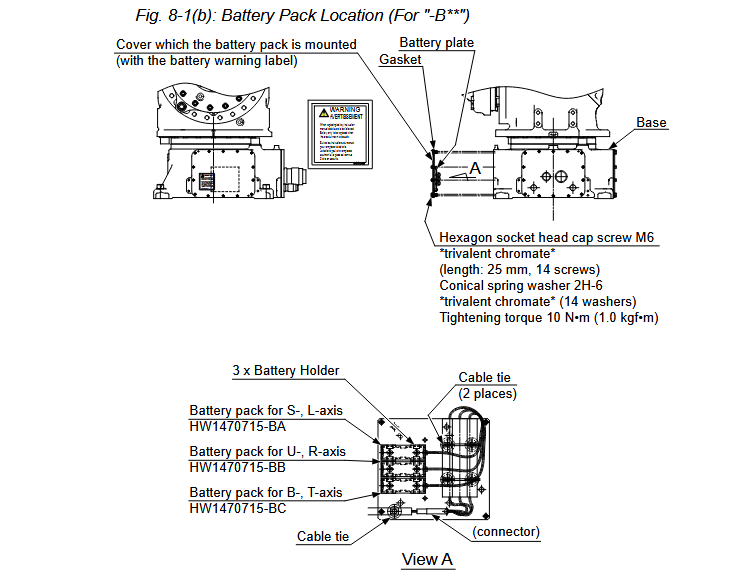

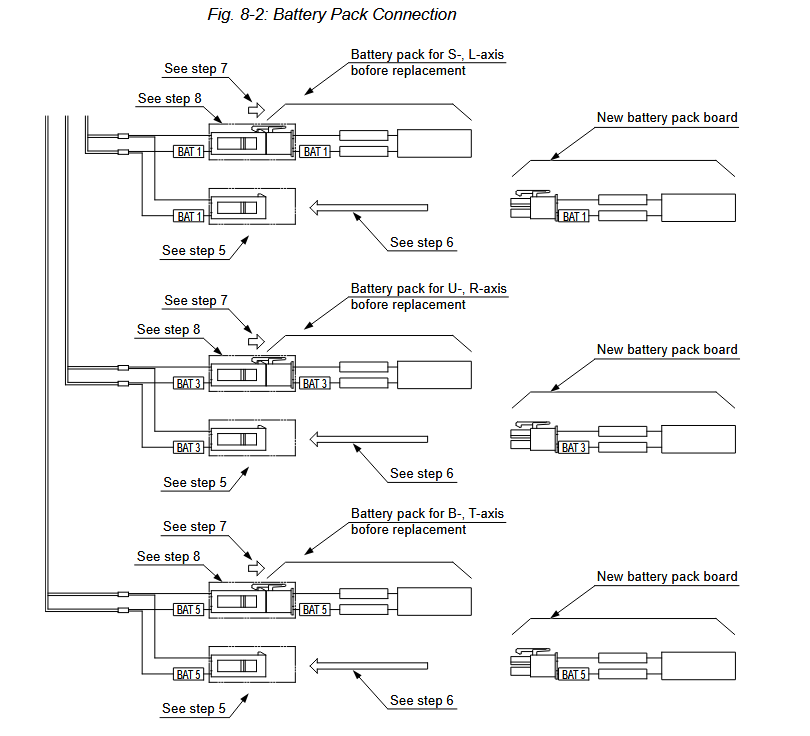

BATTERY, ASSY, HW1471600-BA HW1471600-BA/191140-1

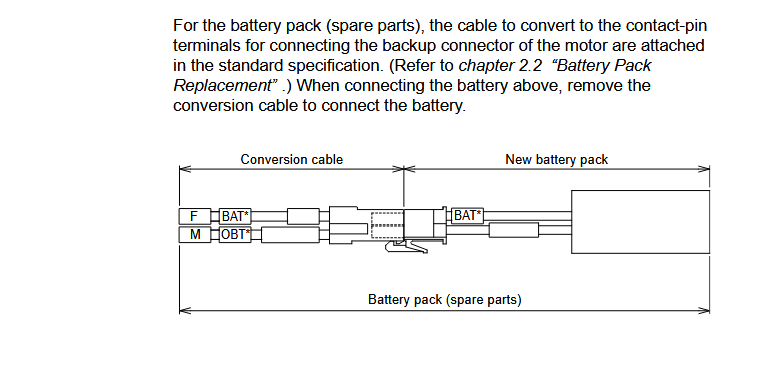

For S-, L-axis encoder (B**) (HW1470715-BA with conversion cable)

BATTERY, ASSY, HW1471600-BB HW1471600-BB/191141-1

For U-, R-axis encoder (B**) (HW1470715-BB with conversion cable)

BATTERY, ASSY, HW1471600-BC HW1471600-BC/191142-1

For B-, T-axis encoder (B**) (HW1470715-BC with conversion cable)

TAPE, PIPE, TEFLON, 1/2 IN X 1296 IN,TB-4501/151720-1
