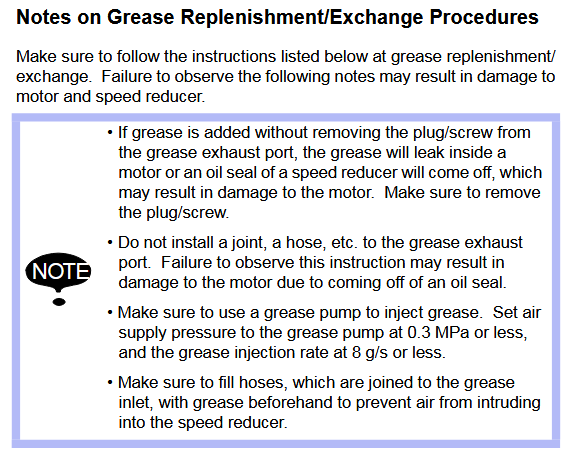

Grease Replenishment (PM) MH6S-10 / YR-MH0006S-A30 Manipulator

Model Covered: YR-MH0006S-A30

Material Required:

VIGO Grease RE No.0 151945-1

Harmonic Grease SK-1A 479035-2

Alvania EP Grease 2 132177-1

Three Bond 1206C 479014-6

Amount Of Grease:

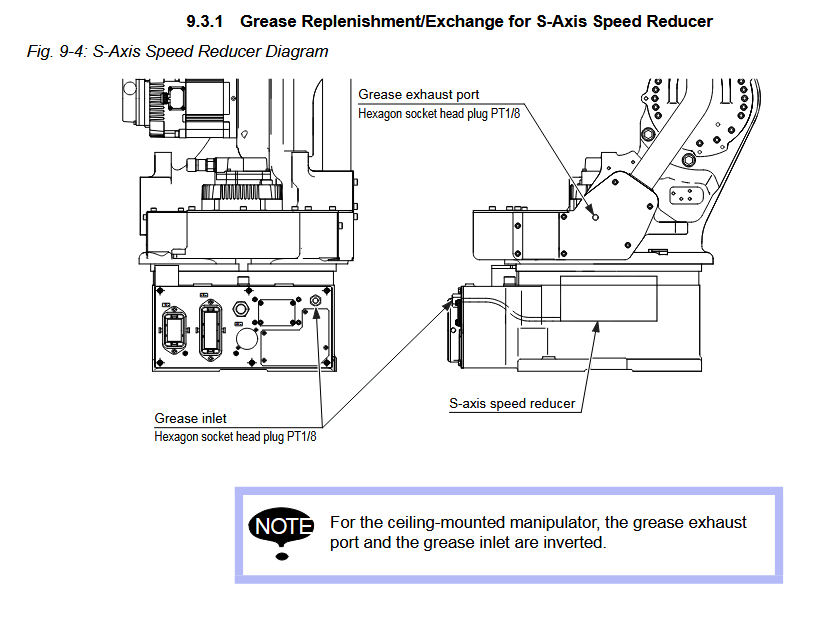

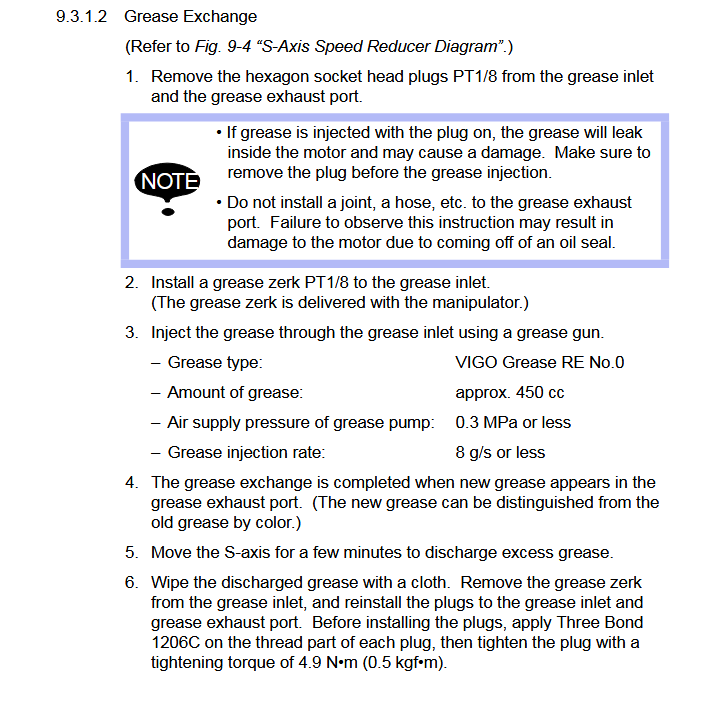

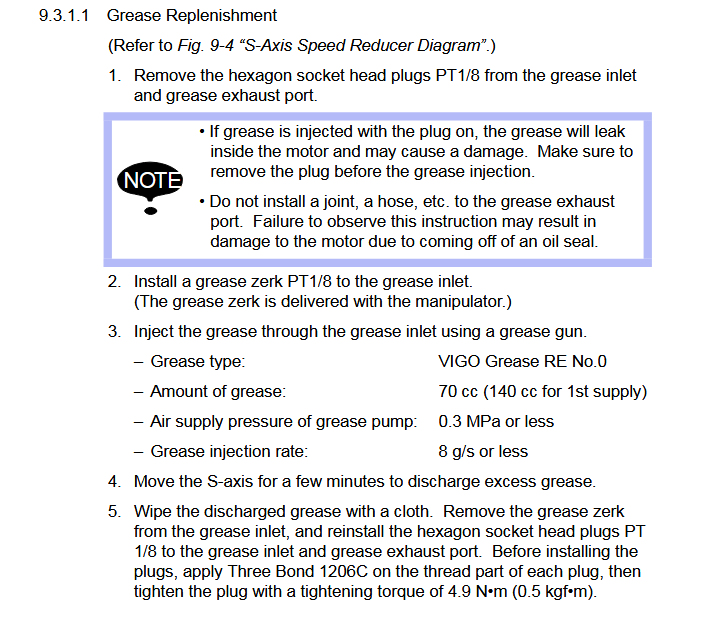

S-AXIS: 70cc

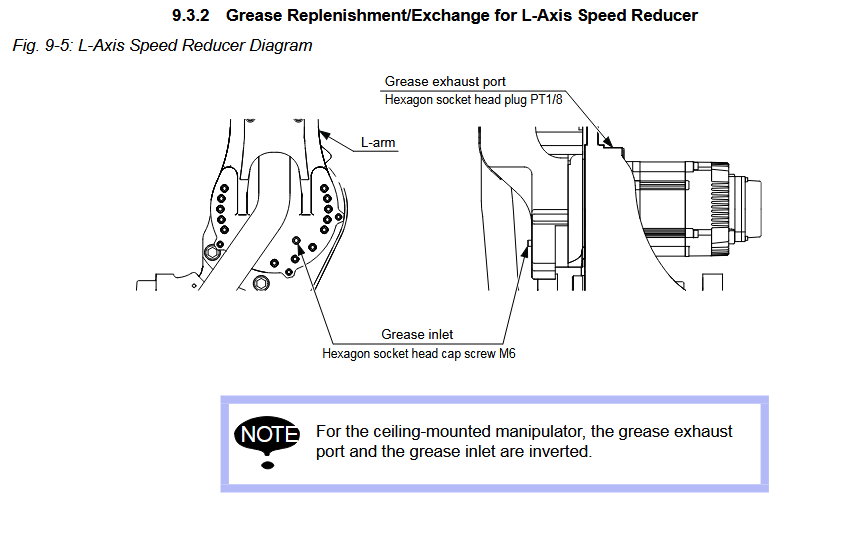

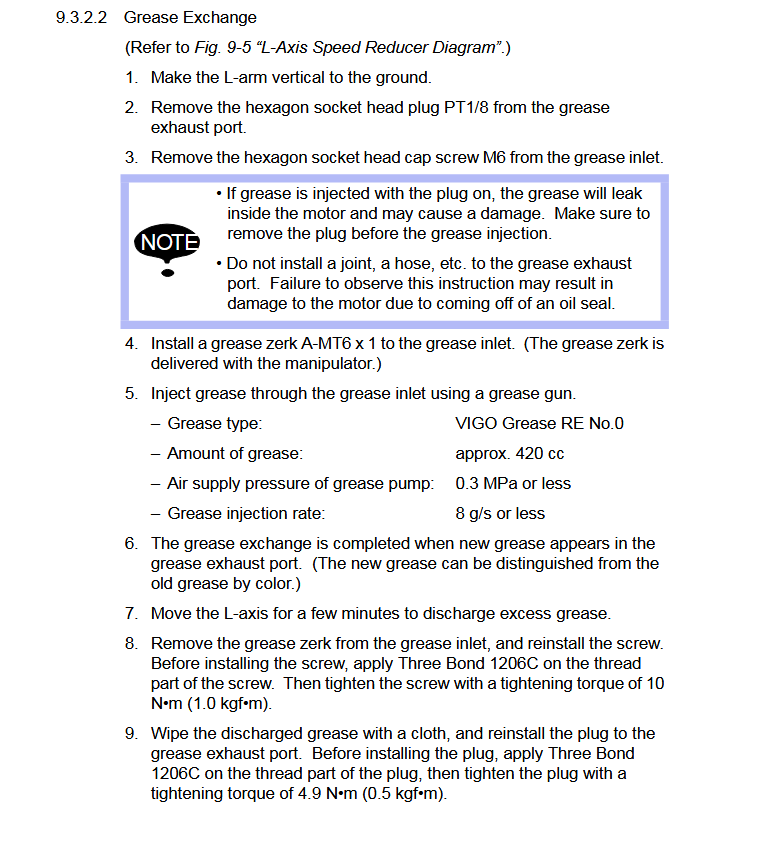

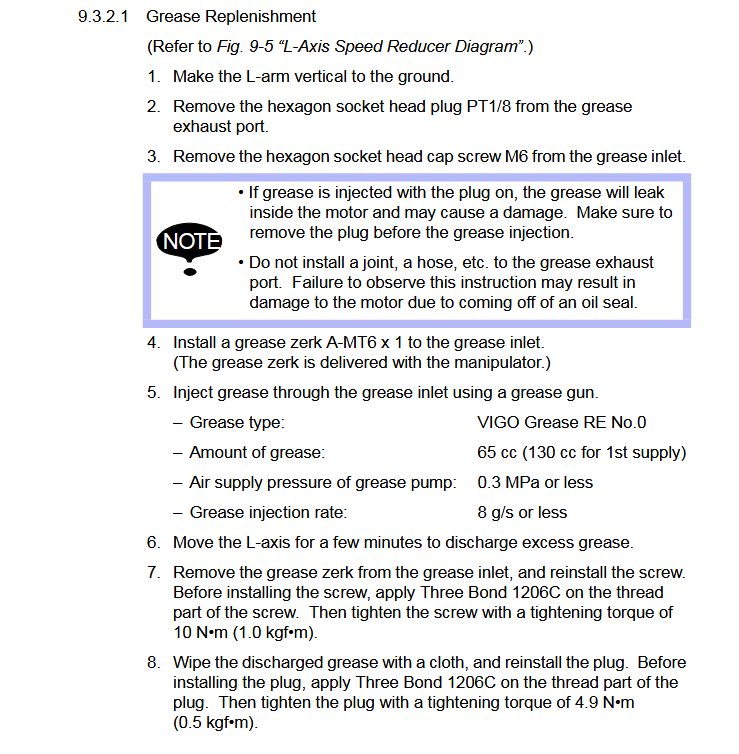

L-Axis: 65cc

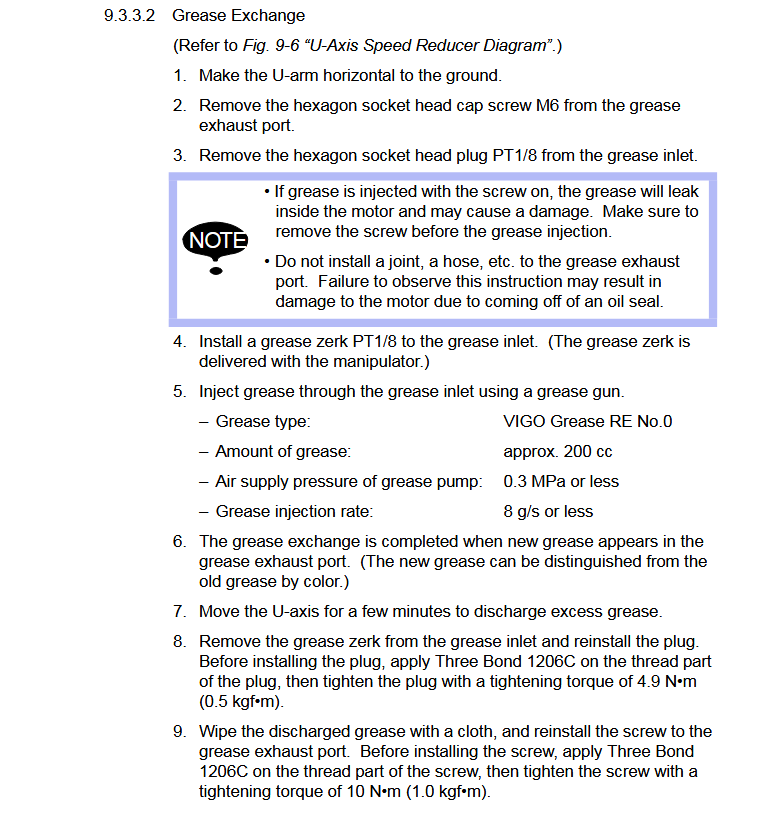

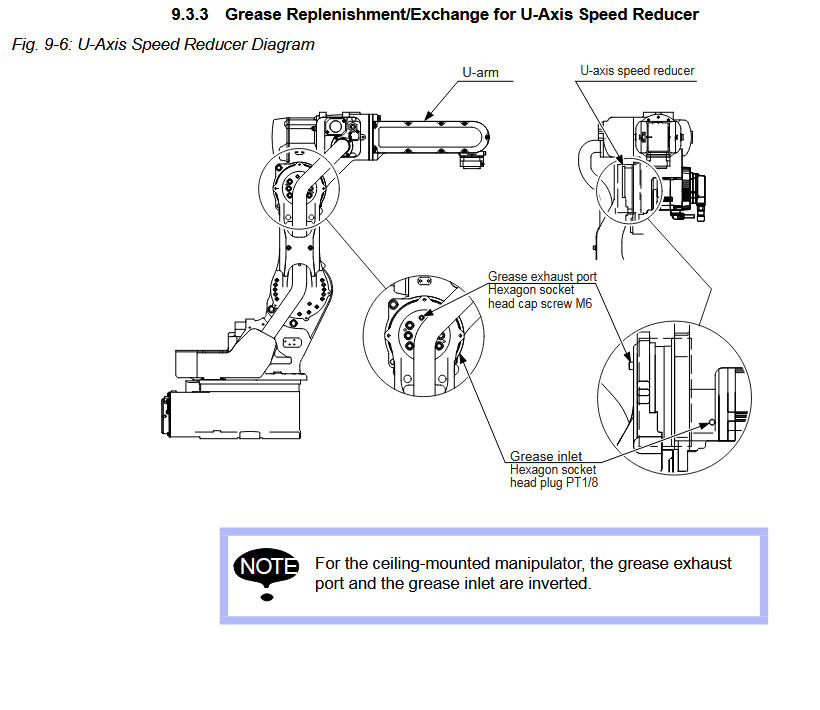

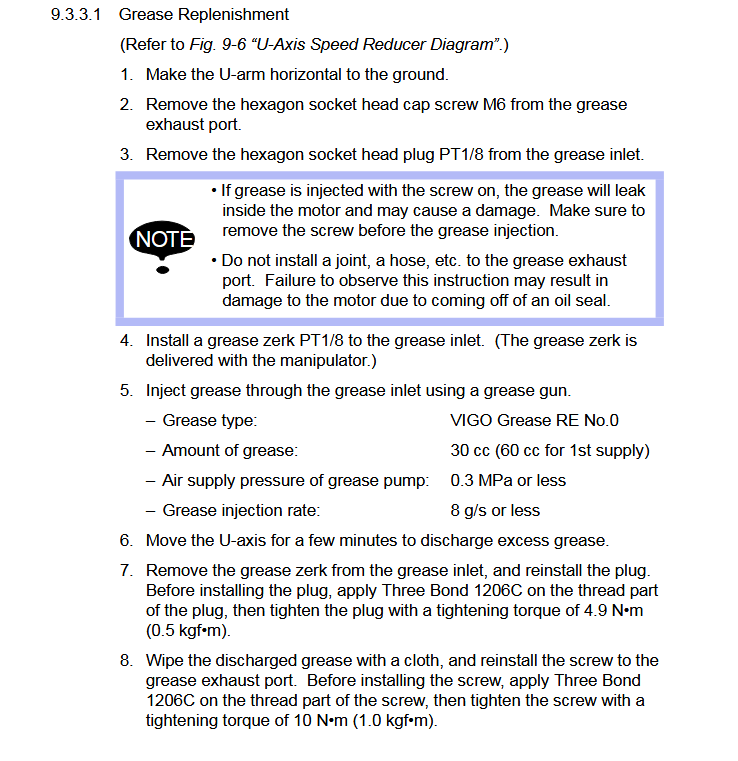

U-AXIS: 30cc

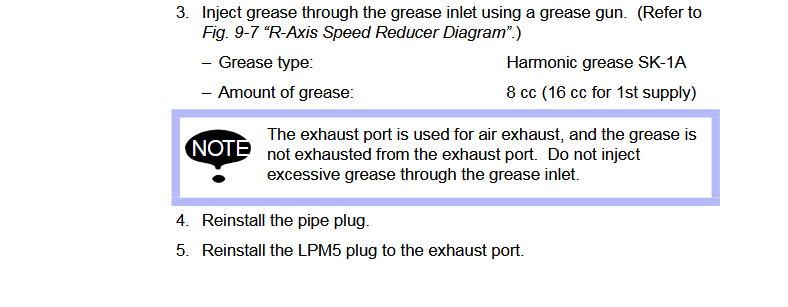

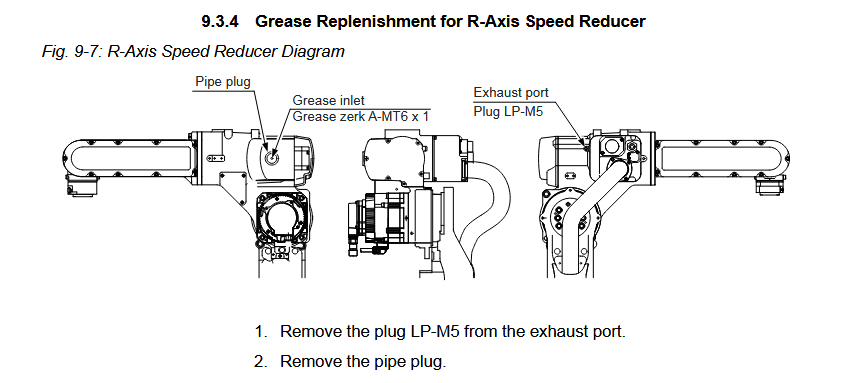

R-AXIS: 8cc

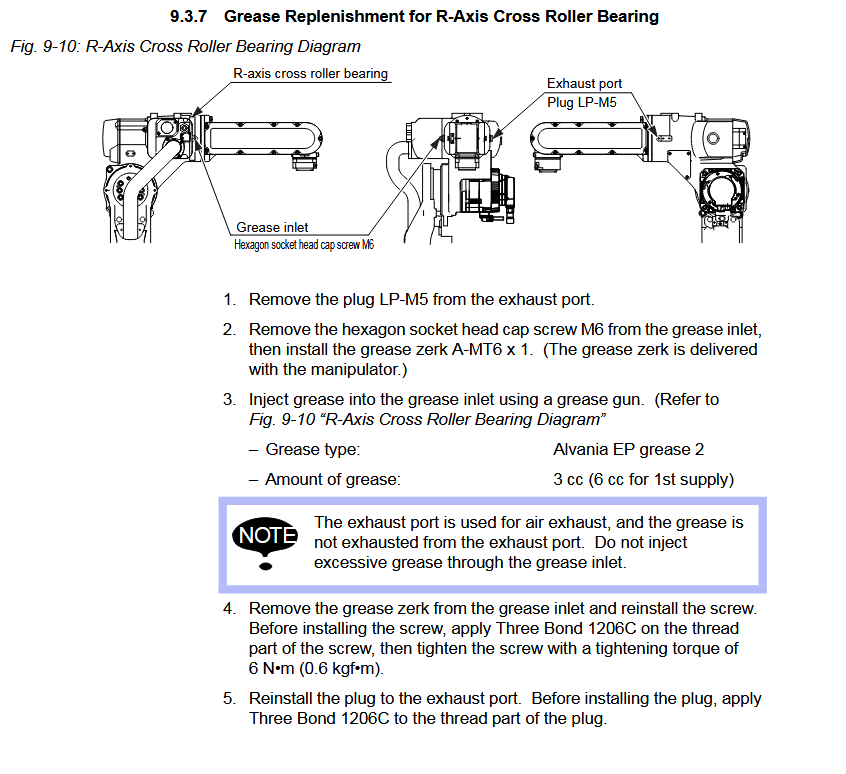

R-AXIS CROSS ROLLER BEARING: 3cc

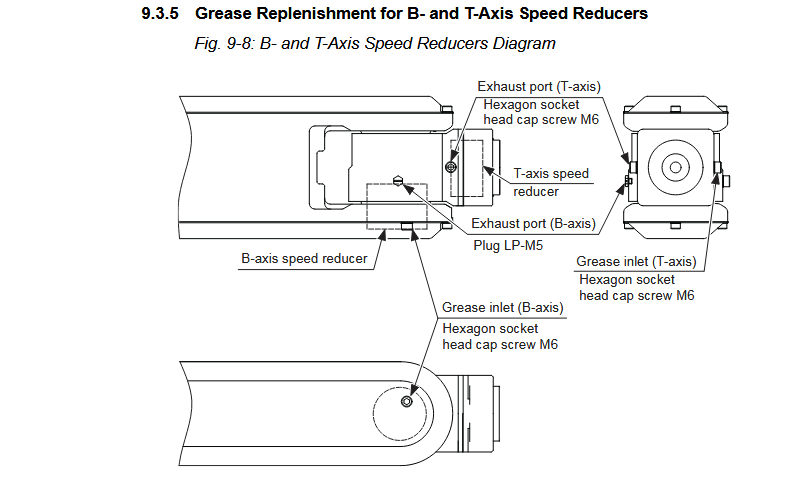

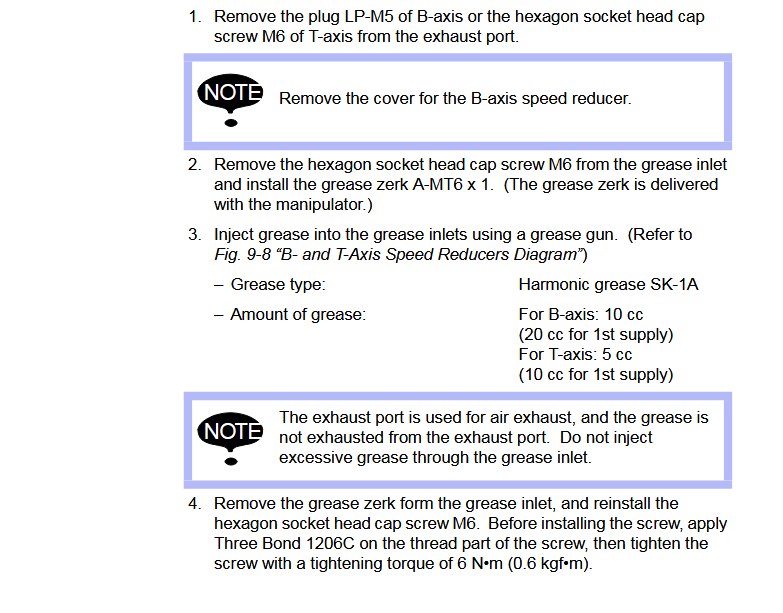

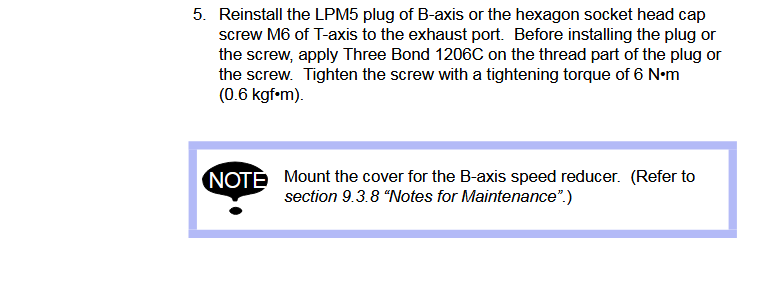

B-AXIS: 10cc

T-AXIS: 5cc

T-AXIS GEAR: 5cc
