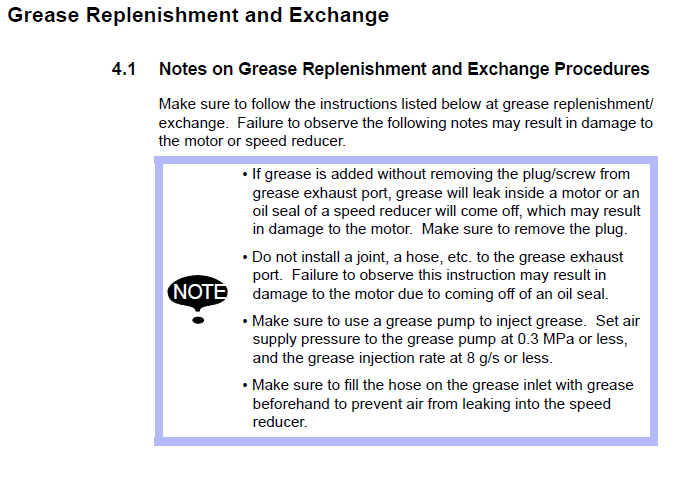

Grease Procedure (PM) MC2000 II / YR-MC02000-J00 Manipulator

Model Covered: YR-MC02000-J00

Material Required:

Molywhite RE No.00 132412-1

Three Bond 1206C 479014-6

Amount Of Grease:

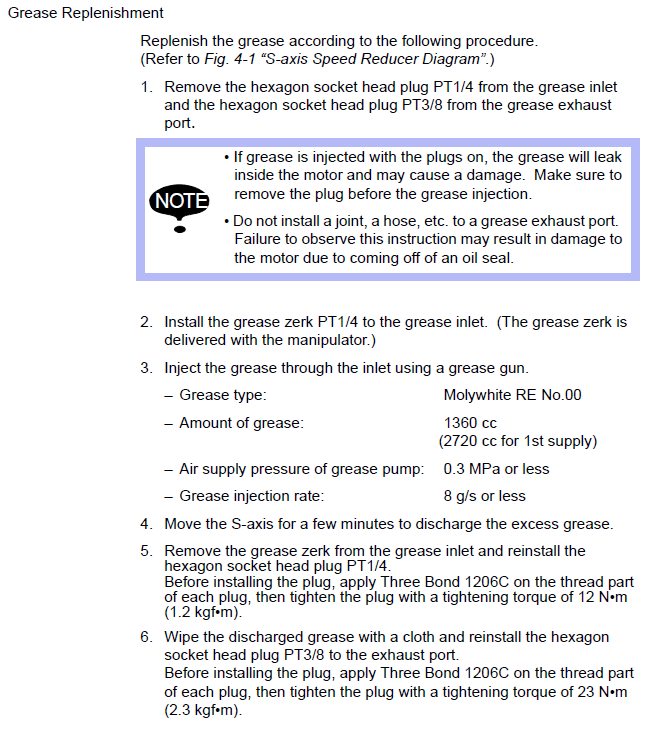

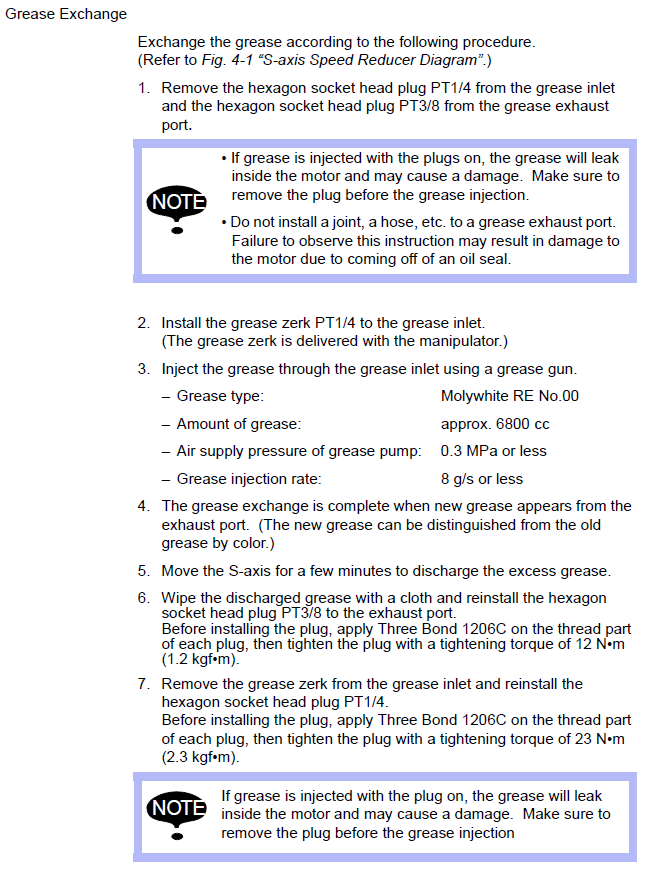

S-AXIS: 1360cc

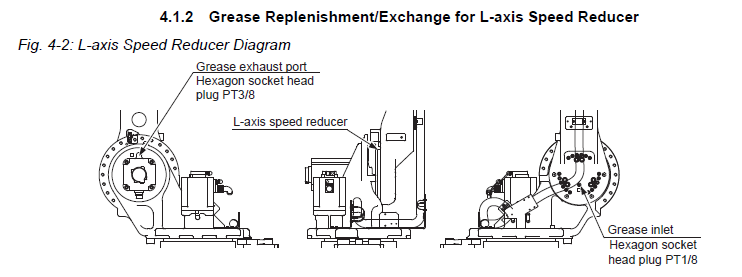

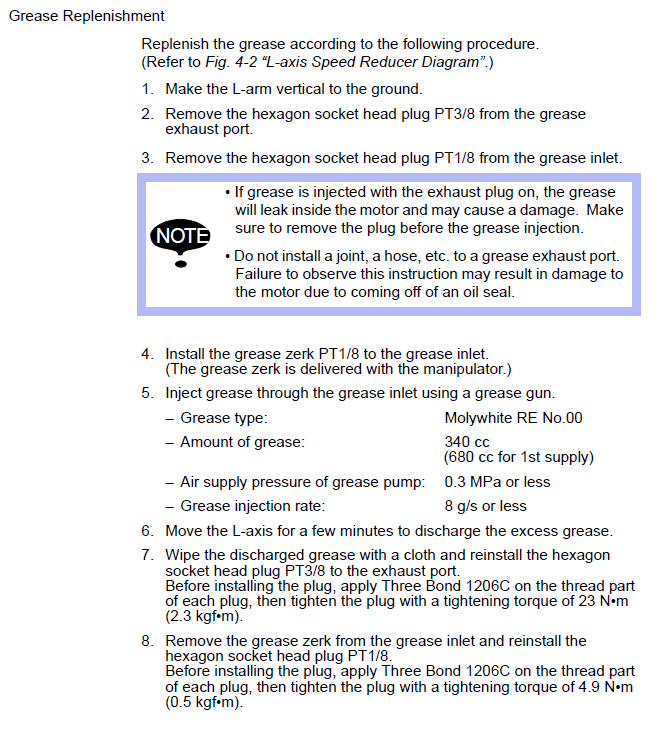

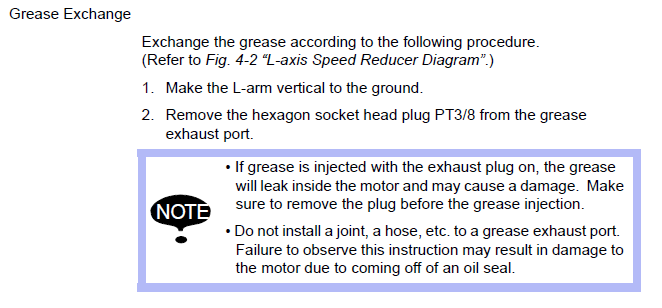

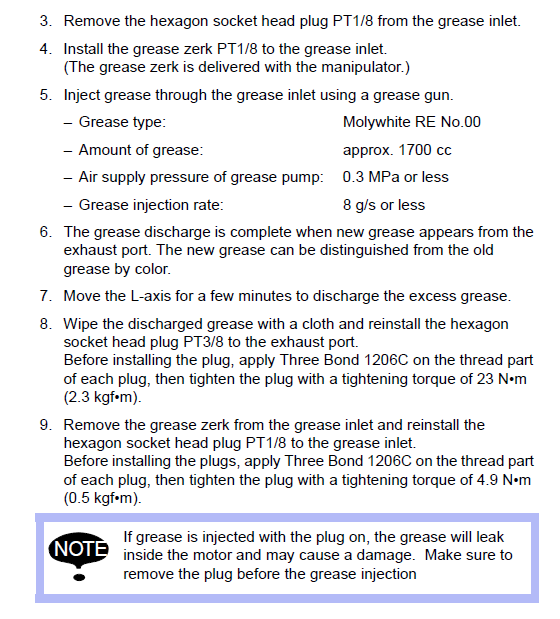

L-AXIS: 340cc

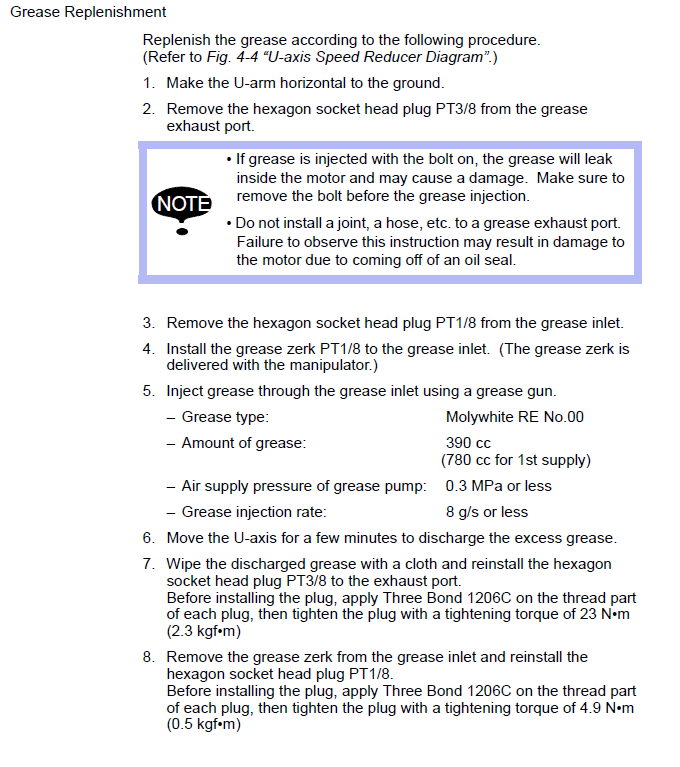

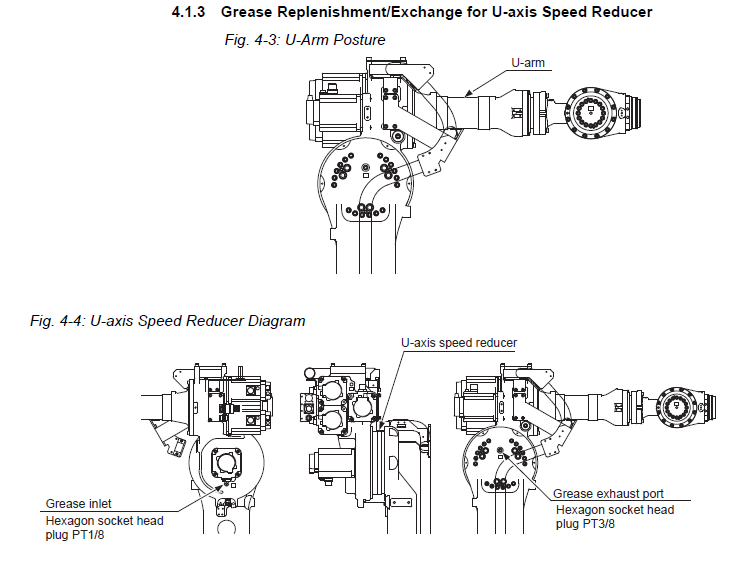

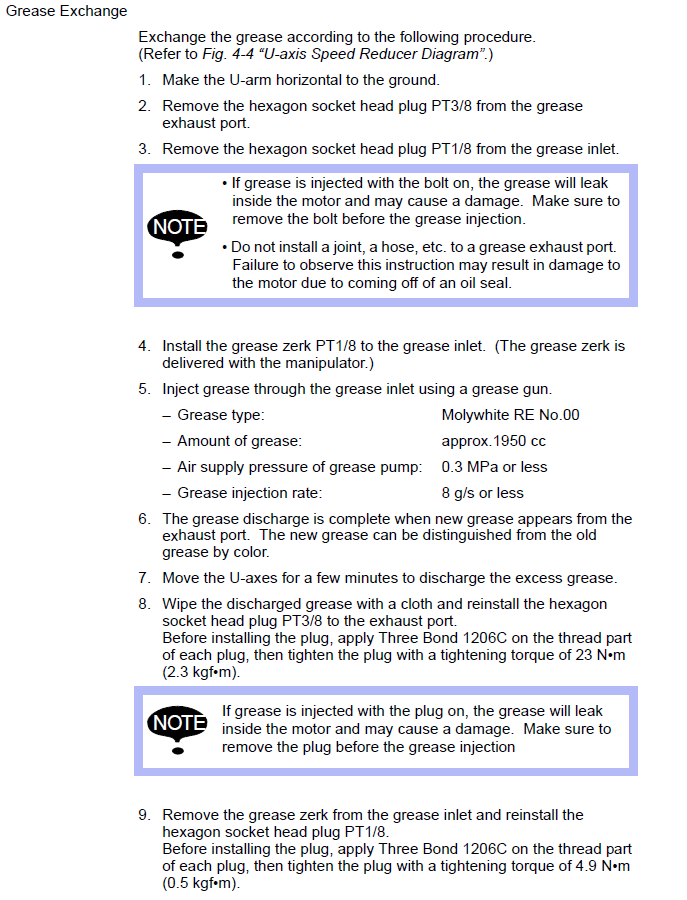

U-AXIS: 390cc

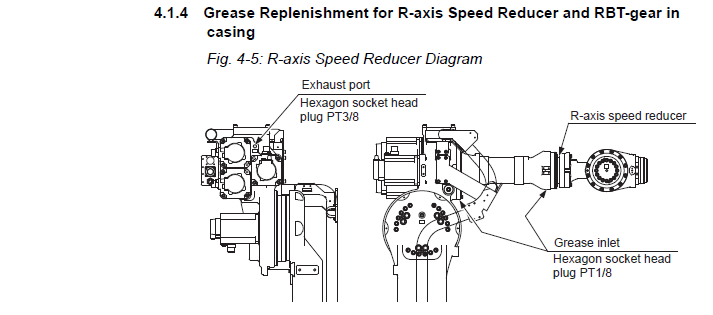

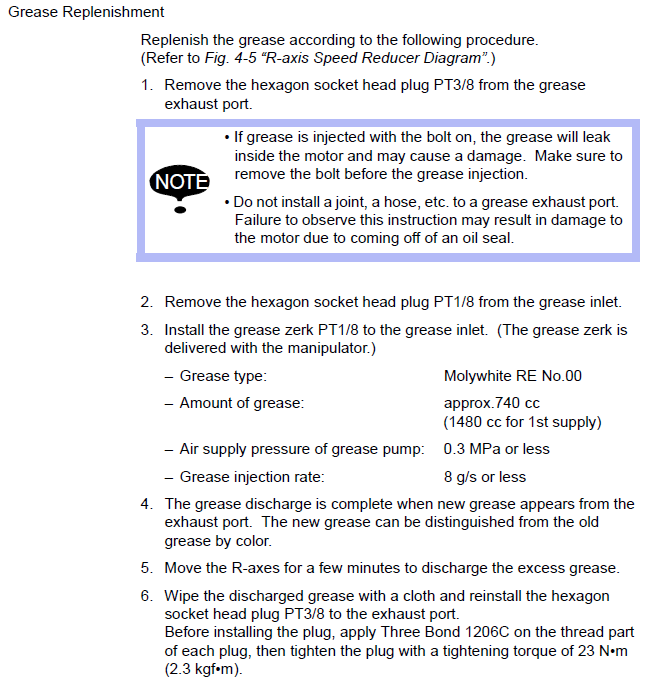

R-AXIS: 740cc

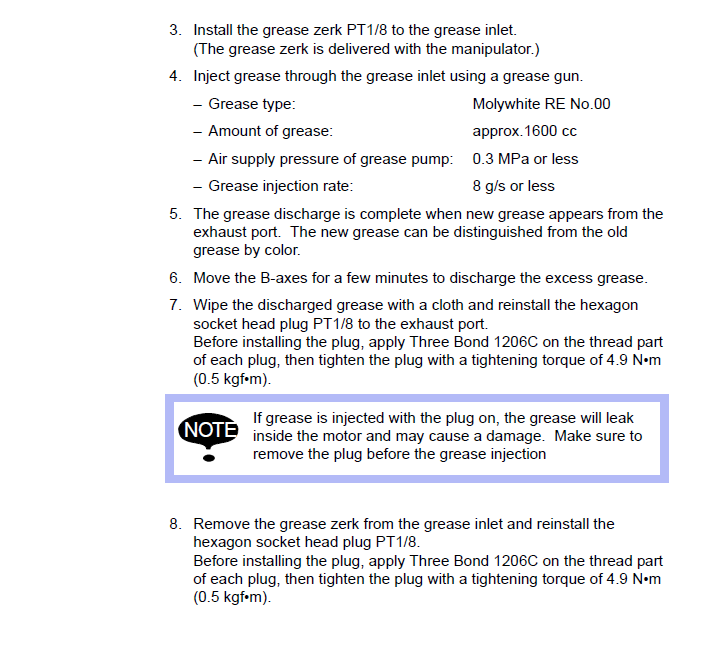

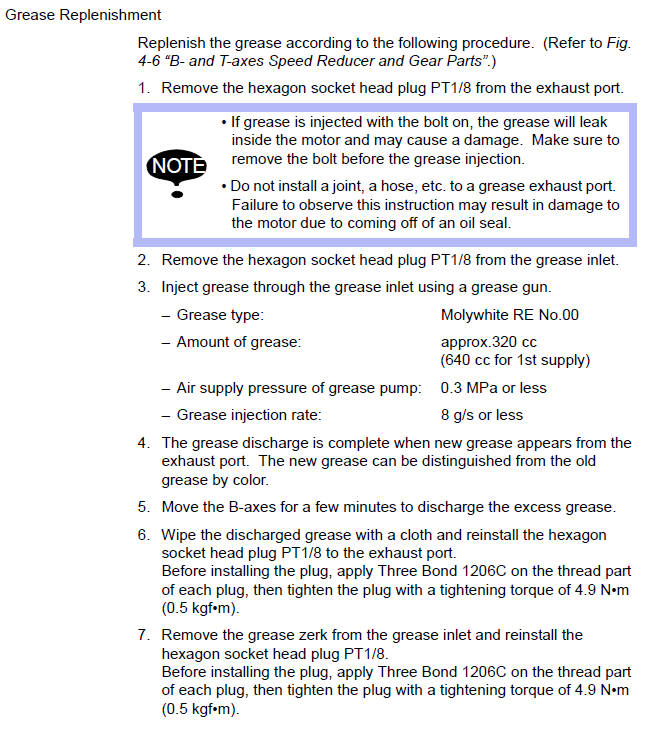

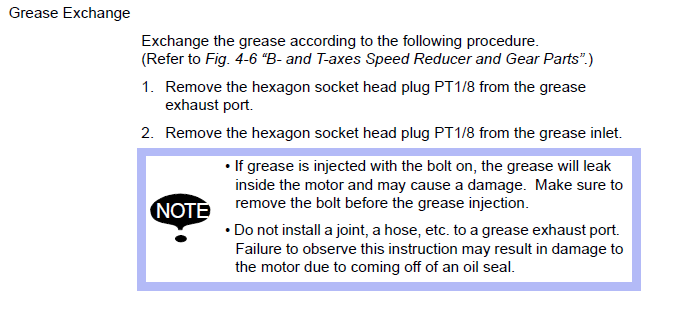

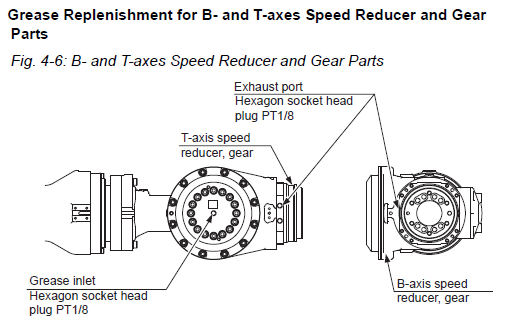

B AND T AXIS GEARS: 320cc
