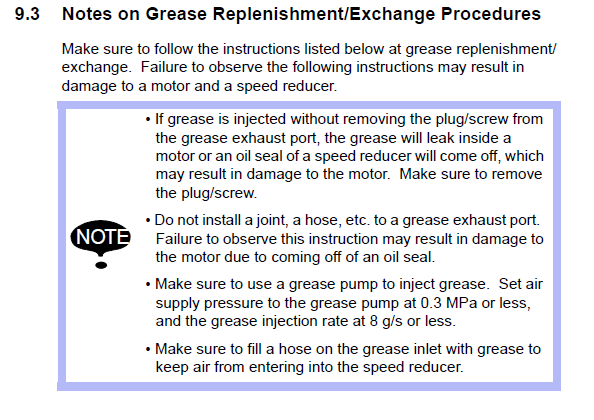

Grease Procedure (PM) MC2000 / YR-MC02000-A00 Manipulator

Model Covered: YR-MC02000-A00

Material Required:

Molywhite RE No.00 132412-1

ADHESIVE, GASKET, LIQUID, 200 GRAM TUBE, THREEBOND 1206C 479014-6

Grease Amounts:

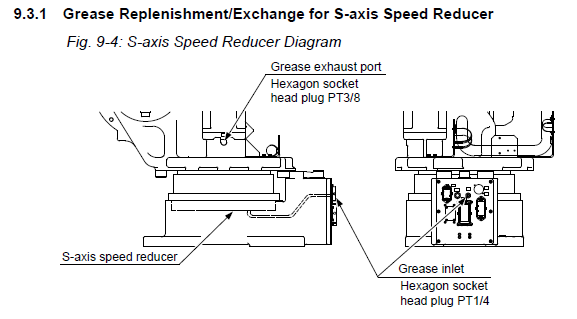

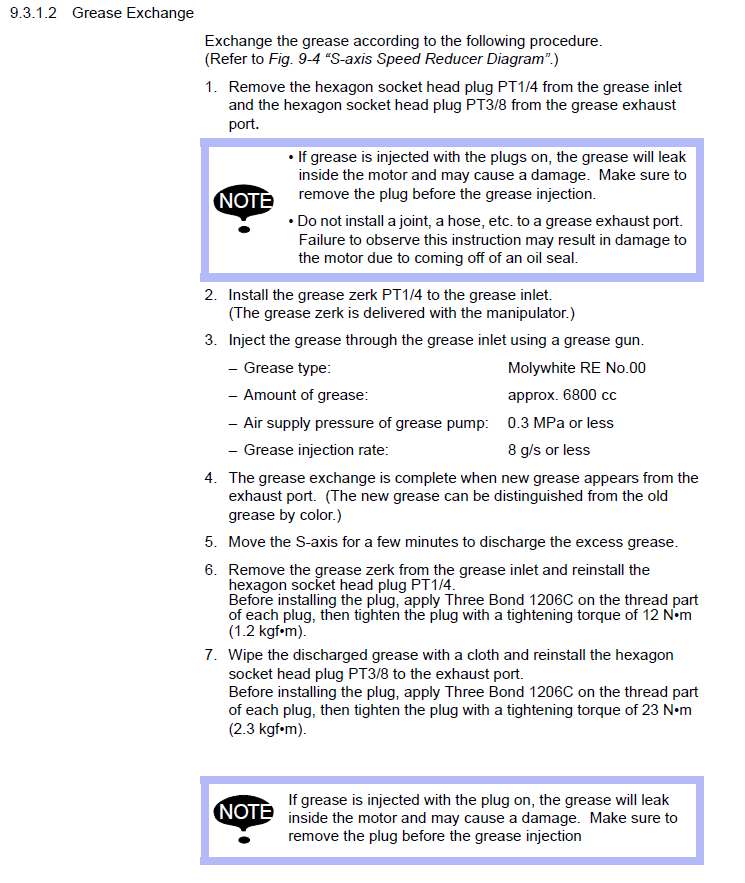

S-AXIS: 1360cc

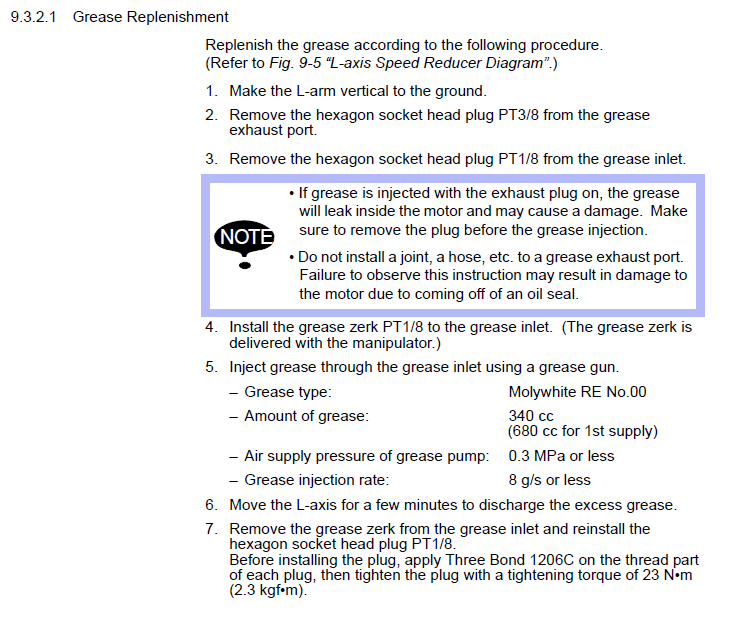

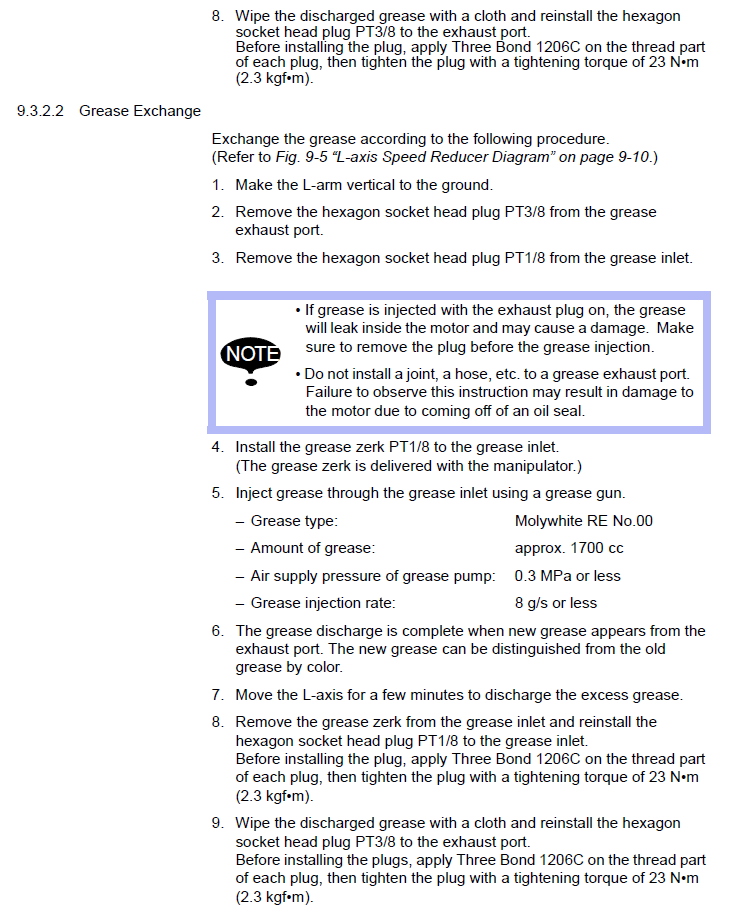

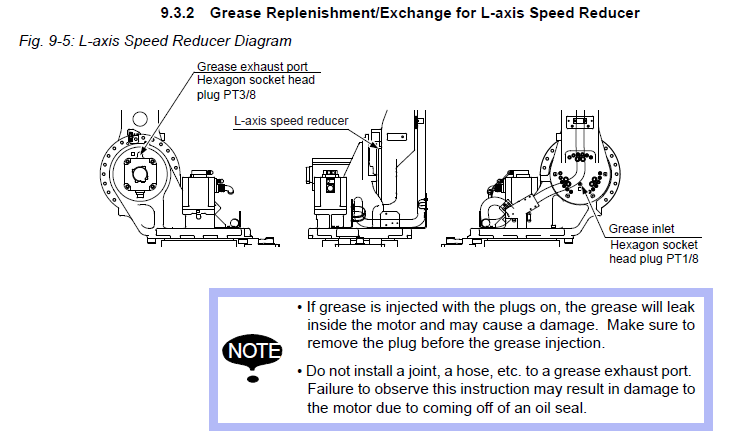

L-AXIS: 340cc

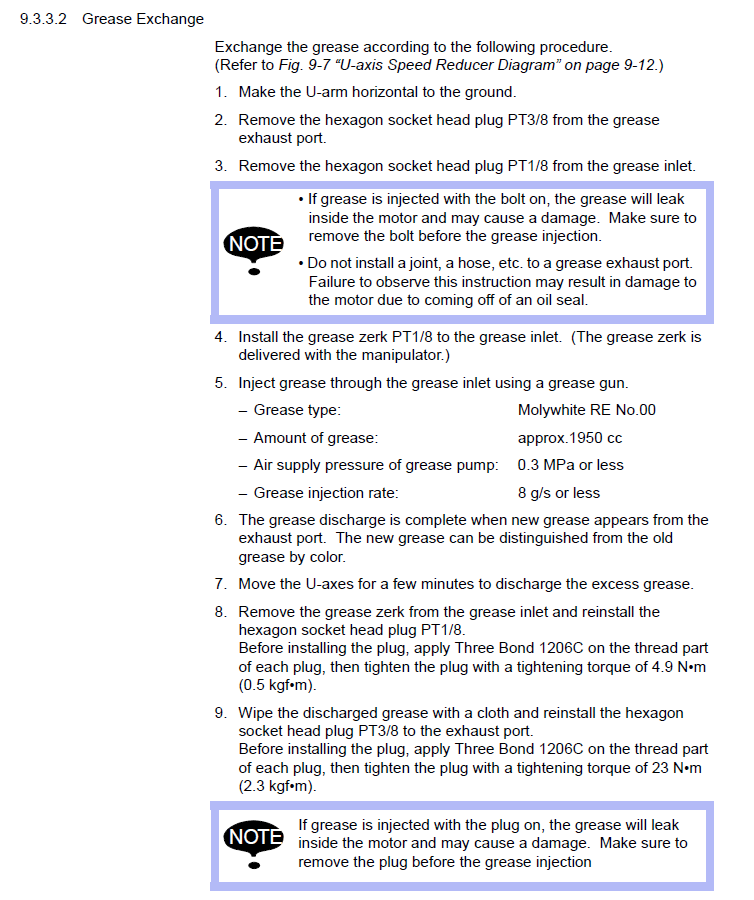

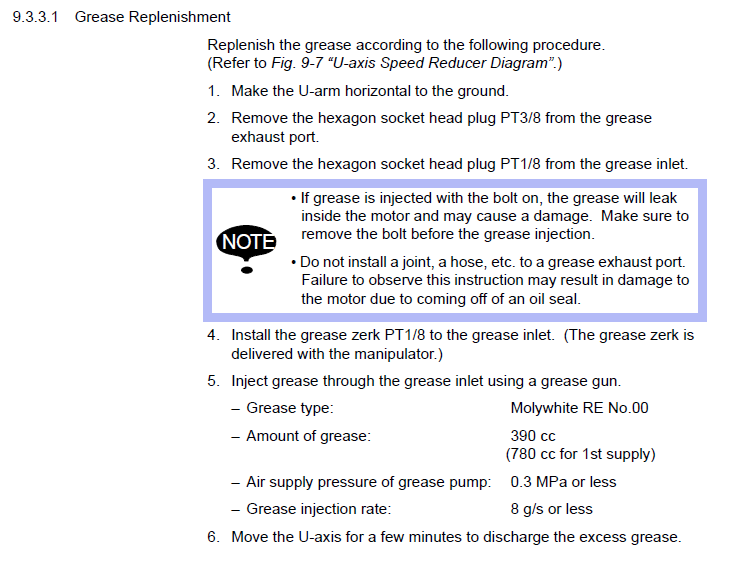

U-AXIS: 390cc

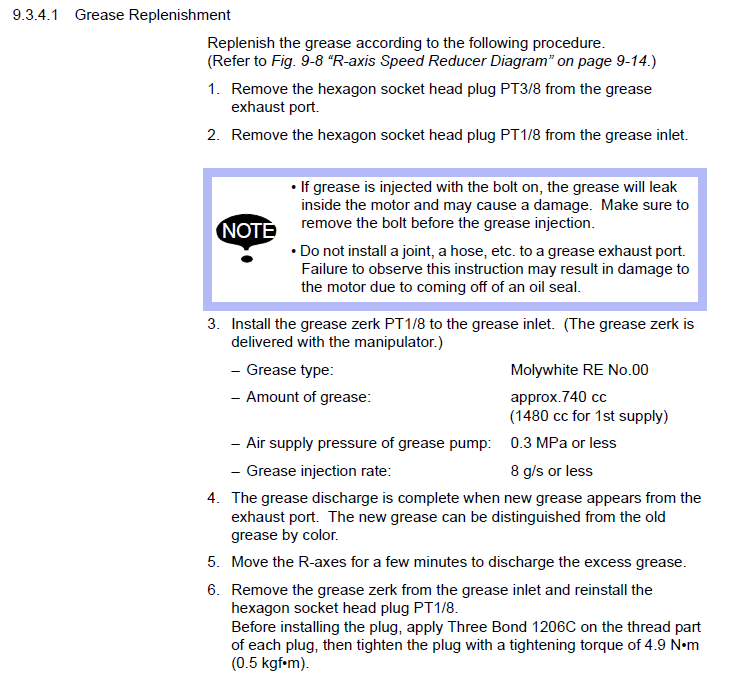

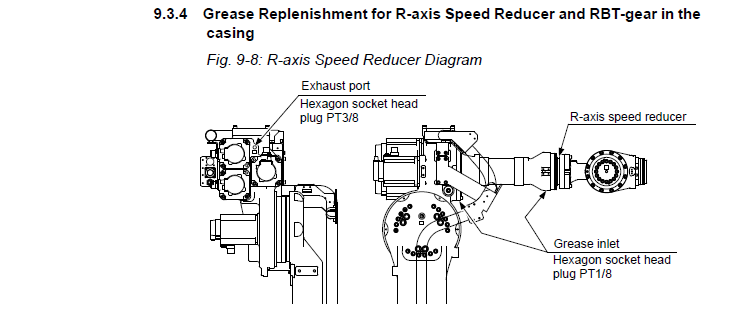

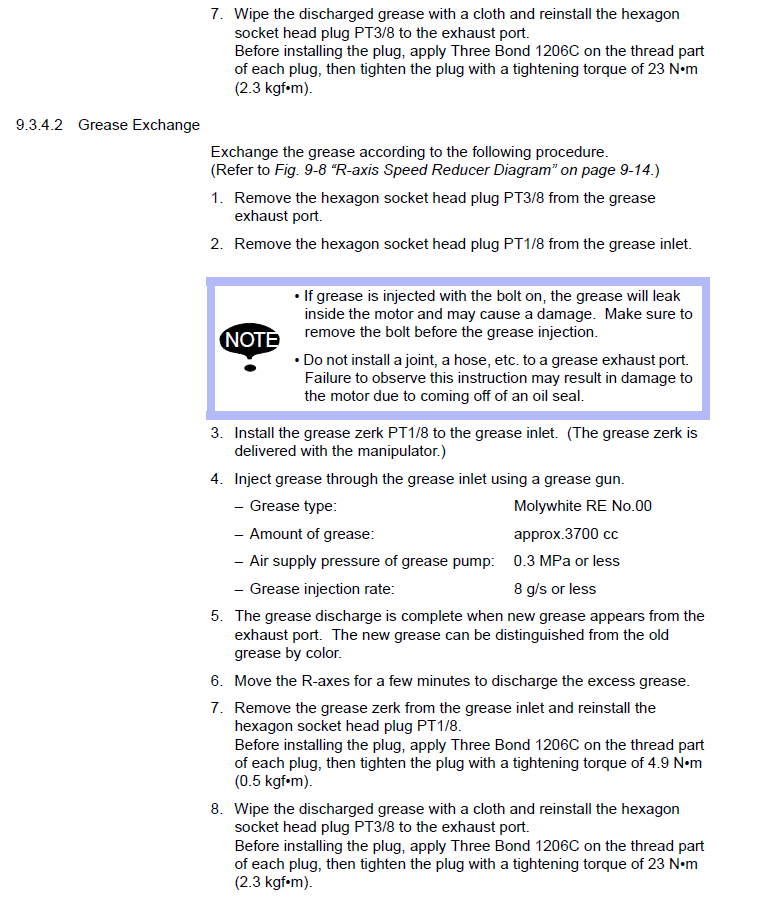

R-AXIS: 740cc

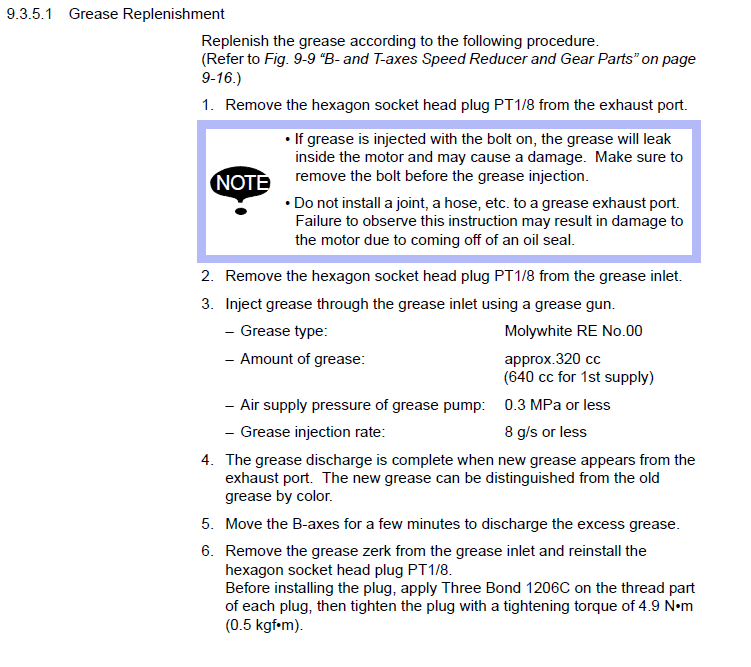

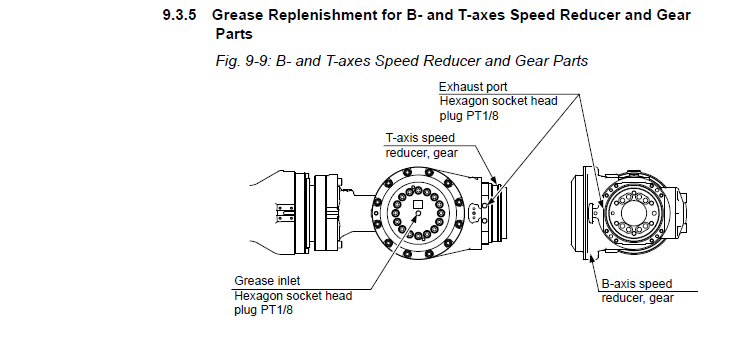

B AND T AXIS: 320cc
