Grease Procedure (PM) MA1800 / YR-MA01800-A01 Manipulator

Model Covered: YR-MA01800-A01

Material Required:

VIGO GREASE RE NO.0 151945-1

HARMONIC GREASE 4B NO. 2 140087-2

GREASE SK-1A 479035-6

ALVANIA EP GREASE 2 132177-1

THREE BOND 1206C 479014-6

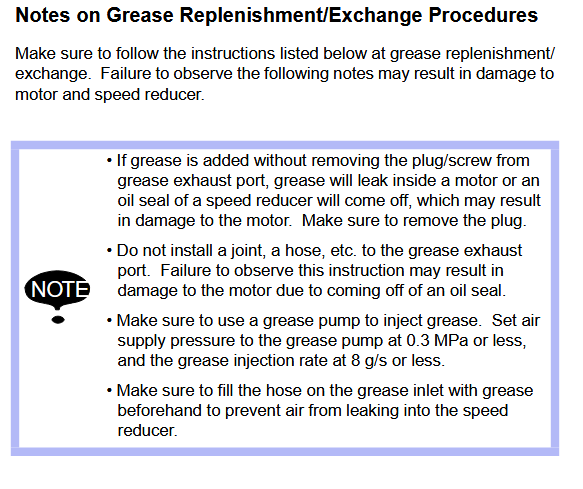

Amount Of Grease:

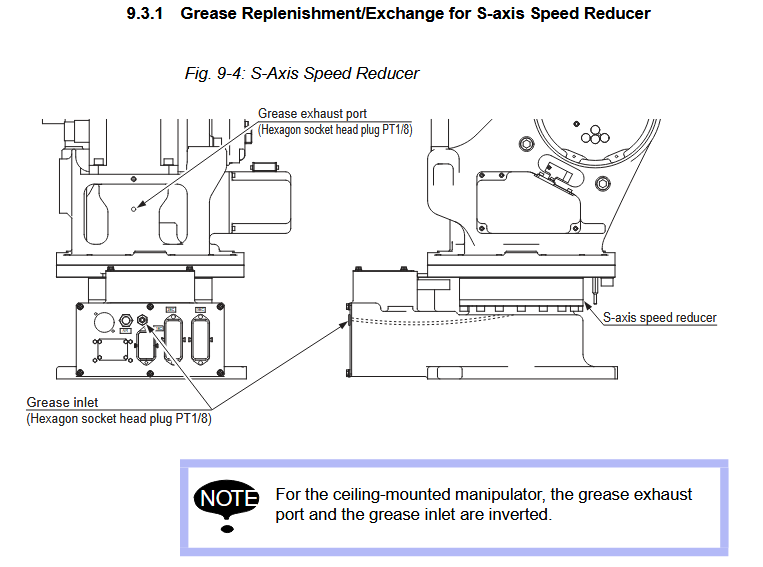

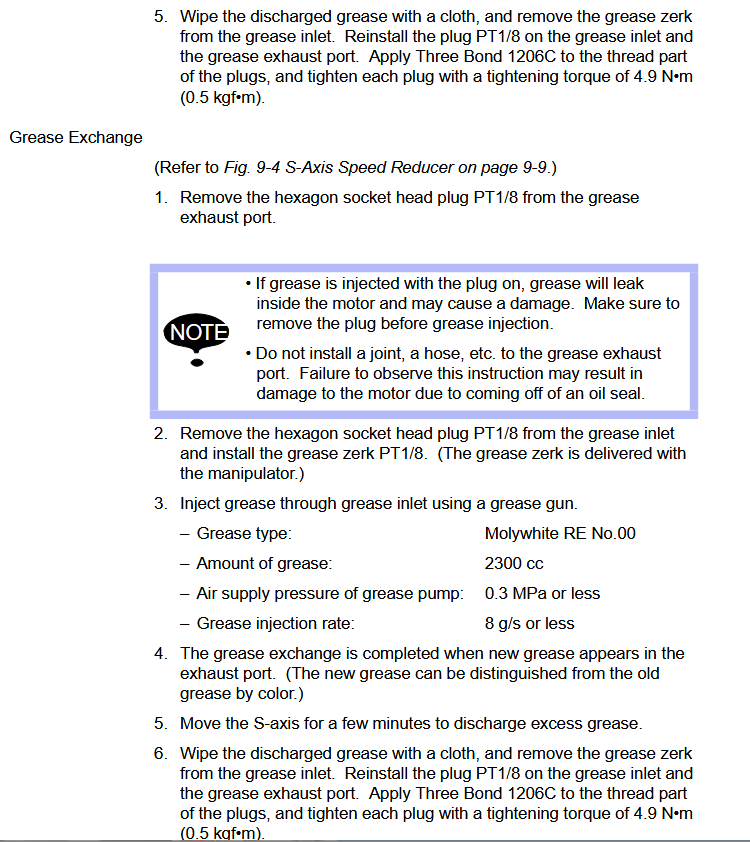

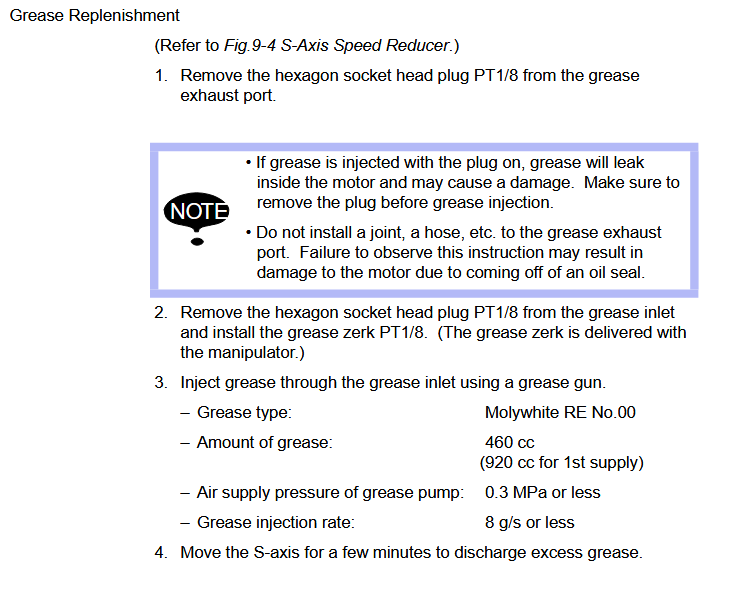

S-AXIS: 460cc

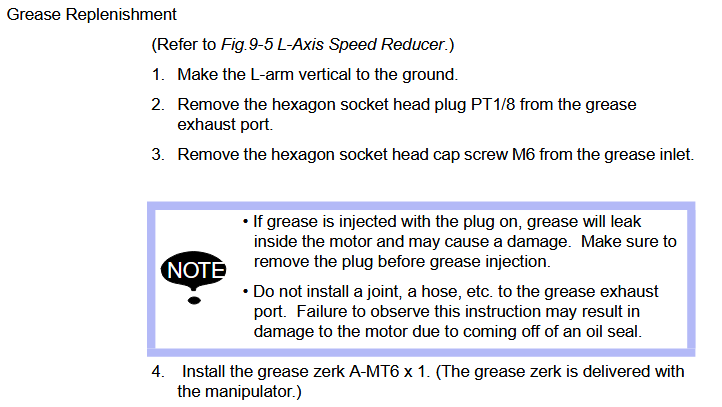

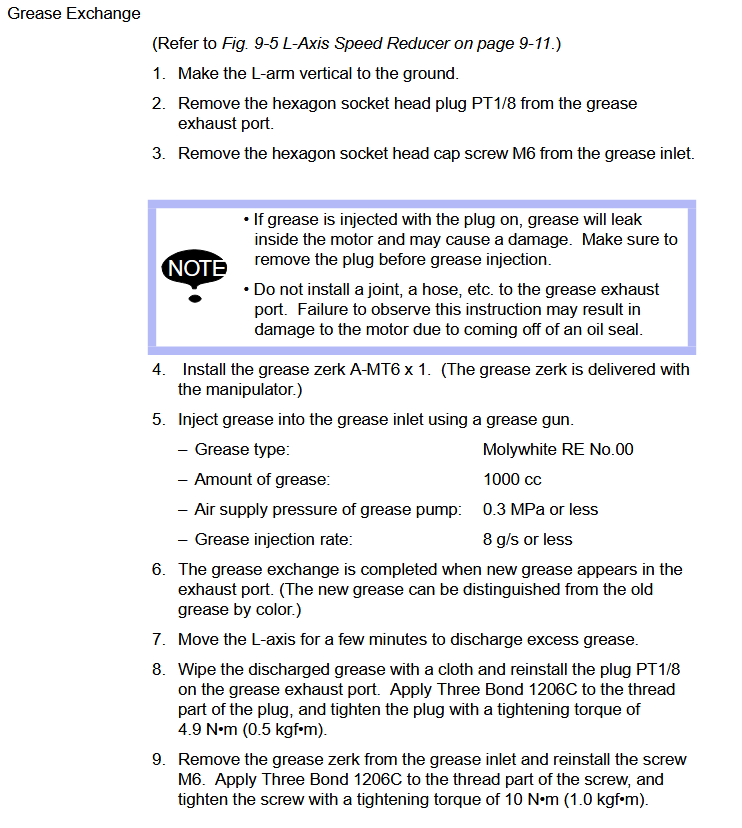

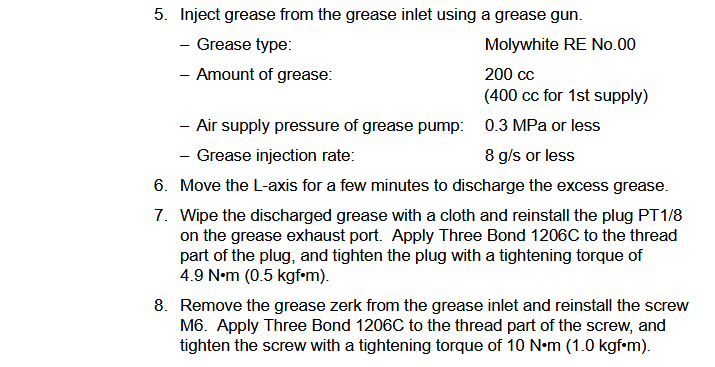

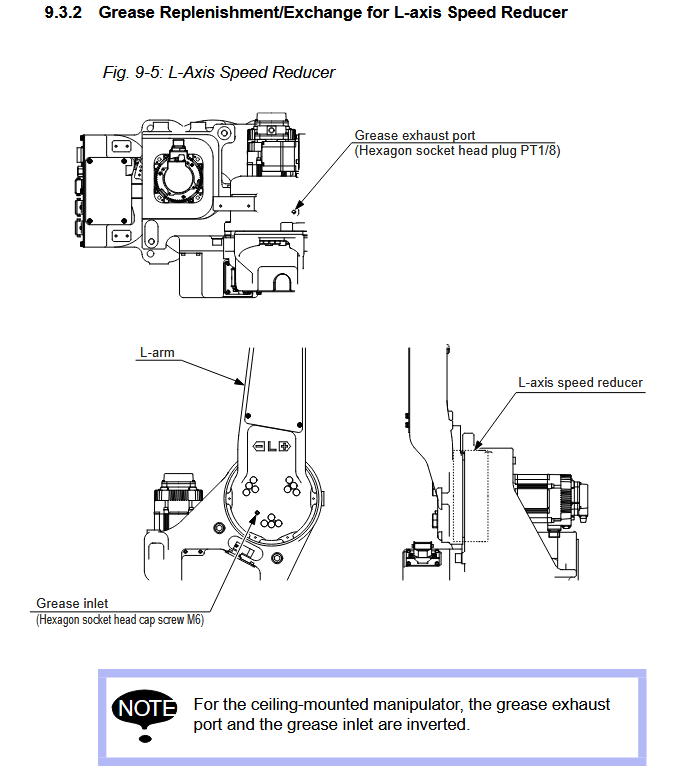

L-AXIS: 200cc

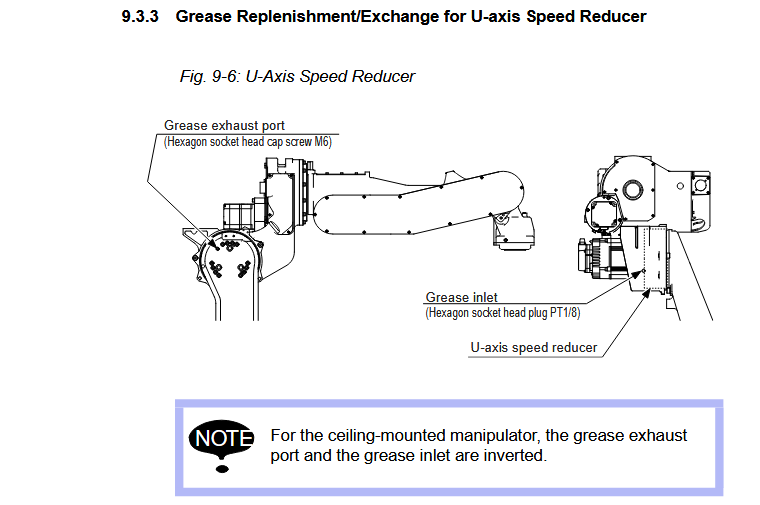

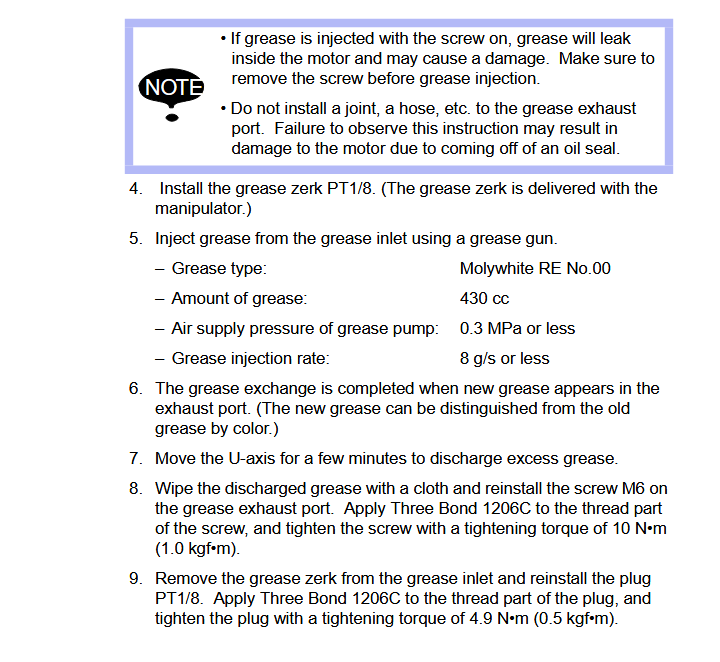

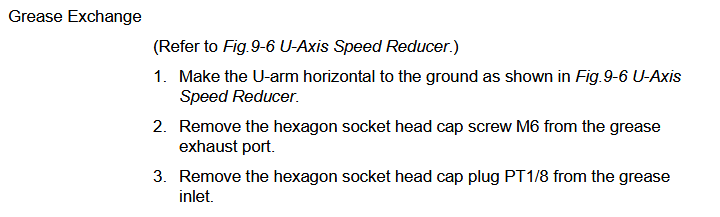

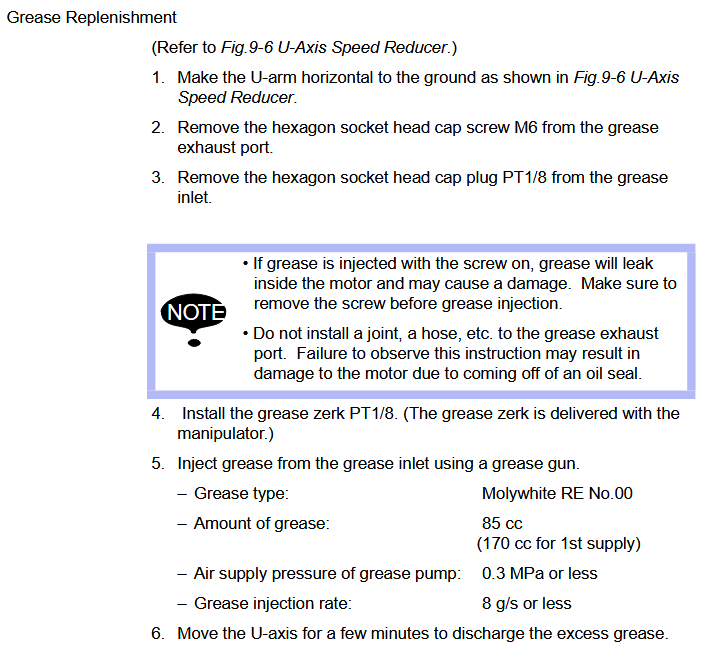

U-AXIS: 85cc

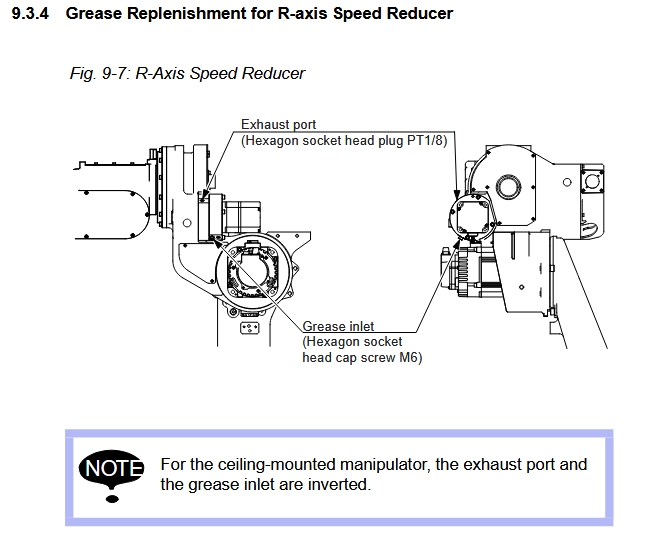

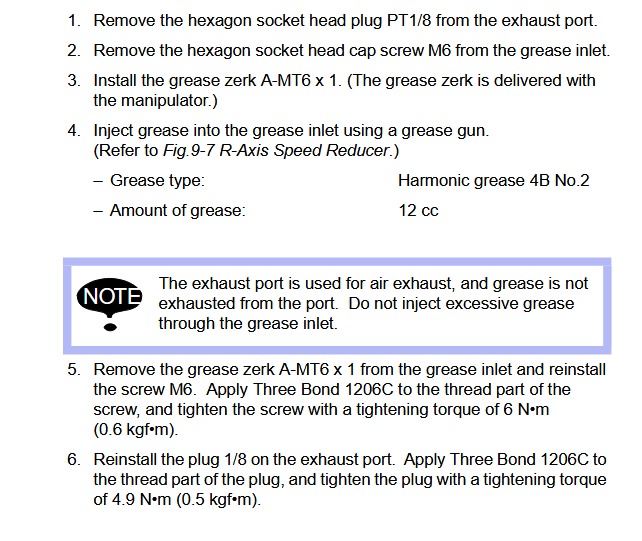

R-AXIS: 12cc

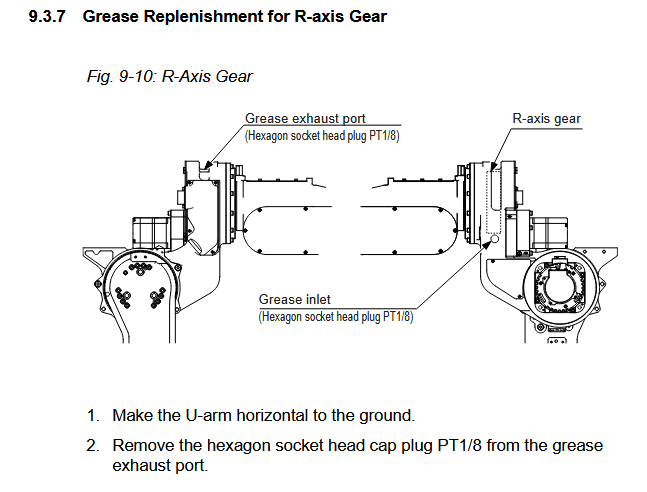

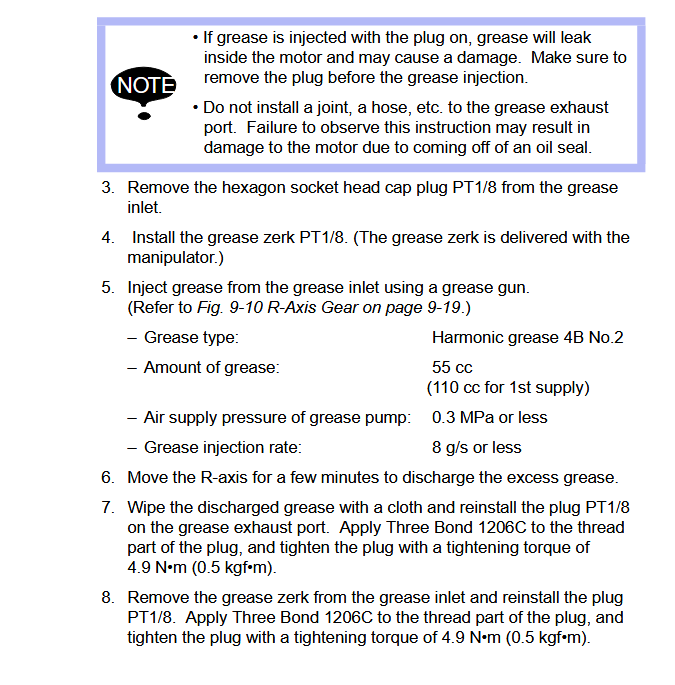

R-AXIS GEAR: 55cc

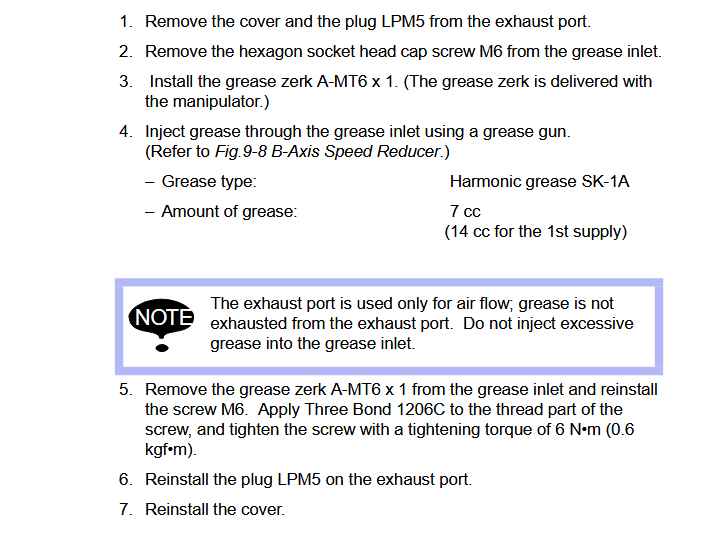

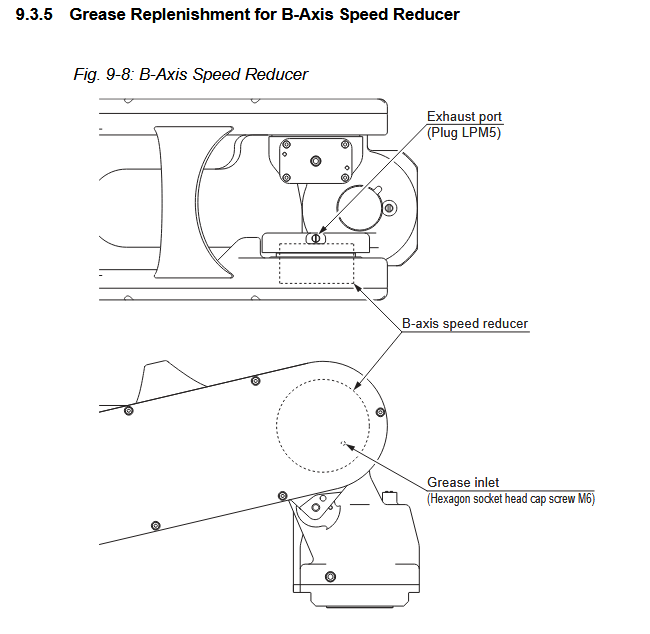

B-AXIS: 7cc

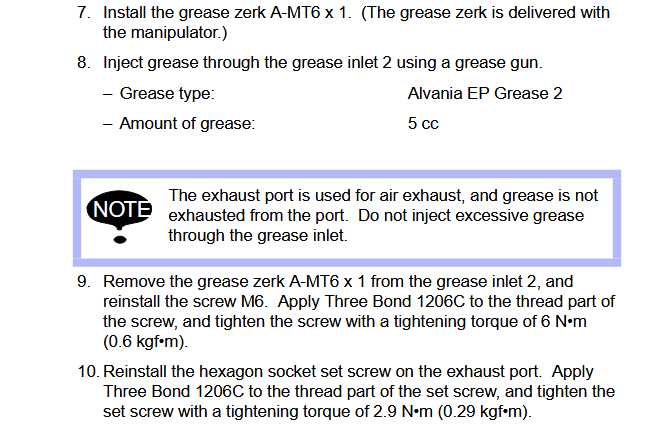

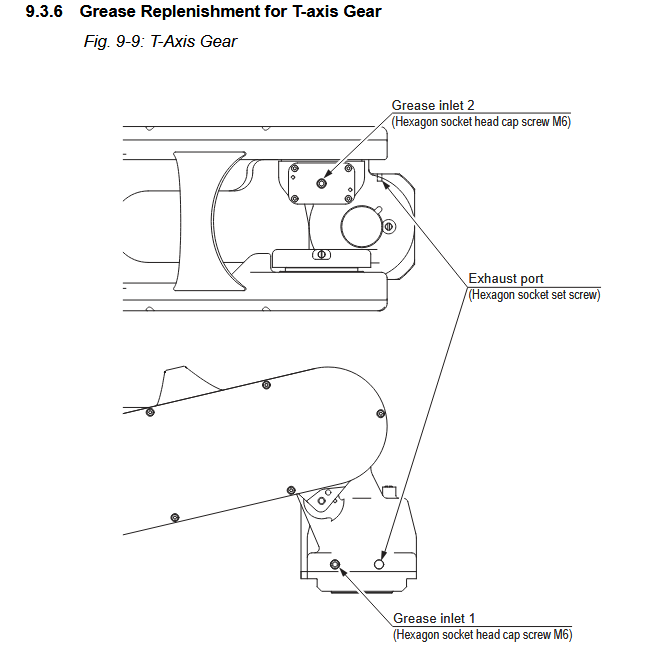

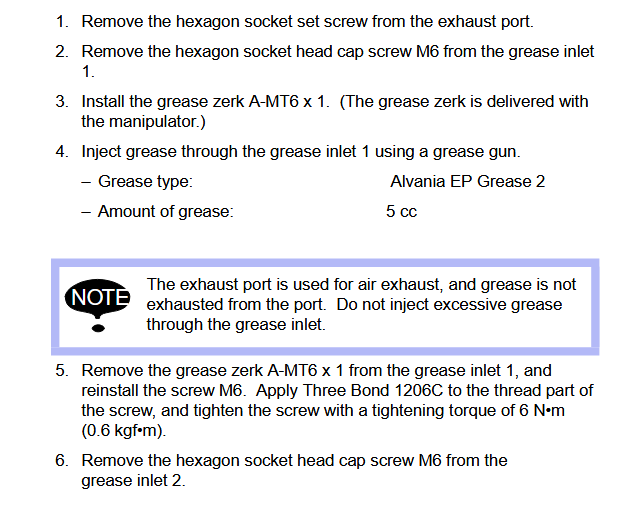

T-AXIS: 5cc
