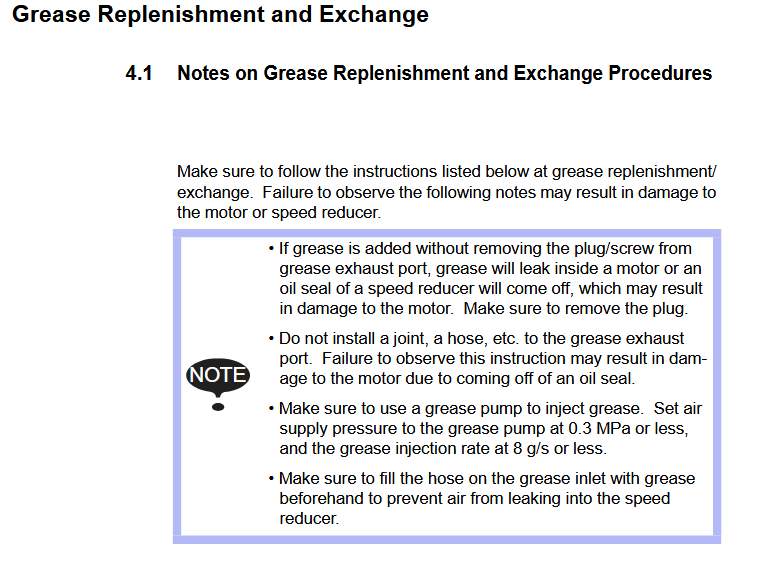

Grease Procedure (PM) MPL80 II / YR-MPL0080-J00 Manipulator

Model covered: YR-MPL0080-J00

Material Required:

Molywhite RE No.00 132412-1

Three Bond 1206C 479014-6

Amount Of Grease:

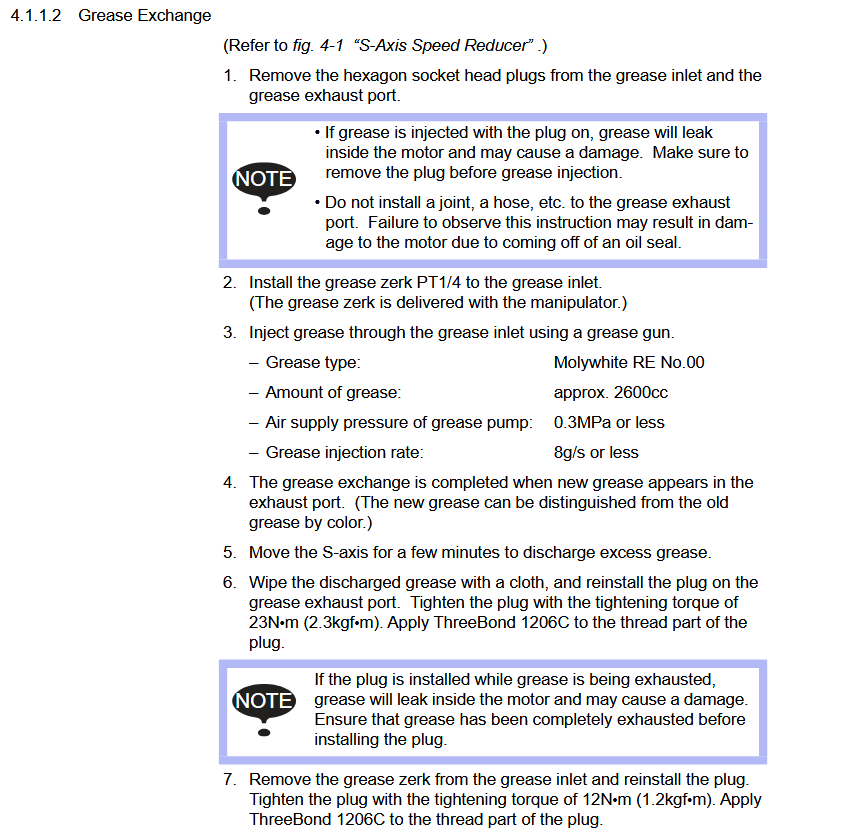

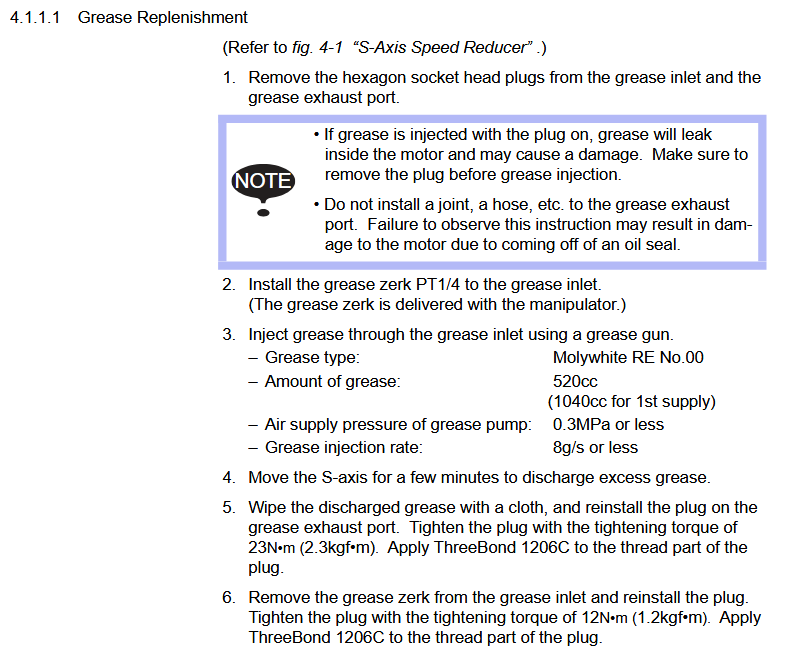

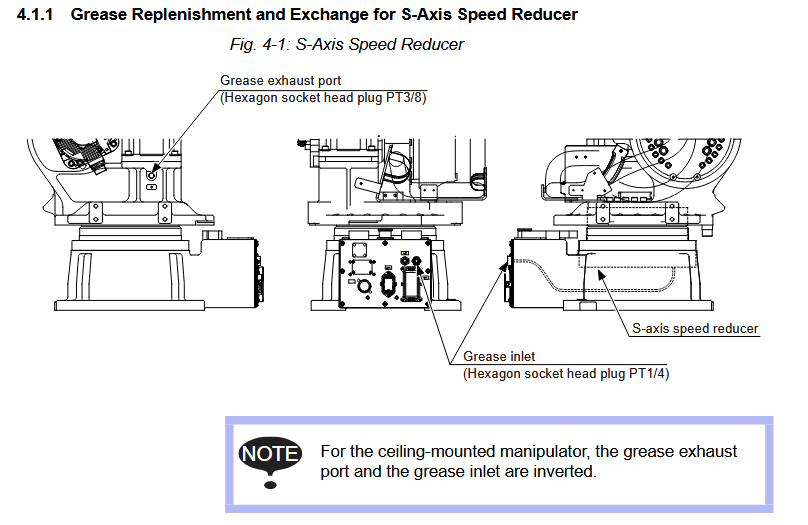

S-AXIS: 520cc

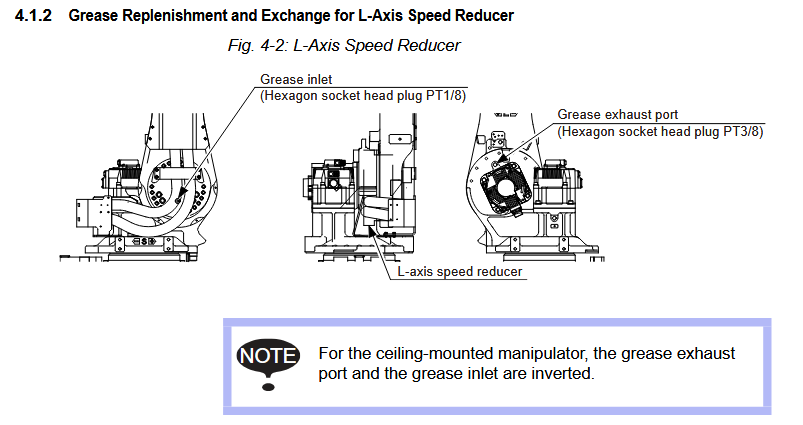

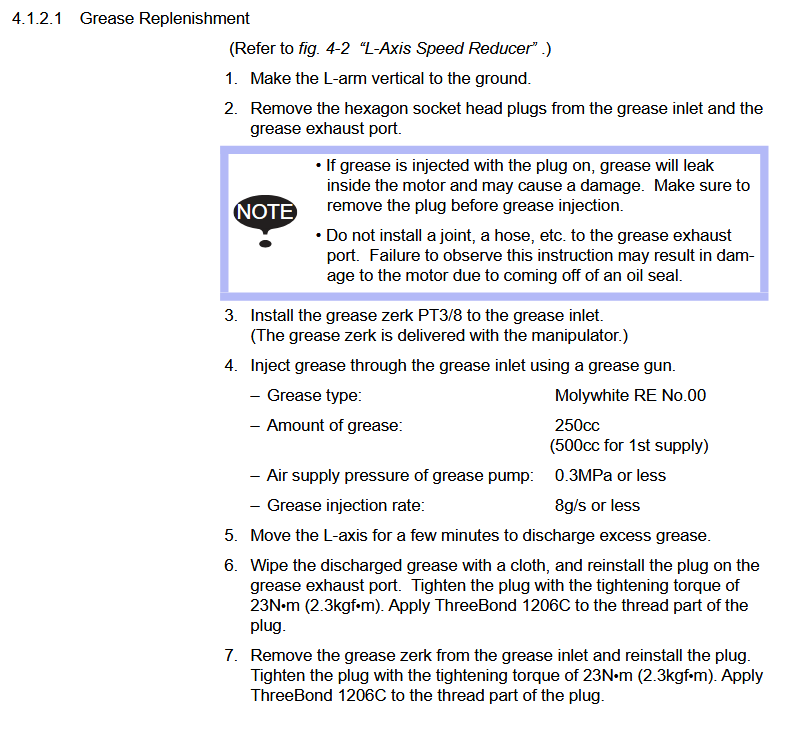

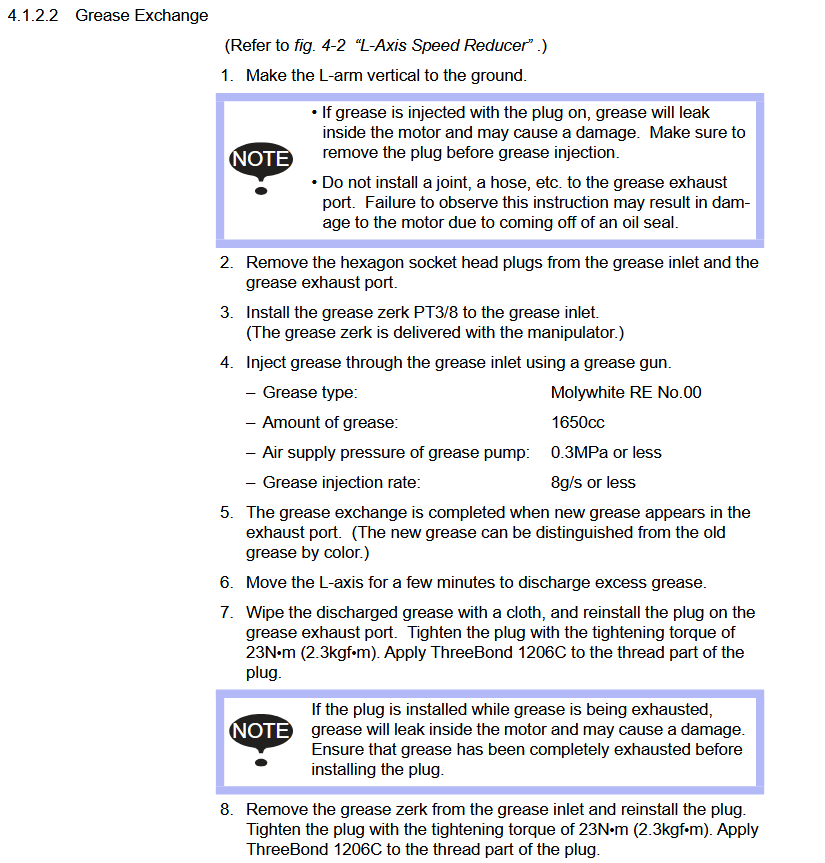

L-AXIS: 250cc

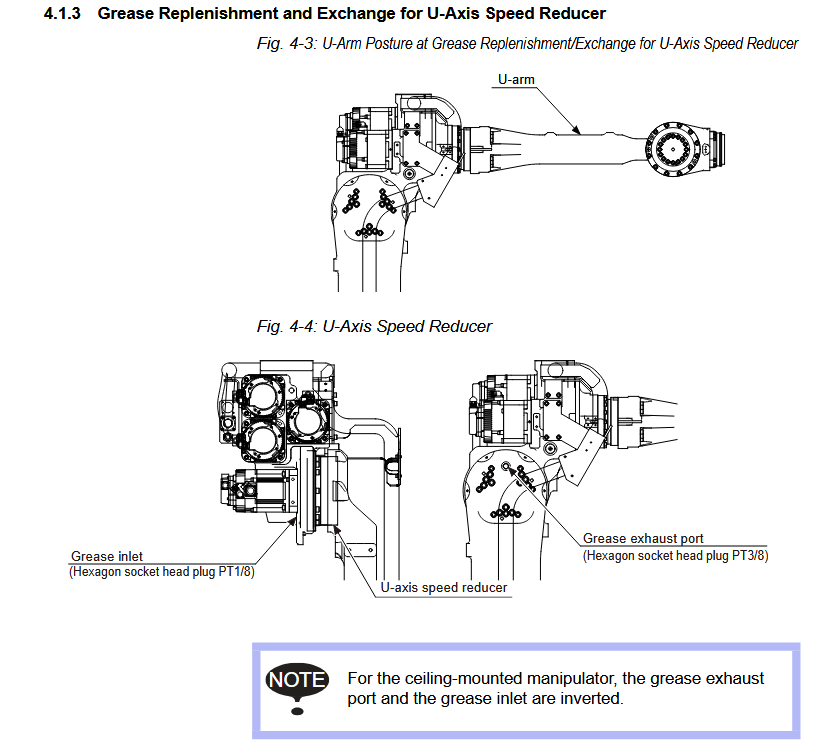

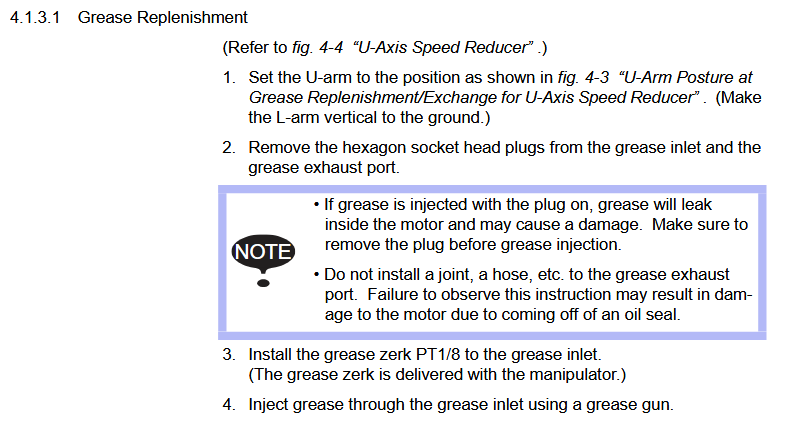

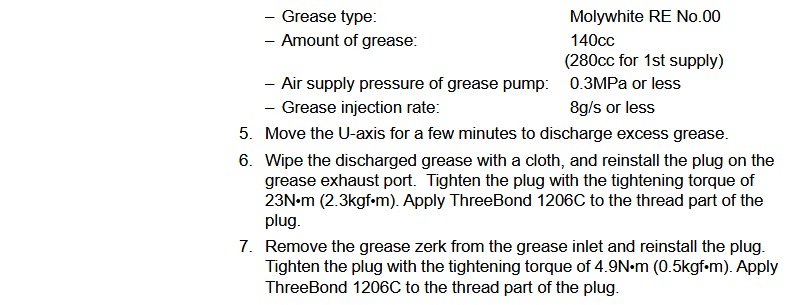

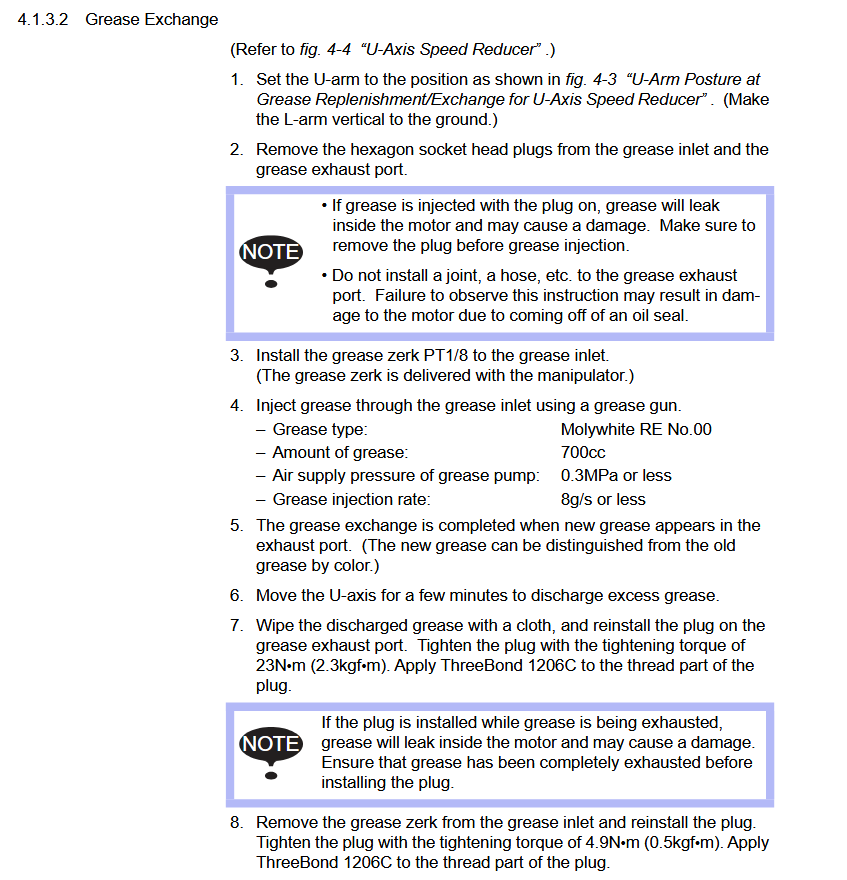

U-AXIS: 140cc

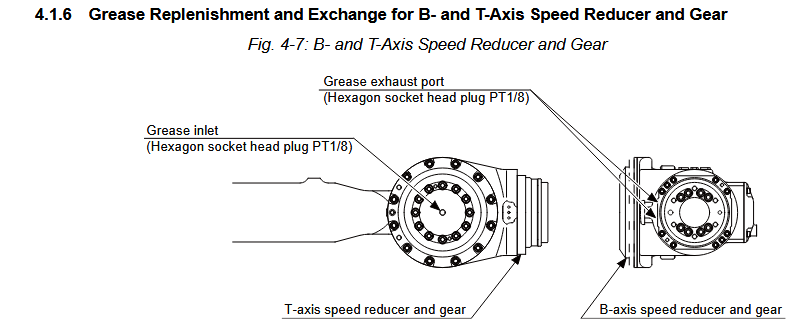

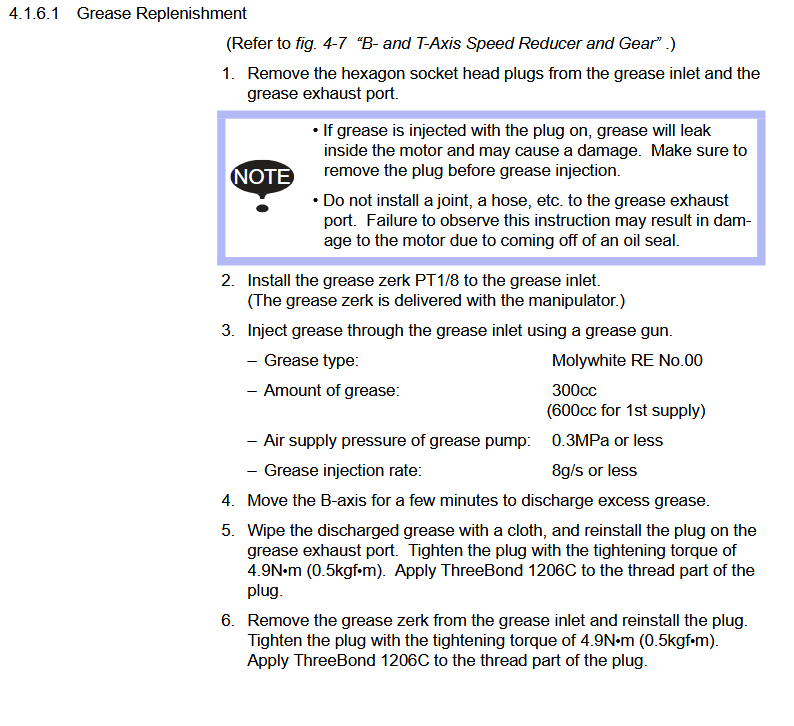

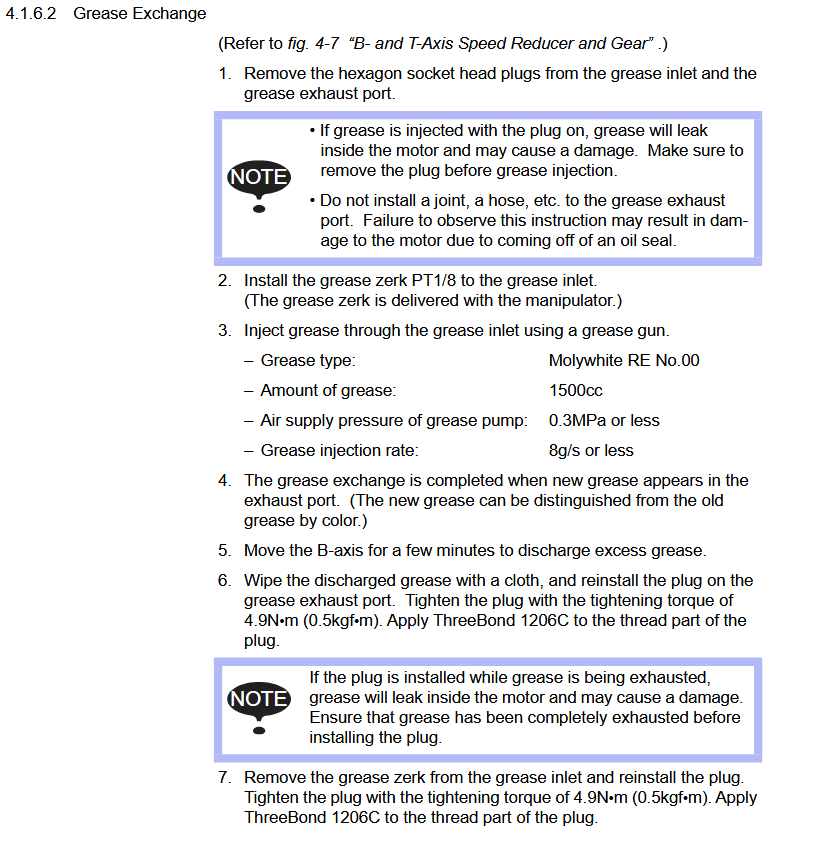

B AND T AXIS: 300cc
