Grease Procedure (PM) ES200RD-120 / YR-ES200RD-A10 Manipulator

Model Covered: YR-ES200RD-A10

Material Required:

MOLYWHITE RE NO. 00 132412-1

ALVANIA EP GREASE 2 132177-1

THREE BOND 1206C 479014-6

Amount Of Grease:

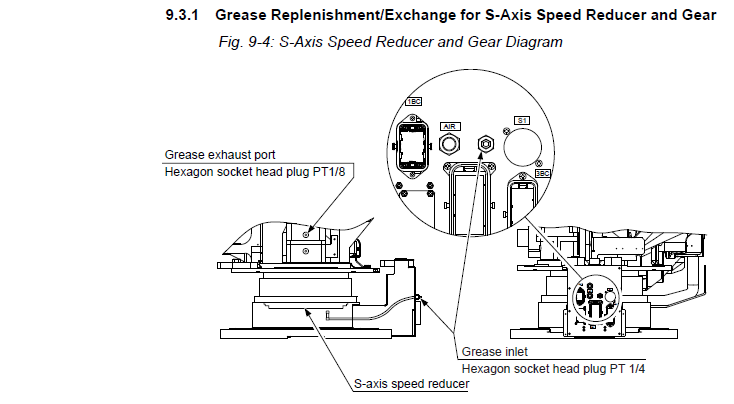

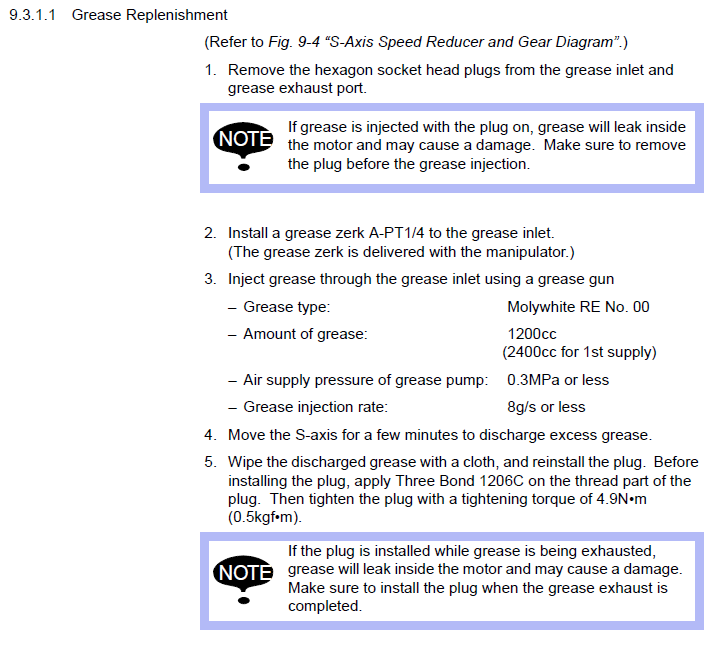

S-AXIS: 1200 cc Molywhite

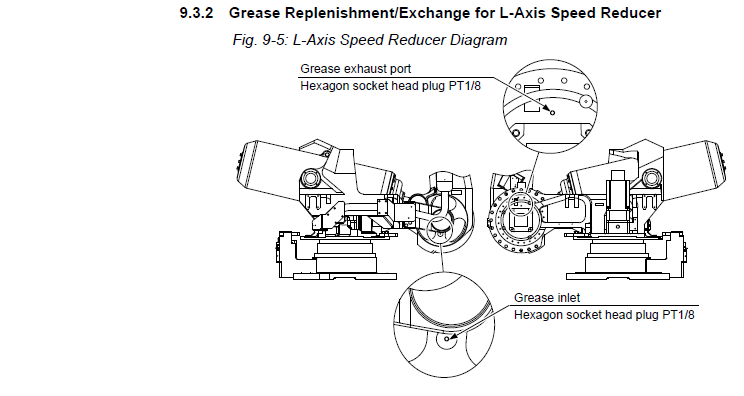

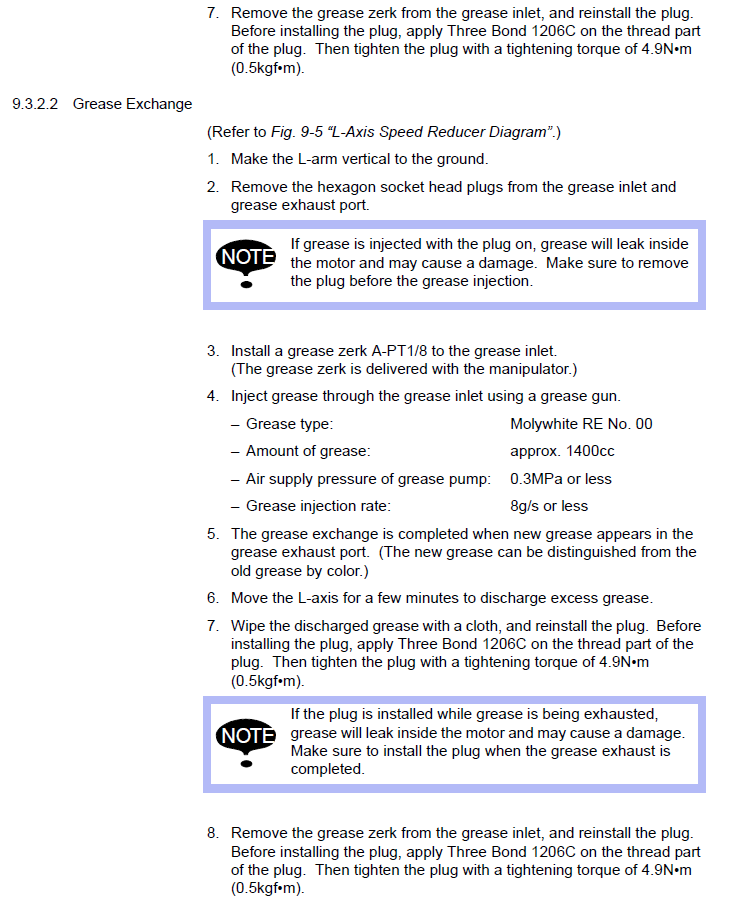

L-AXIS: 280 cc Molywhite

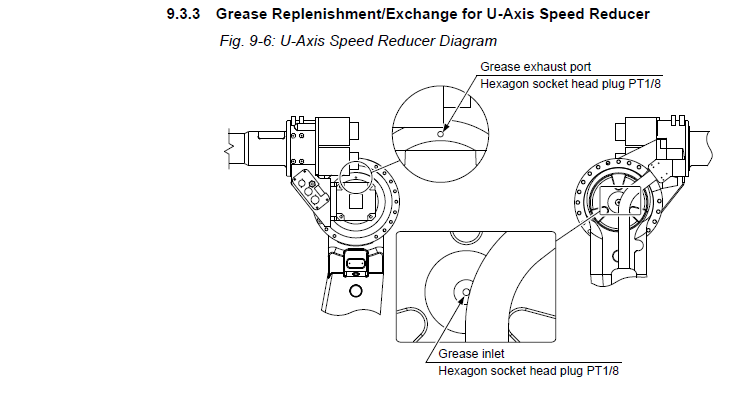

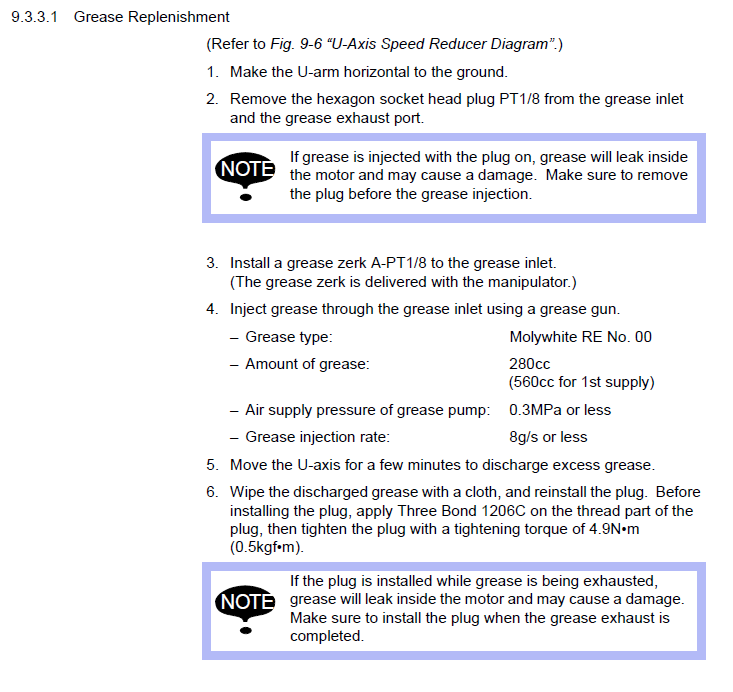

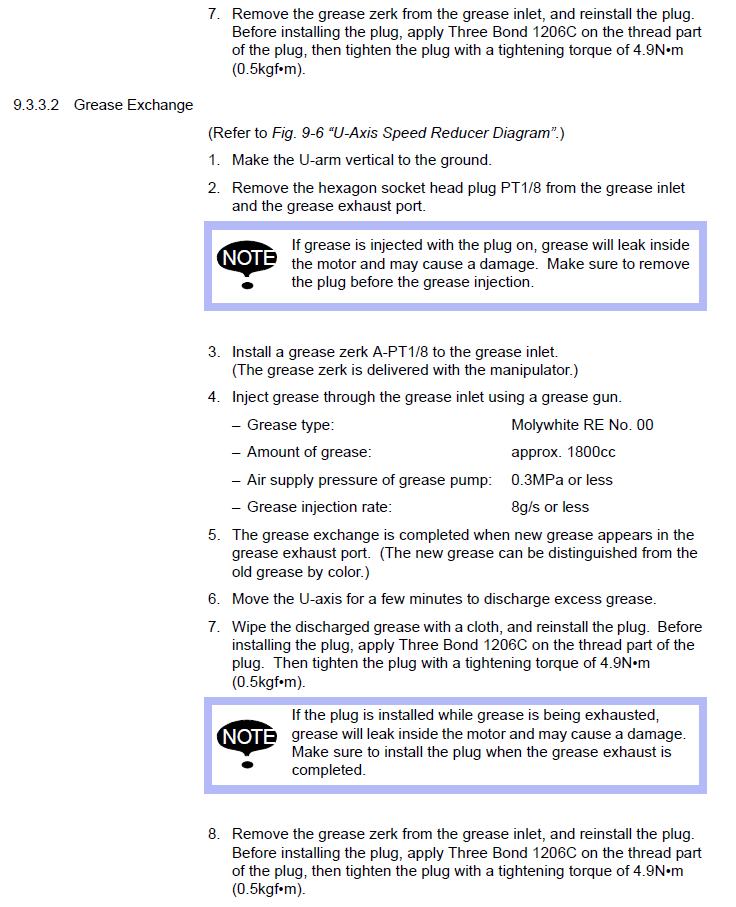

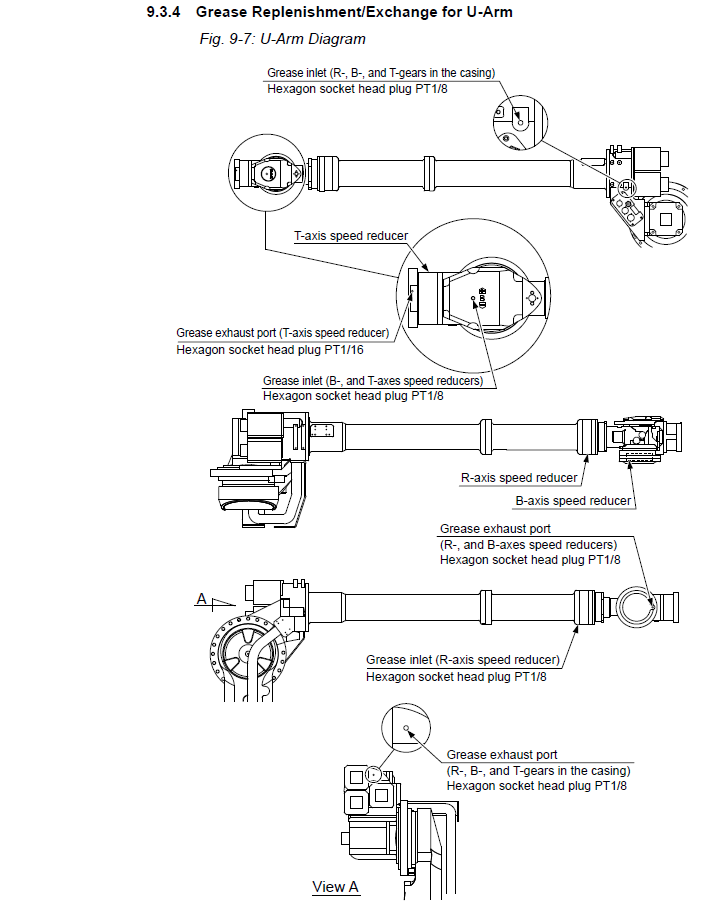

U-AXIS: 280 cc Molywhite

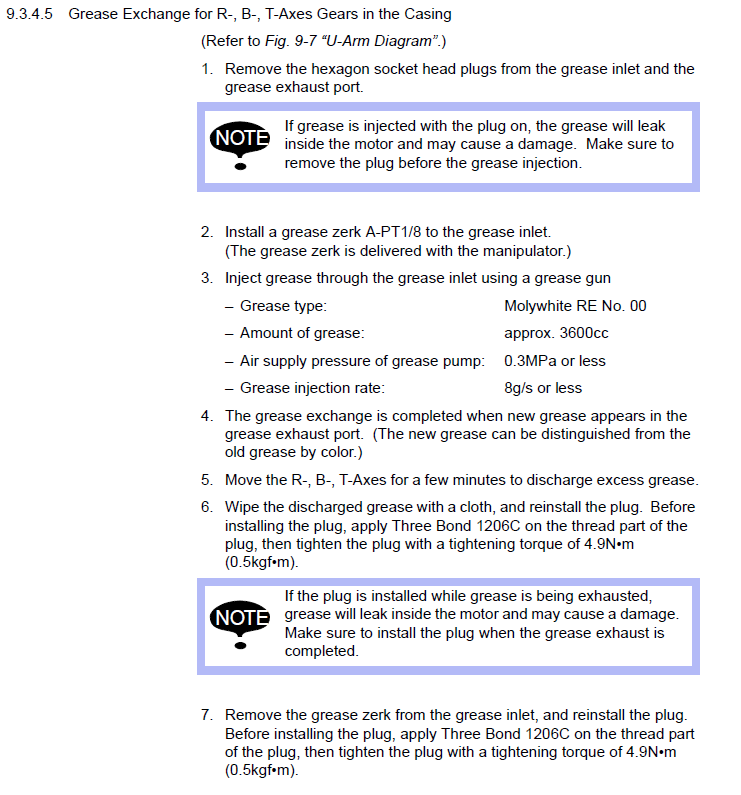

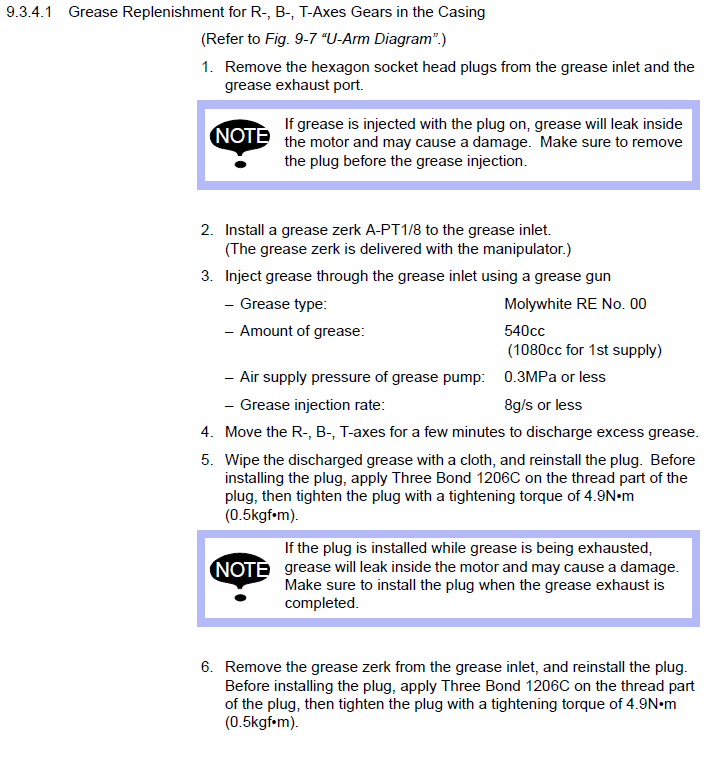

R,B,T AXES GEARS IN CASING: 540 cc Molywhite

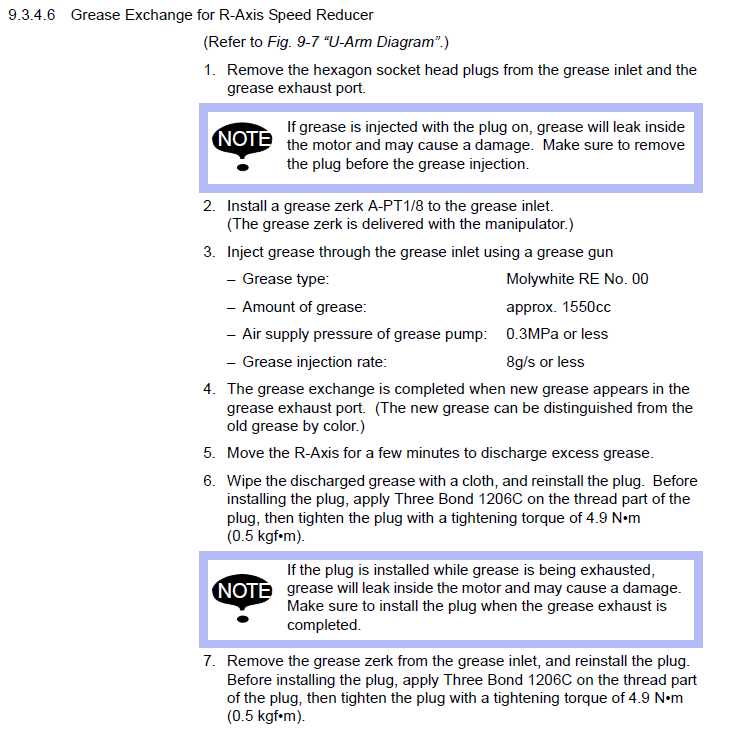

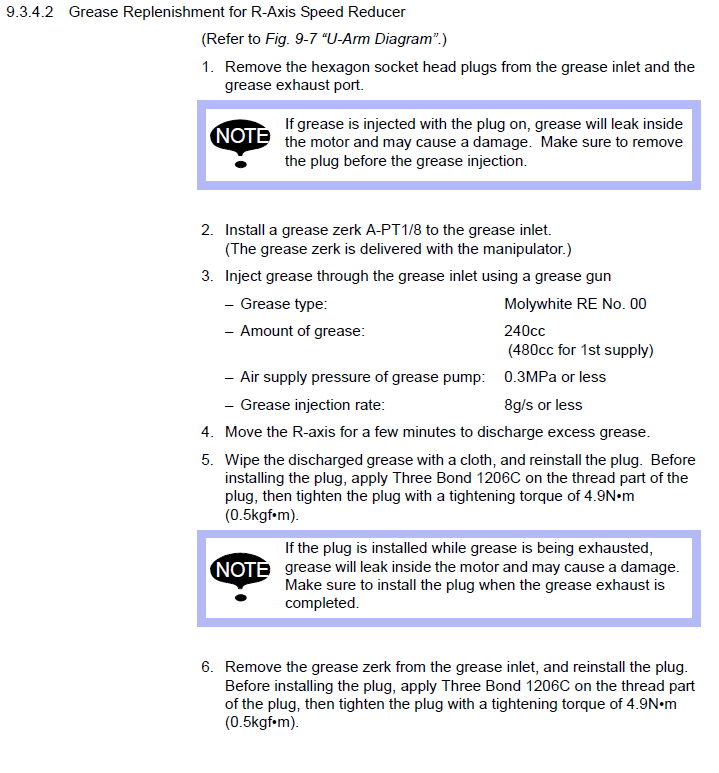

R-AXIS: 240 cc Molywhite

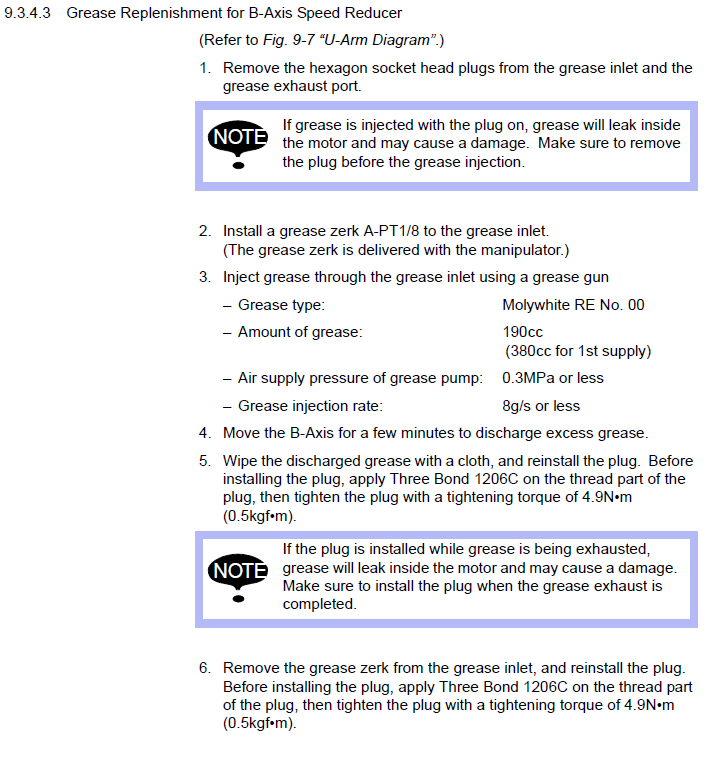

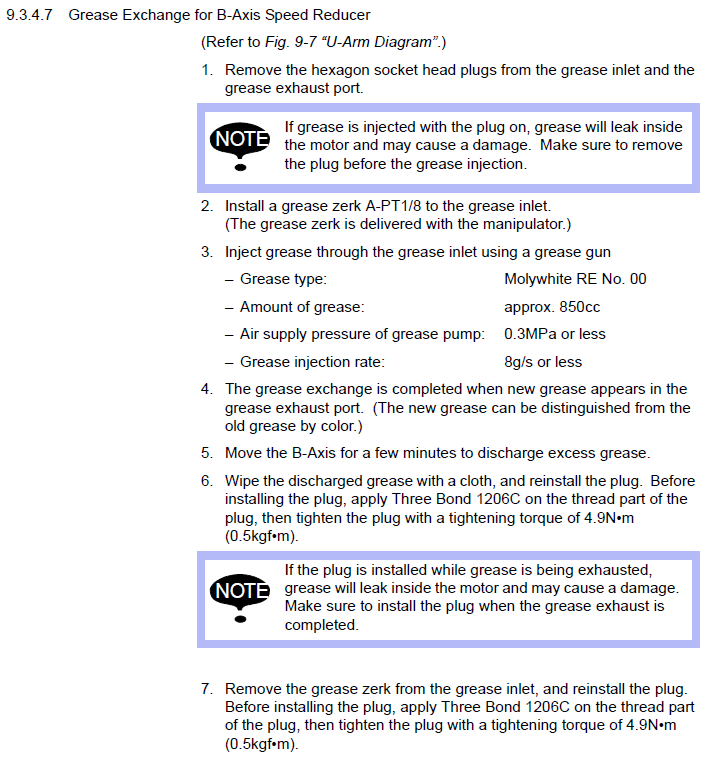

B-AXIS: 190 cc Molywhite

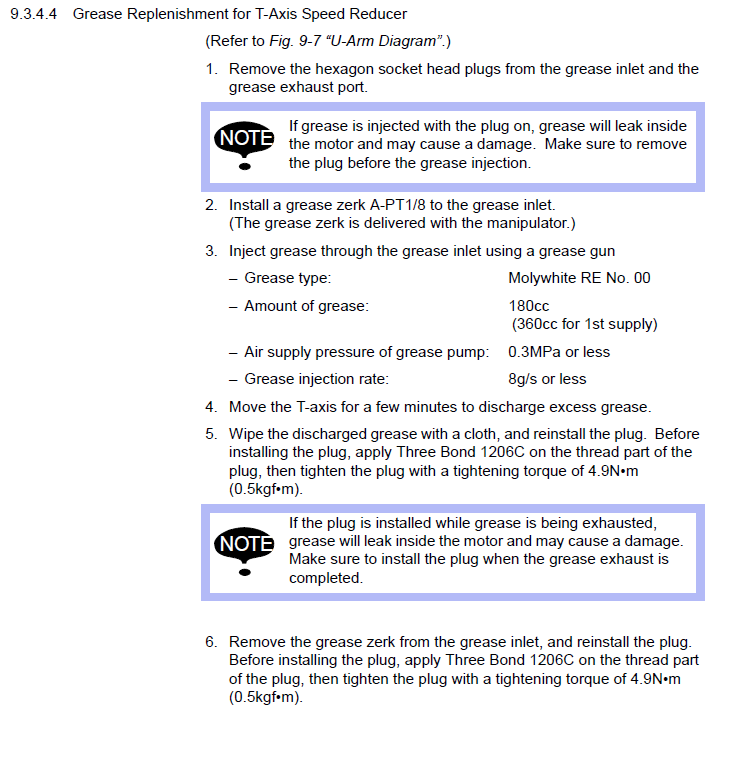

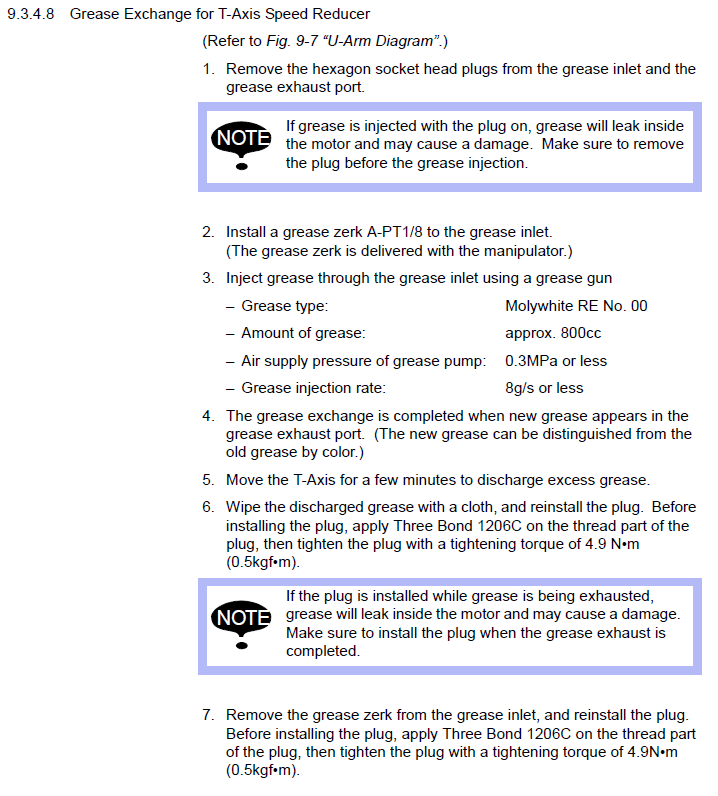

T-AXIS: 180 cc Molywhite
